Presentation Transcript
Lake effect thunder snows over the eastern great lakes l.jpg

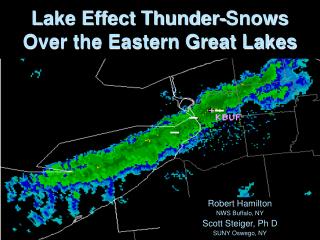

Lake Effect Thunder-Snows Over the Eastern Great Lakes

Robert Hamilton

NWS Buffalo, NY

Scott Steiger, Ph D

SUNY Oswego, NY


Slide2 l.jpg

Less than 1/10 of 1% of snowfall in the continental

United States is accompanied by thunder and lightning.

Curran and Pearson 1971


Slide3 l.jpg

20%

80%

Lake Effect Storms Over the Eastern Great Lakes

Surprisingly Efficient in Producing Lightning


Make up of data set l.jpg

NLDN

Make Up of Data Set…

Use of Spotter Reports from Dense Snow Spotter Network


Slide5 l.jpg

10 Years

130

Events


Slide6 l.jpg

+ + + + + +

+ + + + + +

- - - - - -

- - - - -

+ + + + + + +

+ + + +

+ + + + +

Ice particles

-40 C

-20 C

Supercooled droplets start To Nucleate around -10c

-10 C

Graupel Forms

Through Riming

0 C

Droplets form by

Condensation in Updraft


Parameters affecting lake effect thundersnow l.jpg
Parameters Affecting Lake Effect Thundersnow

  • Height of -10C .53 X

  • Lake Surface Temp .48 X

  • Height of Lake Induced EL .45 X

  • Lake Induced CAPE .28 X

  • Fetch (Lk Erie) .46 X

  • Shear…Band Type .93 X

Correlation

Coefficient (r)

t test

significance


Parameters affecting lake effect thundersnow8 l.jpg

Height of -10C

Birch

Dove

Parameters Affecting Lake Effect Thundersnow

…Moderate Correlation

…84% Difference Between

Ltg and Non-Ltg Events

…Supported by Previous Studies

by Schultz, Moore and Michimoto


Height of the lake induced equilibrium level l.jpg

On Average…Lake Induced

EL 37% higher for TSSN events

Height of the Lake Induced Equilibrium Level




Slide14 l.jpg

Long Fetch Across the

Axis of the Lake


Slide15 l.jpg

+

+

+

+

+

+

+

+

+

+

+

+

+

+

-

+

+

+

+

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

Finally….is the presence of lightning aided by close proximity charge concentrations between clouds?


Slide16 l.jpg

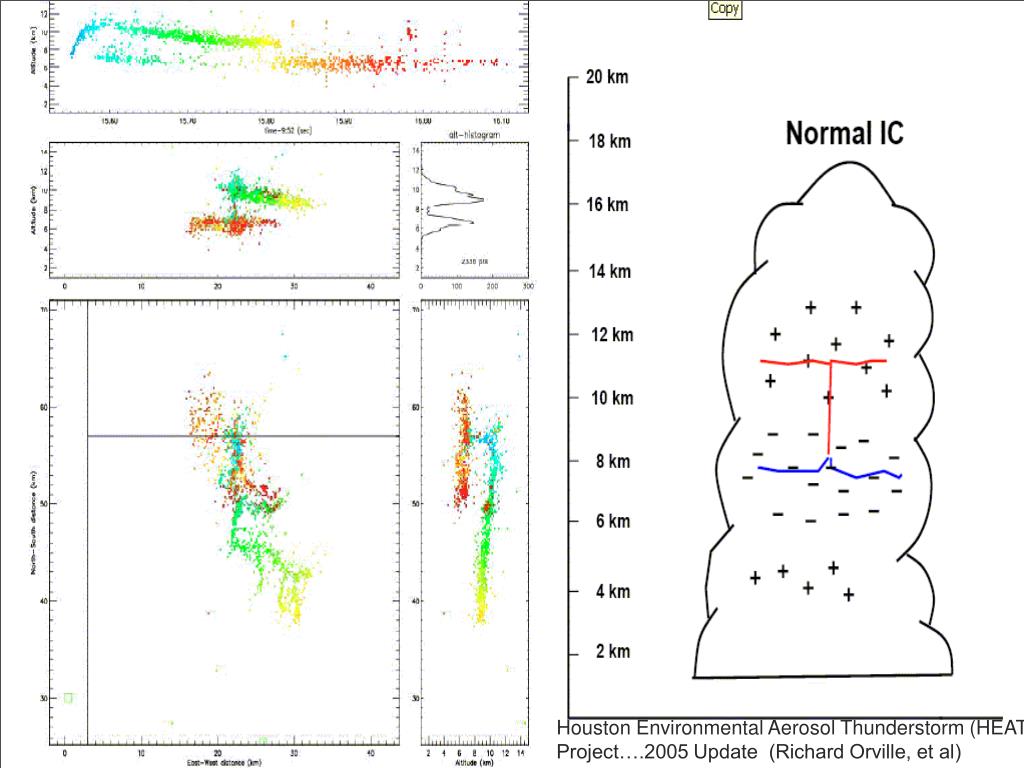

Houston Environmental Aerosol Thunderstorm (HEAT)

Project….2005 Update (Richard Orville, et al)


Slide17 l.jpg

Project EAGLLES

“Eastern Great Lakes Lake Effect Snow”

Headed up by Hobart and William Smith College

and the University of Illinois


Slide18 l.jpg

Likely

Not

Expected

Chance

Lightning

Non-Lightning

(Ft)
