Presentation Transcript
slide2
Practical 12.1Examination of the mammalian alimentary canal and its associated glands

Practical 12.2Investigation of the change in pH in the mouth before and after eating candies

Practical 12.3 Design an investigation of the action of digestive enzymes

Practical 12.4Investigation of the effect of bile salts on oil

slide3
Practical 12.5 Stimulation of digestion and absorption in the small intestine using a dialysis tubing

STS connection 12.1 Relation of diet, eating habit and oral hygiene to tooth decay

STS connection 12.2 ‘Fluoridated water’ versus ‘fluoride toothpaste with calcium’

Activity 12.3 Fate of food in our body

Exercise 12

Home

Back

Next

slide4
A Mouth

C Stomach

E Pancreas

G Iieum

I Liver

K Rectum

B Oesophagus

D Duodenum

F Appendix

H Caecum

J Colon

L Anus

12.1

Examination of the mammalian alimentary canal and its associated glands

Questions

1 Identify structures A to L.

ANS: 

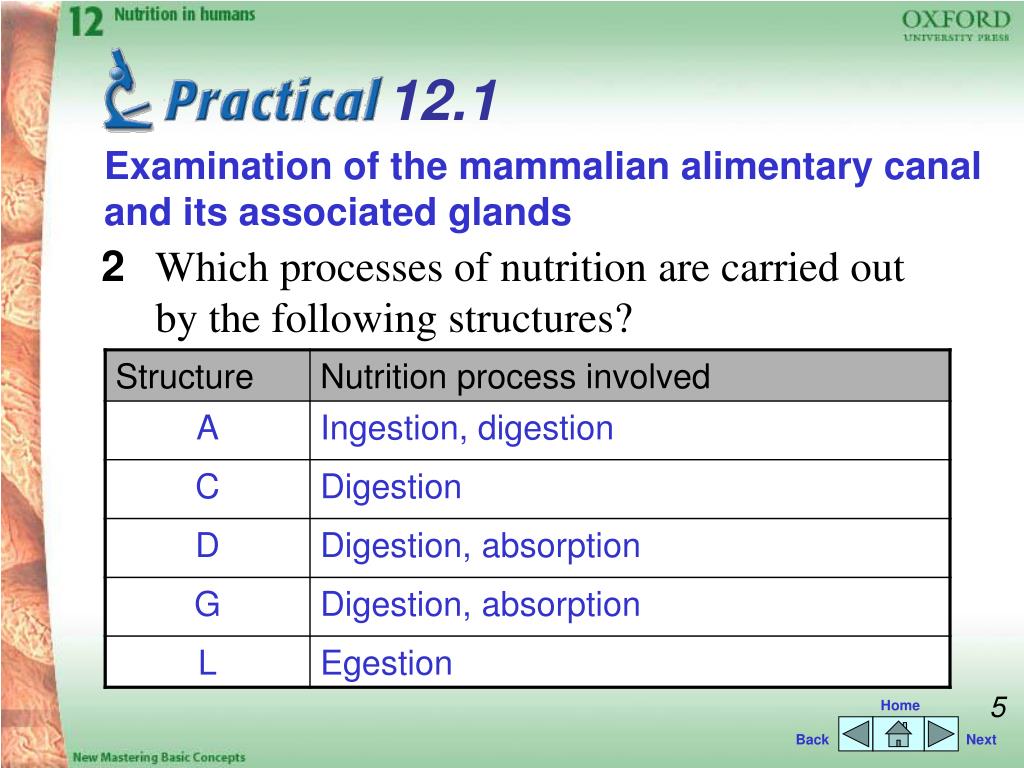

slide5
12.1

Examination of the mammalian alimentary canal and its associated glands

2 Which processes of nutrition are carried out by the following structures?

slide6
12.2

Investigation of the change in pH in the mouth before and after eating candies

Questions

1 Account for the change in pH after eating the candy.

ANS: 

The oral bacteria convert sugars in the candy to acids. These acids lower the pH of the plaque.

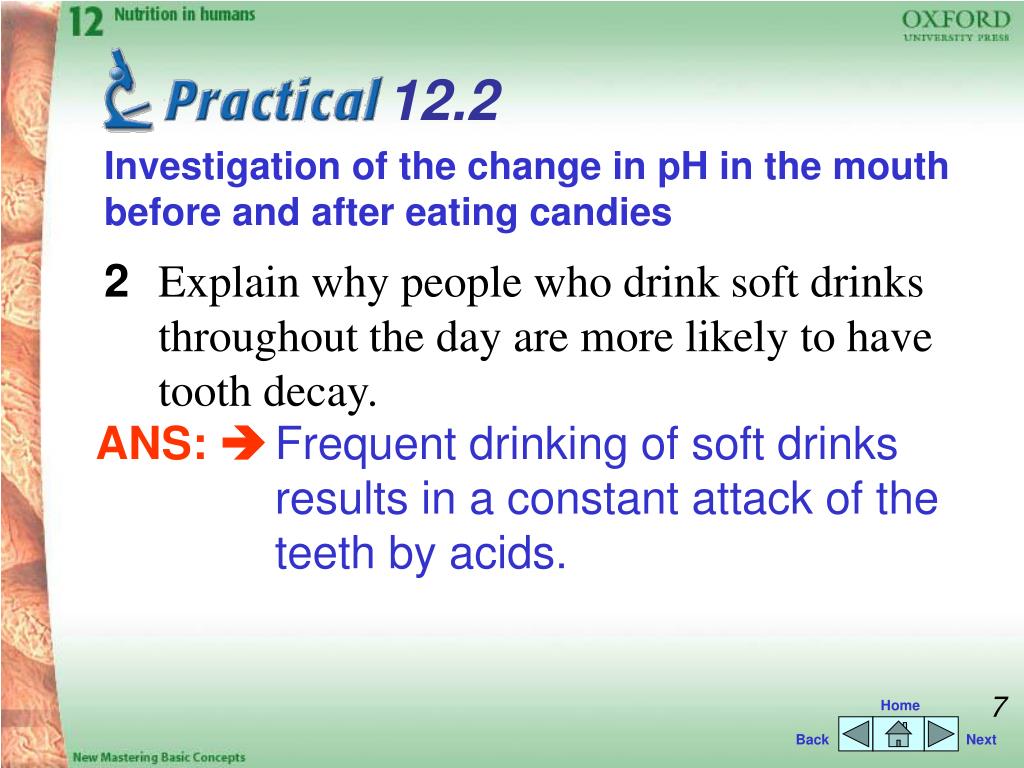

slide7
12.2

Investigation of the change in pH in the mouth before and after eating candies

2 Explain why people who drink soft drinks throughout the day are more likely to have tooth decay.

ANS: 

Frequent drinking of soft drinks results in a constant attack of the teeth by acids.

slide8
12.2

Investigation of the change in pH in the mouth before and after eating candies

3 Why does the chewing of sugar-free gum may help prevent tooth decay?

ANS: 

It stimulates the secretion of saliva which can wash off the acids from the plaque and neutralize the acids.

slide9
12.2

Investigation of the change in pH in the mouth before and after eating candies

4 Suggest three ways to reduce the chance of having tooth decay.

ANS: 

Eat fewer sugary foods.

Brush the teeth after eating to remove any food debris.

Avoid frequent snacking.

slide10
12.2

Investigation of the change in pH in the mouth before and after eating candies

Conclusion

What conclusion about the effect of eating candies on the change in pH in the mouth can you draw from this practical?

ANS: 

Eating candies can lead to a drop in pH in the mouth when the sugars are converted to acids by the oral bacteria.

slide11
12.3

Design an investigation of the action of digestive enzymes

Design and perform an experiment

1 At which temperature are you going to conduct your experiment? Why?

ANS: 

37。C. To simulate the body temperature at which pepsin works well.

slide12
12.3

Design an investigation of the action of digestive enzymes

2 What are the controlled variables in this experiment?

ANS: 

Number and size of egg white cubes, temperature and total volume of solution, etc.

slide13
12.3

Design an investigation of the action of digestive enzymes

3 What is the independent variable in this experiment?

ANS: 

The solutions in the test tubes.

4 What is the dependent variable in this experiment?

ANS: 

The disappearence of egg white cubes.

slide14
12.3

Design an investigation of the action of digestive enzymes

5 What are the controls in this experiment?

ANS: 

A test tube with an egg white cube, hydrochloric acid and distilled water. A test tube with an egg white cube, sodium carbonate solution and distilled water. A test tube with an egg white cube and distilled water.

slide15
12.3

Design an investigation of the action of digestive enzymes

6 How are you going to record and present the results?

ANS: 

(Answer varies with Ss.)

slide16
12.3

Design an investigation of the action of digestive enzymes

7 How can you obtain faster results?

ANS: 

Provide a higher temperature, use smaller egg white cubes instead of a large one, raise the egg white cube from the bottom of the test tube by using a toothpick, etc.

slide17
12.3

Design an investigation of the action of digestive enzymes

8 How can you make sure that the results are reliable?

ANS: 

Repeat the experiment a few more times.

slide18
12.3

Design an investigation of the action of digestive enzymes

9 What precautions should be taken?

ANS: 

Make sure that the egg white cubes are well covered with the added solution. Handle hydrochloric acid and sodium carbonate solution with care because they are corrosive.

slide19
12.3

Design an investigation of the action of digestive enzymes

Write an experimental report

Objective

ANS: 

To investigate the action of pepsin in protein digestion.

slide20
12.3

Design an investigation of the action of digestive enzymes

Procedure

1. Cut the egg white of the hard-boiled egg into 6 small cubes of length 0.5 cm and put 1 in each of the 6 test tubes.

slide21
12.3

Design an investigation of the action of digestive enzymes

slide22
12.3

Design an investigation of the action of digestive enzymes

2. Leave the test tubes in a water bath at 37oC overnight.

3. Observe and note any changes in the size and appearance of the egg white cube in each test tube.

slide23
12.3

Design an investigation of the action of digestive enzymes

Results

slide24
12.3

Design an investigation of the action of digestive enzymes

Analysis and discussion

1 From the results obtained, deduce where pepsin can be found in the digestive system.

ANS: 

Stomach.

2 Which class of enzymes does pepsin belong to?

ANS: 

Protease.

slide25
12.3

Design an investigation of the action of digestive enzymes

3 What are produced as a result of protein digestion by pepsin?

ANS: 

Peptides.

4 An Albustix paper is dipped into the pepsin solution. Will the result be positive or negative? Why?

ANS: 

Positive. Pepsin is a protein and it changes the colour of the test end of the paper strip.

Home

Back

Next

slide26
12.3

Design an investigation of the action of digestive enzymes

5 What are the possible sources of errors in this experiment? Suggest ways for improvement.

ANS: 

(Answer varies with the design.)

slide27
12.3

Design an investigation of the action of digestive enzymes

Conclusion

ANS: 

Pepsin digests proteins in an acidic medium.

slide28
12.4

Investigation of the effect of bile salts on oil

Questions

1 Explain the differences in results when the oil is mixed with distilled water instead of bile salt solution.

ANS: 

Water cannot break down oil into very tiny droplets as the bile salt solution does. Therefore, no emulsion /emulsified fluid is formed and two layers of liquids can be seen.

Home

Back

Next

slide29
12.4

Investigation of the effect of bile salts on oil

Conclusion

What conclusion can you draw from this practical?

ANS: 

Bile salts can break down fats into very tiny droplets. It is an emulsifying agent.

slide30
12.5

Simulation of digestion and absorption in the small intestine using a dialysis tubing

Questions

1 Why should we wash the outside of the tubing thoroughly with tap water before putting it into the beaker?

ANS: 

Starch molecules on the outside of the tubing will affect the result. Washing the tubing ensures no such starch molecules are present.

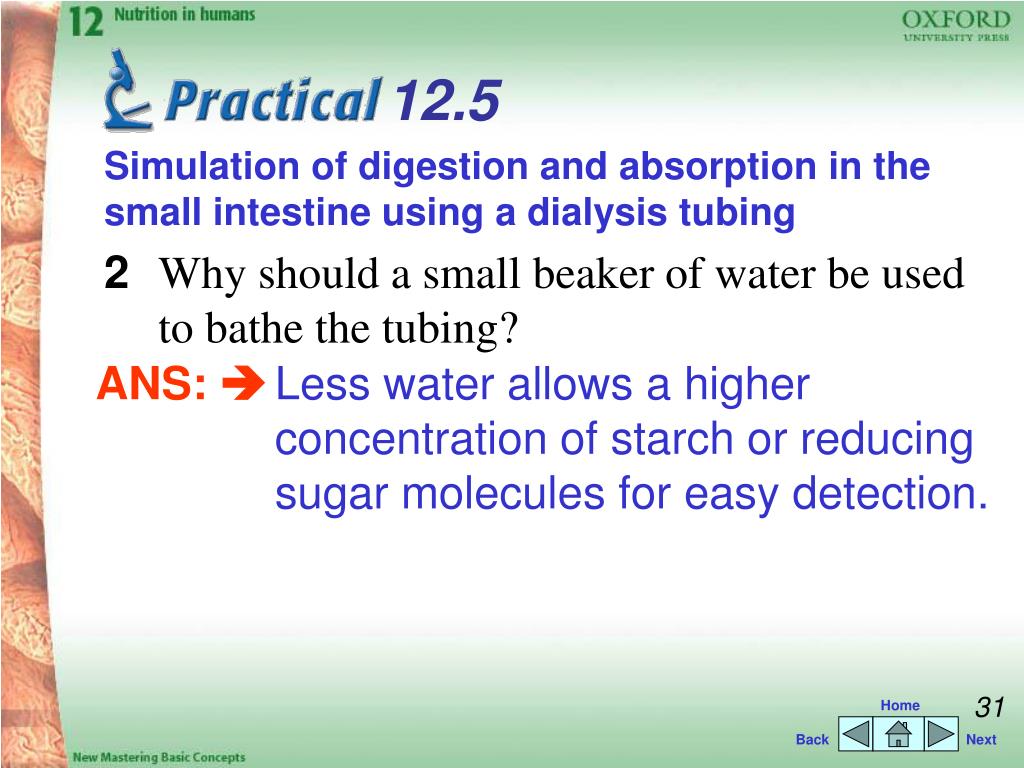

slide31
12.5

Simulation of digestion and absorption in the small intestine using a dialysis tubing

2 Why should a small beaker of water be used to bathe the tubing?

ANS: 

Less water allows a higher concentration of starch or reducing sugar molecules for easy detection.

slide32
12.5

Simulation of digestion and absorption in the small intestine using a dialysis tubing

3 For the following parts of the model, indicate which parts of the human body they represent.

slide33
12.5

Simulation of digestion and absorption in the small intestine using a dialysis tubing

4 From the results, which substance is found in the water surrounding the tubing? Account for its presence.

ANS: 

Reducing sugar (maltose) is found. Amylase digests starch into maltose. Maltose molecules are small enough to pass through the tubing and diffuse into the surrounding water,

(To be continued.)

Home

Back

Next

slide34
12.5

Simulation of digestion and absorption in the small intestine using a dialysis tubing

…… continued from previous page

whereas the large starch molecules are retained by the tubing.

slide35

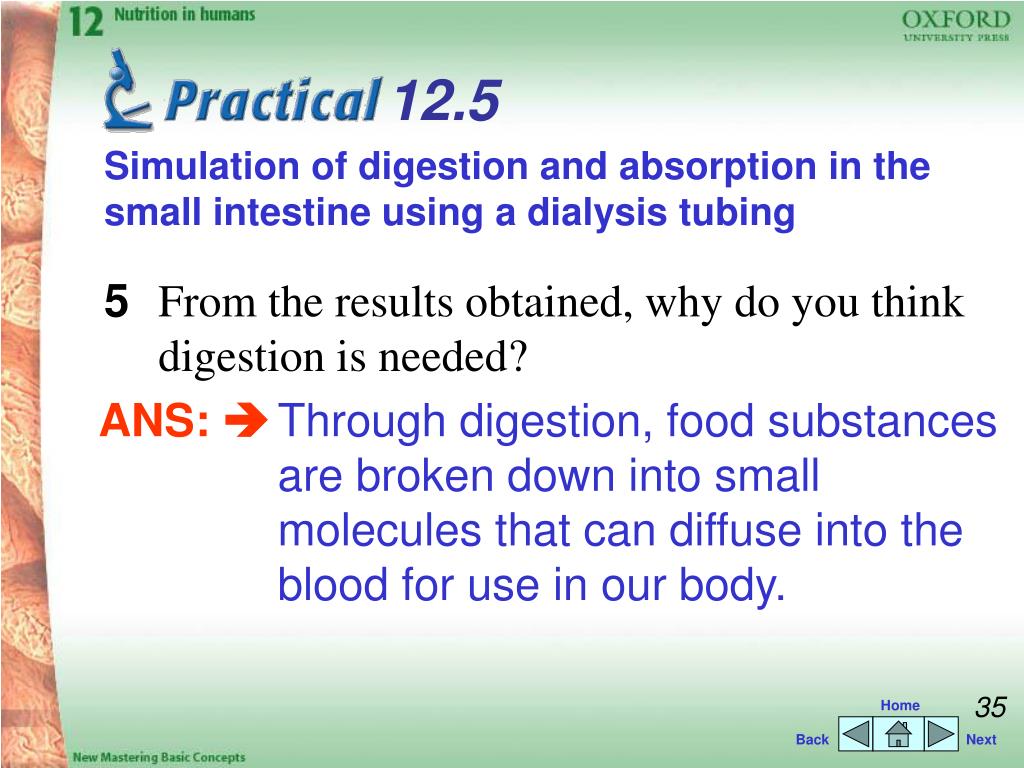

12.5

Simulation of digestion and absorption in the small intestine using a dialysis tubing

5 From the results obtained, why do you think digestion is needed?

ANS: 

Through digestion, food substances are broken down into small molecules that can diffuse into the blood for use in our body.

slide36
12.5

Simulation of digestion and absorption in the small intestine using a dialysis tubing

6 Comment on the limitations of this model in demonstrating digestion and absorption in the small intestine.

ANS: 

Maltose molecules are not small enough to pass through the small intestine.The small intestine can secrete enzymes but the model cannot. (To be continued.)

slide37
12.5

Simulation of digestion and absorption in the small intestine using a dialysis tubing

…… continued from previous page

The small intestine shows peristalsis but the model does not.There are many types of food molecules in the small intestine apart from starch.The food molecules have to pass through more than one layer of cells instead of only one layer of tubing.The blood is enclosed in blood vessels.

slide38
12.5

Simulation of digestion and absorption in the small intestine using a dialysis tubing

7 Suggest some methods to obtain faster results.

ANS: 

Diffusion rate of the reducing sugar molecules can be increased by stirring the surrounding water and using a water bath at a higher temperature. (To be continued.)

slide39
12.5

Simulation of digestion and absorption in the small intestine using a dialysis tubing

…… continued from previous page

More concentrated solutions of starch and amylase can be used to speed up the reaction rate.

slide40
12.1

Relation of diet, eating habit and oral hygiene to tooth decay

Task 1

1 Tooth decay is more common in molars. Why?

ANS: 

It is because food debris is easily trapped between the cusps and in the pits. Moreover, the toothbrush is difficult to reach the molars at the sides of the jaws to brush off the food debris.

slide41
12.1

Relation of diet, eating habit and oral hygiene to tooth decay

2 Will foods rich in starch, such as bread and crackers, cause tooth decay? Explain your answer.

ANS: 

Yes. Starch is broken down into sugars by the salivary amylase. These sugars can be used by the oral bacteria to produce acids.

slide42
12.1

Relation of diet, eating habit and oral hygiene to tooth decay

3 The dentist suggested Kenny not to eat too many raisins. Do you know the reasons?

ANS: 

Raisins contain sugars which can be used by the oral bacteria to produce acids. Raisins are sticky and they tend to stay on the teeth. The longer the exposure of the sugary food to the oral bacteria, the more the acids will be produced.

Home

Back

Next

slide43
12.1

Relation of diet, eating habit and oral hygiene to tooth decay

4 How should Kenny change his snacking habit to prevent tooth decay?

ANS: 

Snack on foods such as milk, cheese or apple that are good for teeth. Limit the period of time taking the snack. Reduce the number of snacking between meals, serve as desserts during meals as far as possible.

slide44
12.1

Relation of diet, eating habit and oral hygiene to tooth decay

5 If you were the dentist, what would you suggest to Kenny for keeping good oral hygiene?

ANS: 

Use dental floss to remove food debris that is not easily brushed off by the toothbrush.

Have a dental check-up twice a year.

slide45
12.2

‘Fluoridated water’ versus ‘fluoride tooth paste with calcium’

Task

1 Suggest why fluoridated water is particularly beneficial to the low-income people.

ANS: 

The low-income people are less likely to have regular dental check-up and practise good oral hygiene by using the oral care products. (To be continued.)

slide46
12.2

‘Fluoridated water’ versus ‘fluoride tooth paste with calcium’

…… continued from previous page

Drinking fluoridated water is an inexpensive way to prevent tooth decay.

slide47

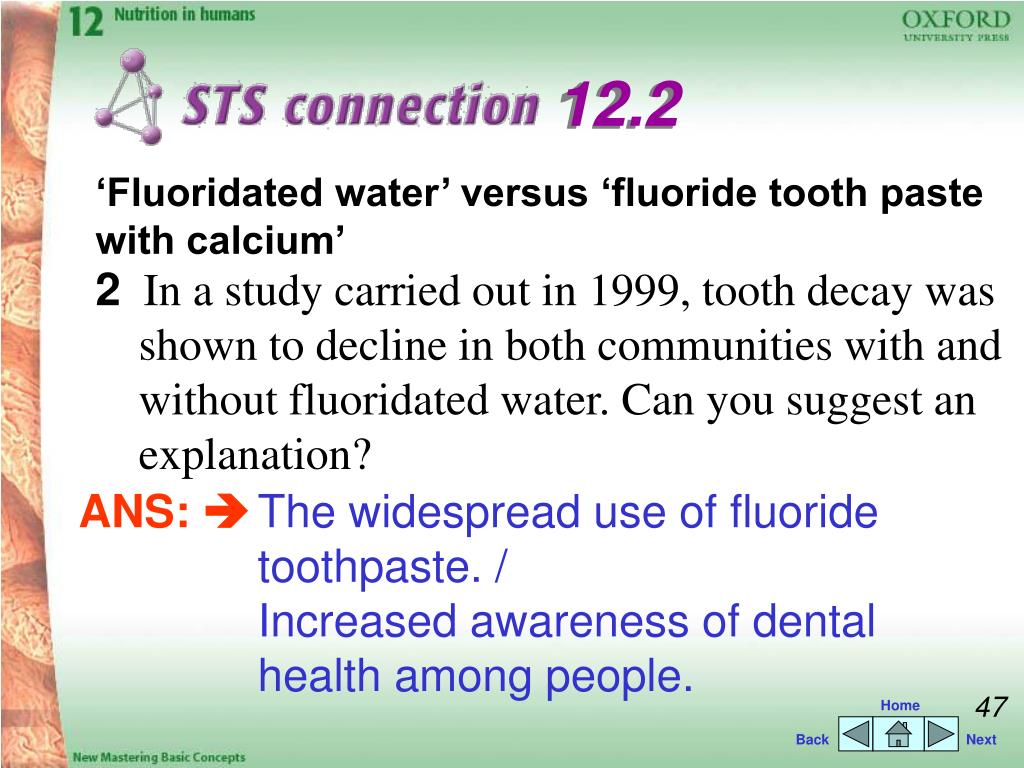

12.2

‘Fluoridated water’ versus ‘fluoride tooth paste with calcium’

2 In a study carried out in 1999, tooth decay was shown to decline in both communities with and without fluoridated water. Can you suggest an explanation?

ANS: 

The widespread use of fluoride toothpaste. /

Increased awareness of dental health among people.

slide48
12.2

‘Fluoridated water’ versus ‘fluoride tooth paste with calcium’

3 Do you think the addition of calcium to fluoride toothpaste can offer ‘extra’ protection?

ANS: 

Yes. It increases the amount of calcium in the saliva. This drives the equilibrium towards the replacement of the mineral to the enamel. (To be continued.)

slide49
12.2

‘Fluoridated water’ versus ‘fluoride tooth paste with calcium’

…… continued from previous page

/ No. The calcium does not stay long in the mouth to produce an effect.

slide50
12.2

‘Fluoridated water’ versus ‘fluoride tooth paste with calcium’

4 Would you suggest fluoridated water or fluoride toothpaste with calcium to a 3-year old child? Explain your choice.

ANS: 

Fluoridated water. It offers longer-lasting protection and is cheap. The child may swallow the toothpaste if he brushes his teeth with toothpaste. (To be continued.)

Home

Back

Next

slide51
12.2

‘Fluoridated water’ versus ‘fluoride tooth paste with calcium’

…… continued from previous page

/ Fluoride toothpaste with calcium. It provides faster protection. Calcium offers extra protection.

slide52
12.2

‘Fluoridated water’ versus ‘fluoride tooth paste with calcium’

5 Do you prefer drinking fluoridated water or distilled water in relation to the health of your teeth? Explain your choice.

ANS: 

Fluoridated water. Distilled water has little fluoride, thus there is a higher chance of getting tooth decay. (To be continued.)

slide53
12.2

‘Fluoridated water’ versus ‘fluoride tooth paste with calcium’

…… continued from previous page

/ Distilled water. Distilled water is cleaner and fluoride can still be obtained from other sources, such as toothpaste and mouth rinse.

slide54
Activity

12.3

Fate of food in our body

Questions

1 Why cannot the whole LEGO cart be passed to the second group?

ANS: 

The cart is too big to pass through the holes in the cardboard.

2 Which process of nutrition does the disassembling of the LEGO cart into LEGO bricks represent?

ANS: 

Digestion.

slide55
Activity

12.3

Fate of food in our body

3 Which process of nutrition does the passing of the LEGO bricks through the holes represent?

ANS: 

Absorption.

4 Which parts of the LEGO cart cannot be passed to the second group? State the reason.

ANS: 

The wheels of the cart. They are too big to pass through the holes in the cupboard and cannot be disassembled further.

Home

Back

Next

slide56
Activity

12.3

Fate of food in our body

5 How does the first group handle those parts in 4? Which process of nutrition does this represent?

ANS: 

Discard them. This represents egestion.

6 Which process of nutrition does the building of the LEGO bricks into new toys represent?

ANS: 

Assimilation.

slide57
Activity

12.3

Fate of food in our body

7 Which part of our body does the cardboard represent?

ANS: 

The intestinal wall of the small intestine.

ad
