Infant Incubator ZII-A50

Zimed infant incubator offers microcomputer control with air and baby modes for precise care. It features an LCD for storing, checking, and adjusting parameters like humidityand oxygen levels. Equipped with an X-ray cassette under the bassinet and a low-noise system.<br>

Alissa3
Download Presentation

Infant Incubator ZII-A50

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Infant Incubator ZII-A50

  2. Infant Incubator ZII-A50 Infant Incubator ZII-A50 is a microcomputer-controlled device with air mode and baby mode for effective incubation. It delivers air temperature control range of 25 ? to 37 ? and baby temperature control range of 34 ? to 37 ?. Designed with LCD for storage, checking and modifications of the parameters like humidity and oxygen concentration level for the convenience of the user. Equipped with X ray cassette under the bassinet with low noise system and RS-232 connector for transmission of data. Features: Air mode and baby control mode for the operation of the incubator LCD display for storage, checking and modification of parameters Humidity and oxygen concentrations are displayed on the display for reliability Temperature can be set for more than 37 ? Air circulation with outlet in front and back of the tool Failure alarm indications for the high efficiency of the experiments Adjustable height of the incubator for ease of the operator RS-232 data interface for output of the data Low noise for efficient working environment Integrated sensor module and water reservoir in drawer shape Adjustable inclination for the bassinet Applications: Infant Incubator is widely used for maintaining the desired temperature for premature babies in hospitals.

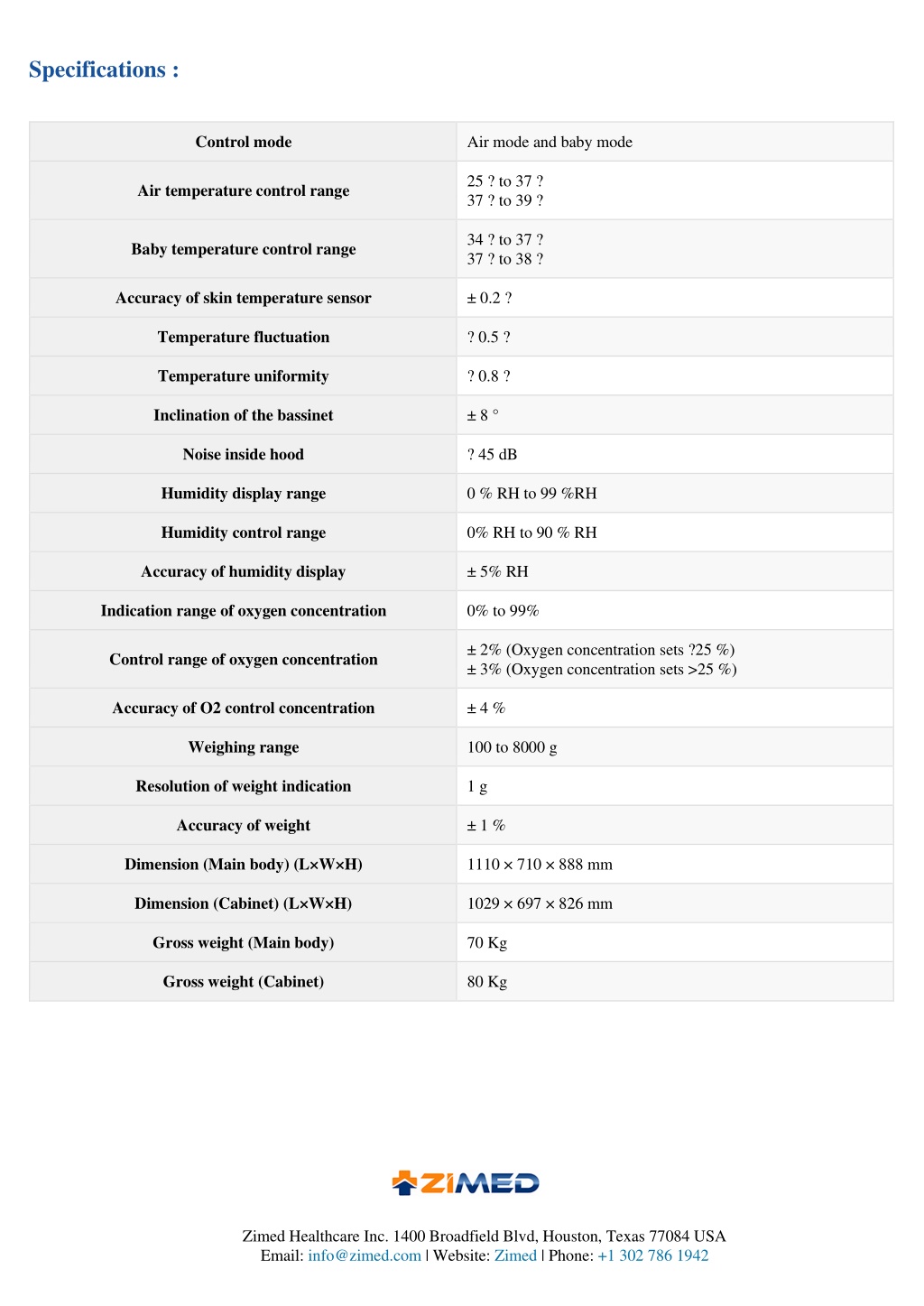

  3. Specifications : Control mode Air mode and baby mode 25 ? to 37 ? 37 ? to 39 ? Air temperature control range 34 ? to 37 ? 37 ? to 38 ? Baby temperature control range Accuracy of skin temperature sensor ± 0.2 ? Temperature fluctuation ? 0.5 ? Temperature uniformity ? 0.8 ? Inclination of the bassinet ± 8 ° Noise inside hood ? 45 dB Humidity display range 0 % RH to 99 %RH Humidity control range 0% RH to 90 % RH Accuracy of humidity display ± 5% RH Indication range of oxygen concentration 0% to 99% ± 2% (Oxygen concentration sets ?25 %) ± 3% (Oxygen concentration sets >25 %) Control range of oxygen concentration Accuracy of O2 control concentration ± 4 % Weighing range 100 to 8000 g Resolution of weight indication 1 g Accuracy of weight ± 1 % Dimension (Main body) (L×W×H) 1110 × 710 × 888 mm Dimension (Cabinet) (L×W×H) 1029 × 697 × 826 mm Gross weight (Main body) 70 Kg Gross weight (Cabinet) 80 Kg Zimed Healthcare Inc. 1400 Broadfield Blvd, Houston, Texas 77084 USA Email: info@zimed.com | Website: Zimed | Phone: +1 302 786 1942
