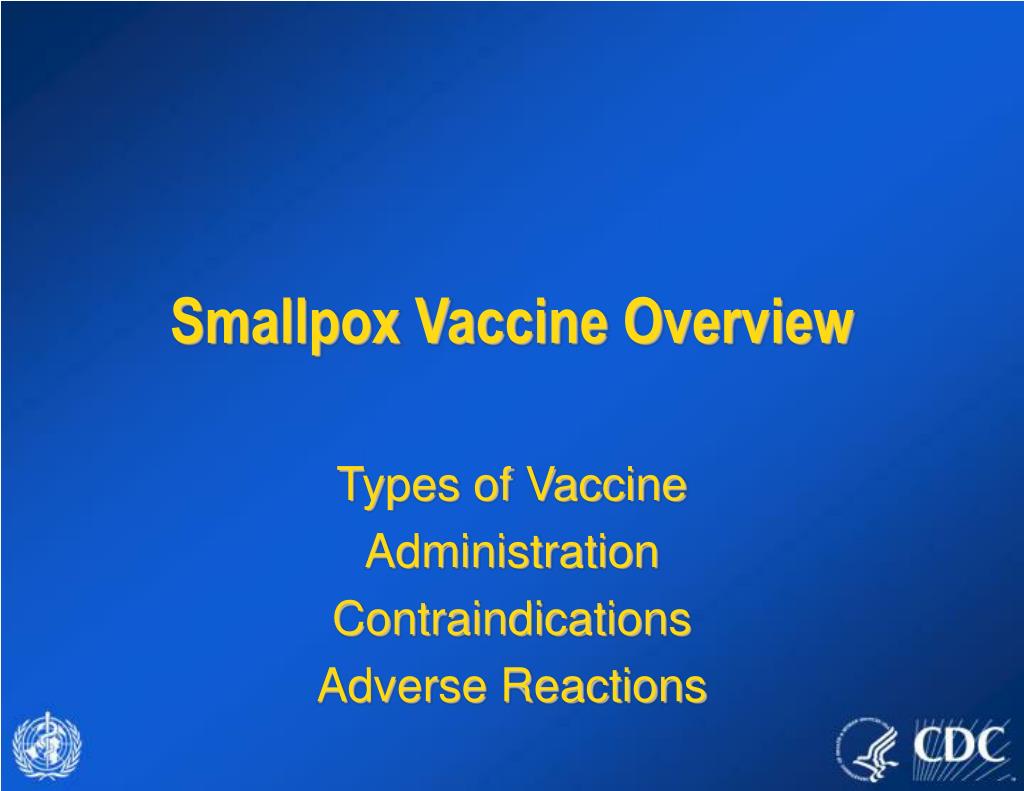

smallpox vaccine overview

Smallpox Vaccine Overview

Types of Vaccine

Administration

Contraindications

Adverse Reactions

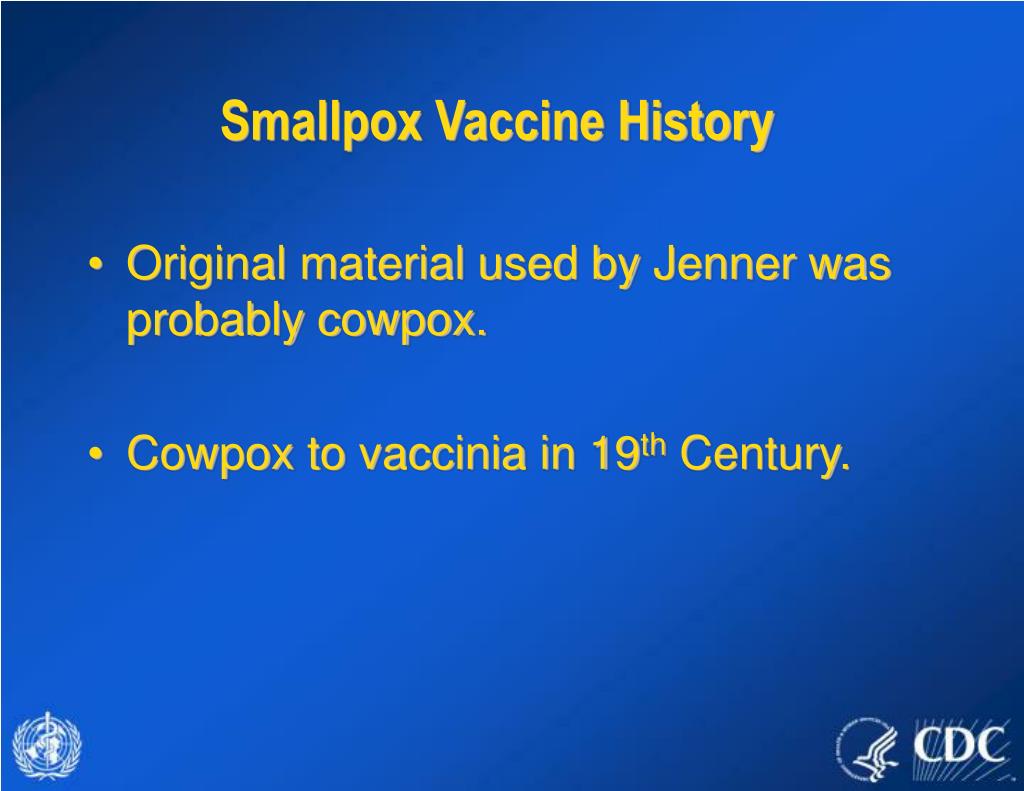

smallpox vaccine history
Smallpox Vaccine History
  • Original material used by Jenner was probably cowpox.
  • Cowpox to vaccinia in 19th Century.
vaccinia virus

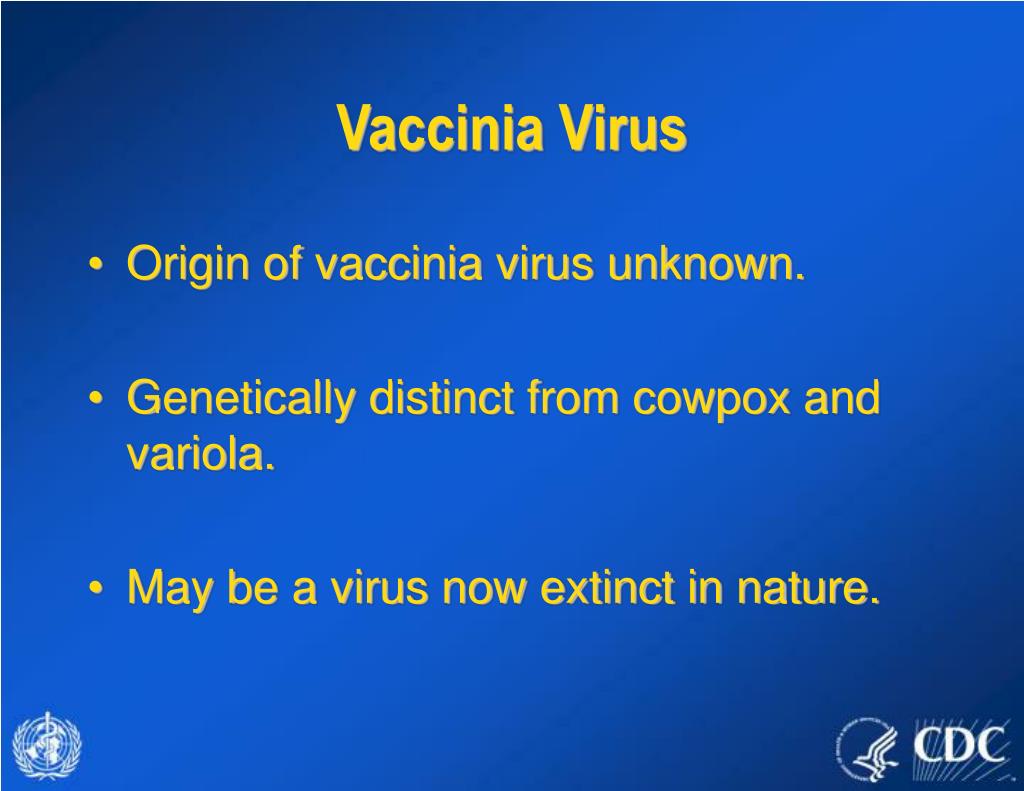

Vaccinia Virus
  • Origin of vaccinia virus unknown.
  • Genetically distinct from cowpox and variola.
  • May be a virus now extinct in nature.

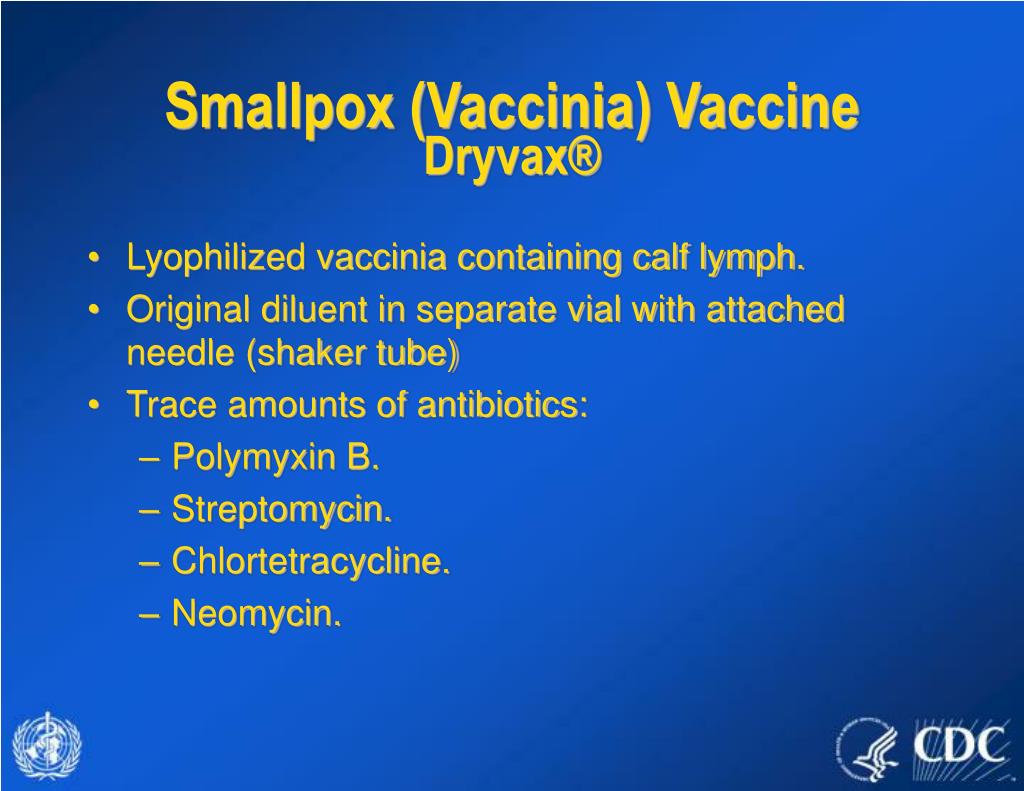

smallpox vaccinia vaccine dryvax
Smallpox (Vaccinia) VaccineDryvax®
  • Lyophilized vaccinia containing calf lymph.
  • Original diluent in separate vial with attached needle (shaker tube)
  • Trace amounts of antibiotics:
    • Polymyxin B.
    • Streptomycin.
    • Chlortetracycline.
    • Neomycin.

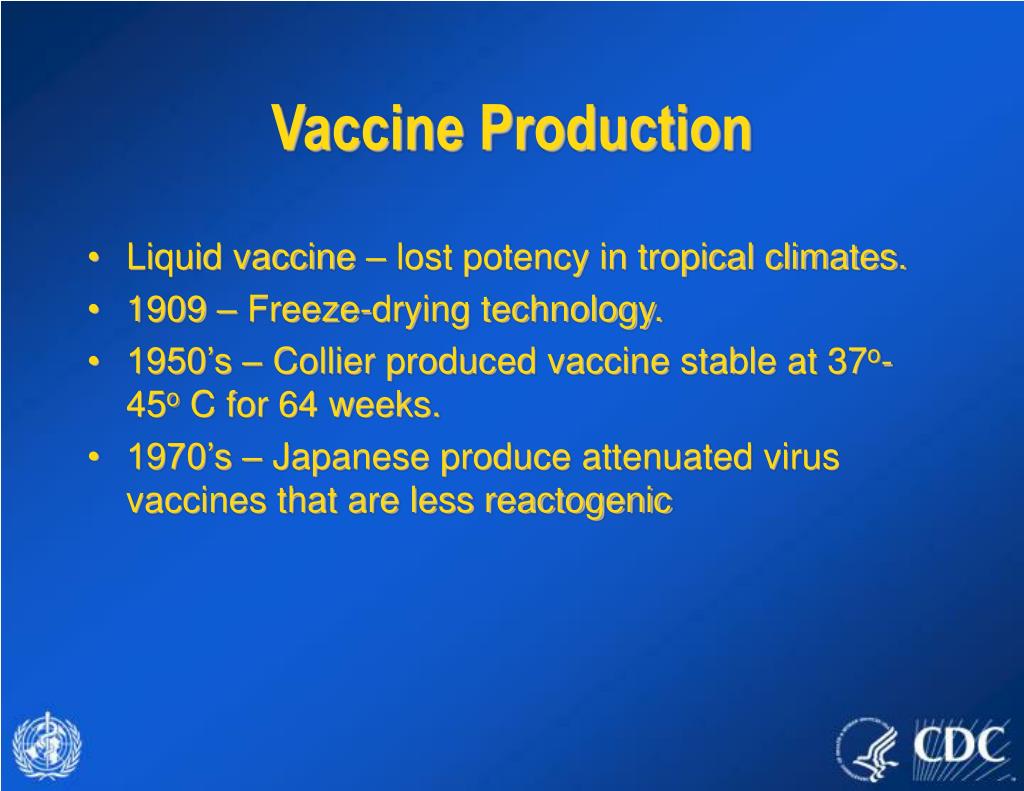

vaccine production
Vaccine Production
  • Liquid vaccine – lost potency in tropical climates.
  • 1909 – Freeze-drying technology.
  • 1950’s – Collier produced vaccine stable at 37o-45o C for 64 weeks.
  • 1970’s – Japanese produce attenuated virus vaccines that are less reactogenic
vaccine production1
Vaccine Production
  • Grown on skin of calves, sheep, water buffalo.
  • Lesions harvested before crusting:
    • Maximizes viral titer.
  • Pulp ground.
  • Mixed with 40%-60% glycerol.
  • Distributed in glass capillary tubes.
dryvax vaccine storage and handling check manufacturer s instructions

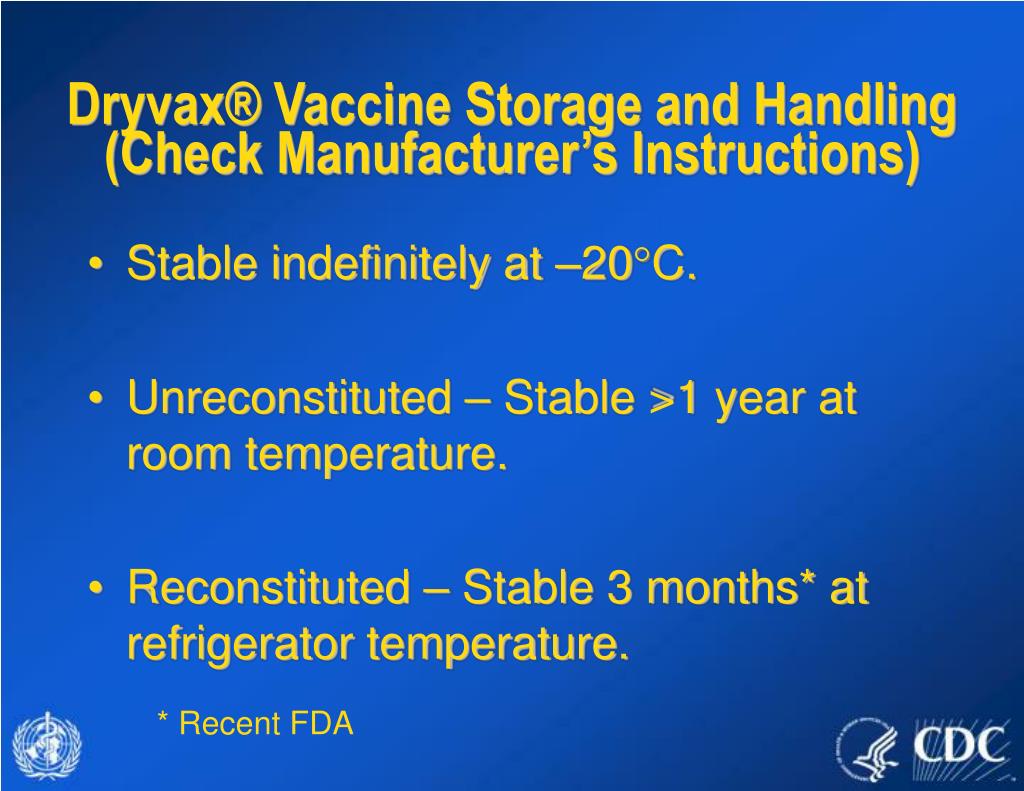

Dryvax® Vaccine Storage and Handling(Check Manufacturer’s Instructions)
  • Stable indefinitely at –20°C.
  • Unreconstituted – Stable >1 year at room temperature.
  • Reconstituted – Stable 3 months* at refrigerator temperature.

* Recent FDA

dryvax smallpox vaccinia vaccine administration schedule occupational
Dryvax Smallpox (Vaccinia) VaccineAdministration Schedule - Occupational

Schedule:

  • 1 Successful Dose >18 years of age.

Revaccination:

  • 10 Years - nonhighly-attenuated vaccinia and recombinants.
  • 3 Years – highly attenuated orthopoxviruses.

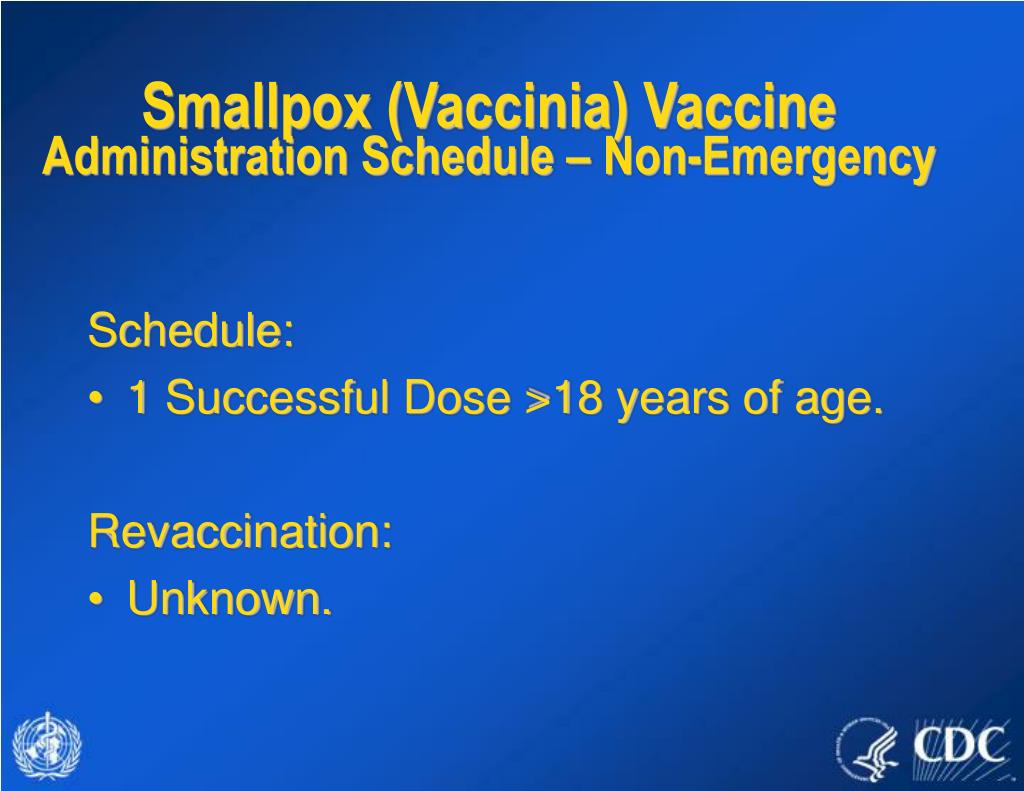

smallpox vaccinia vaccine administration schedule non emergency
Smallpox (Vaccinia) VaccineAdministration Schedule – Non-Emergency

Schedule:

  • 1 Successful Dose >18 years of age.

Revaccination:

  • Unknown.

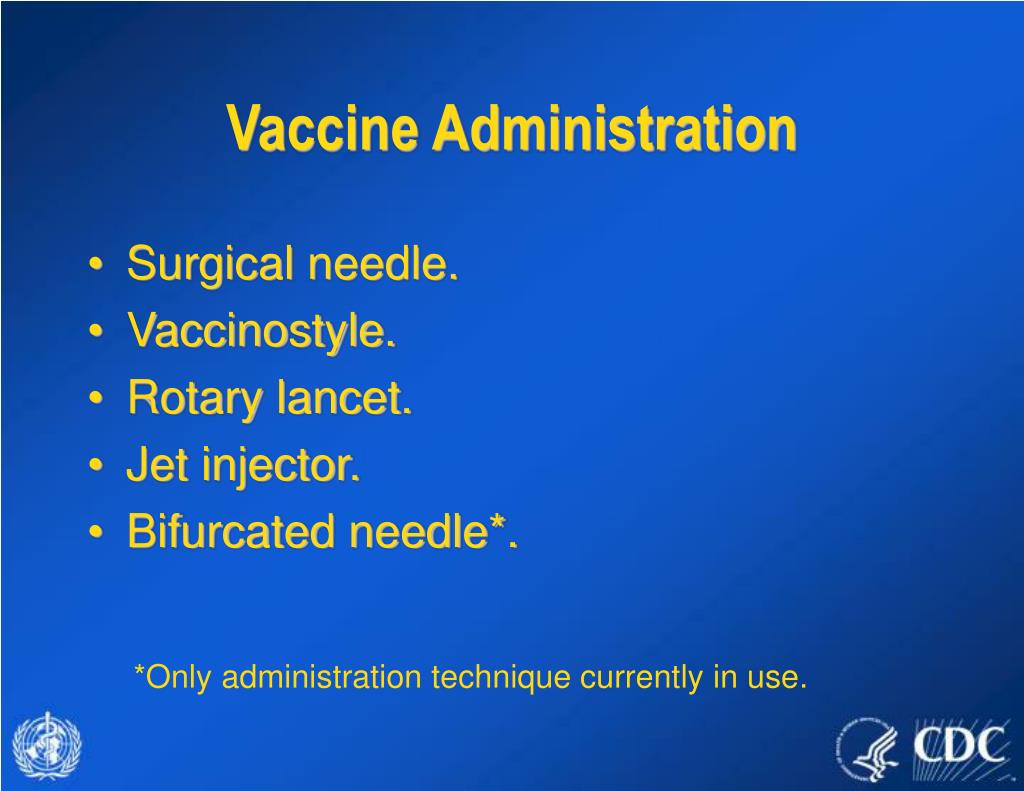

vaccine administration
Vaccine Administration
  • Surgical needle.
  • Vaccinostyle.
  • Rotary lancet.
  • Jet injector.
  • Bifurcated needle*.

*Only administration technique currently in use.

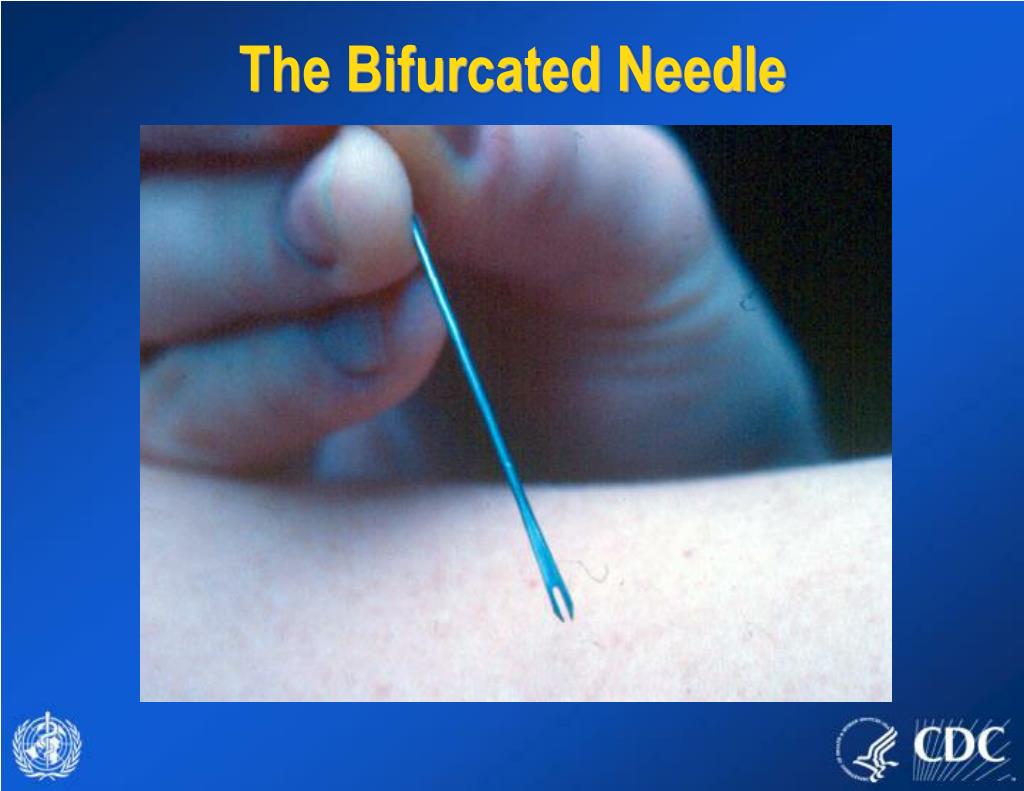

slide15

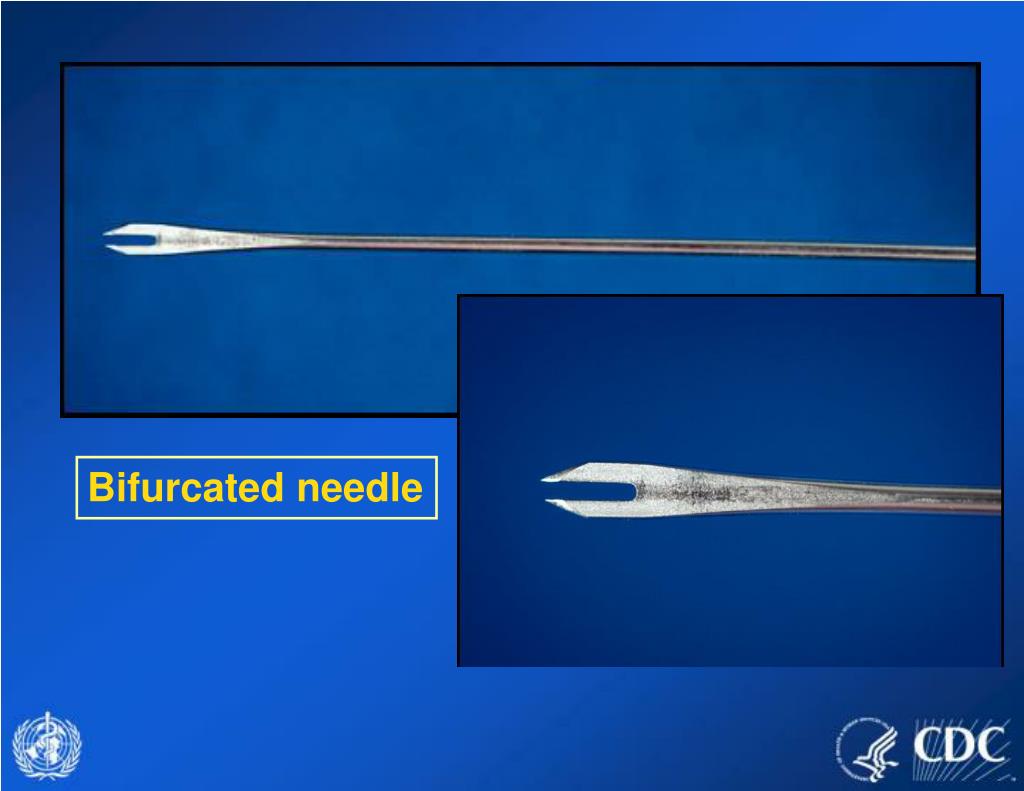

Smallpox Eradication StrategyThe Bifurcated Needle

Fenner F et al. Smallpox and its Eradication, pp 570

new smallpox vaccines 2003
New Smallpox Vaccines, 2003
  • Live vaccinia virus produced using cell culture technology.
  • Distributed as a freeze-dried powder.
  • Do not contain antibiotics.
  • Diluent contains glycerin and phenol.
smallpox vaccine1
Smallpox Vaccine
  • Vaccine contains live vaccinia virus.
  • Vaccine virus can be transmitted to household and other close contacts.
  • Candidates for vaccination must be carefully screened for contraindications.
  • Certain medical conditions in the person's household contacts must also be considered as contraindications for vaccination.
smallpox vaccine contraindications and precautions non emergency situations
Smallpox VaccineContraindications and PrecautionsNon-emergency Situations
  • Serious allergic reaction to a prior dose of vaccine or vaccine component.

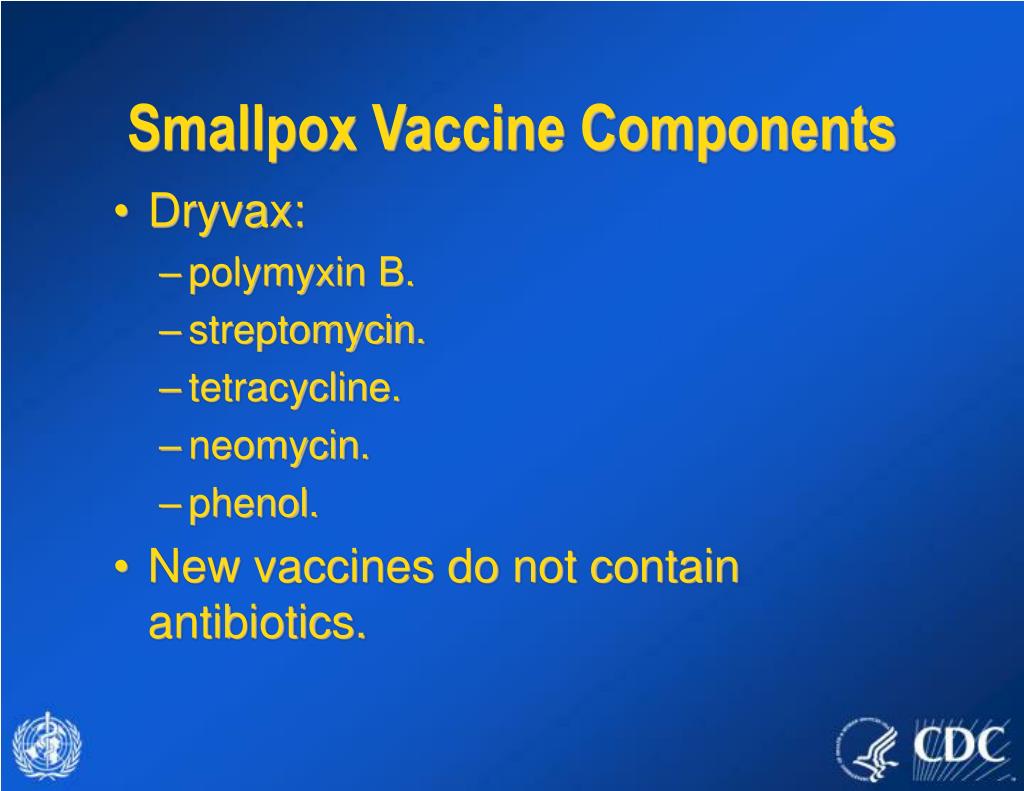

smallpox vaccine components
Smallpox Vaccine Components
  • Dryvax:
    • polymyxin B.
    • streptomycin.
    • tetracycline.
    • neomycin.
    • phenol.
  • New vaccines do not contain antibiotics.

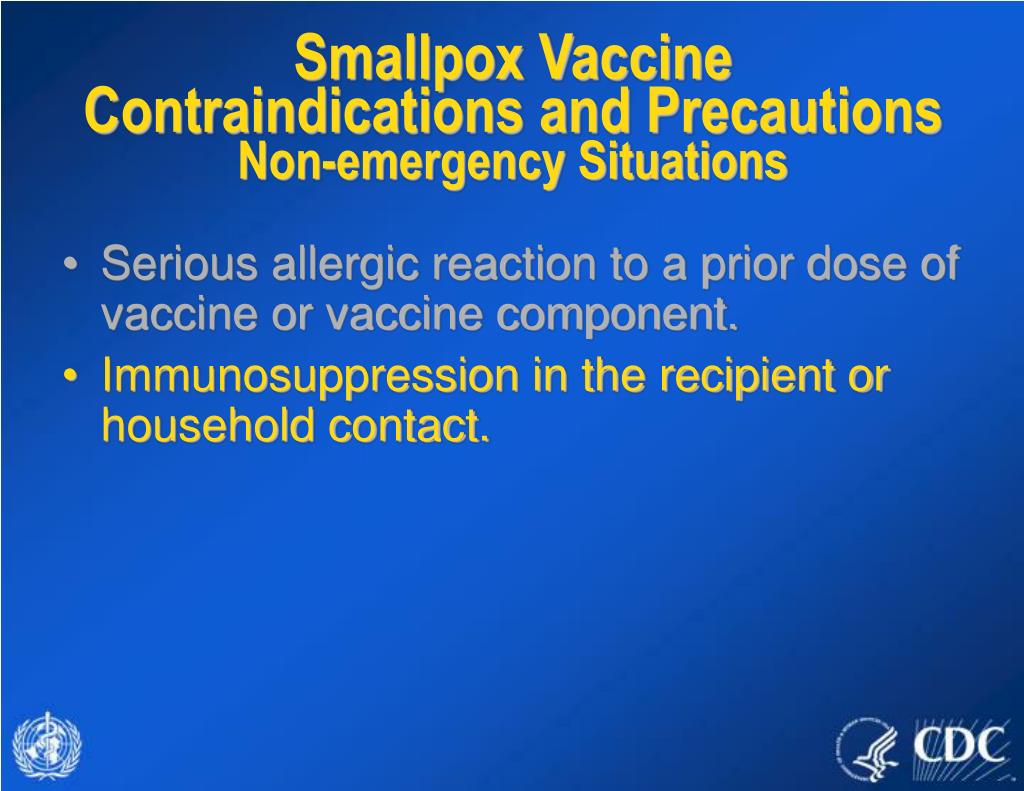

smallpox vaccine contraindications and precautions non emergency situations1
Smallpox VaccineContraindications and PrecautionsNon-emergency Situations
  • Serious allergic reaction to a prior dose of vaccine or vaccine component.
  • Immunosuppression in the recipient or household contact.
causes of immunosuppression diseases

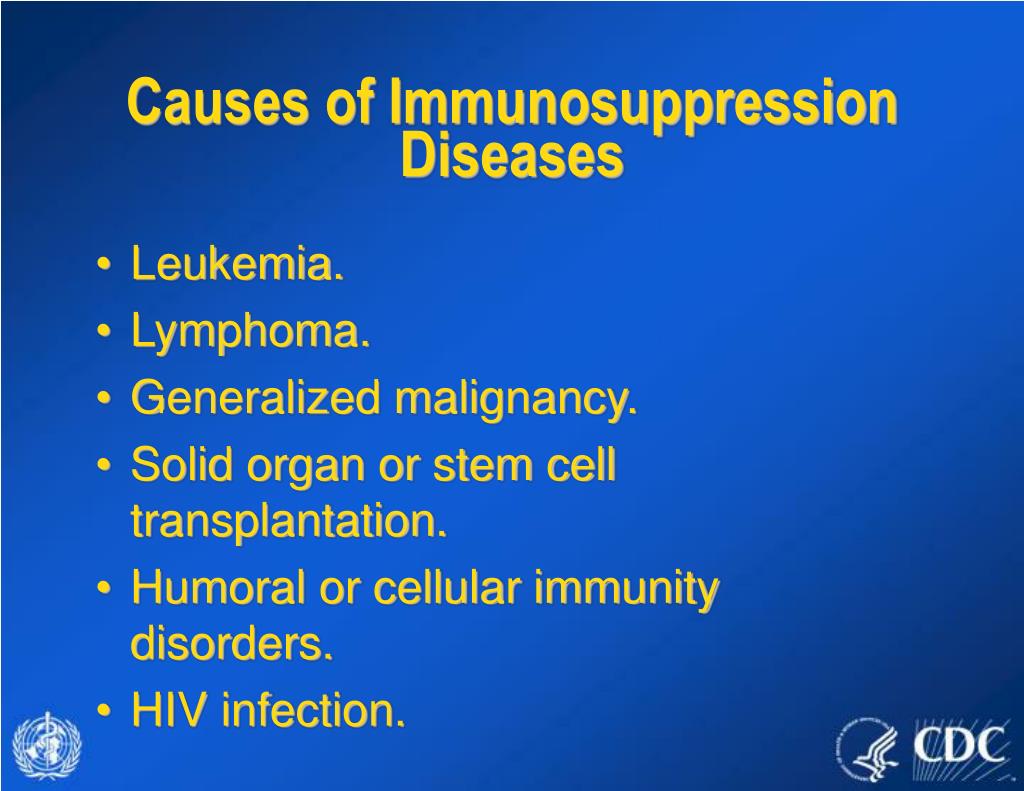

Causes of Immunosuppression Diseases
  • Leukemia.
  • Lymphoma.
  • Generalized malignancy.
  • Solid organ or stem cell transplantation.
  • Humoral or cellular immunity disorders.
  • HIV infection.

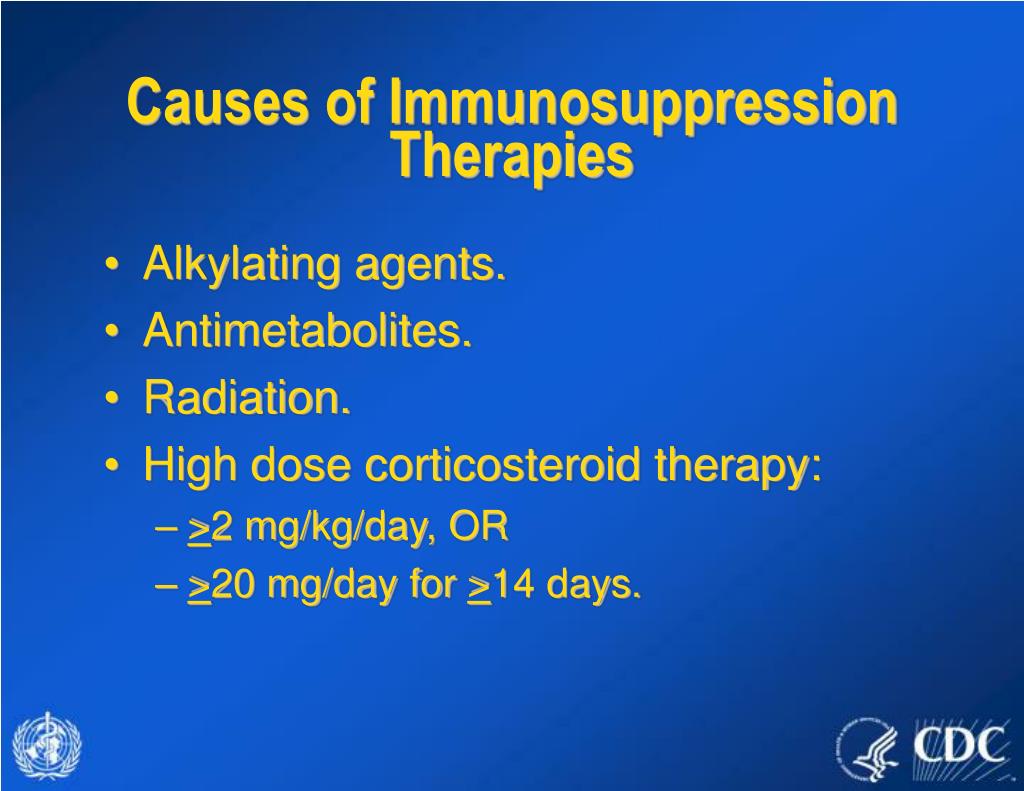

causes of immunosuppression therapies
Causes of Immunosuppression Therapies
  • Alkylating agents.
  • Antimetabolites.
  • Radiation.
  • High dose corticosteroid therapy:
    • >2 mg/kg/day, OR
    • >20 mg/day for >14 days.

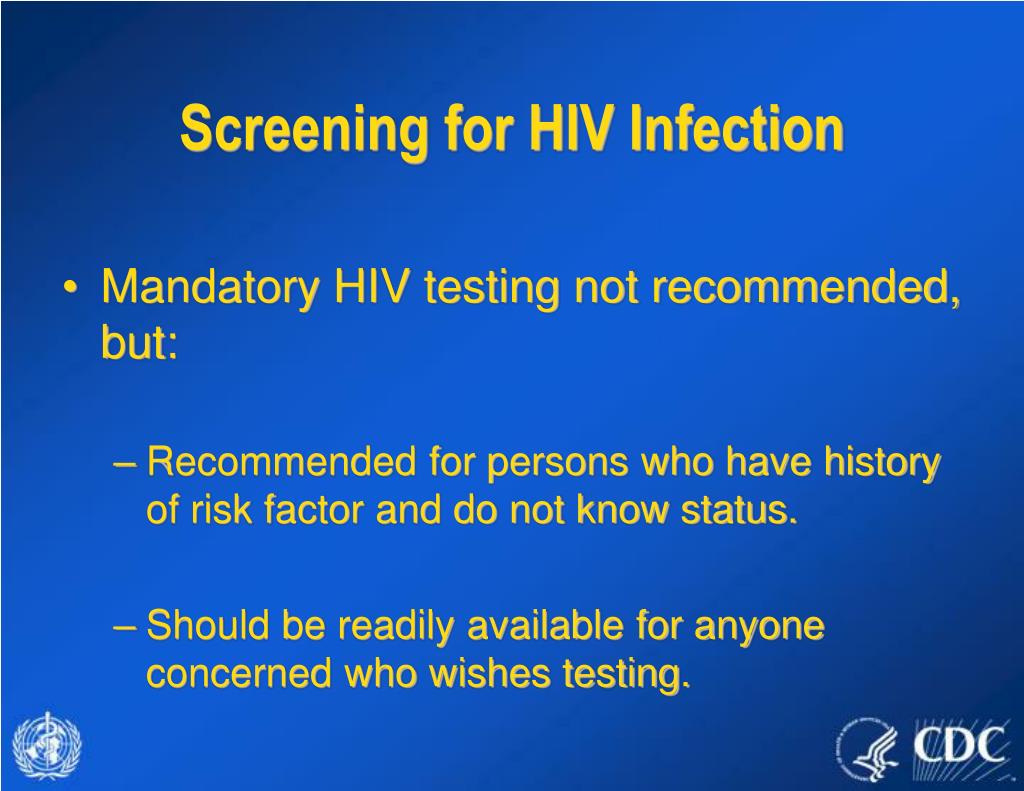

screening for hiv infection
Screening for HIV Infection
  • Mandatory HIV testing not recommended, but:
    • Recommended for persons who have history of risk factor and do not know status.
    • Should be readily available for anyone concerned who wishes testing.
smallpox vaccine contraindications and precautions non emergency situations2

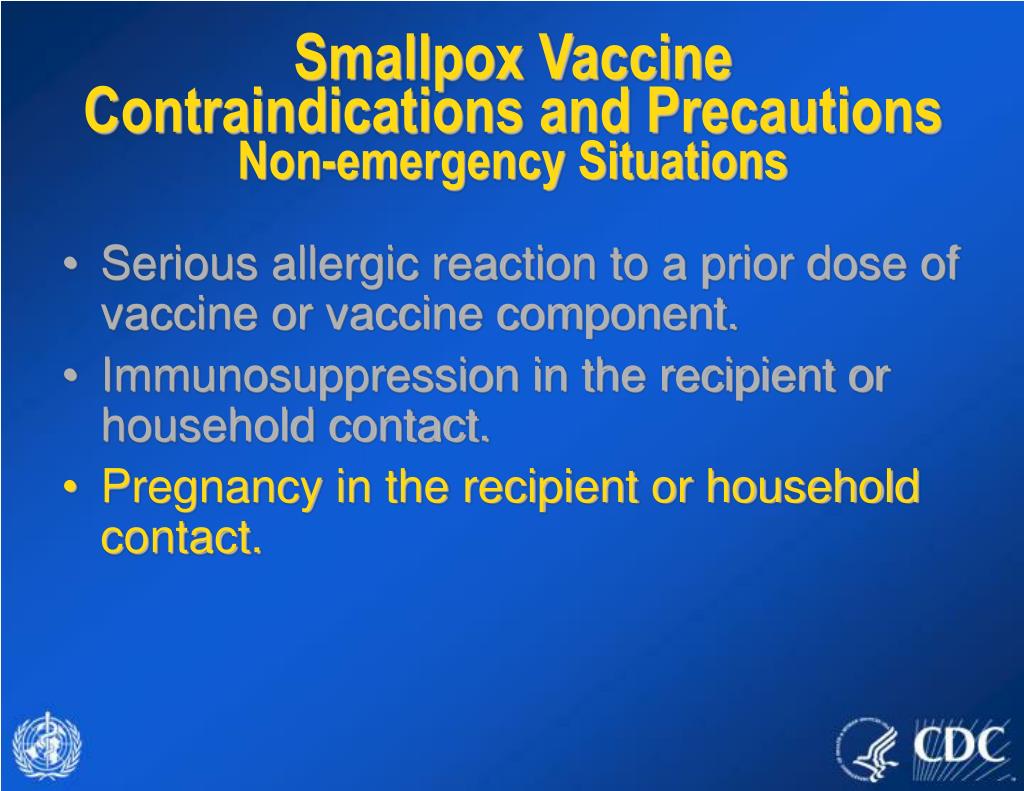

Smallpox VaccineContraindications and PrecautionsNon-emergency Situations
  • Serious allergic reaction to a prior dose of vaccine or vaccine component.
  • Immunosuppression in the recipient or household contact.
  • Pregnancy in the recipient or household contact.
screening for pregnancy

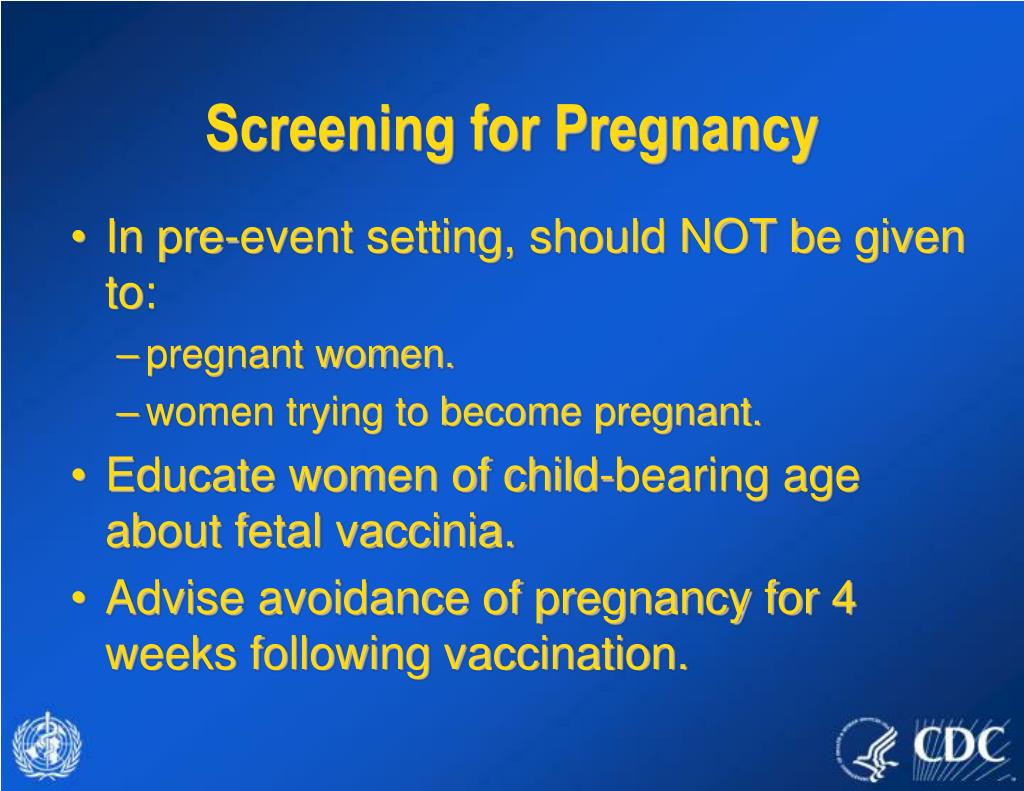

Screening for Pregnancy
  • In pre-event setting, should NOT be given to:
    • pregnant women.
    • women trying to become pregnant.
  • Educate women of child-bearing age about fetal vaccinia.
  • Advise avoidance of pregnancy for 4 weeks following vaccination.
screening for pregnancy1

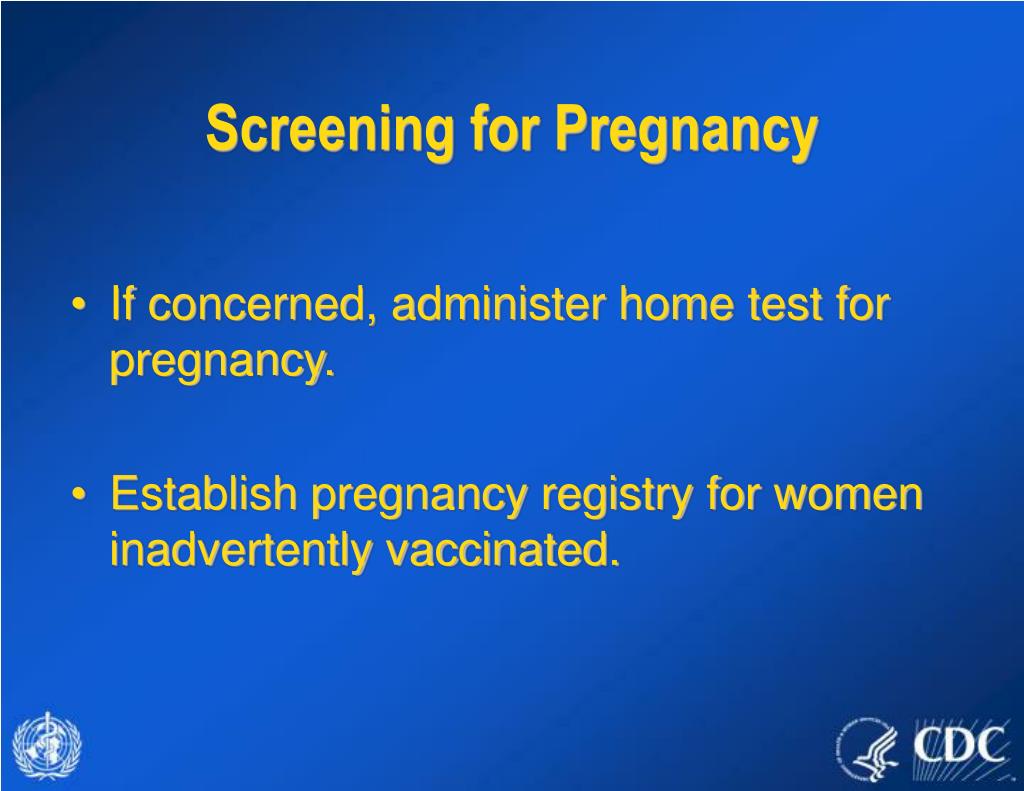

Screening for Pregnancy
  • If concerned, administer home test for pregnancy.
  • Establish pregnancy registry for women inadvertently vaccinated.
smallpox vaccine contraindications and precautions non emergency situations3

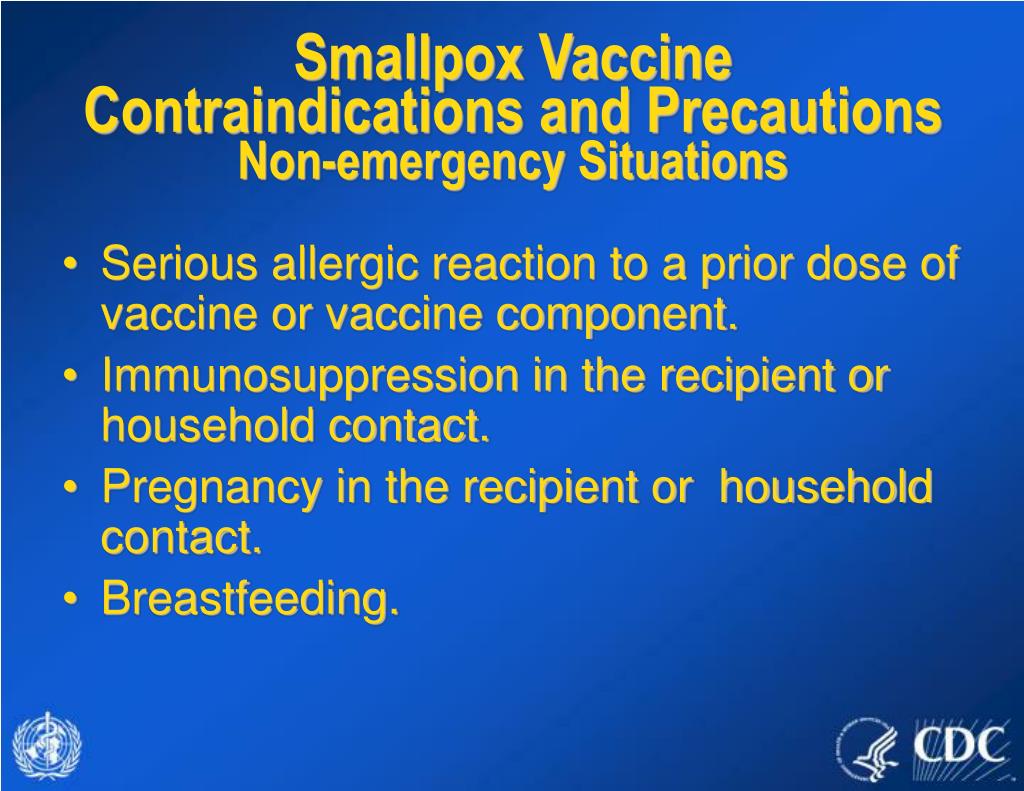

Smallpox VaccineContraindications and PrecautionsNon-emergency Situations
  • Serious allergic reaction to a prior dose of vaccine or vaccine component.
  • Immunosuppression in the recipient or household contact.
  • Pregnancy in the recipient or household contact.
  • Breastfeeding.
smallpox vaccine contraindications and precautions non emergency situations4

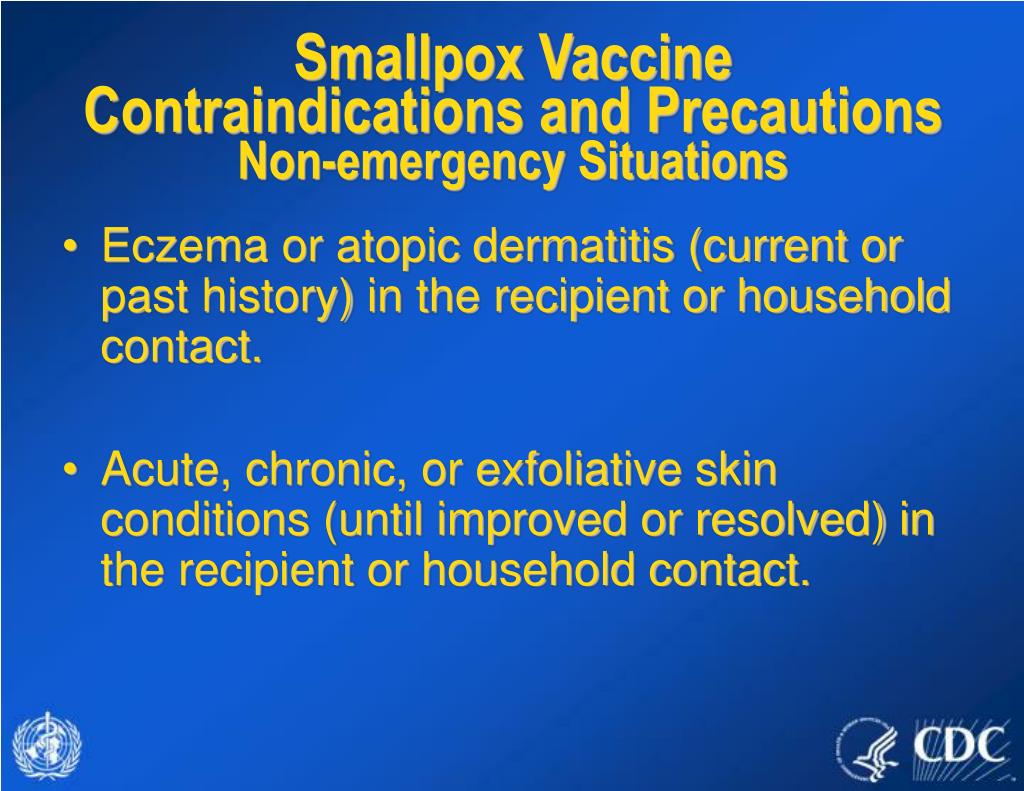

Smallpox VaccineContraindications and PrecautionsNon-emergency Situations
  • Eczema or atopic dermatitis (current or past history) in the recipient or household contact.
  • Acute, chronic, or exfoliative skin conditions (until improved or resolved) in the recipient or household contact.

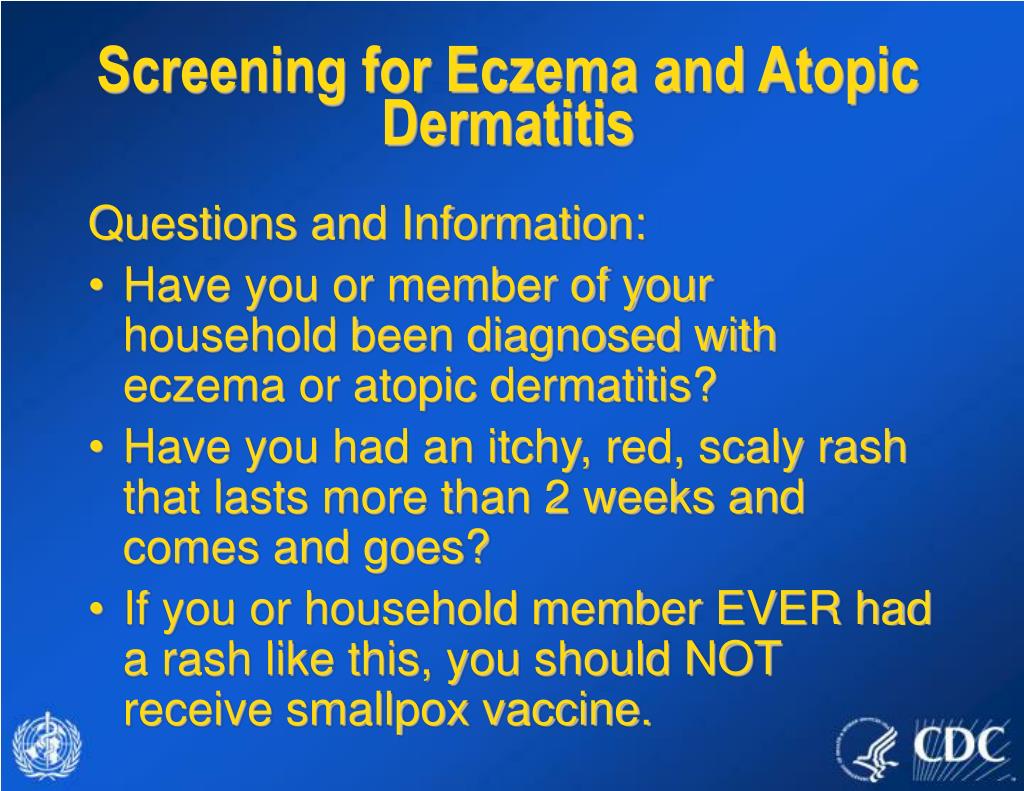

screening for eczema and atopic dermatitis
Screening for Eczema and Atopic Dermatitis

Questions and Information:

  • Have you or member of your household been diagnosed with eczema or atopic dermatitis?
  • Have you had an itchy, red, scaly rash that lasts more than 2 weeks and comes and goes?
  • If you or household member EVER had a rash like this, you should NOT receive smallpox vaccine.
smallpox vaccine contraindications and precautions non emergency situations5

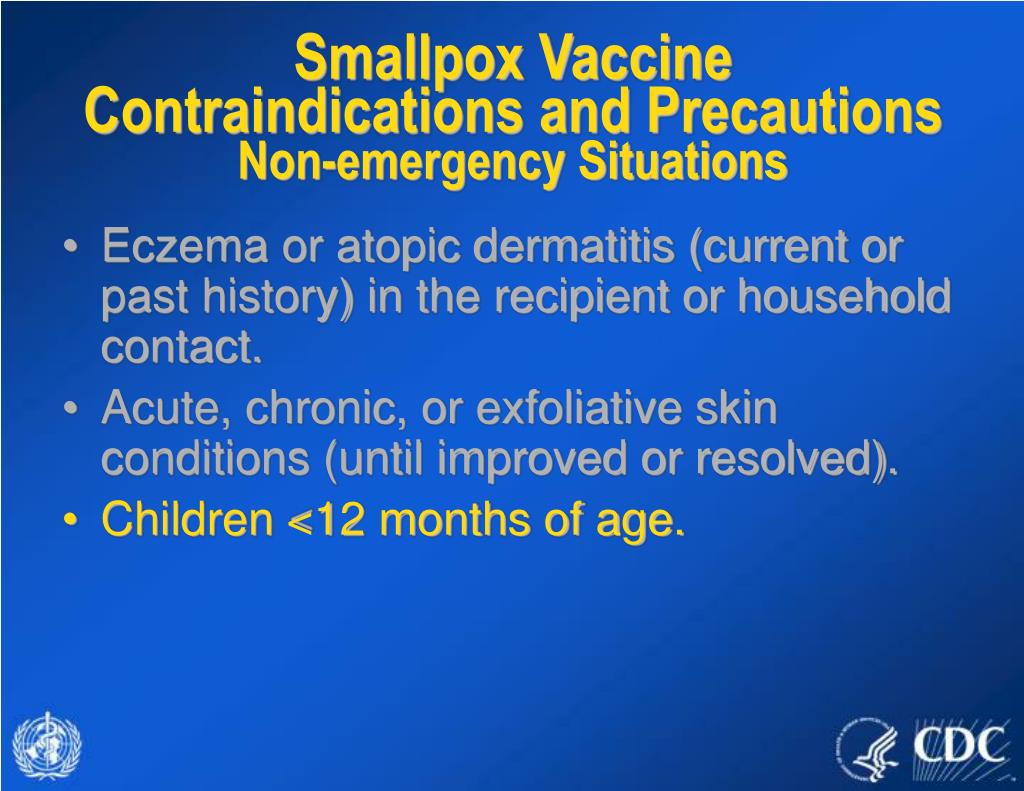

Smallpox VaccineContraindications and PrecautionsNon-emergency Situations
  • Eczema or atopic dermatitis (current or past history) in the recipient or household contact.
  • Acute, chronic, or exfoliative skin conditions (until improved or resolved).
  • Children <12 months of age.

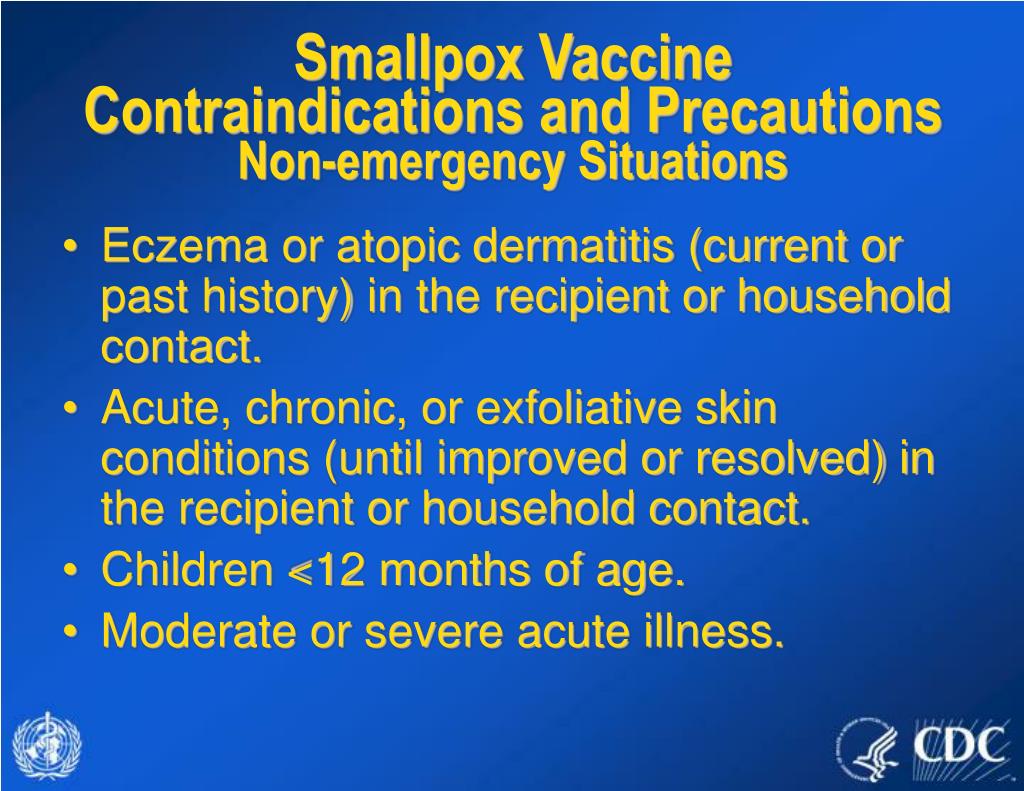

smallpox vaccine contraindications and precautions non emergency situations6
Smallpox VaccineContraindications and PrecautionsNon-emergency Situations
  • Eczema or atopic dermatitis (current or past history) in the recipient or household contact.
  • Acute, chronic, or exfoliative skin conditions (until improved or resolved).
  • Children <12 months of age.
  • Moderate or severe acute illness.
smallpox vaccine contraindications and precautions non emergency situations7

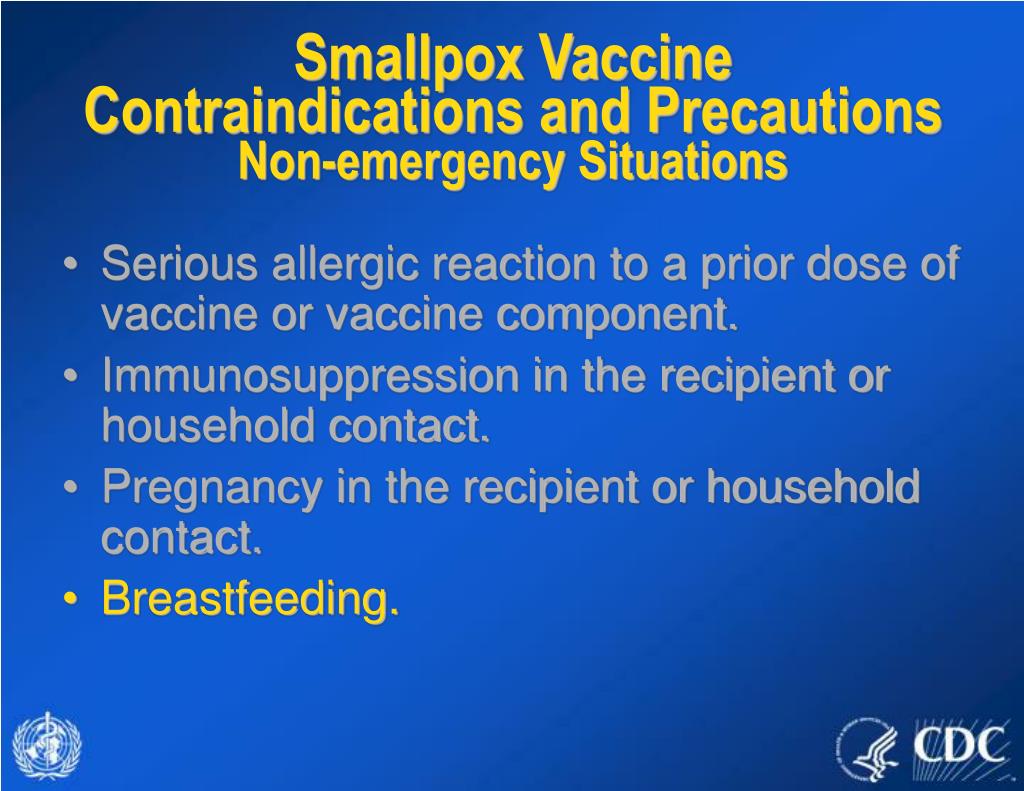

Smallpox VaccineContraindications and PrecautionsNon-emergency Situations
  • Serious allergic reaction to a prior dose of vaccine or vaccine component.
  • Immunosuppression in the recipient or household contact.
  • Pregnancy in the recipient or household contact.
  • Breastfeeding.

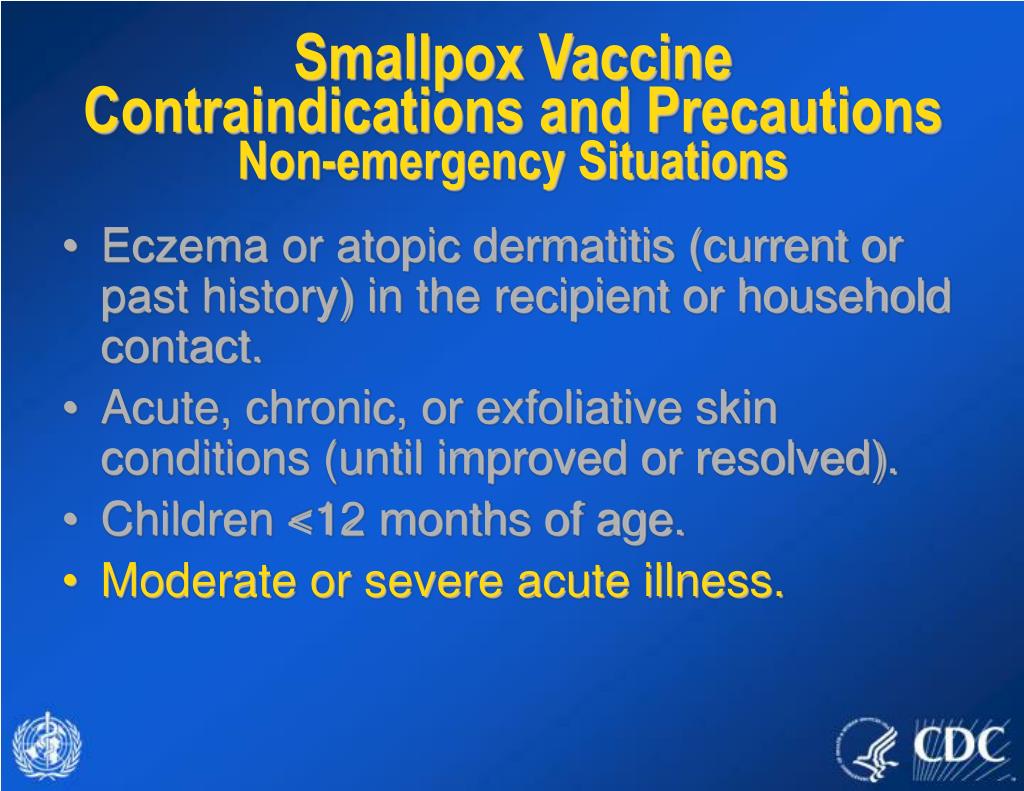

smallpox vaccine contraindications and precautions non emergency situations8
Smallpox VaccineContraindications and PrecautionsNon-emergency Situations
  • Eczema or atopic dermatitis (current or past history) in the recipient or household contact.
  • Acute, chronic, or exfoliative skin conditions (until improved or resolved) in the recipient or household contact.
  • Children <12 months of age.
  • Moderate or severe acute illness.

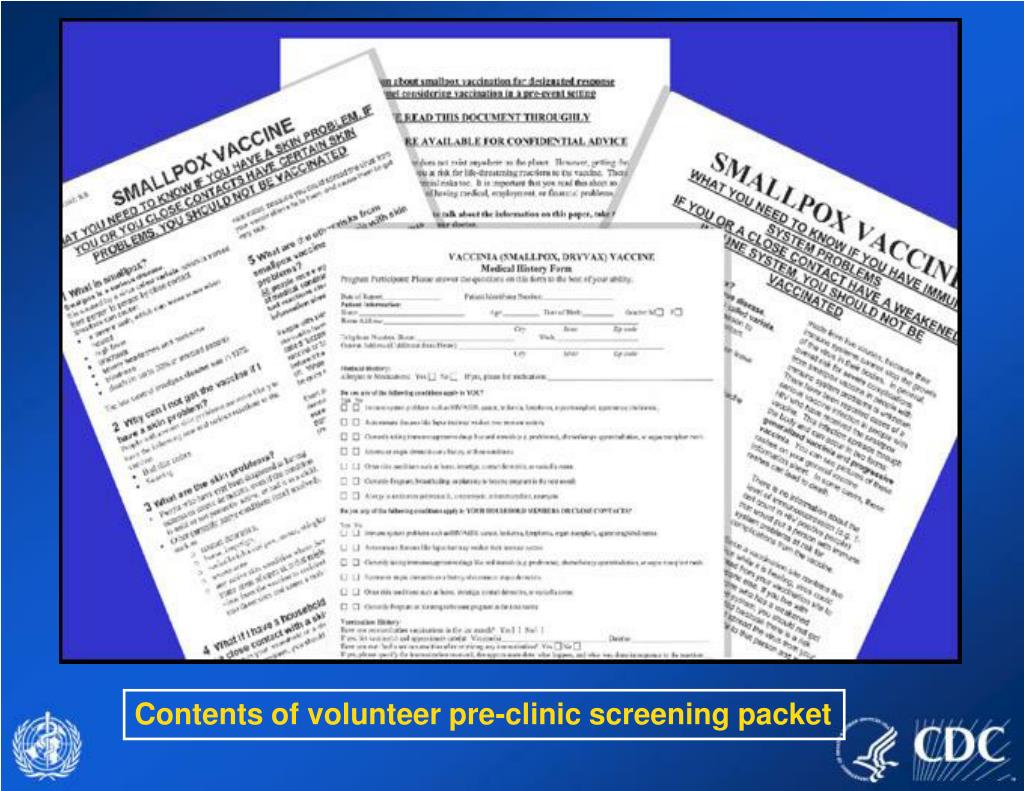

pre clinic screening materials
Pre-Clinic Screening Materials
  • Participant Advice Letter.
  • Vaccine Information Sheet:
    • Smallpox Vaccine.
    • Immune System Problems.
    • Skin Conditions.
    • Pregnancy.
  • Pre-Clinic Checklist.
smallpox vaccine contraindications and precautions emergency post event situations

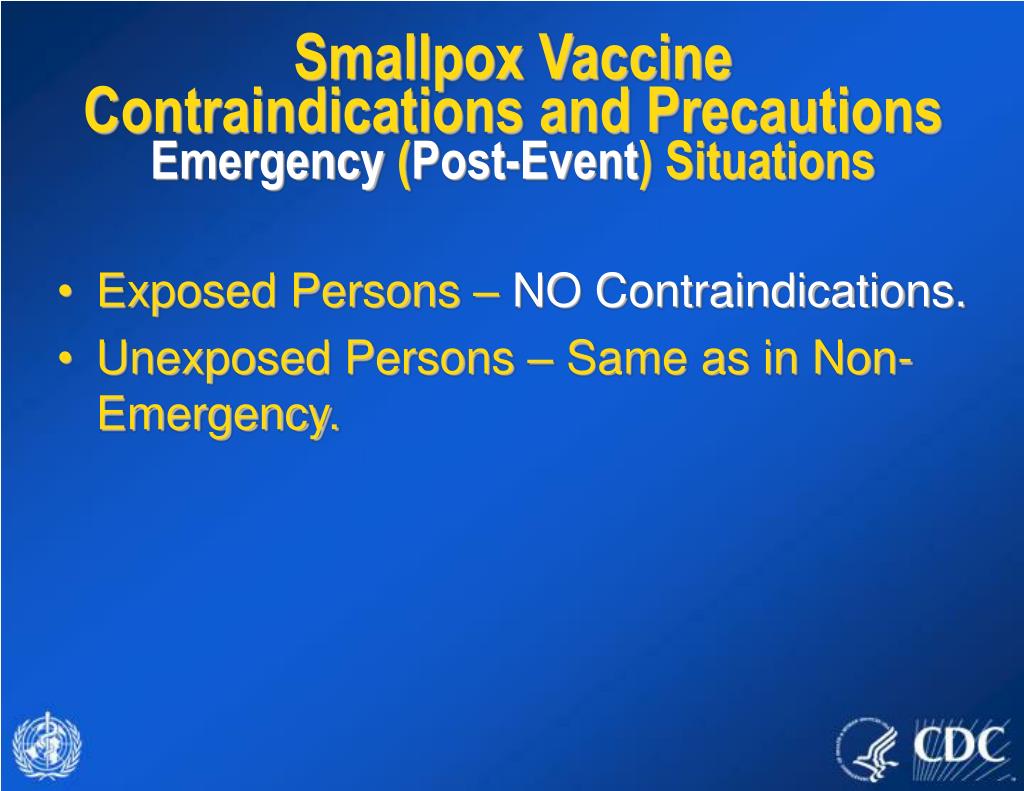

Smallpox VaccineContraindications and PrecautionsEmergency (Post-Event) Situations
  • Exposed Persons – NO Contraindications.
  • Unexposed Persons – Same as in Non-Emergency.
smallpox vaccine reconstitution

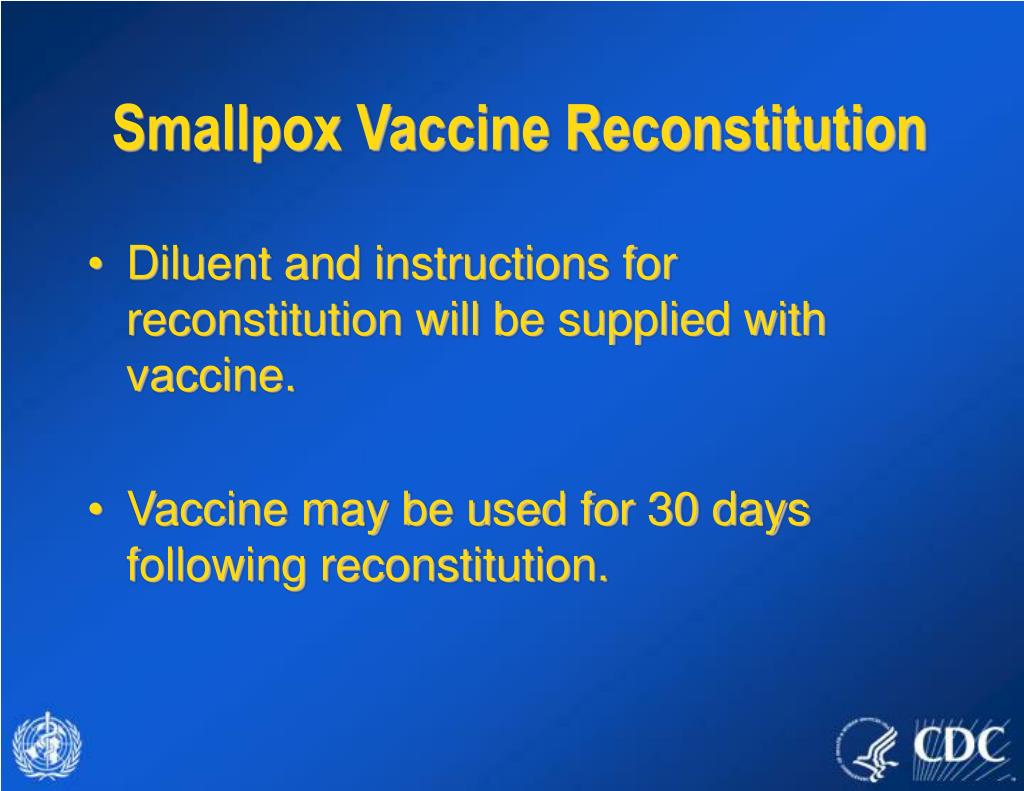

Smallpox Vaccine Reconstitution
  • Diluent and instructions for reconstitution will be supplied with vaccine.
  • Vaccine may be used for 30 days following reconstitution.
smallpox vaccine administration

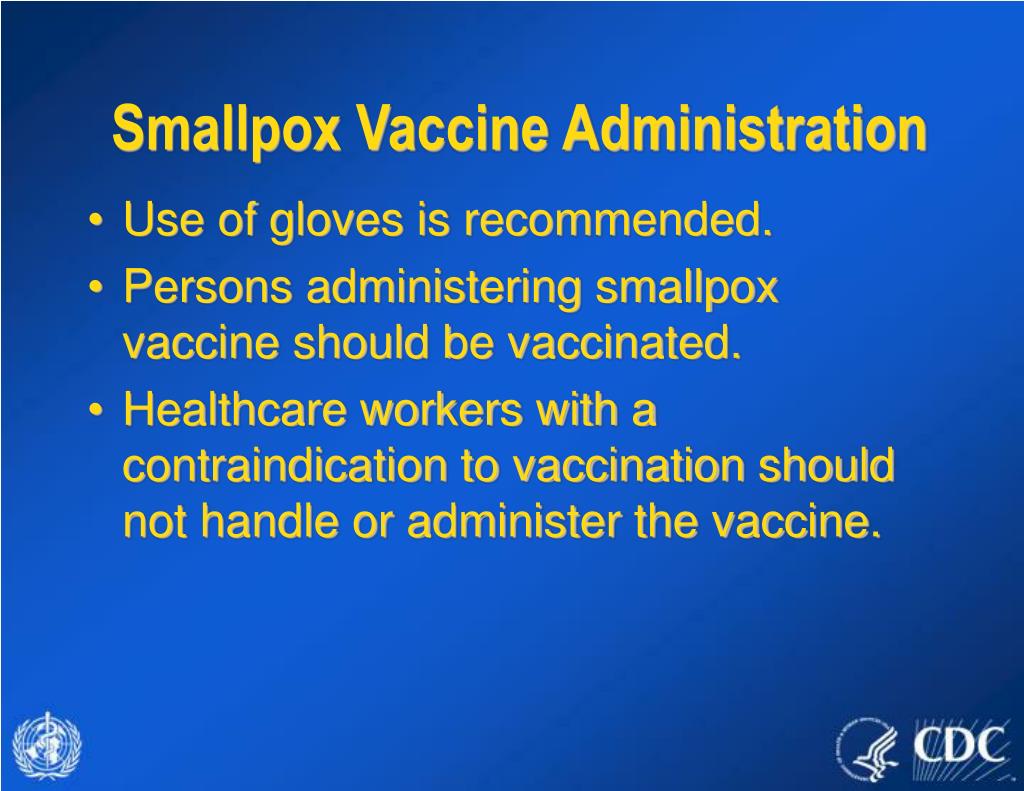

Smallpox Vaccine Administration
  • Use of gloves is recommended.
  • Persons administering smallpox vaccine should be vaccinated.
  • Healthcare workers with a contraindication to vaccination should not handle or administer the vaccine.
vaccination site preparation

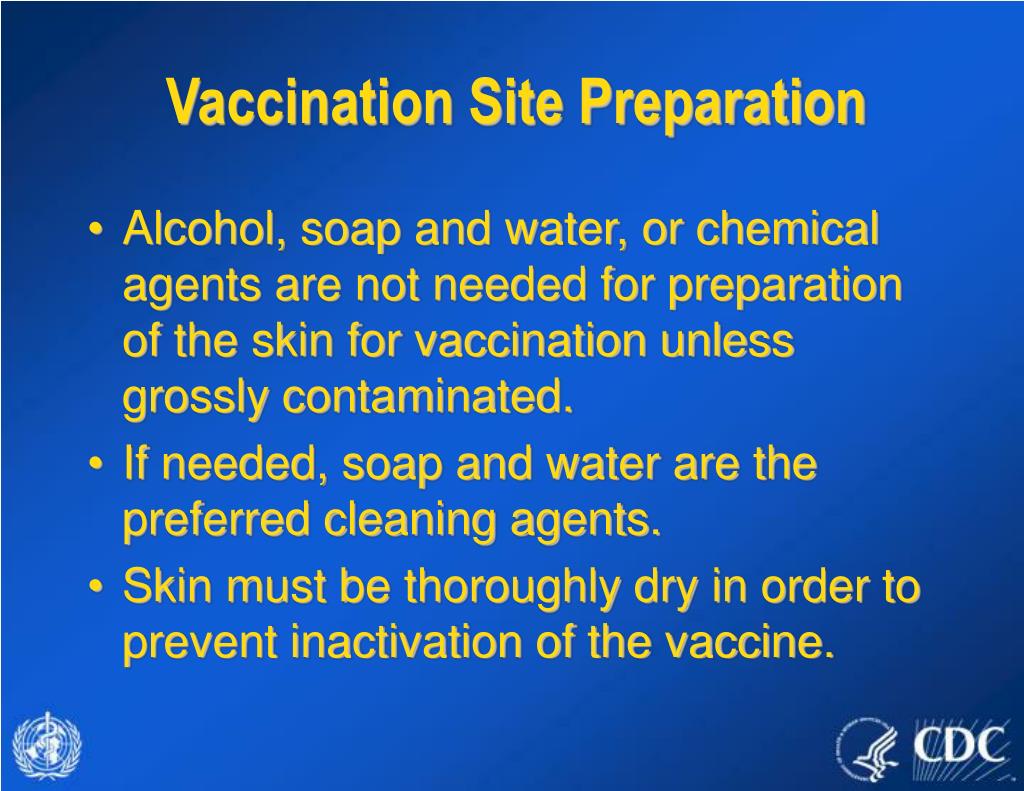

Vaccination Site Preparation
  • Alcohol, soap and water, or chemical agents are not needed for preparation of the skin for vaccination unless grossly contaminated.
  • If needed, soap and water are the preferred cleaning agents.
  • Skin must be thoroughly dry in order to prevent inactivation of the vaccine.

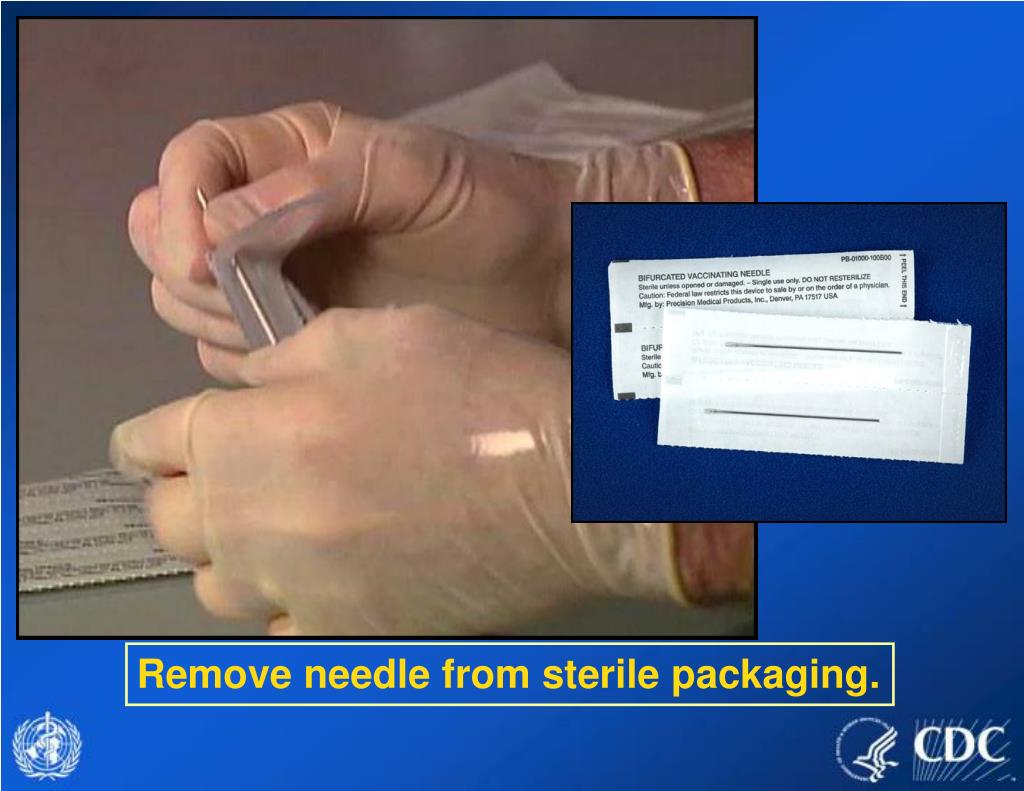

smallpox vaccine administration1

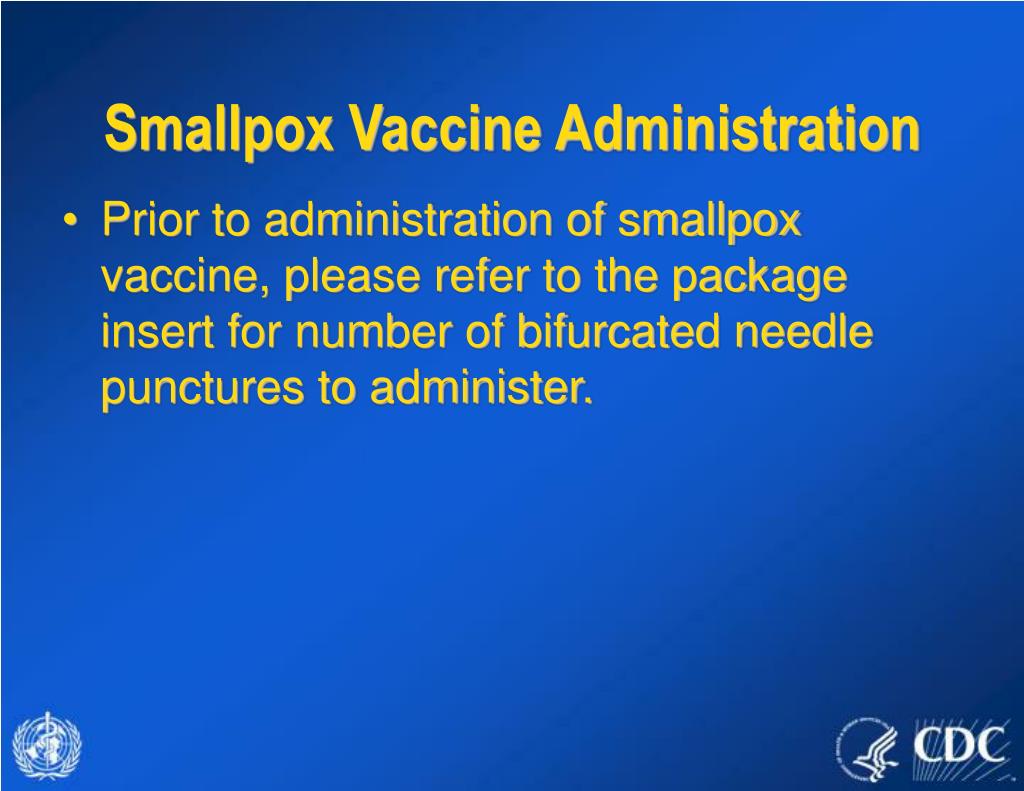

Smallpox Vaccine Administration
  • Prior to administration of smallpox vaccine, please refer to the package insert for number of bifurcated needle punctures to administer.
smallpox vaccine administration2
Smallpox Vaccine Administration
  • Apply strokes perpendicular to the skin.
  • Prick the skin in about 3 seconds within an area of 5 millimeters.
  • Apply sufficient pressure to visibly push down the skin.
smallpox vaccine administration3
Smallpox Vaccine Administration
  • Vaccinia virus may be cultured from the site of a primary vaccination from 2-3 days after vaccination until the scab separates.
  • Care must be taken to prevent spread of the virus to other parts of the body or other persons.
  • Hands must be washed after every contact with the vaccination site or any materials (clothing, dressing, etc.) that has come into contact with the vaccination site.
clinical response to vaccination
Clinical Response to Vaccination
  • “Jennerian” vesicle at vaccination site.
  • Swelling and tenderness of axillary lymph nodes, usually during 2nd week:
    • 15%-20% of primary vaccinees.
    • 0%-15% of revaccinees.
  • Fever and malaise common.
clinical response to vaccination1
Clinical Response to Vaccination

*typical response in a nonimmune person

clinical response to vaccination2
Clinical Response to Vaccination
  • Neutralizing antibody:
    • 10 days after primary vaccination.
    • 7 days after revaccination.
  • Considered fully protected after a successful response demonstrated at vaccination site.
clinical response to vaccination3
Clinical Response to Vaccination
  • Major (primary) reaction:
    • Indicates viral replication has occurred and vaccination was successful.
  • Equivocal reaction:
    • Indicates immune suppression of viral replication or allergic reaction without production of immunity.
    • Poor vaccination technique.
    • Inactive vaccine.
major reaction 6 8 days after vaccination
Major Reaction6-8 Days After Vaccination
  • Primary vaccination:
    • Vesicular or pustular lesion.
    • Area of definite palpable induration surrounding a central crust or ulcer.
  • Revaccination:
    • Less pronounced and more rapid progression.
    • Pustular lesion or induration surrounding a central crust or ulcer.
equivocal reaction
Equivocal Reaction
  • All responses* other than major reactions.
  • Caused by immunity, insufficiently potent vaccine, vaccination technique failure.
  • Vaccination should be repeated with another vial, if possible.

*Includes accelerated, modified, vaccinoid, immediate, early, or immune reactions.

vaccine efficacy
Vaccine Efficacy
  • Clinical efficacy estimated in household contact studies.
  • 91%-97% reduction in cases among contacts with vaccination scar.
  • Studies did not consider time since vaccination or potency of vaccine.
post exposure vaccine efficacy
Post-Exposure Vaccine Efficacy
  • Clinical efficacy estimated in household contact studies.
  • SAR 2%-75%, varied by time since exposure.
  • Disease generally less severe (modified type) in those with post exposure vaccination.
common symptoms
Common Symptoms
  • Fatigue (50%)
  • Headache (40%)
  • Muscle aches and Chills (20%)
  • Nausea (20%)
  • Fever 37.7 ºC or 100 ºF (10%)
clinical response to vaccination4
Clinical Response to Vaccination*

Symptom/sign

Papule

Pustule

Maximum erythema

Scab

Scab separation

Time after Vacc

3-5 days

5-8 days

8-10 days

14 days

14-21 days

*typical response in a nonimmune person

smallpox vaccine reactions among susceptible adults
Smallpox Vaccine Reactions Among Susceptible Adults
  • About 10% with temperature > 100F.
  • Systemic symptoms (malaise, myalgias).
  • 36% sufficiently ill to miss work, school, or recreational activities or had trouble sleeping.
smallpox vaccine adverse reaction rates
Smallpox Vaccine Adverse Reaction Rates*

*Rates per million primary vaccinations

inadvertent autoinoculation
Inadvertent Autoinoculation
  • Transfer of vaccinia virus to sites other than the intended vaccination site
  • Commonly on mucocutaneous borders (eye, mouth, rectum)
  • Lesions heal spontaneously without specific treatment
  • Highest risk in children 1-4 years
  • Vaccinia Immune Globulin (VIG) may be useful
generalized vaccinia
Generalized Vaccinia
  • Generalized vesicular skin lesions occurring in the absence of eczema or other preexisting skin diseases
  • Believed to result from a viremia with implantations in the skin
  • Fever and systemic signs vary widely but are generally mild
  • VIG may attenuate severity if given early in course of illness
generalized vaccinia1
Generalized Vaccinia
  • Differential diagnosis:
    • Erythema multiforme.
    • Eczema vaccinatum.
    • Inadvertent inoculation at multiple sites.
    • Early progressive vaccinia.
    • Disseminated herpes.
    • Severe varicella.
eczema vaccinatum
Eczema Vaccinatum
  • Generalized spread of vaccinia on skin of patients with eczema or past history of eczema (atopic dermatitis)
  • May result from blood dissemination of vaccinia virus or from direct skin inoculation of vaccinia on broken skin
  • Vaccinia virus readily recoverable from lesions of the rash
  • VIG helpful
progressive vaccinia
Progressive Vaccinia
  • Also known as vaccinia necrosum and vaccinia gangrenosa
  • Occurs only in patients with impaired immunologic function
  • Characterized by spreading necrosis at site of vaccination, with or without metastatic necrotic lesions elsewhere on the body
  • Painless, progressive, +/- systemic illness
  • VIG is used to treat
post vaccinial encephalitis
Post-vaccinial Encephalitis
  • Diagnosis of exclusion.
  • Other infectious or toxic causes of encephalitis should be ruled out.
  • Pathophysiology not well understood.
  • CSF may have increased opening pressure, lymphocytosis, elevated protein.
fetal vaccinia
Fetal Vaccinia
  • 47 fetal vaccinia cases reported in world literature (as of 1970)
  • Most result from primary vaccination of mother early in pregnancy
  • May results in stillbirth or death of infant soon after delivery
  • VIG may benefit live born infant
vaccinia immune globulin
Vaccinia Immune Globulin
  • Antibodies limit viral replication
  • Cangene® intravenous
    • First-line therapy
    • Under IND
    • Available only through CDC
  • Administer as soon as possible after onset
    • Inadvertent inoculation (severe, or underlying illness)
    • Generalized vaccinia (severe, or underlying illness)
    • Eczema vaccinatum
    • Progressive vaccinia
    • Consider for severe ocular complications
vistide cidofovir
Vistide®, cidofovir
  • Antiviral therapy
  • FDA approved for CMV retinitis in AIDS patients
  • Second-line treatment
    • Not tested in humans against vaccinia
    • Nephrotoxic (probenecid, hydration)
    • Carcinogenic
  • Investigational New Drug (IND)
slide96

Certain images supplied by:

Dr. John Leedom

Dr. J. Michael Lane

Dr. Vincent Fulginiti

World Health Organization

University of Rochester

National Institutes of Health

Logical Images, Inc.
