Presentation Transcript

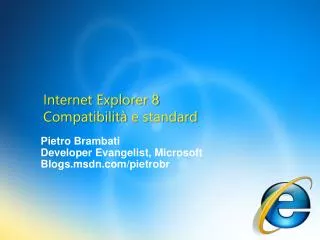

  1. Internet Explorer 8Compatibilitàe standard Pietro Brambati Developer Evangelist, Microsoft Blogs.msdn.com/pietrobr

  2. Agenda • Approcciallacompatibilità • Document compatibility • Concetti e Tecniche • Meta Tag, Header • Come determinare la Versione del browser • Version Vector • User Agent • Determinare la document compatibility dacodice

  3. Approcciallacompatibilità

  4. Cos’è la document compatibility • Internet Explorer 6: • Quirk Mode: (default), visualizzava come le versioniprecedenti • Standard Mode: segue gli standard • <!DOCTYPE> per la sceltadellamodalità • Internet Explorer 7: • Supporta due modalità • Necessariaunamigrazioneda un sitopensato per IE 6 • Internet Explorer 8: introduce la document compatibility • Controllo in IE8 qualemotoredi layout usare in base a come è fattoilsito • Quirk • IE 7 Standard • IE 8 Standard (nuova)

  5. Approcci alla compatibilità User Experience migliorata User Experience limitata Maggiorimpegno Minor sforzo per ilsito 3. Visualizzaresiti Intranet Compatibility Mode 1. sviluppare per IE8 Standards 2. Implementareil tag X-UA-Compatible 4. AffidarsiallaCompat. List 5. Affidarsiall’utente: Compat. Button

  6. 1. Sviluppare per IE8 Standard Mode • CSS 2.1 compliance • DOM: miglioramenti • HTML: miglioramenti • Acid2 Test compliance CSS 2.1 HTML ACID 2

  7. 2. Usare X-UA-Compatible Tag • Glisviluppatoridisiti web possono dire a IE8 per qualeversionedi IE ilsito è statosviluppato. Impostabile a livellodisito, a livellodipagina, includendo un tag Consigliato

  8. 3. Visualizzare i siti della Intranet in Compatibility Mode • Per default, IE8 visualizzaisitidella “Intranet” in IE7 mode • L’utente la puòdisabilitare • IT Pro puòusareuna Group Policy per visualizzare un sitodella intranet in IE8 mode

  9. 4. La “Compatibility View List" • Se unotraisitipiùgrandi ha riportatodeiproblemidicompatibiltità a Microsoft • IE8 visualizzeràilsito in compatibility mode

  10. 5. L’utente può premere il Compatibility Button • Vicino al bottonedi refresh • Simile a X-UA-Compatible tag (IE=EmulateIE7), ma la User-Agent String visualizza come browser IE7

  11. CompatibilityView • Sitoaggiuntoallalistadicompatibilità • Per rimuoveilsitodallalista • Content=“IE=EmulateIE8” • UA String Detection • Mozilla/4.0 (compatible; MSIE 7.0; Windows NT 6.0; Trident/4.0; SLCC1; .NET CLR 3.5.21022)

  12. Concetti e tecniche per la compatibilità

  13. Passi verso la compatibilità • Nelbreve: usareil tag IE=EmulateIE7 • Testareilvostrosito con IE8 • Virtual Machine • IE8 Developer Toolbar • Identificareglielementi del vostrositoche non funzionano in IE8, anche con il tag dicompatibilità • XSS Filter– Impedisce al JScriptdiessereeseguito • DEP/NX impedisce al codicedi non essereeseguito in areedimemoria non-executable • Il tool ACT (vedere link utili) tracciaalcuniproblemi • A lungotermine: sviluppare per IE8 in modalità Standard

  14. X-UA-Compatible • IIS 7: Windows Vista, Windows Server 2008

  15. X-UA-Compatible A livellodisito, aggiungere un HTTP Header: X-UA-Compatible: IE=EmulateIE7 <?xml version="1.0" encoding="utf-8"?> <configuration> <system.webServer> <httpProtocol> <customHeaders> <clear /> <add name="X-UA-Compatible" value="IE=EmulateIE7"> </customHeaders> </httpProtocol> <system.webServer> </configuration>

  16. X-UA-Compatible A livellodipagina, aggiungere un tag subitodopo <head>: <!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01 Strict//EN"> <html> <head> <title>My Web Page</title> <meta http-equiv="X-UA-Compatible" content="IE=Emulate7“ /> </head> <body> <p>Content goes here.</p> </body> </html>

  17. Esempi di DocType • Quirks <!DOCTYPE HTML PUBLIC “-//W3C//DTD HTML 4.01 Frameset//EN> • (o nessun DOCTYPE) • Standards <!DOCTYPE HTML PUBLIC “-//W3C//DTD HTML 4.0 Strict//EN>

  18. Version Vector • Funzionalitàspecificadi Internet Explorer • Chiavedi registry • Usato per elaborarecommenticondizionali in base alleversioni del browser <!—[if gte IE 5.5002]> <p>you are using IE 5 or higher</p> <![endif]-->

  19. Version Vector <!—[if IE 6]> <linkrel=“stylesheet” type=“text/css” href=“/stylesheets/ie6.css”/> <![endif]--> <!—[if IE 7]> <linkrel=“stylesheet” type=“text/css” href=“/stylesheets/ie7.css”/> <![endif]--> <!—[if gte IE 8]> <linkrel=“stylesheet” type=“text/css” href=“/stylesheets/standards.css”/> <![endif]-->

  20. La User Agent String • Rappresental’identità del Browser • Mandata al web server via HTTP header • Disponibile client-side via script javascript:alert(navigator.userAgent)

  21. Parsing della User Agent String function getInternetExplorerVersion() // Returns the version of Windows Internet Explorer or a -1 // (indicating the use of another browser). { varrv = -1; // Return value assumes failure. if (navigator.appName == 'Microsoft Internet Explorer') { varua = navigator.userAgent; var re = new RegExp("MSIE ([0-9]{1,}[\.0-9]{0,})"); if (re.exec(ua) != null) rv = parseFloat( RegExp.$1 ); } return rv; }

  22. Controllare la versionedel browser function checkVersion() { varmsg = "You're not using IE."; varver = getInternetExplorerVersion(); if ( ver> -1 ) { if ( ver>= 8.0 ) msg = "You're using a recent copy of IE." else msg = "You should upgrade your copy of IE"; } alert( msg ); } http://msdn.microsoft.com/en-us/library/cc817582.aspx

  23. UA String vs. Version Vector • La User Agent String puòessereusata per qualsiasi browser • Il Version vector per emetterecodicedi markup in modocondizionale con IE • La User Agent String è usata per differenziare la logicadi business

  24. Come Determinare laDocumentCompatibility Mode • document.compatMode • Values • CSS1Compat – Standards Mode • BackCompat– Quirks Mode • da IE6: deprecato , usareoradocumentMode • document.documentMode • Values • 5 – Quirks • 7 – Strict • 8 – Internet Explorer 8 Standards Mode • In IE8 influenzata solo daX-UA-Compatible tag • Non dal DOCTYPE

  25. Determiare la Document Compatibility engine = null; if (window.navigator.appName == "Microsoft Internet Explorer") {    // Thisisan IE browser.    if (document.documentMode) // IE8   engine = document.documentMode;    else // IE 5-7    {       engine = 5; // Assume quirks mode unless if (document.compatMode)       {          if (document.compatMode == "CSS1Compat") engine = 7; // standards mode }}}

  26. Link utili • Defining Document Compatibility: Step-by-step instructions for meta tag placement • http://msdn.microsoft.com/en-us/library/cc288325(VS.85).aspx • Internet Explorer 8 Compatibility Test Guide • http://msdn.microsoft.com/en-us/library/cc848857(VS.85).aspx • IE8 Compatibility – Meta tags, HTTP headers, User Agent Strings on from Mike Ormond's (DPE) Blog • http://blogs.msdn.com/mikeormond/archive/2008/09/25/ie-8-compatibility-meta-tags-http-headers-user-agent-strings-etc-etc.aspx • Application Compatibility Toolkit 5.0 with the IE Compatibility Test Tool • http://www.microsoft.com/downloads/details.aspx?familyid=24DA89E9-B581-47B0-B45E-492DD6DA2971&displaylang=en

  27. Link Utili • Internet Explorer Compatibility Center • http://msdn.com/iecompat • Internet Explorer Developer Center • http://msdn2.microsoft.com/en-us/ie/default.aspx • Internet Explorer 8 Readiness Toolkit • http://www.microsoft.com/windows/internet-explorer/beta/readiness/ • Internet Explorer 8 Home Page • http://www.microsoft.com/ie/ie8

  28. © 2009 Microsoft Corporation. All rights reserved. This presentation is for informational purposes only. MICROSOFT MAKES NO WARRANTIES, EXPRESS OR IMPLIED, IN THIS SUMMARY.
