Stud bolts and stud bolts threads

The studs fasten the metal plates with the help of a controlled bolting tool. Different kinds of studs are meant to fit varied site requirements. It depends on your requirement as to which kind of stud will fulfil your need.<br>

15910
Download Presentation

Stud bolts and stud bolts threads

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

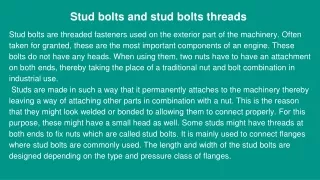

  1. Stud bolts and stud bolts threads Stud bolts are threaded fasteners used on the exterior part of the machinery. Often taken for granted, these are the most important components of an engine. These bolts do not have any heads. When using them, two nuts have to have an attachment on both ends, thereby taking the place of a traditional nut and bolt combination in industrial use. Studs are made in such a way that it permanently attaches to the machinery thereby leaving a way of attaching other parts in combination with a nut. This is the reason that they might look welded or bonded to allowing them to connect properly. For this purpose, these might have a small head as well. Some studs might have threads at both ends to fix nuts which are called stud bolts. It is mainly used to connect flanges where stud bolts are commonly used. The length and width of the stud bolts are designed depending on the type and pressure class of flanges.

  2. Utilisation of studs Stud bolts are used in the petro and chemical industry along with hex bolts that have a six-sided head with a nut. Since it is a threaded rod, the stud bolt is attached with two hexagon-shaped nuts. These stud bolts are best for high-pressure bolting requirements such as required in industries for sealing and connection of flanges like in drilling, pipeline, petroleum refining, etc. Studs assist in the recording of proper and accurate torque values since they avoid twisting while tightening as the other bolts do. These offer a more accurate clamping force since it rotates on a single axis only. On top of that, while using the studs we can observe lesser wear and tear of the block’s threads that in turn helps in extending the life of threaded holes in the block over a certain period. The stud bolt simplifies the process of installation of the main cap and helps in its alignment.

  3. Types of stud bolts threads The simplest and most common type of thread is the symmetrical form with a V-profile with an included angle of 60 degrees. Coarse thread series is more common. This thread system is applied to most screws, bolts, and nuts. Moreover, its tolerance level is quite high. When there is a requirement for higher tensile strength, the fine thread series fits in better. Some of the common types of stud bolts are: • Fully threaded stud bolt This is an extension of the threaded bar. It is also called stud or studding. A fully threaded stud bolt helps in attaching large portions or chunks combined with nuts at both ends to form a bolt. It can also be utilised in several other manners where it functions as the adjustable component for machines and models. Moreover, it becomes easier to shift the nuts over a remarkable distance along the length of the bar while generating a greater force.

  4. Double-end stud bolts Both the sides have ends showing a similar length of threading. It allows nuts with a shank that comes in the middle. • Tap end stud bolts The studs here have a shorter length of thread at each end. These are made to screw into a tapped hole. These, therefore, have a shank with a long thread to allow a nut at each end. • Clinch stud Clinch stud has a small pointed head with lots of teeth. These are like swage to make themselves hooked on to sheet metal for decades

  5. Weld bolt This kind of stud bolt has a proper full-length machine thread. It has a thin wide head to make the process of welding easier done normally into sheet metal. This process of wielding lasts forever. • Bonding stud Bonding studs are a full-length threaded bar with a wide flat head that sometimes has holes. These are drilled into composite parts thereby enabling a permanent fixation of the stud. • King studs The studs define the width of the opening. These extend from the soleplate to the top plate, allowing the building of space to adjust the jack studs.

  6. Dowel screw Also known as, dowel stud, this is different from other stud bolts. This dowel screw has a wooden screw at one end and a machine screw at another end. These studs are made to permanently screw deep into the wood with a stud to hold on to an end using a nut. Many times, a socket does a perfect job for tightening when it attaches to the end of the machine screw. If that does not work then a hexagonal form has to be attached in the middle of the two threads. • Jack studs Jack studs are also known as trimmers or trimmer studs. It serves the purpose of supporting the top of the door or top of a window opening called the header.

  7. Types of equipment for stud bolt threads! Here are the main equipment used for studs bolts treads related operations: • Torque Wrench: It can be defined as a tool that helps in applying some definite amount of torque to the stud bolt or other fastening tools. The torque wrench mostly comes in the shape of a socket wrench and has some special internal mechanisms. This fastening tool is the most fundamental component in the commonly used mechanics, tire modification operations, and other maintenance-related operations. • Tensioners: Notably, the tensioners are used in maintaining a sufficient amount of tension within the belts. This tension is exerted all through the duty cycle. Additionally, they also safeguard the other components like the alternator and water pump. A tensioner is a much less expensive part to replace.

  8. Pneumatic Impact Wrench: A pneumatic impact wrench is a tool that is rotated when none of the wrenches is working. Besides all this, an impact wrench is also helpful in applying some extra force along with some group to the hard-to-turn bolt. Furthermore, if some additional force is added to enhance the torque to impact the wrench. • Spanners: Spanners are typically a type of wrench that consist of some hole or hook at its end. This hook helps in smashing some related device on another one. It provides a better grip and offers mechanical benefits for applying torque. Thus, spanners rotate the elements mostly with rotary fasteners like nuts and bolts. • Hammering: Hammering is an action of the hammer that is an instant application of pressure in some particular form. The process takes place when metal is placed within a die and is beaten till it gets into the shape of a die.

  9. Conclusion The studs fasten the metal plates with the help of a controlled bolting tool. Different kinds of studs are meant to fit varied site requirements. It depends on your requirement as to which kind of stud will fulfil your need. Content Sources :- ABSGroup
