  1. Introduction to Data Models used in Geographic Information Systems Miles Logsdon mlog@u.washington.edu Garry Trudeau - Doonesbury

  2. GIS - consists of: • Components • People, organizational setting • Procedures, rules, quality control • Tools, hardware & software • Data, information • Functions • Data gathering • Data distribution

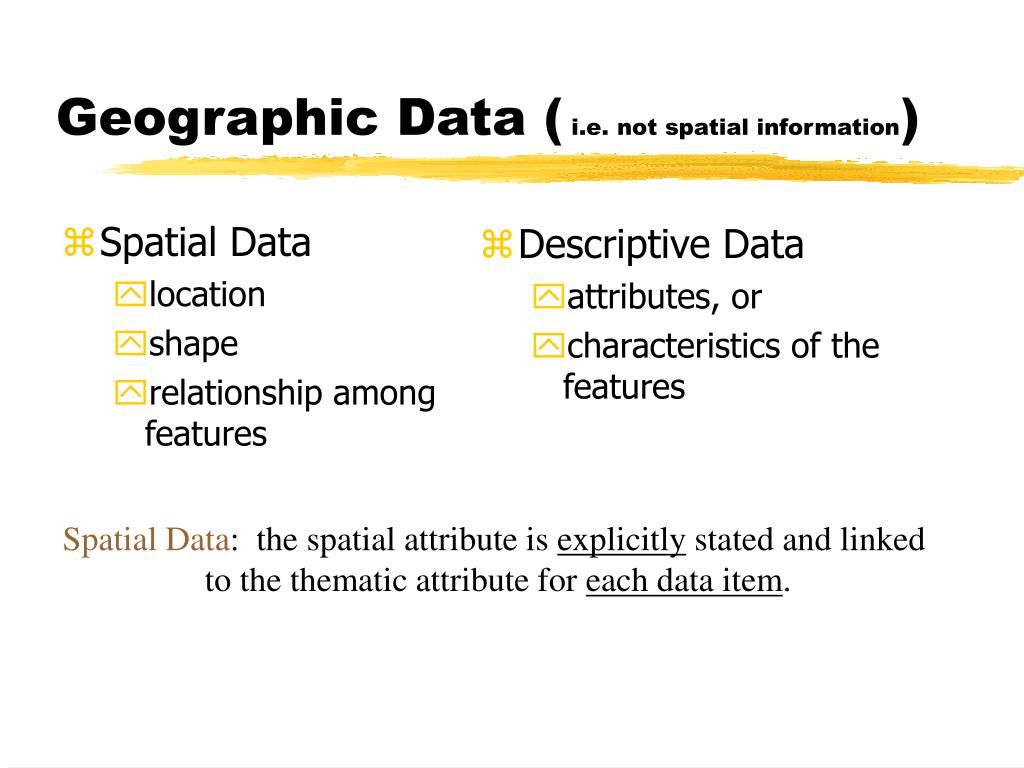

  3. Geographic Data ( i.e. not spatial information) • Spatial Data • location • shape • relationship among features • Descriptive Data • attributes, or • characteristics of the features Spatial Data: the spatial attribute is explicitly stated and linked to the thematic attribute for each data item.

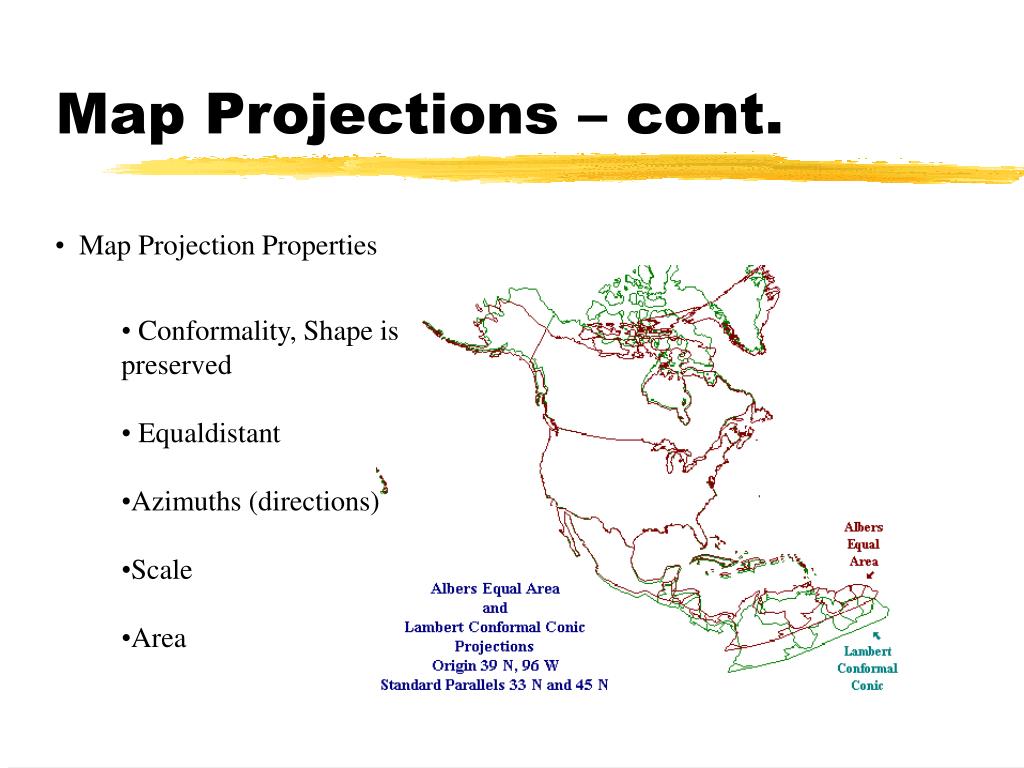

  4. Map Projections – cont. • Map Projection Properties • Conformality, Shape is preserved • Equaldistant • Azimuths (directions) • Scale • Area

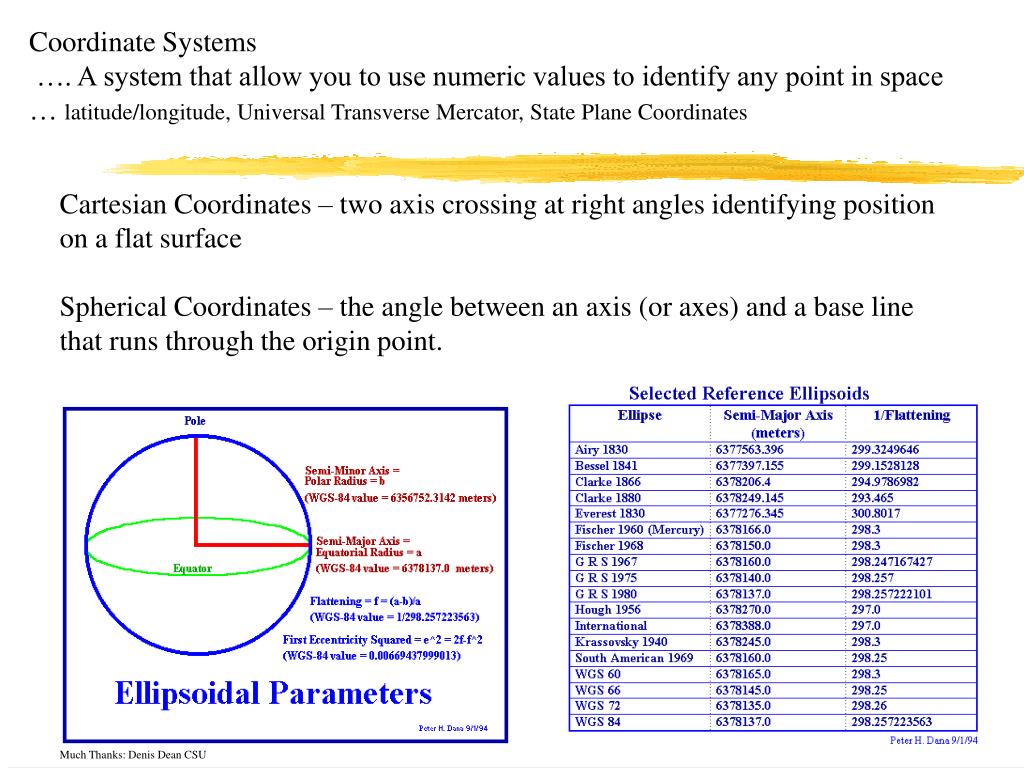

  5. Coordinate Systems …. A system that allow you to use numeric values to identify any point in space … latitude/longitude, Universal Transverse Mercator, State Plane Coordinates Cartesian Coordinates – two axis crossing at right angles identifying position on a flat surface Spherical Coordinates – the angle between an axis (or axes) and a base line that runs through the origin point. Much Thanks: Denis Dean CSU

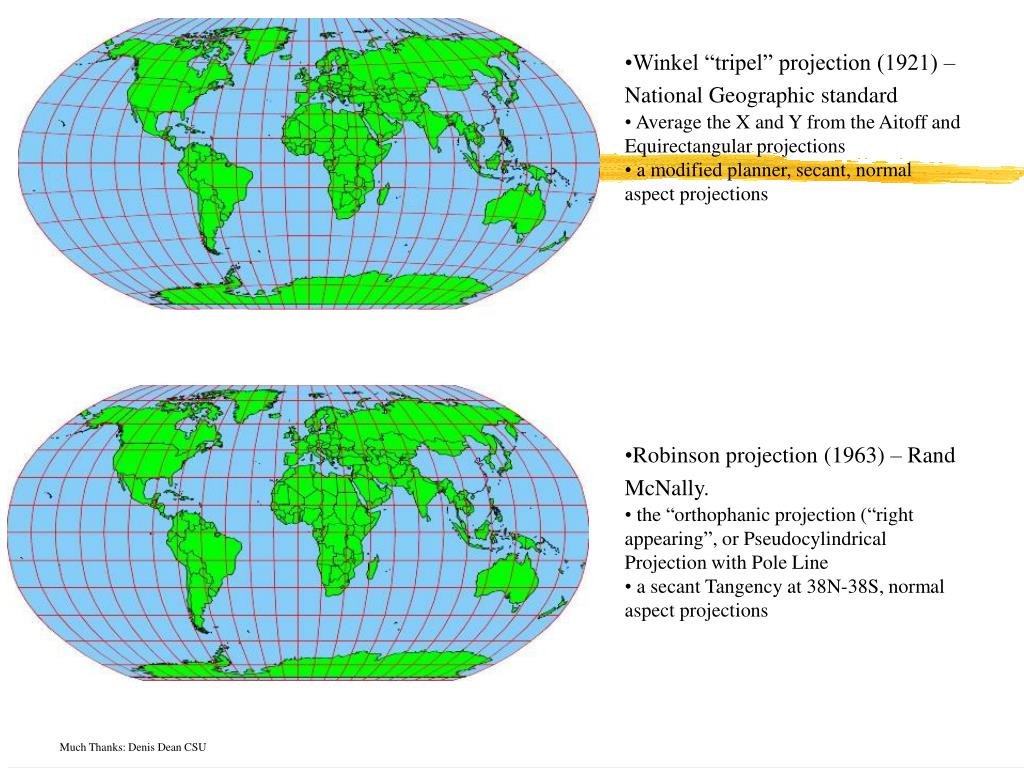

  6. Winkel “tripel” projection (1921) – National Geographic standard • Average the X and Y from the Aitoff and Equirectangular projections • a modified planner, secant, normal aspect projections • Robinson projection (1963) – Rand McNally. • the “orthophanic projection (“right appearing”, or Pseudocylindrical Projection with Pole Line • a secant Tangency at 38N-38S, normal aspect projections Much Thanks: Denis Dean CSU

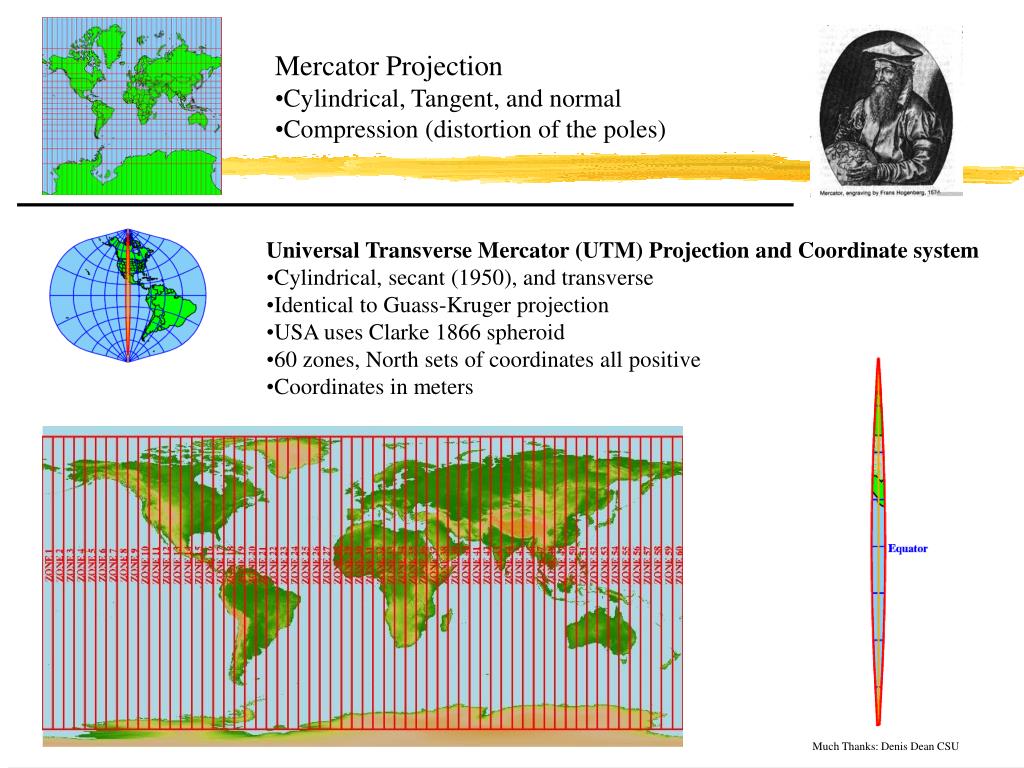

  7. Mercator Projection • Cylindrical, Tangent, and normal • Compression (distortion of the poles) • Universal Transverse Mercator (UTM) Projection and Coordinate system • Cylindrical, secant (1950), and transverse • Identical to Guass-Kruger projection • USA uses Clarke 1866 spheroid • 60 zones, North sets of coordinates all positive • Coordinates in meters Much Thanks: Denis Dean CSU

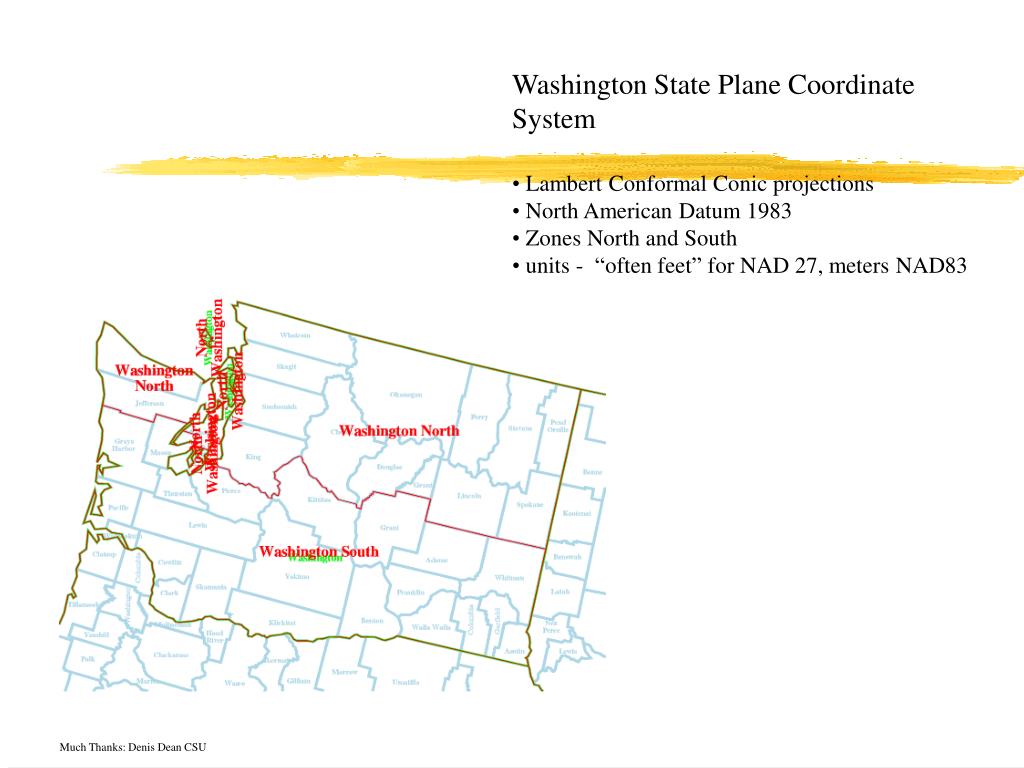

  8. Washington State Plane Coordinate System • Lambert Conformal Conic projections • North American Datum 1983 • Zones North and South • units - “often feet” for NAD 27, meters NAD83 Much Thanks: Denis Dean CSU

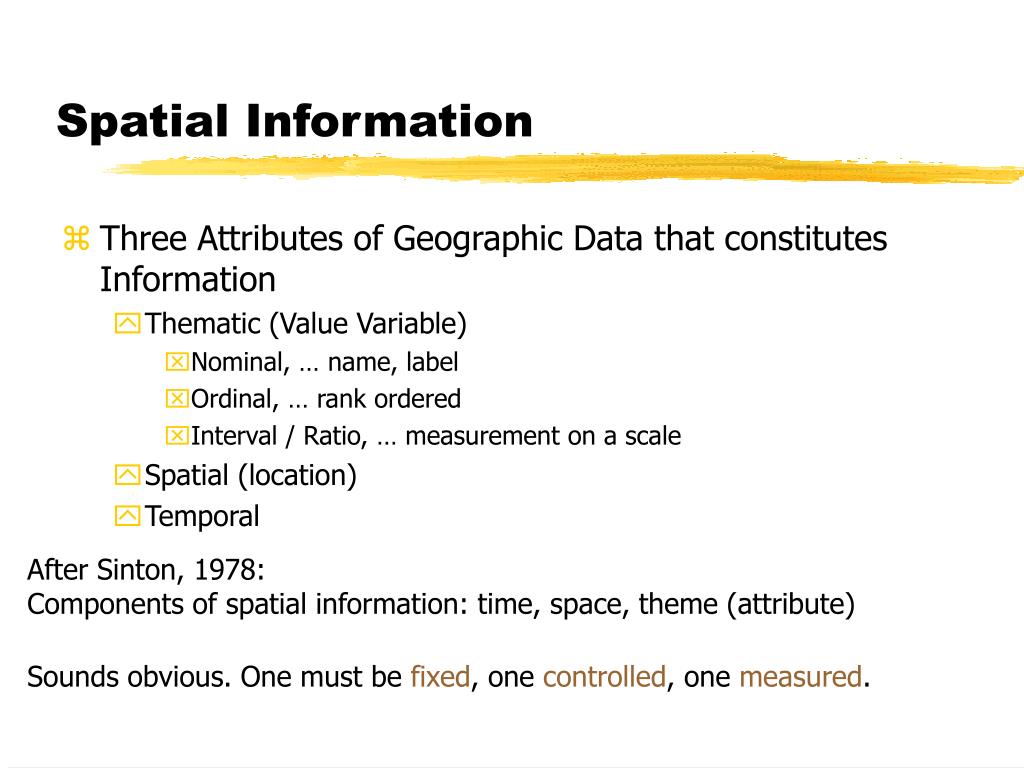

  9. Spatial Information • Three Attributes of Geographic Data that constitutes Information • Thematic (Value Variable) • Nominal, … name, label • Ordinal, … rank ordered • Interval / Ratio, … measurement on a scale • Spatial (location) • Temporal After Sinton, 1978: Components of spatial information: time, space, theme (attribute) Sounds obvious. One must be fixed, one controlled, one measured.

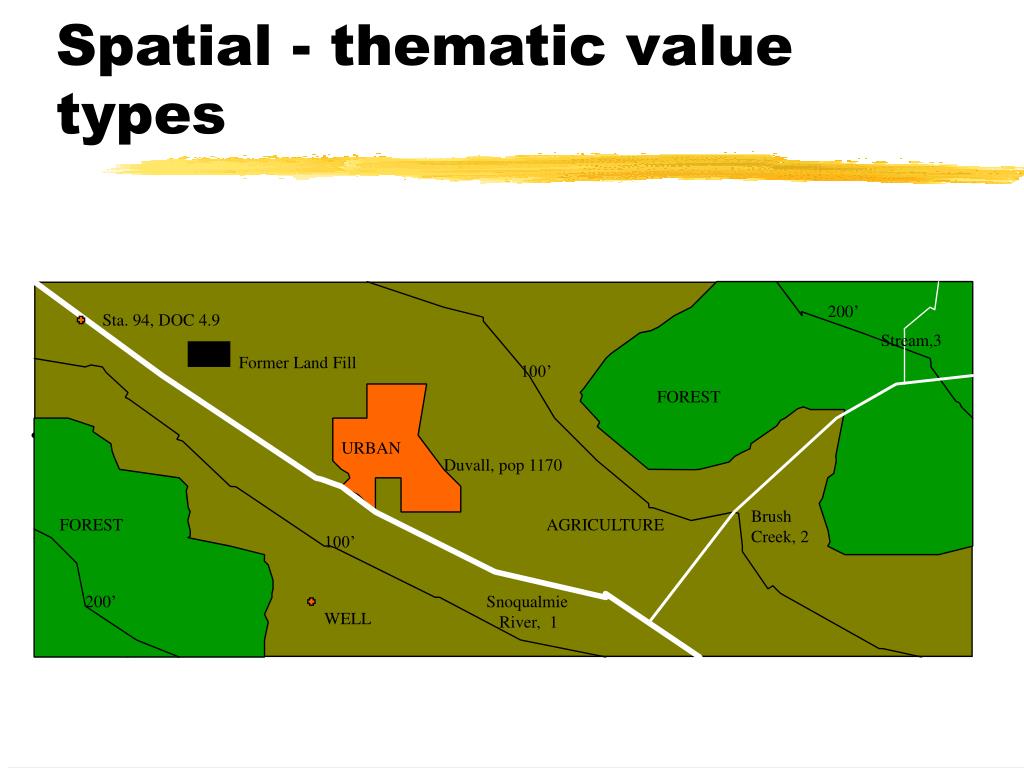

  10. Spatial - thematic value types 200’ Sta. 94, DOC 4.9 Stream,3 Former Land Fill 100’ FOREST URBAN Duvall, pop 1170 Brush Creek, 2 FOREST AGRICULTURE 100’ 200’ Snoqualmie River, 1 WELL

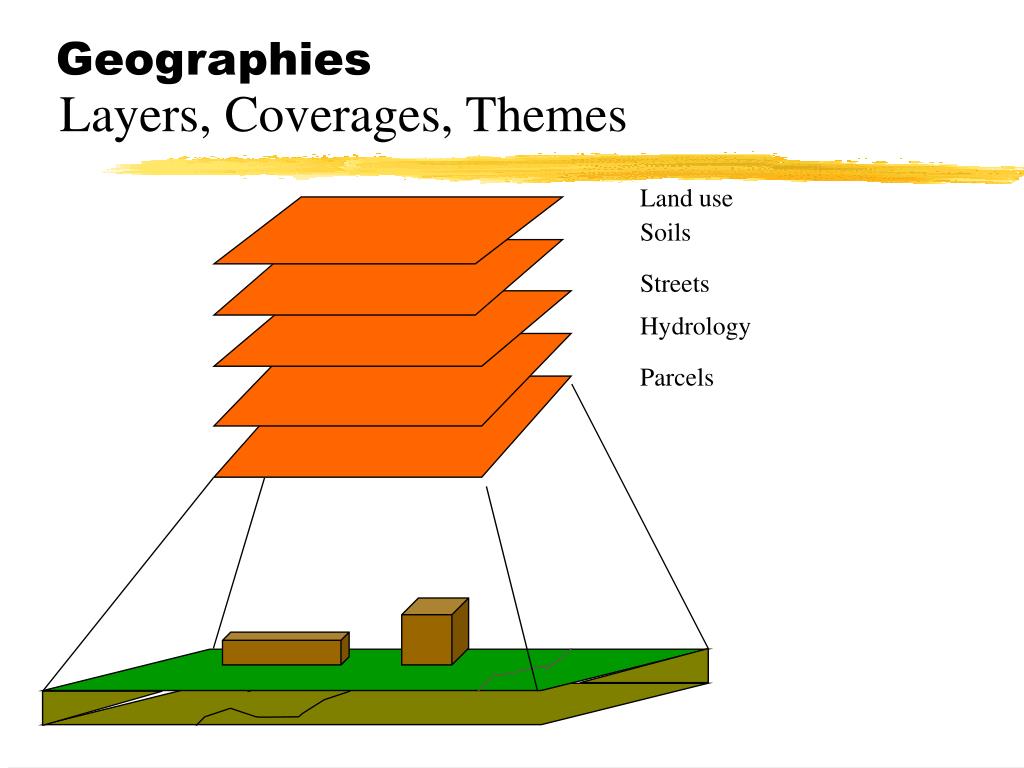

  11. Geographies Layers, Coverages, Themes Land use Soils Streets Hydrology Parcels

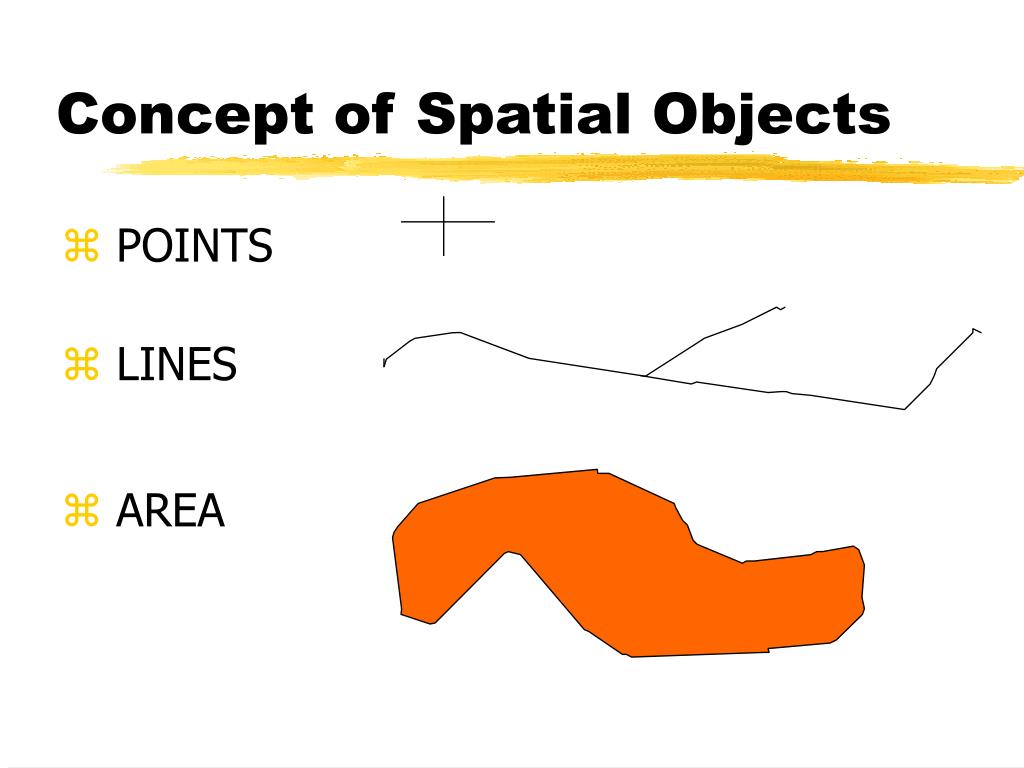

  12. Concept of Spatial Objects • POINTS • LINES • AREA

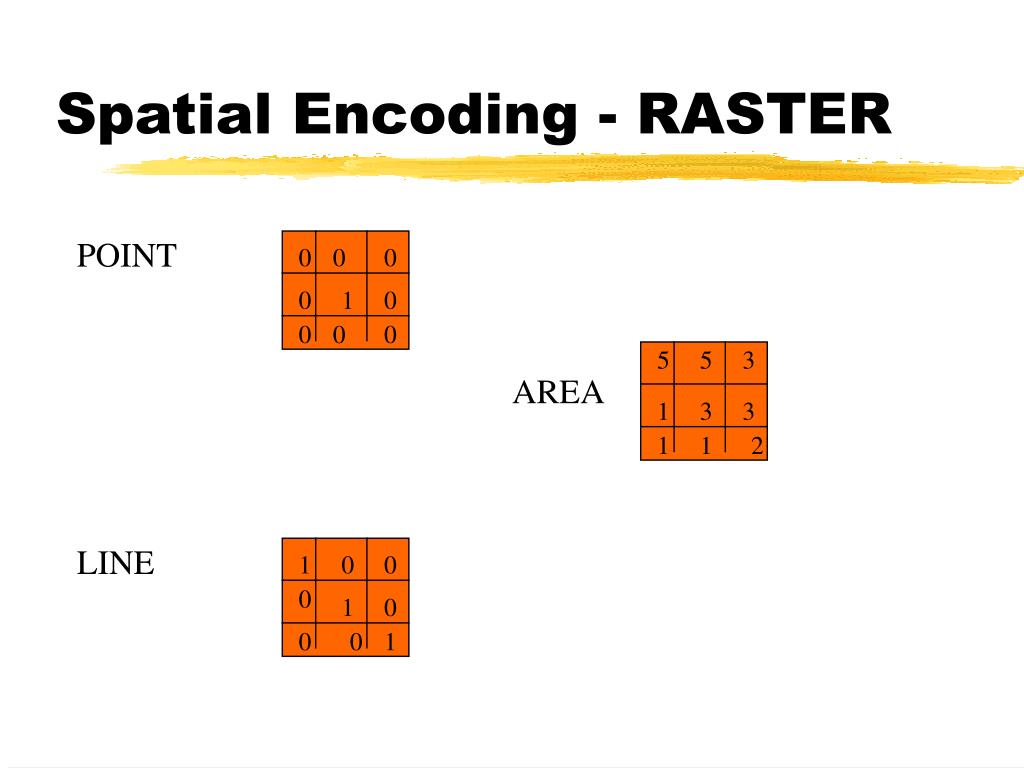

  13. 0 Spatial Encoding - RASTER POINT 0 0 0 0 1 0 0 0 0 5 5 3 AREA 1 3 3 1 1 2 LINE 1 0 0 0 1 0 0 1

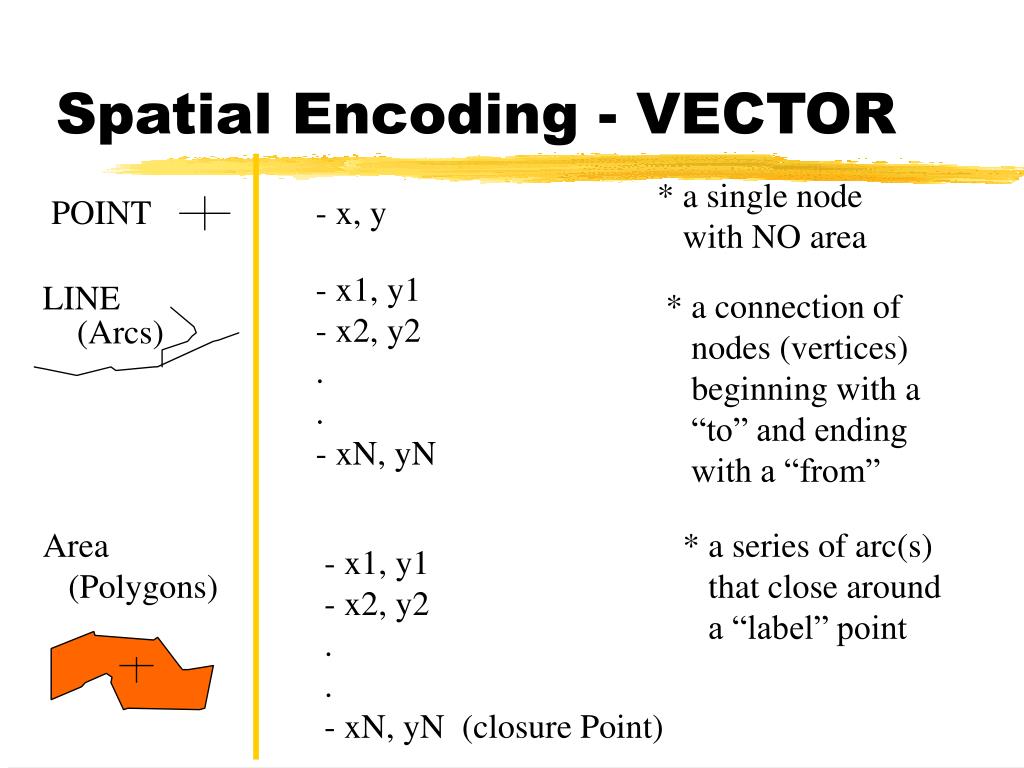

  14. Spatial Encoding - VECTOR * a single node with NO area POINT - x, y - x1, y1 - x2, y2 . . - xN, yN LINE * a connection of nodes (vertices) beginning with a “to” and ending with a “from” (Arcs) Area (Polygons) * a series of arc(s) that close around a “label” point - x1, y1 - x2, y2 . . - xN, yN (closure Point)

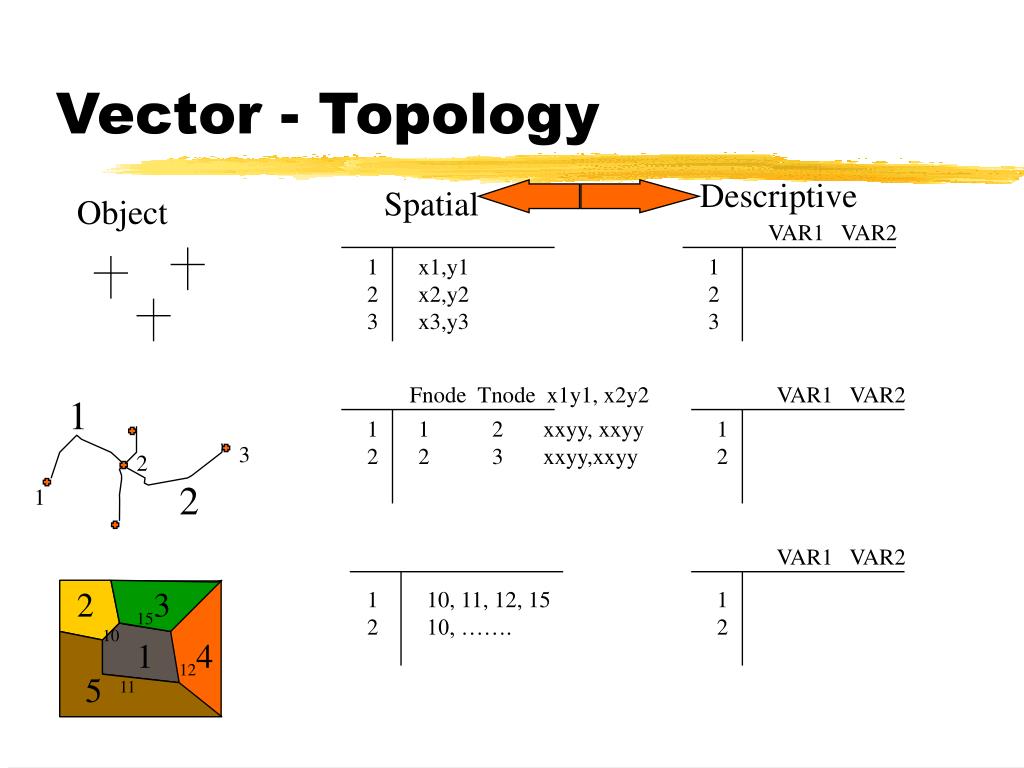

  15. Vector - Topology Descriptive Spatial Object VAR1 VAR2 1 2 3 x1,y1 x2,y2 x3,y3 1 2 3 Fnode Tnode x1y1, x2y2 VAR1 VAR2 1 1 2 1 2 xxyy, xxyy 2 3 xxyy,xxyy 1 2 3 2 2 1 VAR1 VAR2 2 3 1 2 10, 11, 12, 15 10, ……. 1 2 15 10 1 4 12 5 11

  16. Raster Data Model

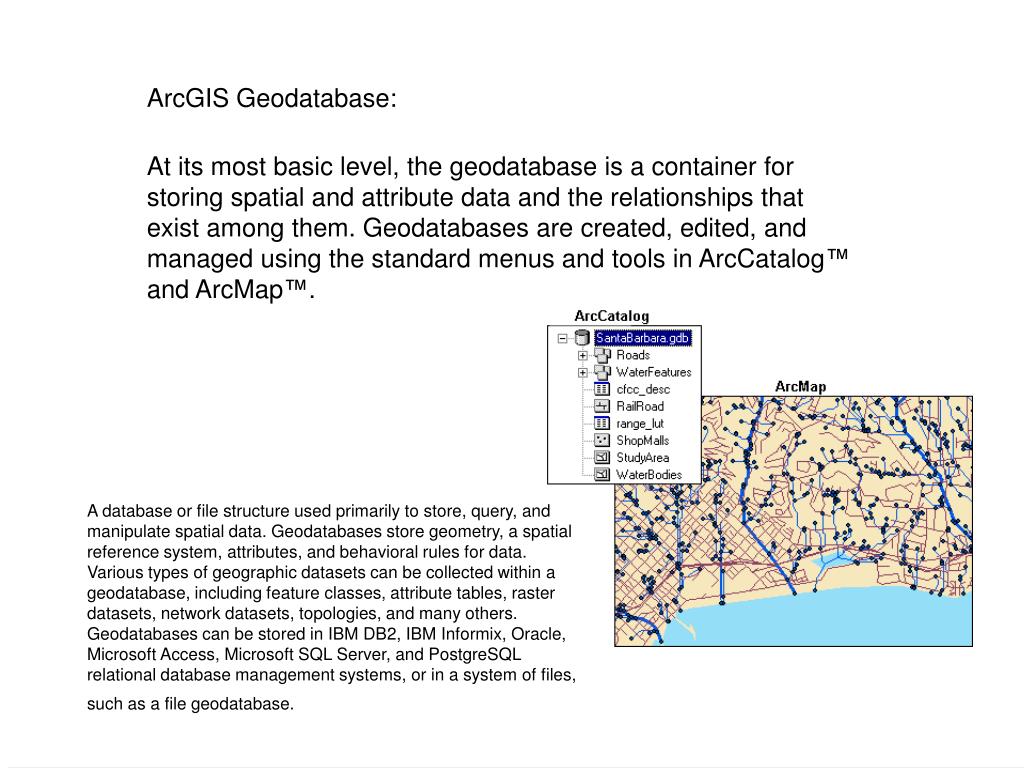

  17. ArcGIS Geodatabase: At its most basic level, the geodatabase is a container for storing spatial and attribute data and the relationships that exist among them. Geodatabases are created, edited, and managed using the standard menus and tools in ArcCatalog™ and ArcMap™. A database or file structure used primarily to store, query, and manipulate spatial data. Geodatabases store geometry, a spatial reference system, attributes, and behavioral rules for data. Various types of geographic datasets can be collected within a geodatabase, including feature classes, attribute tables, raster datasets, network datasets, topologies, and many others. Geodatabases can be stored in IBM DB2, IBM Informix, Oracle, Microsoft Access, Microsoft SQL Server, and PostgreSQL relational database management systems, or in a system of files, such as a file geodatabase.

  18. Personal geodatabase for Microsoft Access: A personal geodatabase for Microsoft Access can be read by multiple people at the same time, but edited by only one person at a time. A personal geodatabase for Access has the .mdb file extension (a format used by Microsoft Access) and has a maximum size of 2 gigabytes (GB). Vector data is stored in the database, while raster data is referenced. Personal geodatabases for Access are appropriate for smaller workgroups and for managing small to moderately sized datasets. File geodatabase: The file geodatabase is a new geodatabase type released at ArcGIS 9.2. A file geodatabase, which has the .gdb file extension, stores datasets in a folder of files on your computer. File geodatabases work across operating systems and can store individual datasets up to 1 terabyte (TB) in size. While only one person can edit an individual item in a file geodatabase at a time, multiple people can view and query the data stored in a file geodatabase at the same time. File geodatabases are the recommended native data format for ArcGIS. Multiuser geodatabase: A multiuser geodatabase is typically found in larger organizations where multiple users need to view and edit the GIS database at the same time. Multiuser geodatabases support versions and replication and require ArcSDE technology and a database management system (DBMS) such as Informix, Microsoft SQL Server, or Oracle.

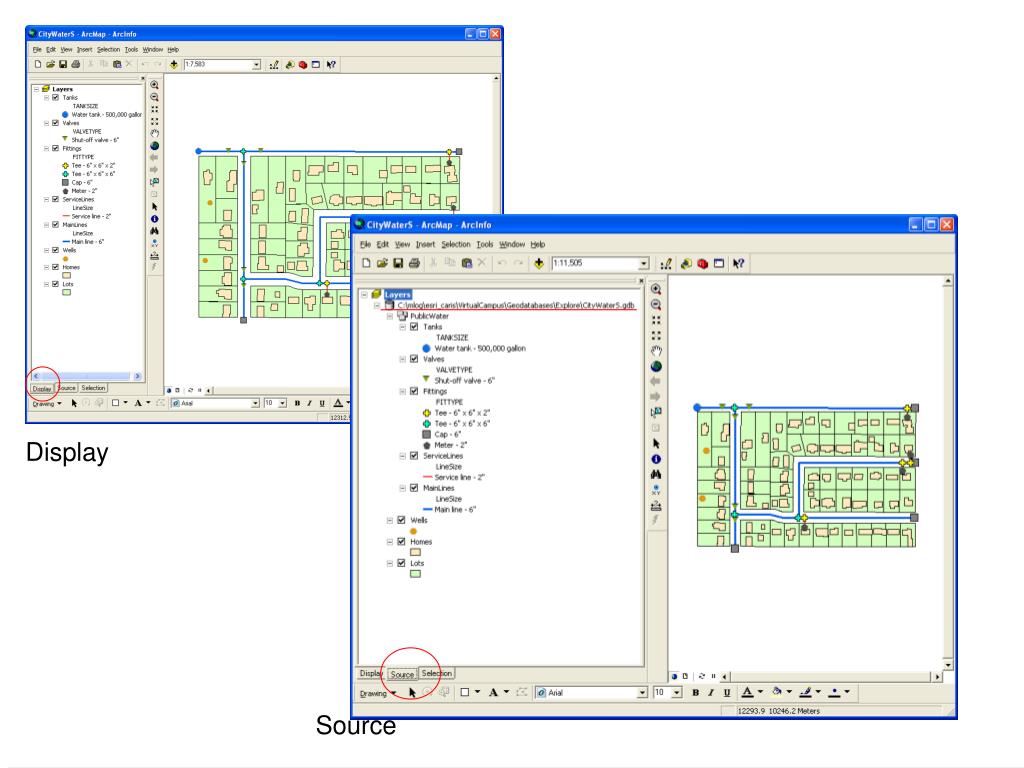

  19. Display Source

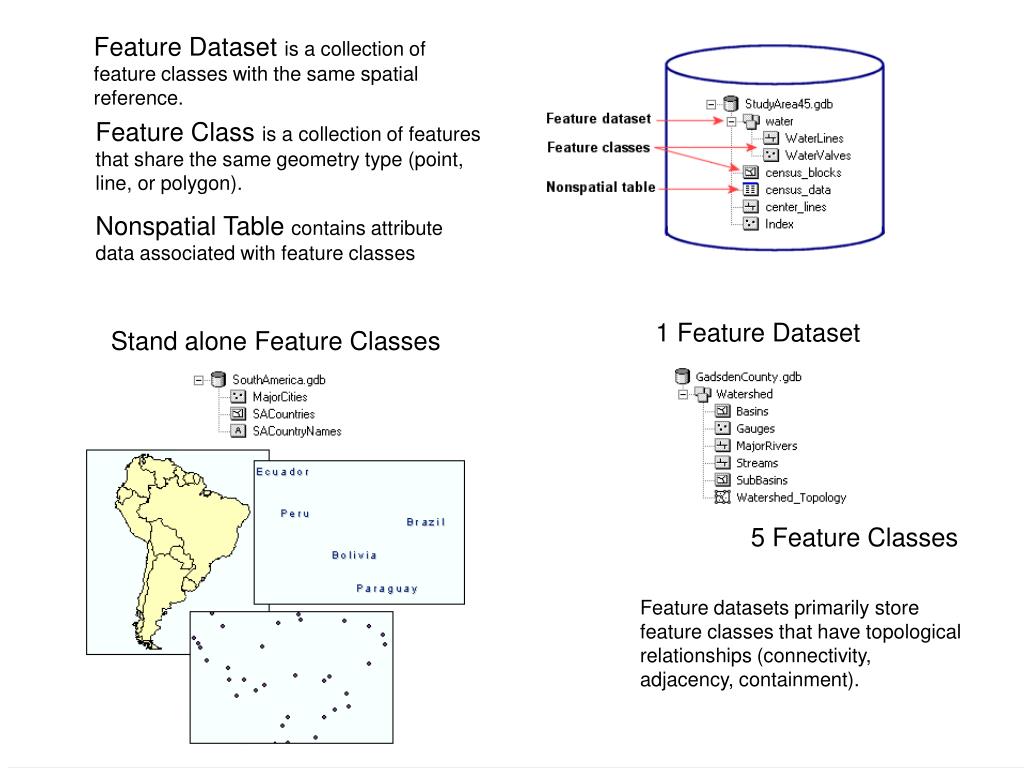

  20. Feature Dataset is a collection of feature classes with the same spatial reference. Feature Class is a collection of features that share the same geometry type (point, line, or polygon). Nonspatial Table contains attribute data associated with feature classes 1 Feature Dataset Stand alone Feature Classes 5 Feature Classes Feature datasets primarily store feature classes that have topological relationships (connectivity, adjacency, containment).

  21. Types of Geodatabases Coverages CAD dBase INFO tables Shapefiles ERDAS Imagine ESRI Grid JPEG MrSID TIFF

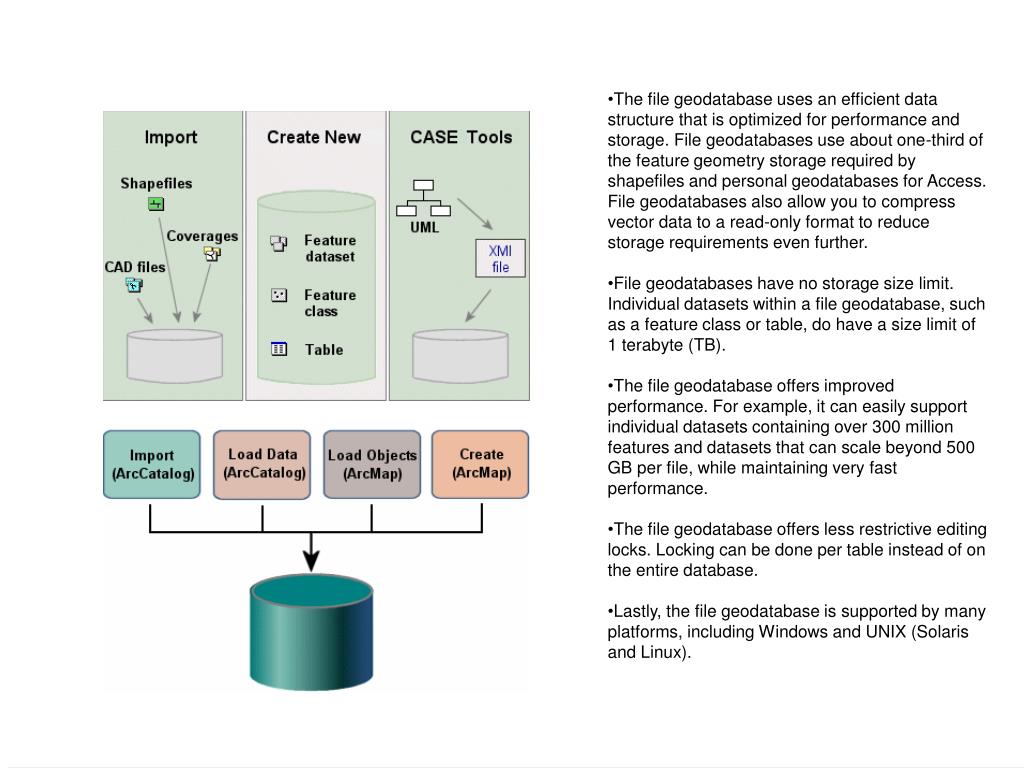

  22. The file geodatabase uses an efficient data structure that is optimized for performance and storage. File geodatabases use about one-third of the feature geometry storage required by shapefiles and personal geodatabases for Access. File geodatabases also allow you to compress vector data to a read-only format to reduce storage requirements even further. • File geodatabases have no storage size limit. Individual datasets within a file geodatabase, such as a feature class or table, do have a size limit of 1 terabyte (TB). • The file geodatabase offers improved performance. For example, it can easily support individual datasets containing over 300 million features and datasets that can scale beyond 500 GB per file, while maintaining very fast performance. • The file geodatabase offers less restrictive editing locks. Locking can be done per table instead of on the entire database. • Lastly, the file geodatabase is supported by many platforms, including Windows and UNIX (Solaris and Linux).

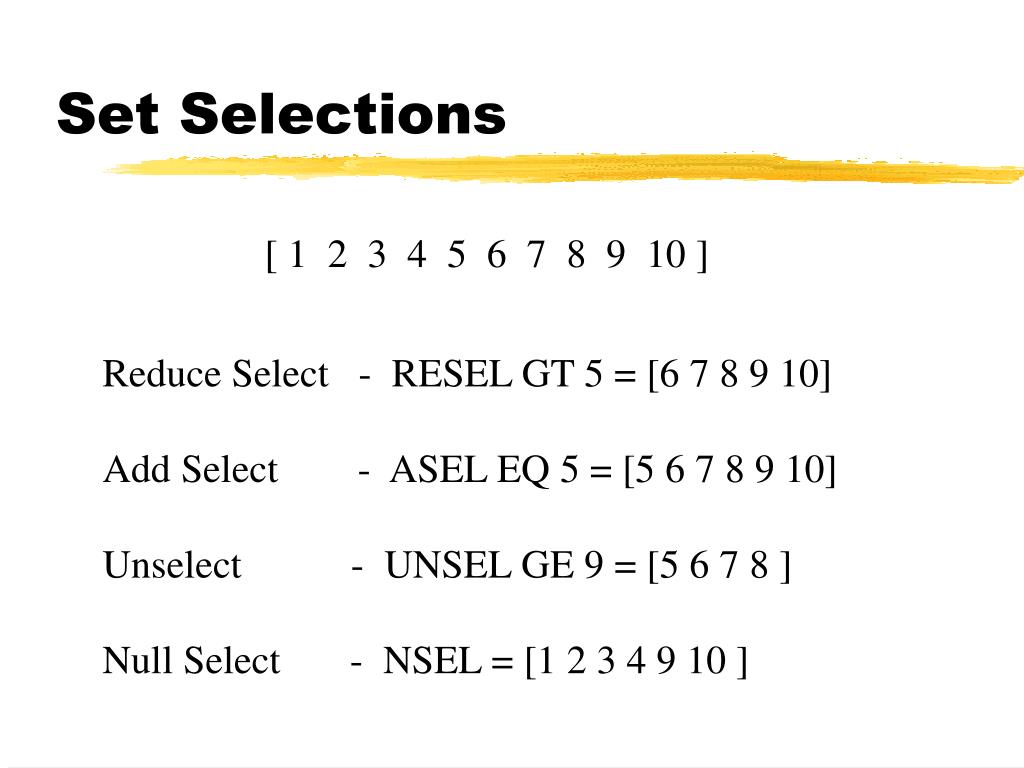

  23. Set Selections [ 1 2 3 4 5 6 7 8 9 10 ] Reduce Select - RESEL GT 5 = [6 7 8 9 10] Add Select - ASEL EQ 5 = [5 6 7 8 9 10] Unselect - UNSEL GE 9 = [5 6 7 8 ] Null Select - NSEL = [1 2 3 4 9 10 ]

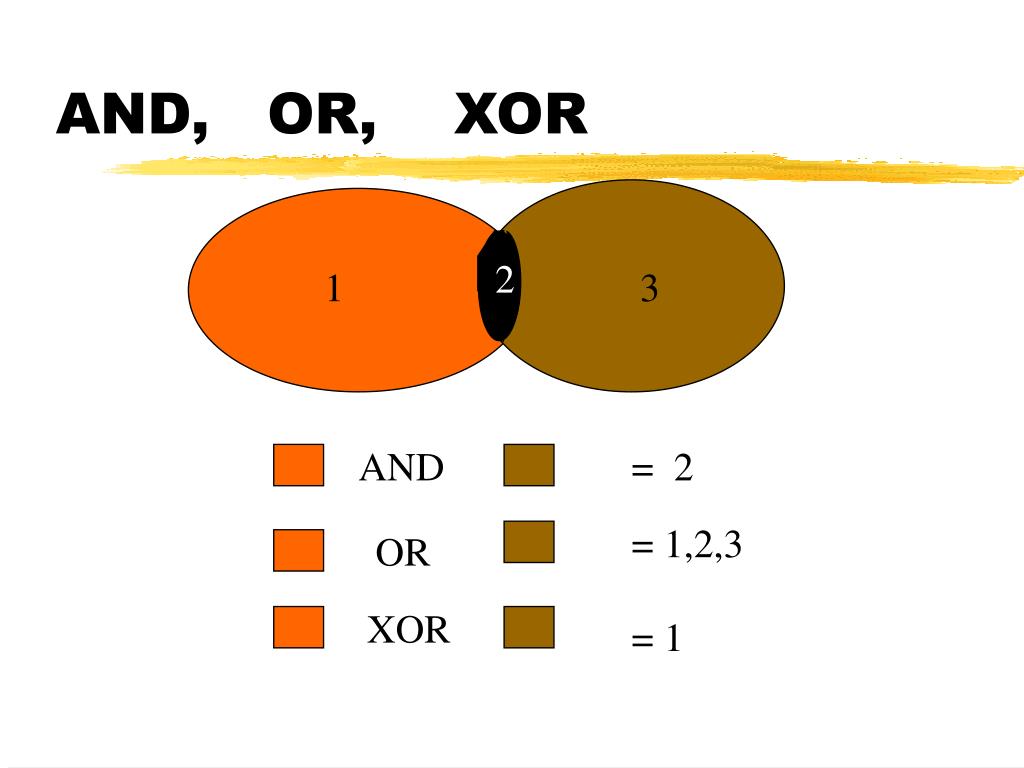

  24. 2 2 1 3 AND = 2 = 1,2,3 OR XOR = 1 AND, OR, XOR

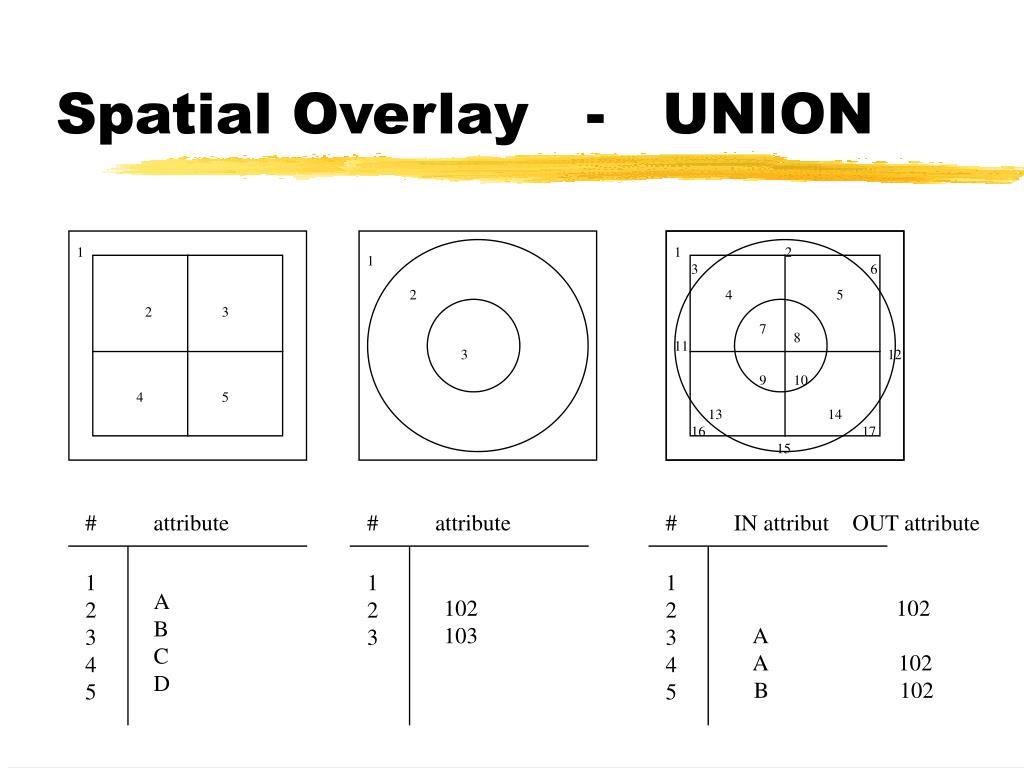

  25. # attribute # attribute # IN attribut OUT attribute 1 2 3 4 5 1 2 3 1 2 3 4 5 Spatial Overlay - UNION 1 1 2 1 3 6 2 4 5 2 3 7 8 11 3 12 9 10 4 5 13 14 16 17 15 A B C D 102 103 102 A A 102 B 102

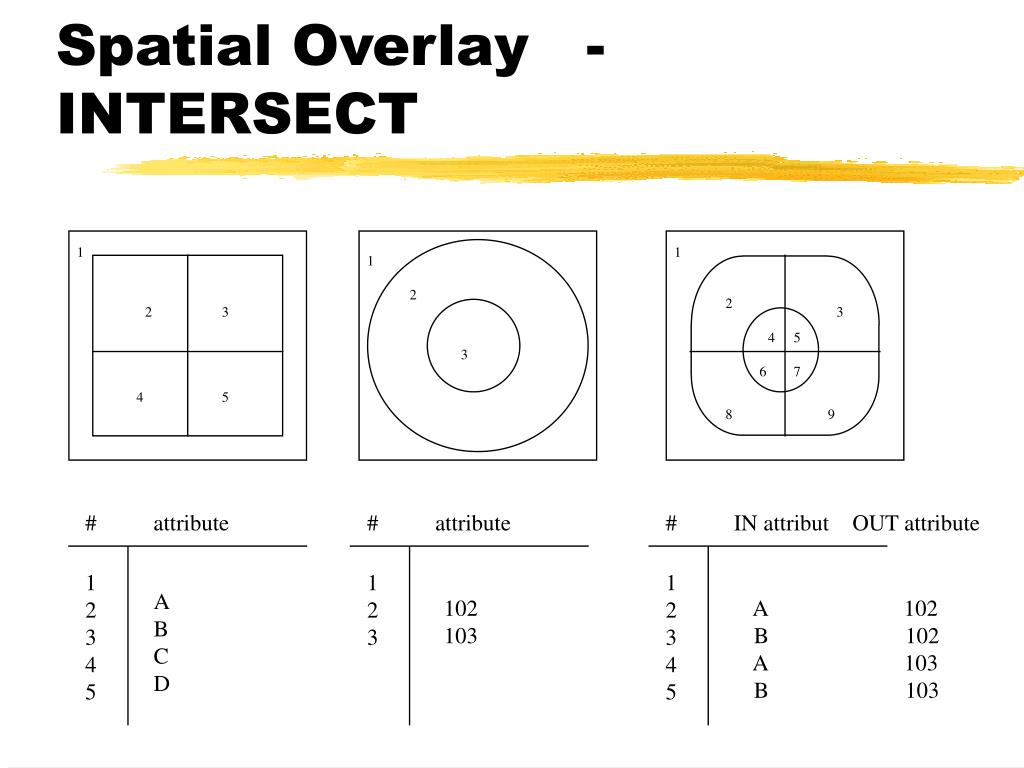

  26. # attribute # attribute # IN attribut OUT attribute 1 2 3 4 5 1 2 3 1 2 3 4 5 Spatial Overlay - INTERSECT 1 1 1 2 2 2 3 3 4 5 3 6 7 4 5 8 9 A B C D 102 103 A 102 B 102 A 103 B 103

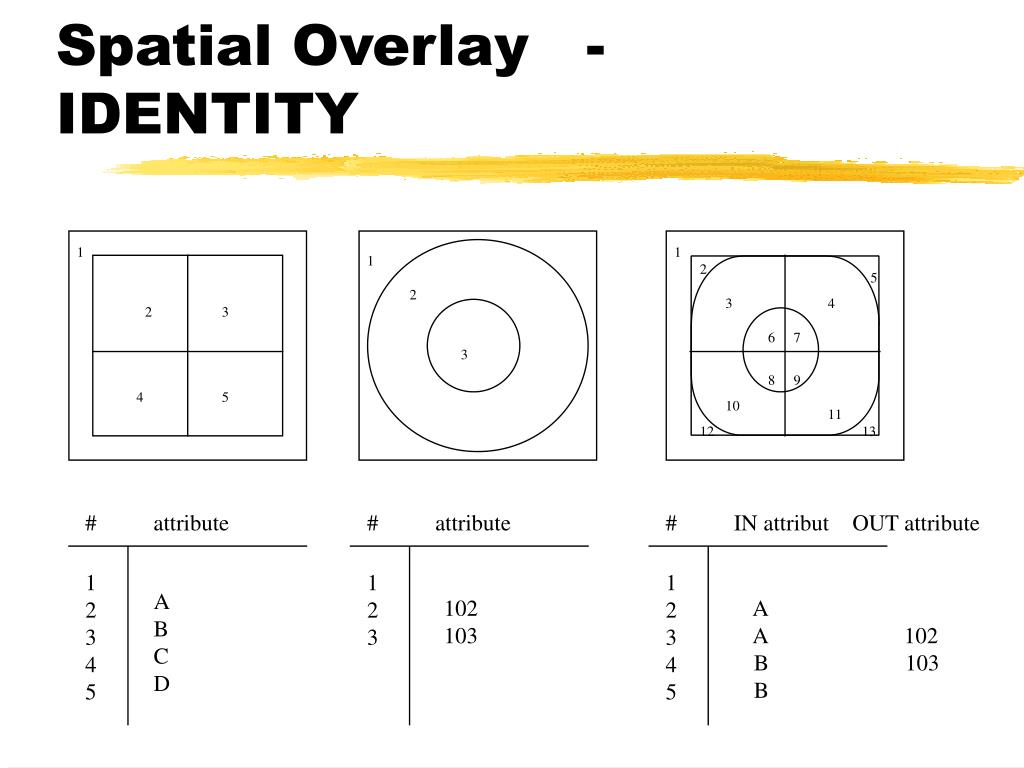

  27. # attribute # attribute # IN attribut OUT attribute 1 2 3 4 5 1 2 3 1 2 3 4 5 Spatial Overlay - IDENTITY 1 1 1 2 5 2 3 4 2 3 6 7 3 8 9 4 5 10 11 12 13 A B C D 102 103 A A 102 B 103 B

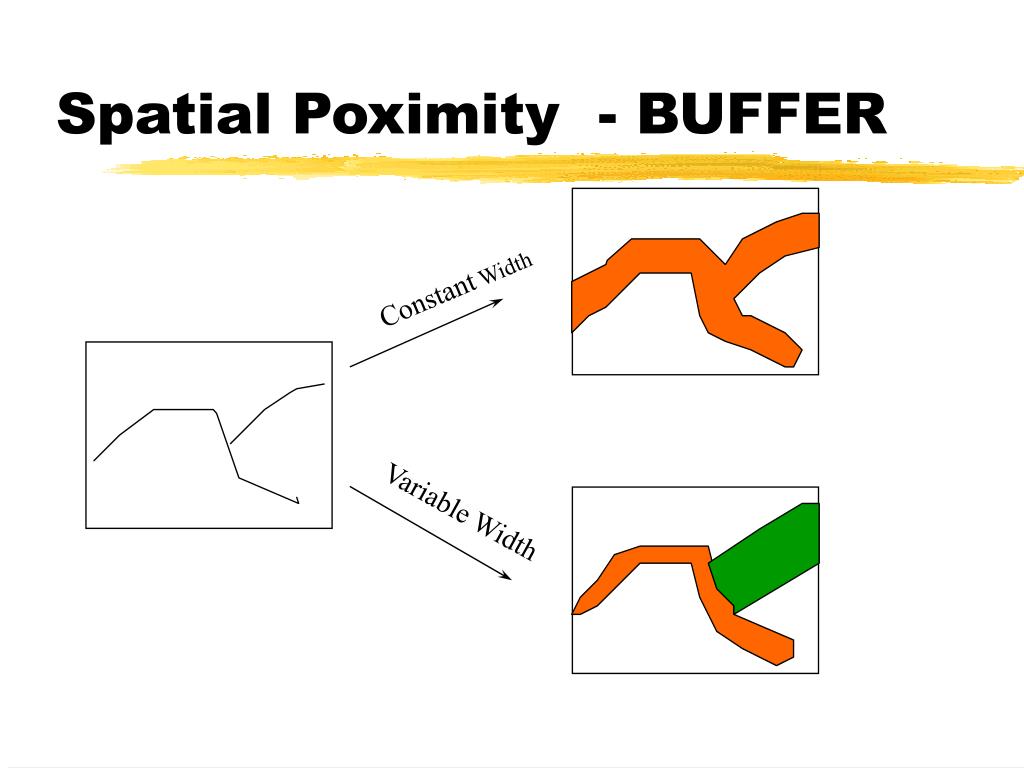

  28. Spatial Poximity - BUFFER Constant Width Variable Width

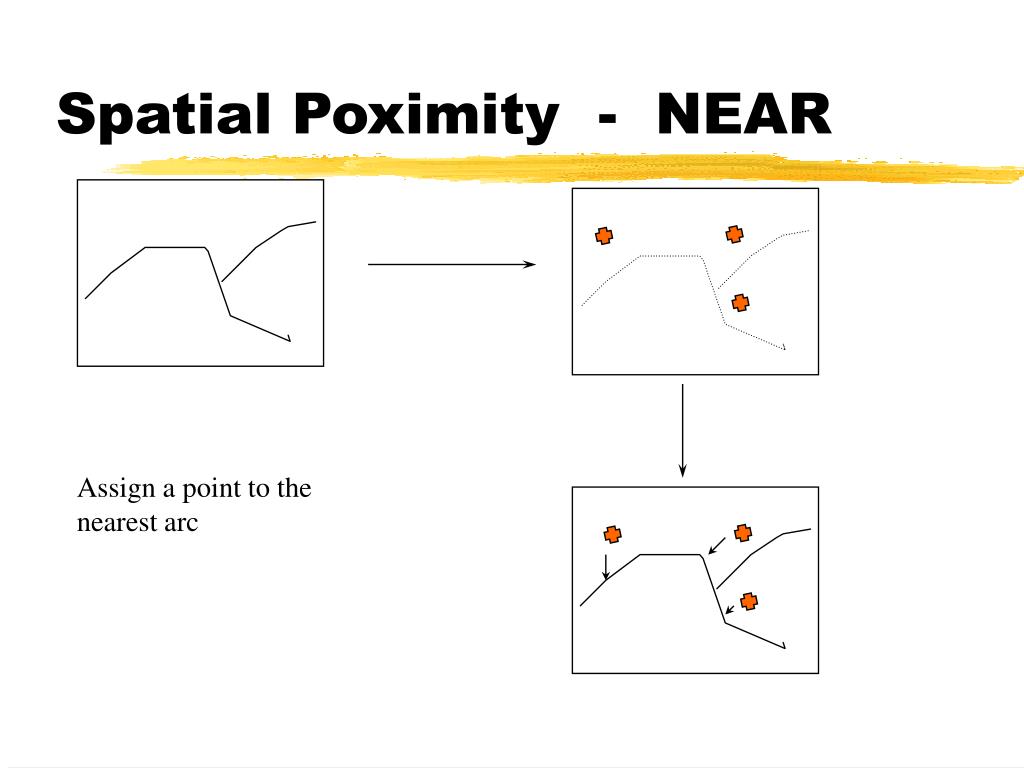

  29. Spatial Poximity - NEAR Assign a point to the nearest arc

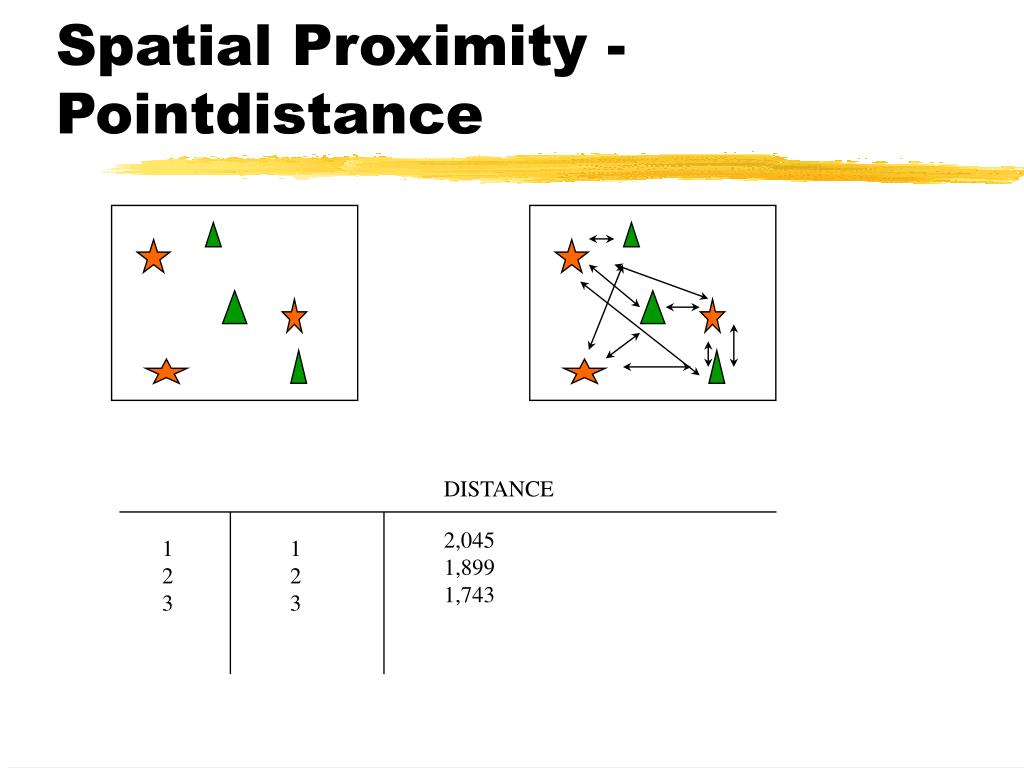

  30. Spatial Proximity - Pointdistance DISTANCE 2,045 1,899 1,743 1 2 3 1 2 3

  31. Spatial Proximity - Thiessen Polygons

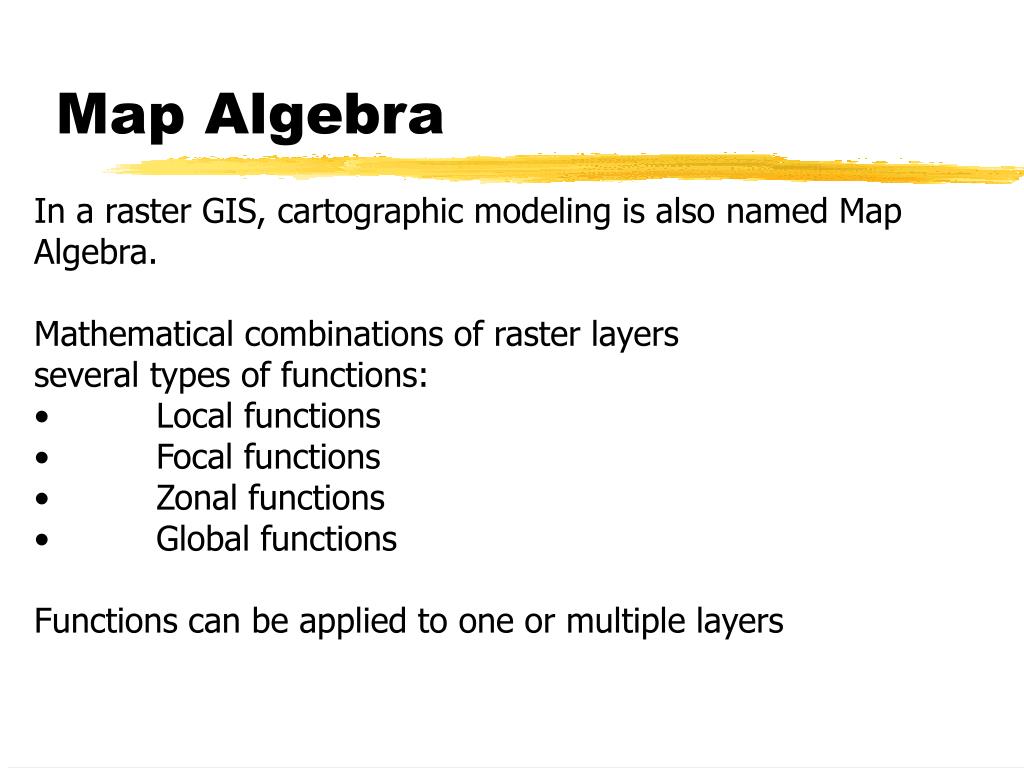

  32. Map Algebra • In a raster GIS, cartographic modeling is also named Map Algebra. • Mathematical combinations of raster layers • several types of functions: • Local functions • Focal functions • Zonal functions • Global functions • Functions can be applied to one or multiple layers

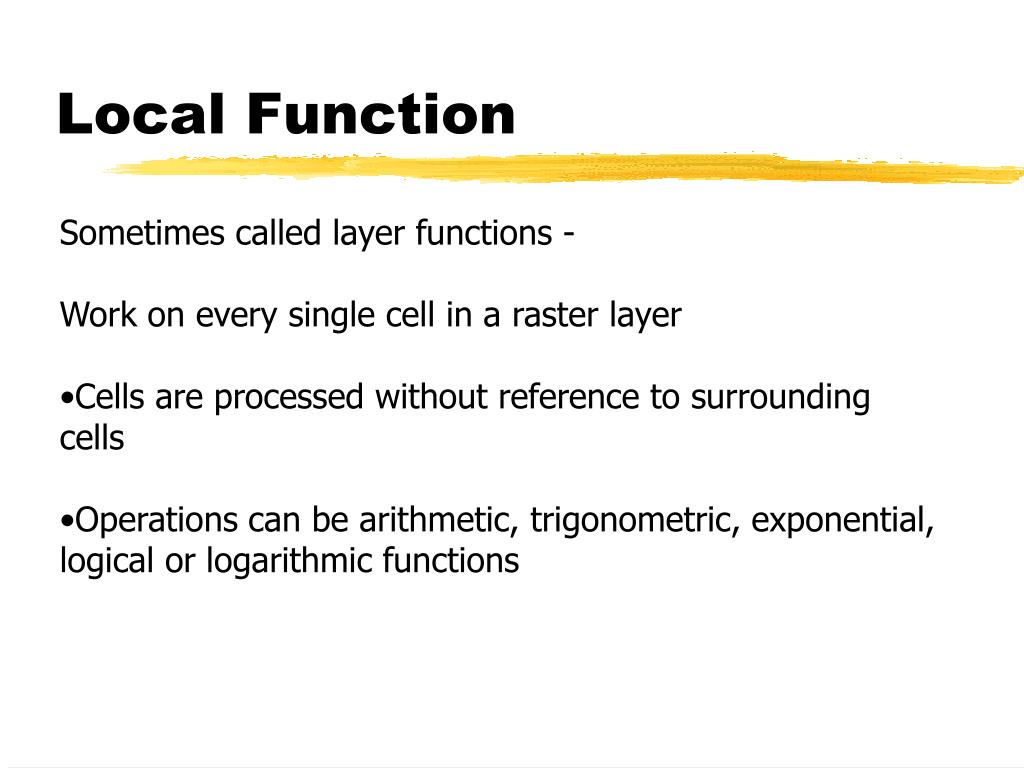

  33. Local Function • Sometimes called layer functions - • Work on every single cell in a raster layer • Cells are processed without reference to surrounding cells • Operations can be arithmetic, trigonometric, exponential, logical or logarithmic functions

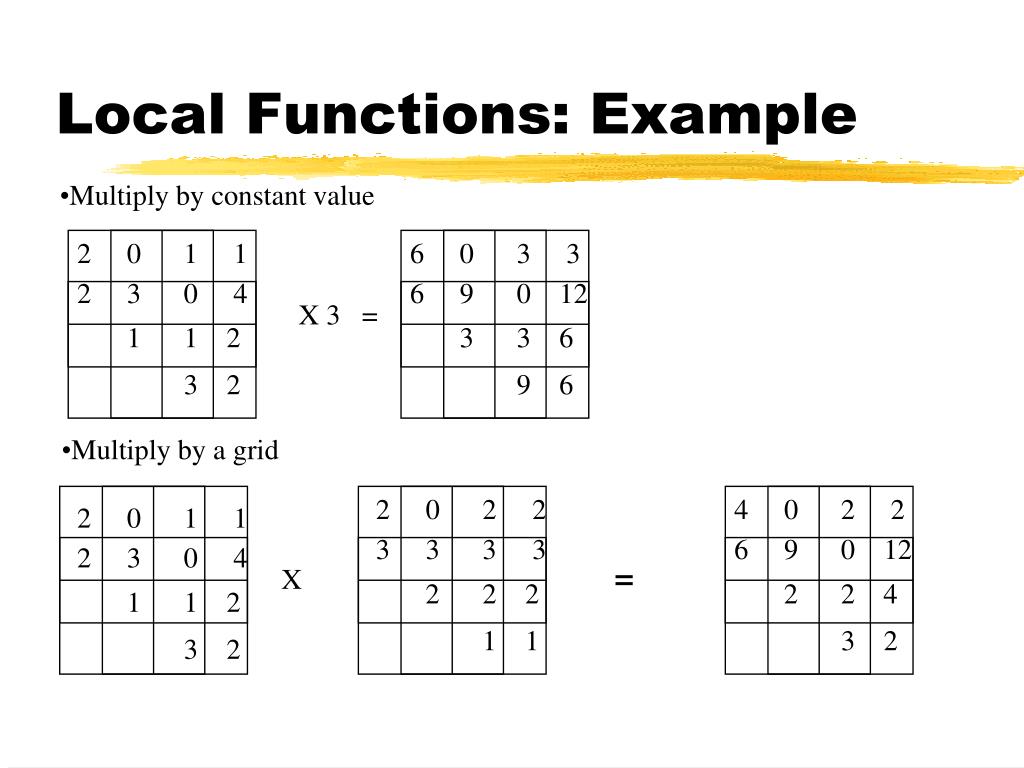

  34. Local Functions: Example • Multiply by constant value 2 0 1 1 2 3 0 4 1 1 2 3 2 6 0 3 3 6 9 0 12 3 3 6 9 6 X 3 = • Multiply by a grid 2 0 2 2 3 3 3 3 2 2 2 1 1 4 0 2 2 6 9 0 12 2 2 4 3 2 2 0 1 1 2 3 0 4 1 1 2 3 2 = X

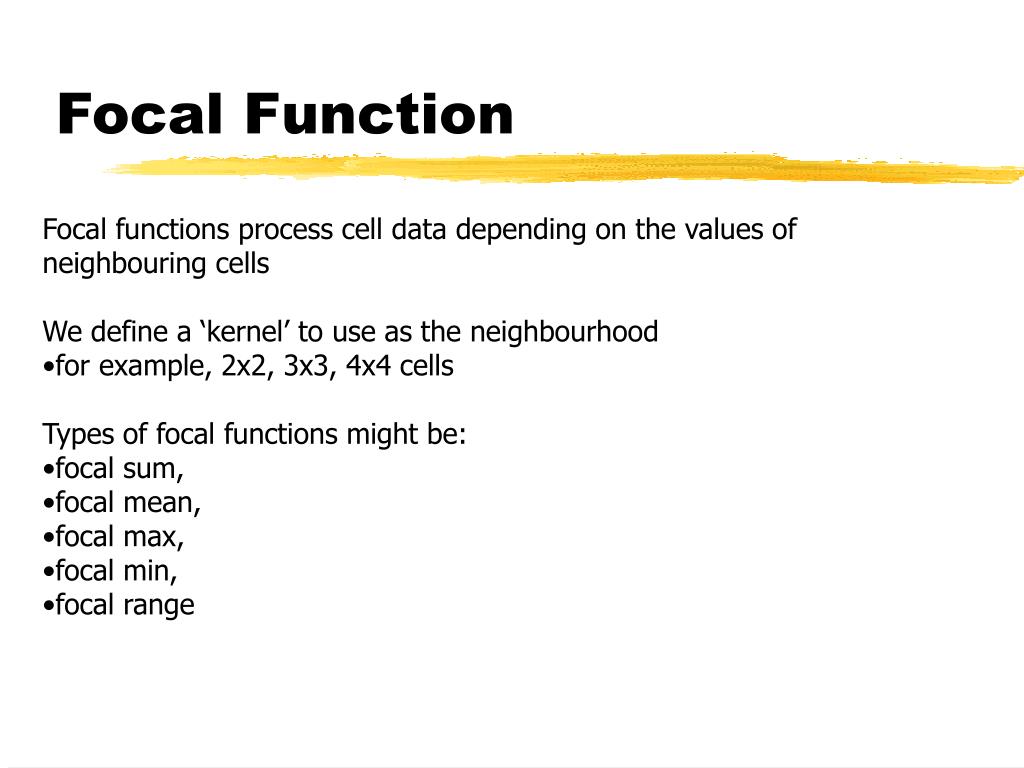

  35. Focal Function • Focal functions process cell data depending on the values of neighbouring cells • We define a ‘kernel’ to use as the neighbourhood • for example, 2x2, 3x3, 4x4 cells • Types of focal functions might be: • focal sum, • focal mean, • focal max, • focal min, • focal range

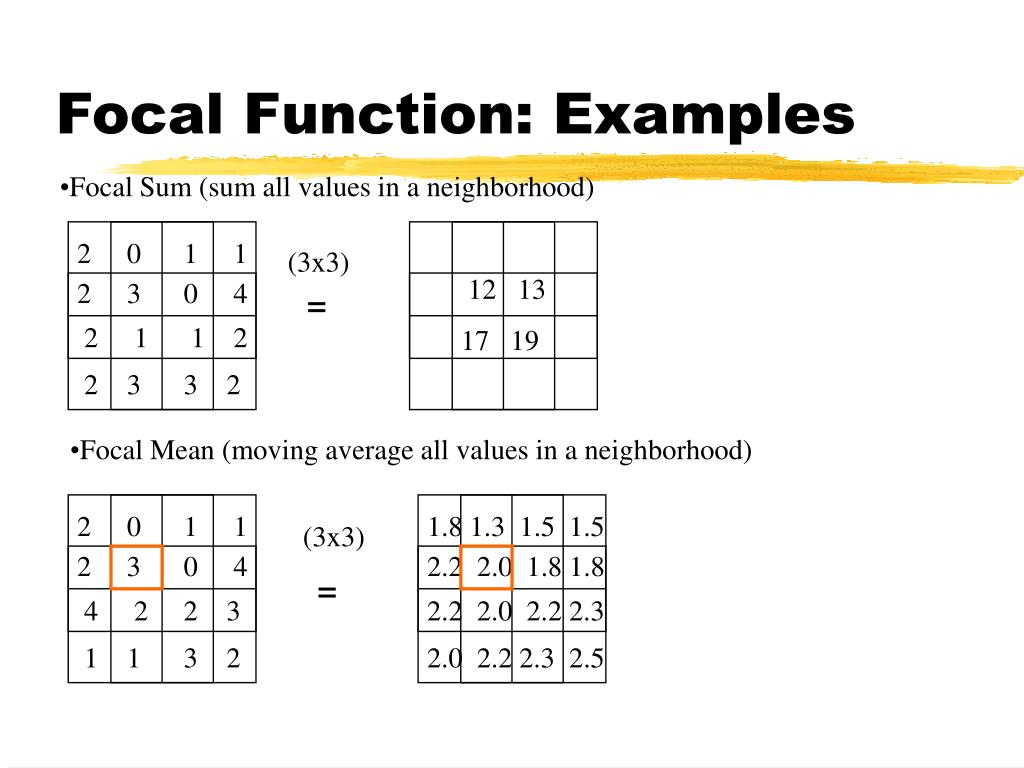

  36. Focal Function: Examples • Focal Sum (sum all values in a neighborhood) 2 0 1 1 2 3 0 4 2 1 1 2 2 3 3 2 (3x3) 12 13 = 17 19 • Focal Mean (moving average all values in a neighborhood) 2 0 1 1 2 3 0 4 4 2 2 3 1 1 3 2 1.8 1.3 1.5 1.5 2.2 2.0 1.8 1.8 2.2 2.0 2.2 2.3 2.0 2.2 2.3 2.5 (3x3) =

  37. Zonal Function • Process and analyze cells on the basis of ‘zones’ • Zones define cells that share a common characteristic • Cells in the same zone don’t have to be contiguous • A typical zonal function requites two grids • a zone grid which defines the size, shape and location of each zone • a value grid which is processed • Typical zonal functions • zonal mean, • zonal max, • zonal sum, • zonal variety

  38. Zonal Function An Example • Zonal maximum – Identify the maximum in each zone 2 2 1 1 2 3 3 1 3 2 1 1 2 2 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 5 5 8 8 5 7 7 8 7 8 8 8 8 8 = Useful when we have different regions “classified” and wish to treat all grid cells of each type as a single “zone” (ie. Forests, urban, water, etc.)

  39. Global function • In global functions - • The output value of each cell is a function of the entire grid • Typical global functions are distance measures, flow directions, or weighting measures. • Useful when we want to work out how cells ‘relate’ to each other

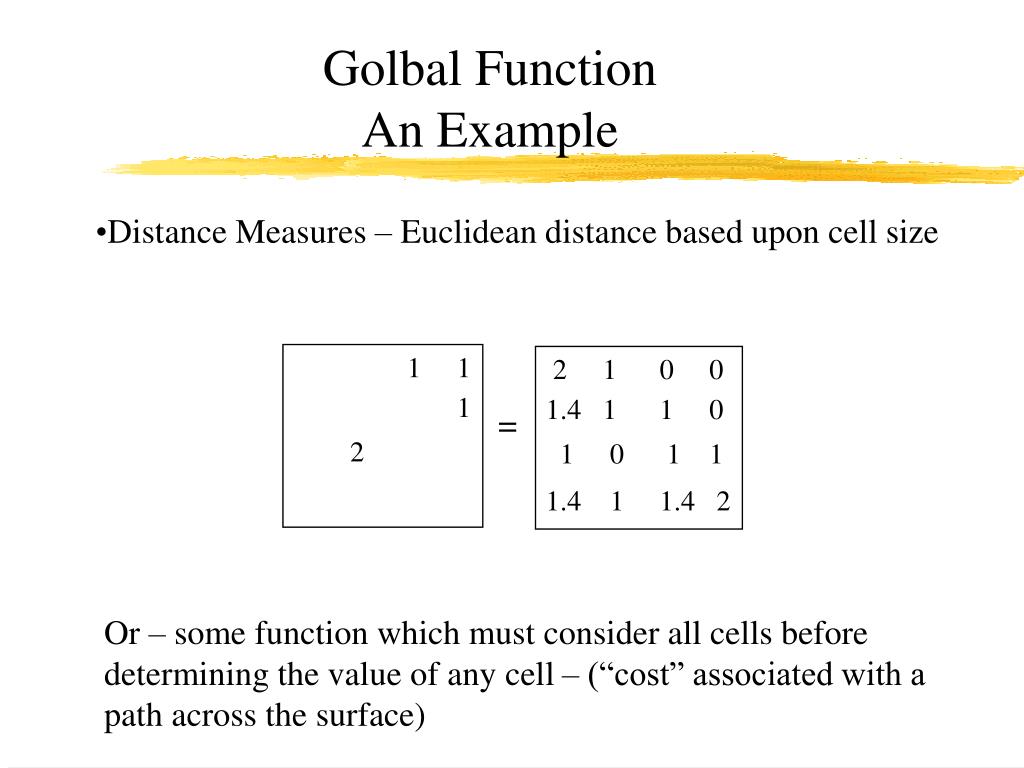

  40. Golbal Function An Example • Distance Measures – Euclidean distance based upon cell size 1 1 1 2 2 1 0 0 1.4 1 1 0 1 0 1 1 1.4 1 1.4 2 = Or – some function which must consider all cells before determining the value of any cell – (“cost” associated with a path across the surface)

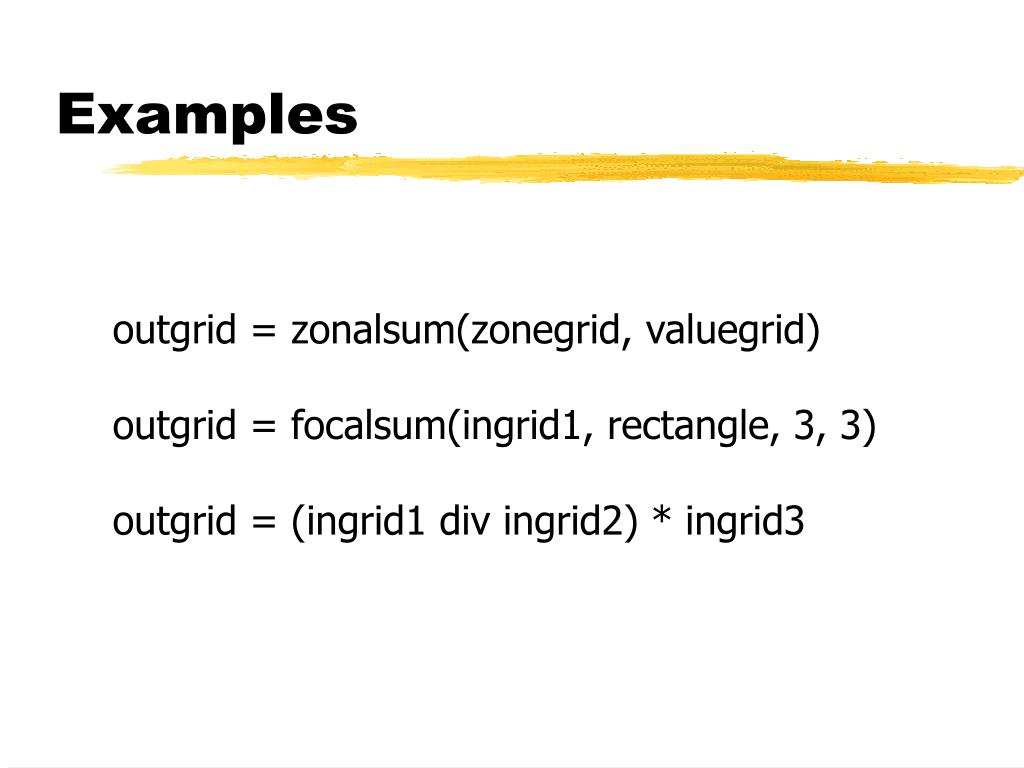

  41. Examples outgrid = zonalsum(zonegrid, valuegrid) outgrid = focalsum(ingrid1, rectangle, 3, 3) outgrid = (ingrid1 div ingrid2) * ingrid3

  42. Spatial Modeling • Spatial modeling is analytical procedures applied with a GIS. Spatial modeling uses geographic data to attempt to describe, simulate or predict a real-world problem or system. • There are three categories of spatial modeling functions that can be applied to geographic features within a GIS: • geometric models, such as calculating the Euclidean distance between features, • coincidence models, such as topological overlay; • adjacency models (pathfinding, redistricting, and allocation) • All three model categories support operations on spatial data such as points, lines, polygons, tins, and grids. Functions are organized in a sequence of steps to derive the desired information for analysis. • The following references are excellent introductions to modeling in GIS: • Goodchild, Parks, and Stegaert. Environmental Modeling with GIS. Oxford University Press, 1993. • Tomlin, Dana C. Geographic Information Systems and Catograhic Modeling. Prentice Hall, 1990.
