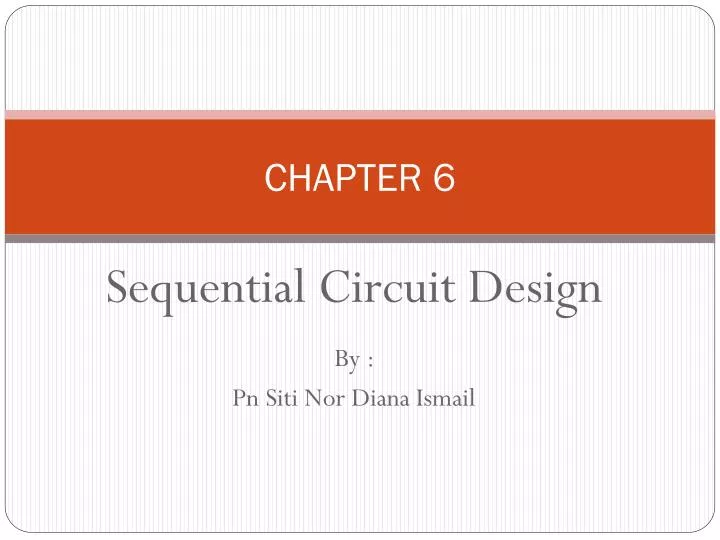

  1. CHAPTER 6 Sequential Circuit Design By : Pn Siti Nor Diana Ismail

  2. Sequential Circuit Design • Design procedure • Finding state diagrams • Finding state tables • State assignment • Designing with D flip-flops

  3. Look example in Tutorial 4

  4. Design procedure • Specification • Formulation • State assignment • FF input equation determination • Output equation determination • Technology mapping • Verification These are the proper procedure to design a complete sequential circuit.

  5. Design procedure • Specification • Usually this is given in form of statements. • User need to extract important points. • Formulation • Obtain state diagram and state table • State assignment • Assign binary codes to the states • FF input equation determination • Determine FF type • Derive FF input equation from state table

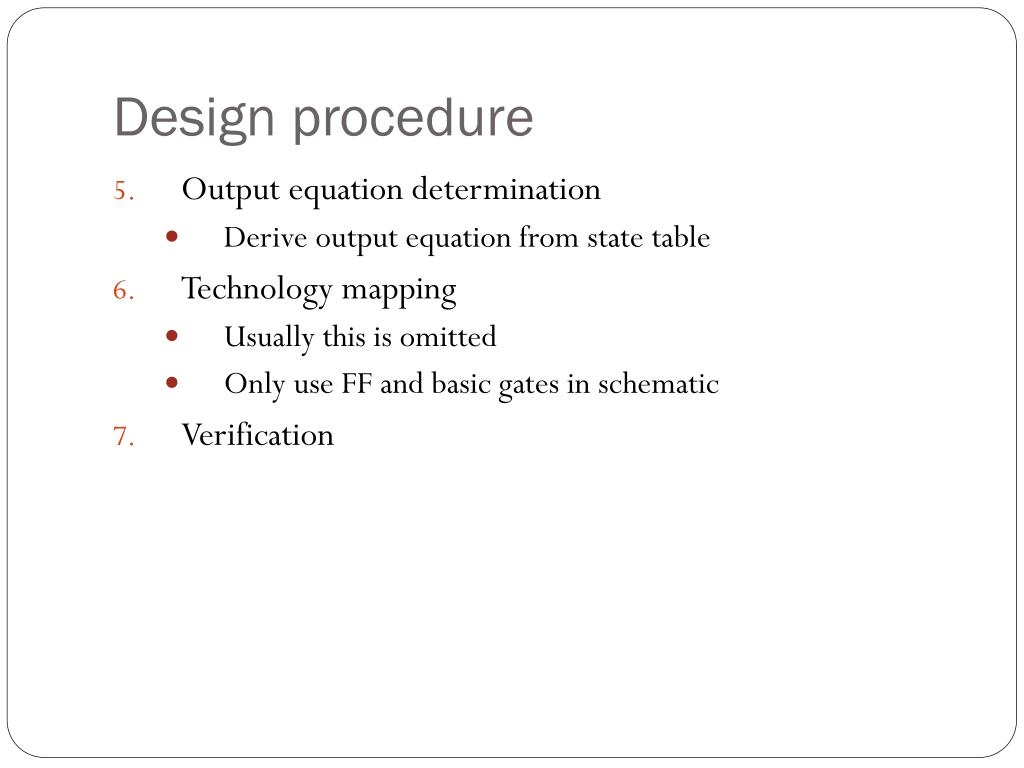

  6. Design procedure • Output equation determination • Derive output equation from state table • Technology mapping • Usually this is omitted • Only use FF and basic gates in schematic • Verification

  7. Finding state diagrams/state table • When the diagram is given • You need to find the state table • On the other hand, when the state table is given • You need to find the state diagram

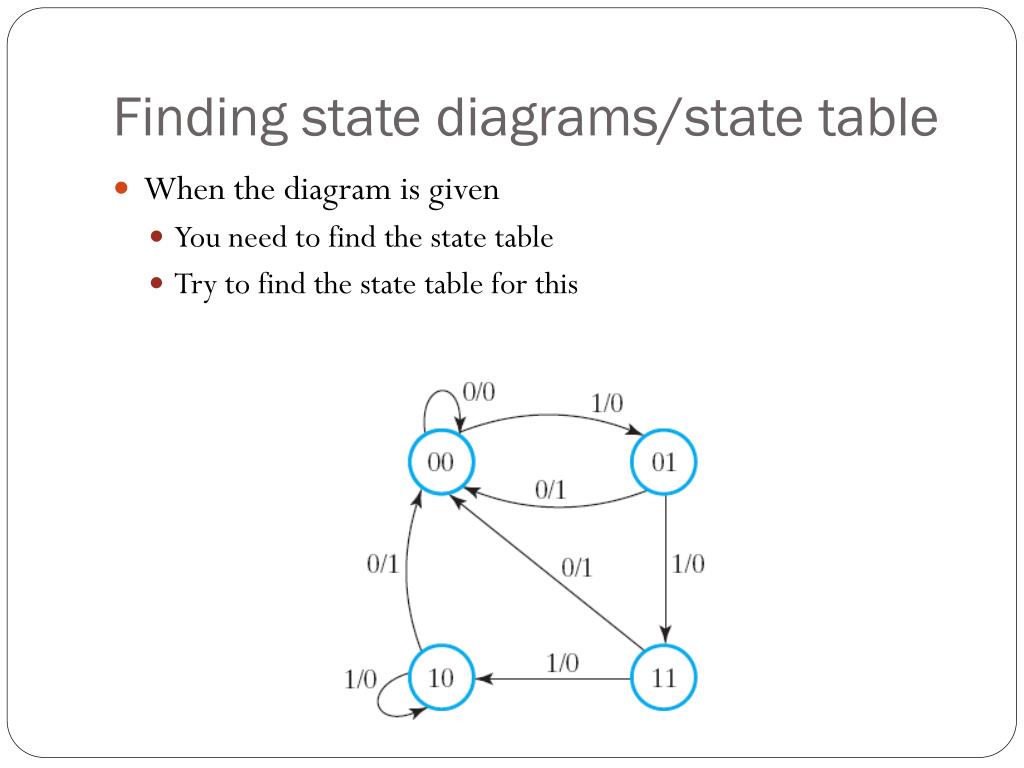

  8. Finding state diagrams/state table • When the diagram is given • You need to find the state table • Try to find the state table for this

  9. Finding state diagrams/state table • When the diagram is given • You need to find the state table

  10. Finding state diagrams/state table • On the other hand, when the state table is given • You need to find the state diagram • You can try on the same state table and diagram or on this one

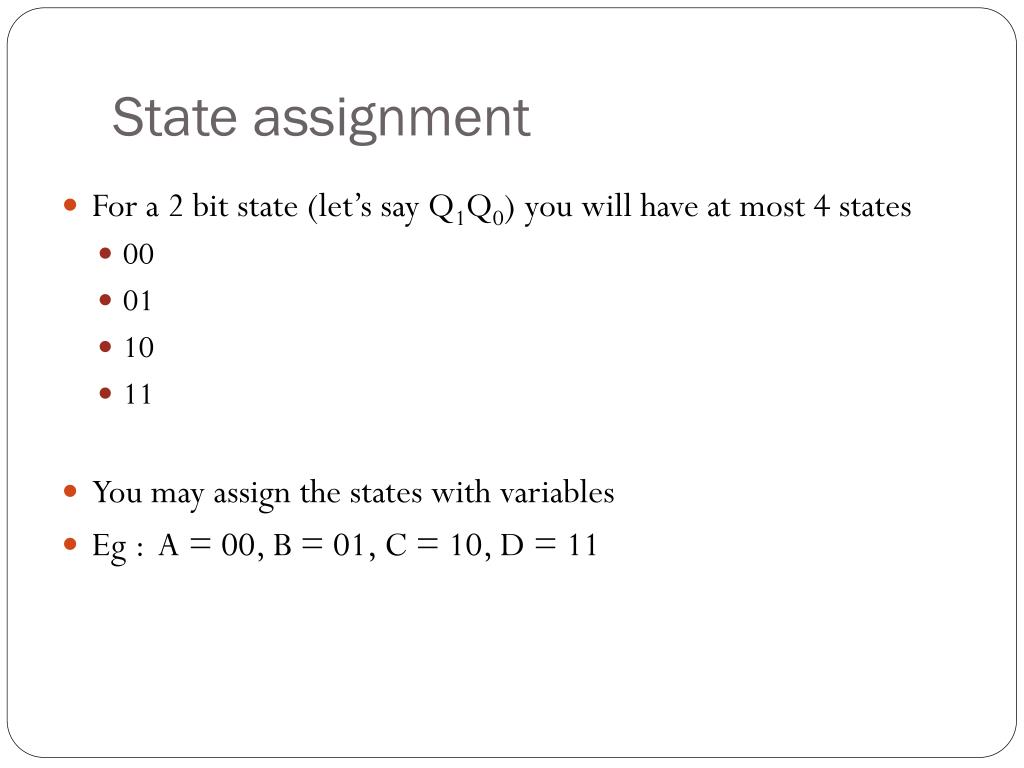

  11. State assignment • For a 2 bit state (let’s say Q1Q0) you will have at most 4 states • 00 • 01 • 10 • 11 • You may assign the states with variables • Eg : A = 00, B = 01, C = 10, D = 11

  12. Designing with D flip-flops • A state table is given (you may want to convert it to a 1-D table)

  13. Designing with D flip-flops

  14. Designing with D flip-flops • You will get the input equation from state table • Use K-map to get the equation for • DA • DB • Z

  15. Designing with D flip-flops • You will get these equations • Now you can draw the schematic diagram using D FF

  16. Exercise A sequential circuit has two FF, A and B, one input, X, and one output, Y. The state diagram is shown below. Design the circuit with D flip-flops.

  17. Introduction to Memory • Collection of cells capable of storing binary information • Contains electronic circuits for storing & retrieve information • Used to provide temporary or permanent storage capability

  18. I/O Memory Hardware for processing Memory Basic Process • Info/content from memory is send to h/w (usually consist of registers & combinational logic) to be processed • The processed info is then returned to the same or different memory address • Input and Output devices may also interact with memory Printers Mouse Keyboard Monitor Digital Camera Scanners Plotters Thumb Drive External Memory

  19. Types of Memories • Random Access Memory (RAM) • Write operation – stores new info • Read operation – transfer the stored info out of memory • Read Only Memory (ROM) • Perform read operation only

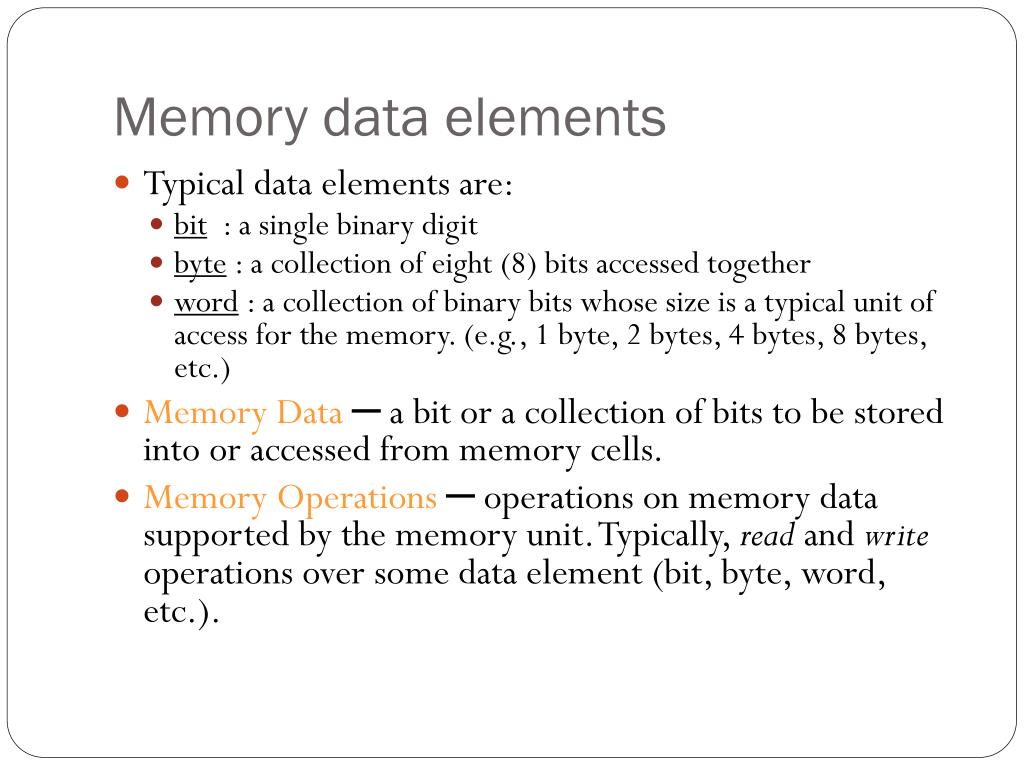

  20. Memory data elements • Typical data elements are: • bit : a single binary digit • byte : a collection of eight (8) bits accessed together • word : a collection of binary bits whose size is a typical unit of access for the memory. (e.g., 1 byte, 2 bytes, 4 bytes, 8 bytes, etc.) • Memory Data ─ a bit or a collection of bits to be stored into or accessed from memory cells. • Memory Operations ─ operations on memory data supported by the memory unit. Typically, read and write operations over some data element (bit, byte, word, etc.).

  21. Memory Organization • Example: • address bits = m = 10 • data bits =16; n = 16 • Address line = (2m) • 210 = 1024 or 1K, labeled 0 to 1023 • memory content = 16-bit • so the memory has 1K words of 16-bit data or 1K x 16-bit memory • Note : • K (Kilo) = 210 • M (Mega) = 220 • G (Giga) = 230 • Other Example : • 64K = 216 = (26 * 210) • 2M = 221 = (21 * 220) • 4G = 232 = (22 * 230) • What is the address bits (m)?
