Dbp binary risk classification

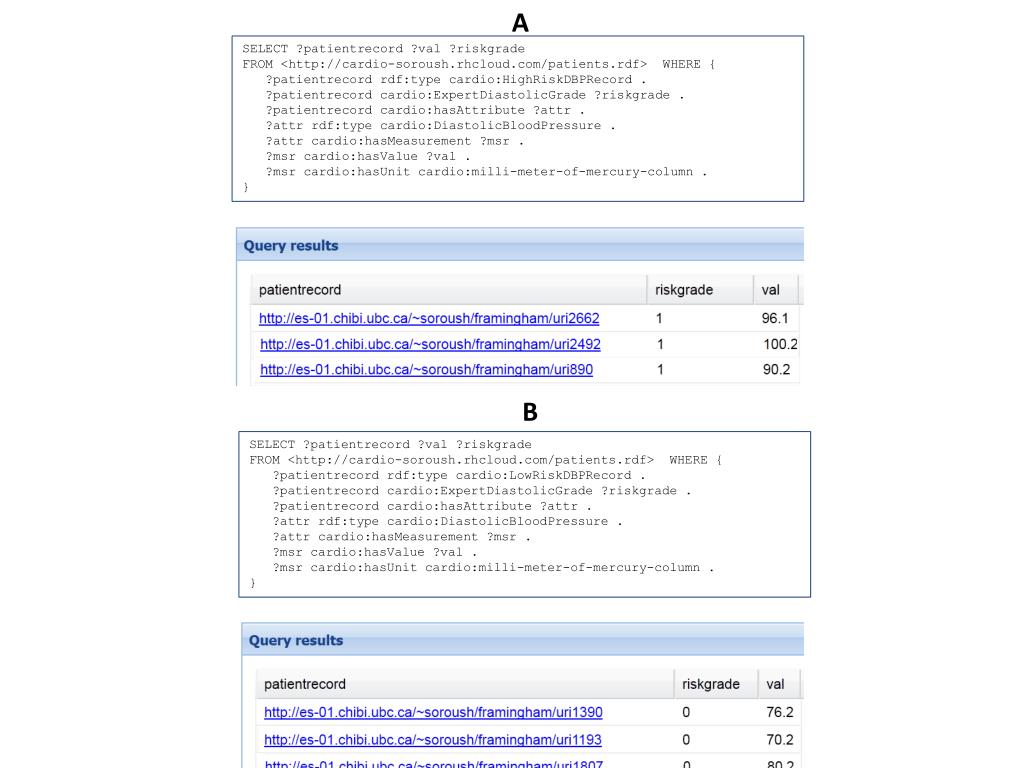

DBP binary risk classification

A

SELECT ?patientrecord ?val ?riskgrade

FROM <http://cardio-soroush.rhcloud.com/patients.rdf> WHERE {

?patientrecord rdf:type cardio:HighRiskDBPRecord .

?patientrecord cardio:ExpertDiastolicGrade ?riskgrade .

?patientrecord cardio:hasAttribute ?attr .

?attr rdf:type cardio:DiastolicBloodPressure .

?attr cardio:hasMeasurement ?msr .

?msr cardio:hasValue ?val .

?msr cardio:hasUnit cardio:milli-meter-of-mercury-column .

}

B

SELECT ?patientrecord ?val ?riskgrade

FROM <http://cardio-soroush.rhcloud.com/patients.rdf> WHERE {

?patientrecord rdf:type cardio:LowRiskDBPRecord .

?patientrecord cardio:ExpertDiastolicGrade ?riskgrade .

?patientrecord cardio:hasAttribute ?attr .

?attr rdf:type cardio:DiastolicBloodPressure .

?attr cardio:hasMeasurement ?msr .

?msr cardio:hasValue ?val .

?msr cardio:hasUnit cardio:milli-meter-of-mercury-column .

}


Dbp binary risk classification

Chol binary risk classification

A

SELECT ?patientrecord ?val ?riskgrade

FROM <http://cardio-soroush.rhcloud.com/patients.rdf> WHERE {

?patientrecord rdf:type cardio:HighRiskCholesterolRecord .

?patientrecord cardio::ExpertCholesterolGrade ?riskgrade .

?patientrecord cardio:hasAttribute ?attr .

?attr rdf:type cardio:SereumCholesterolConcentration .

?attr cardio:hasMeasurement ?msr .

?msr cardio:hasValue ?val .

?msr cardio:hasUnit cardio:milli-mol-per-liter

}

B

SELECT ?patientrecord ?val ?riskgrade

FROM <http://cardio-soroush.rhcloud.com/patients.rdf> WHERE {

?patientrecord rdf:type cardio:LowRiskCholesterolRecord .

?patientrecord cardio::ExpertCholesterolGrade ?riskgrade .

?patientrecord cardio:hasAttribute ?attr .

?attr rdf:type cardio:SereumCholesterolConcentration .

?attr cardio:hasMeasurement ?msr .

?msr cardio:hasValue ?val .

?msr cardio:hasUnit cardio:milli-mol-per-liter

}


Dbp binary risk classification

HDL binary risk classification

A

SELECT ?patientrecord ?val ?riskgrade

FROM <http://cardio-soroush.rhcloud.com/patients.rdf> WHERE {

?patientrecord rdf:type cardio:HighRiskHDLRecord .

?patientrecord cardio:ExpertHDLGrade ?riskgrade .

?patientrecord cardio:hasAttribute ?attr .

?attr rdf:type cardio:SereumHDLConcentration .

?attr cardio:hasMeasurement ?msr .

?msr cardio:hasValue ?val .

?msr cardio:hasUnit cardio:milli-mol-per-liter

}

B

SELECT ?patientrecord ?val ?riskgrade

FROM <http://cardio-soroush.rhcloud.com/patients.rdf> WHERE {

?patientrecord rdf:type cardio:LowRiskHDLRecord .

?patientrecord cardio::ExpertHDLGrade ?riskgrade .

?patientrecord cardio:hasAttribute ?attr .

?attr rdf:type cardio:SereumHDLConcentration .

?attr cardio:hasMeasurement ?msr .

?msr cardio:hasValue ?val .

?msr cardio:hasUnit cardio:milli-mol-per-liter

}


Dbp binary risk classification

TG binary risk classification

A

SELECT ?patientrecord ?val ?riskgrade

FROM <http://cardio-soroush.rhcloud.com/patients.rdf> WHERE {

?patientrecord rdf:type cardio:HighRiskTriglycerideRecord .

?patientrecord cardio::ExpertTriglycerideGrade ?riskgrade .

?patientrecord cardio:hasAttribute ?attr .

?attr rdf:type cardio:SereumTriglycerideConcentration .

?attr cardio:hasMeasurement ?msr .

?msr cardio:hasValue ?val .

?msr cardio:hasUnit cardio:milli-mol-per-liter

}

B

SELECT ?patientrecord ?val ?riskgrade

FROM <http://cardio-soroush.rhcloud.com/patients.rdf> WHERE {

?patientrecord rdf:type cardio:LowRiskTriglycerideRecord .

?patientrecord cardio::ExpertTriglycerideGrade ?riskgrade .

?patientrecord cardio:hasAttribute ?attr .

?attr rdf:type cardio:SereumTriglycerideConcentration .

?attr cardio:hasMeasurement ?msr .

?msr cardio:hasValue ?val .

?msr cardio:hasUnit cardio:milli-mol-per-liter

}


Dbp binary risk classification

BMI binary risk classification

A

SELECT ?patientrecord ?val ?riskgrade

FROM <http://cardio-soroush.rhcloud.com/patients.rdf> WHERE

{

?patientrecord rdf:type cardio:HighRiskBMIRecord .

?patientrecord cardio:ExpertBMIGrade ?riskgrade .

?patientrecord cardio:hasAttribute ?attr .

?attr rdf:type cardio:BodyMassIndex .

?attr cardio:hasMeasurement ?msr .

?msr cardio:hasValue ?val .

}

B

SELECT ?patientrecord ?val ?riskgrade

FROM <http://cardio-soroush.rhcloud.com/patients.rdf> WHERE

{

?patientrecord rdf:type cardio:LowRiskBMIRecord .

?patientrecord cardio:ExpertBMIGrade ?riskgrade .

?patientrecord cardio:hasAttribute ?attr .

?attr rdf:type cardio:BodyMassIndex .

?attr cardio:hasMeasurement ?msr .

?msr cardio:hasValue ?val .

}


Dbp binary risk classification

LDL binary risk classification

A

SELECT ?patientrecord ?val ?riskgrade

FROM <http://cardio-soroush.rhcloud.com/patients.rdf> WHERE {

?patientrecord rdf:type cardio:HighRiskLDLRecord

?patientrecord cardio::ExpertLDLGrade ?riskgrade .

?patientrecord cardio:hasAttribute ?attr .

?attr rdf:type cardio:SereumLDLConcentration .

?attr cardio:hasMeasurement ?msr .

?msr cardio:hasValue ?val .

}

B

SELECT ?patientrecord ?val ?riskgrade

FROM <http://cardio-soroush.rhcloud.com/patients.rdf> WHERE {

?patientrecord rdf:type cardio:LowRiskLDLRecord

?patientrecord cardio::ExpertLDLGrade ?riskgrade .

?patientrecord cardio:hasAttribute ?attr .

?attr rdf:type cardio:SereumLDLConcentration .

?attr cardio:hasMeasurement ?msr .

?msr cardio:hasValue ?val .

}


Dbp binary risk classification

Framingham risk classification

A

  • SELECT ?patientrecord ?val ?riskgrade

  • FROM <http://cardio-soroush.rhcloud.com/patients.rdf> WHERE {

  • ?patientrecord rdf:type cardio:HighRiskFraminghamScoreRecord .

  • ?patientrecord cardio:ExpertFraminghamGrade ?riskgrade .

  • ?patientrecord cardio:hasAttribute ?attr .

  • ?attr rdf:type cardio:GeneralCVD10YearFraminghamRiskScore.

  • ?attr cardio:hasValue ?calculatedrisk

  • }

B

  • SELECT ?patientrecord ?val ?riskgrade

  • FROM <http://cardio-soroush.rhcloud.com/patients.rdf> WHERE {

  • ?patientrecord rdf:type cardio:LowRiskFraminghamScoreRecord .

  • ?patientrecord cardio:ExpertFraminghamGrade ?riskgrade .

  • ?patientrecord cardio:hasAttribute ?attr .

  • ?attr rdf:type cardio:GeneralCVD10YearFraminghamRiskScore.

  • ?attr cardio:hasValue ?calculatedrisk

  • }


Dbp binary risk classification

Summary of Binary and Framingham Risk Classification for 100 patients randomly selected. Number of False Positives(FP) and False Negatives(FN) are calculated with respect to manual annotations as the reference classes. Note that the total number may slightly vary for individual cases due to missing values. For the case of SBP, DBP, and LDL no adjustment for the guidelines were required. For other cases the original and modified guidelines are presented in OWL following each table .


Dbp binary risk classification

Original AHA guideline in OWL:

HighRiskCholesterolRecord=

PatientRecordand

(sio:hasAttributesome

(cardio:SerumCholesterolConcentrationand

sio:hasMeasurementsome ( sio:Measurement and

(sio:hasUnitvaluecardio:mili-mole-per-liter) and

(sio:hasValuesome double[>= 5.0]))))

LowRiskCholesterolRecord=

PatientRecordand

(sio:hasAttributesome

(cardio: SerumCholesterolConcentrationand

sio:hasMeasurementsome ( sio:Measurement and

(sio:hasUnitvaluecardio:mili-mole-per-liter) and

(sio:hasValuesome double[< 5.0]))))

______________________________________________

Modified guideline in OWL:

HighRiskCholesterolRecord=

PatientRecordand

(sio:hasAttributesome

(cardio:SerumCholesterolConcentrationand

sio:hasMeasurementsome ( sio:Measurement and

(sio:hasUnitvaluecardio:mili-mole-per-liter) and

(sio:hasValuesome double[>= 5.0]))))

LowRiskCholesterolRecord=

PatientRecordand

(sio:hasAttributesome

(cardio: SerumCholesterolConcentrationand

sio:hasMeasurementsome ( sio:Measurement and

(sio:hasUnitvaluecardio:mili-mole-per-liter) and

(sio:hasValuesome double[< 5.0]))))


Dbp binary risk classification

Original AHA guideline in OWL:

HighRiskHDLCholesterolRecord=

PatientRecordand

(sio:hasAttributesome

(cardio:SerumHDLCholesterolConcentrationand

sio:hasMeasurementsome ( sio:Measurement and

(sio:hasUnitvaluecardio:mili-mole-per-liter) and

(sio:hasValuesome double[<= 1.03]))))

LowRiskHDLCholesterolRecord=

PatientRecordand

(sio:hasAttributesome

(cardio: SerumCholesterolConcentrationand

sio:hasMeasurementsome ( sio:Measurement and

(sio:hasUnitvaluecardio:mili-mole-per-liter) and

(sio:hasValuesome double[> 1.55]))))

_______________________________________________

Modified guideline

HighRiskHDLCholesterolRecord=

PatientRecordand

(sio:hasAttributesome

(cardio:SerumHDLCholesterolConcentrationand

sio:hasMeasurementsome ( sio:Measurement and

(sio:hasUnitvaluecardio:mili-mole-per-liter) and

(sio:hasValuesome double[<= 0.89]))))

LowRiskHDLCholesterolRecord=

PatientRecordand

(sio:hasAttributesome

(cardio: SerumCholesterolConcentrationand

sio:hasMeasurementsome ( sio:Measurement and

(sio:hasUnitvaluecardio:mili-mole-per-liter) and

(sio:hasValuesome double[> 0.89]))))


Dbp binary risk classification

Original AHA guideline in OWL:

HighRiskTriglycerideRecord=

PatientRecordand

(sio:hasAttributesome

(cardio:SerumTriglycerideCholesterolConcentrationand

sio:hasMeasurementsome ( sio:Measurement and

(sio:hasUnitvaluecardio:mili-mole-per-liter) and

(sio:hasValuesome double[>=2.26]))))

LowRiskTriglycerideRecord=

PatientRecordand

(sio:hasAttributesome

(cardio: SerumTriglycerideConcentrationand

sio:hasMeasurementsome ( sio:Measurement and

(sio:hasUnitvaluecardio:mili-mole-per-liter) and

(sio:hasValuesome double[<1.69 ]))))

________________________________________________

Modified guideline in OWL:

HighRiskTriglycerideRecord=

PatientRecordand

(sio:hasAttributesome

(cardio:SerumTriglycerideCholesterolConcentrationand

sio:hasMeasurementsome ( sio:Measurement and

(sio:hasUnitvaluecardio:mili-mole-per-liter) and

(sio:hasValuesome double[>=2.63]))))

LowRiskTriglycerideRecord=

PatientRecordand

(sio:hasAttributesome

(cardio: SerumTriglycerideConcentrationand

sio:hasMeasurementsome ( sio:Measurement and

(sio:hasUnitvaluecardio:mili-mole-per-liter) and

(sio:hasValuesome double[<2.63 ]))))


Dbp binary risk classification

Original AHA guideline in OWL:

HighRiskBMIRecord=

PatientRecordand

(sio:hasAttributesome

(cardio:BodyMassIndexand

sio:hasMeasurementsome ( sio:Measurement and

(sio:hasUnitvaluecardio:kilogram-per-meter-squared) and

(sio:hasValuesome double[>= 25.0]))))

LowRiskBMIRecord=

PatientRecordand

(sio:hasAttributesome

(cardio:BodyMassIndexand

sio:hasMeasurementsome ( sio:Measurement and

(sio:hasUnitvaluecardio:kilogram-per-meter-squared) and

(sio:hasValuesome double[< 25.0]))))

___________________________________________________________

Modified guideline:

HighRiskBMIRecord=

PatientRecordand

(sio:hasAttributesome

(cardio:BodyMassIndexand

sio:hasMeasurementsome ( sio:Measurement and

(sio:hasUnitvaluecardio:kilogram-per-meter-squared) and

(sio:hasValuesome double[>= 26.0]))))

LowRiskBMIRecord=

PatientRecordand

(sio:hasAttributesome

(cardio:BodyMassIndexand

sio:hasMeasurementsome ( sio:Measurement and

(sio:hasUnitvaluecardio:kilogram-per-meter-squared) and

(sio:hasValuesome double[< 26.0]))))


Dbp binary risk classification

The original representation of two rows of dataset in excel. The green color risk grades are the one where manual and automatic annotations were consistent and the red color risk grades shows where the manual and automatic classifications disagree. As can be seen for the second record, there is a great deal of discrepancies existing between manual and automatic classifications. This is due to the fact that the numerical values for measurement lie between the “gray areas” of classification. For instance the BMI value is greater than 25 but less than 26 and so on. All but the Framingham risk grade(last column) above can be “fixed” by tweaking the thresholds to a slightly different values. The FRS is complicated by several other factors that may not be present in the data (see discussion). The RDF representation of the file is attached in a the next.

Sample Patient Data in RDF (10 patients selected randomly):

http://cardio-soroush.rhcloud.com/patientx.rdf


Dbp binary risk classification

Sample data and the instruction for BMI SADI service

Test Input RDF for BMI Service:

http://cardio-soroush.rhcloud.com/inputbmi.rdf

Output RDF for BMI Service:

http://cardio-soroush.rhcloud.com/outputbmi.rdf

SADI Service URI:

http://cardio-soroush.rhcloud.com/BMICalculator

The output of the BMI service above is generated using Poster Plugin in Mozilla Internet Explorer (Please see the instructions next page)


Dbp binary risk classification

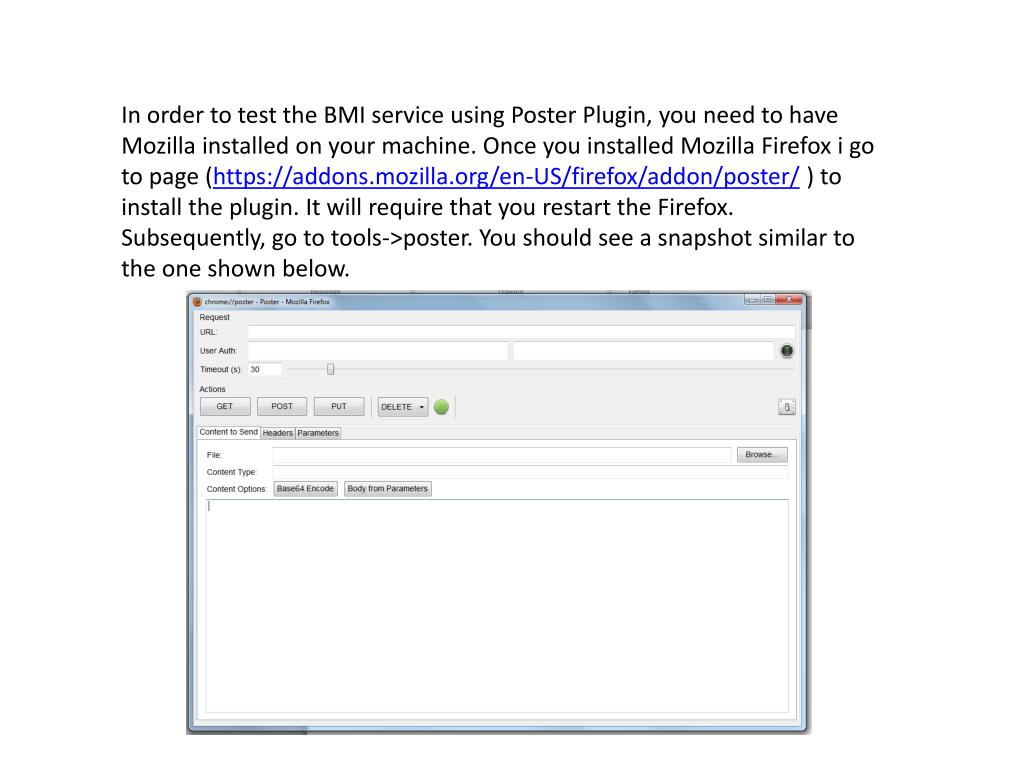

In order to test the BMI service using Poster Plugin, you need to have Mozilla installed on your machine. Once you installed Mozilla Firefox igo to page (https://addons.mozilla.org/en-US/firefox/addon/poster/ ) to install the plugin. It will require that you restart the Firefox. Subsequently, go to tools->poster. You should see a snapshot similar to the one shown below.


Dbp binary risk classification

In the URL tab, place the url of the service

(http://cardio-soroush.rhcloud.com/BMICalculator),

and in the file tab browse the content of the inputbmi.rdf

(http://cardio-soroush.rhcloud.com/inputbmi.rdf)

Stored locally on your machine since the poster plugin needs the input file to be stored in a file as opposed to a url. Click on post and a pop-up window appears with the output file (should be equal to outputbmi.rdf).


  • Login
