Presentation Transcript
Openadr v2 0 dbp

OpenADR v2.0 DBP

Rish Ghatikar


Existing v1 0 dbp sequence
Existing v1.0 DBP Sequence

Utility Information System/ OpenADR Server/ VTN

Participant/ Customer

Revise Bids (H2M): If not revised during the RFB window, the standing bids are automatically submitted by the OpenADR server (Auto-bid, auto-shed)

Submit Standing Bid (H2M)

Request for Bids/ Notification (M2H)

OpenADR Client/ VEN

Bid Acceptance/ Automation Event (M2M)

OpenADR v1.0: DR Event (EventState)

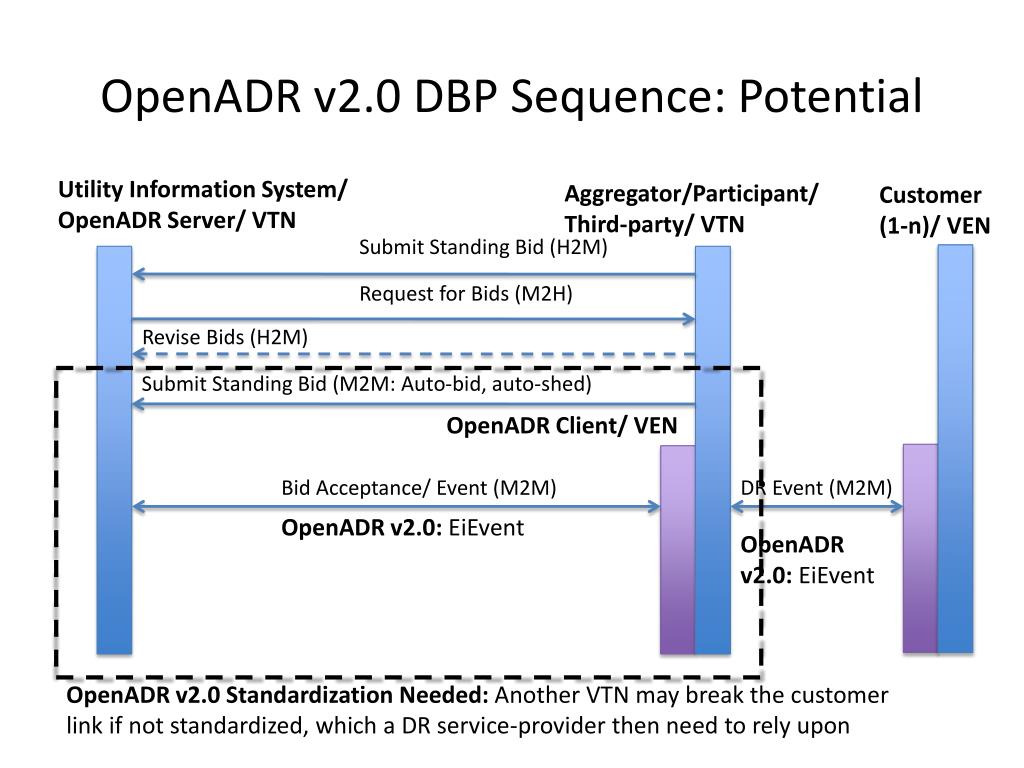

Openadr v2 0 dbp sequence potential
OpenADR v2.0 DBP Sequence: Potential

Utility Information System/ OpenADR Server/ VTN

Aggregator/Participant/ Third-party/ VTN

Customer (1-n)/ VEN

Submit Standing Bid (H2M)

Revise Bids (H2M)

Request for Bids (M2H)

Submit Standing Bid (M2M: Auto-bid, auto-shed)

OpenADR Client/ VEN

Bid Acceptance/ Event (M2M)

DR Event (M2M)

OpenADR v2.0: EiEvent

OpenADR v2.0: EiEvent

OpenADR v2.0 Standardization Needed: Another VTN may break the customer link if not standardized, which a DR service-provider then need to rely upon
