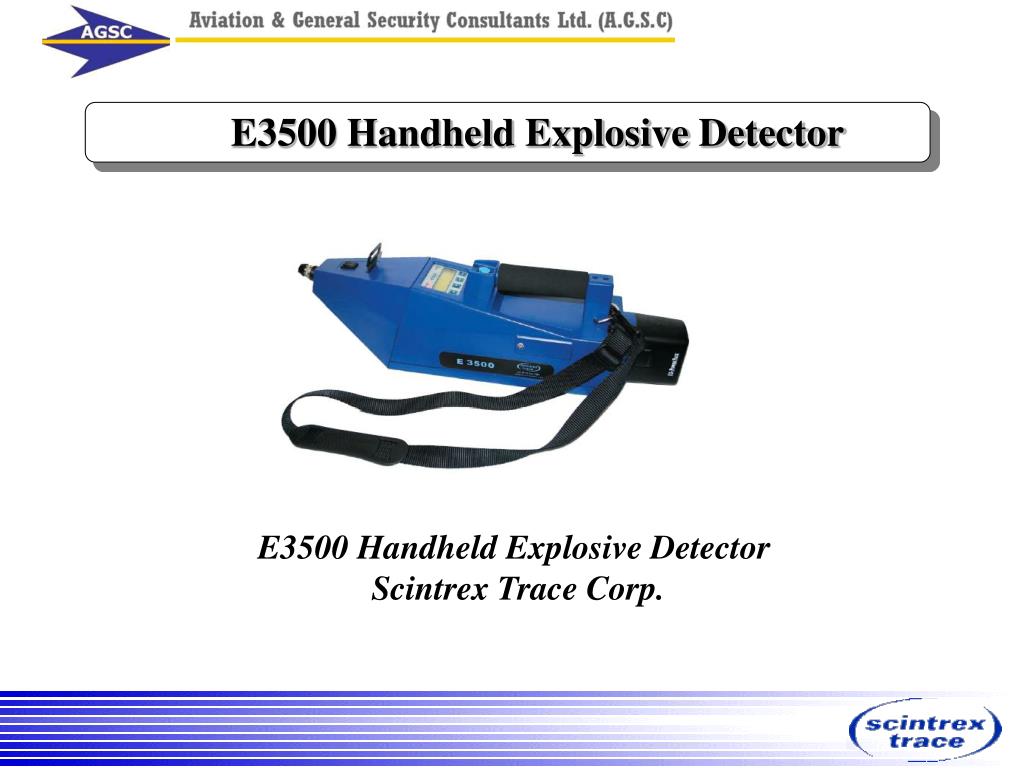

  1. E3500 Handheld Explosive Detector E3500 Handheld Explosive Detector Scintrex Trace Corp.

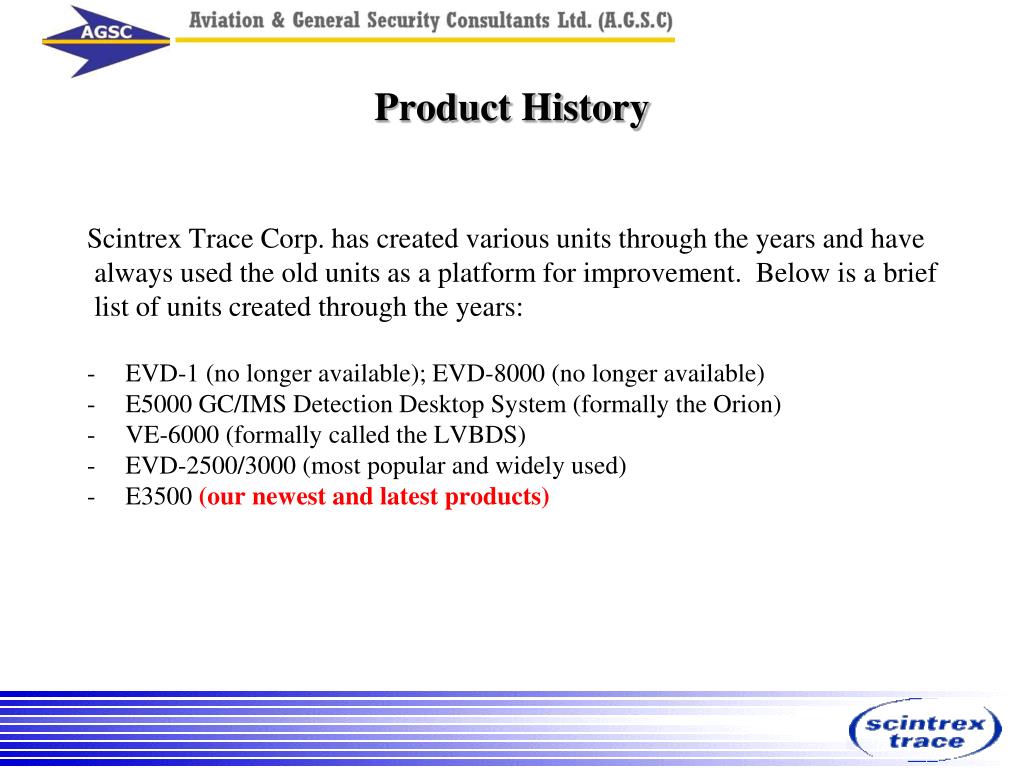

  2. Scintrex Trace Corp. has created various units through the years and have always used the old units as a platform for improvement. Below is a brief list of units created through the years: EVD-1 (no longer available); EVD-8000 (no longer available) E5000 GC/IMS Detection Desktop System (formally the Orion) VE-6000 (formally called the LVBDS) EVD-2500/3000 (most popular and widely used) E3500 (our newest and latest products) Product History

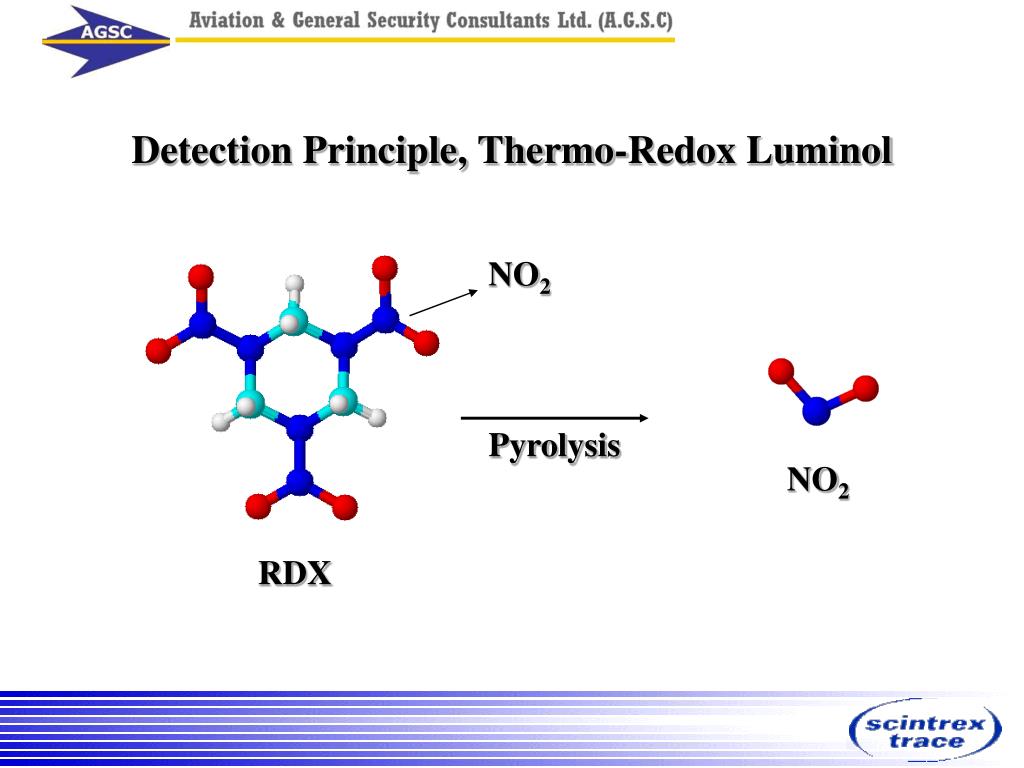

  3. Detection Principle, Thermo-RedoxLuminol NO2 Pyrolysis NO2 RDX

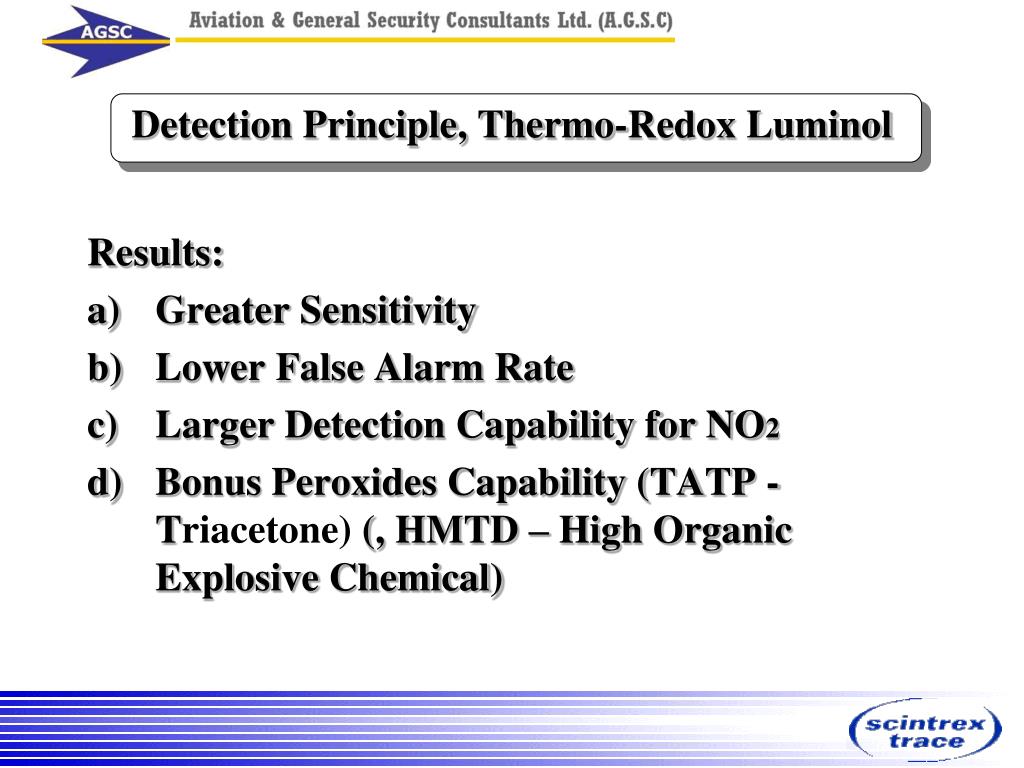

  4. Results: Greater Sensitivity Lower False Alarm Rate Larger Detection Capability for NO2 Bonus Peroxides Capability (TATP -Triacetone) (, HMTD – High Organic Explosive Chemical) Detection Principle, Thermo-RedoxLuminol

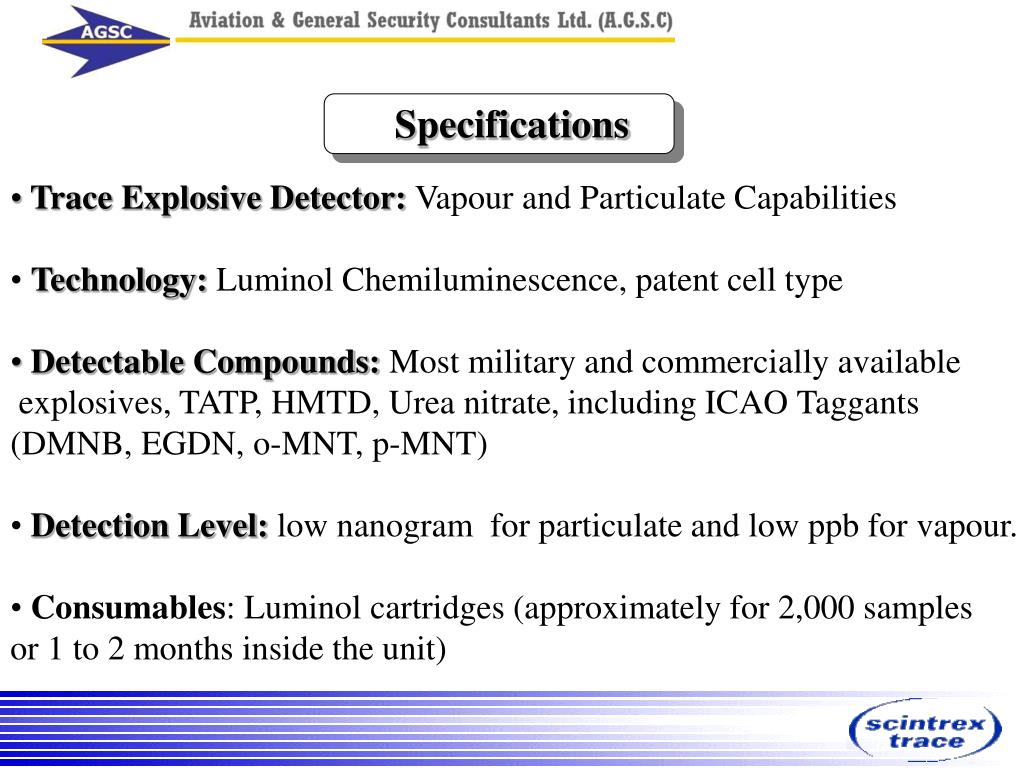

  5. Specifications • Trace Explosive Detector:Vapour and Particulate Capabilities • Technology:LuminolChemiluminescence, patent cell type • Detectable Compounds: Most military and commercially available • explosives, TATP, HMTD, Urea nitrate, including ICAO Taggants • (DMNB, EGDN, o-MNT, p-MNT) • Detection Level:low nanogram for particulate and low ppb for vapour. • Consumables: Luminol cartridges (approximately for 2,000 samples • or 1 to 2 months inside the unit)

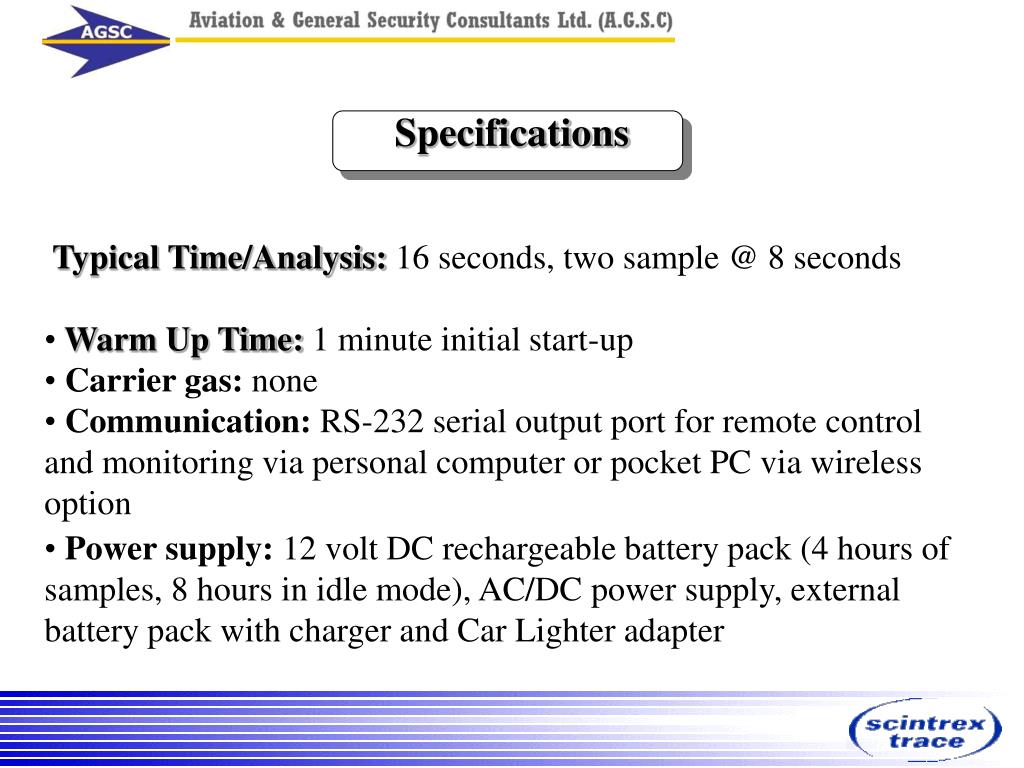

  6. Specifications • Typical Time/Analysis:16 seconds, two sample @ 8 seconds • Warm Up Time: 1 minute initial start-up • Carrier gas: none • Communication: RS-232 serial output port for remote control and monitoring via personal computer or pocket PC via wireless option • Power supply: 12 volt DC rechargeable battery pack (4 hours of samples, 8 hours in idle mode), AC/DC power supply, external battery pack with charger and Car Lighter adapter

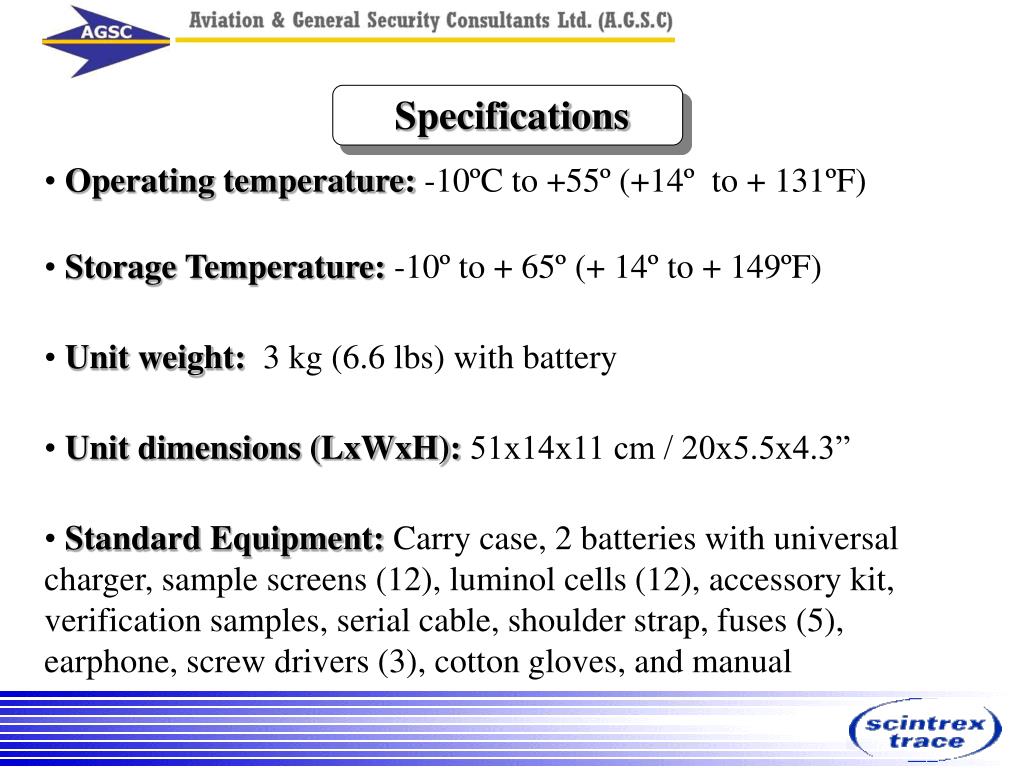

  7. Specifications • Operating temperature:-10ºC to +55º (+14º to + 131ºF) • Storage Temperature: -10º to + 65º (+ 14º to + 149ºF) • Unit weight: 3 kg (6.6 lbs) with battery • Unit dimensions (LxWxH): 51x14x11 cm / 20x5.5x4.3” • Standard Equipment: Carry case, 2 batteries with universal charger, sample screens (12), luminol cells (12), accessory kit, verification samples, serial cable, shoulder strap, fuses (5), earphone, screw drivers (3), cotton gloves, and manual

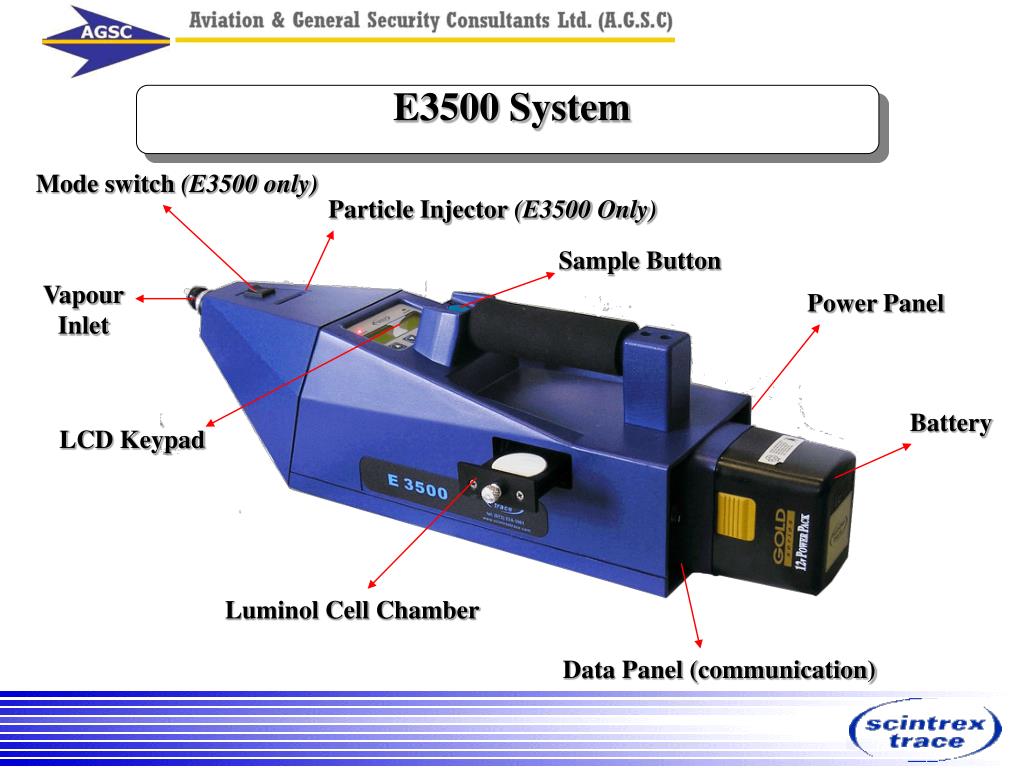

  8. E3500 System Mode switch (E3500 only) Particle Injector (E3500 Only) Sample Button Vapour Inlet Power Panel Battery LCD Keypad Luminol Cell Chamber Data Panel (communication)

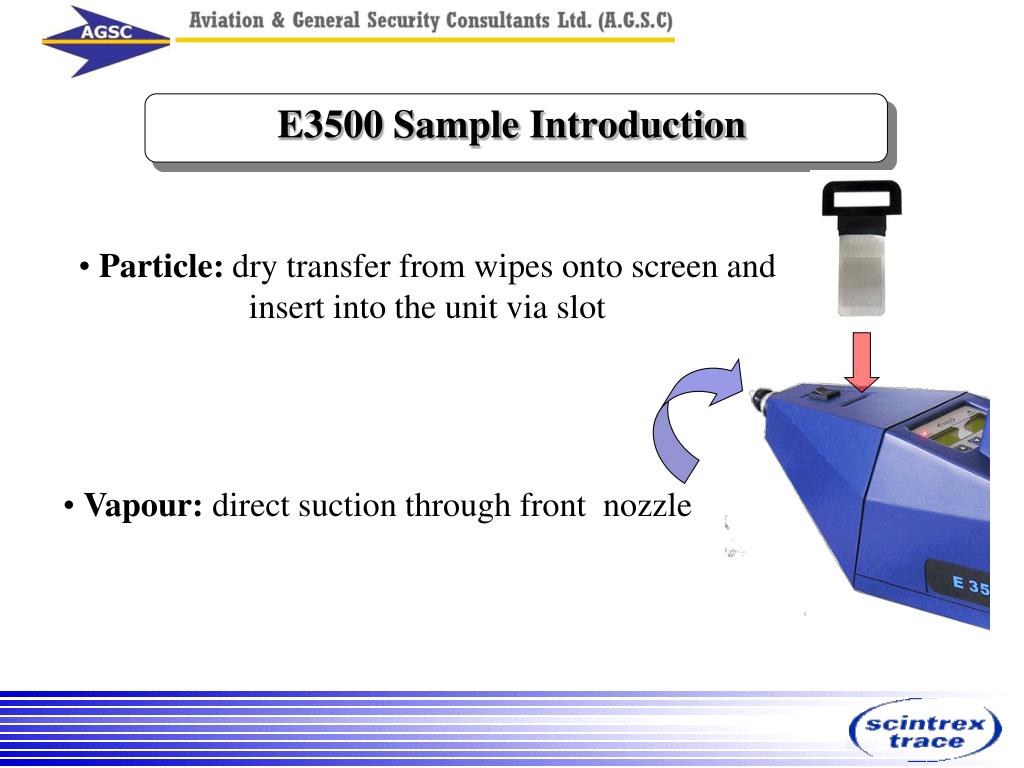

  9. E3500 Sample Introduction • Particle: dry transfer from wipes onto screen and • insert into the unit via slot • Vapour: direct suction through front nozzle

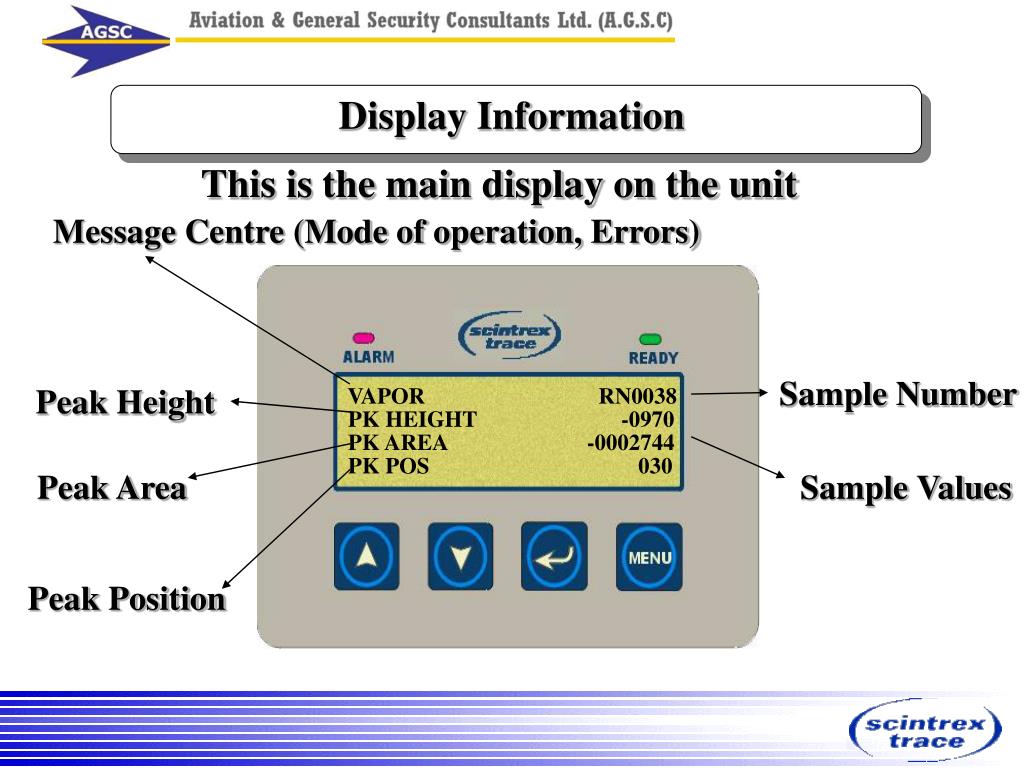

  10. Display Information This is the main display on the unit Message Centre (Mode of operation, Errors) Sample Number Peak Height VAPOR RN0038 PK HEIGHT -0970 PK AREA -0002744 PK POS 030 Peak Area Sample Values Peak Position

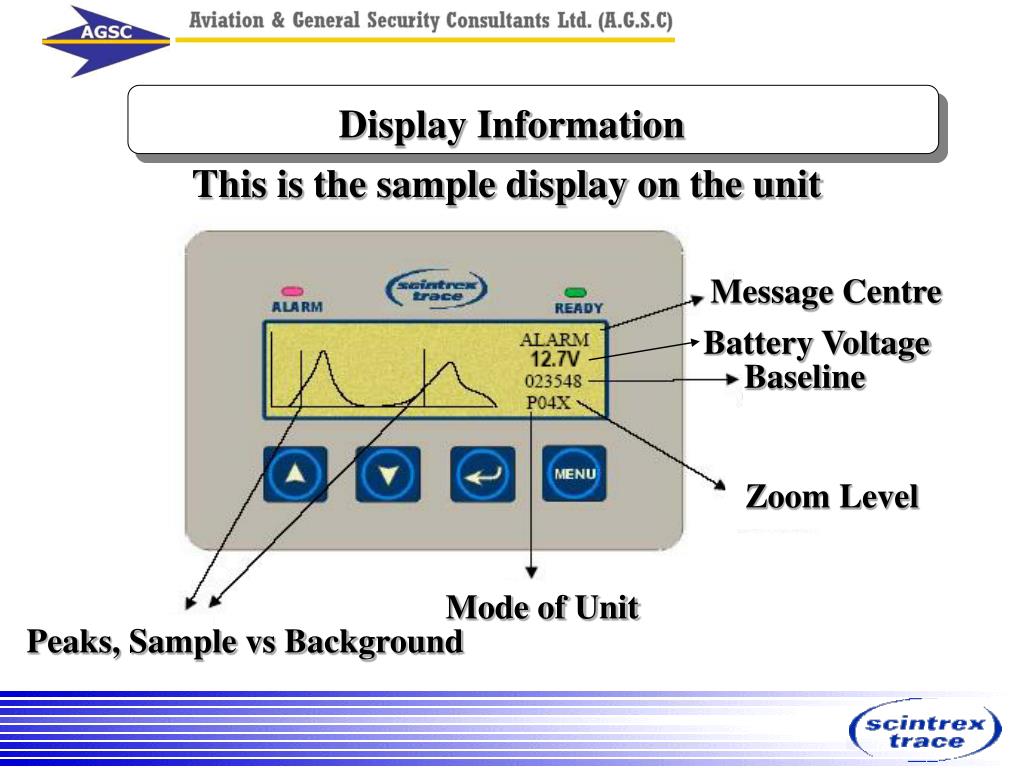

  11. Display Information This is the sample display on the unit Message Centre Battery Voltage Baseline Zoom Level Mode of Unit Peaks, Sample vs Background

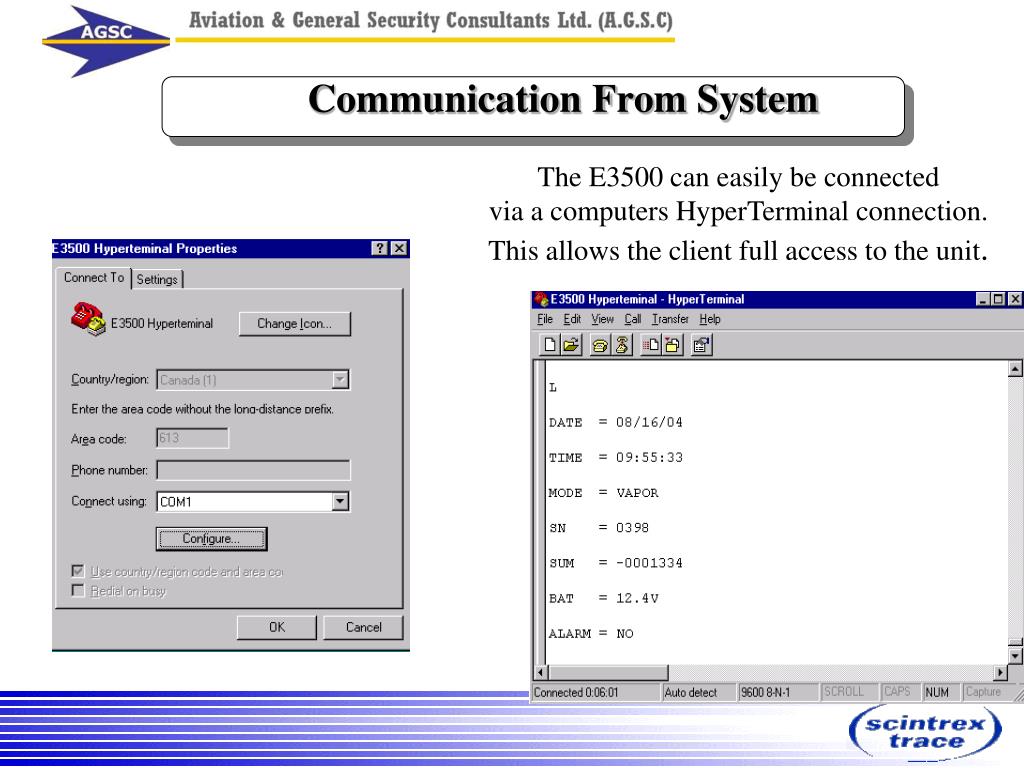

  12. Communication From System The E3500 can easily be connected via a computers HyperTerminal connection. This allows the client full access to the unit.

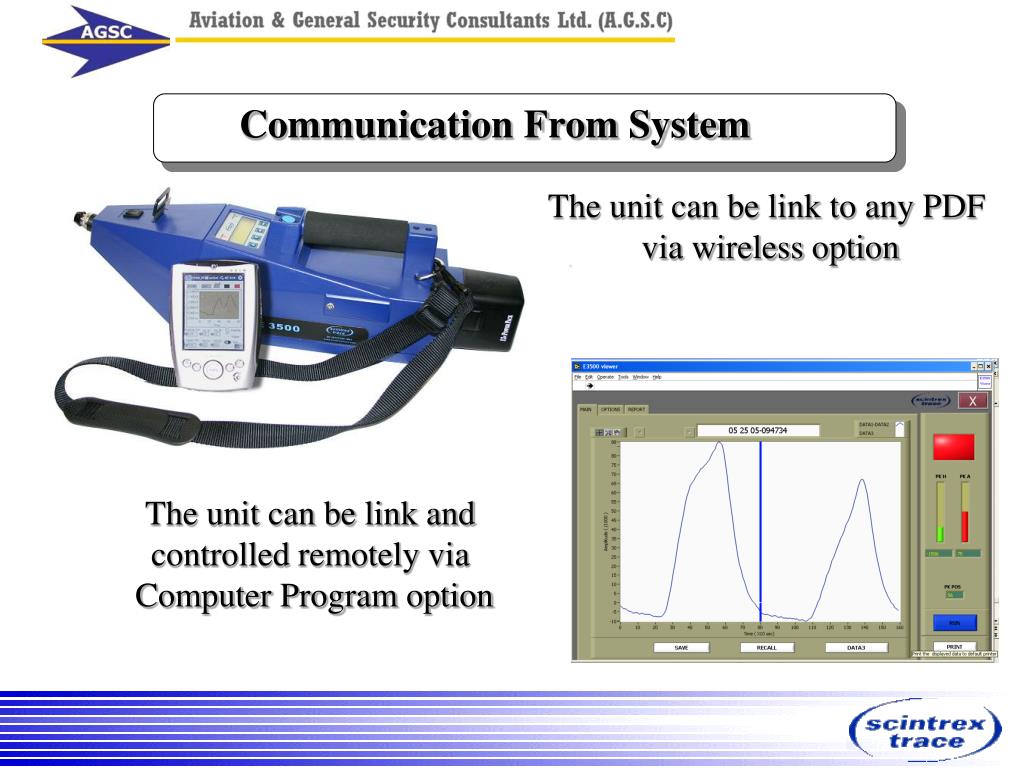

  13. Communication From System The unit can be link to any PDF via wireless option The unit can be link and controlled remotely via Computer Program option

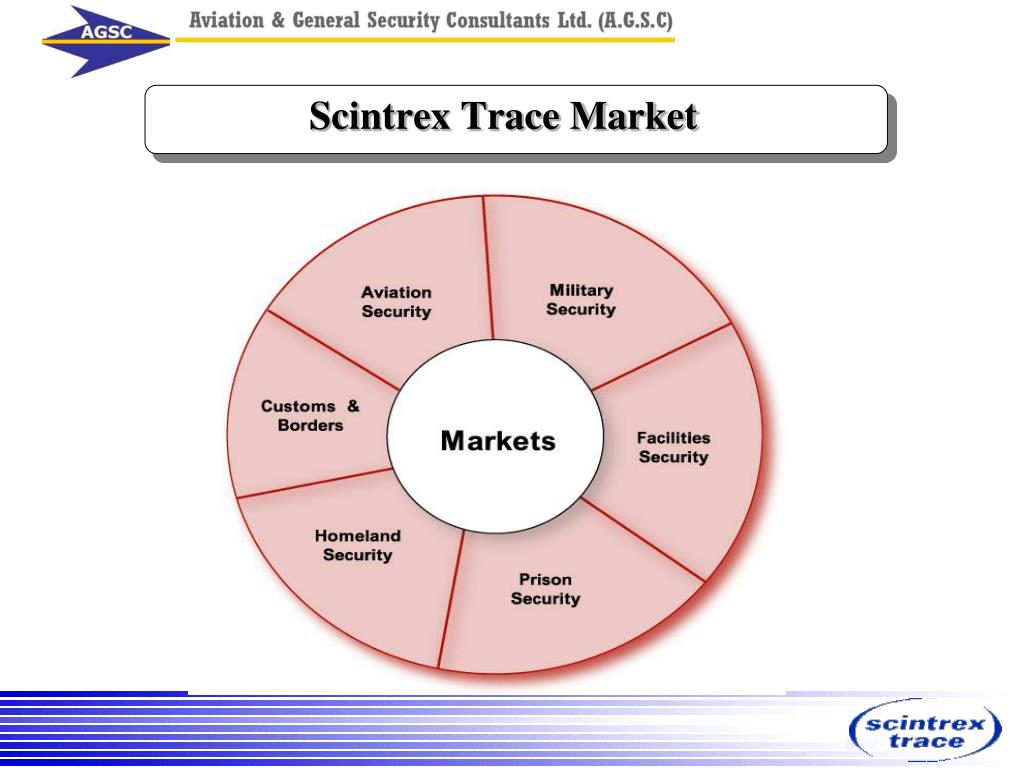

  14. Scintrex Trace Market

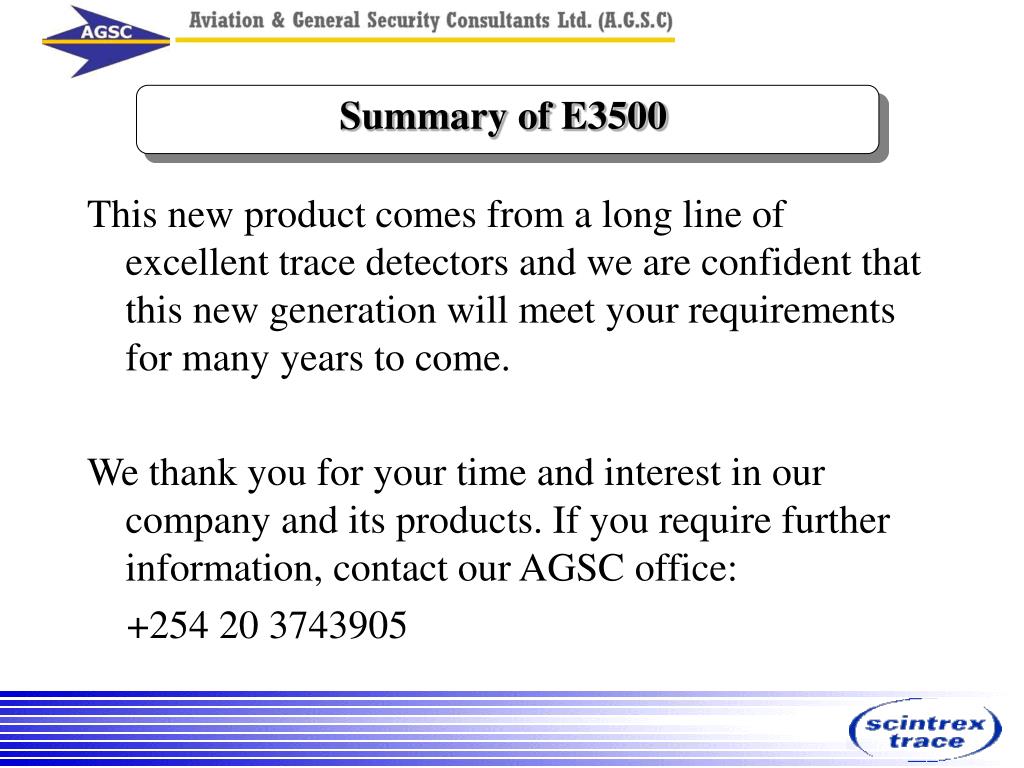

  15. Summary of E3500 This new product comes from a long line of excellent trace detectors and we are confident that this new generation will meet your requirements for many years to come. We thank you for your time and interest in our company and its products. If you require further information, contact our AGSC office: +254 20 3743905
