  1. Acute Stroke Imaging Ellen G. Hoeffner, MD Neuroradiology Division Department of Radiology University of Michigan Health System

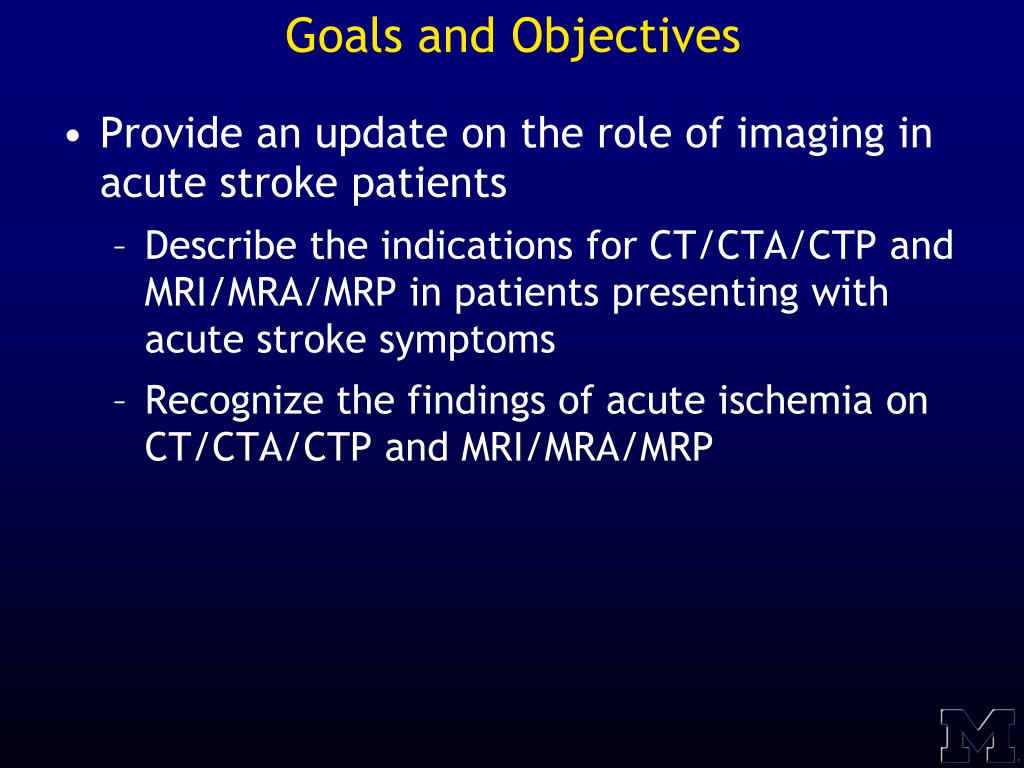

  2. Goals and Objectives • Provide an update on the role of imaging in acute stroke patients • Describe the indications for CT/CTA/CTP and MRI/MRA/MRP in patients presenting with acute stroke symptoms • Recognize the findings of acute ischemia on CT/CTA/CTP and MRI/MRA/MRP

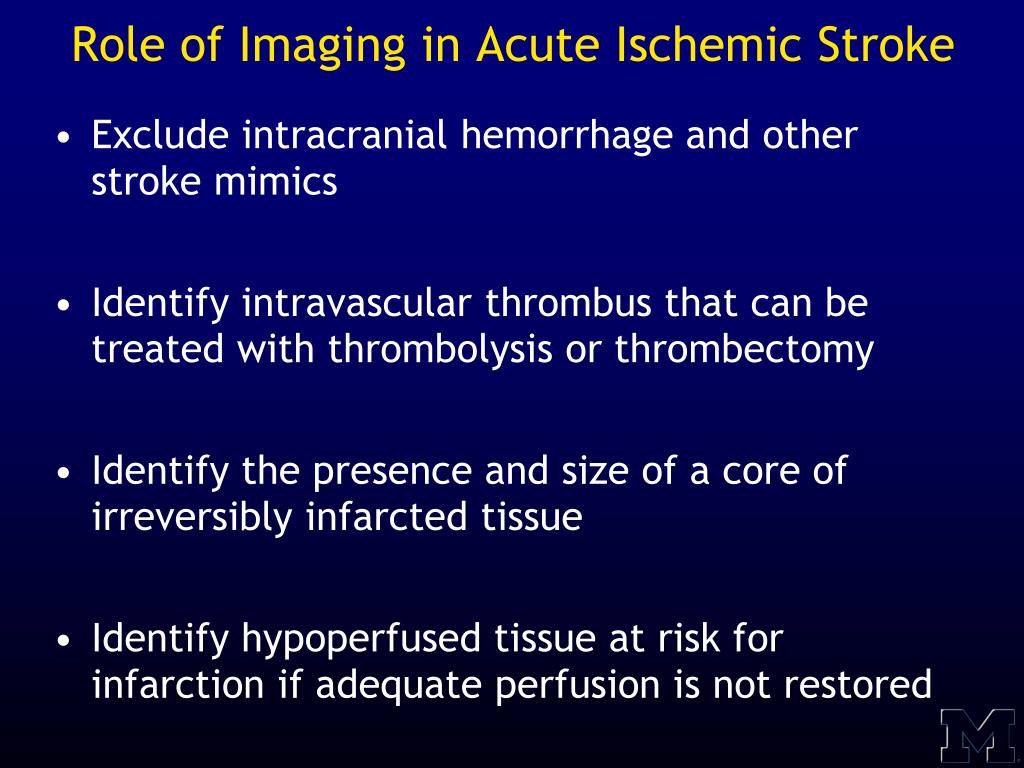

  3. Role of Imaging in Acute Ischemic Stroke • Exclude intracranial hemorrhage and other stroke mimics • Identify intravascular thrombus that can be treated with thrombolysis or thrombectomy • Identify the presence and size of a core of irreversibly infarcted tissue • Identify hypoperfused tissue at risk for infarction if adequate perfusion is not restored

  4. Imaging the Parenchyma • Patients who present up to 3-4.5 hours after sx onset and are IV tPA candidates should get a non-enhanced head CT (NECT) (Stroke 2013;44:870-947) • Determine if early ischemic signs are present • Size, location and vascular distribution • Frank hypodensity on CT involving > 1/3 MCA territory is relative contraindication to rx • Goal - CT obtained in 25 min of arrival in ER and interpreted within an additional 20 min • Can also use MRI to r/o hemorrhage and determine if ischemic signs present per AHA/ASA guidelines

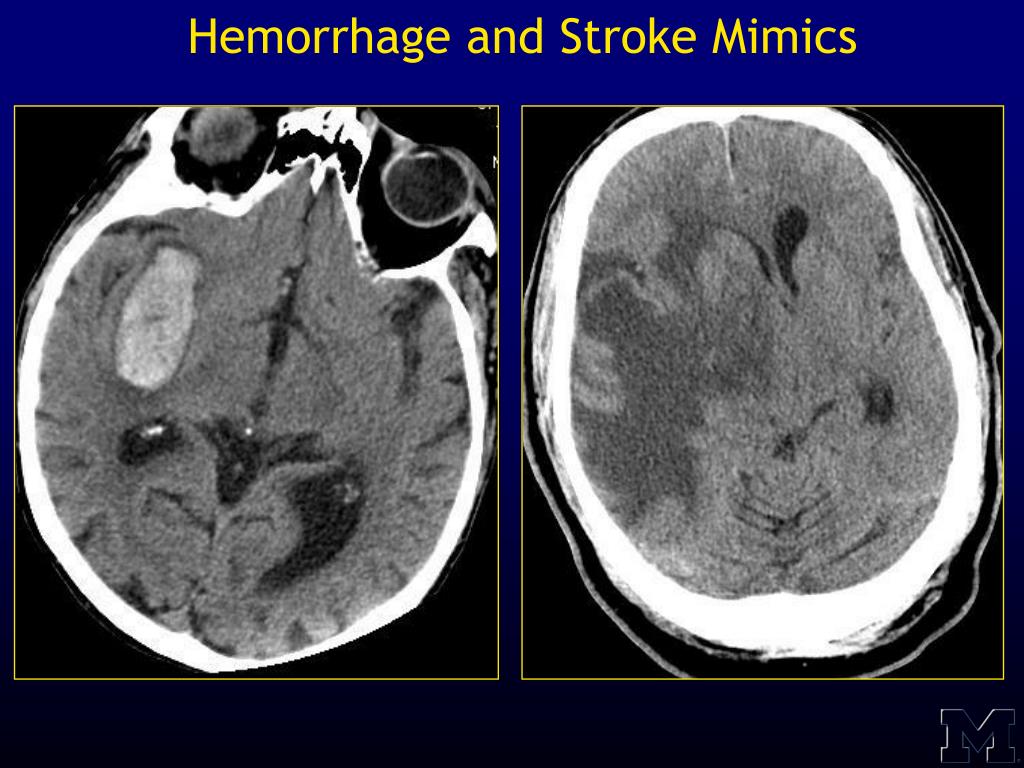

  5. Hemorrhage and Stroke Mimics

  6. Early Ischemic Signs (EIS)- Sulcal Effacement • Usually seen in conjunction with hypodensity • Rarely seen without hypodensity • May reflect elevated cerebral blood volume in vasodilatedcollateral vessels

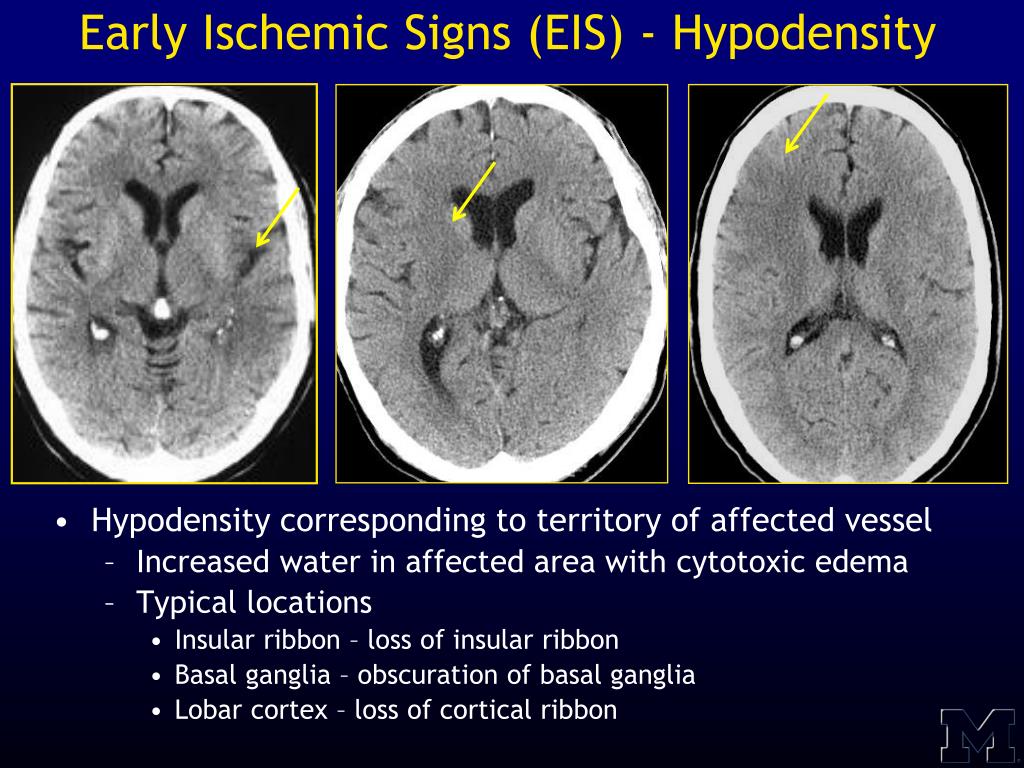

  7. Early Ischemic Signs (EIS) - Hypodensity • Hypodensity corresponding to territory of affected vessel • Increased water in affected area with cytotoxic edema • Typical locations • Insular ribbon – loss of insular ribbon • Basal ganglia – obscuration of basal ganglia • Lobar cortex – loss of cortical ribbon

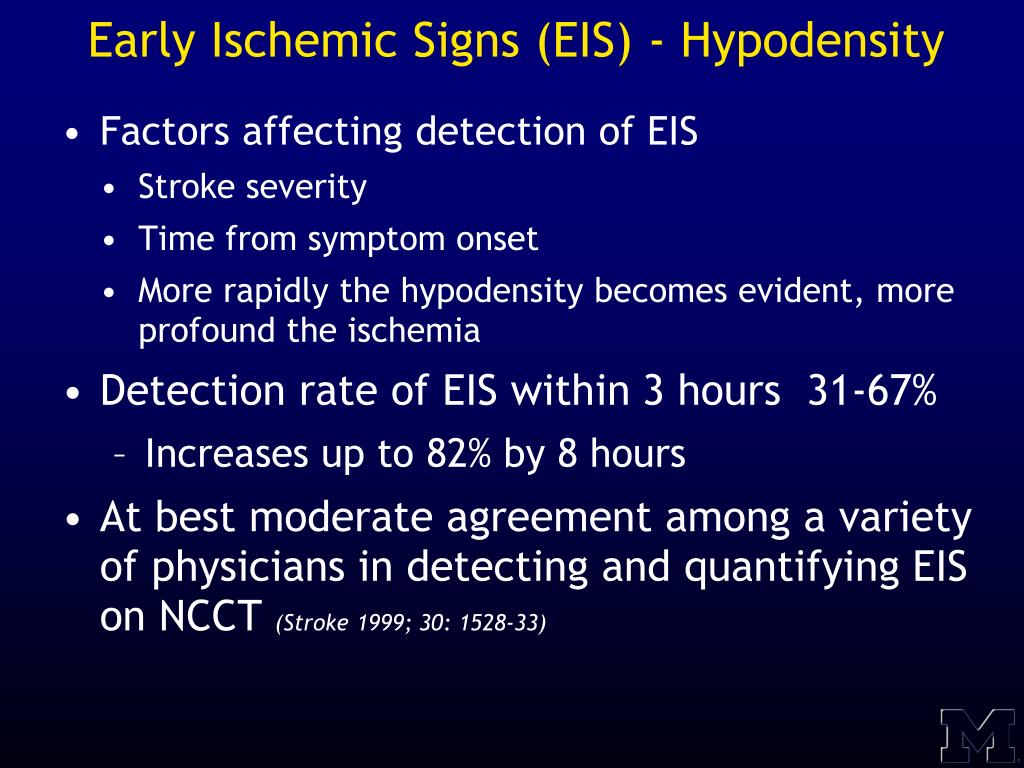

  8. Early Ischemic Signs (EIS) - Hypodensity • Factors affecting detection of EIS • Stroke severity • Time from symptom onset • More rapidly the hypodensity becomes evident, more profound the ischemia • Detection rate of EIS within 3 hours 31-67% • Increases up to 82% by 8 hours • At best moderate agreement among a variety of physicians in detecting and quantifying EIS on NCCT (Stroke 1999; 30: 1528-33)

  9. Improves detection of EIS (Radiology 1999;213:150-155) Standard WW – 80 HU CL – 20 HU Variable WW – 8 HU CL – 32 HU Variable Window Width and Center Level

  10. Alberta Stroke Program Early CT Score (ASPECTS) Lancet 2000;355:1670- 74 Normal = 10 Entire MCA territory = 0 NeuroimagClin N Am 2011;21:407-23

  11. What is > 1/3 MCA Territory? • ASPECTS value < 4 or 5 ~ > 1/3 MCA territory (Int J Stroke 2009;354-64 and Stroke 2006;37: 973–78) • Lesion volume > 70-100 cm3 ~ > 1/3 MCA territory • Can estimate volume using ABC/2 rule (Neurology 2009;72:2104–2110) • A and B are largest axial dimensions • C is number of axial slices the lesion appears on measured by slice thickness A B ABC/2 = [5.6 cm x 2.2 cm x (5 x 0.5 cm)]/2 = 15.4 cm3

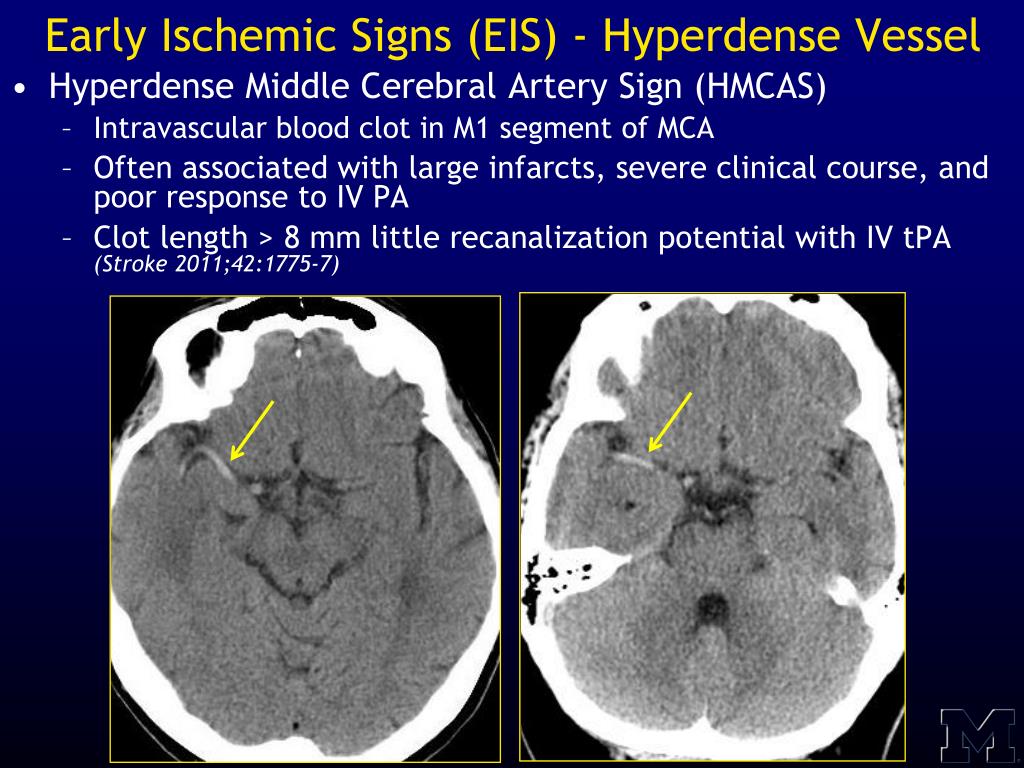

  12. Early Ischemic Signs (EIS) - Hyperdense Vessel • Hyperdense Middle Cerebral Artery Sign (HMCAS) • Intravascular blood clot in M1 segment of MCA • Often associated with large infarcts, severe clinical course, and poor response to IV PA • Clot length > 8 mm little recanalization potential with IV tPA(Stroke 2011;42:1775-7)

  13. Early Ischemic Signs (EIS) - Hyperdense Vessel • MCA dot sign • Hyperdensity of small arteries in Sylvian fissure, seen in cross section • Clot in M2 and M3 branches • Strokes less severe than with HMCAS

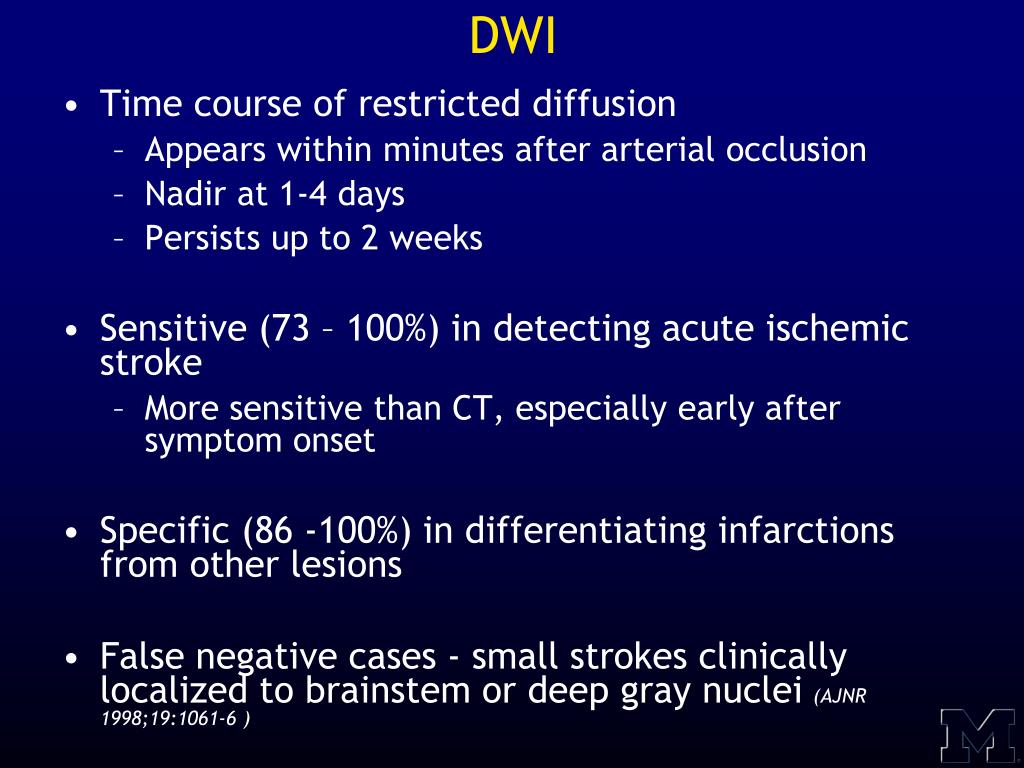

  14. DWI • Time course of restricted diffusion • Appears within minutes after arterial occlusion • Nadir at 1-4 days • Persists up to 2 weeks • Sensitive (73 – 100%) in detecting acute ischemic stroke • More sensitive than CT, especially early after symptom onset • Specific (86 -100%) in differentiating infarctions from other lesions • False negative cases - small strokes clinically localized to brainstem or deep gray nuclei (AJNR 1998;19:1061-6 )

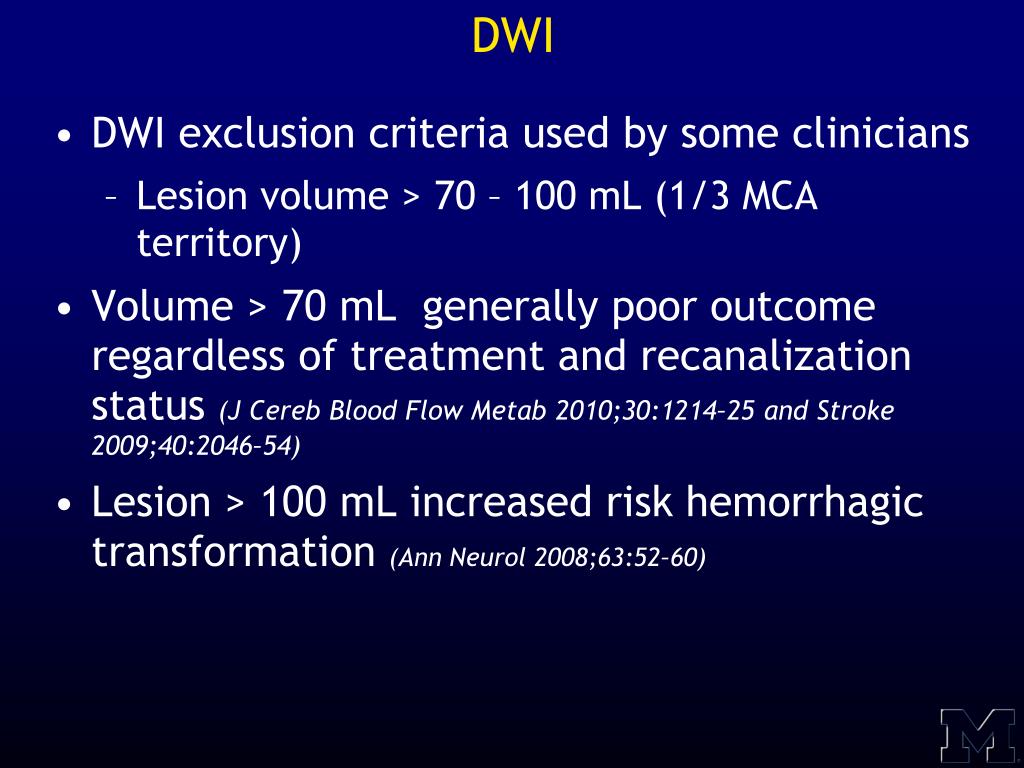

  15. DWI • DWI exclusion criteria used by some clinicians • Lesion volume > 70 – 100 mL (1/3 MCA territory) • Volume > 70 mL generally poor outcome regardless of treatment and recanalization status (J Cereb Blood Flow Metab 2010;30:1214–25 and Stroke 2009;40:2046–54) • Lesion > 100 mL increased risk hemorrhagic transformation (Ann Neurol 2008;63:52–60)

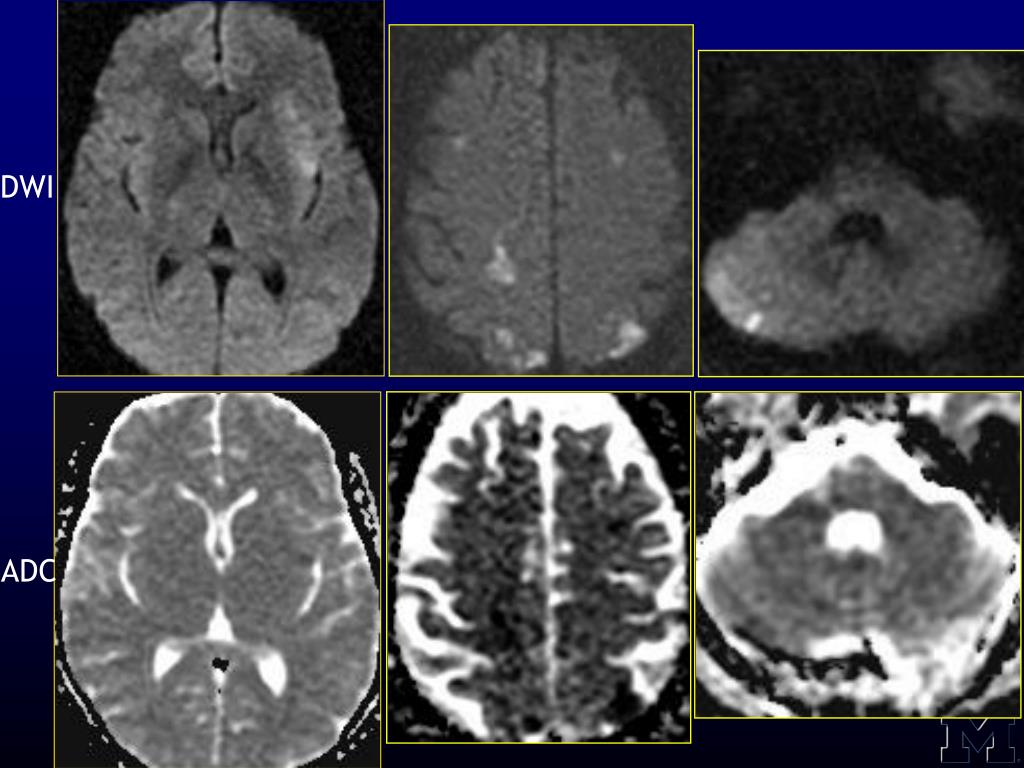

  16. DWI ADC

  17. MRI for Hemorrhage Detection • MRI as accurate as CT for detection of acute hemorrhage (JAMA 2004;292:1823-1830) • T2*-weighted GRE or EPI-SWI sequences must be used • Hemorrhage, acute and chronic, seen as area of hypointensity

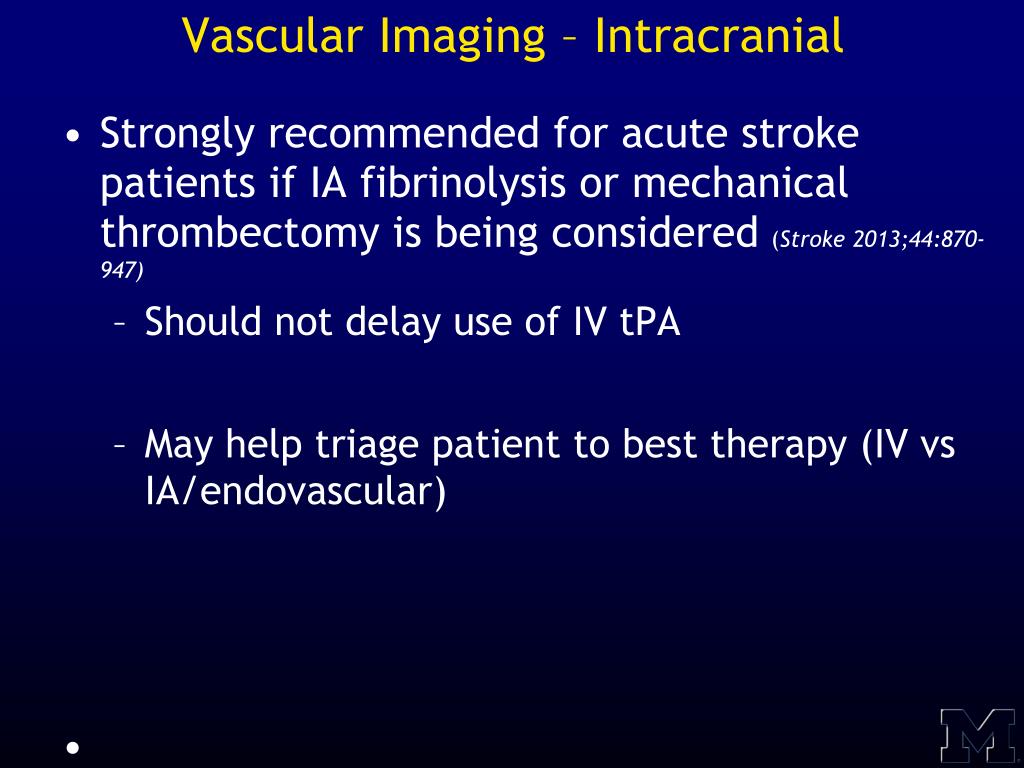

  18. Vascular Imaging – Intracranial • Strongly recommended for acute stroke patients if IA fibrinolysis or mechanical thrombectomy is being considered (Stroke 2013;44:870-947) • Should not delay use of IV tPA • May help triage patient to best therapy (IV vs IA/endovascular)

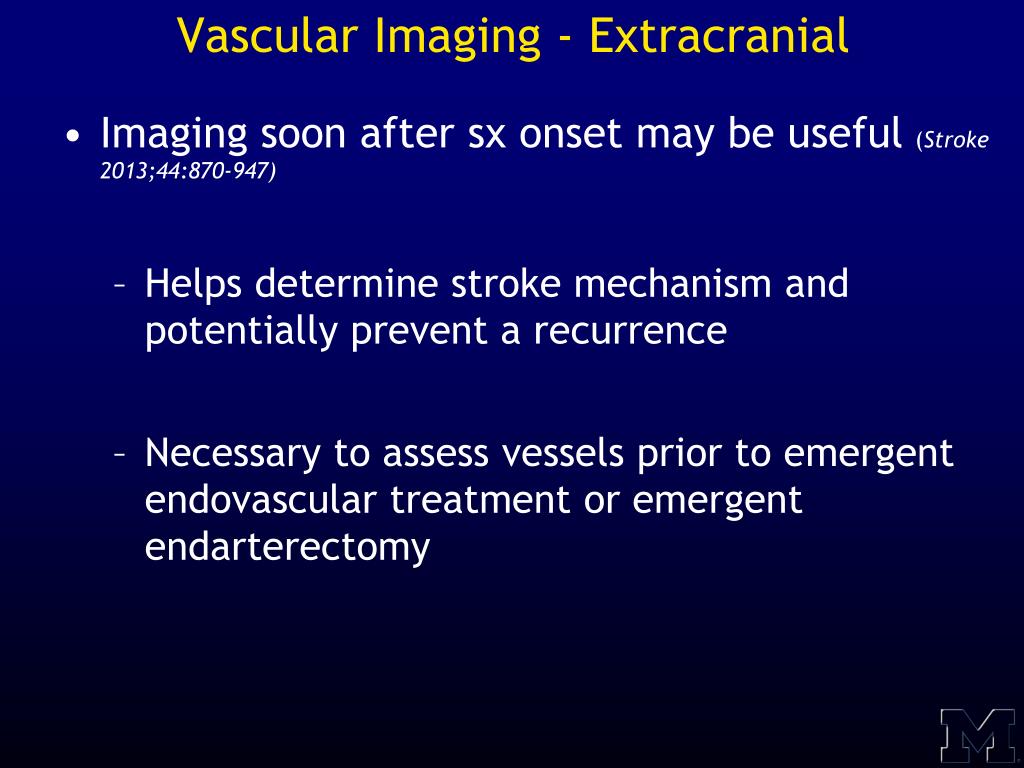

  19. Vascular Imaging - Extracranial • Imaging soon after sx onset may be useful (Stroke 2013;44:870-947) • Helps determine stroke mechanism and potentially prevent a recurrence • Necessary to assess vessels prior to emergent endovascular treatment or emergent endarterectomy

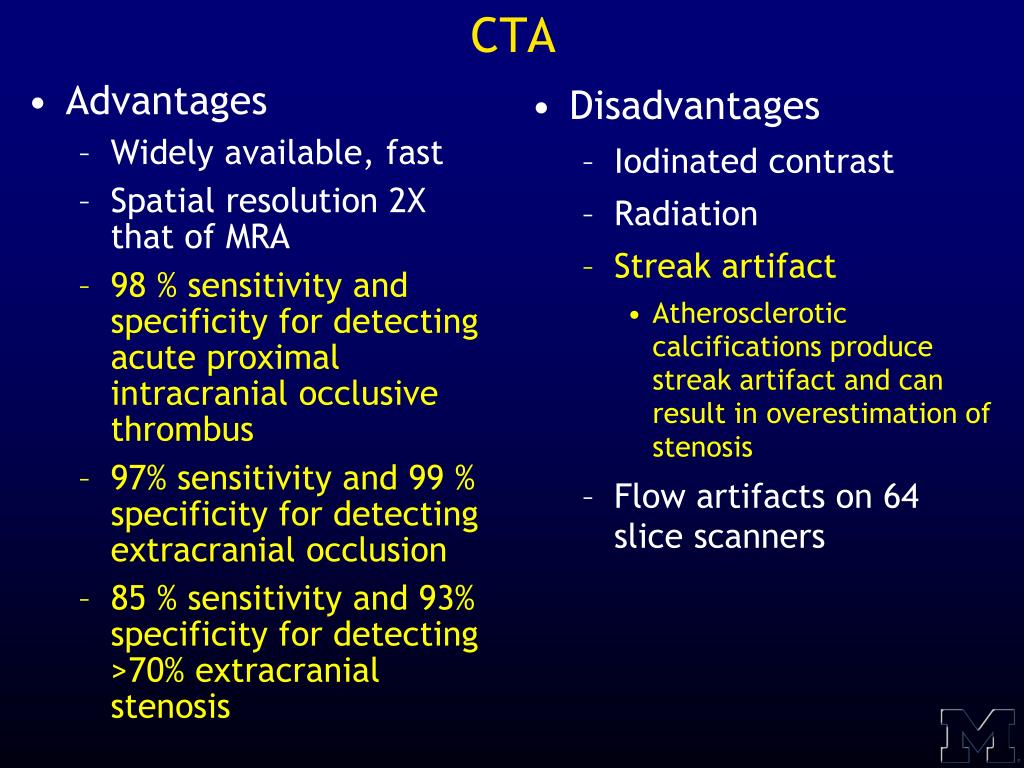

  20. CTA • Disadvantages • Iodinated contrast • Radiation • Streak artifact • Atherosclerotic calcifications produce streak artifact and can result in overestimation of stenosis • Flow artifacts on 64 slice scanners • Advantages • Widely available, fast • Spatial resolution 2X that of MRA • 98 % sensitivity and specificity for detecting acute proximal intracranial occlusive thrombus • 97% sensitivity and 99 % specificity for detecting extracranial occlusion • 85 % sensitivity and 93% specificity for detecting >70% extracranial stenosis

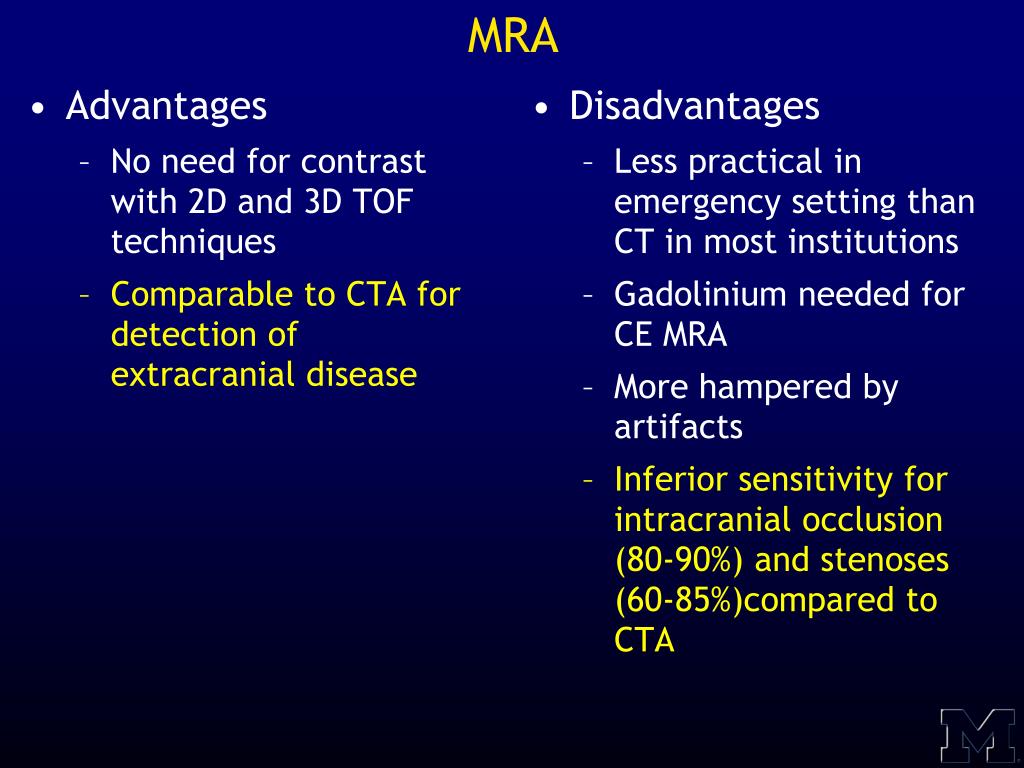

  21. MRA • Disadvantages • Less practical in emergency setting than CT in most institutions • Gadolinium needed for CE MRA • More hampered by artifacts • Inferior sensitivity for intracranial occlusion (80-90%) and stenoses (60-85%)compared to CTA • Advantages • No need for contrast with 2D and 3D TOF techniques • Comparable to CTA for detection of extracranial disease

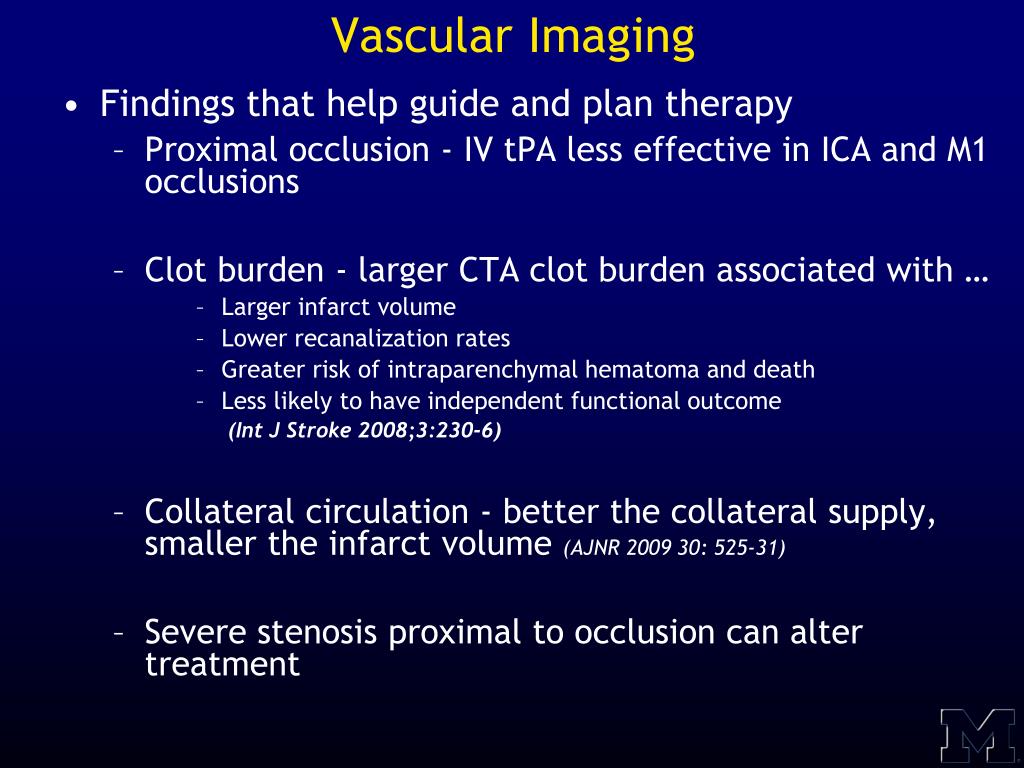

  22. Vascular Imaging • Findings that help guide and plan therapy • Proximal occlusion - IV tPA less effective in ICA and M1 occlusions • Clot burden - larger CTA clot burden associated with … • Larger infarct volume • Lower recanalization rates • Greater risk of intraparenchymal hematoma and death • Less likely to have independent functional outcome (Int J Stroke 2008;3:230-6) • Collateral circulation - better the collateral supply, smaller the infarct volume (AJNR 2009 30: 525-31) • Severe stenosis proximal to occlusion can alter treatment

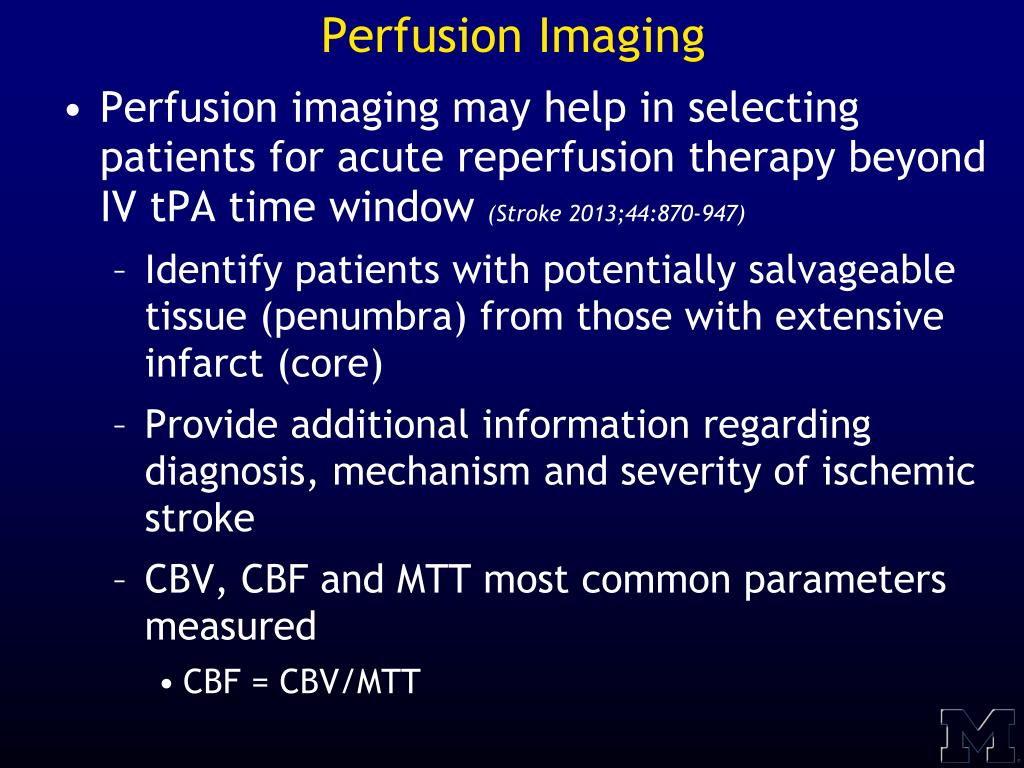

  23. Perfusion Imaging • Perfusion imaging may help in selecting patients for acute reperfusion therapy beyond IV tPA time window (Stroke 2013;44:870-947) • Identify patients with potentially salvageable tissue (penumbra) from those with extensive infarct (core) • Provide additional information regarding diagnosis, mechanism and severity of ischemic stroke • CBV, CBF and MTT most common parameters measured • CBF = CBV/MTT

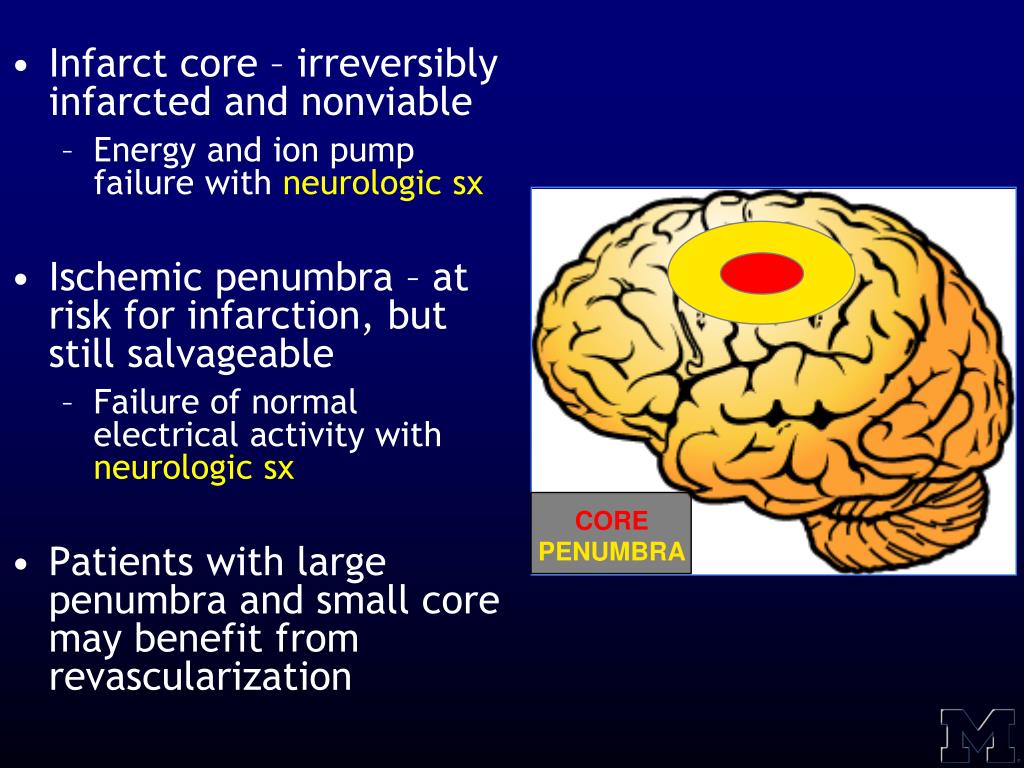

  24. Infarct core – irreversibly infarcted and nonviable • Energy and ion pump failure with neurologic sx • Ischemic penumbra – at risk for infarction, but still salvageable • Failure of normal electrical activity with neurologic sx • Patients with large penumbra and small core may benefit from revascularization CORE PENUMBRA

  25. CT Perfusion • Disadvantages • No DWI equivalent • Quantitative values vary among different software programs • Limited coverage • Uses ionizing radiation and iodinated contrast • Advantages • Availability and speed • Lower cost • Easier quantification

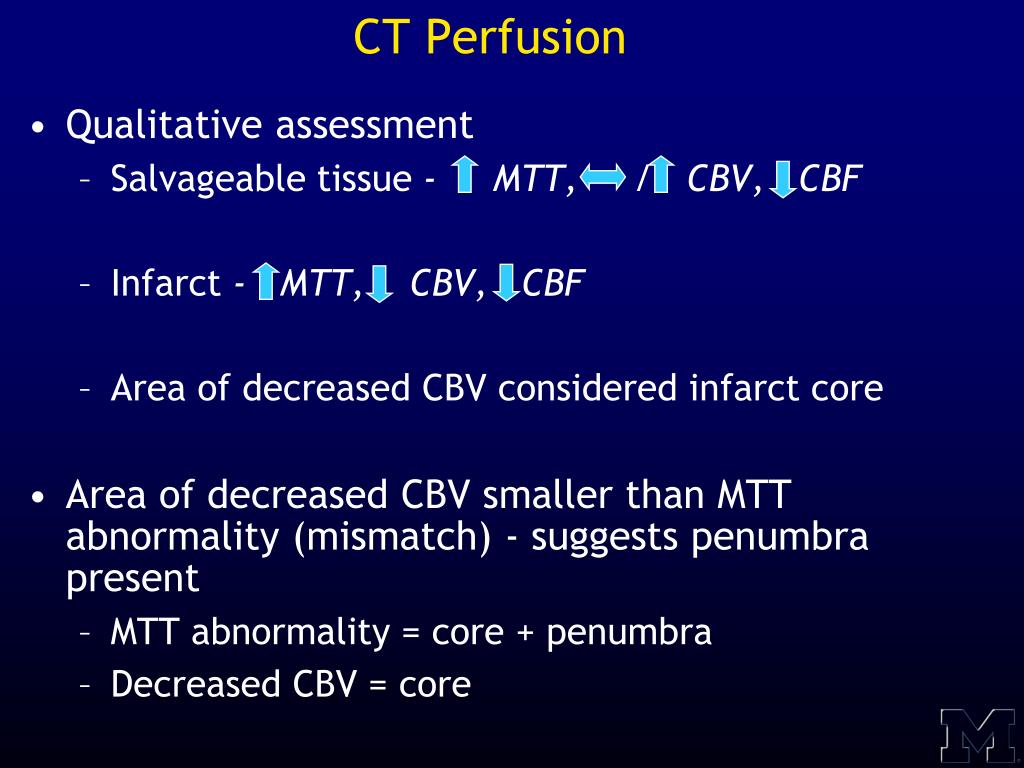

  26. CT Perfusion • Qualitative assessment • Salvageable tissue - MTT, / CBV, CBF • Infarct - MTT, CBV, CBF • Area of decreased CBV considered infarct core • Area of decreased CBV smaller than MTT abnormality (mismatch) - suggests penumbra present • MTT abnormality = core + penumbra • Decreased CBV = core

  27. . MTT CBV CBF Findings compatible with left MCA infarct with penumbra CBV MTT CBF

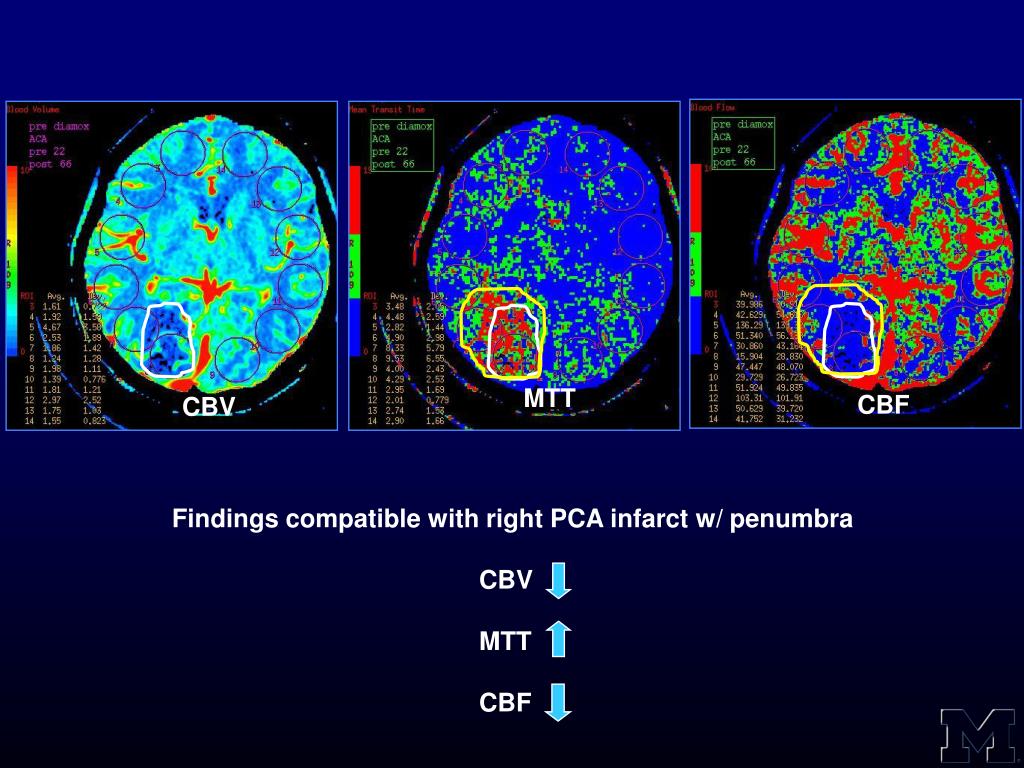

  28. MTT CBF CBV Findings compatible with right PCA infarct w/ penumbra CBV MTT CBF

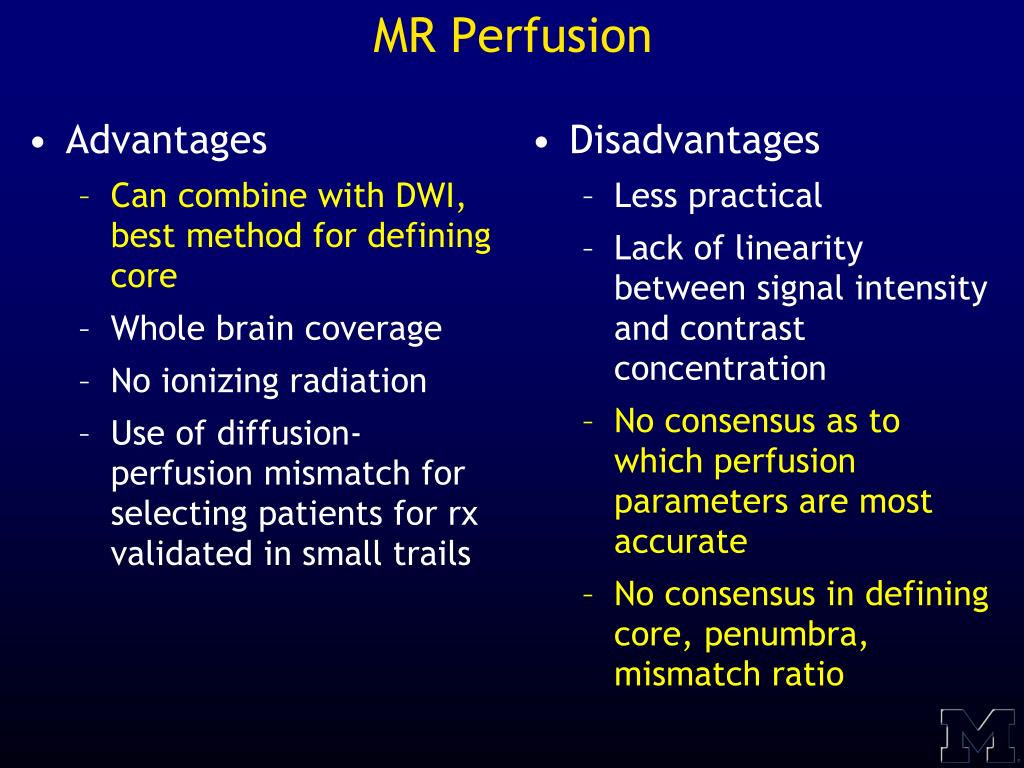

  29. MR Perfusion • Disadvantages • Less practical • Lack of linearity between signal intensity and contrast concentration • No consensus as to which perfusion parameters are most accurate • No consensus in defining core, penumbra, mismatch ratio • Advantages • Can combine with DWI, best method for defining core • Whole brain coverage • No ionizing radiation • Use of diffusion-perfusion mismatch for selecting patients for rx validated in small trails

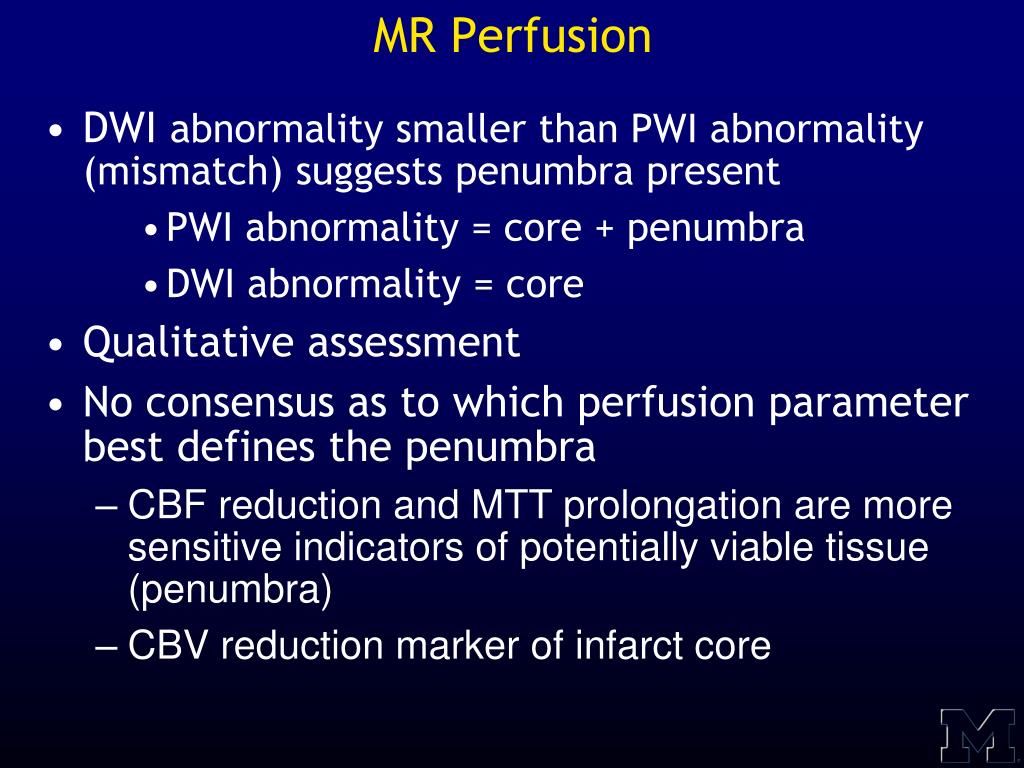

  30. MR Perfusion • DWI abnormality smaller than PWI abnormality (mismatch) suggests penumbra present • PWI abnormality = core + penumbra • DWI abnormality = core • Qualitative assessment • No consensus as to which perfusion parameter best defines the penumbra • CBF reduction and MTT prolongation are more sensitive indicators of potentially viable tissue (penumbra) • CBV reduction marker of infarct core

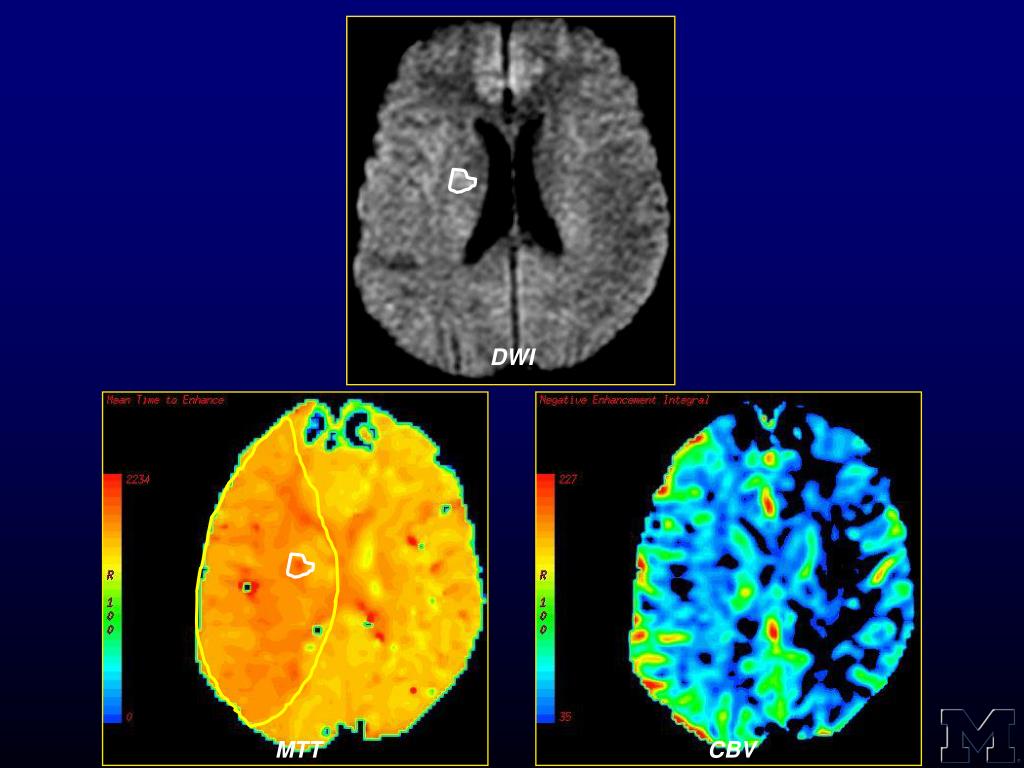

  31. DWI MTT CBV

  32. MR Perfusion • Diffusion-perfusion mismatch is a strong indicator of infarct growth • In patients with diffusion-perfusion mismatch, infarct growth and final infarct size significantly smaller in those treated with t-PA vs. controls (Ann Neurol 2002;51:28–37)

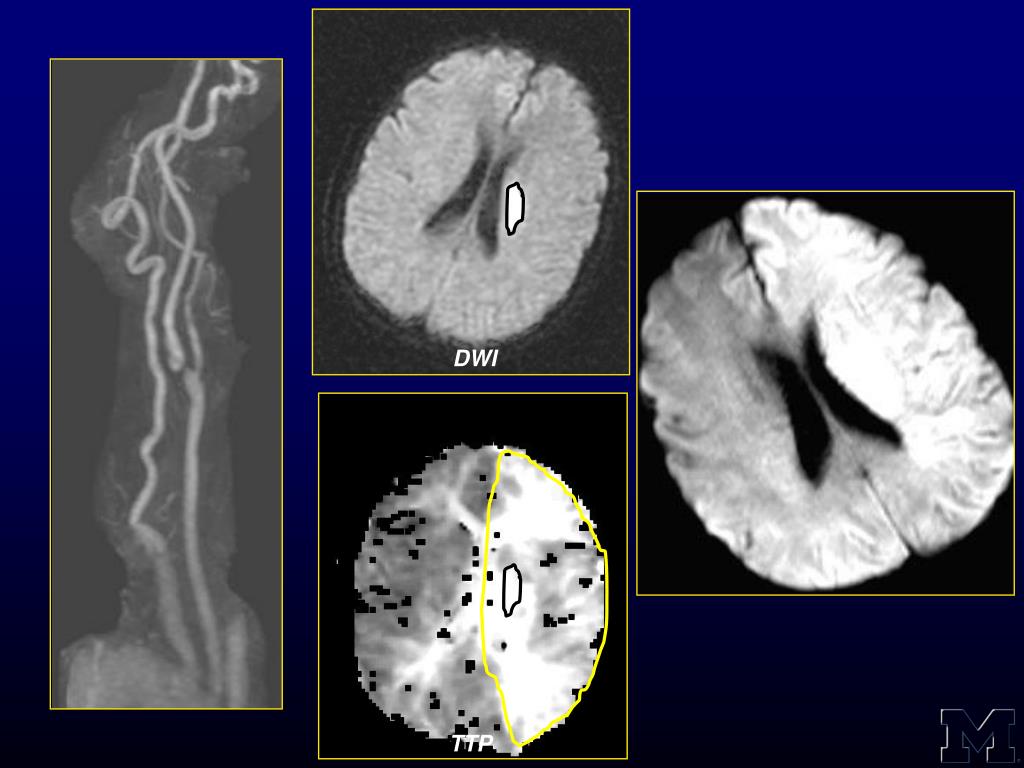

  33. DWI TTP

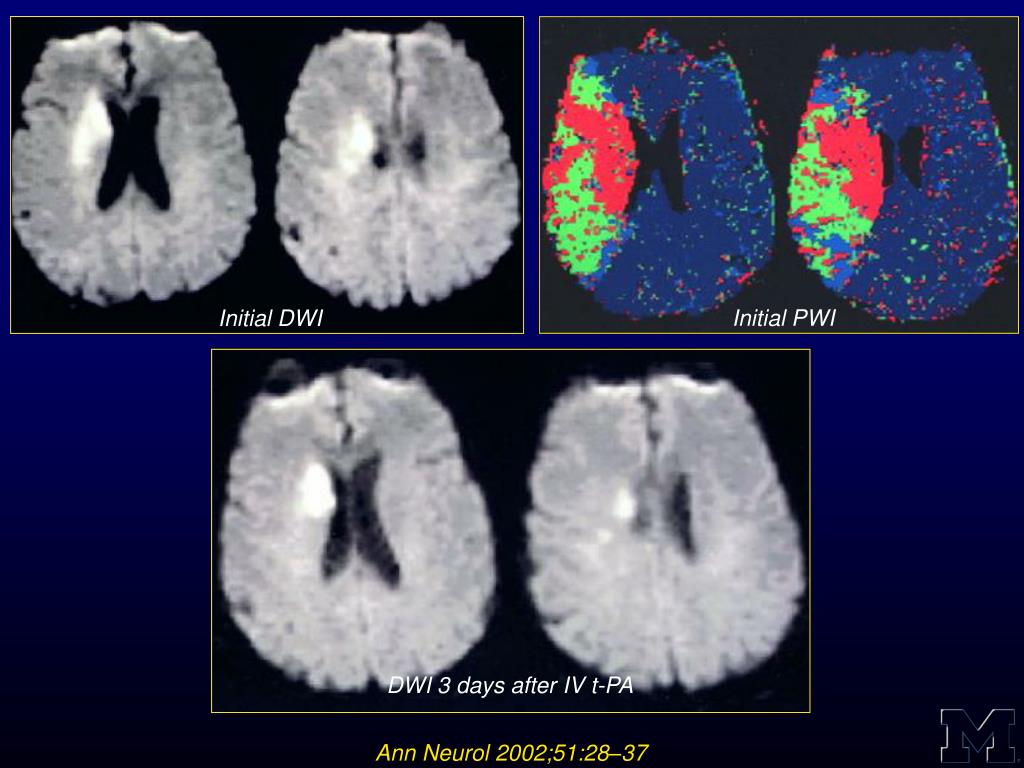

  34. Initial PWI Initial DWI DWI 3 days after IV t-PA Ann Neurol 2002;51:28–37

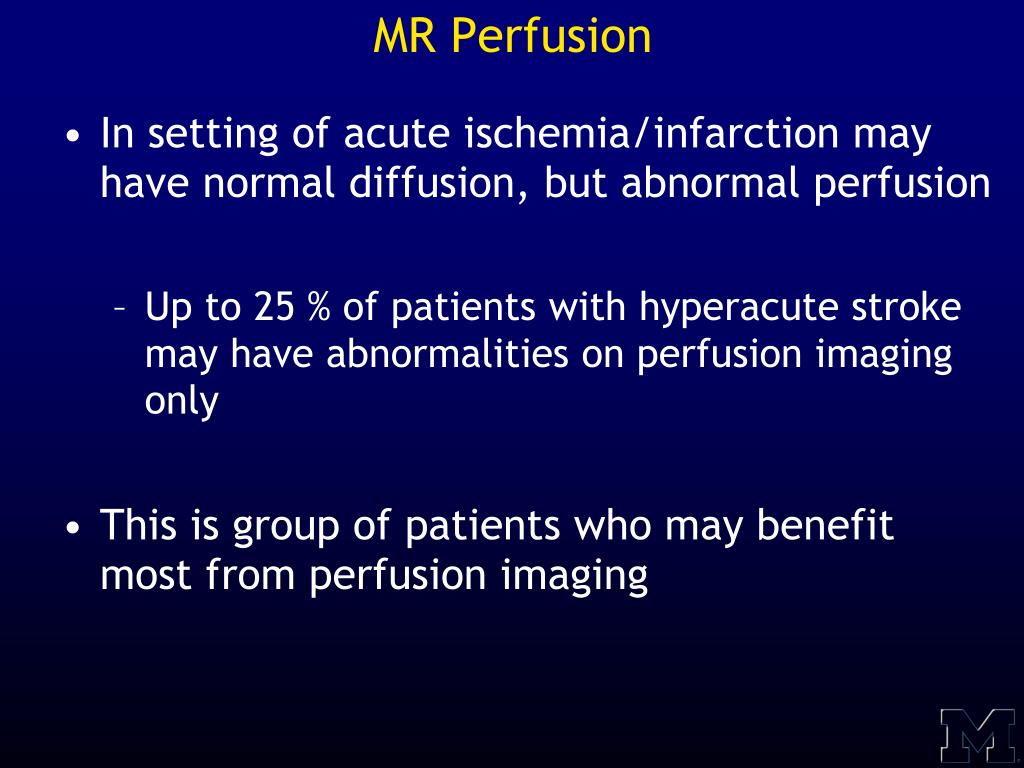

  35. MR Perfusion • In setting of acute ischemia/infarction may have normal diffusion, but abnormal perfusion • Up to 25 % of patients with hyperacute stroke may have abnormalities on perfusion imaging only • This is group of patients who may benefit most from perfusion imaging

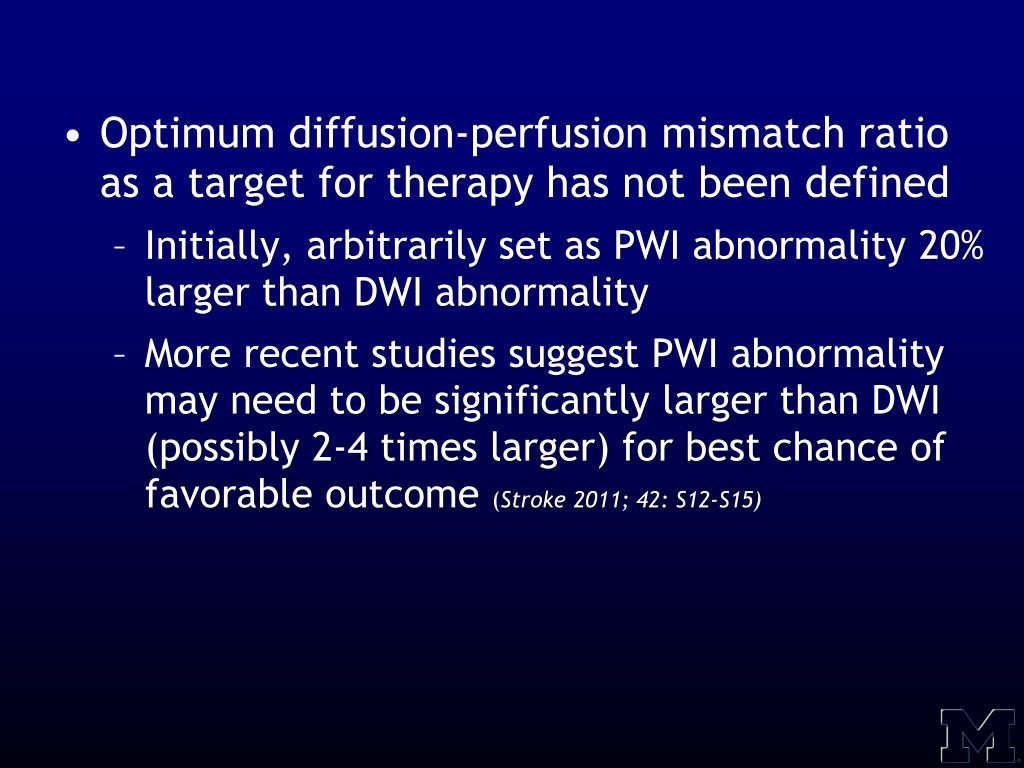

  36. Optimum diffusion-perfusion mismatch ratio as a target for therapy has not been defined • Initially, arbitrarily set as PWI abnormality 20% larger than DWI abnormality • More recent studies suggest PWI abnormality may need to be significantly larger than DWI (possibly 2-4 times larger) for best chance of favorable outcome (Stroke 2011; 42: S12-S15)

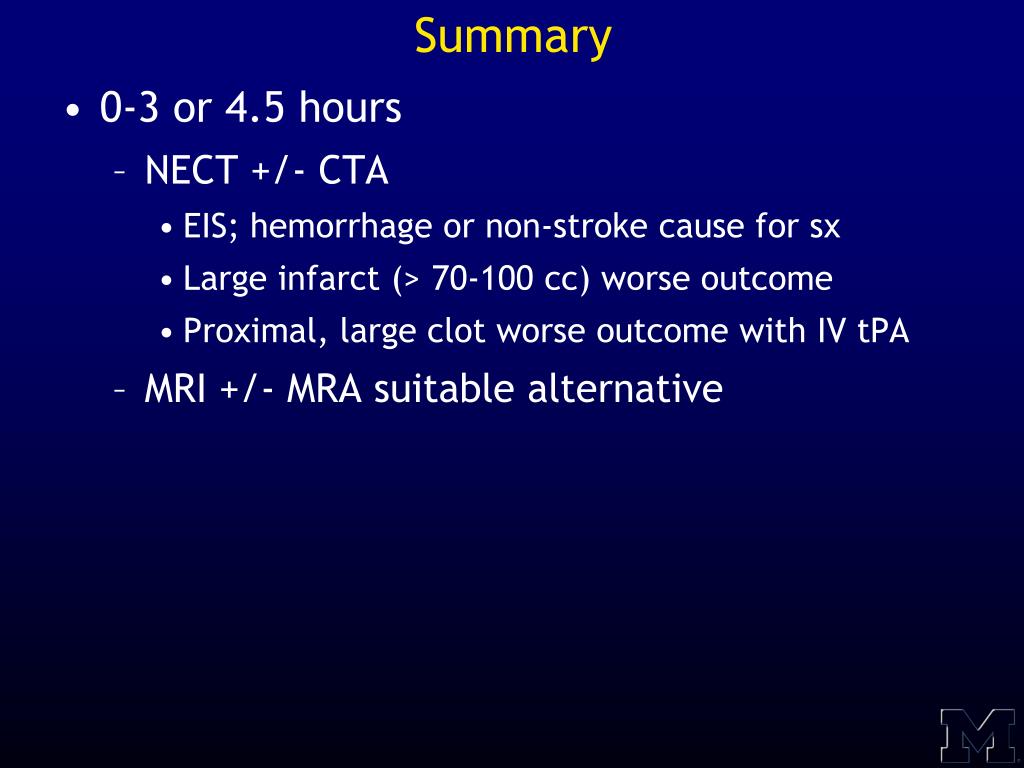

  37. Summary • 0-3 or 4.5 hours • NECT +/- CTA • EIS; hemorrhage or non-stroke cause for sx • Large infarct (> 70-100 cc) worse outcome • Proximal, large clot worse outcome with IV tPA • MRI +/- MRA suitable alternative

  38. Summary • 3 or 4.5 hours – 6 hours or more • NECT, CTA +/- CTP or MRI, MRA +/- MRP • Large infarct (> 70-100 cc) worse outcome • Thrombus amenable to IA rx • Maybe large penumbra
