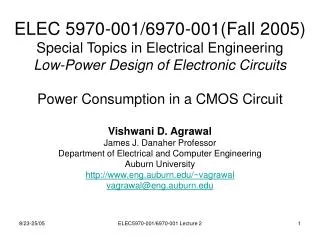

ELEC 5970-001/6970-001(Fall 2005) Special Topics in Electrical Engineering Low-Power Design of Electronic Circuits Power Consumption in a CMOS Circuit. Vishwani D. Agrawal James J. Danaher Professor Department of Electrical and Computer Engineering Auburn University

xiang
Download Presentation

Vishwani D. Agrawal James J. Danaher Professor Department of Electrical and Computer Engineering

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. ELEC 5970-001/6970-001(Fall 2005)Special Topics in Electrical EngineeringLow-Power Design of Electronic CircuitsPower Consumption in a CMOS Circuit Vishwani D. Agrawal James J. Danaher Professor Department of Electrical and Computer Engineering Auburn University http://www.eng.auburn.edu/~vagrawal vagrawal@eng.auburn.edu ELEC5970-001/6970-001 Lecture 2

  2. Class Projects • Study of leakage dynamic power in nanometer devices • Low leakage technologies • Charge recovery and adiabatic switching circuits • Simulation-based power estimation tool • Transistor-sizing for low power • Logic and flip-flop design for low power • Low power clock distribution • Low power arithmetic circuits • Low power memory design • Benchmarking of low power microprocessors • Low power system design ELEC5970-001/6970-001 Lecture 2

  3. Components of Power • Dynamic • Signal transitions • Logic activity • Glitches • Short-circuit • Static • Leakage Ptotal = Pdyn + Pstat Ptran + Psc + Pstat ELEC5970-001/6970-001 Lecture 2

  4. Power of a Transition: Ptran VDD Ron ic(t) vi (t) vo(t) CL R=large Ground ELEC5970-001/6970-001 Lecture 2

  5. Charging of a Capacitor R t = 0 v(t) i(t) C V Charge on capacitor, q(t) = C v(t) Current, i(t) = dq(t)/dt = C dv(t)/dt ELEC5970-001/6970-001 Lecture 2

  6. i(t) = C dv(t)/dt = [V – v(t)] /R dv(t) V – v(t) ─── = ───── dt RC dv(t) dt ∫ ───── = ∫───── V – v(t) RC -t ln [V – v(t)] = ── + A RC Initial condition, t = 0, v(t) = 0 → A = ln V -t v(t) = V [1 – exp(───)] RC ELEC5970-001/6970-001 Lecture 2

  7. -t v(t) = V [1 – exp( ── )] RC dv(t) V -t i(t) = C ─── = ── exp( ── ) dt R RC ELEC5970-001/6970-001 Lecture 2

  8. Total Energy Per Charging Transition from Power Supply ∞∞ V2 -t Etrans = ∫ V i(t) dt = ∫ ── exp( ── ) dt 00 R RC = CV2 ELEC5970-001/6970-001 Lecture 2

  9. Energy Dissipated per Transition in Resistance ∞ V2∞ -2t R ∫ i2(t) dt = R ── ∫ exp( ── ) dt 0 R20 RC 1 = ─ CV2 2 ELEC5970-001/6970-001 Lecture 2

  10. Energy Stored in Charged Capacitor ∞ ∞ -t V -t ∫ v(t) i(t) dt = ∫ V [1-exp( ── )]─ exp( ── ) dt 00 RC R RC 1 = ─ CV2 2 ELEC5970-001/6970-001 Lecture 2

  11. Transition Power • Gate output rising transition • Energy dissipated in pMOS transistor = CV2/2 • Energy stored in capacitor = CV2/2 • Gate output falling transition • Energy dissipated in nMOS transistor = CV2/2 • Energy dissipated per transition = CV2/2 • Power dissipation: Ptrans = Etransα fck = α fck CV2/2 α = activity factor ELEC5970-001/6970-001 Lecture 2

  12. Short Circuit Current, isc(t) VDD VDD - VTp Vi(t) Vo(t) Volt VTn 0 Iscmaxf isc(t) Amp Time (ns) tB tE 1 0 ELEC5970-001/6970-001 Lecture 2

  13. Peak Short Circuit Current • Increases with the size (or gain, β) of transistors • Decreases with load capacitance, CL • Largest when CL= 0 • Reference: M. A. Ortega and J. Figueras, “Short Circuit Power Modeling in Submicron CMOS,” PATMOS’96, Aug. 1996, pp. 147-166. ELEC5970-001/6970-001 Lecture 2

  14. Short-Circuit Energy per Transition • Escf =∫tBtE VDD isc(t)dt = (tE – tB) IscmaxfVDD /2 • Escf = tf (VDD- |VTp|-VTn) Iscmaxf /2 • Escr = tr (VDD- |VTp| -VTn) Iscmaxr /2 • Escf = 0, when VDD = |VTp| + VTn ELEC5970-001/6970-001 Lecture 2

  15. Short-Circuit Energy • Increases with rise and fall times of input • Decreases for larger output load capacitance • Decreases and eventually becomes zero when VDD is scaled down but the threshold voltages are not scaled down ELEC5970-001/6970-001 Lecture 2

  16. Short-Circuit Power Calculation • Assume equal rise and fall times • Model input-output capacitive coupling (Miller capacitance) • Use a spice model for transistors • T. Sakurai and A. Newton, “Alpha-power Law MOSFET model and Its Application to a CMOS Inverter,” IEEE J. Solid State Circuits, vol. 25, April 1990, pp. 584-594. ELEC5970-001/6970-001 Lecture 2

  17. Short Circuit Power Psc = α fck Esc ELEC5970-001/6970-001 Lecture 2

  18. Pscvs. C 0.7μ CMOS 45% Decreasing Input rise time 3ns Psc/Ptotal 0.5ns 0% 35 75 C (fF) ELEC5970-001/6970-001 Lecture 2

  19. Psc, Rise Time and Capacitance VDD Ron ic(t)+isc(t) vi (t) vo(t) CL tr tf R=large vo(t) ─── R↑ Ground ELEC5970-001/6970-001 Lecture 2

  20. isc, Rise Time and Capacitance -t VDD[1- exp(─────)] vo(t) R↓tf (t)C Isc(t) = ──── = ────────────── R↑tf (t) R↑tf (t) ELEC5970-001/6970-001 Lecture 2

  21. iscmax, Rise Time and Capacitance i Small C Large C vo(t) vo(t) iscmax 1 ──── R↑tf (t) t tf ELEC5970-001/6970-001 Lecture 2

  22. Psc, Rise Times, Capacitance • For given input rise and fall times short circuit power decreases as output capacitance increases. • Short circuit power increases with increase of input rise and fall times. • Short circuit power is reduced if output rise and fall times are smaller than the input rise and fall times. ELEC5970-001/6970-001 Lecture 2

  23. Technology Scaling • Scale down by factors of 2 and 4, i.e., model 0.7, 0.35 and 0.17 micron technologies • Constant electric field assumed • Capacitance scaled down by the technology scale down factor ELEC5970-001/6970-001 Lecture 2

  24. Bulk nMOSFET Polysilicon Gate Drain W Source n+ n+ L p-type body (bulk) SiO2 Thickness = tox ELEC5970-001/6970-001 Lecture 2

  25. Scaling Factor, α • Constant electric field • L = L / α • W = W / α • tox = tox / α • VDD = VDD/α • Capacitance → 1/α • Gate delay → 1/α • Area → 1/α2 • Power dissipation → 1/α2 • Power density constant • Doping → α ELEC5970-001/6970-001 Lecture 2

  26. Technology Scaling Results L=0.17μ, C=10fF 70% 60% L=0.35μ, C=20fF Psc/Ptotal 37% 16% 12% L=0.7μ, C=40fF 4% 1% Input tr or tf (ns) 0.4 1.6 ELEC5970-001/6970-001 Lecture 2

  27. Effects of Scaling Down • 1-16% short-circuit power at 0.7 micron • 4-37% at 0.35 micron • 12-60% at 0.17 micron • Reference: S. R. Vemuru and N. Steinberg, “Short Circuit Power Dissipation Estimation for CMOS Logic Gates,” IEEE Trans. on Circuits and Systems I, vol. 41, Nov. 1994, pp. 762-765. ELEC5970-001/6970-001 Lecture 2

  28. Summary: Short-Circuit Power • Short-circuit power is consumed by each transition (increases with input transition time). • Reduction requires that gate output transition should not be faster than the input transition (faster gates can consume more short-circuit power). • Increasing the output load capacitance reduces short-circuit power. • Scaling down of supply voltage with respect to threshold voltages reduces short-circuit power. ELEC5970-001/6970-001 Lecture 2

  29. Components of Power • Dynamic • Signal transitions • Logic activity • Glitches • Short-circuit • Static • Leakage ELEC5970-001/6970-001 Lecture 2

  30. Leakage Power VDD IG Ground R n+ n+ Isub IPT ID IGIDL ELEC5970-001/6970-001 Lecture 2

  31. Leakage Current Components • Subthreshold conduction, Isub • Reverse bias pn junction conduction, ID • Gate induced drain leakage, IGIDL due to tunneling at the gate-drain overlap • Drain source punchthrough, IPT due to short channel and high drain-source voltage • Gate tunneling, IGthrough thin oxide ELEC5970-001/6970-001 Lecture 2

  32. Subthreshold Current Isub = μ0 Cox (W/L) Vt2 exp{(VGS-VTH)/nVt} μ0: carrier surface mobility Cox: gate oxide capacitance per unit area L: channel length W: gate width Vt = kT/q: thermal voltage n: a technology parameter ELEC5970-001/6970-001 Lecture 2

  33. IDSfor Short Channel Device Isub = μ0 Cox (W/L) Vt2 exp{(VGS-VTH+ηVDS)/nVt} VDS = drain to source voltage η: a proportionality factor ELEC5970-001/6970-001 Lecture 2

  34. Increased Subthreshold Leakage Scaled device Ic Log Isub 0 VTH’ VTH Gate voltage ELEC5970-001/6970-001 Lecture 2

  35. Summary: Leakage Power • Leakage power as a fraction of the total power increases as clock frequency drops. Turning supply off in unused parts can save power. • For a gate it is a small fraction of the total power; it can be significant for very large circuits. • Scaling down features requires lowering the threshold voltage, which increases leakage power; roughly doubles with each shrinking. • Multiple-threshold devices are used to reduce leakage power. ELEC5970-001/6970-001 Lecture 2
