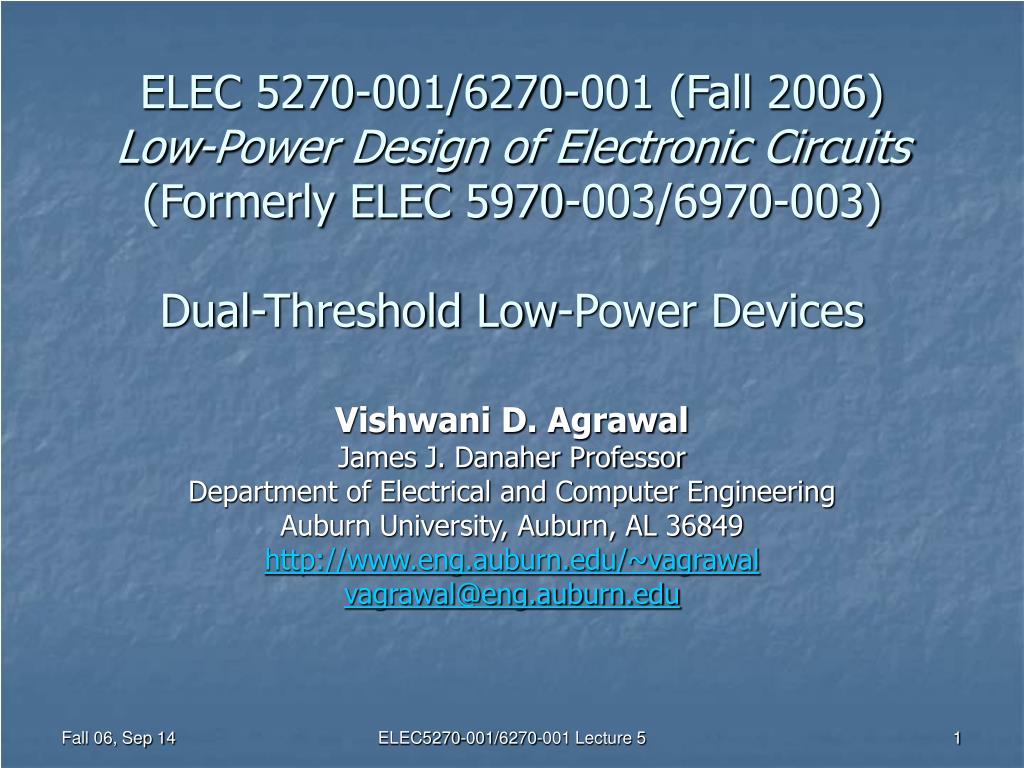

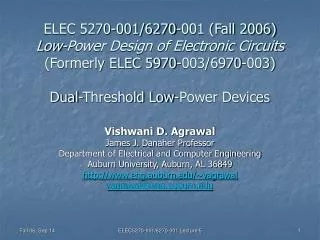

  1. ELEC 5270-001/6270-001 (Fall 2006)Low-Power Design of Electronic Circuits(Formerly ELEC 5970-003/6970-003)Dual-Threshold Low-Power Devices Vishwani D. Agrawal James J. Danaher Professor Department of Electrical and Computer Engineering Auburn University, Auburn, AL 36849 http://www.eng.auburn.edu/~vagrawal vagrawal@eng.auburn.edu ELEC5270-001/6270-001 Lecture 5

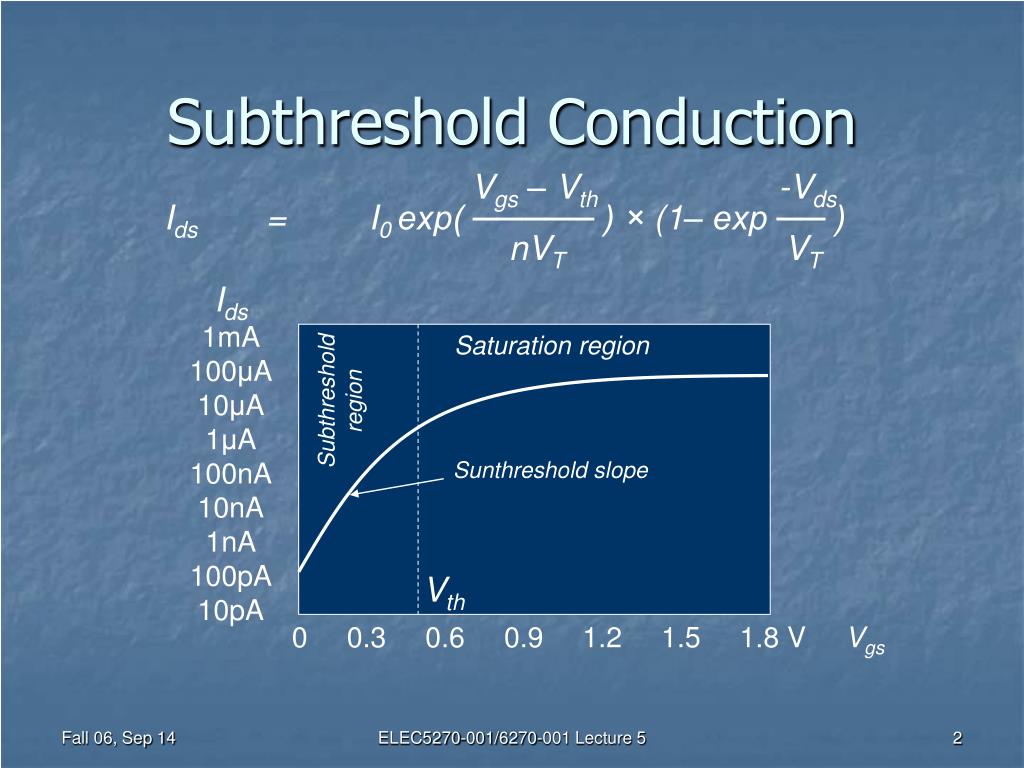

  2. Subthreshold Conduction Vgs – Vth -Vds Ids = I0 exp( ───── ) × (1– exp ── ) nVT VT Ids 1mA 100μA 10μA 1μA 100nA 10nA 1nA 100pA 10pA Sunthreshold slope Saturation region Subthreshold region Vth 0 0.3 0.6 0.9 1.2 1.5 1.8 V Vgs ELEC5270-001/6270-001 Lecture 5

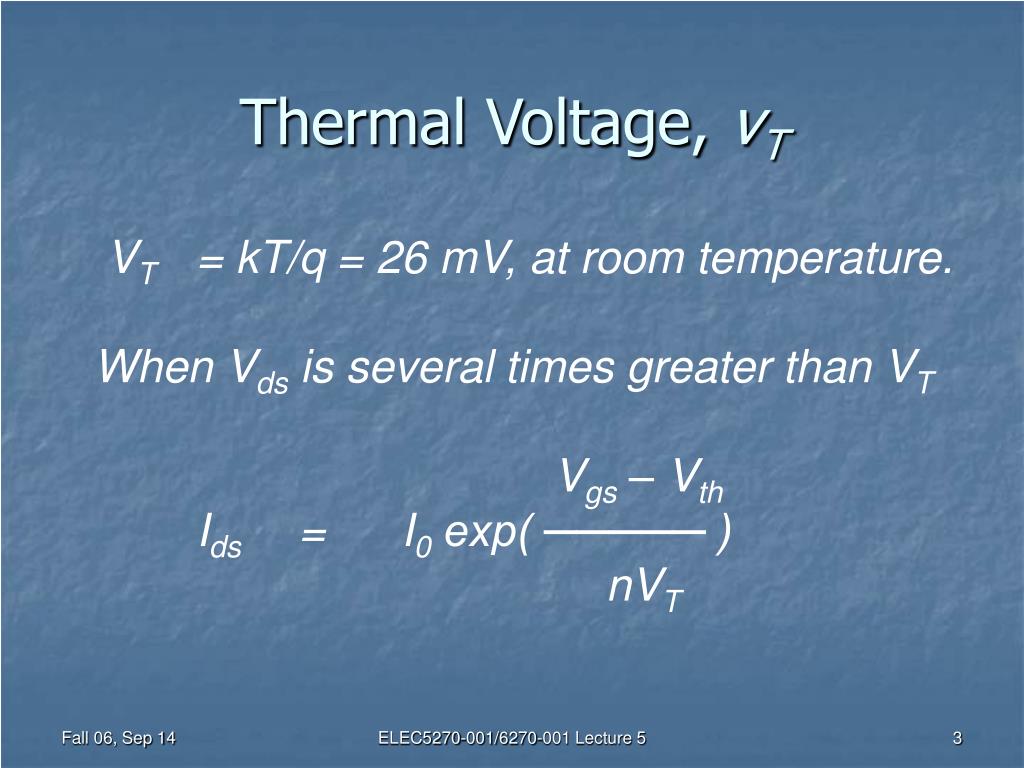

  3. Thermal Voltage, vT VT = kT/q = 26 mV, at room temperature. When Vds is several times greater than VT Vgs – Vth Ids = I0 exp( ───── ) nVT ELEC5270-001/6270-001 Lecture 5

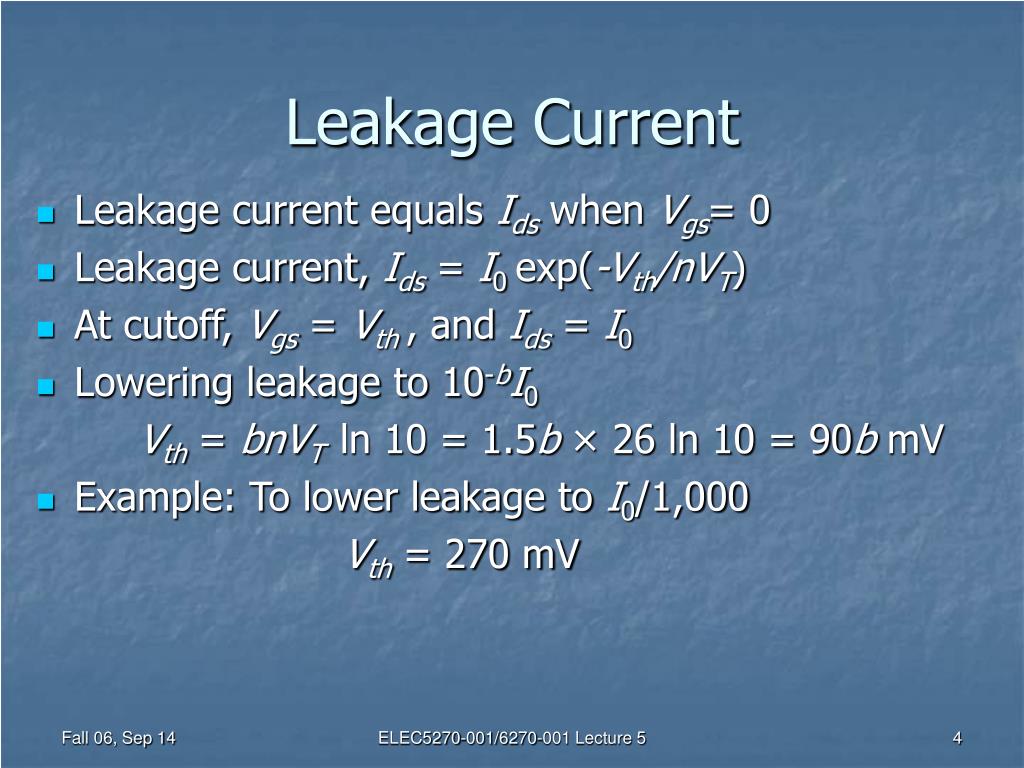

  4. Leakage Current • Leakage current equals Ids when Vgs= 0 • Leakage current, Ids = I0exp(-Vth/nVT) • At cutoff, Vgs = Vth , and Ids = I0 • Lowering leakage to 10-bI0 Vth = bnVT ln 10 = 1.5b × 26 ln 10 = 90b mV • Example: To lower leakage to I0/1,000 Vth = 270 mV ELEC5270-001/6270-001 Lecture 5

  5. Threshold Voltage • Vth = Vt0 + γ[(Φs+Vsb)½- Φs½] • Vt0 is threshold voltage when source is at body potential (0.4 V for180nm process) • Φs = 2VTln(NA /ni )is surface potential • γ = (2qεsi NA)½tox /εox is body effect coefficient (0.4 to 1.0) • NA is doping level = 8×1017 cm-3 • ni = 1.45×1010 cm-3 ELEC5270-001/6270-001 Lecture 5

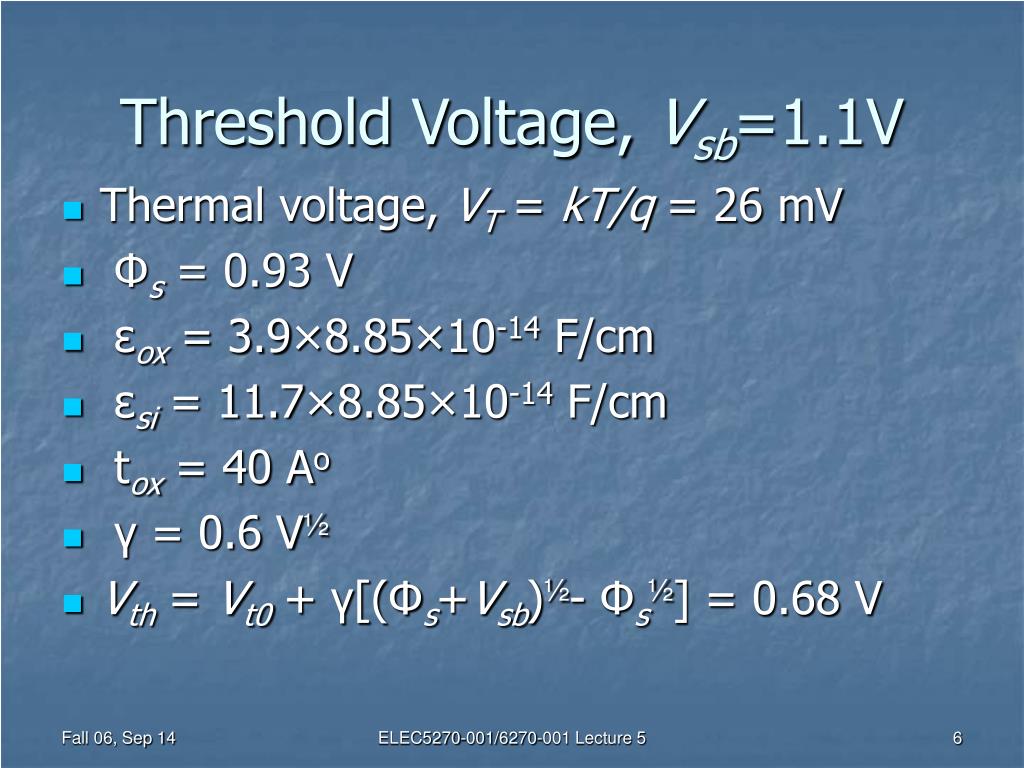

  6. Threshold Voltage, Vsb=1.1V • Thermal voltage, VT = kT/q = 26 mV • Φs = 0.93 V • εox = 3.9×8.85×10-14 F/cm • εsi = 11.7×8.85×10-14 F/cm • tox = 40 Ao • γ = 0.6 V½ • Vth = Vt0 + γ[(Φs+Vsb)½- Φs½] = 0.68 V ELEC5270-001/6270-001 Lecture 5

  7. A Sample Calculation • VDD = 1.2V, 100nm CMOS process • Transistor width, W = 0.5μm • OFF device (Vgs = Vth) leakage • I0 = 20nA/μm, for low threshold transistor • I0 = 3nA/μm, for high threshold transistor • 100M transistor chip • Power = (100×106/2)(0.5×20×10-9A)(1.2V) = 600mW for all low-threshold transistors • Power = (100×106/2)(0.5×3×10-9A)(1.2V) = 90mW for all high-threshold transistors ELEC5270-001/6270-001 Lecture 5

  8. Dual-Threshold Chip • Low-threshold only for 20% transistors on critical path. • Leakage power = 600×0.2 + 90×0.8 = 120 + 72 = 192 mW ELEC5270-001/6270-001 Lecture 5

  9. Dual-Threshold CMOS Circuit ELEC5270-001/6270-001 Lecture 5

  10. Dual-Threshold Design • To maintain performance, all gates on the critical path are assigned low Vth . • Most of the other gates are assigned high Vth . But, • Some gates on non-critical paths may also be assigned low Vth to prevent those paths from becoming critical. ELEC5270-001/6270-001 Lecture 5

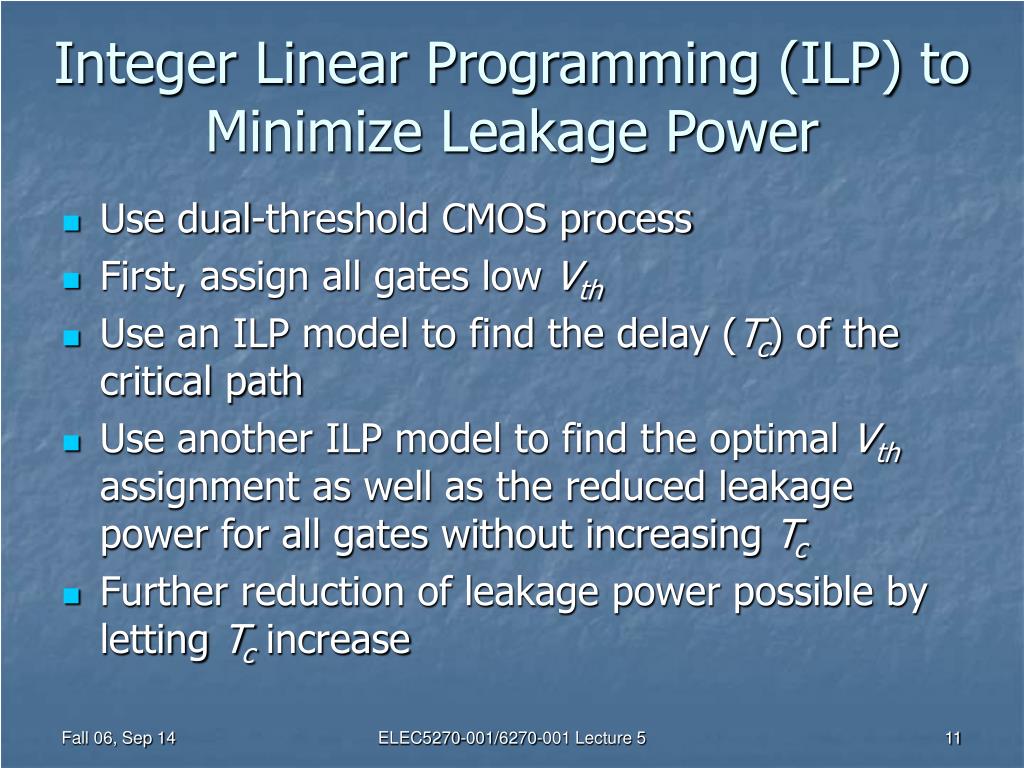

  11. Integer Linear Programming (ILP) to Minimize Leakage Power • Use dual-threshold CMOS process • First, assign all gates low Vth • Use an ILP model to find the delay (Tc) of the critical path • Use another ILP model to find the optimal Vth assignment as well as the reduced leakage power for all gates without increasing Tc • Further reduction of leakage power possible by letting Tc increase ELEC5270-001/6270-001 Lecture 5

  12. ILP -Variables For each gate i define two variables. • Ti :the longest time at which the output of gate i can produce an event after the occurrence of an input event at a primary input of the circuit. • Xi :a variable specifyinglow or high Vth for gate i ; Xiis an integer [0, 1], 1  gate i is assigned low Vth , 0  gate i is assigned high Vth . ELEC5270-001/6270-001 Lecture 5

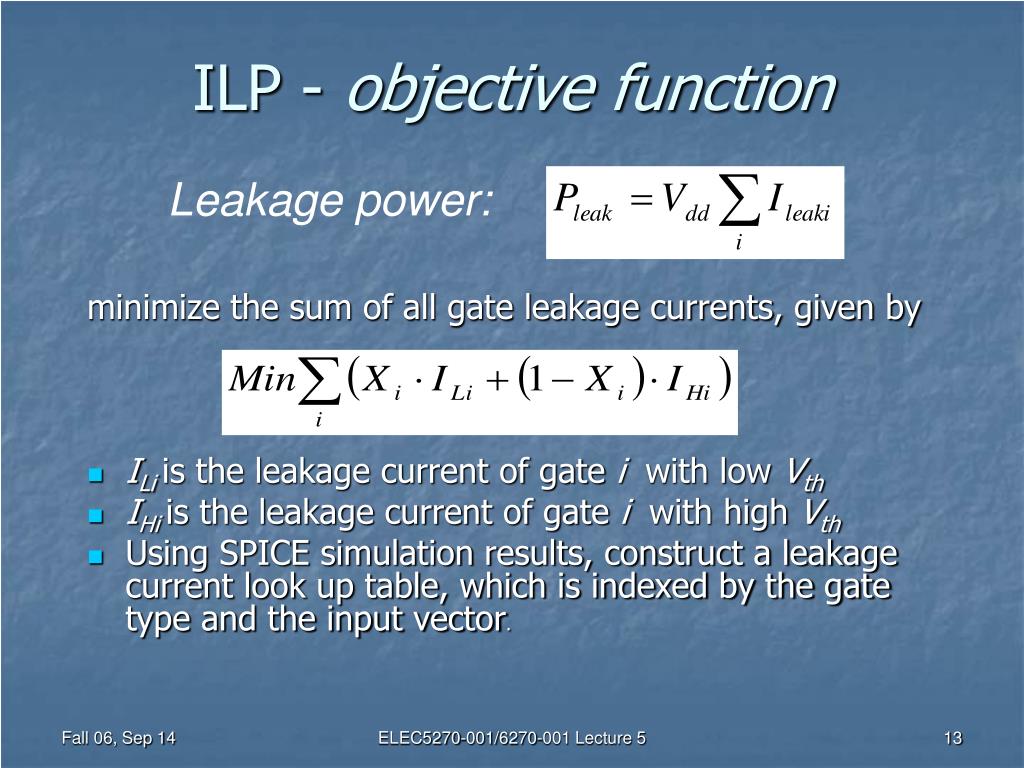

  13. ILP - objective function Leakage power: minimize the sum of all gate leakage currents, given by • ILi is the leakage current of gate i with low Vth • IHiis the leakage current of gate i with high Vth • Using SPICE simulation results, construct a leakage current look up table, which is indexed by the gate type and the input vector. ELEC5270-001/6270-001 Lecture 5

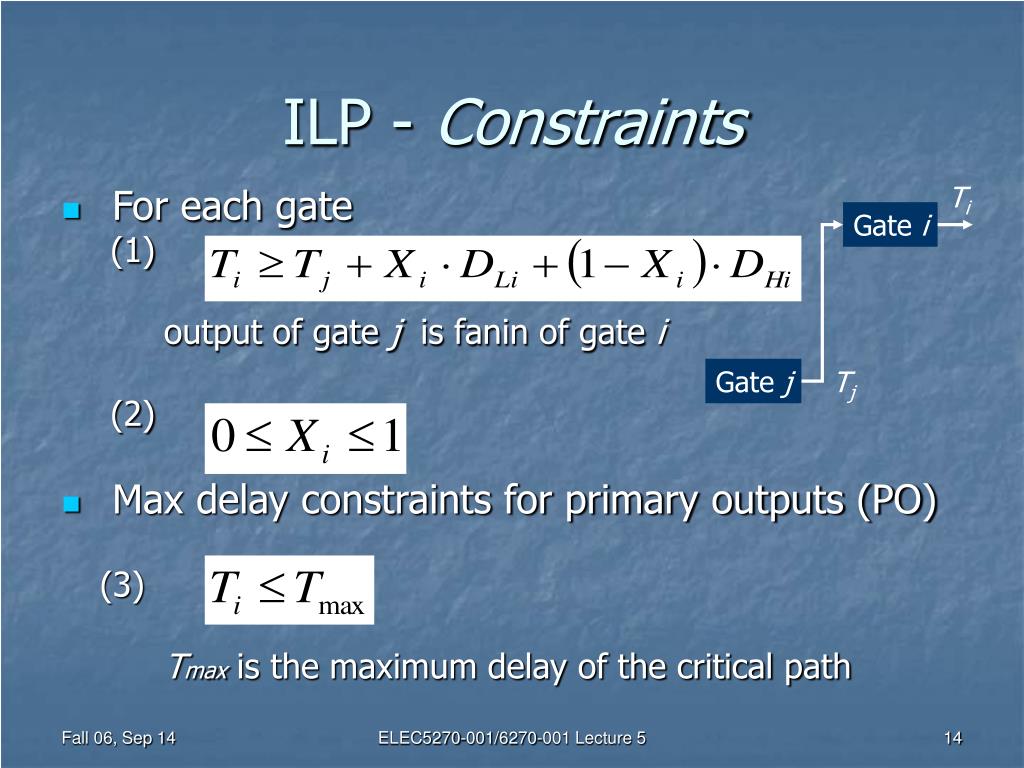

  14. ILP - Constraints Ti Gate i • For each gate (1) output of gate j is fanin of gate i (2) • Max delay constraints for primary outputs (PO) (3) Tmax is the maximum delay of the critical path Gate j Tj ELEC5270-001/6270-001 Lecture 5

  15. ILP Constraint Example • Assume all primary input (PI) signals on the left arrive at the same time. • For gate 2, constraints are ELEC5270-001/6270-001 Lecture 5

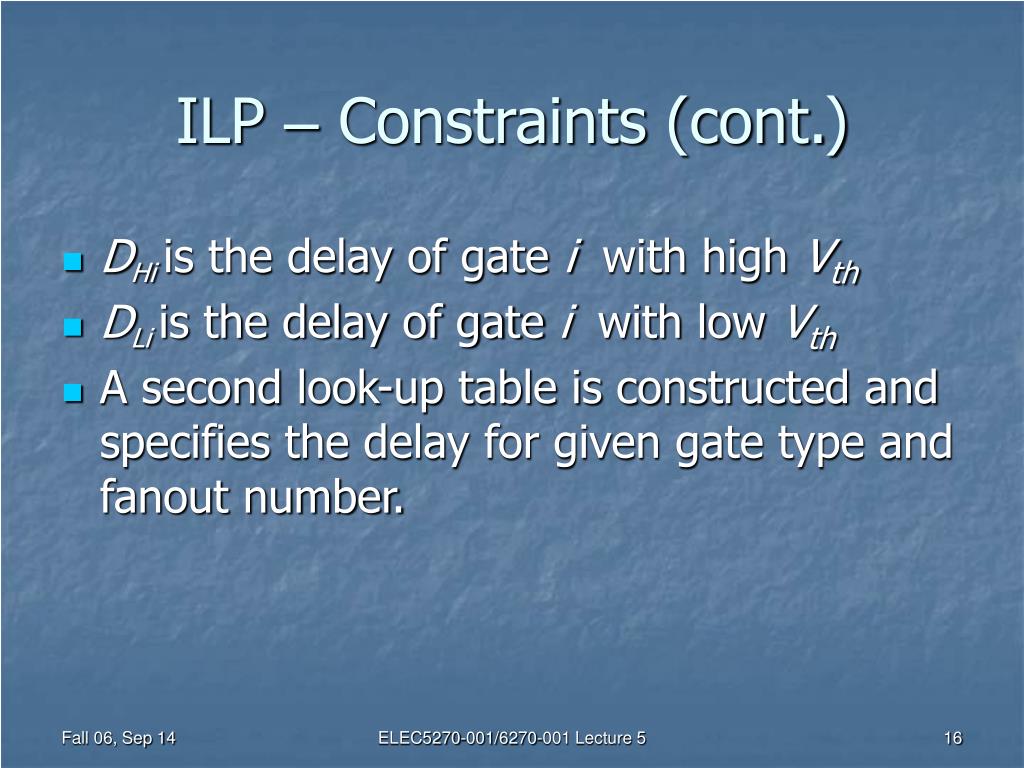

  16. ILP – Constraints (cont.) • DHi is the delay of gate i with high Vth • DLi is the delay of gate i with low Vth • A second look-up table is constructed and specifies the delay for given gate type and fanout number. ELEC5270-001/6270-001 Lecture 5

  17. ILP – Finding Critical Delay • Tmaxcan be specified or be the delay of longest path (Tc). • To find Tc , we change constraints (2) to an equation, assigning all gates low Vth • Maximum Ti in the ILP solution is Tc. • If we replace Tmaxwith Tc , the objective function minimizes leakage power without sacrificing performance. ELEC5270-001/6270-001 Lecture 5

  18. If we gradually increase Tmaxfrom Tc , leakage power is further reduced, because more gates can be assigned high Vth . But, the reduction trends to become slower. When Tmax = (130%) Tc, the reduction about levels off because almost all gates are assigned high Vth . Maximum leakage reduction can be 98%. Power-Delay Tradeoff ELEC5270-001/6270-001 Lecture 5

  19. Power-Delay Tradeoff ELEC5270-001/6270-001 Lecture 5

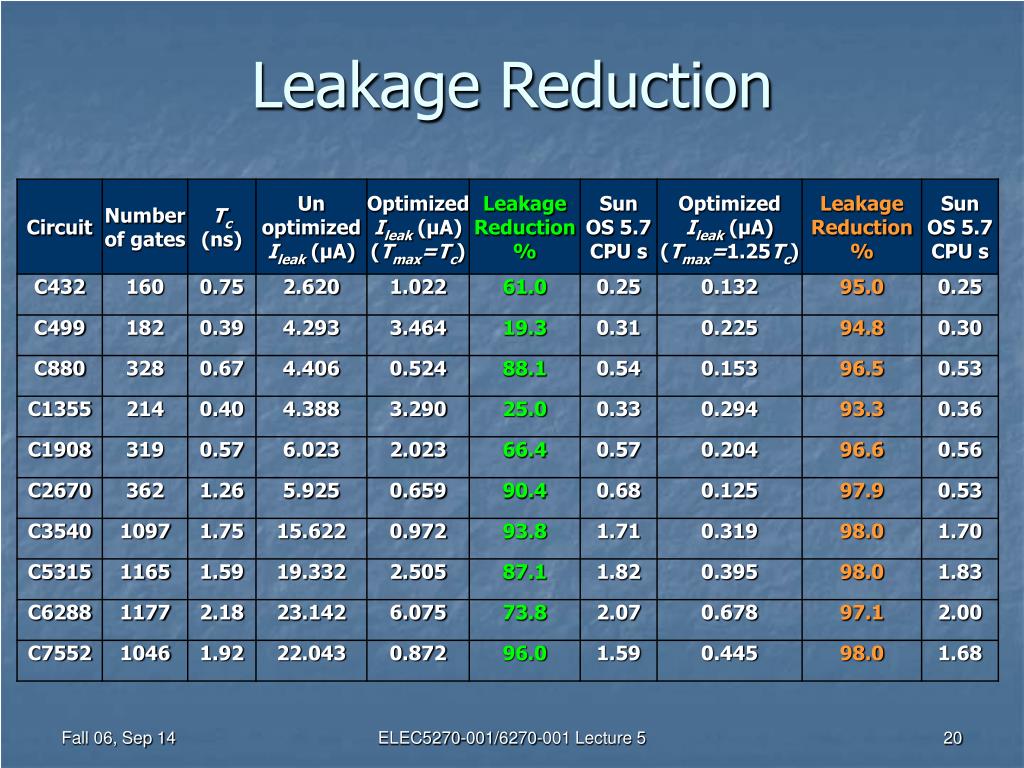

  20. Leakage Reduction ELEC5270-001/6270-001 Lecture 5

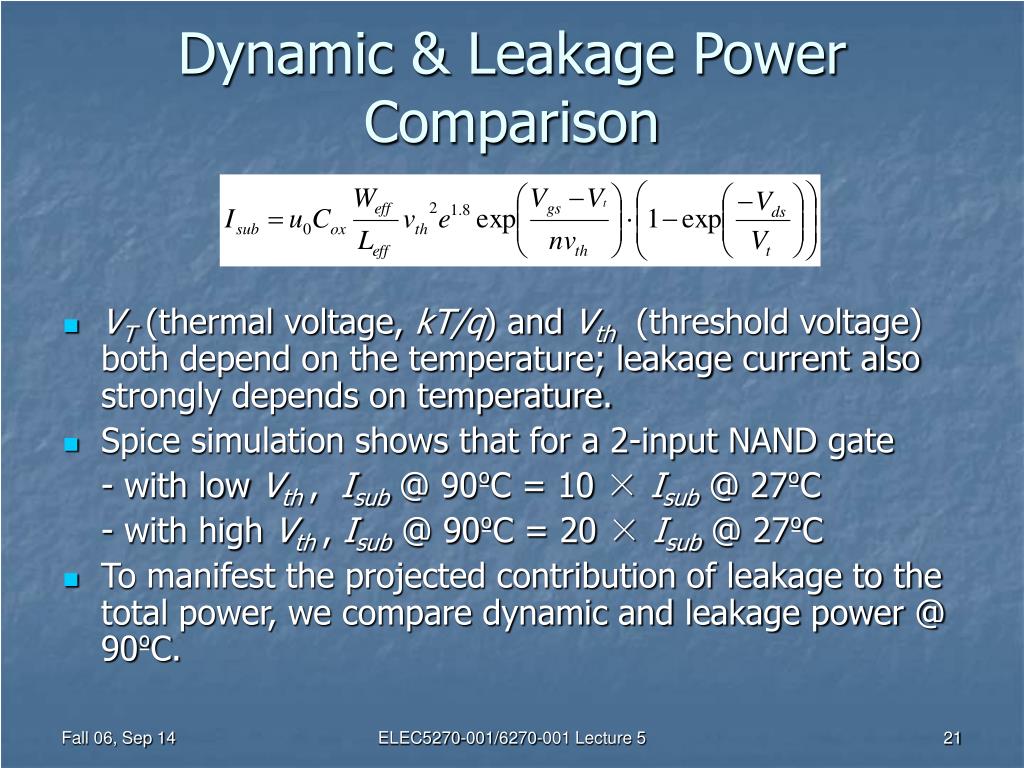

  21. Dynamic & Leakage Power Comparison • VT (thermal voltage, kT/q) and Vth (threshold voltage) both depend on the temperature; leakage current also strongly depends on temperature. • Spice simulation shows that for a 2-input NAND gate - with low Vth , Isub @ 90ºC = 10 × Isub @ 27ºC - with high Vth , Isub @ 90ºC = 20 × Isub @ 27ºC • To manifest the projected contribution of leakage to the total power, we compare dynamic and leakage power @ 90ºC. ELEC5270-001/6270-001 Lecture 5

  22. Dynamic & Leakage Power Comparison (cont.) • Without considering glitches, the dynamic power is estimated by an event driven simulator, and is given by • We apply 1000 random test vectors at PIs with a vector period of 120% Tc , and calculate the total number of weighted (by node capacitance) transitions in the circuit. ELEC5270-001/6270-001 Lecture 5

  23. Dynamic & Leakage Power @90oC ELEC5270-001/6270-001 Lecture 5

  24. Dynamic & Leakage Power @90oC Power in μW ELEC5270-001/6270-001 Lecture 5

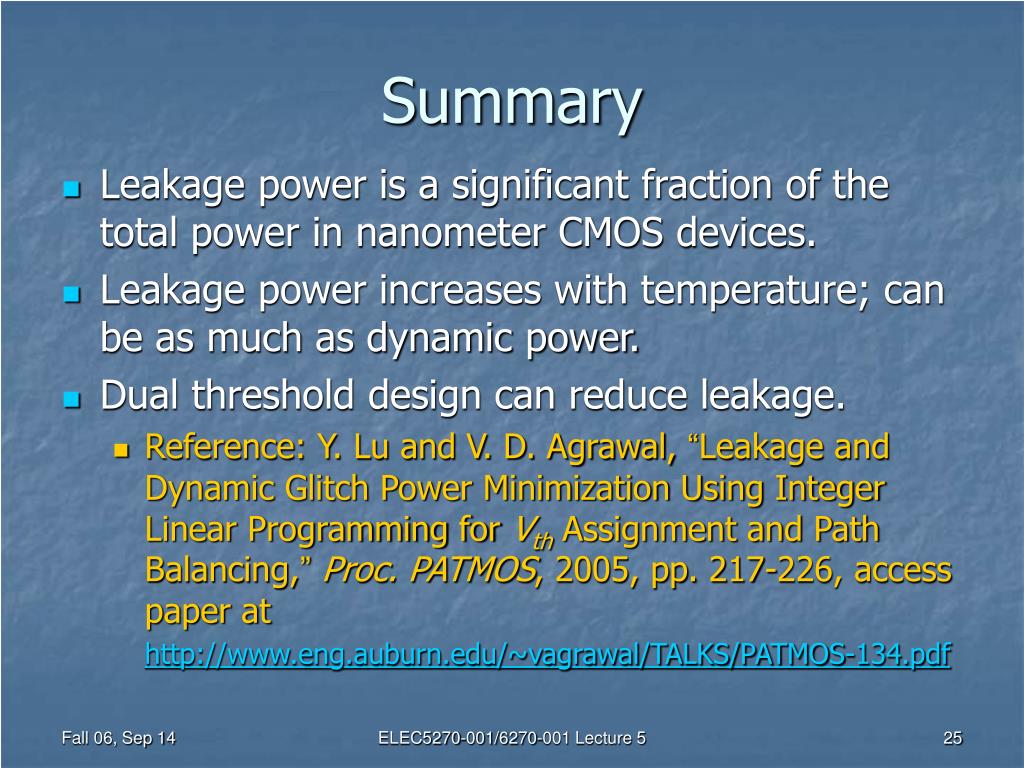

  25. Summary • Leakage power is a significant fraction of the total power in nanometer CMOS devices. • Leakage power increases with temperature; can be as much as dynamic power. • Dual threshold design can reduce leakage. • Reference: Y. Lu and V. D. Agrawal, “Leakage and Dynamic Glitch Power Minimization Using Integer Linear Programming for Vth Assignment and Path Balancing,”Proc. PATMOS, 2005, pp. 217-226, access paper athttp://www.eng.auburn.edu/~vagrawal/TALKS/PATMOS-134.pdf ELEC5270-001/6270-001 Lecture 5
