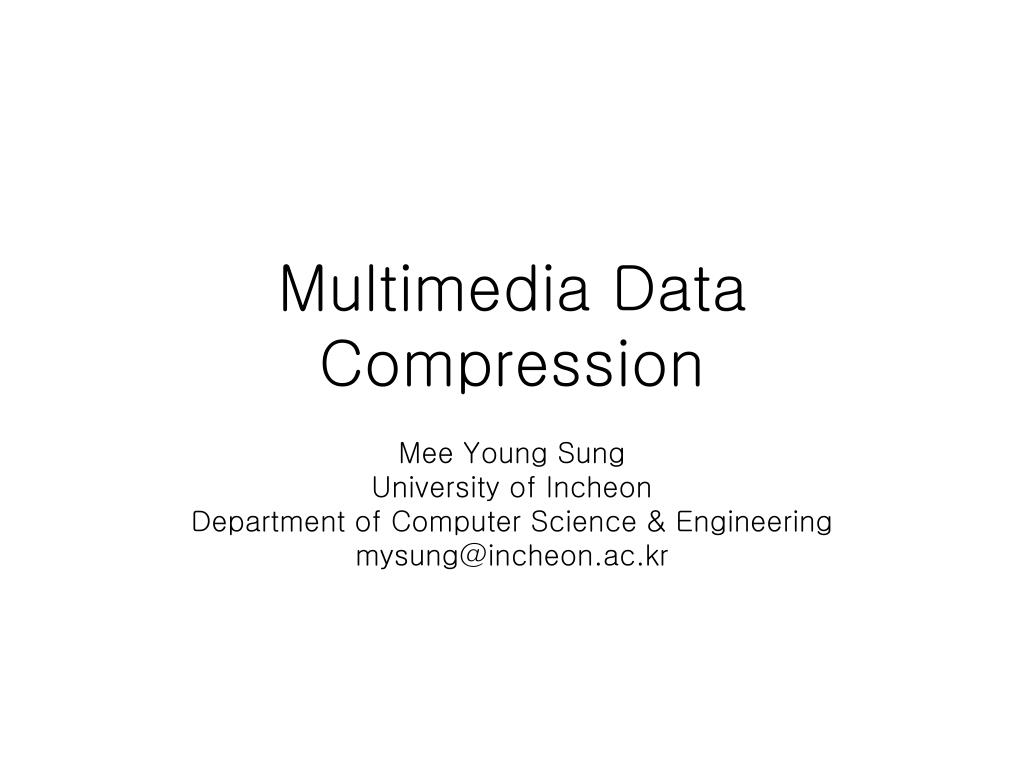

  1. Multimedia Data Compression Mee Young Sung University of Incheon Department of Computer Science & Engineering mysung@incheon.ac.kr

  2. Lossless Compression Algorithms • Introduction • Basics of Information Theory • Run-Length Coding • Variable-Length Coding(VLC) • Shannon-Fano Algorithm • Huffman Coding • Adaptive Huffman Coding • Dictionary-Based Coding • Arithmetic Coding • Lossless Image Compression • Differential Coding of Images • Differential Coding of Images • Lossless JPEG

  3. Lossy Compression Algorithms • Introduction • Distortion Measures • The Rate-Distortion Theory • Quantization • Uniform Scalar Qunantization • Nonuniform Saclar Qunantization • Vector Qunantization • Quantization • Discrete Cosine Transform(DCT) • Karhunen-Loève Transform* • Wavelet-Based Coding • Introduction • Continuous Wavelet Transform* • Discrete Wavelet Transform* • Wavelet Packets • Embedded Zerotree of Wavelet Coefficients • The Zerotree Data Structure • Successive Approximation Quantization • EZW Example • Set Partitioning in Hierarchical Trees (SPIHT)

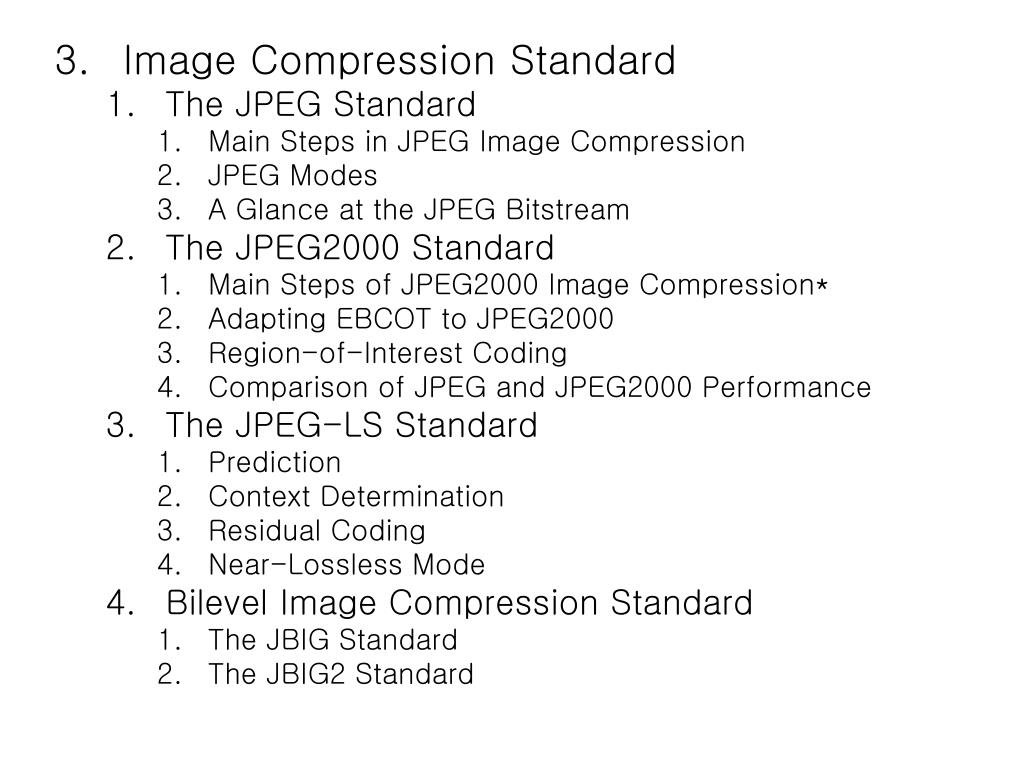

  4. Image Compression Standard • The JPEG Standard • Main Steps in JPEG Image Compression • JPEG Modes • A Glance at the JPEG Bitstream • The JPEG2000 Standard • Main Steps of JPEG2000 Image Compression* • Adapting EBCOT to JPEG2000 • Region-of-Interest Coding • Comparison of JPEG and JPEG2000 Performance • The JPEG-LS Standard • Prediction • Context Determination • Residual Coding • Near-Lossless Mode • Bilevel Image Compression Standard • The JBIG Standard • The JBIG2 Standard

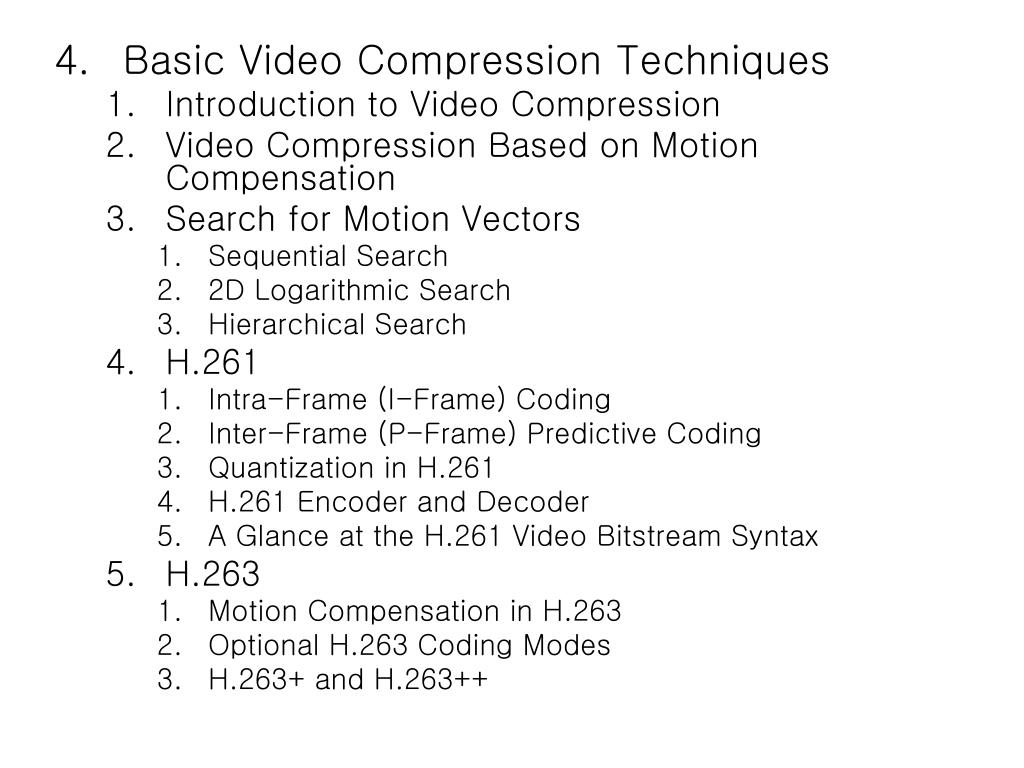

  5. Basic Video Compression Techniques • Introduction to Video Compression • Video Compression Based on Motion Compensation • Search for Motion Vectors • Sequential Search • 2D Logarithmic Search • Hierarchical Search • H.261 • Intra-Frame (I-Frame) Coding • Inter-Frame (P-Frame) Predictive Coding • Quantization in H.261 • H.261 Encoder and Decoder • A Glance at the H.261 Video Bitstream Syntax • H.263 • Motion Compensation in H.263 • Optional H.263 Coding Modes • H.263+ and H.263++

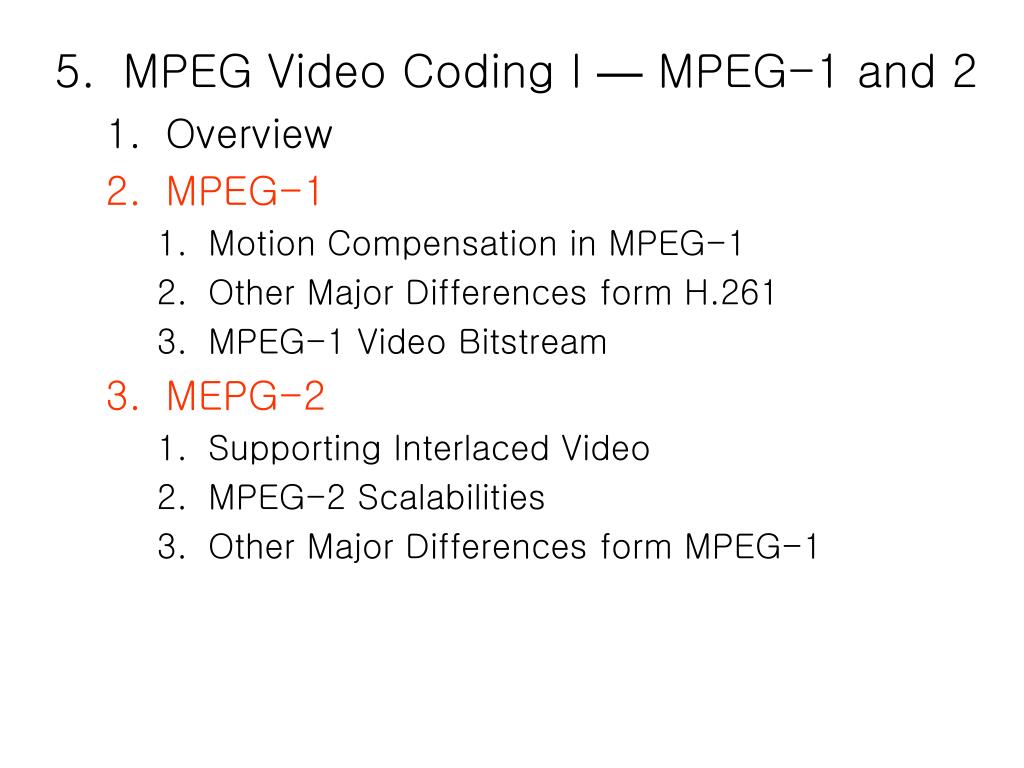

  6. MPEG Video Coding I — MPEG-1 and 2 • Overview • MPEG-1 • Motion Compensation in MPEG-1 • Other Major Differences form H.261 • MPEG-1 Video Bitstream • MEPG-2 • Supporting Interlaced Video • MPEG-2 Scalabilities • Other Major Differences form MPEG-1

  7. MPEG Video Coding II – MPEG-4, 7, and Beyond • Overview of MPEG-4 • Object-Based Visual Coding in MPEG-4 • VOP-Based Coding vs. Frame-Based Coding • Motion Compensation • Texture Coding • Shape Coding • Static Texture Coding • Sprite Coding • Global Motion Compensation • Synthetic Object Coding in MPEG-4 • 2D Mesh Object Coding • 3D Model-based Coding • MPEG-4 Object Types, Profiles and Levels • MPEG-4 Part10/H.264 • Core Features • Baseline Profile Features • Main Profile Features • Extended Profile Features • MPEG-7 • Descriptor (D) • Description Scheme (DS) • Description Definition Language (DDL) • MPEG-21

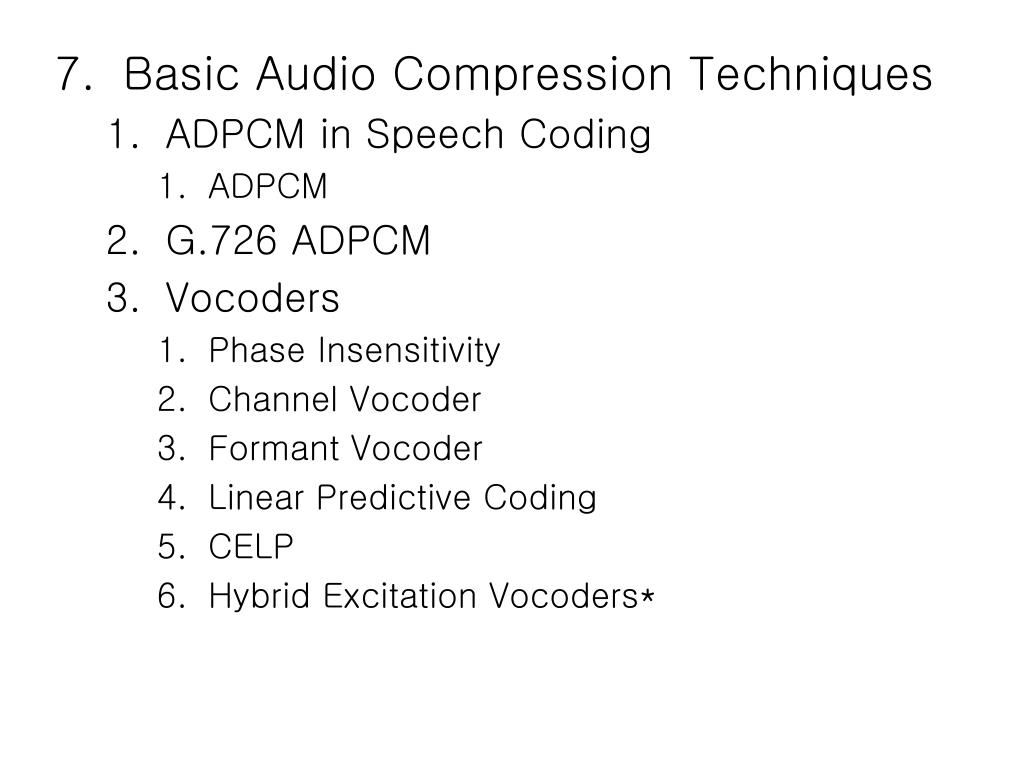

  8. Basic Audio Compression Techniques • ADPCM in Speech Coding • ADPCM • G.726 ADPCM • Vocoders • Phase Insensitivity • Channel Vocoder • Formant Vocoder • Linear Predictive Coding • CELP • Hybrid Excitation Vocoders*

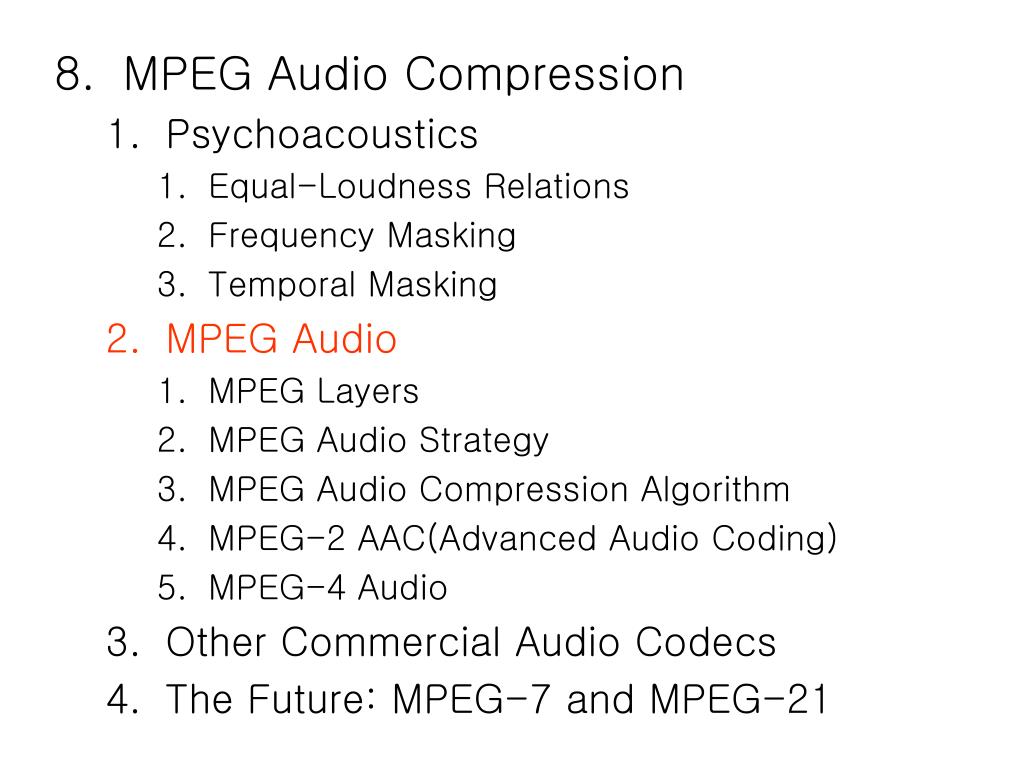

  9. MPEG Audio Compression • Psychoacoustics • Equal-Loudness Relations • Frequency Masking • Temporal Masking • MPEG Audio • MPEG Layers • MPEG Audio Strategy • MPEG Audio Compression Algorithm • MPEG-2 AAC(Advanced Audio Coding) • MPEG-4 Audio • Other Commercial Audio Codecs • The Future: MPEG-7 and MPEG-21

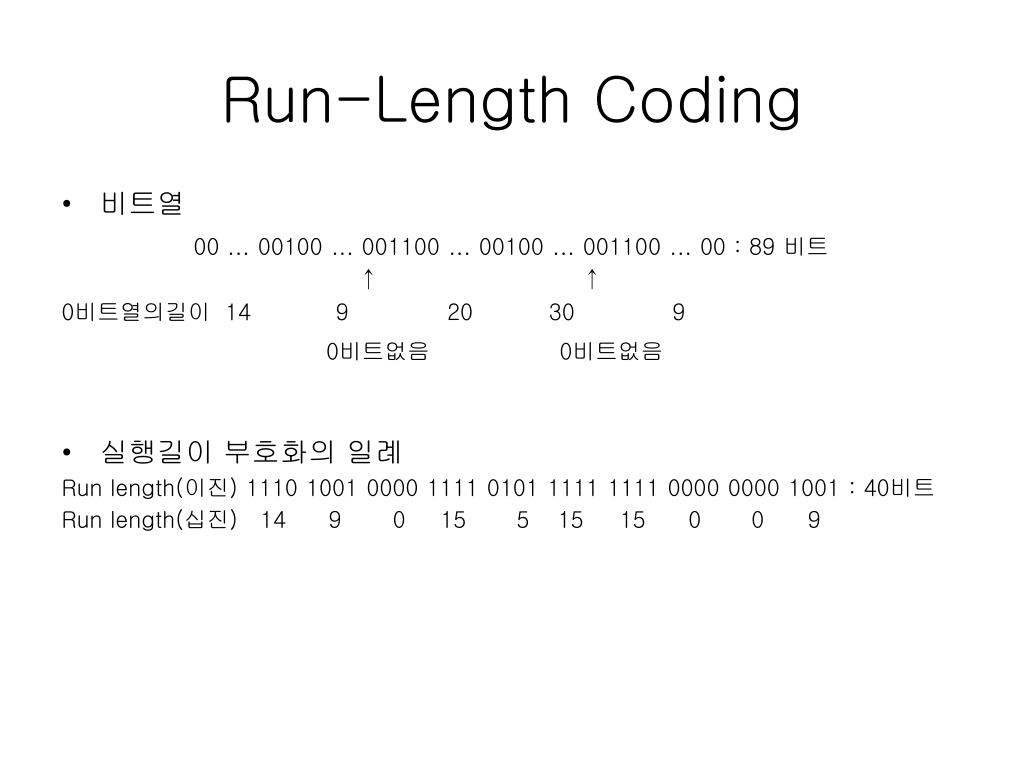

  10. Run-Length Coding • 비트열 00 ... 00100 ... 001100 ... 00100 ... 001100 ... 00 : 89 비트 ↑ ↑ 0비트열의길이14 9 20 30 9 0비트없음0비트없음 • 실행길이 부호화의 일례 Run length(이진) 1110 1001 0000 1111 0101 1111 1111 0000 0000 1001 : 40비트 Run length(십진) 14 9 0 15 5 15 150 0 9

  11. Huffman Coding • Encoding for Huffman Algorithm: • A bottom-up approach • 1. Initialization: Put all nodes in an OPEN list, keep it sorted at all times (e.g., ABCDE). • 2. Repeat until the OPEN list has only one node left: • (a) From OPEN pick two nodes having the lowest frequencies/probabilities, create a parent node of them. (b) Assign the sum of the children's frequencies/probabilities to the parent node and insert it into OPEN. (c) Assign code 0, 1 to the two branches of the tree, and delete the children from OPEN.

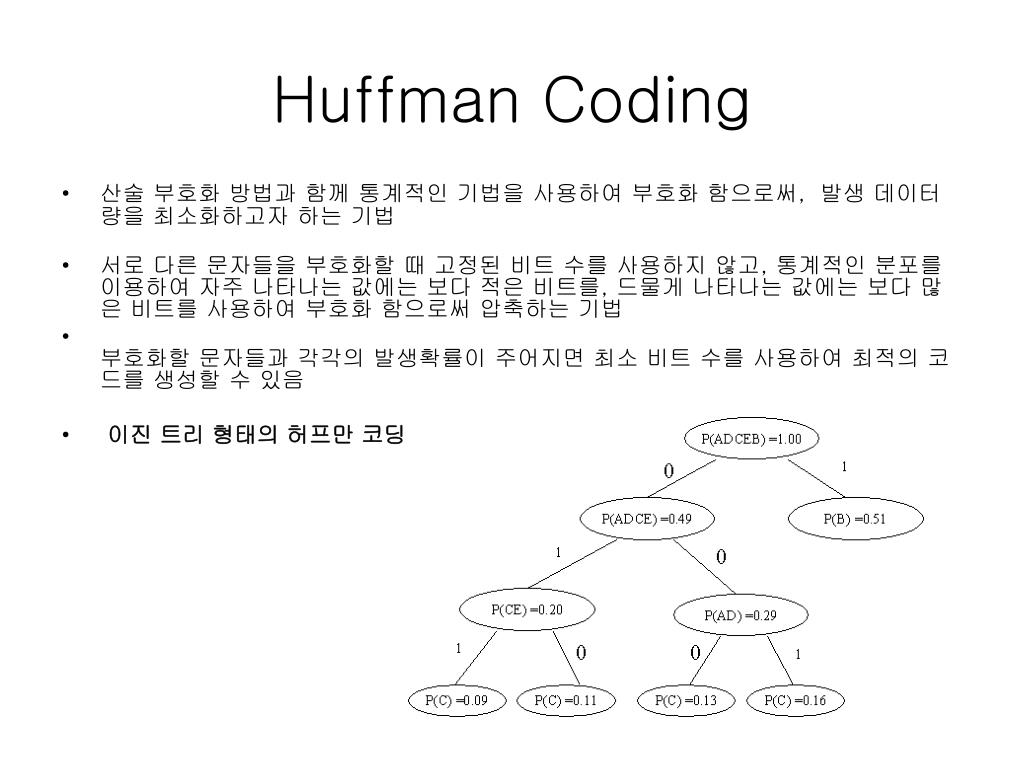

  12. Huffman Coding • 산술 부호화 방법과 함께 통계적인 기법을 사용하여 부호화 함으로써,발생 데이터 량을 최소화하고자 하는 기법 • 서로 다른 문자들을 부호화할 때 고정된 비트 수를 사용하지 않고, 통계적인 분포를 이용하여 자주 나타나는 값에는 보다 적은 비트를, 드물게 나타나는 값에는 보다 많은 비트를 사용하여 부호화 함으로써 압축하는 기법 • 부호화할 문자들과 각각의 발생확률이 주어지면 최소 비트 수를 사용하여 최적의 코드를 생성할 수 있음 • 이진 트리 형태의 허프만 코딩

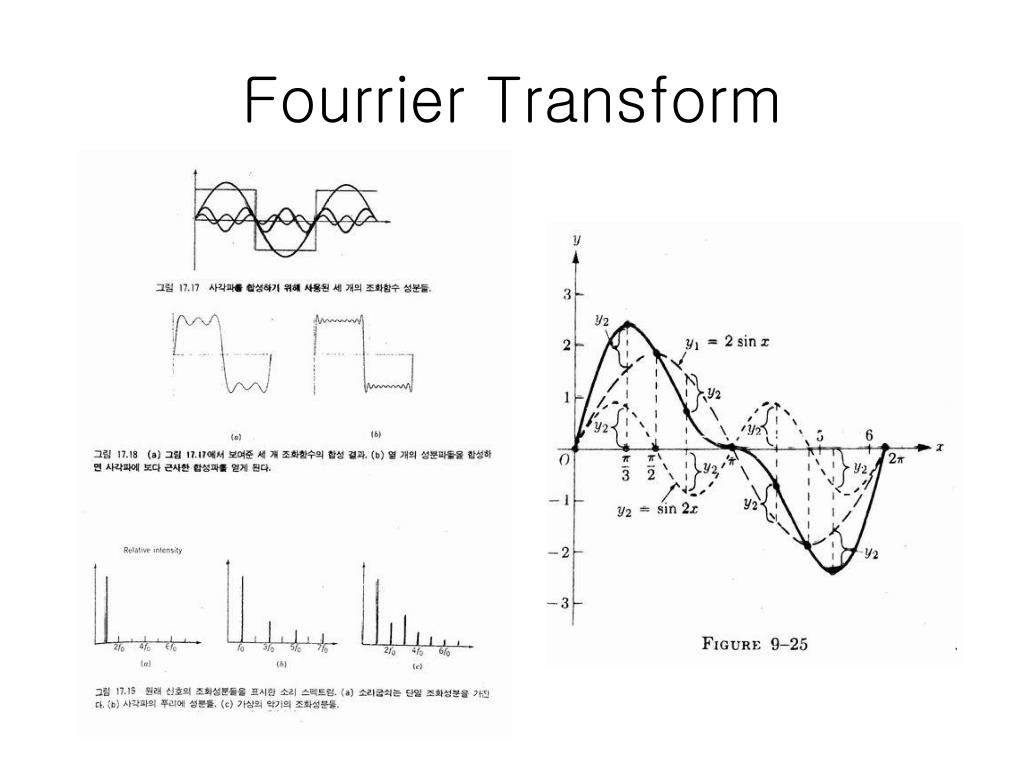

  13. Fourrier Transform

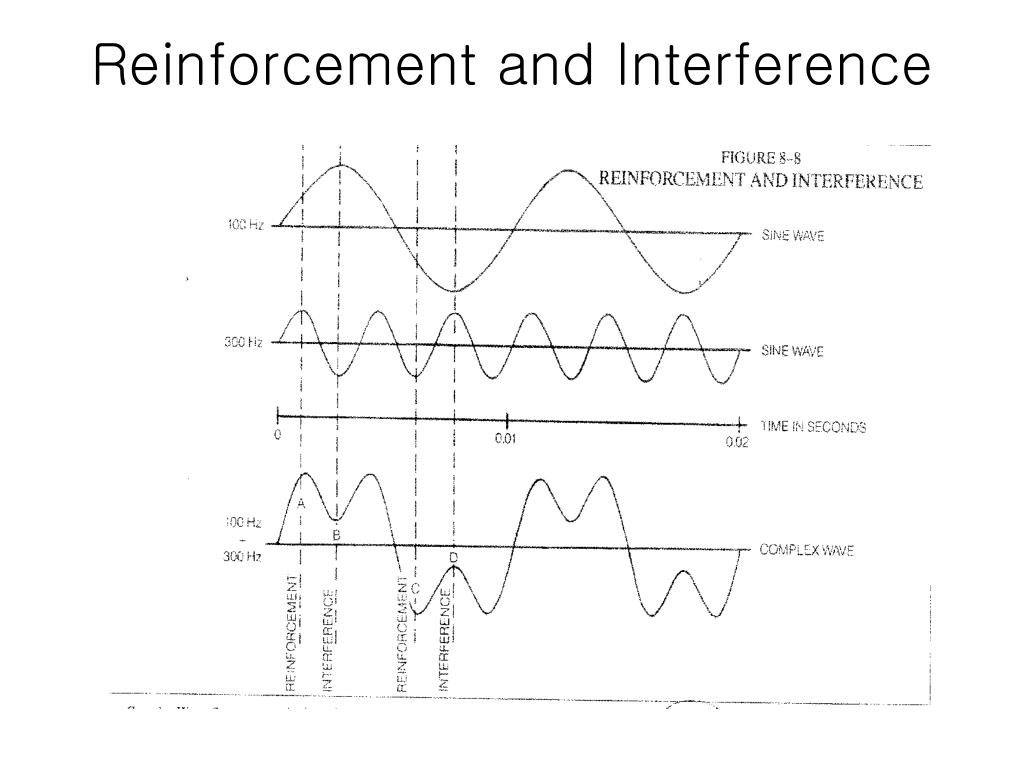

  14. Reinforcement and Interference

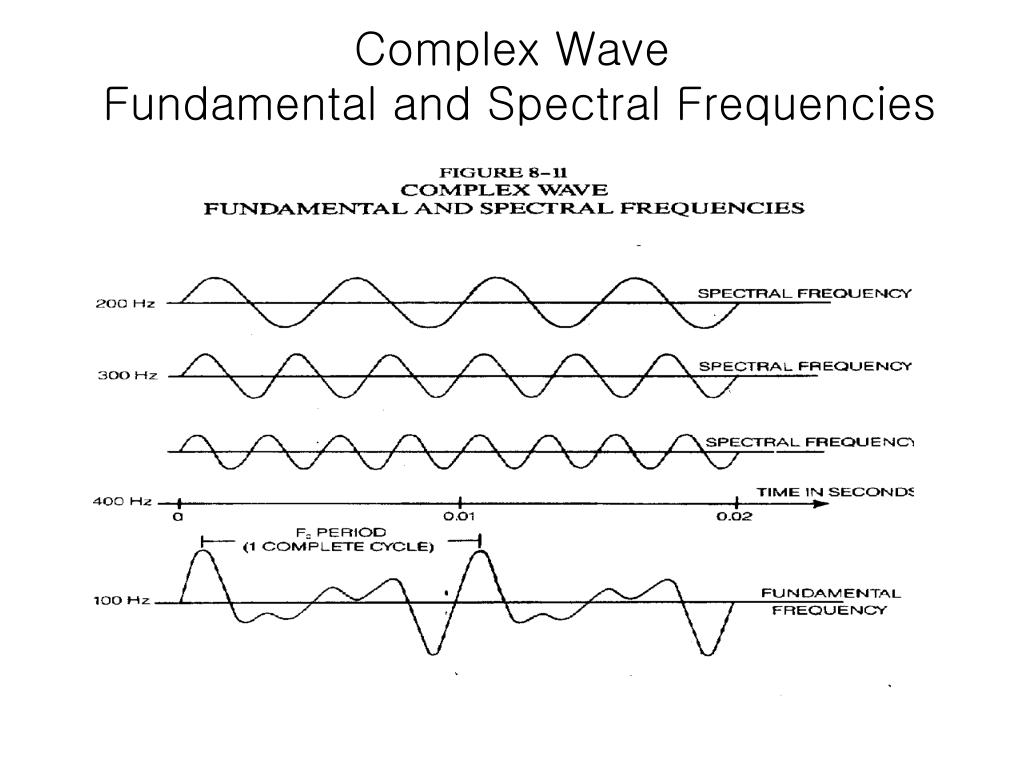

  15. Complex Wave Fundamental and Spectral Frequencies

  16. Line Spectrum

  17. Fundamental Frequency in a Line Spectrum

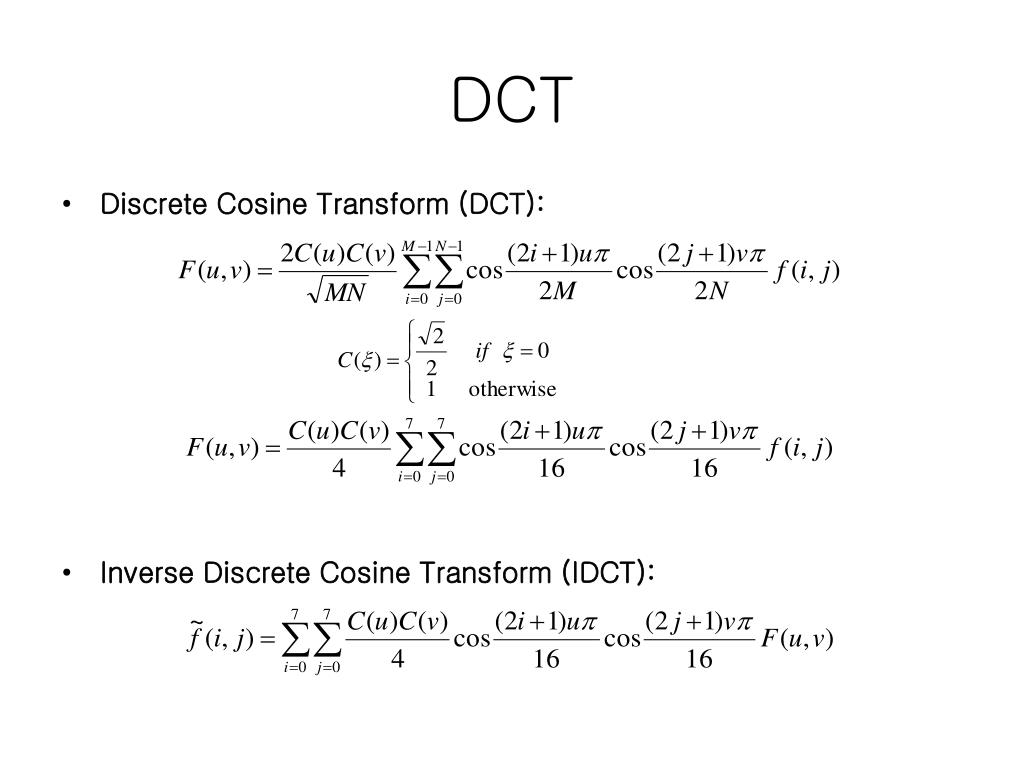

  18. DCT • Discrete Cosine Transform (DCT): • Inverse Discrete Cosine Transform (IDCT):

  19. Example 1 1D DCT: 1D IDCT:

  20. Example 2

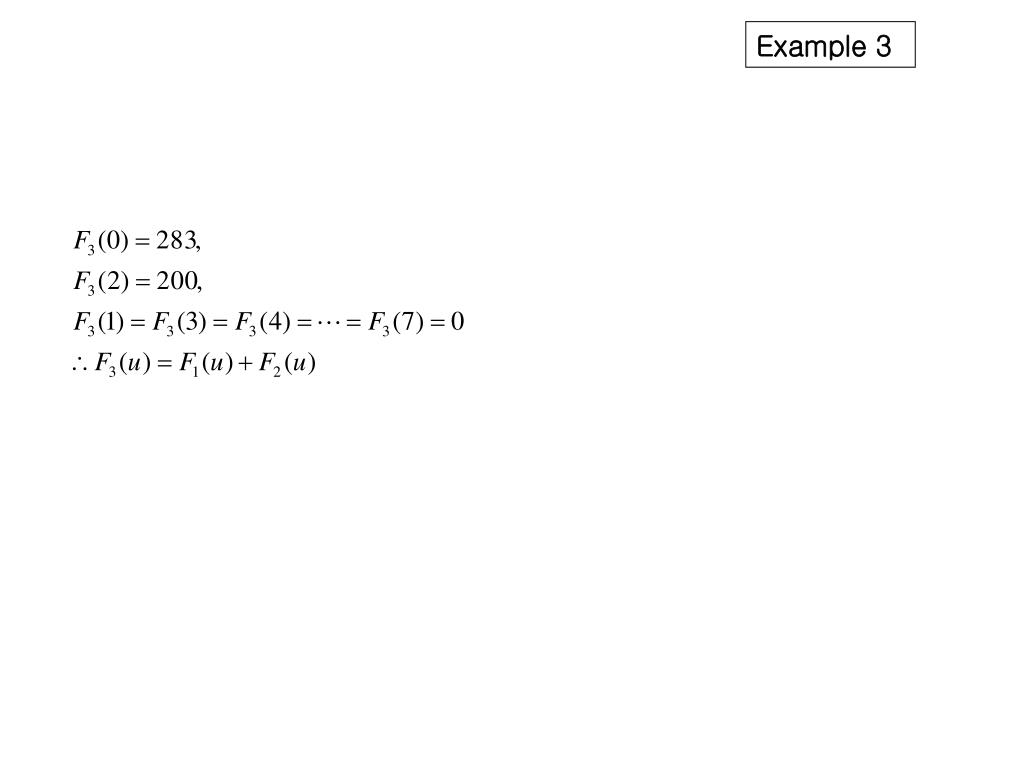

  21. Example 3

  22. Example 4

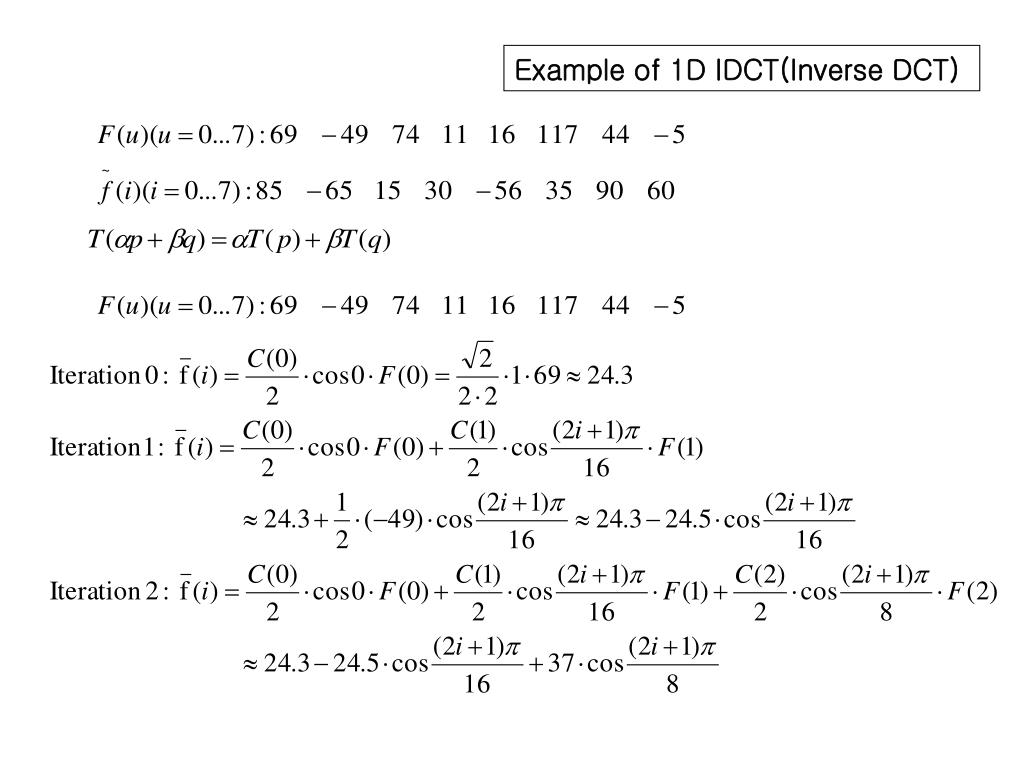

  23. Example of 1D IDCT(Inverse DCT)

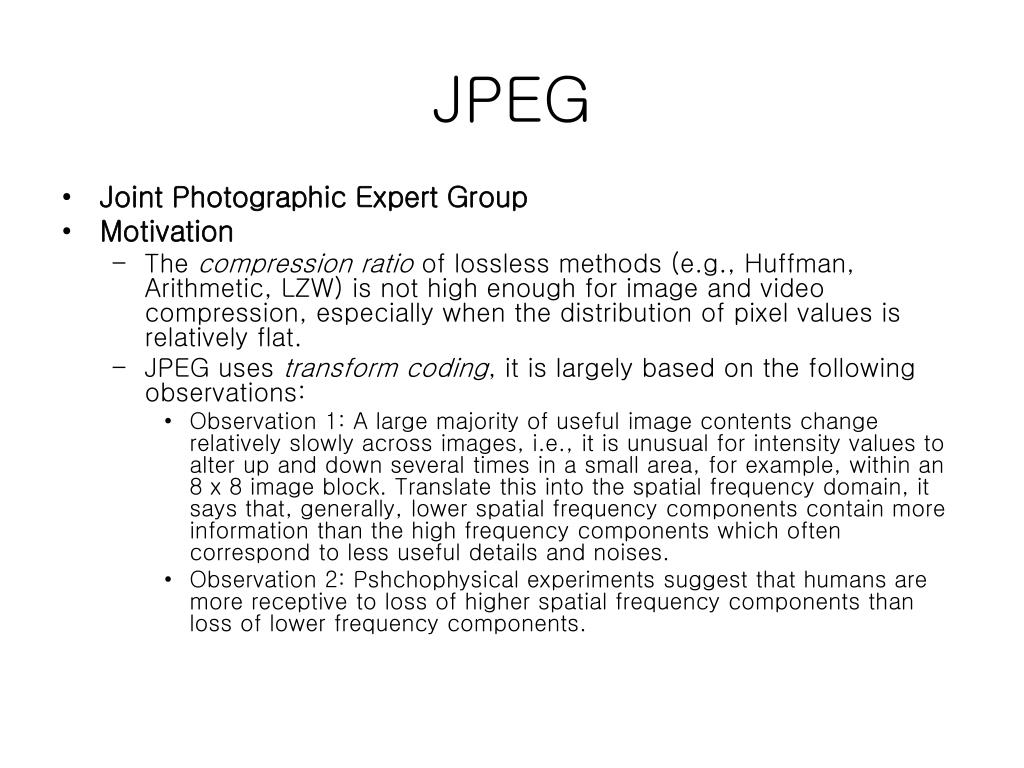

  24. JPEG • Joint Photographic Expert Group • Motivation • The compression ratio of lossless methods (e.g., Huffman, Arithmetic, LZW) is not high enough for image and video compression, especially when the distribution of pixel values is relatively flat. • JPEG uses transform coding, it is largely based on the following observations: • Observation 1: A large majority of useful image contents change relatively slowly across images, i.e., it is unusual for intensity values to alter up and down several times in a small area, for example, within an 8 x 8 image block. Translate this into the spatial frequency domain, it says that, generally, lower spatial frequency components contain more information than the high frequency components which often correspond to less useful details and noises. • Observation 2: Pshchophysical experiments suggest that humans are more receptive to loss of higher spatial frequency components than loss of lower frequency components.

  25. JPEG (DCT) • Discrete Cosine Transform (DCT): • Inverse Discrete Cosine Transform (IDCT):

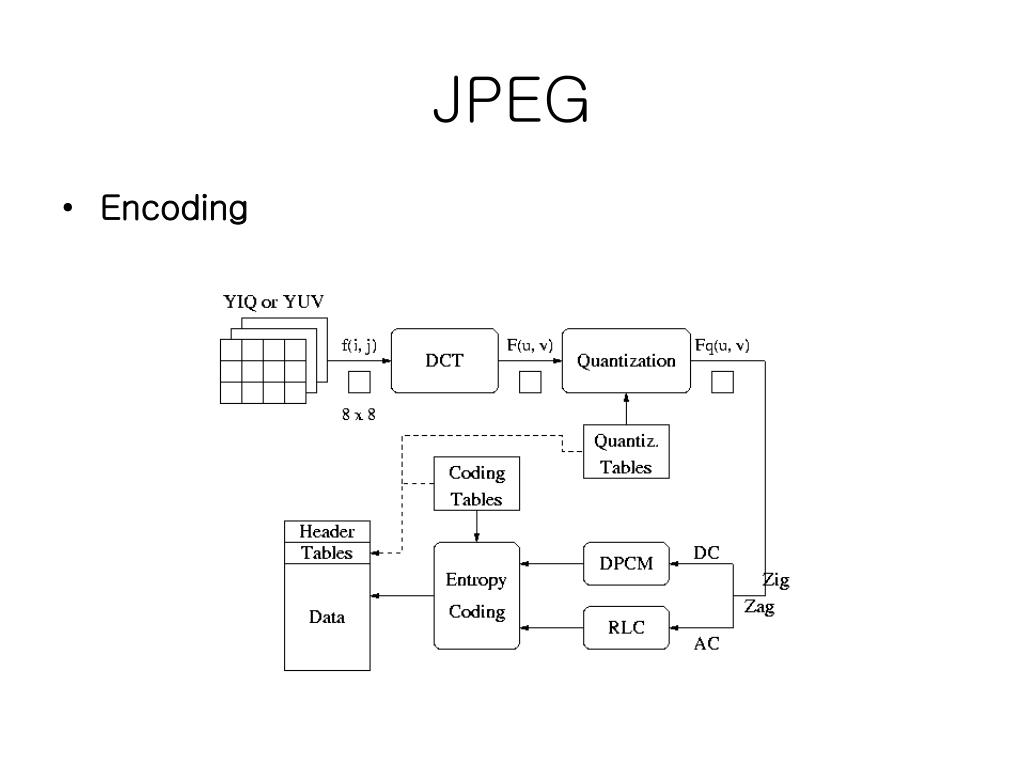

  26. JPEG • Encoding

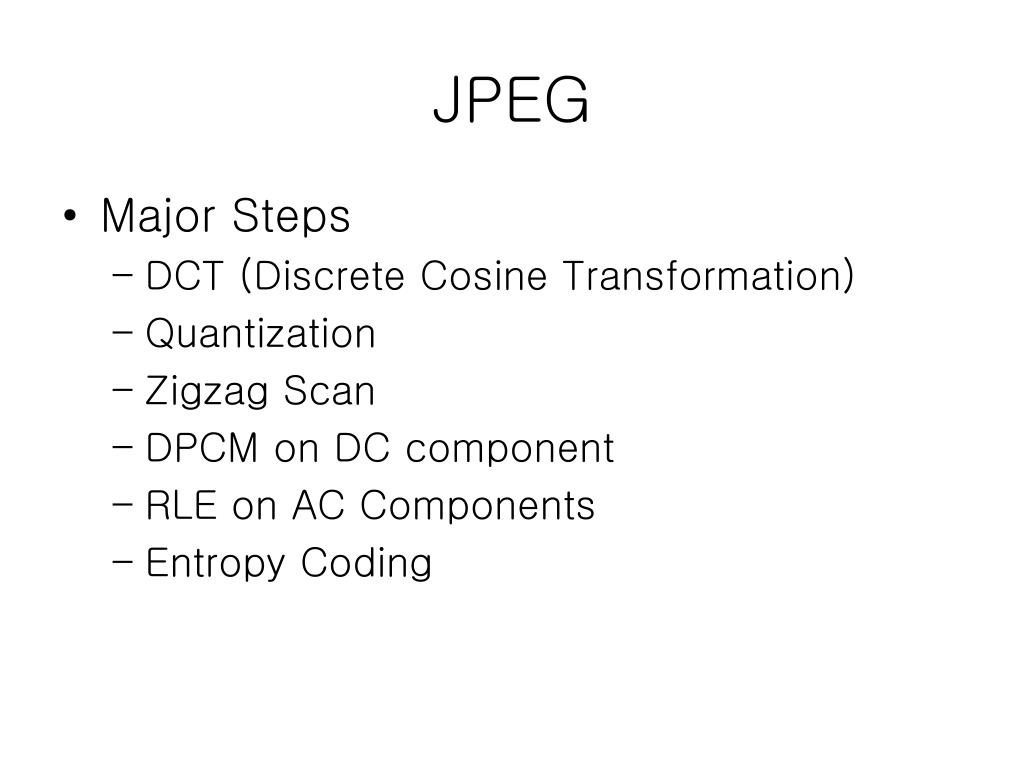

  27. JPEG • Major Steps • DCT (Discrete Cosine Transformation) • Quantization • Zigzag Scan • DPCM on DC component • RLE on AC Components • Entropy Coding

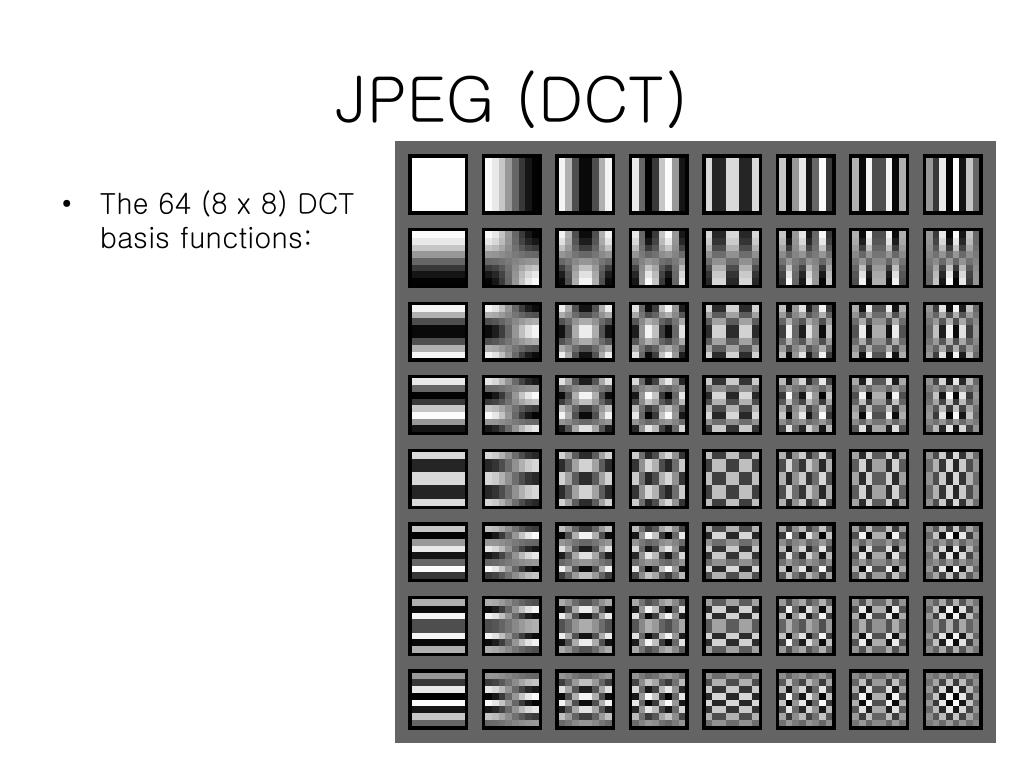

  28. JPEG (DCT) • The 64 (8 x 8) DCT basis functions:

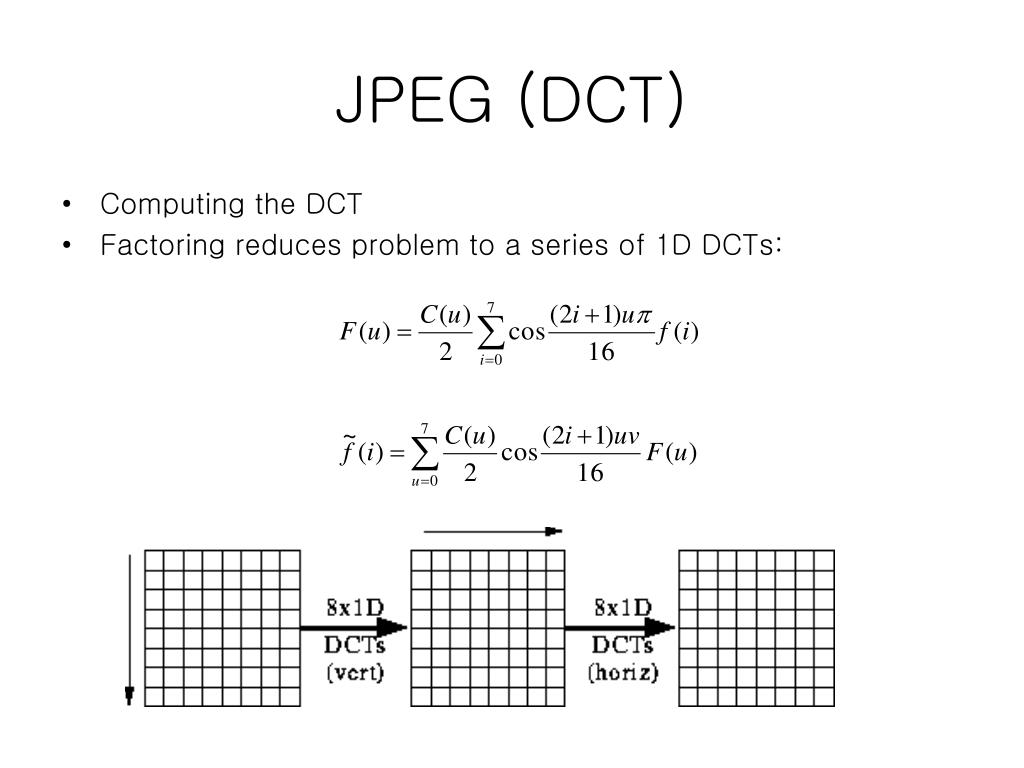

  29. JPEG (DCT) • Computing the DCT • Factoring reduces problem to a series of 1D DCTs:

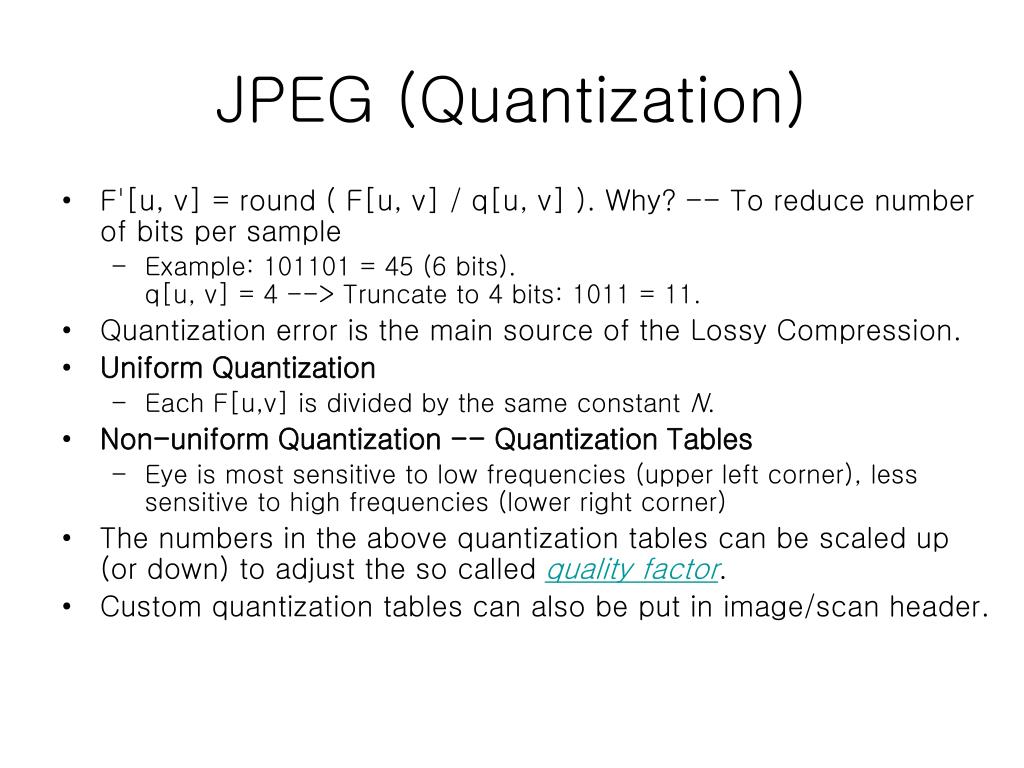

  30. JPEG (Quantization) • F'[u, v] = round ( F[u, v] / q[u, v] ). Why? -- To reduce number of bits per sample • Example: 101101 = 45 (6 bits). q[u, v] = 4 --> Truncate to 4 bits: 1011 = 11. • Quantization error is the main source of the Lossy Compression. • Uniform Quantization • Each F[u,v] is divided by the same constant N. • Non-uniform Quantization -- Quantization Tables • Eye is most sensitive to low frequencies (upper left corner), less sensitive to high frequencies (lower right corner) • The numbers in the above quantization tables can be scaled up (or down) to adjust the so called quality factor. • Custom quantization tables can also be put in image/scan header.

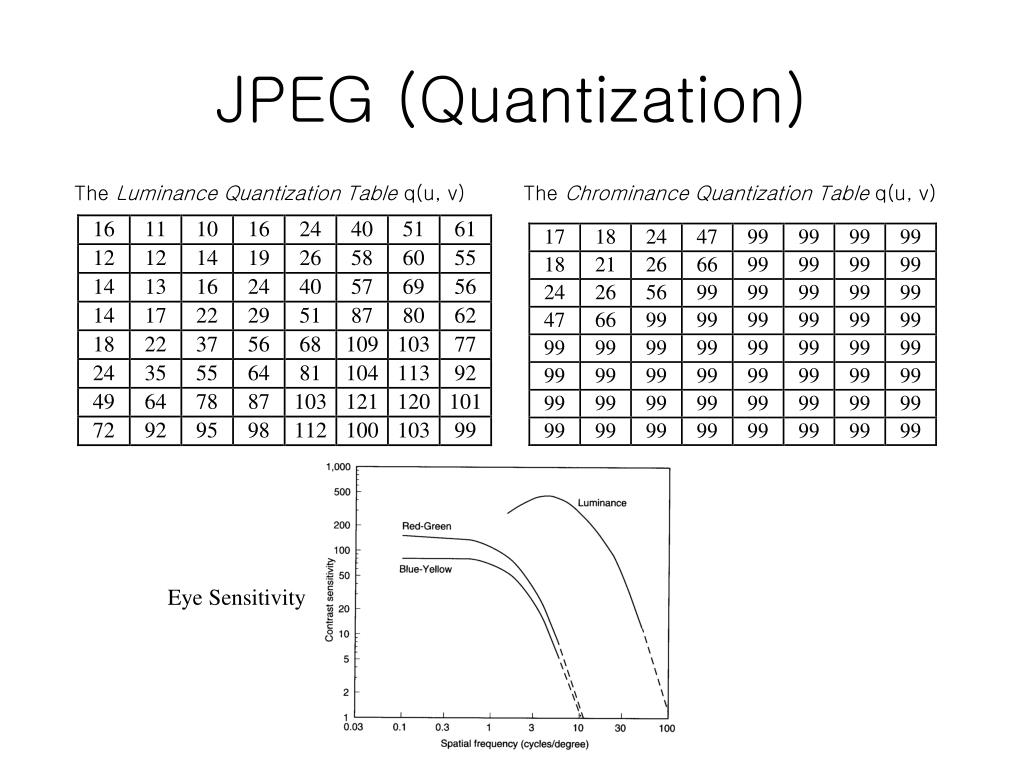

  31. JPEG (Quantization) The Luminance Quantization Table q(u, v) The Chrominance Quantization Table q(u, v) Eye Sensitivity

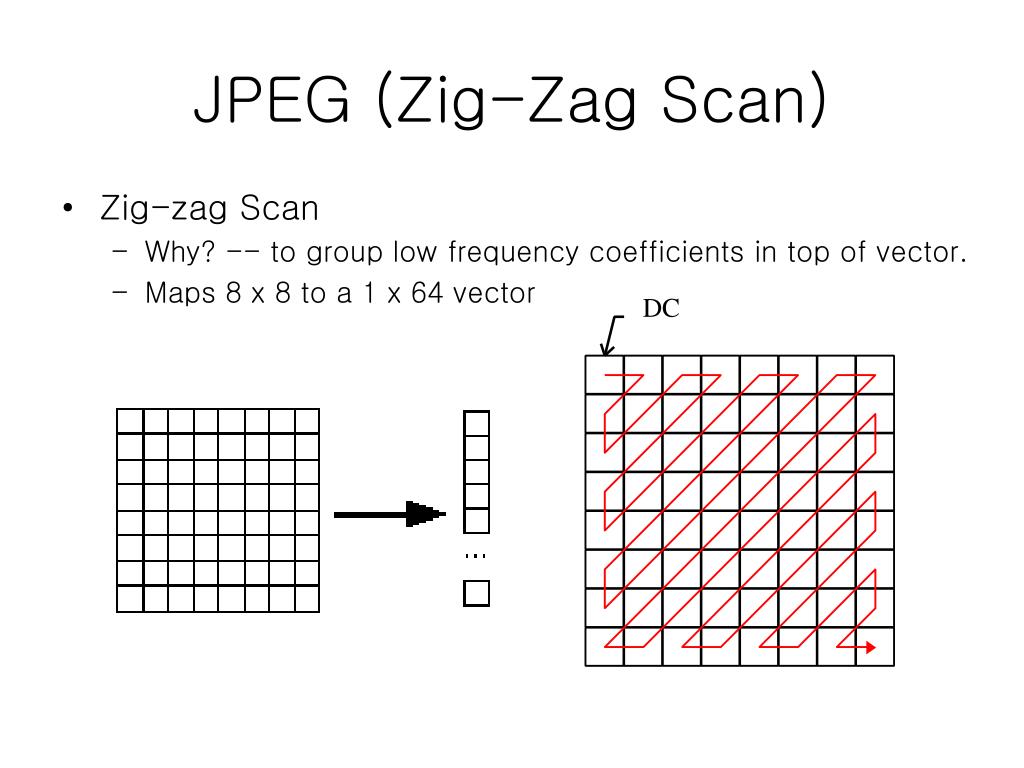

  32. JPEG (Zig-Zag Scan) • Zig-zag Scan • Why? -- to group low frequency coefficients in top of vector. • Maps 8 x 8 to a 1 x 64 vector

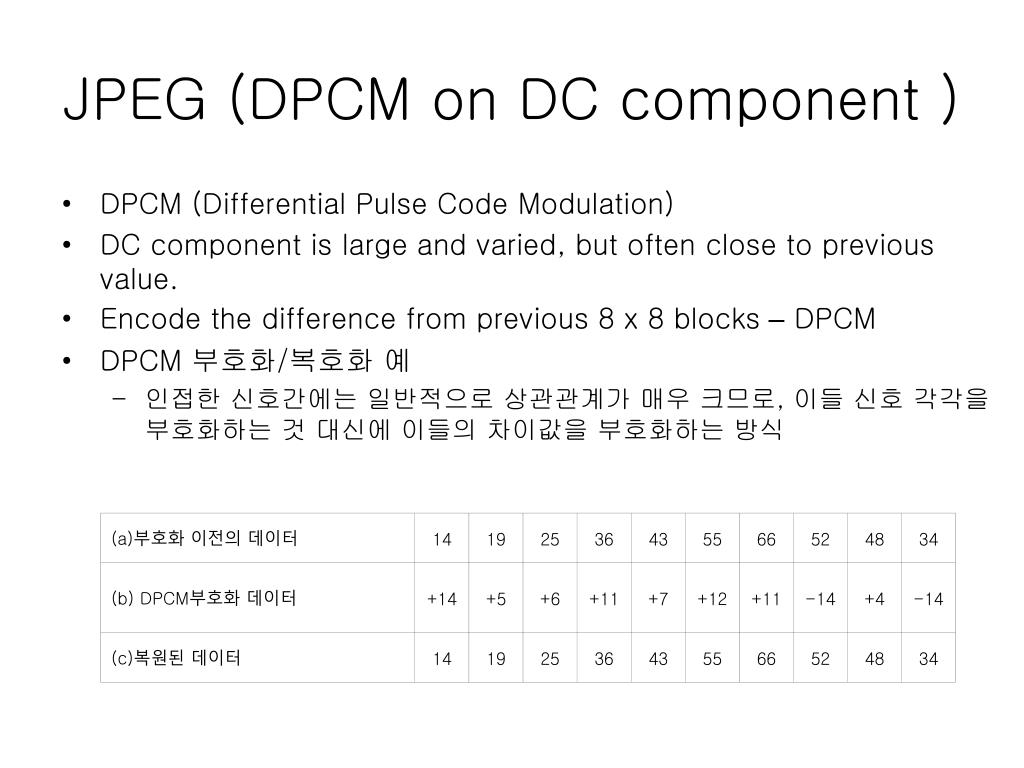

  33. JPEG (DPCM on DC component ) • DPCM (Differential Pulse Code Modulation) • DC component is large and varied, but often close to previous value. • Encode the difference from previous 8 x 8 blocks – DPCM • DPCM 부호화/복호화 예 • 인접한 신호간에는 일반적으로 상관관계가 매우 크므로, 이들 신호 각각을 부호화하는 것 대신에 이들의 차이값을 부호화하는 방식

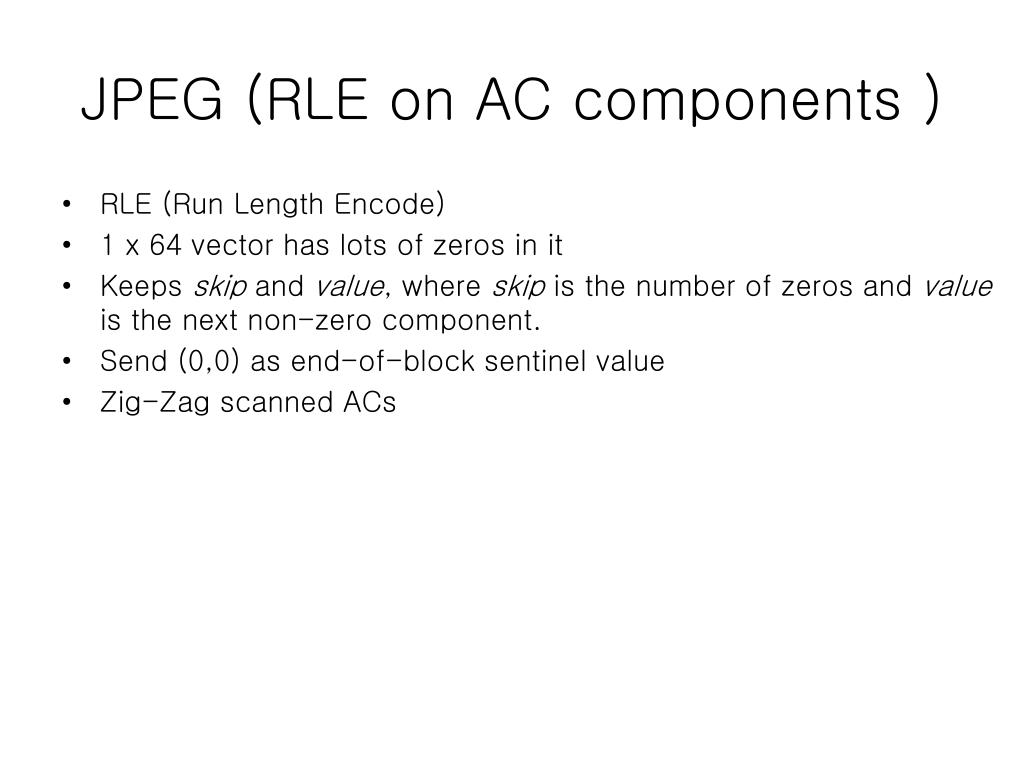

  34. JPEG (RLE on AC components ) • RLE (Run Length Encode) • 1 x 64 vector has lots of zeros in it • Keeps skip and value, where skip is the number of zeros and value is the next non-zero component. • Send (0,0) as end-of-block sentinel value • Zig-Zag scanned ACs

  35. DC (n-1) DC (n) JPEG (Entropy Coding ) • Categorize DC values into SIZE (number of bits needed to represent) and actual bits. • Example: if DC value is 4, 3 bits are needed. • Send off SIZE as Huffman symbol, followed by actual 3 bits. • For AC components two symbols are used: Symbol_1: (skip, SIZE), Symbol_2: actual bits. Symbol_1 (skip, SIZE) is encoded using the Huffman coding, Symbol_2 is not encoded. • Huffman Tables can be custom (sent in header) or default. Size Amplitude 0 0 1 -1,1 2 -3,-2,2,3 3 -7,-6,-5,-4,4,5,6,7

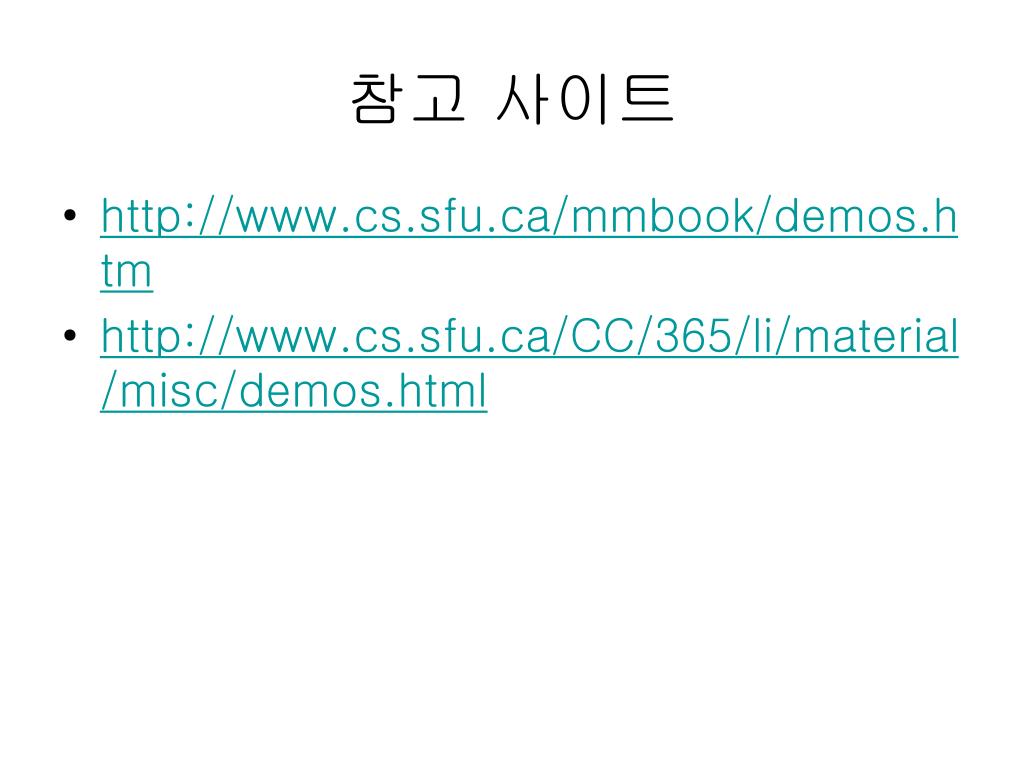

  36. 참고 사이트 • http://www.cs.sfu.ca/mmbook/demos.htm • http://www.cs.sfu.ca/CC/365/li/material/misc/demos.html
