  1. AQ2511B0 Boiler Reset Panel – for Whole House Heating Control – Immediate Retrofit Opportunity !

  2. $2,500 = $375 per year AQ2511B0 Boiler Reset Control Panel • Simple system upgrade to provide energy savings! • Up to 15% annual energy savings • Payback as fast as ~ 2 years • Boiler reset with DHW priority

  3. Installation of AQ2511B0 Reset Control Panel • Disconnect existing wiring to thermostat, aquastat (boiler & DHW) Existing Installation Heating Load Aquastat Boiler

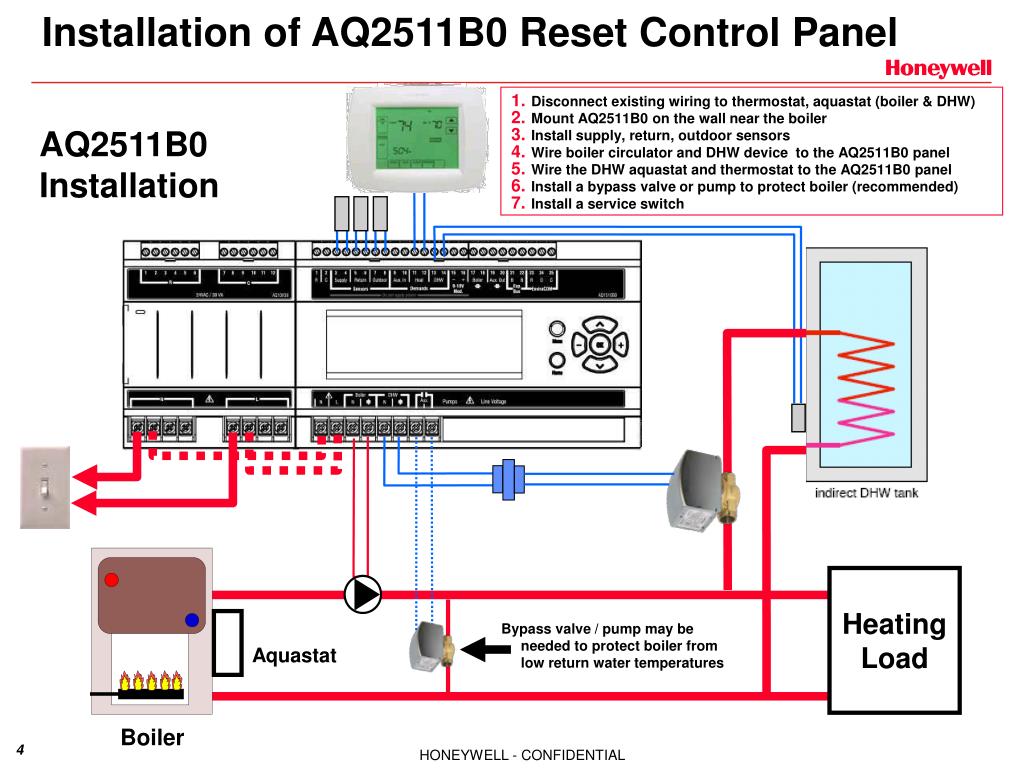

  4. Heating Load Bypass valve / pump may be needed to protect boiler from low return water temperatures Aquastat Boiler Installation of AQ2511B0 Reset Control Panel • Disconnect existing wiring to thermostat, aquastat (boiler & DHW) • Mount AQ2511B0 on the wall near the boiler • Install supply, return, outdoor sensors • Wire boiler circulator and DHW device to the AQ2511B0 panel • Wire the DHW aquastat and thermostat to the AQ2511B0 panel • Install a bypass valve or pump to protect boiler (recommended) • Install a service switch AQ2511B0 Installation
