  1. PENDAHULUAN SISTEM PENGOLAHAN

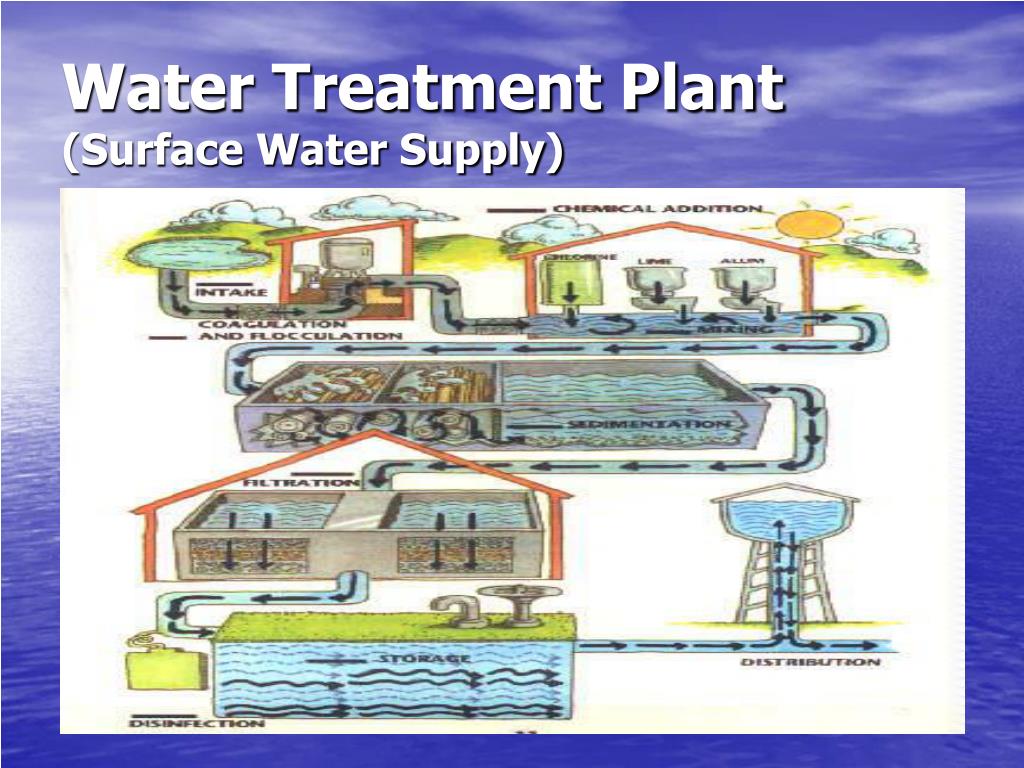

  2. Water Treatment Plant(Surface Water Supply)

  3. PERUNTUKAN SISTEM • Boiler Water Treatment • Municipal Drinking Water • Municipal Wastewater • Industrial Wastewater

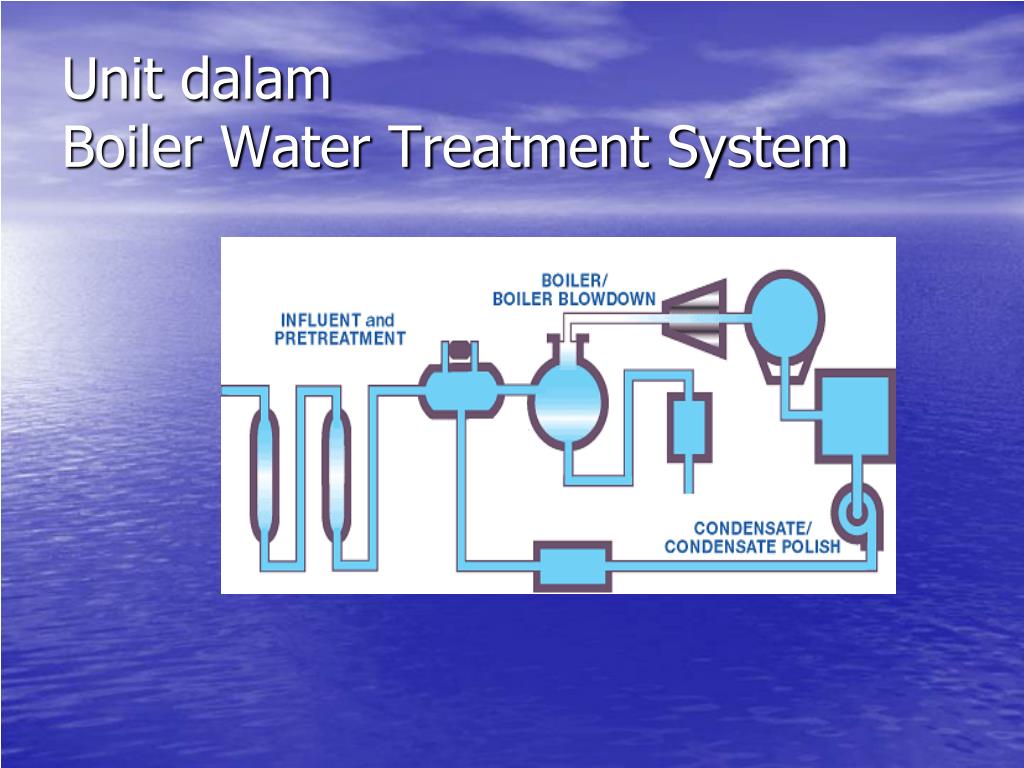

  4. Unit dalam Boiler Water Treatment System

  5. Unit dalam Boiler Water Treatment System

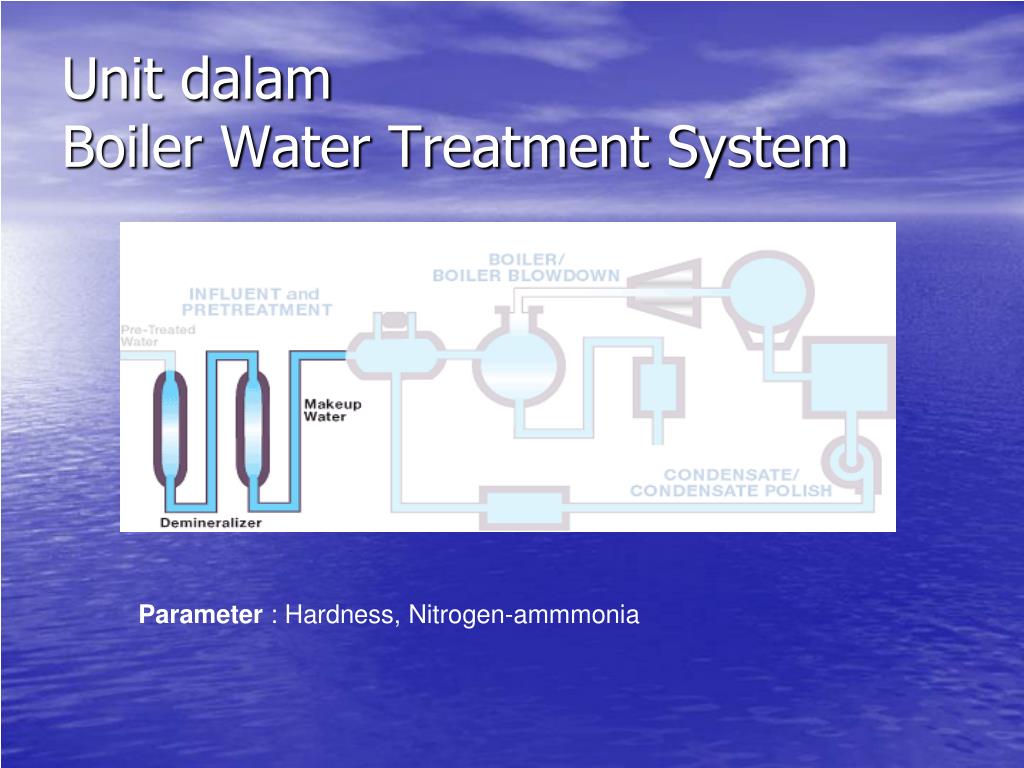

  6. Unit dalam Boiler Water Treatment System Parameter : Hardness, Nitrogen-ammmonia

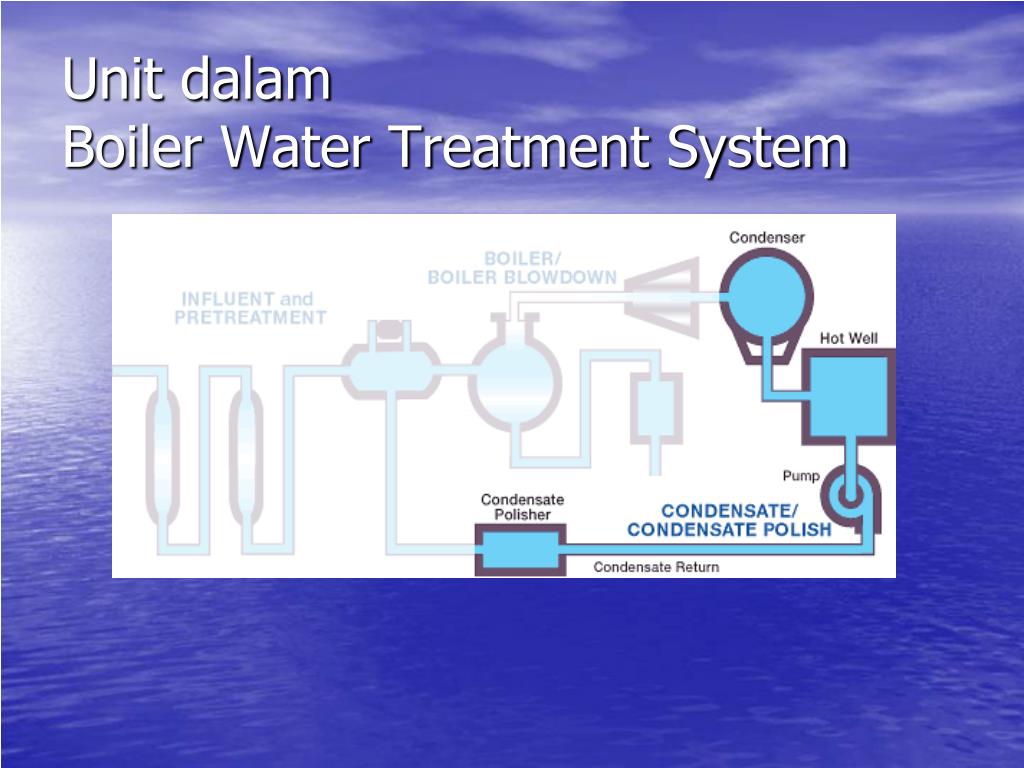

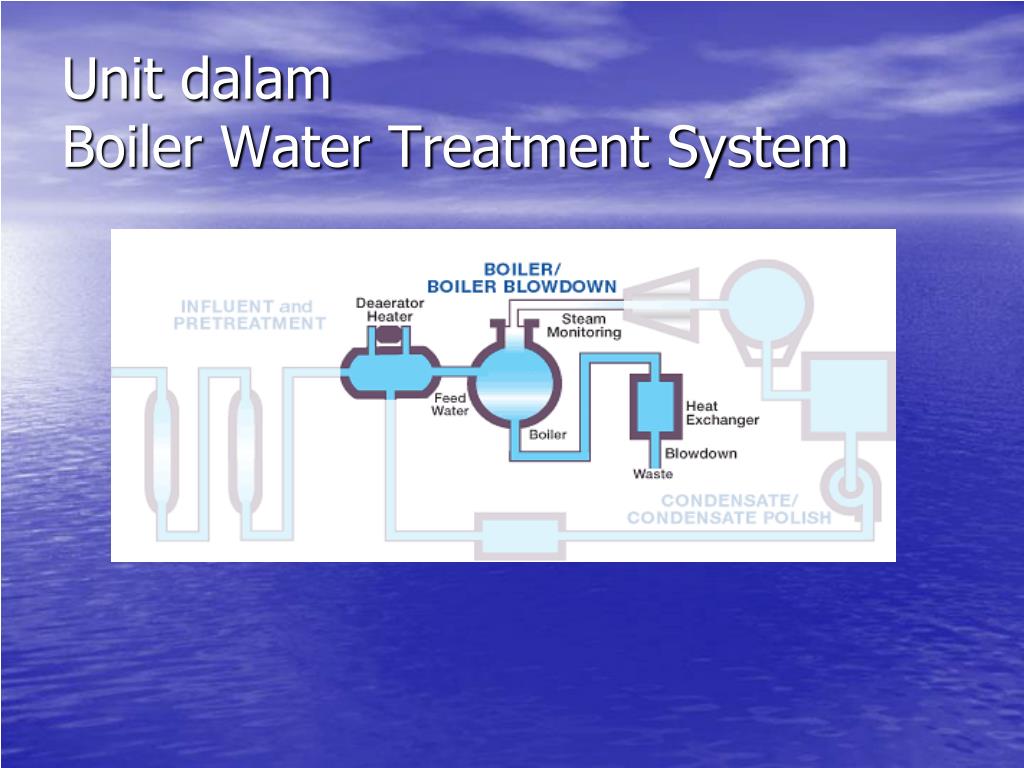

  7. Unit dalam Boiler Water Treatment System

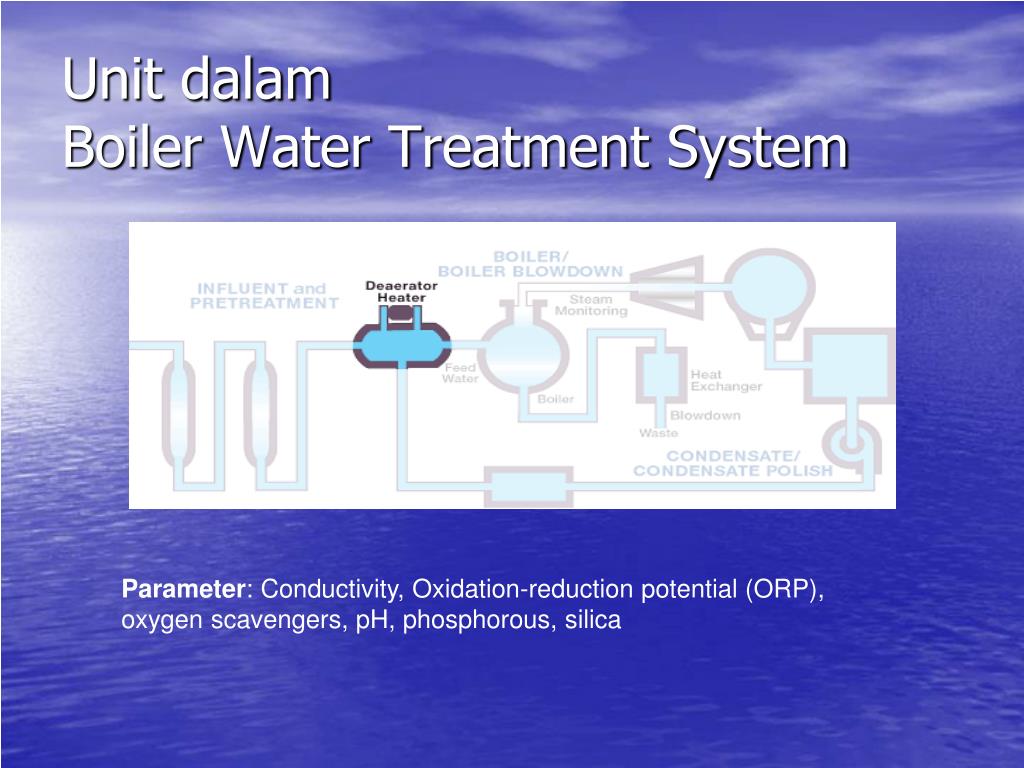

  8. Unit dalam Boiler Water Treatment System Parameter: Conductivity, Oxidation-reduction potential (ORP), oxygen scavengers, pH, phosphorous, silica

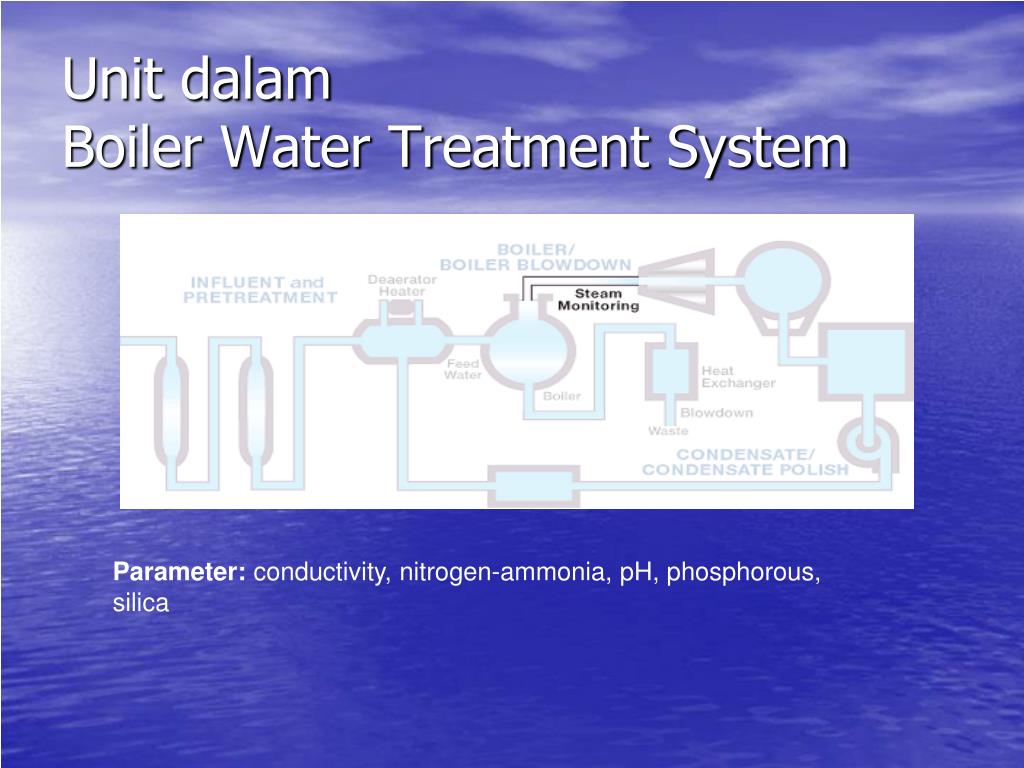

  9. Unit dalam Boiler Water Treatment System Parameter: conductivity, nitrogen-ammonia, pH, phosphorous, silica

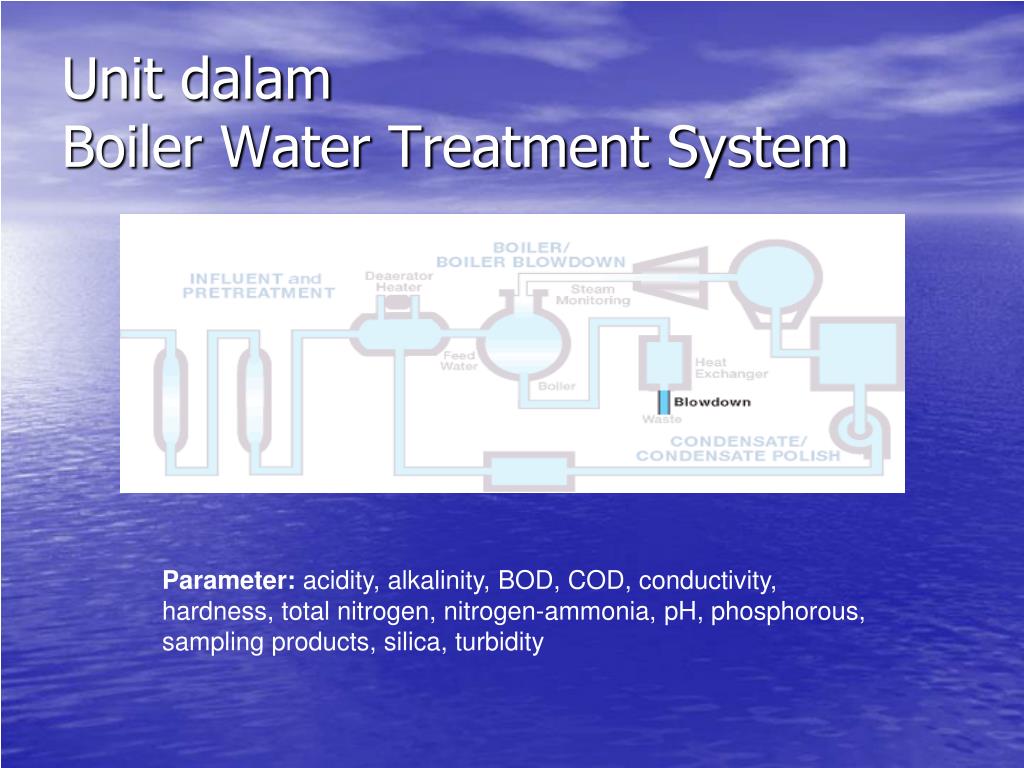

  10. Unit dalam Boiler Water Treatment System Parameter: acidity, alkalinity, BOD, COD, conductivity, hardness, total nitrogen, nitrogen-ammonia, pH, phosphorous, sampling products, silica, turbidity

  11. Unit dalam Boiler Water Treatment System

  12. Unit dalam Boiler Water Treatment System Parameter: Hardness, nitrogen-ammonia, silica, TOC, turbidity

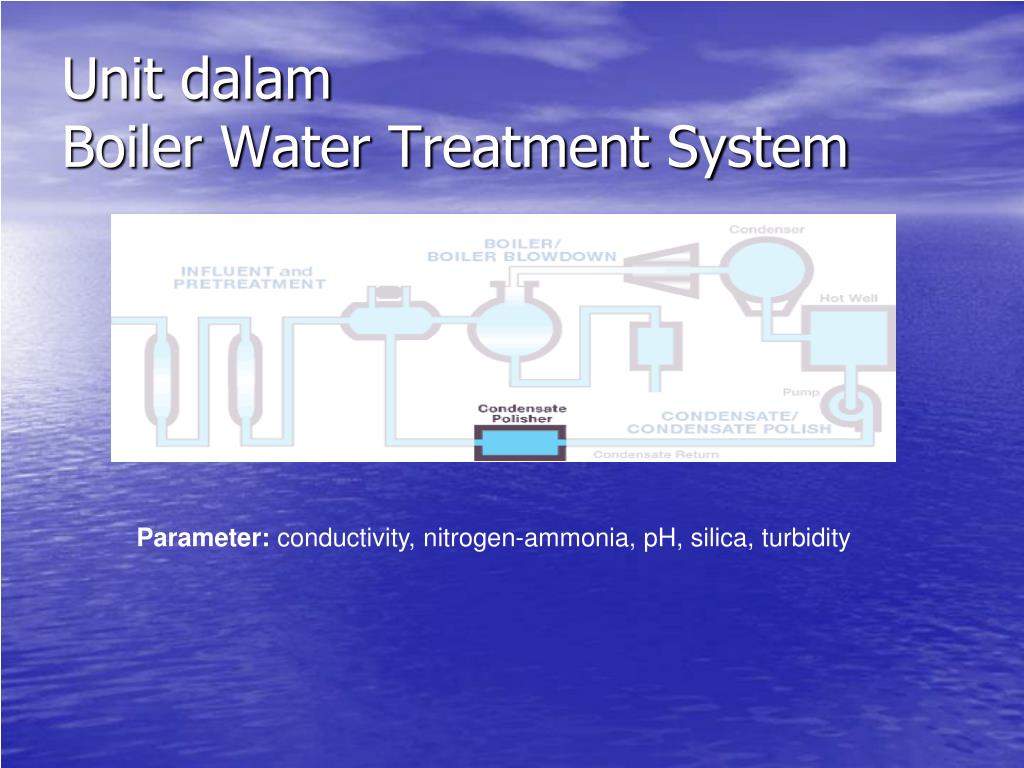

  13. Unit dalam Boiler Water Treatment System Parameter: conductivity, nitrogen-ammonia, pH, silica, turbidity

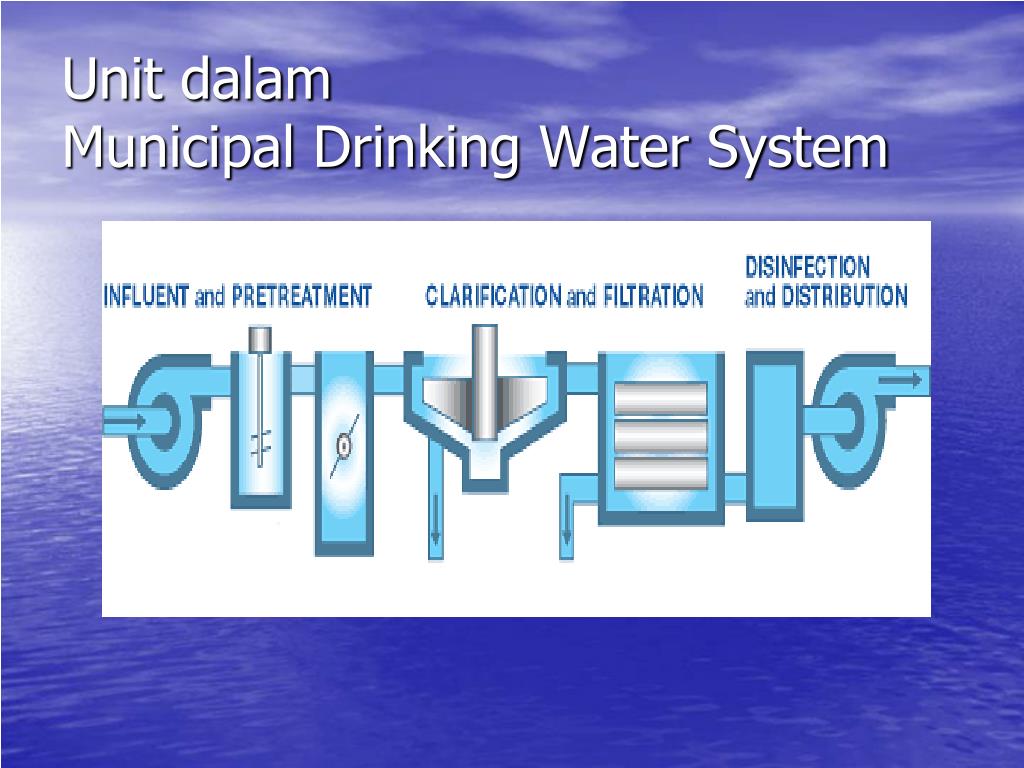

  14. Unit dalam Municipal Drinking Water System

  15. Unit dalam Municipal Drinking Water System

  16. Unit dalam Municipal Drinking Water System Parameter: acidity, alkalinity, aluminum, arsenic, BOD, COD, free chlorine, free and total chlorine, total chlorine, chlorine dioxide, chromium, conductivity, copper, DO, fluoride, hardness, iron, manganese, nitrate, nitrite, total nitrogen, nitrogen-ammonia, organics, ozone, particle count, pH, phosphonates, phosphorous, sampling products, sulfate, suspended solids, TOC, turbidity

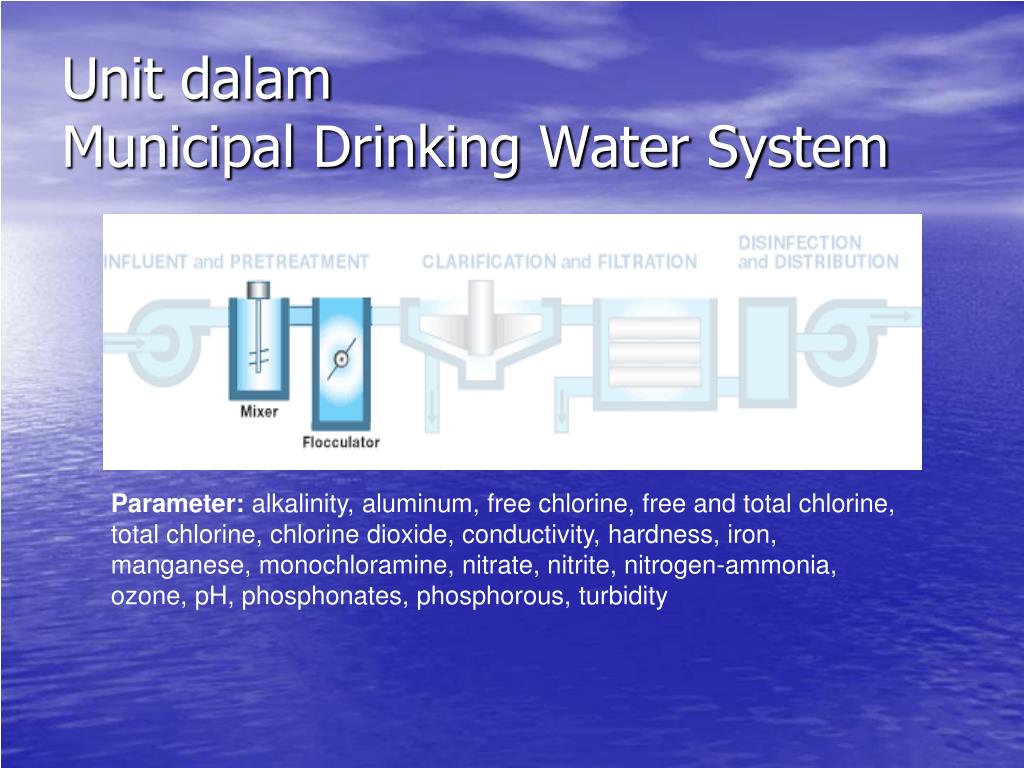

  17. Unit dalam Municipal Drinking Water System Parameter: alkalinity, aluminum, free chlorine, free and total chlorine, total chlorine, chlorine dioxide, conductivity, hardness, iron, manganese, monochloramine, nitrate, nitrite, nitrogen-ammonia, ozone, pH, phosphonates, phosphorous, turbidity

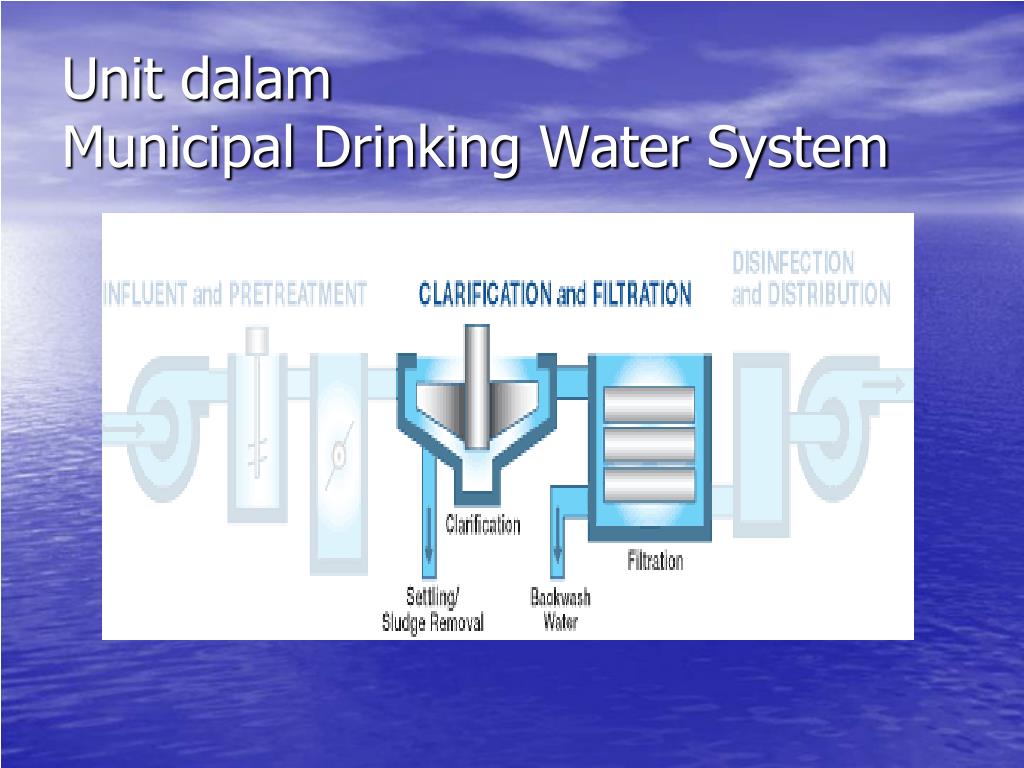

  18. Unit dalam Municipal Drinking Water System

  19. Unit dalam Municipal Drinking Water System Parameter: alkalinity, aluminum, monochloramine, nitrate, nitrogen and free ammonia, particle count, turbidity

  20. Unit dalam Municipal Drinking Water System Parameter: chorine dioxide, iron, manganese, ozone, phosphorous, suspended solids, turbidity

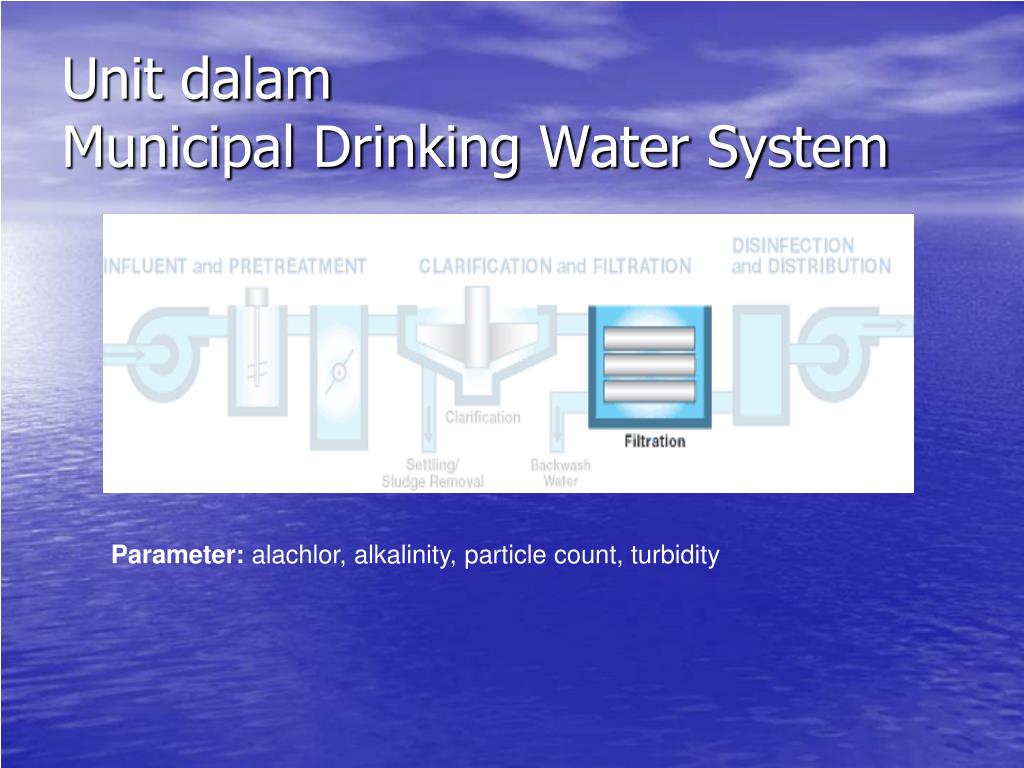

  21. Unit dalam Municipal Drinking Water System Parameter: alachlor, alkalinity, particle count, turbidity

  22. Unit dalam Municipal Drinking Water System

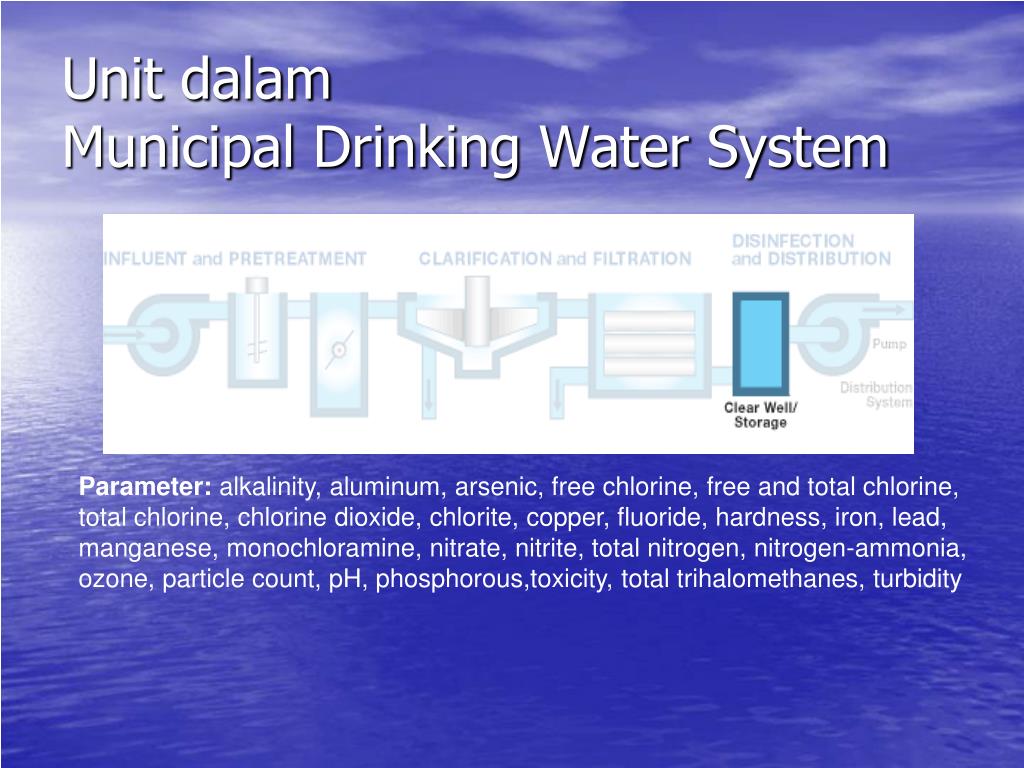

  23. Unit dalam Municipal Drinking Water System Parameter: alkalinity, aluminum, arsenic, free chlorine, free and total chlorine, total chlorine, chlorine dioxide, chlorite, copper, fluoride, hardness, iron, lead, manganese, monochloramine, nitrate, nitrite, total nitrogen, nitrogen-ammonia, ozone, particle count, pH, phosphorous,toxicity, total trihalomethanes, turbidity

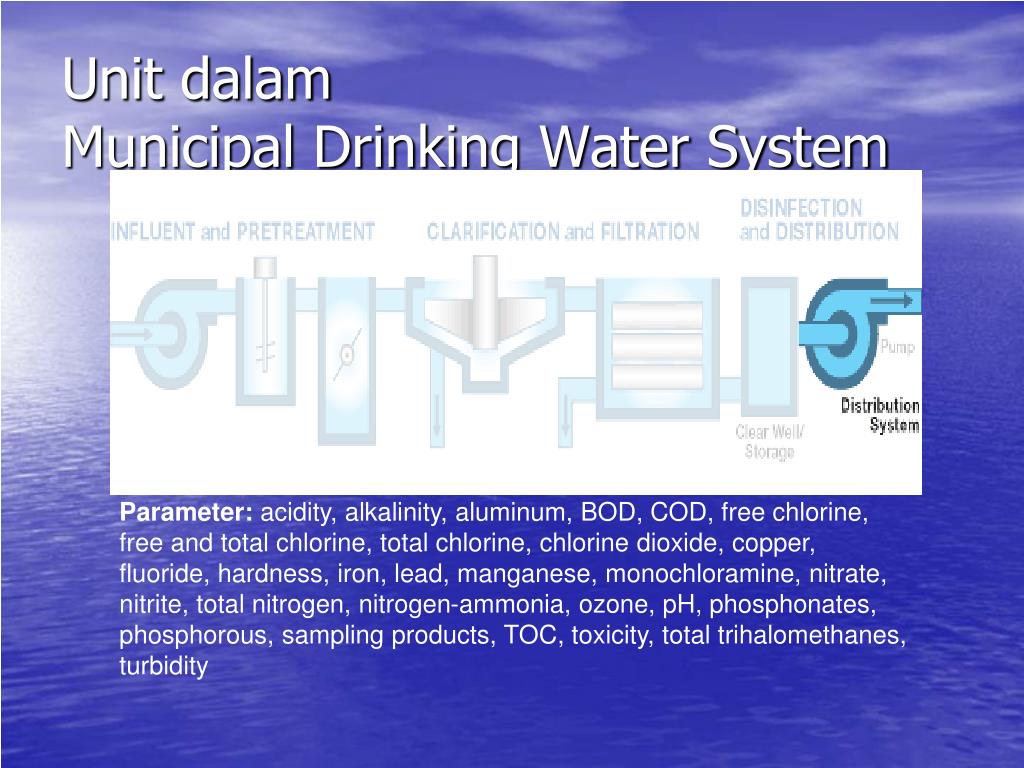

  24. Unit dalam Municipal Drinking Water System Parameter: acidity, alkalinity, aluminum, BOD, COD, free chlorine, free and total chlorine, total chlorine, chlorine dioxide, copper, fluoride, hardness, iron, lead, manganese, monochloramine, nitrate, nitrite, total nitrogen, nitrogen-ammonia, ozone, pH, phosphonates, phosphorous, sampling products, TOC, toxicity, total trihalomethanes, turbidity

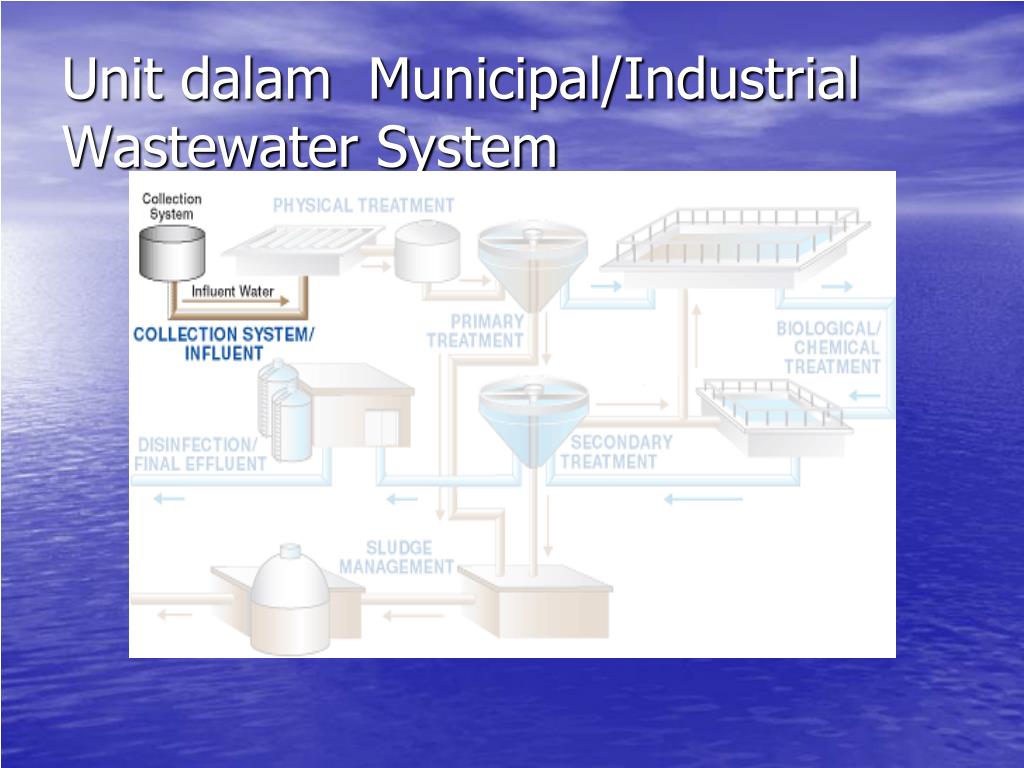

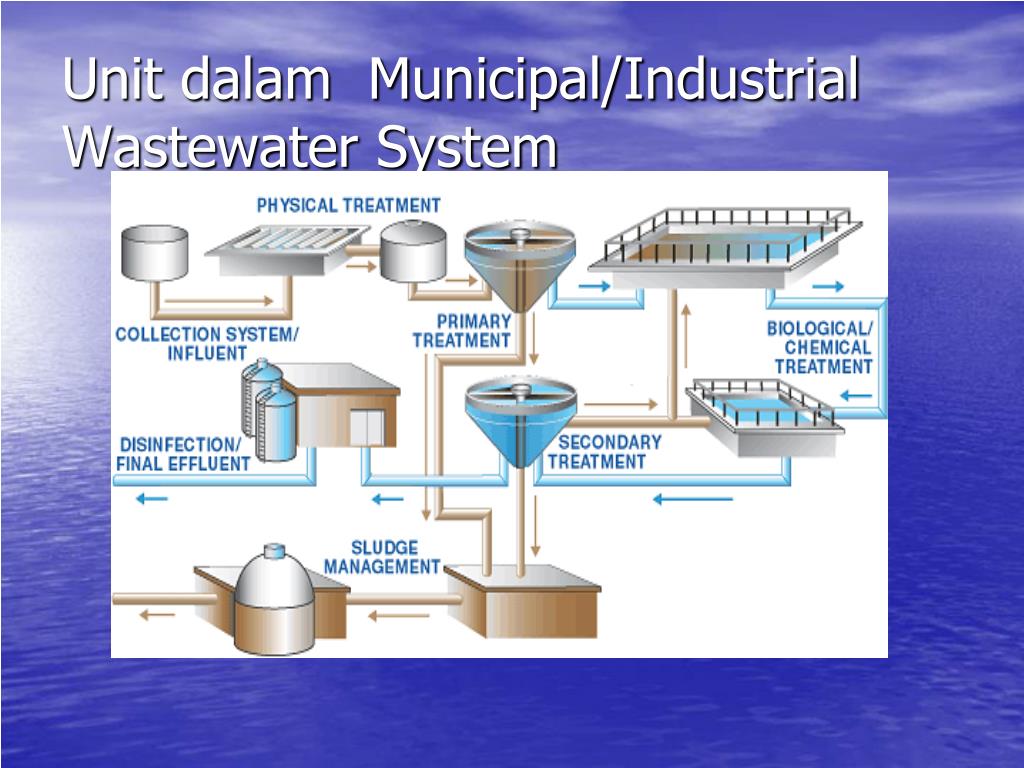

  25. Unit dalam Municipal/Industrial Wastewater System

  26. Unit dalam Municipal/Industrial Wastewater System

  27. Unit dalam Municipal/Industrial Wastewater System Parameter: acidity, alkalinity, BOD, COD, free chlorine, free and total chlorine, total chlorine, chlorine dioxide, chromium, conductivity, DO, hardness, nickel, nitrate, nitrite, total nitrogen, nitrogen-ammonia, oxidation-reduction potential (ORP), pH, phosphonates, phosphorous, sampling products, suspended solids, TOC, turbidity

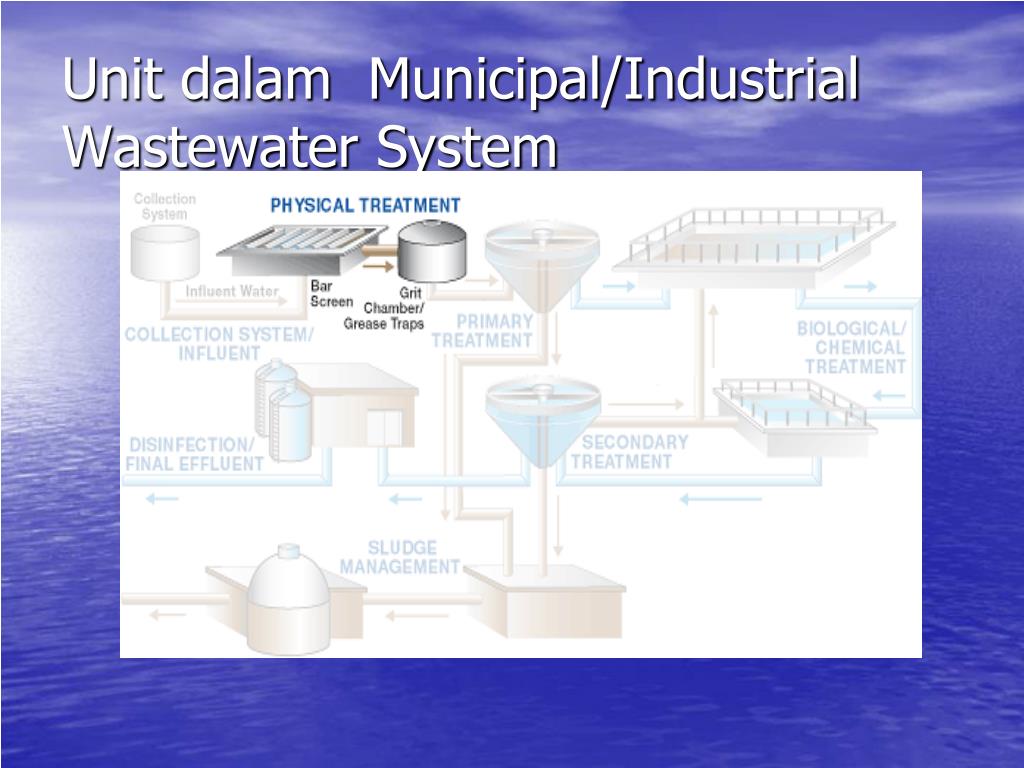

  28. Unit dalam Municipal/Industrial Wastewater System Parameter: acidity, alkalinity, BOD, cadmium, COD, chromium, cobalt, lead, nickel, nitrate, total nitrogen, nitrogen-ammonia, organics, pH, phosphonates, phosphorous, sampling products, silver, suspended solids, TOC, turbidity

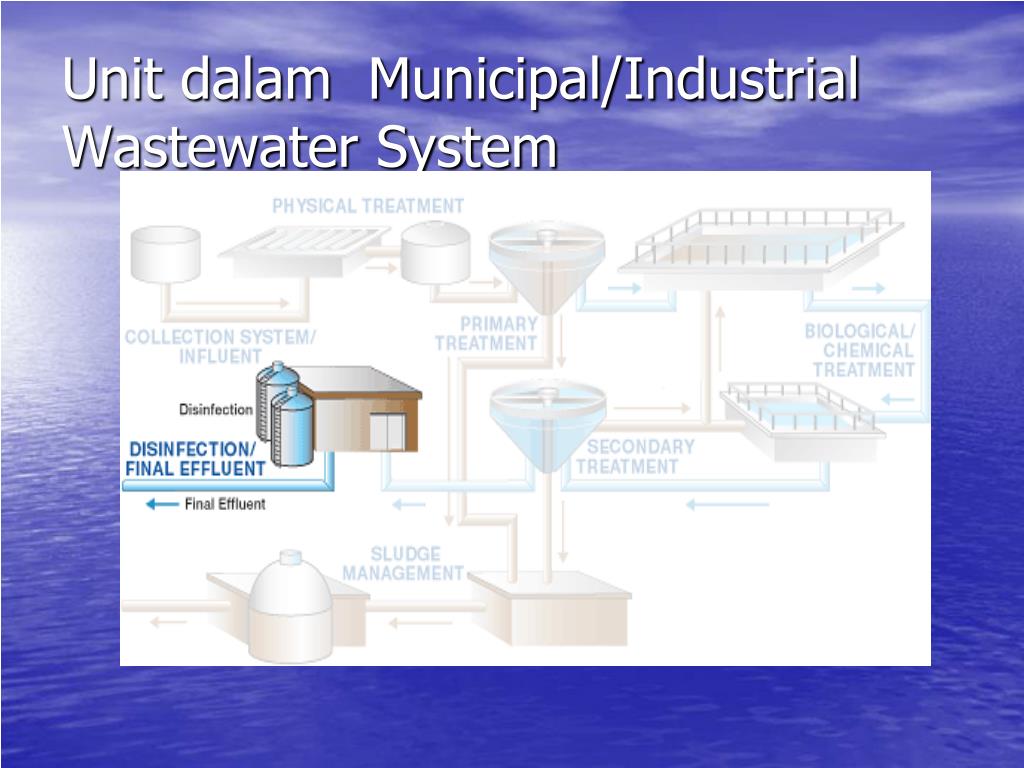

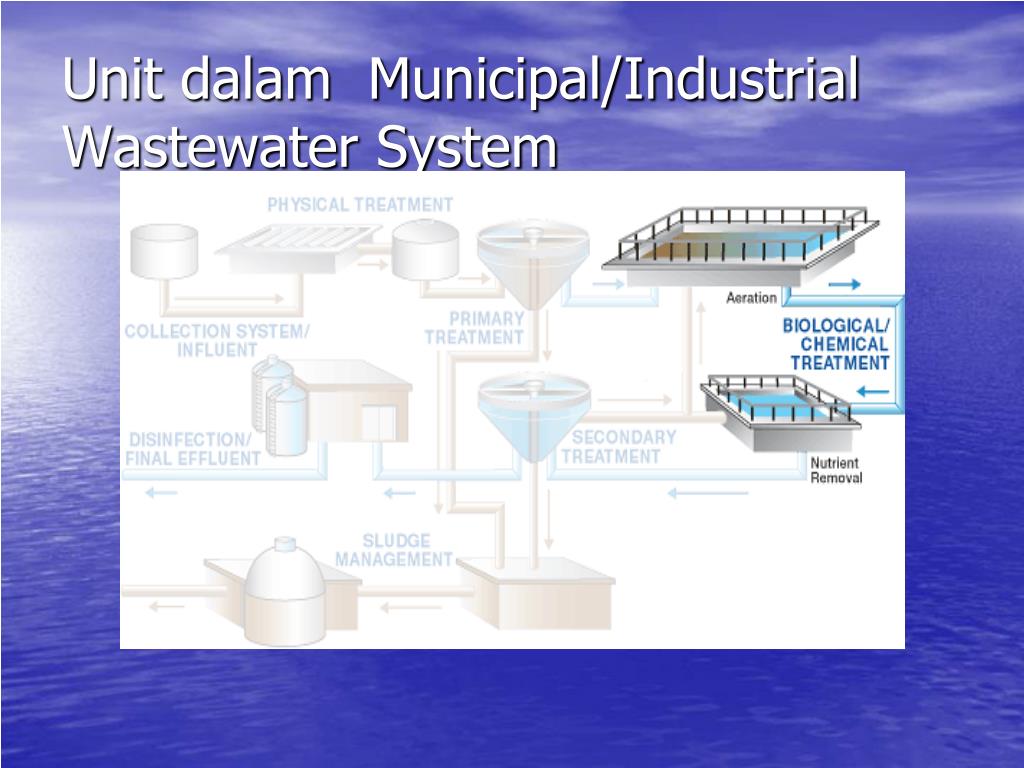

  29. Unit dalam Municipal/Industrial Wastewater System

  30. Unit dalam Municipal/Industrial Wastewater System

  31. Unit dalam Municipal/Industrial Wastewater System Parameter: acidity, alkalinity, BOD, cadmium, COD, chromium, cobalt, copper, cyanide, DO, lead, monochloramine, nickel, nitrate, total nitrogen, nitrogen-ammonia, pH, phosphonates, phosphorous, sampling products, silver, suspended solids, TOC, turbidity

  32. Unit dalam Municipal/Industrial Wastewater System Parameter: alkalinity, pH

  33. Unit dalam Municipal/Industrial Wastewater System

  34. Unit dalam Municipal/Industrial Wastewater System Parameter: alkalinity, BOD, cadmium, COD, chromium, cobalt, copper, DO, lead, monochloramine, nickel, nitrate, total nitrogen, nitrogen-ammonia, oxidation-reduction potential (ORP), pH, phosphorous, silver, sludge volume, suspended solids, TOC, toxicity

  35. Unit dalam Municipal/Industrial Wastewater System Parameter: alkalinity, BOD, cadmium, COD, chromium, cobalt, copper, DO, lead, monochloramine, nickel, nitrate, total nitrogen, nitrogen-ammonia, pH, phosphonates, phosphorous, silver, suspended solids, TOC, toxicity, turbidity

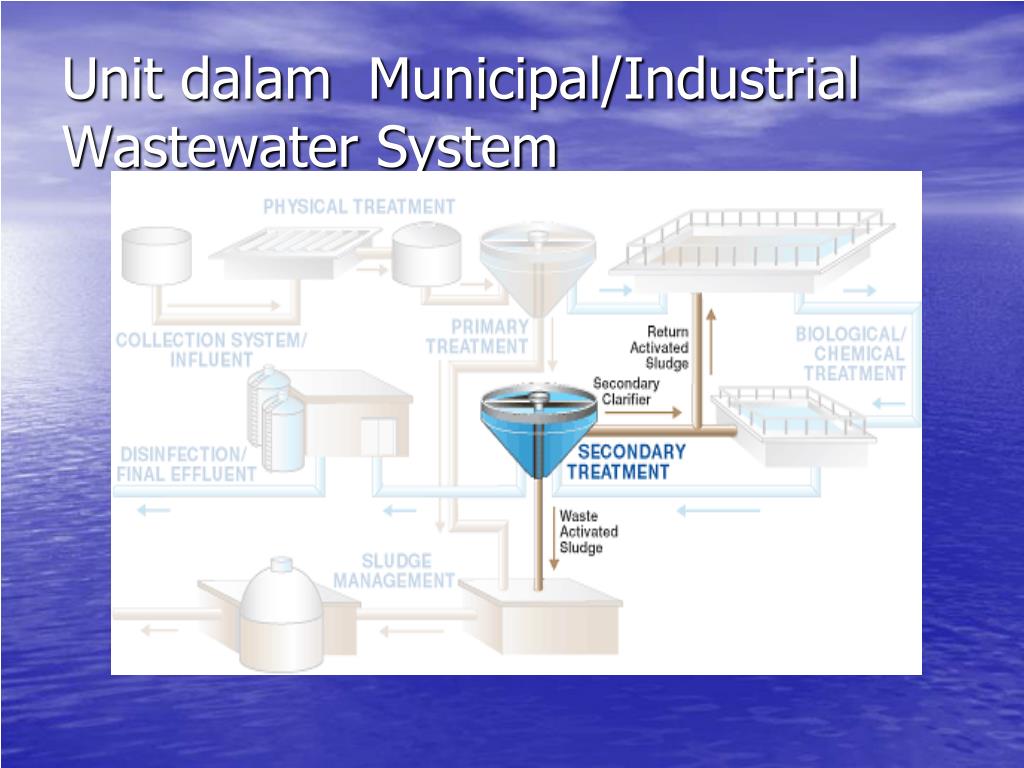

  36. Unit dalam Municipal/Industrial Wastewater System

  37. Unit dalam Municipal/Industrial Wastewater System Parameter: BOD, COD, DO, monochloramine, nitrate, nitrite, total nitrogen, nitrogen-ammonia, phosphonates, phosphorous, suspended solids, TOC, turbidity

  38. Unit dalam Municipal/Industrial Wastewater System Parameter: nitrogen-ammonia

  39. Unit dalam Municipal/Industrial Wastewater System

  40. Unit dalam Municipal/Industrial Wastewater System Parameter: free chlorine, total chlorine, chlorine dioxide, organics, ozone, sulfite, turbidity

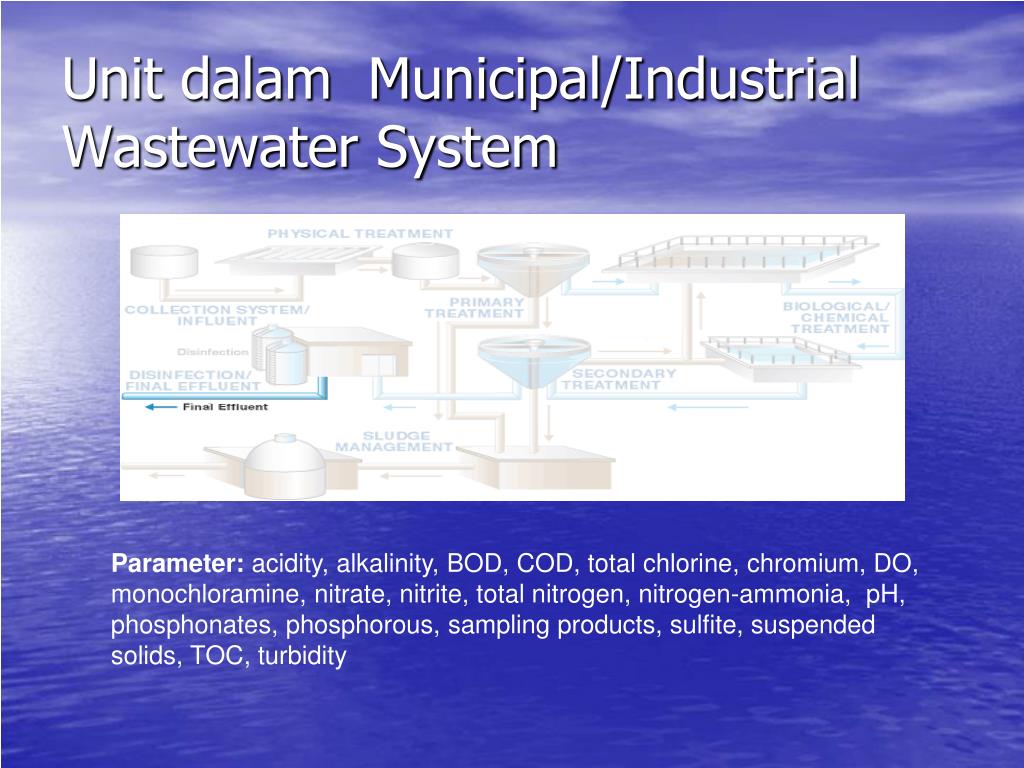

  41. Unit dalam Municipal/Industrial Wastewater System Parameter: acidity, alkalinity, BOD, COD, total chlorine, chromium, DO, monochloramine, nitrate, nitrite, total nitrogen, nitrogen-ammonia, pH, phosphonates, phosphorous, sampling products, sulfite, suspended solids, TOC, turbidity

  42. Unit dalam Municipal/Industrial Wastewater System
