Tutorial 1

Tutorial (1)

Software installation

Written by: Eng. Ahmed Mohamed Abdel Ghafar, Edited by Eng. MuhammedHammad, Eng. HamdySoltan & Eng. Osama Talaat


Download software

Download Software

Click any picture to go to download link …

MySQL Installer

Apache Tomcat

Java JDK

If you have x64 processor architecture in your computer, download both the x86 & x64 versions of the JDK.

Download MySQL Connector/J(platform independent).


Mysql server

MySql Server

Install MySQL Products


Mysql server1

MySql Server

Accept the licence


Mysql server2

MySql Server

Do not check for updates

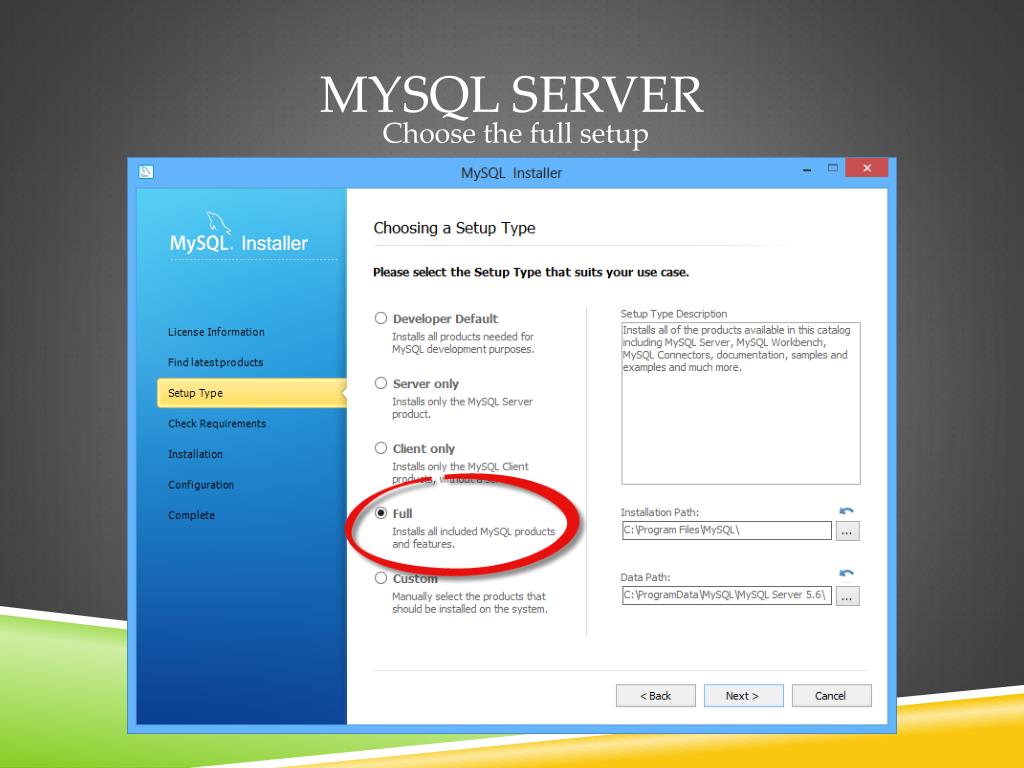

Mysql server3

MySql Server

Choose the full setup

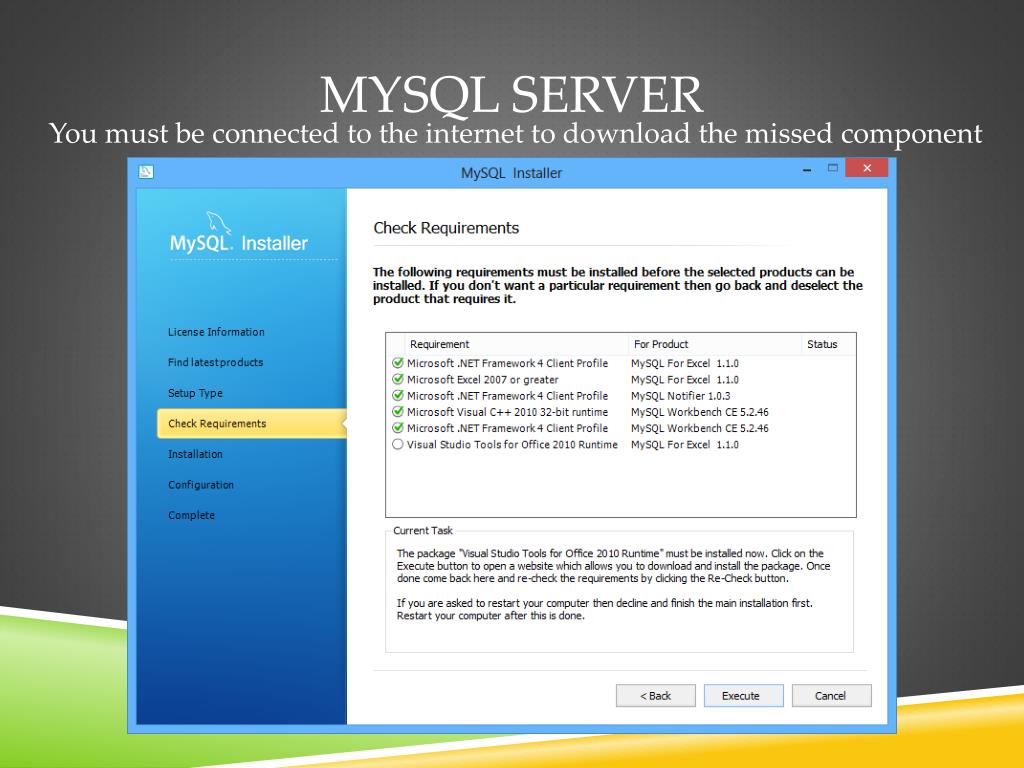

Mysql server4

MySql Server

You must be connected to the internet to download the missed component


Mysql server5

MySql Server

The items to be installed


Mysql server6

MySql Server

Configure MySQL Server


Mysql server7

MySql Server

Configure MySQL Server


Mysql server8

MySql Server

Set the password to: root

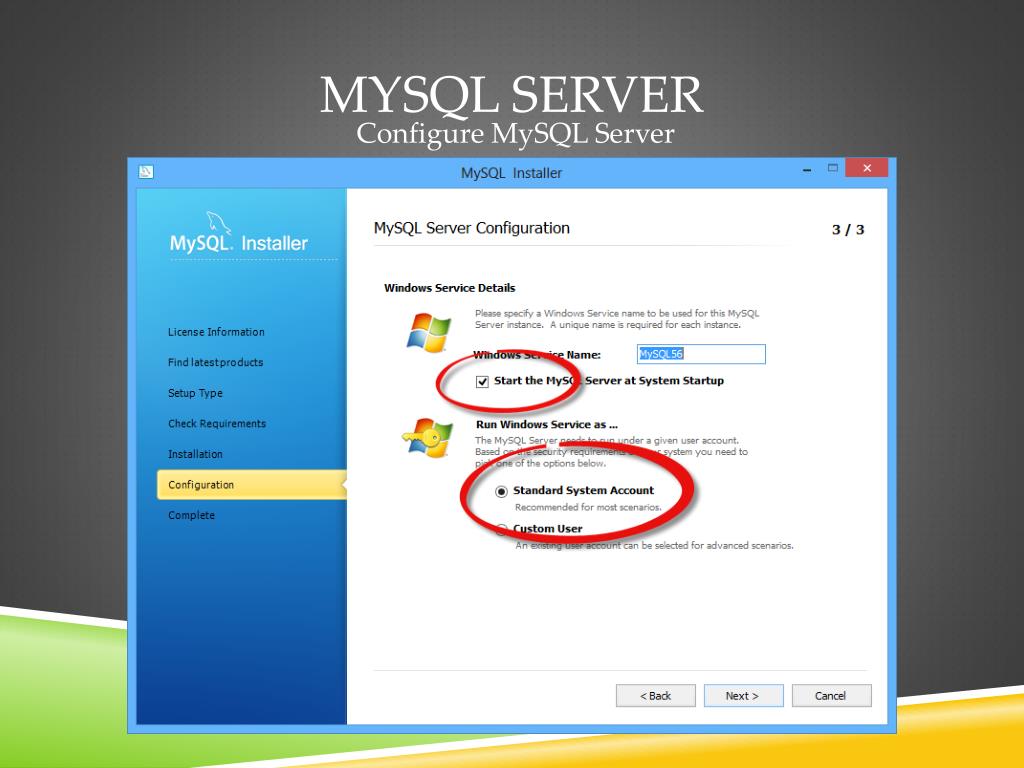

Mysql server9

MySql Server

Configure MySQL Server


Mysql server10

MySql Server

Samples & Examples

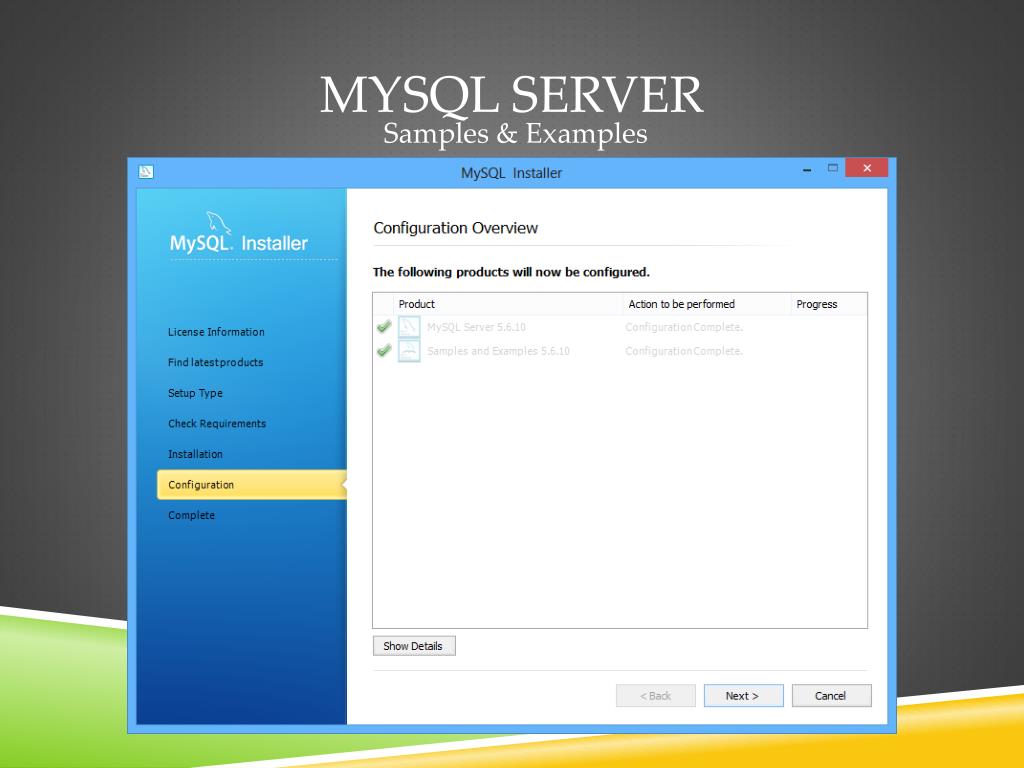

Mysql server11

MySql Server

Samples & Examples

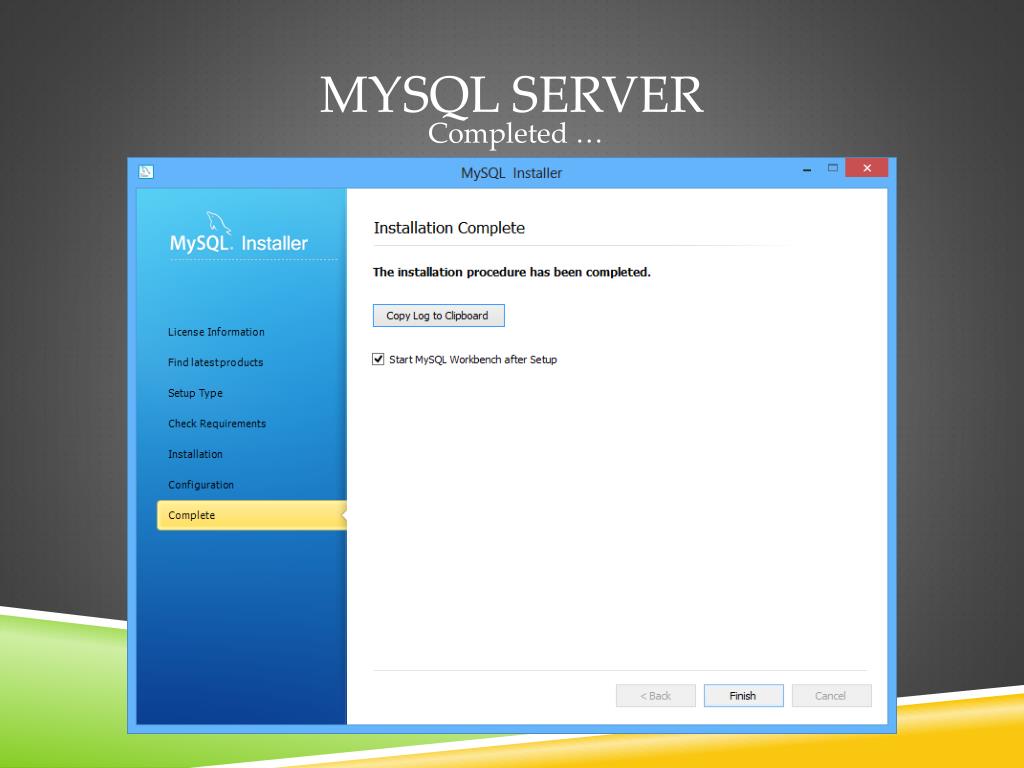

Mysql server12

MySql Server

Completed …

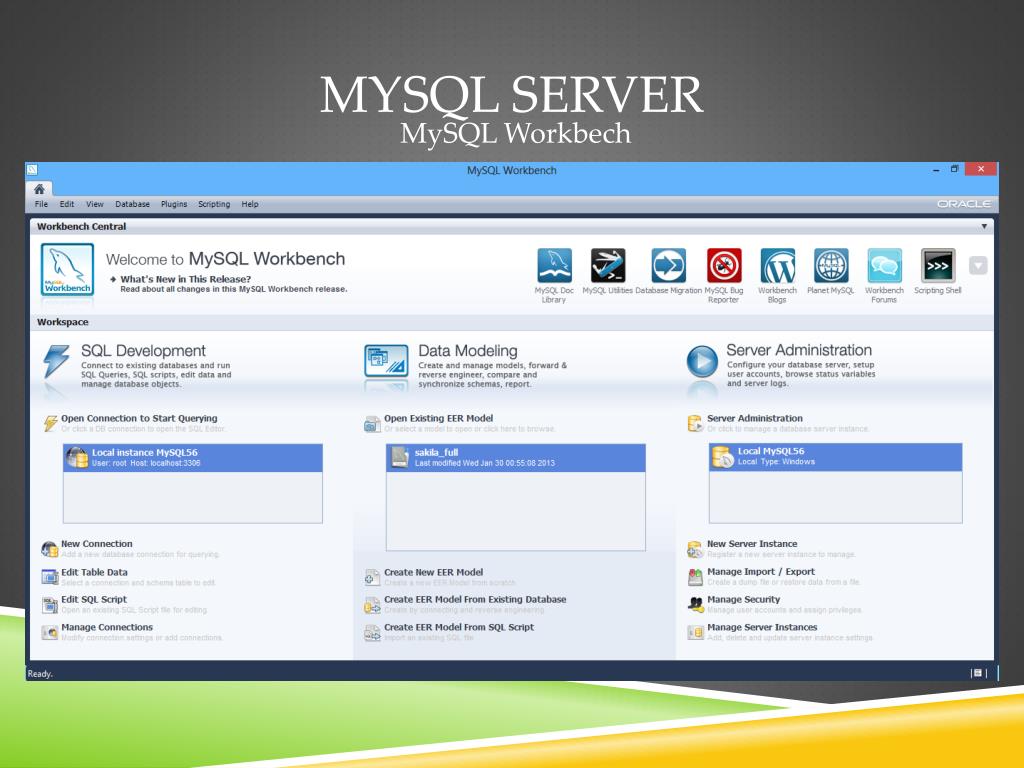

Mysql server13

MySql Server

MySQL Workbech

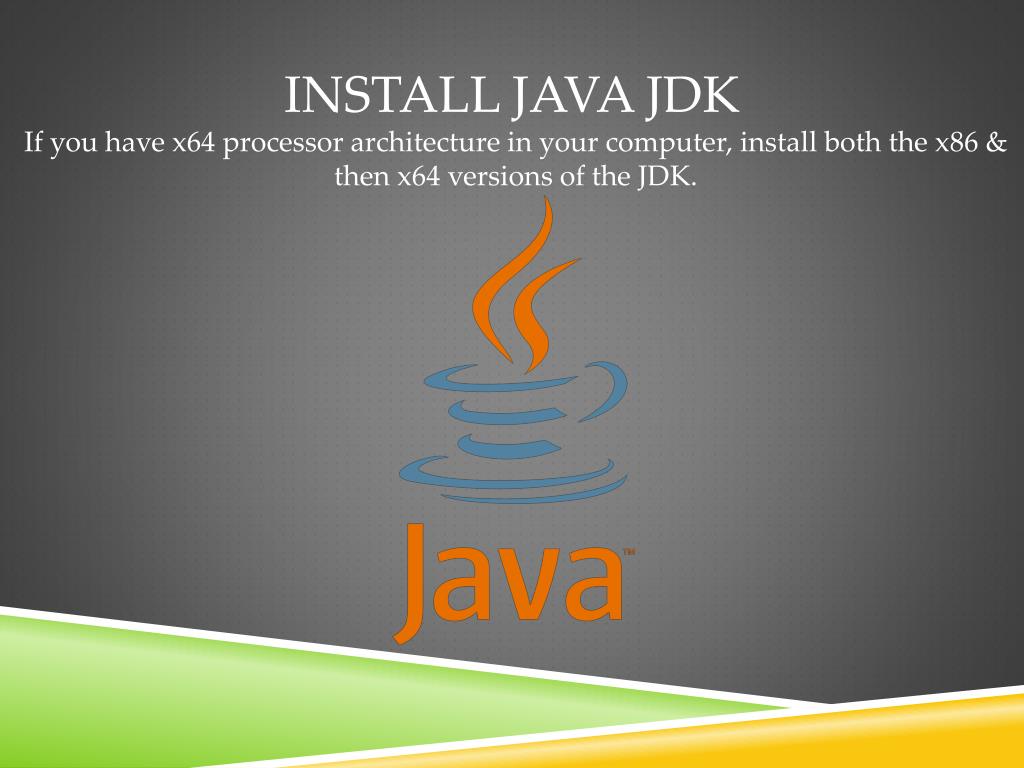

Install java jdk

Install java jdk

If you have x64 processor architecture in your computer, install both the x86 & then x64 versions of the JDK.


Apache tomcat

Apache Tomcat


Apache tomcat1

Apache Tomcat


Apache tomcat2

Apache Tomcat


Apache tomcat3

Apache Tomcat

Set the username and password to: root


Apache tomcat4

Apache Tomcat

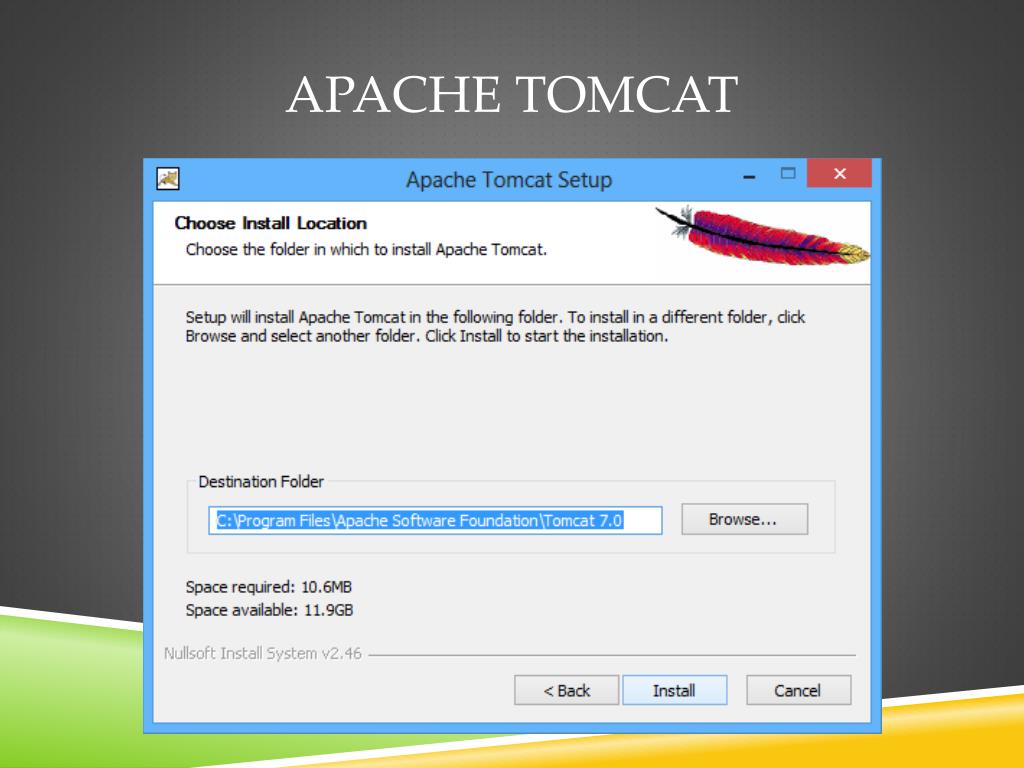

Apache tomcat5

Apache Tomcat

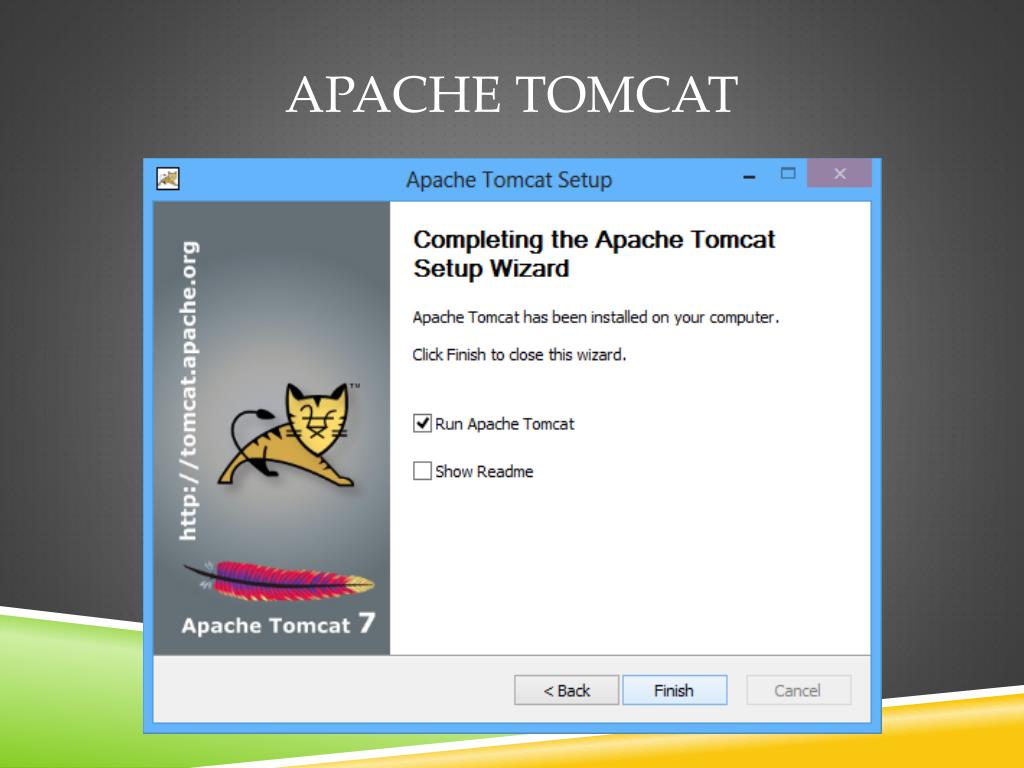

Apache tomcat6

Apache Tomcat

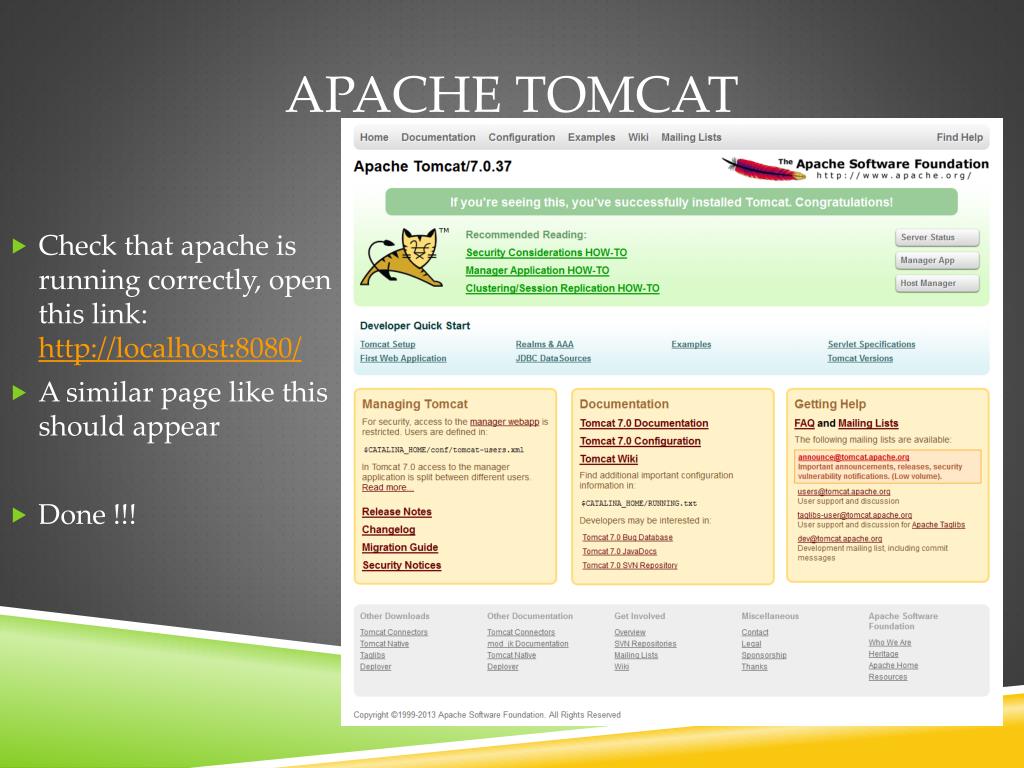

Apache tomcat7

Apache Tomcat

  • Check that apache is running correctly, open this link: http://localhost:8080/

  • A similar page like this should appear

  • Done !!!

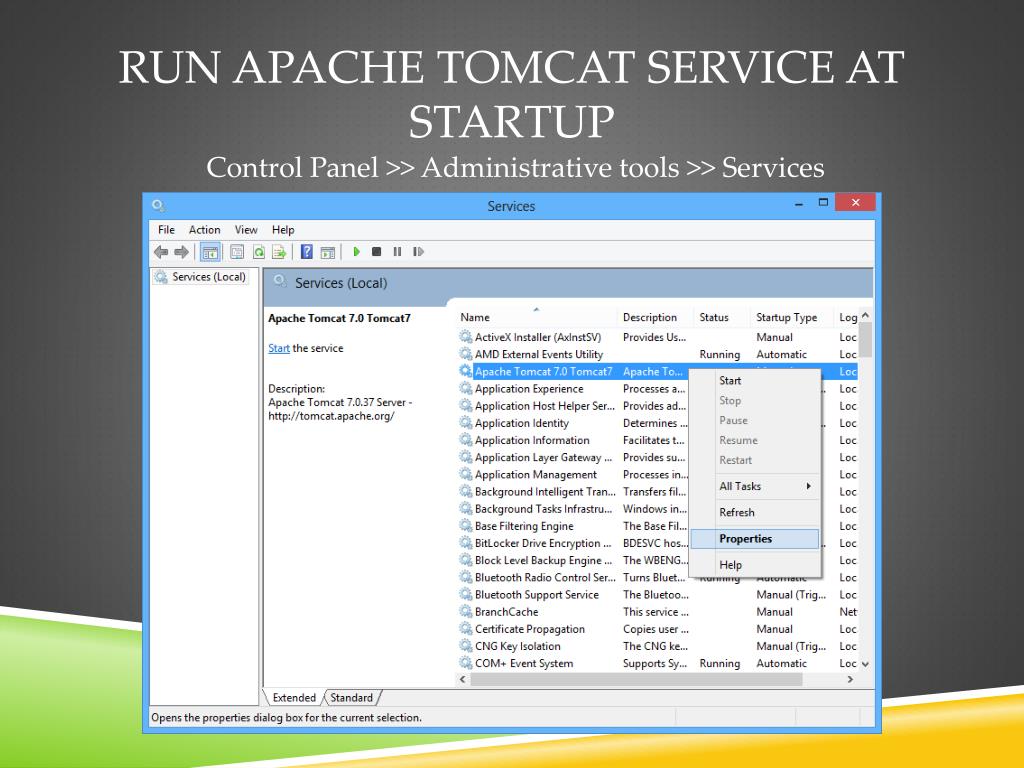

Run apache tomcat service at startup

Run Apache Tomcat Service at startup

Control Panel >> Administrative tools >> Services


Run apache tomcat service at startup1

Run Apache Tomcat Service at startup

Startup type: Automatic


First jsp page

First JSP Page

  • Make a new text document in your desktop.

  • Copy the following code and paste it in the text document:

    <html>

    <head>

    <title> Non Official page </title>

    </head>

    <body>

    <font face="Times New Roman" size="+3" color="#CC0099"><br><center>

    Faculty of Engineering; Computer and Systems Dept.

    </center></font>

    </body>

    </html>


First jsp page1

First JSP Page

  • Rename the text file as faculty.jsp

  • Navigate to C:\Program Files\Apache Software Foundation\Tomcat 7.0\webapps

  • Make a new folder and rename it faculty.

  • Copy the text file to this folder.

  • If you are running windows 7 you must be an administrator and you may have to make the text file at any other location and then pasting it in the “faculty” folder.

  • Go to your browser: http://localhost:8080/faculty/faculty.jsp

  • The following page should appear:

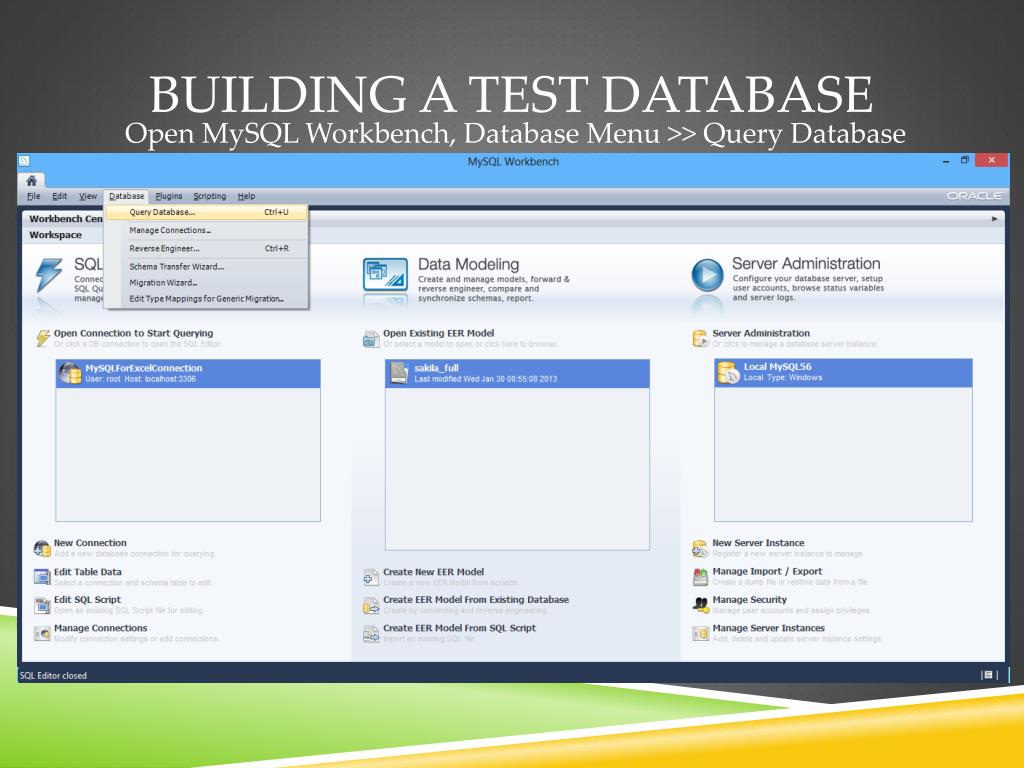

Building a test database

Building a test database

Open MySQL Workbench, Database Menu >> Query Database


Building a test database1

Building a test database

The localhost with Port Number: 3306, username: root & password: root

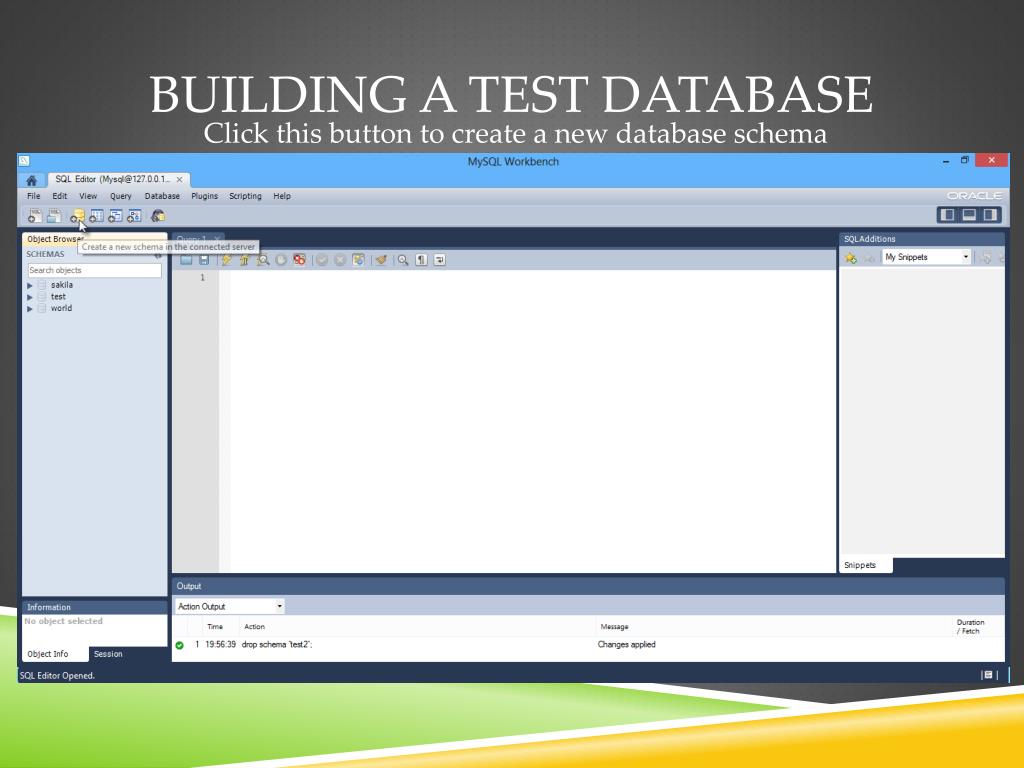

Building a test database2

Building a test database

Click this button to create a new database schema

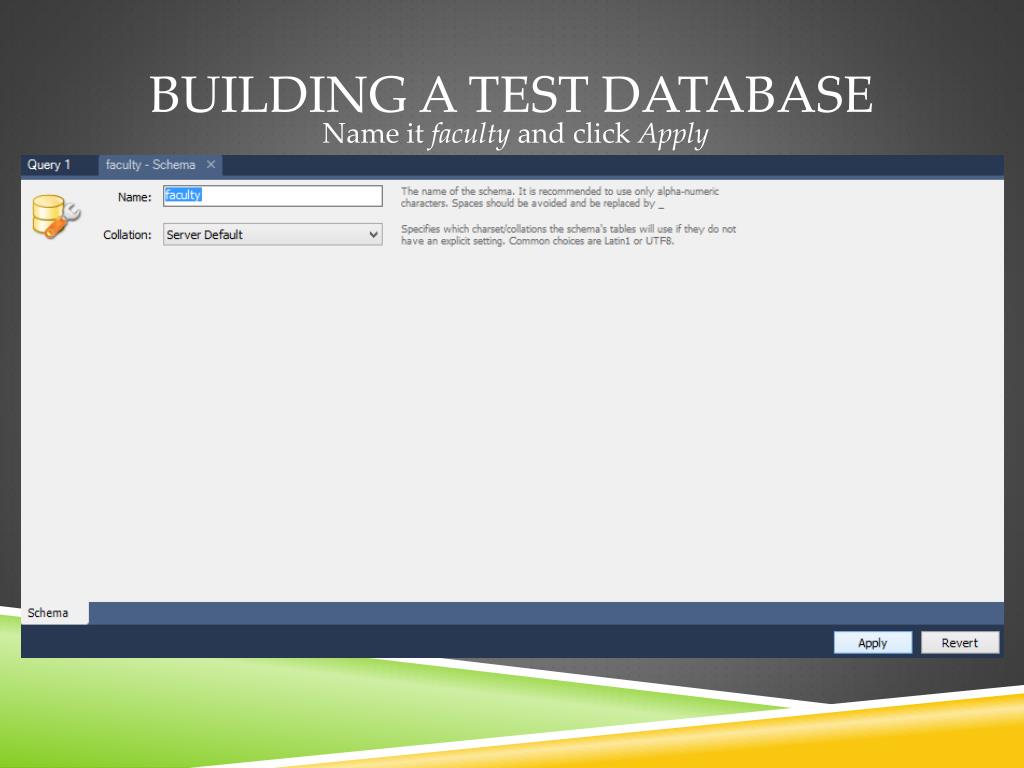

Building a test database3

Building a test database

Name it faculty and click Apply


Building a test database4

Building a test database

Apply


Building a test database5

Building a test database

Finish

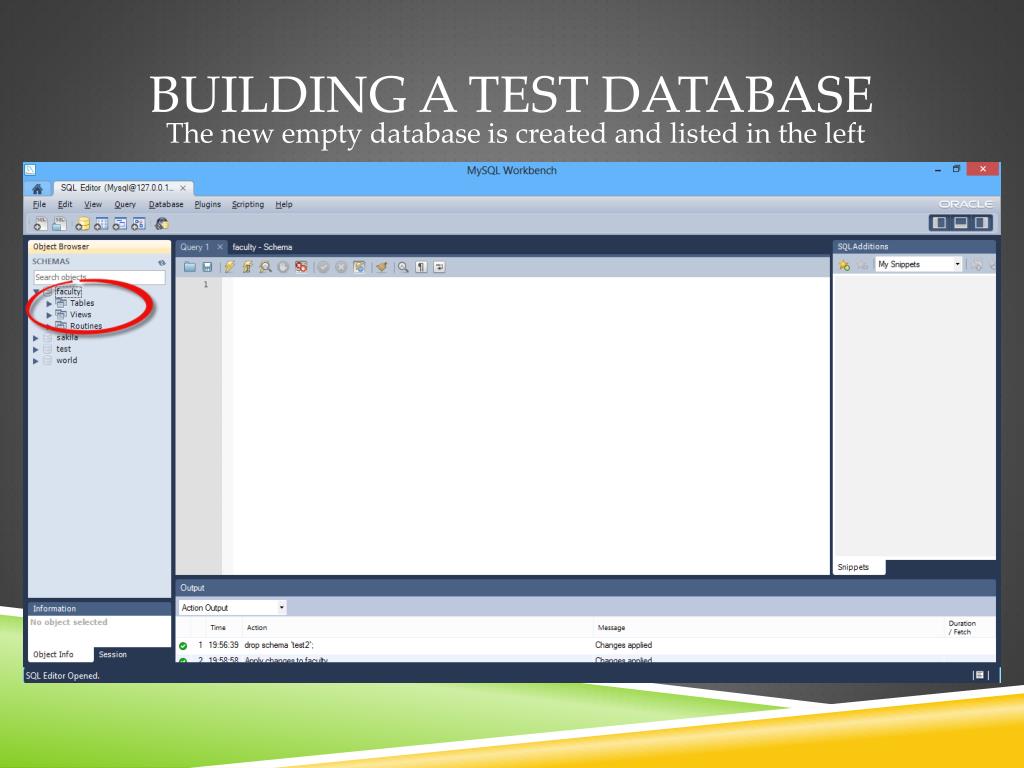

Building a test database6

Building a test database

The new empty database is created and listed in the left


Building a test database7

Building a test database

Name it students, and create new columns with the names id, FirstName & LastNames then click Apply, Apply then Finish


Building a test database8

Building a test database

Edit the table rows data


Building a test database9

Building a test database

Enter any data correspond to the field names,then click Apply, Apply and Finish


Install mysql connector j

Install MySql Connector/J

  • extract MySQL Connector/J you downloaded.

  • Copy the file named: “mysql-connector-java-xxxx-bin”

  • Paste it in

    C:\Program Files\Apache Software Foundation\Tomcat 7.0\lib.

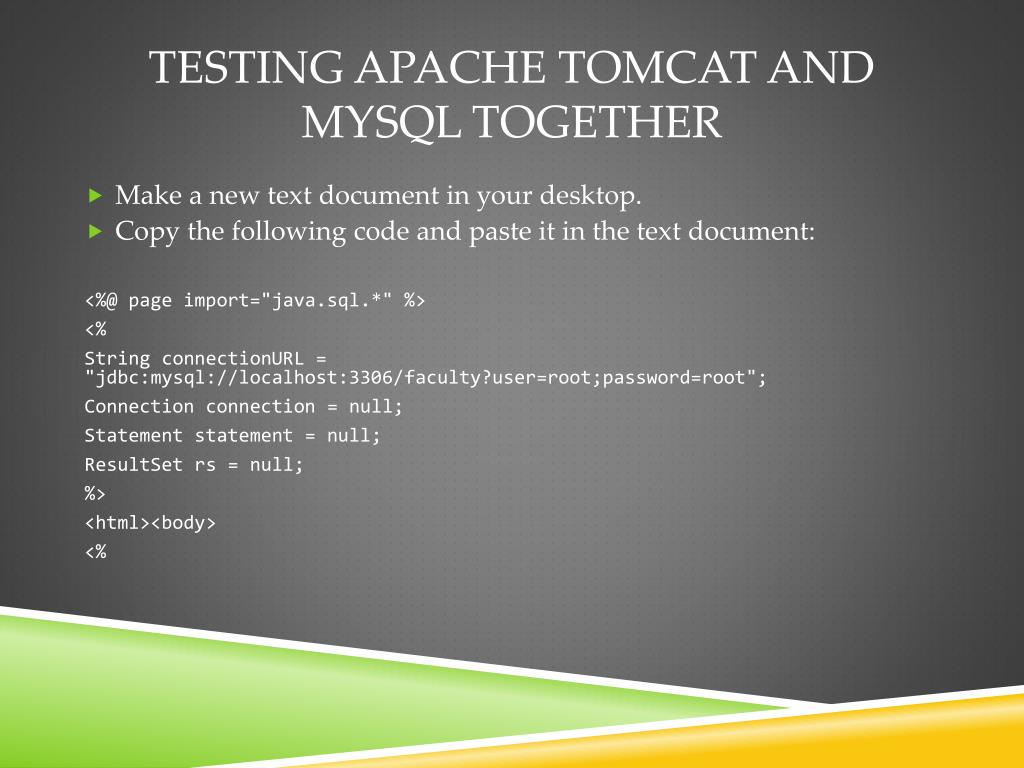

Testing apache tomcat and mysql together

Testing Apache Tomcat and MySQL Together

  • Make a new text document in your desktop.

  • Copy the following code and paste it in the text document:

    <%@ page import="java.sql.*" %>

    <%

    String connectionURL = "jdbc:mysql://localhost:3306/faculty?user=root;password=root";

    Connection connection = null;

    Statement statement = null;

    ResultSetrs = null;

    %>

    <html><body>

    <%


Testing apache tomcat and mysql together1

Testing Apache Tomcat and MySQL Together

try {

Class.forName("com.mysql.jdbc.Driver").newInstance();

connection = DriverManager.getConnection(connectionURL, "root", "root");

statement = connection.createStatement();

rs = statement.executeQuery("SELECT * FROM students");

while (rs.next()) {

out.println(rs.getInt("id")+rs.getString("FirstName")+rs.getString("LastName")+rs.getString("E-mail")+"<br>");

}

rs.close();

} catch(Exception e) {

System.err.println("Exception: " + e.getMessage());

} finally {

try {

if(connection != null)

connection.close();

} catch(SQLException e) {}

}

%>

</body></html>

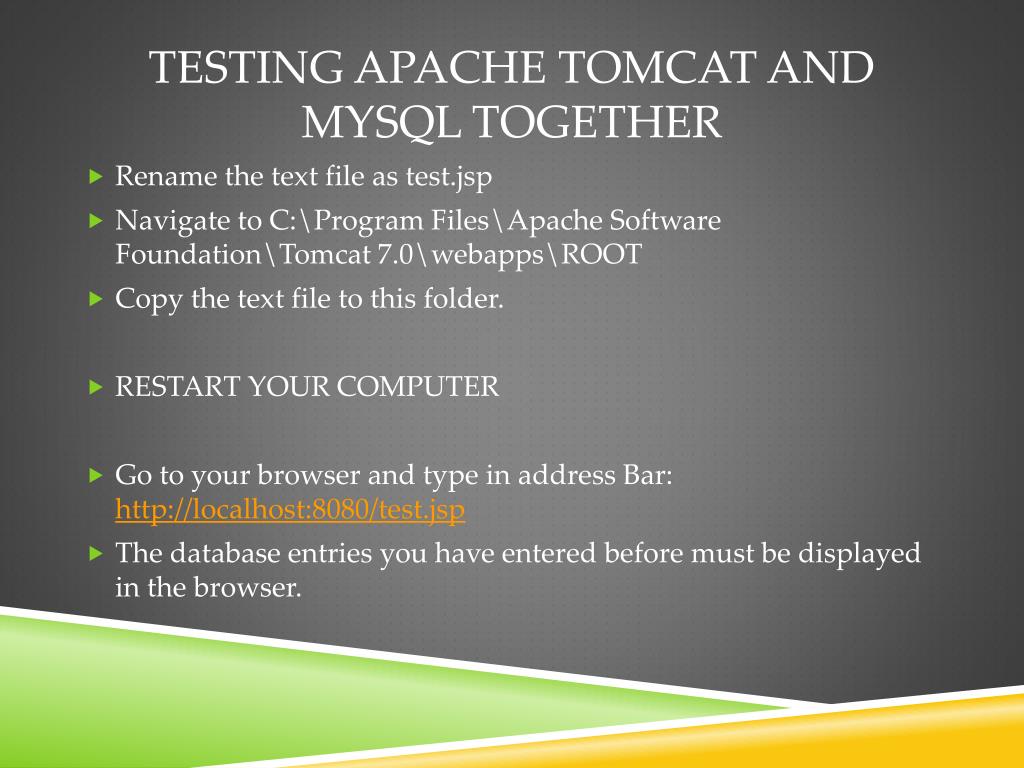

Testing apache tomcat and mysql together2

Testing Apache Tomcat and MySQL Together

  • Rename the text file as test.jsp

  • Navigate to C:\Program Files\Apache Software Foundation\Tomcat 7.0\webapps\ROOT

  • Copy the text file to this folder.

  • RESTART YOUR COMPUTER

  • Go to your browser and type in address Bar: http://localhost:8080/test.jsp

  • The database entries you have entered before must be displayed in the browser.


Done congratulations

Done!! Congratulations
