  1. Digital Logic Gates

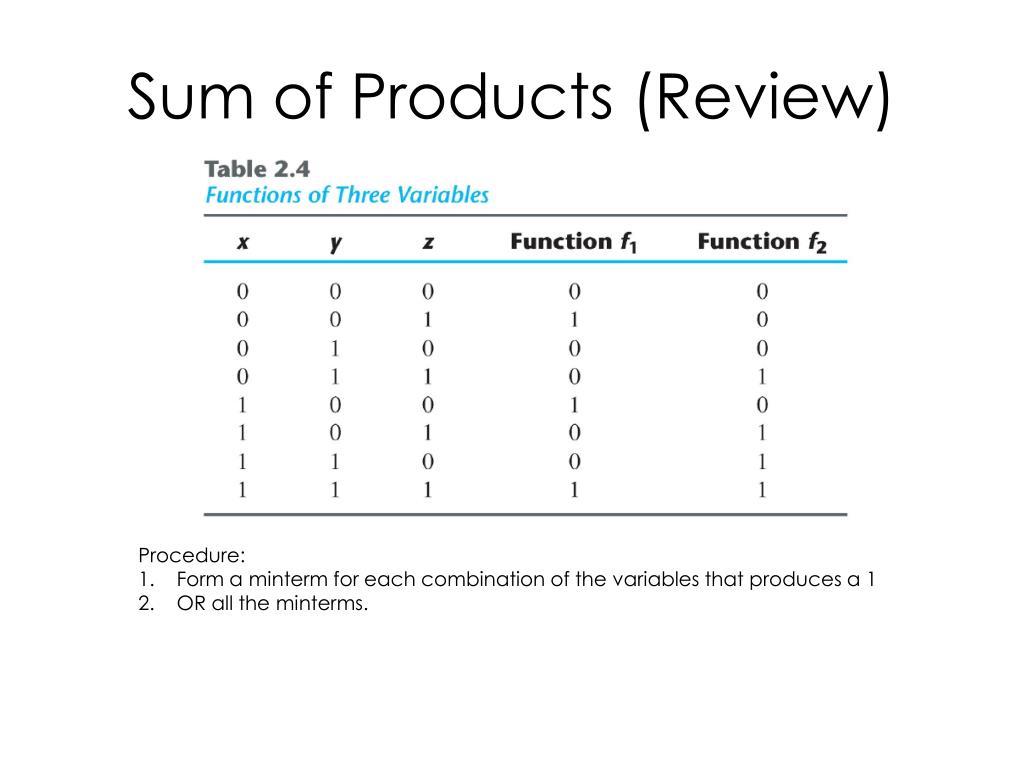

  2. Sum of Products (Review) Procedure: Form a minterm for each combination of the variables that produces a 1 OR all the minterms.

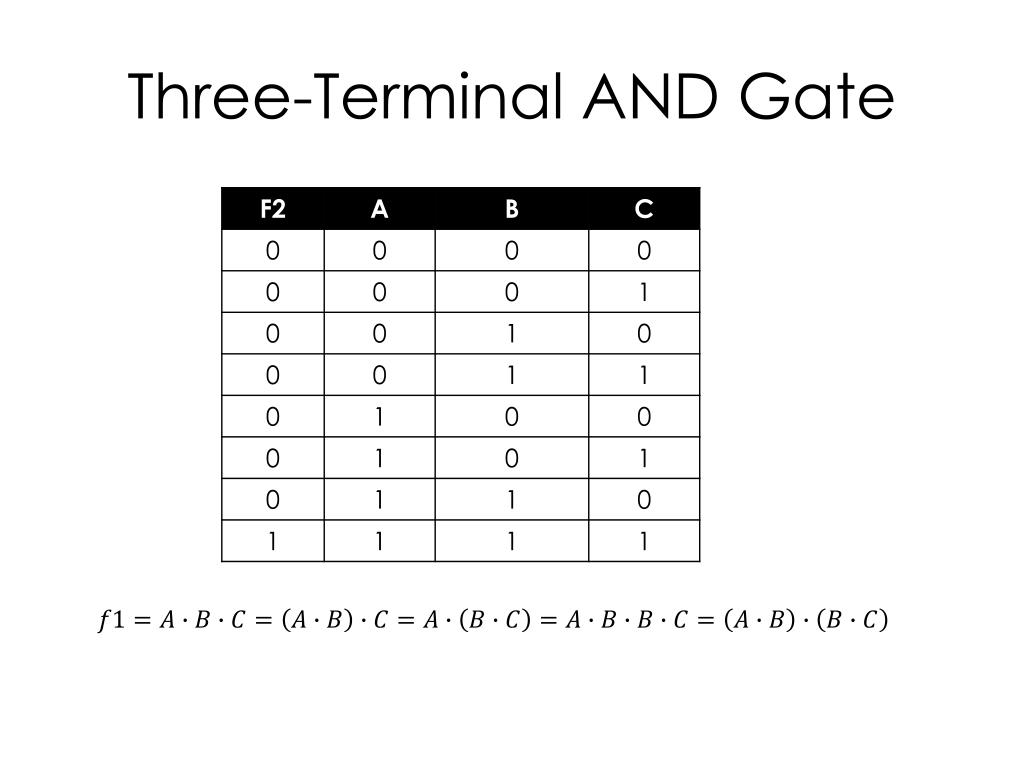

  3. Three-Terminal AND Gate

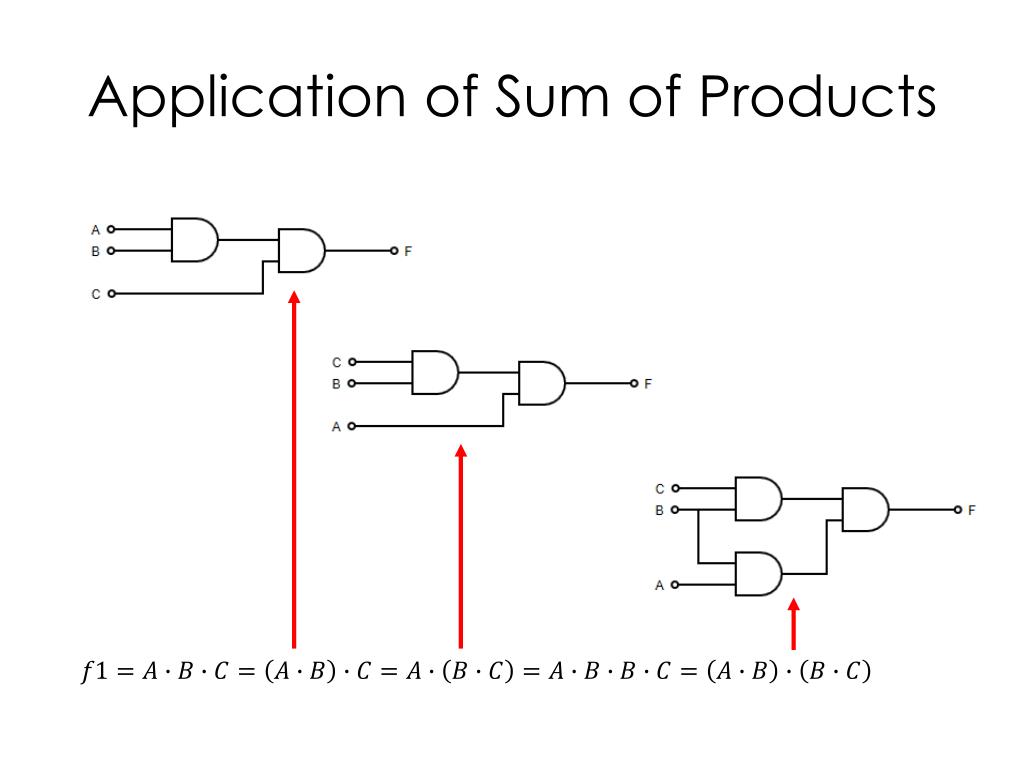

  4. Application of Sum of Products

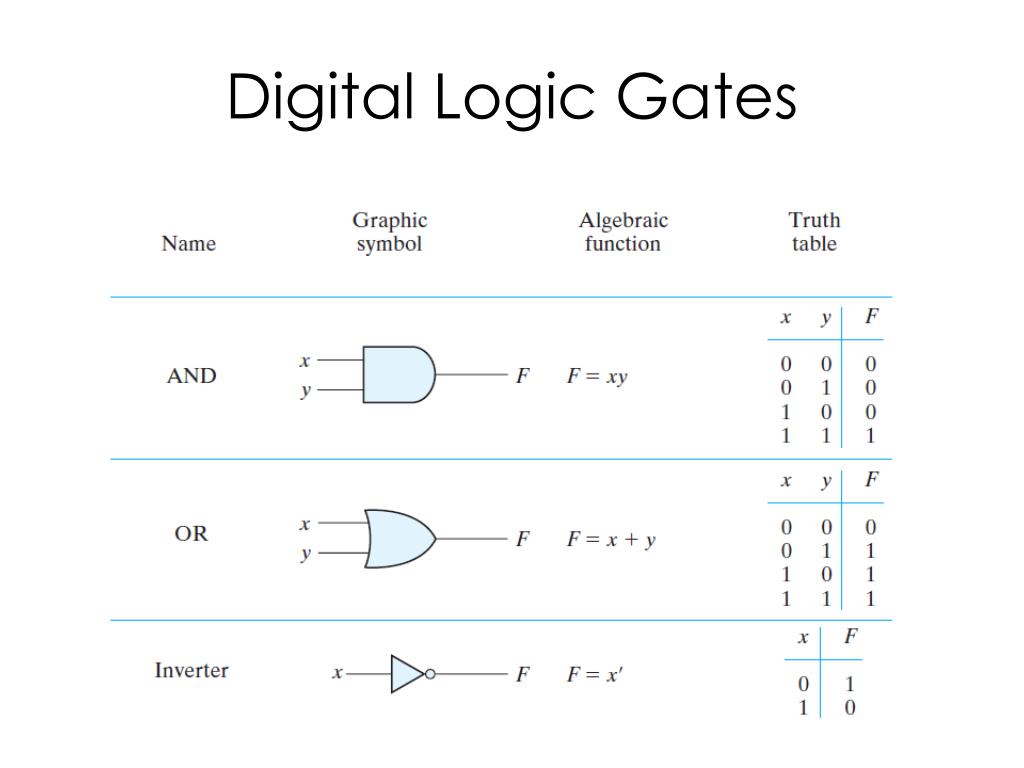

  5. Digital Logic Gates

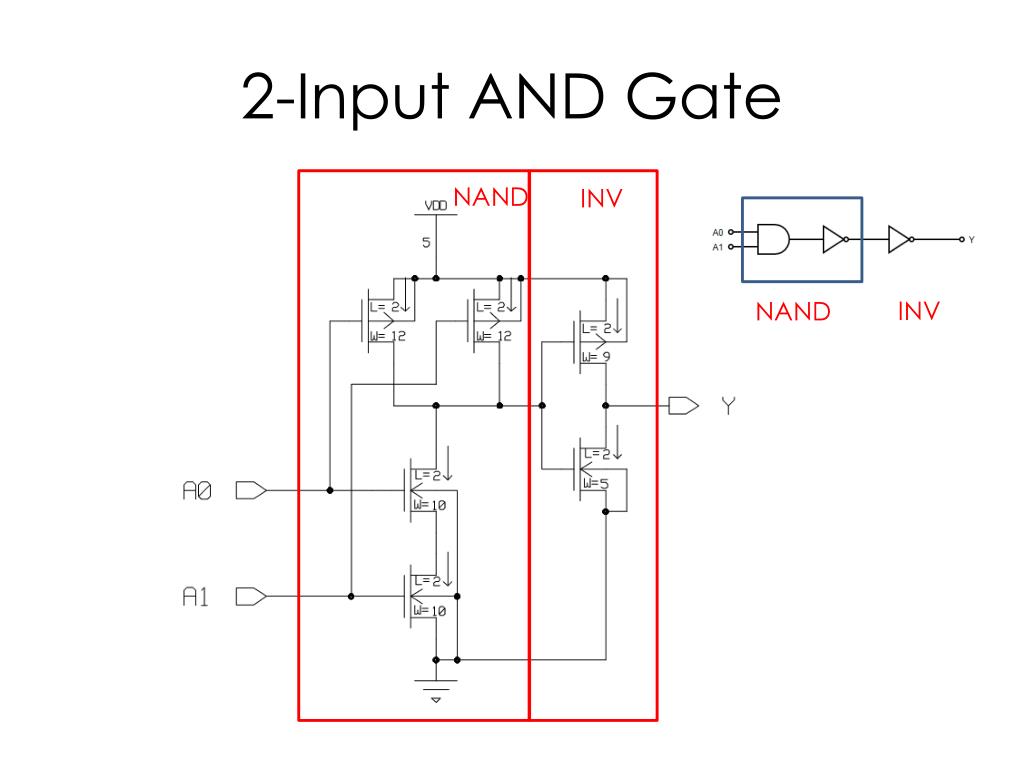

  6. 2-Input AND Gate NAND INV INV NAND

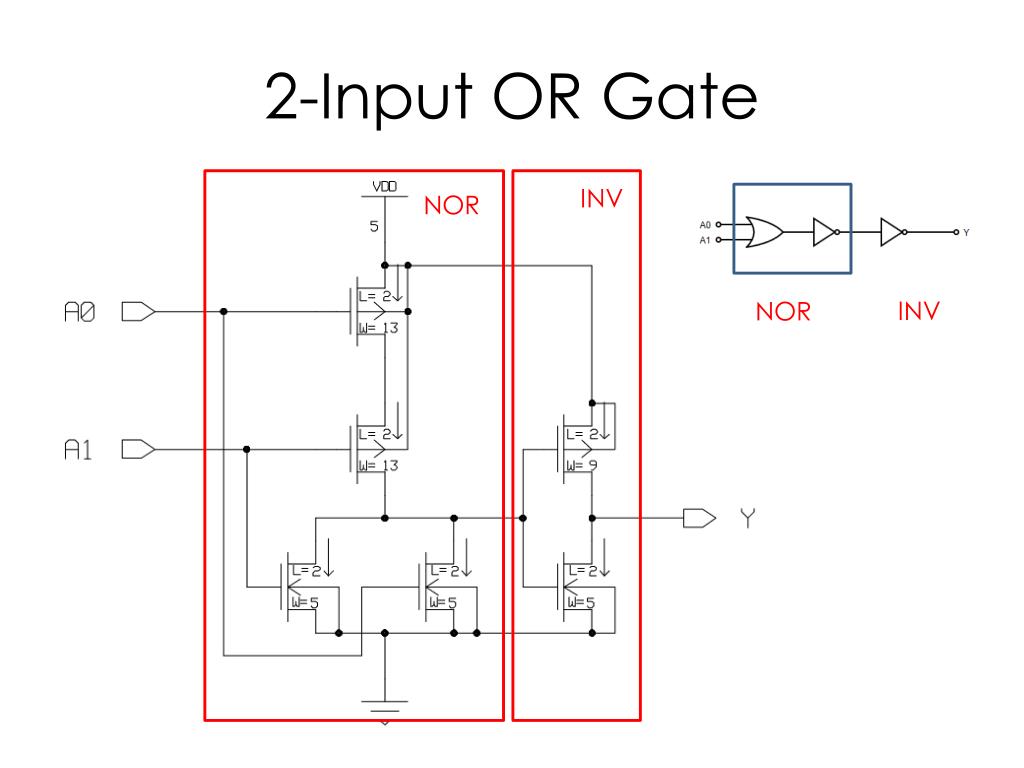

  7. 2-Input OR Gate INV NOR INV NOR

  8. Universal Gates • NAND and NOR are easier to build than AND and OR • NAND and NOR are used to implement AND and OR gates

  9. NAND/NOR

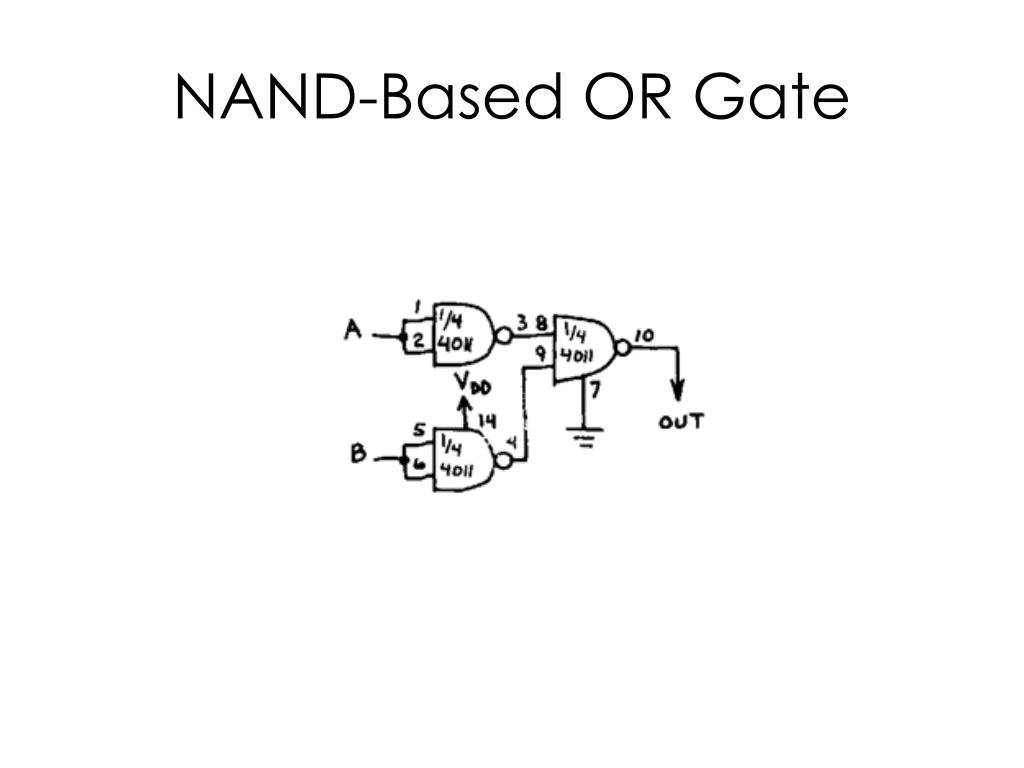

  10. NAND-Based OR Gate

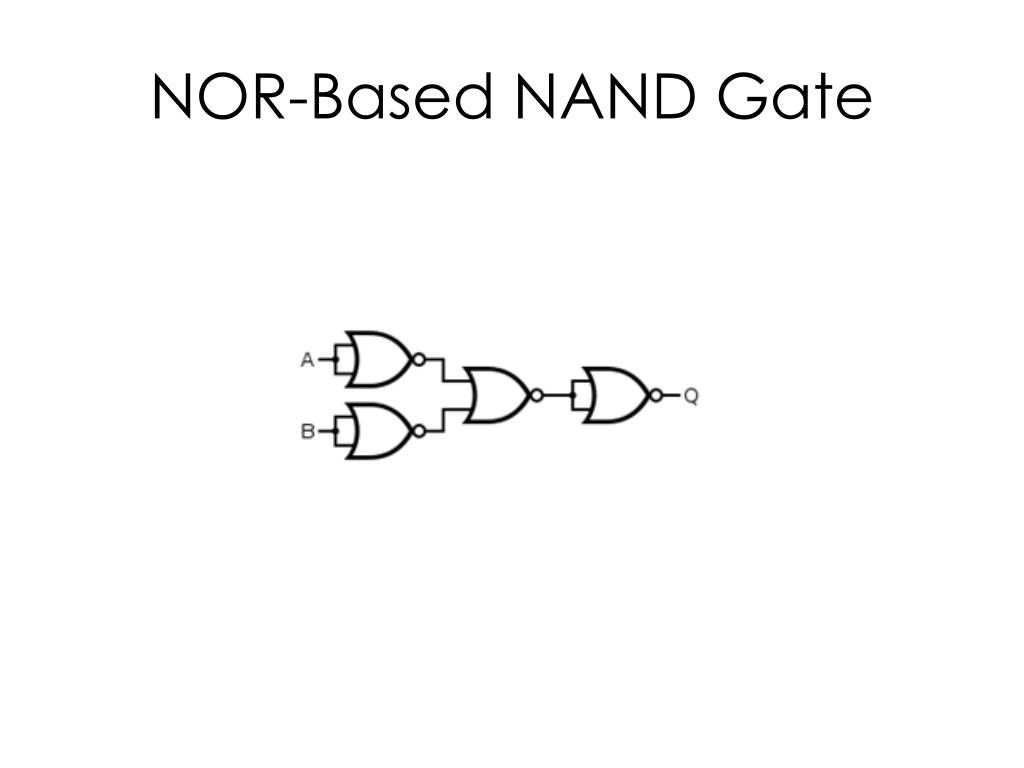

  11. NOR-Based NAND Gate

  12. XOR/XNOR F=1 when x≠y F=1 when x=y

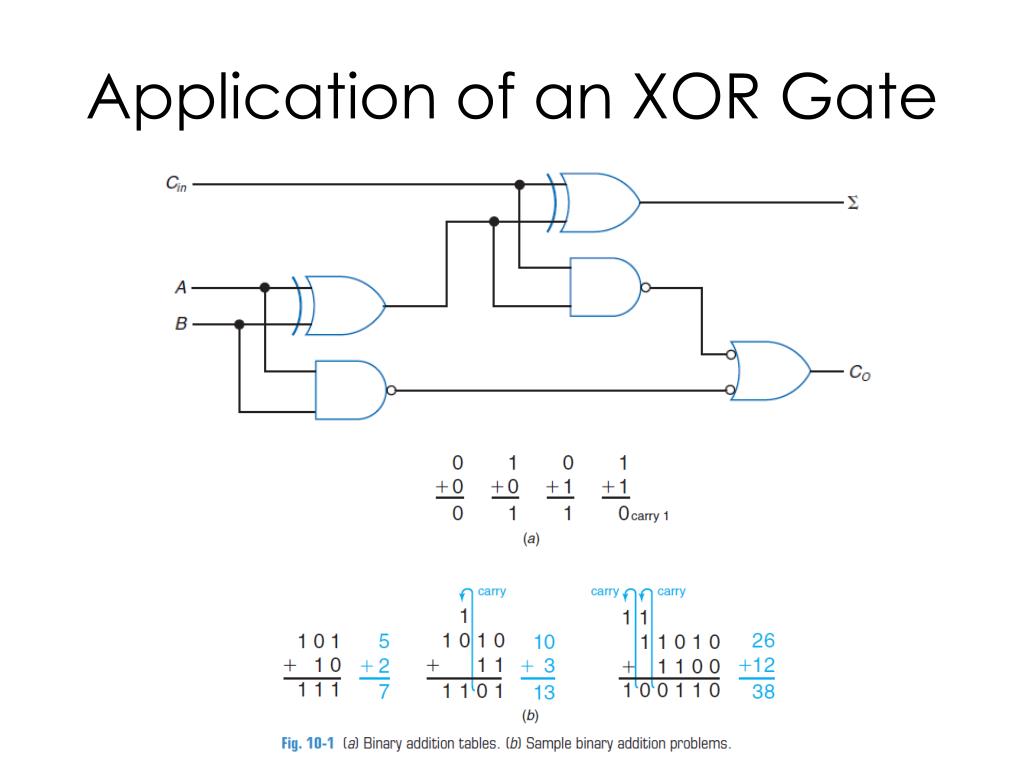

  13. Application of an XOR Gate

  14. Use a XOR to Generate Pseudo-Random Numbers Reference: http://en.wikipedia.org/wiki/Linear_feedback_shift_register

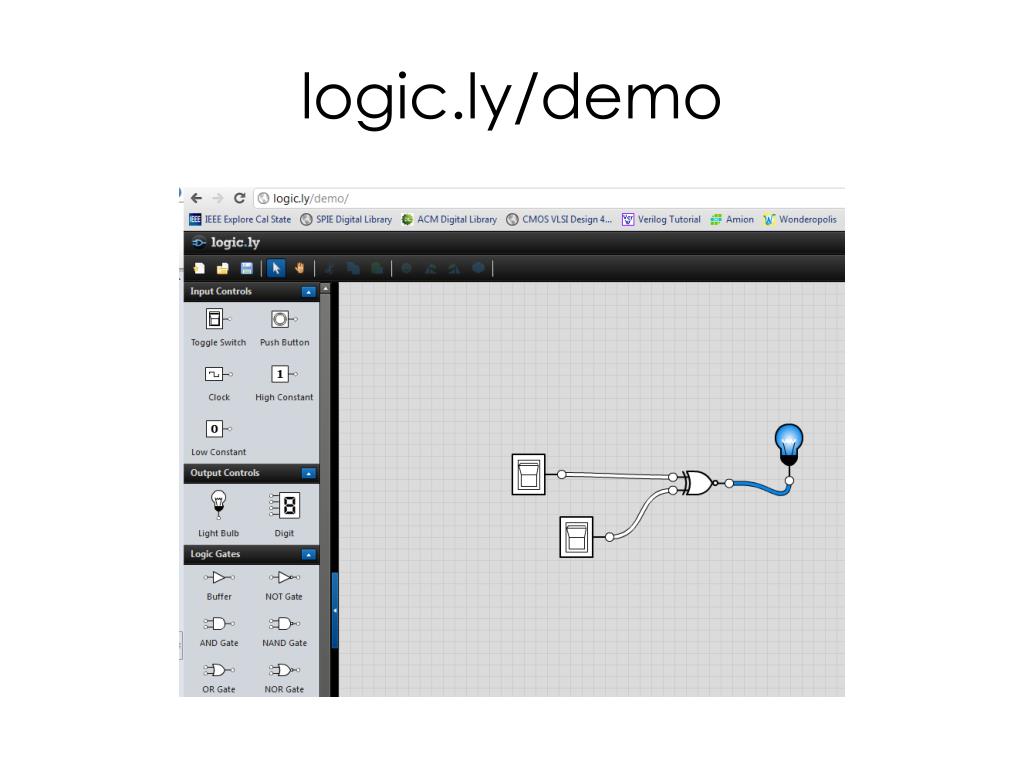

  15. logic.ly/demo

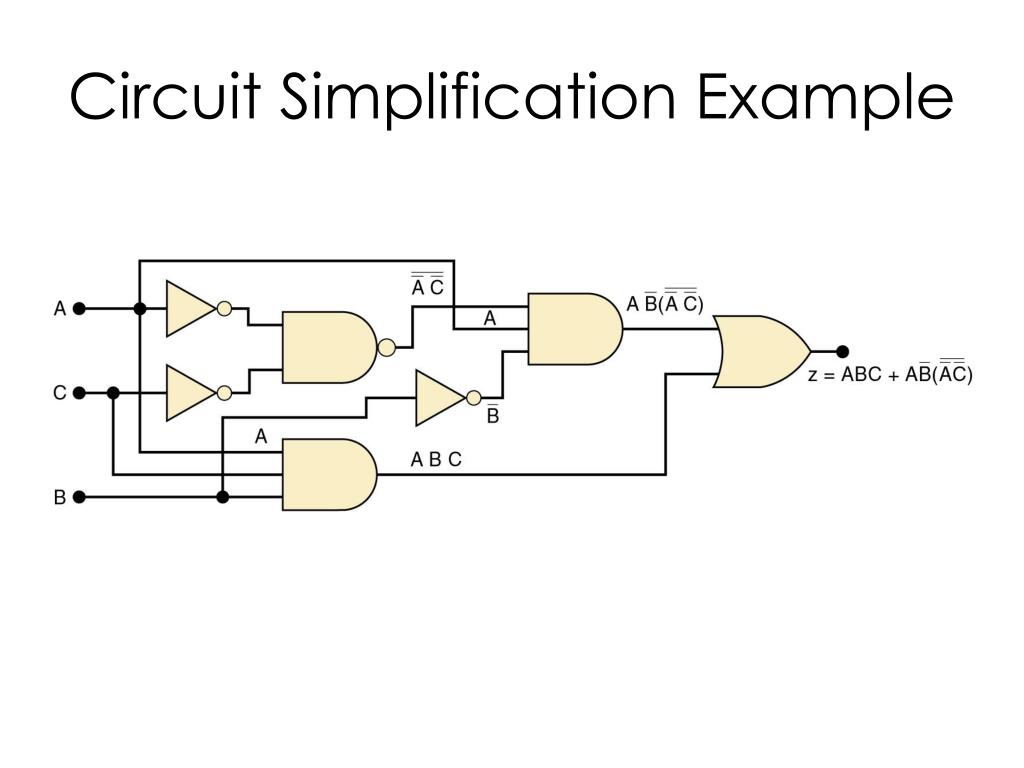

  16. Circuit Simplification Example

  17. Factoring—the first & third terms above haveACin common, which can be factored out: Since B + B = 1, then… z = A(C + B) Solution

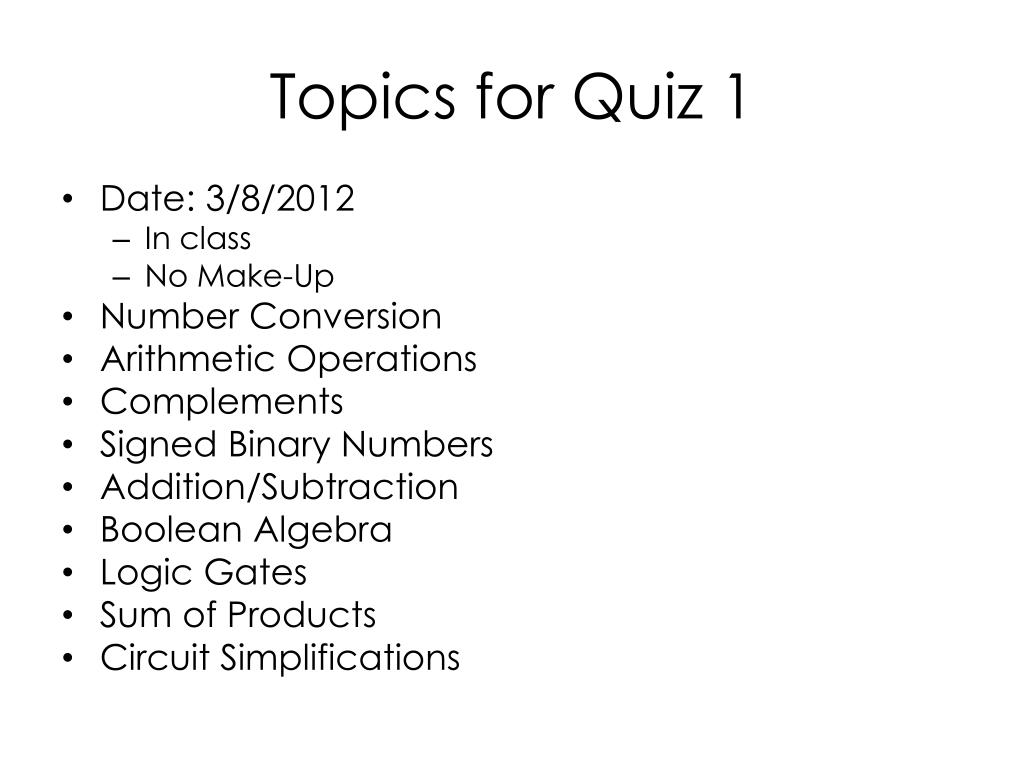

  18. Topics for Quiz 1 • Date: 3/8/2012 • In class • No Make-Up • Number Conversion • Arithmetic Operations • Complements • Signed Binary Numbers • Addition/Subtraction • Boolean Algebra • Logic Gates • Sum of Products • Circuit Simplifications

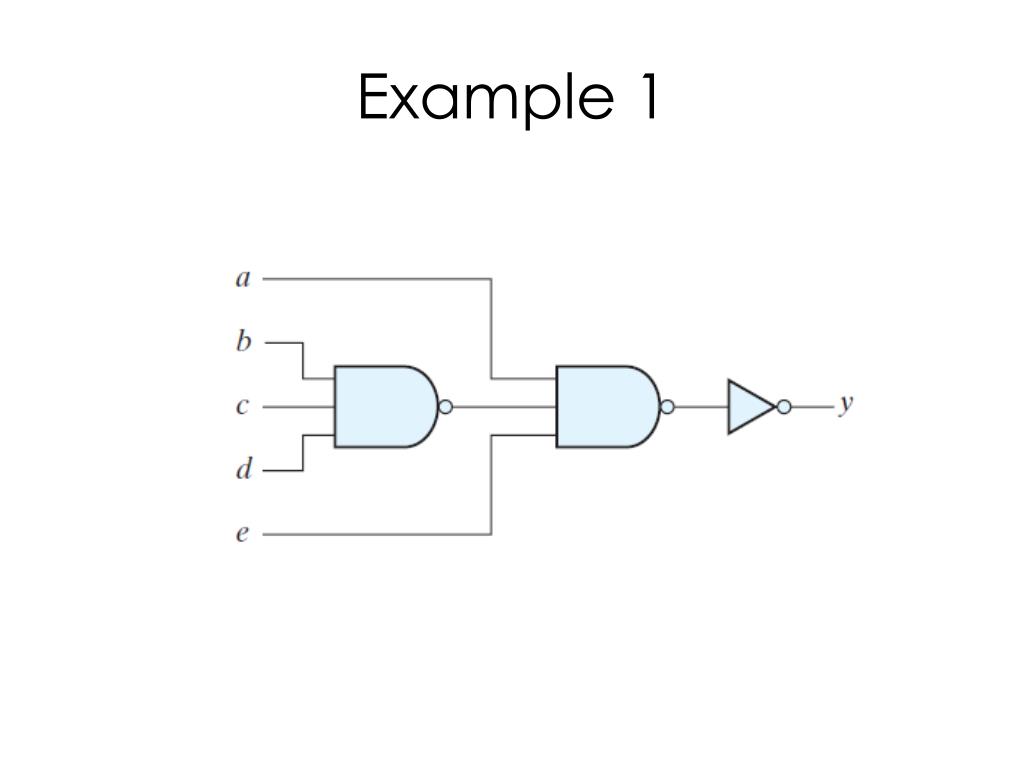

  19. Example 1

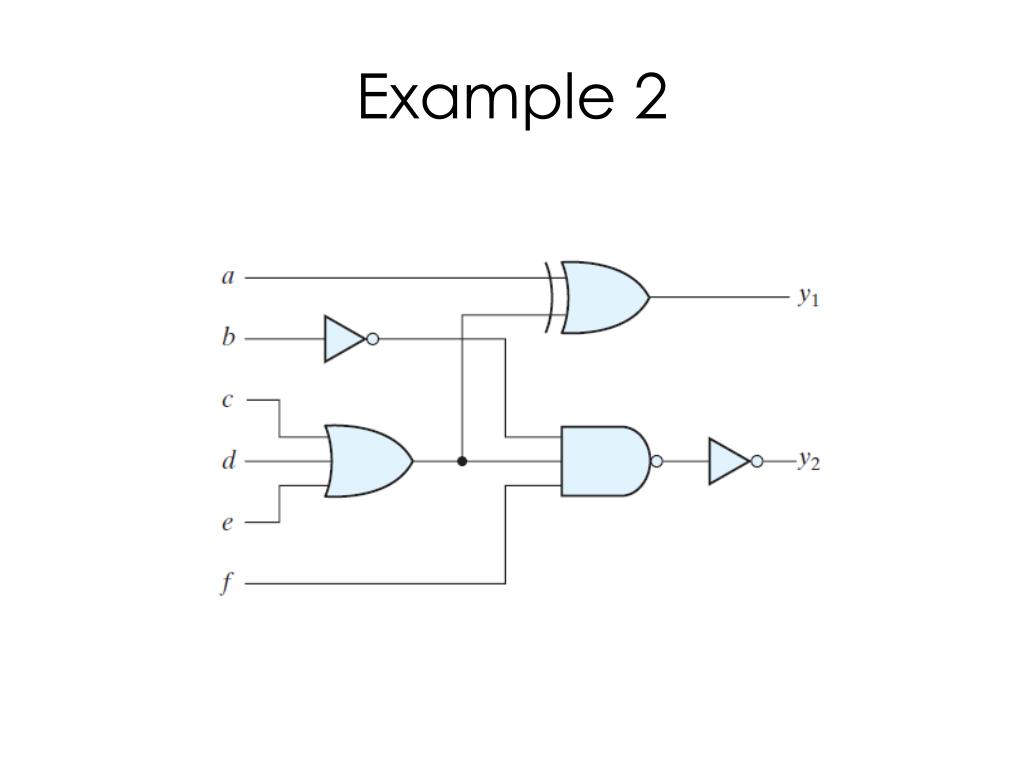

  20. Example 2
