  1. DEPARTMENT OF ANATOMY WINDSOR UNIVERSITYSCHOOL OF MEDICINE Back Dr. SREEKANTH THOTA

  2. Back • The back comprises the posterior aspect of the trunk, inferior to the neck and superior to the buttocks. • The back includes the • 1. Vertebral column: the vertebrae, intervertebral (IV) discs, and associated ligaments • 2. Muscles: superficial layer and deep layer • 3. Spinal cord and meninges(membranes that cover the spinal cord).

  3. Vertebrae Vertebrae: (33) 7 cervical 12 thoracic 5 lumbar 5 sacral 4 coccygeal

  4. Abnormal Curvatures: • Kyphosis • Lordosis • Scoliosis Excess of Thoracic Curvature

  5. Scoliosis Excess of Lateral Curvature

  6. Ligaments of the vertebral column • Anterior longitudinal. • Posterior longitudinal • Ligamentumflava • Ligamentumnuchae • Supra spinous • Interspinous • Intertransverse

  7. Anterior and posterior longitudinal ligaments, Ligamentaflava

  8. Supraspinous ligament and ligamentumnuchae

  9. Interspinous ligaments

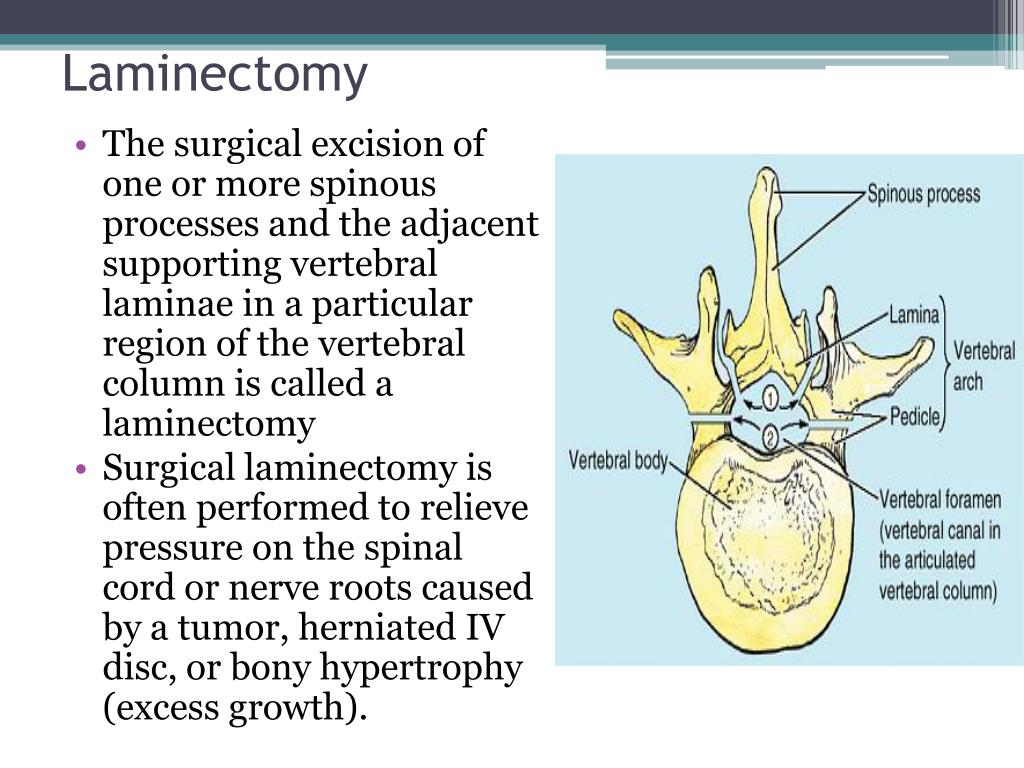

  10. Laminectomy • The surgical excision of one or more spinous processes and the adjacent supporting vertebral laminae in a particular region of the vertebral column is called a laminectomy • Surgical laminectomy is often performed to relieve pressure on the spinal cord or nerve roots caused by a tumor, herniated IV disc, or bony hypertrophy (excess growth).

  11. Back Muscles • Muscles of the back are organized into superficial, intermediate, and deep groups. • Muscles in the superficial and intermediate groups are extrinsic muscles because they originate embryologically from locations other than the back. They are innervated by anterior rami of spinal nerves • Muscles of the deep group are intrinsic muscles because they develop in the back. They are innervated by posterior rami of spinal nerves.

  12. Superficial Group: (attach upper extremity to the vertebral column) • Trapezius • Latissimusdorsi • Levator scapulae • Rhomboid major & minor

  13. Intermediate group of back muscles • 1.Serratus posterior superior • 2.Serratus posterior inferior

  14. Deep Layer: (postural in function) • Erector spinae – iliocostalis, longissmus, spinalis • Splenius capitis & splenius cervicis

  15. Deepest Layer : Transversospinalis group • Semispinalis • Multifidus • Rotators

  16. Spinal Cord & the Meninges

  17. Spinal Cord • The spinal cord begins as a continuation of the medulla oblongata the caudal part of the brainstem. • In adults, the spinal cord is 42 to 45 cm long and extends from the foramen magnum in the occipital bone to the level of the L1 or L2 vertebra. • In newborns extends till lower border of L3 • Beyond this level a thin filament extends, which is FilumTerminale

  18. Spinal Cord • The spinal cord is enlarged in two regions in relationship to innervation of the limbs. • The cervical enlargement extends from the C4 through T1 segments of the spinal cord. • The lumbosacral (lumbar) enlargement extends from T11 through S1 segments of the spinal cord.

  19. Spinal Meninges and Cerebrospinal Fluid • Spinal Dura Mater: The spinal dura mater is separated from the periosteum-covered bone and the ligaments that form the walls of the vertebral canal by the epidural space. • This space is occupied by the internal vertebral venous plexus embedded in a fatty matrix (epidural fat).

  20. Arachnoid Mater • Delicate, fibroelastic layer • Separated from the dura by the subdural space • Separated from the piamater by the subarachnoid space • Connected to the pia by fibrous strands called ArachnoidTrabeculae.

  21. Spinal Pia Mater • The spinal pia mater, the innermost covering membrane of the spinal cord. • The spinal cord is suspended in the dural sac by the terminal filum and especially by the right and left sawtoothdenticulate ligaments which run longitudinally along each side of the spinal cord

  22. Spinal Nerves 31 pairs of spinal nerves: • Cervical – 8 • Thoracic – 12 • Lumbar – 5 • Sacral – 5 • Coccygeal – 1 • Each spinal nerve has a dorsal & ventral root. • C1 lacks a dorsal root in 50% of the cases. • Spinal roots unite at the intervertebral foramen to form a spinal nerve

  23. Blood Supply of the Spinal Cord Arterial supply Ant spinal arteryPost spinal artery Br of vertebral Br of vertebral or Post infcerebellar artery (PICA) These vessels are reinforced by blood from segmental arteries called Radicular arteries.

  24. Lumbar puncture • Introduction of long needle into lumbar subarachnoid space to either draw CSF out or put drugs into the CSF. • 3rd and 4th lumbar spines are marked • 4th lumbar spine usually lies on a line joining iliac crests • Lumbar Puncture Layers  • 1. Skin2. Superficial fascia3. Supraspinous ligament4. Interspinous ligament5. Ligamentumflavum6. Epidural space containing the internal vertebral venous plexus7. Dura mater8. Arachnoid9. Subarachnoid space containing cerebrospinal fluid. • And remember Pia is not Pierced

  25. Lumbar Puncture Layers Mnemonic • Some Super Supra Long L E Ds Are Substitutes.

  26. Epidural block • Anaesthetic injected into epidural space of sacral canal – either of the following 3 ways… • Sacral hiatus (caudal epidural) using sacral cornua as landmarks • Posterior sacral foramina (transsacral epidural) • Lumbar region • Surgery below diaphragm, childbirth, caesarian • Anesthetic solution spreads superiorly to act on spinal nerves S2 to Co1

  27. Epidural block

  28. Sacral hiatus (caudal epidural)
