Design Management: a Collabortive Design Solution ECMFA 2013 Montpellier, France. Maged Elaasar (Presenter) Senior Software Engineer, IBM melaasar@ca.ibm.com Jim Conallen Senior Software Engineer, IBM jconallen@us.ibm.com. Design is a Key Phase of Development Lifecycle.
E N D
Design Management: a Collabortive Design Solution ECMFA 2013 Montpellier, France Maged Elaasar (Presenter)Senior Software Engineer, IBMmelaasar@ca.ibm.com Jim ConallenSenior Software Engineer, IBMjconallen@us.ibm.com
Design is a Key Phase of Development Lifecycle • Reduces software development complexity • Identifies issues early in development lifecycle • Documents technical decisions for stakeholders • Accelerates implementations through model-driven development
Challenges for Design Tools Today • Designers work in silos unaware of team activities • Difficult to express designs in a suitable formalism • Difficult to share designs and get feedback from stakeholders • Difficult to work in parallel on design with other designers • Difficult to manage change and variability of design • Difficult to link designs to other lifecycle artifacts • Difficult to trace and analyze the impact of design changes • Difficult to create reports across multiple designs and lifecycle artifacts
Required Design Tool Features • CollaborativeTeam Access • Team Awareness • Lifecycle integration • Configuration management • Parallel development • Expressive Design Domains
Design Management: a Collaborative Design Solution • Rational Design Management (DM) Rational Software Architect DM Rational Design Management Rational Rhapsody DM
Collaborative Team Access • Shared design respository with one or more clients • Access with role-based permissions • Search using keywords or queries • Browse elements and discover relationships • Collaborate by mark-up, comment, and review RSA Client Rhapsody Client Web Client
Team Awareness • Provide a project overview dashboard as a mashup of widgets
Lifecycle Integration • Create links to other lifecycle artifacts • Preview link details and navigate to the linked artifact • Create reports and generate documents that cover linked artifacts • Analyze the impact of change to artifacts across the lifecycle
Configuration Management • Designs are organized into project • Designs evolve with change sets producing new versions • Design versions are recorded in one or more configurations • A configuration can be changeable (workspace) or frozen (snapshot) • Configurations are organized in a hierarchy
Parallel Development • Support a traditional design process • Designer works in a private WS and delivers/rebases to intergration WS • Conflicts are resolved with compare/merge • Support an agile design process • More than one designer work in parallel in same WS • Minimize edit lock-out by maximizing design componentization
Expressive Design Domains • Structured Domains • UML, BPMN • Non Structured Domains • Sketches, Rich Text • Custom Domains • Abstract syntax • Concrete syntax • Tool behavior

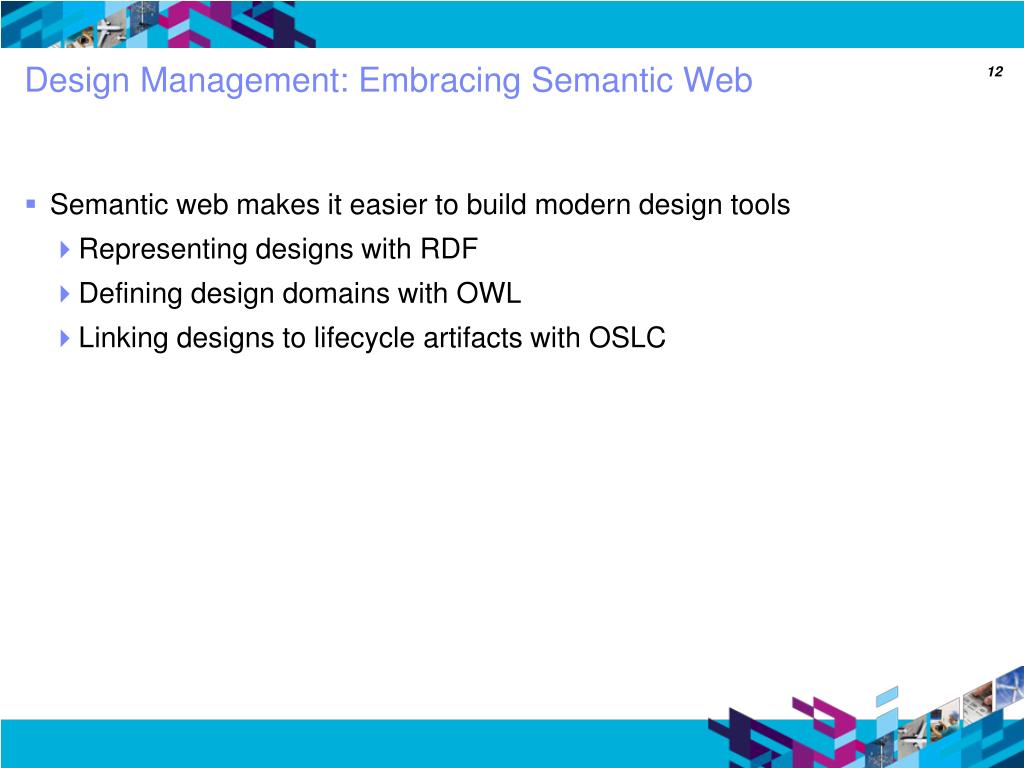

Design Management: Embracing Semantic Web • Semantic web makes it easier to build modern design tools • Representing designs with RDF • Defining design domains with OWL • Linking designs to lifecycle artifacts with OSLC
Representing Designs with RDF • Designs are represented as RDF graphs • Design integration (multi-classification, aliases) • Design extension (open world assumption) • Design modularization (multi-definition) • Separation of concerns • Parallel development <rdf:Description rdf:about="#activity1"> <rdfs:label>Activity 1</rdfs:label> <rdf:type rdf:resource=“uml#Activity”/> <rdf:type rdf:resource=“bpmn#Activity”/> </rdf:Description> <rdf:Description rdf:about="#William"> <rdf:sameAs rdf:resource=“#Bill”/> </rdf:Description> <rdf:Description rdf:about=“people#Person"> <rdf:equivalentClass rdf:resource=“species#Human”/> </rdf:Description> <rdf:Description rdf:about=“#activity1"> <uml:isReadOnly>true</uml:isRealOnly> <notation:Diagram rdf:resource=“#Diagram1”/> </rdf:Description>
Defining Design Domains with OWL • Design domains are defined with OWL ontologies that define • Syntax (some validation, reflective tooling) • Semantics (reasoning, consistency check) • Extra tooling annotations (e.g., componentization, cascade delete) • Generic mapping from/to MOF-defined metamodels • Support for mapping profiles (using multi-classification) <rdf:Description rdf:about=“uml#context"> <rdfs:label>Context</rdfs:label> <rdf:type rdf:resource=“owl#ObjectProperty”/> <rdf:domain rdf:resource=“uml#Comment”/> <rdf:range rdf:resource=“uml#Namespace”/> <dmcore:cascadeDelete rdf:resource=“dmcore:cd-domain”/> </rdf:Description> <rdf:Description rdf:about=“uml#Comment"> <rdf:type rdf:resource=“owl#Class”/> <rdfs:subClassOf> <owl:Restriction> <owl:onProperty rdf:resource=“uml#context”/> <owl:maxCardinality>1</owl:maxCardinality> </owl:Restriction> </rdfs:subClassOf> <rdf:type rdf:resource=“dmcore:GraphType”/> </rdf:Description> <rdf:Description rdf:about=“#class1 "> <rdf:type rdf:resource=“uml#Class”/> <rdf:type rdf:resource=“sysml#Block”/> <sysml:isEncapsulated>true</sysml:isEncapsulated> </rdf:Description>
Linking Designs to Lifecycle Artifacts with OSLC • DM adopts Open Services for Lifecycle Collaboration (OSLC) • Designs are represented using linked data (URI, RDF graph, etc.) • Designs have expected OSLC properties (e.g., dcterms:title) • Designs may use predefined link propeties (e.g.,dmoslc:validatedBy) <rdf:Description rdf:about="http://company.org/dm/model/123#class1"> <rdf:type rdf:resource=“uml#Class”/> <dcterms:title>Class 1</dcterms:title> <dmoslc:validatedBy rdf:resource=“../testcase1”/> </rdf:Description>
Contributions and Future Work • Described challenges facing software design tools today • Identified features that should help tools meet these challenges • Provided examples in the context of Design Management (DM) tool • Discussed how semantic web can help realize some of those features • Future work includes: • Assess impact of DM on design team productivity through case studies • Define ways to define a rigorous design process • Support configurations across the lifecycle • Support automation of design migration due to domain evolution
