Problem. Let the following integers represent lengths of codewords: 1,2,3,4,4 Can we produce a prefix code with the codewords of the given lengths Construct the code, i.e., obtain the codewords. Solution.

tamas
Download Presentation

Problem

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

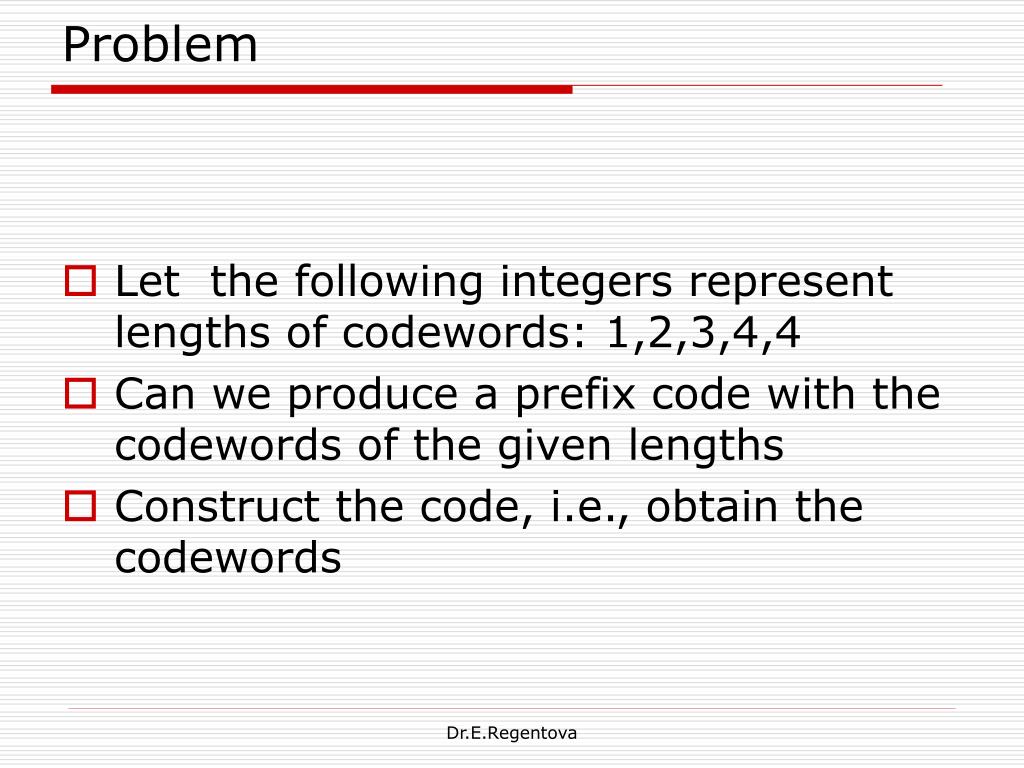

  1. Problem • Let the following integers represent lengths of codewords: 1,2,3,4,4 • Can we produce a prefix code with the codewords of the given lengths • Construct the code, i.e., obtain the codewords Dr.E.Regentova

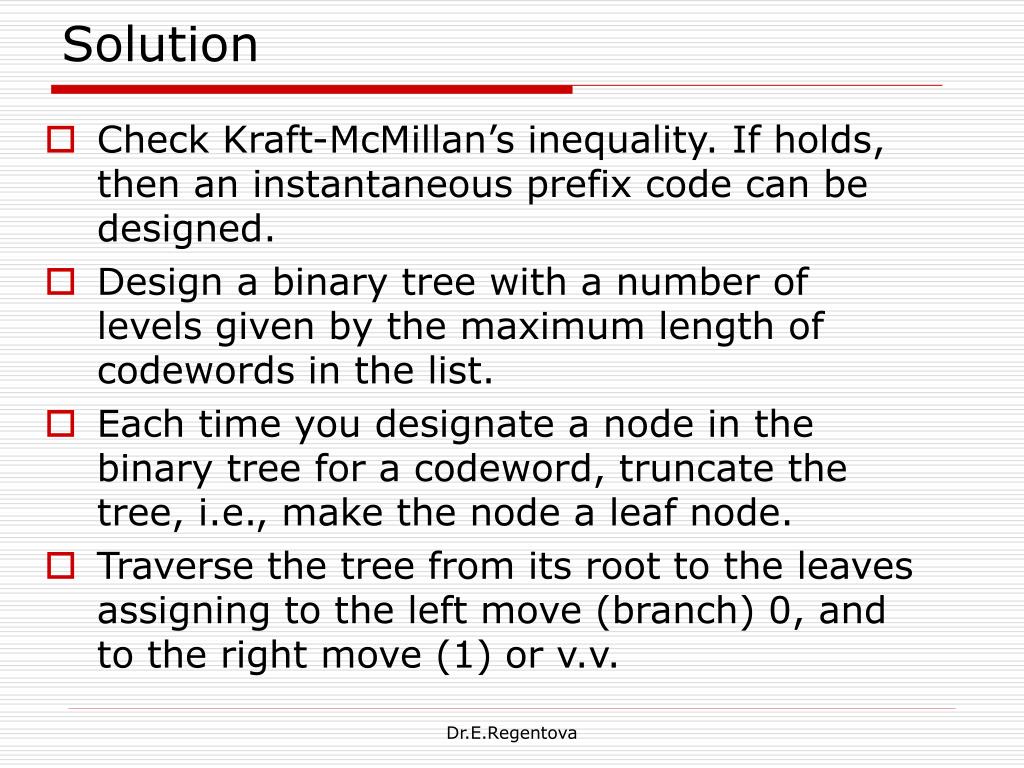

  2. Solution • Check Kraft-McMillan’s inequality. If holds, then an instantaneous prefix code can be designed. • Design a binary tree with a number of levels given by the maximum length of codewords in the list. • Each time you designate a node in the binary tree for a codeword, truncate the tree, i.e., make the node a leaf node. • Traverse the tree from its root to the leaves assigning to the left move (branch) 0, and to the right move (1) or v.v. Dr.E.Regentova

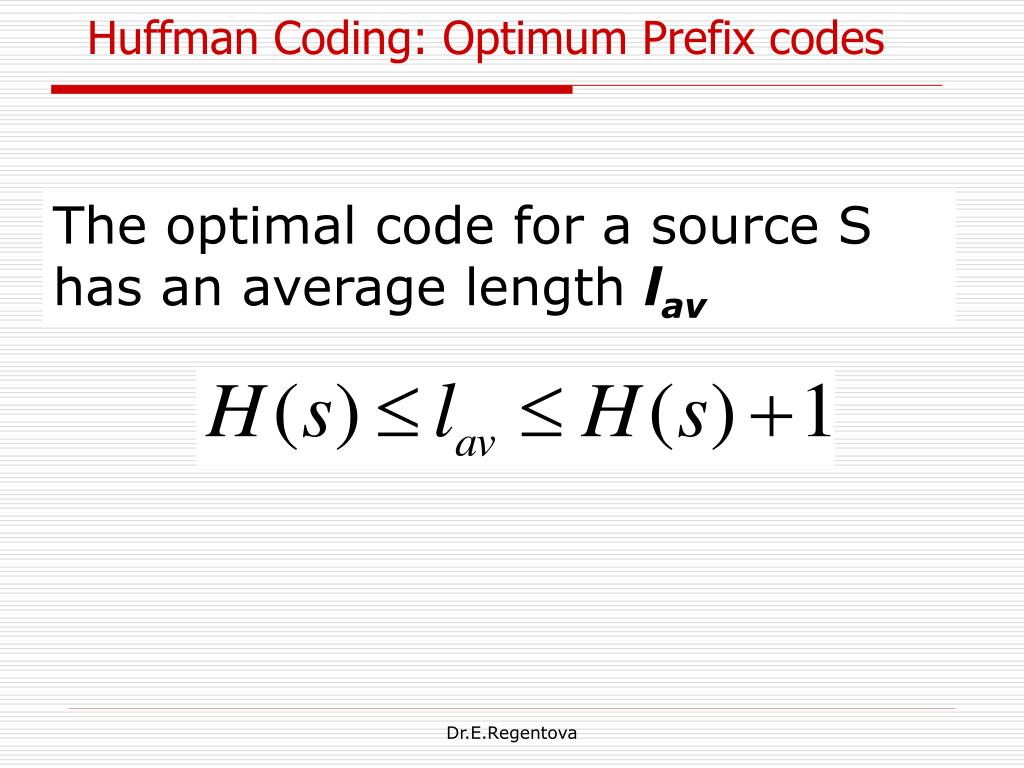

  3. Huffman Coding: Optimum Prefix codes The optimal code for a source S has an average length lav Dr.E.Regentova

  4. Assumptions • Symbols that occur more frequently will have shorter codewords. • Lemma: In an optimum code, two symbols that occur least frequently will have the same length. • Two less probable symbols of the alphabet differ in the last bit. Dr.E.Regentova

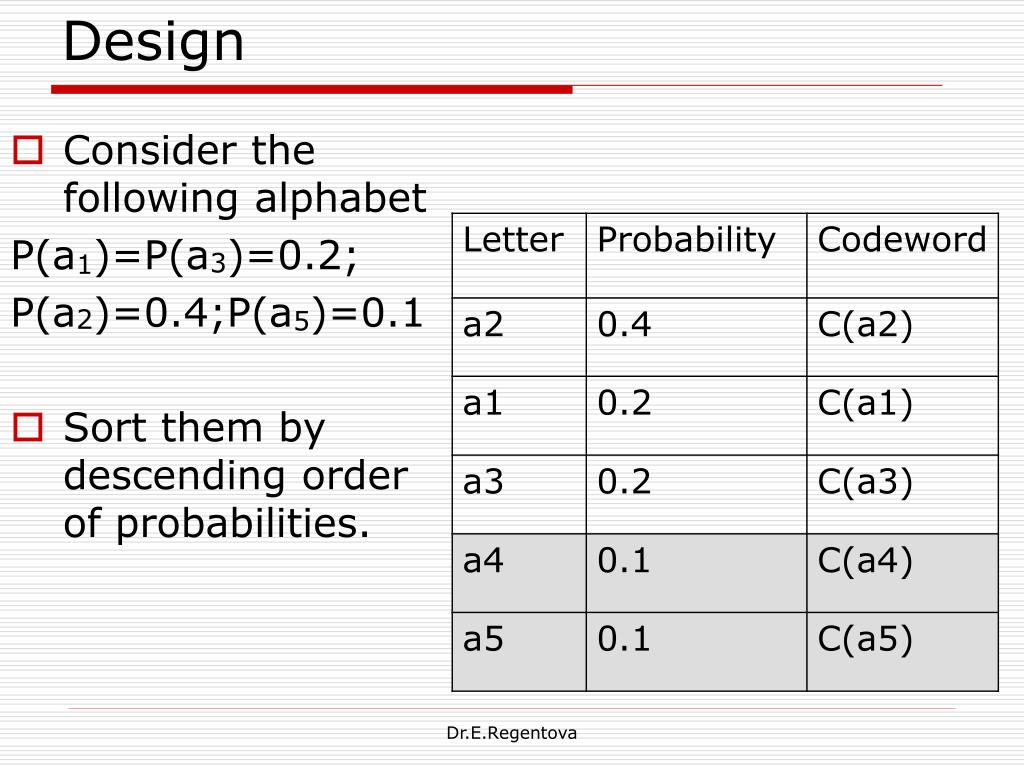

  5. Design • Consider the following alphabet P(a1)=P(a3)=0.2; P(a2)=0.4;P(a5)=0.1 • Sort them by descending order of probabilities. Dr.E.Regentova

  6. Design • For two less probable symbols assign codewords as C(a4)=β1*0 (1) C(a5)=β1*1, where * is concatenation. • Combine two least probable symbols into one (denote a45)with a probability being equal to the sum of probabilities of these two symbols. This way, we design a new alphabet. • Resort the list. Dr.E.Regentova

  7. Design Dr.E.Regentova

  8. Design • This time, two less probable symbols are assigned c(a3) = β2*0 c(a45)= β2*1 • But, c(a45)= C(a4)+ C(a5)= β1*0+ β1*1= β1, hence β1 = β2*1 • We can rewrite c(a4)= β1*0= (β2*1) *0= β2*10 c(a5)=β1*1= (β2*1) *1= β2*11 • Combine again to obtain a new symbol a345 in the new alphabet. Resort the list. Dr.E.Regentova

  9. Design Dr.E.Regentova

  10. Design • Combine again two less probable symbols, i.e, a345 and a1, assigning c(a3451)= β3 • Then c(a345)= β3*0= β2 c(a1)=β3*1 • We can rewrite codewords as c(a3) =β2*0 = (β3*0)*0= β3*00 c(a4)= β2*10= β3*010 c(a5)=β2*11= (β3*0) *11= β3*011 c(a1)=β3*1 Dr.E.Regentova

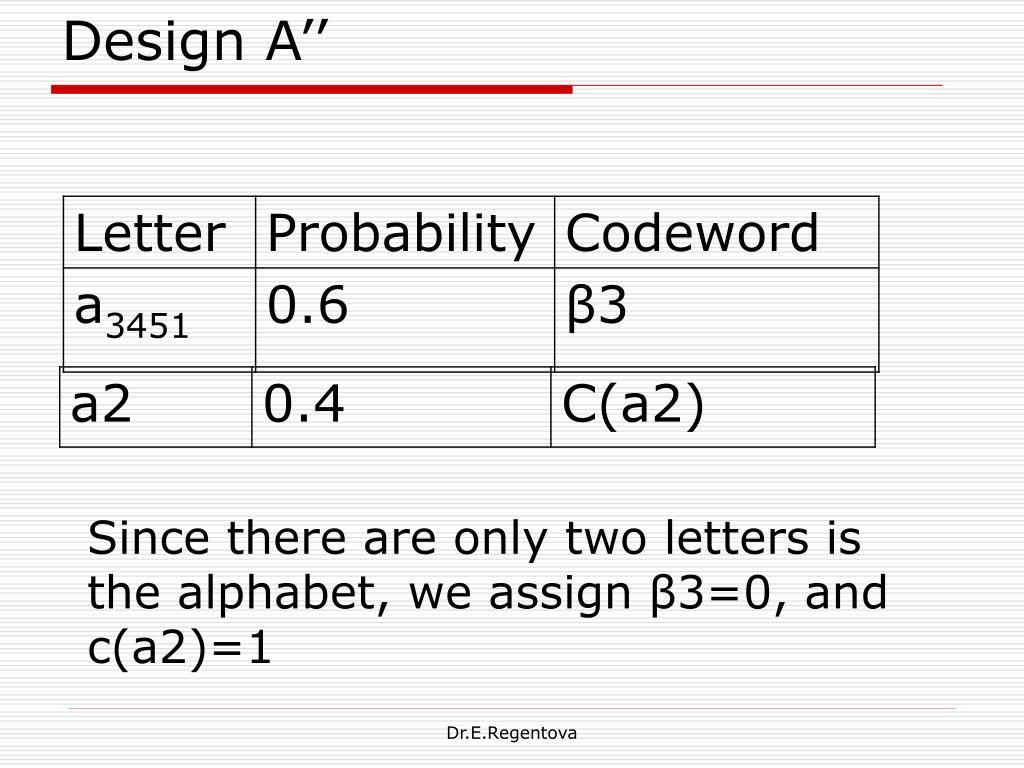

  11. Design A’’ Since there are only two letters is the alphabet, we assign β3=0, and c(a2)=1 Dr.E.Regentova

  12. Design • Assign c(a3451)= β3 = 0 c(a2)=1 c(a1)= β3 *1=01 c(a3) = β3*00=000 c(a4)= β3*010=0010 c(a5)= β3*011=0011 Dr.E.Regentova

  13. Properties of the code • Lav = 2.2b/letter • H= 2.278 b/letter • Redundancy :R=0.078 b/symbol • Variance ? Dr.E.Regentova

  14. Code 2: • When resorting probabilities, put the combined letter always before any other letter of the same probability. • This way, the corresponding code will be of a lower variance. Dr.E.Regentova

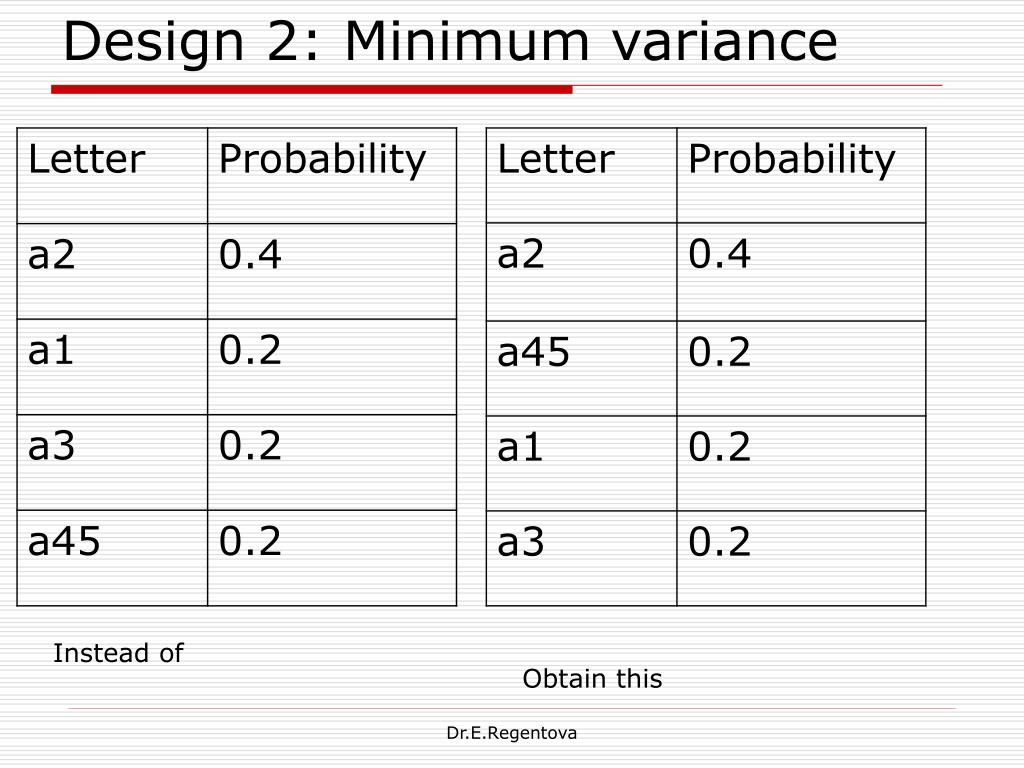

  15. Design 2: Minimum variance Instead of Obtain this Dr.E.Regentova

  16. Building Huffman codes:2 Dr.E.Regentova

  17. The algorithm Step 1: G+H = H 1 = 0.010; Step 2: E+F = F1 = 0.018 Step 3: F1 + H 1 = H 11 = 0.028;Step 4: H 11 + D = H 111 = 0.109 Step 5: B+C = C1 = 0.162; Step 6: H 111 + C1 = H 1Y =0.271 Dr.E.Regentova

  18. Traversing Huffman Tree Dr.E.Regentova

  19. Resulted Code Dr.E.Regentova

  20. Properties of the resulted code l = 1.6 bits/symbol H= 1.22 b/symbol Redundancy: 0.62b/symbol Dr.E.Regentova

  21. Code rate for the Huffman code For Huffman code, it is proved that if Pmax ≥ 0.5, the upper bound is H(S) +Pmax; If Pmax ≤, 0.5, the upper bound is H(S) +Pmax+0.086; Dr. E.Regentova
