B field and R VTX

B field and R VTX. Yasuhiro Sugimoto KEK Feb.4, 2008. Baseline design for LOI. Agreement in a phone meeting Two configurations 5 single layers 3 doublets Same inner and outer radii (Rout=60mm) |cos q |=0.95 for inner three layers and outer two layers have same length as the 3ed layer

taber
Download Presentation

B field and R VTX

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. B field and RVTX Yasuhiro Sugimoto KEK Feb.4, 2008

  2. Baseline design for LOI • Agreement in a phone meeting • Two configurations • 5 single layers • 3 doublets • Same inner and outer radii (Rout=60mm) • |cosq|=0.95 for inner three layers and outer two layers have same length as the 3ed layer • |cosq|=0.95 for inner two doubles and outer doublet has the same length as the 2nd doublet

  3. Pair background simulation • Generator: CAIN • Crossing angle: 14 mrad • B-field: 3, 3.5, and 4T • Machine parameters: Nominal option in 2005 * Talk by Andrei Seryi at SiD Workshop at SLAC, Jan. 2008

  4. Distribution of p.b. core

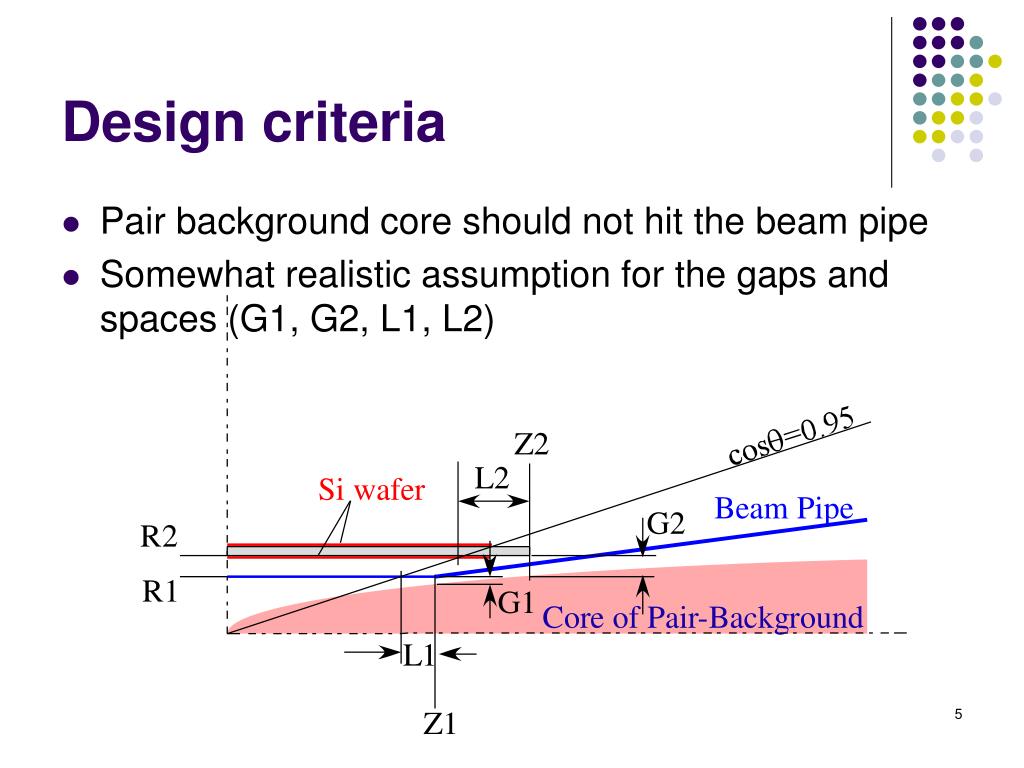

  5. Design criteria • Pair background core should not hit the beam pipe • Somewhat realistic assumption for the gaps and spaces (G1, G2, L1, L2)

  6. Results • Assumption • G1 = 2 mm • G2 = 4 mm (core-pipe:2mm and pipe-ladder:2mm) • L1 = 5 mm • L2 = 20 mm • Minimum radius
