Cell Cycle

Cell Cycle. Cell Cycle. describes the life cycle of a cell differs fundamentally between prokaryotes & eukaryotes shares four features among all cell types reproductive signal DNA replication genome segregation cytokinesis produces a new individual or new parts. Prokaryotic Cell Cycle.

steel-hunt
Download Presentation

Cell Cycle

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Cell Cycle

  2. Cell Cycle • describes the life cycle of a cell • differs fundamentally between prokaryotes & eukaryotes • shares four features among all cell types • reproductive signal • DNA replication • genome segregation • cytokinesis • produces a new individual or new parts

  3. Prokaryotic Cell Cycle • one circular chromosome • packed on a protein frame in the nucleoid • anchored to the plasma membrane • chromosome replication yields two anchored circles • cell growth separates anchored circles • annular pinching separates daughter cells Binary Fission

  4. binary fissionin a bacteriumFigure 9.2

  5. chromosome numbers vary widelyTable 9.1

  6. Eukaryotic Cell Cycle • multiple linear chromosomes • wrapped on a protein frame • contained within the nucleus • replication yields two complete sets of chromosomes • mitosis segregates one set of chromosomes to each end of the cell • cytokinesis divides the cytoplasm to form two new cells

  7. Eukaryotic Cell Cycle • mitosis, cytokinesis (M phase) and interphase • interphase represents most of the cell cycle

  8. eukaryotic cell cycleFigure 9.3 growth & biosynthesis growth & biosynthesis

  9. Cell Cycle Decision Making • G1 => S transition & G2 => M transitions require signals • CDKs signal cell cycle transitions • Cyclin-Dependent Kinases • kinases phosphorylate target proteins • phosphorylation activates (some) proteins • Cyclins activate CDKs by allosteric binding • Cyclins cycle

  10. eukaryotic cell cycleregulationFigure 9.4 “Go!” “Don’t go!” “Go!” “Radiation damage! Don’t go!” “Go!” Replicate! “Okay, go!”

  11. external signals stimulate cell division • growth factors stimulate cell division • platelet-derived growth factor • wound healing • interleukins • immune system function • erythropoietin • red blood cell production • each provides information to the cell regarding the needs of the body

  12. Eukaryotic Chromosomes • chromsomes consist of chromatin • double stranded DNA • protein “spools” • chromatin is ~1/2 DNA & 1/2 protein • chromatin is highly organized • DNA wraps around histone proteins to form nucleosomes • during cell division, nucleosomes coil tightly to form highly-condensed chromatin

  13. organization of chromatinFigure 9.5

  14. organization of chromatinFigure 9.6

  15. Replication • during S phase • partially wound DNA is replicated to form two identical copies of each chromosome • two sister chromatids remain attached at the centromere • each chromosome enters M phase as two linked sister chromatids • mitosis separates the chromatids and distributes one to each daughter cell

  16. mitosis: chromatin & cytoskeletonFigure 9.8

  17. events of mitotic phases • Prophase • chromosomes condense • nucleolus disorganizes • spindle apparatus begins to organize • kinetochores forms

  18. mitosis: cartoon versionFigure 9.8

  19. Mitotic spindle apparatusFigure 9.7

  20. events of mitotic phases • Prometaphase • nuclear envelope is fragmented • spindle fibers bind kinetochores • chromosomes begin to migrate to equatorial plate

  21. events of mitotic phases • Metaphase • chromosomes are aligned at equatorial plate • Anaphase • sister chromatids separate • daughter chromosomes migrate to poles • Telophase • prophase is reversed

  22. Animal Cytokinesis PlantFigure 9.10

  23. Cytokinesis: Division of Cytoplasm • Animals • annular pinching by actin & myosin ring • Plants • deposition of cell plate by Golgi vesicles • Organelles are distributed to daughter cells ~randomly

  24. Modes of Reproduction • asexual reproduction • production of genetic clones through mitotic cell divisions • common among plants (vegetative propagation) and unicellular eukaryotes • eliminates costs & risks associated with sexual reproduction • offspring lack genetic variability

  25. Modes of Reproduction • sexual reproduction • offspring exhibit genetic variability • each bears a unique combination of parental genetic contributions • requires • meiosis - reduction of chromosome number from 2n (diploid) to 1n (haploid) • fertilization - combination of 1n parental contributions to produce 2n offspring

  26. Fungal/animal life cyclesFigure 9.12

  27. Modes of Reproduction • meiosis produces • gametes - animals, some protists • spores - fungi, plants, some protists • produce 1n adults • produce gametes • fertilization (gamete fusion) produces • zygotes • produce 2n adults and/or • undergo meiosis

  28. Modes of Reproduction • meiosis • two divisions • reduces 2n parent cell to 1n products • always produces 4 haploid products • begins with 4 homologous chromatids • recombination produces novel chromatids • phases resemble mitotic phases, except • meiosis I - homologs pair at prophase • meiosis I - homologs separate at anaphase

  29. Meiosis I: cartoon versionFigure 9.14

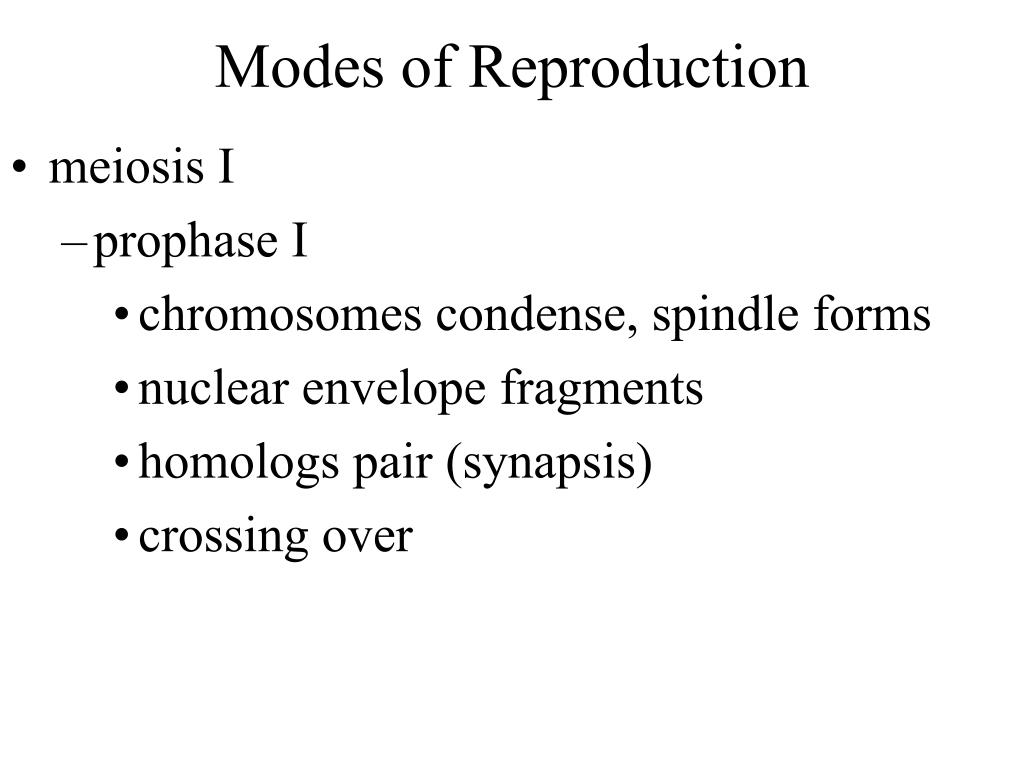

  30. Modes of Reproduction • meiosis I • prophase I • chromosomes condense, spindle forms • nuclear envelope fragments • homologs pair (synapsis) • crossing over

  31. crossing- over occurs during prophase IFigure 9.15 Figure 9.16

  32. Modes of Reproduction • meiosis I • metaphase I • homolog pairs align at equatorial plate • anaphase I • homologs separate to poles • telophase I • may or may not happen

  33. Modes of Reproduction • interkinesis • period between telophase I and prophase II • no replication occurs

  34. Modes of Reproduction • meiosis II • prophase II • reverses telophase I • metaphase II • chromosomes align at equatorial plate • anaphase II • sister chromatids separate to poles • telophase II • reverses prophase

  35. mitosis => identical daughters meiosis => variable daughters Figure 9.17

  36. nondisjunction at anaphase I of meiosisFigure 9.18

  37. Errors of Reproduction • meiotic errors may result in chromosomal disorders • aneuploidy - incorrect genetic complement • nondisjuction • translocation

  38. Errors of Reproduction • meiotic errors may result in chromosomal disorders • polyploidy • 3, 4, or more sets of chromosomes • can perform mitosis (reproduce asexually) • 1, 3,5, etc. cannot perform meiosis

  39. Cell Death • death by necrosis • damage, poison, starvation • death by apoptosis (programmed cell death) • discards un-needed or old cells • signals are common in many organisms • many cancers result from failed apoptosis

  40. apoptosis: programmed cell deathFigure 9.18

  41. cell death mechanismsTable 9.2
