Open channel hydraulic

Open Channel Hydraulic

Hydrology and Water Resources RG

Review of fluid mechanics

Review of fluid mechanics

Fluid mechanics

Fluid mechanics

  • Weight

  • Mass Density

  • Specific weight

  • Specific gravity

  • Hydrostatics

  • Continuity equation

  • Types of flow

  • Energy and Energy Head

  • Bernoulli’s Equation

  • Flow through open channel

Properties of a fluid

Properties of a Fluid

  • Weight

    W = mg(kN, lb)

    • m = mass of fluid (kg, slugs) g = acceleration due to gravity 9.81 m2/sec, 32.2 ft2/sec

  • Mass Density

    • mass of the fluid per unit volume at a standard temperature and pressure

      r = m/V (kg/m3, slugs/ft3)

    • V = volume of fluid (m3, ft3)

    • In the case of water, neglect the variation in mass density and consider it at a temperature of 4oC and at atmospheric pressure; then r= 1,000 kg/m3

Properties of a fluid1

Properties of a Fluid

  • Specific Weight

    • gravitational force per unit volume

    • Units: kN/m3, lb/ft3

    • In SI units, the specific weight of water at a standard reference temperature of 4oC and atmospheric pressure is 9.81 kN/m3

      g = W/V

  • Specific Gravity

    • ratio of the specific weight of a given liquid to the specific weight of pure water at a standard reference temperature

    • Units????

      Sg (fluid) = gfluid/ gwater

  • Specific Gravity of water = ?

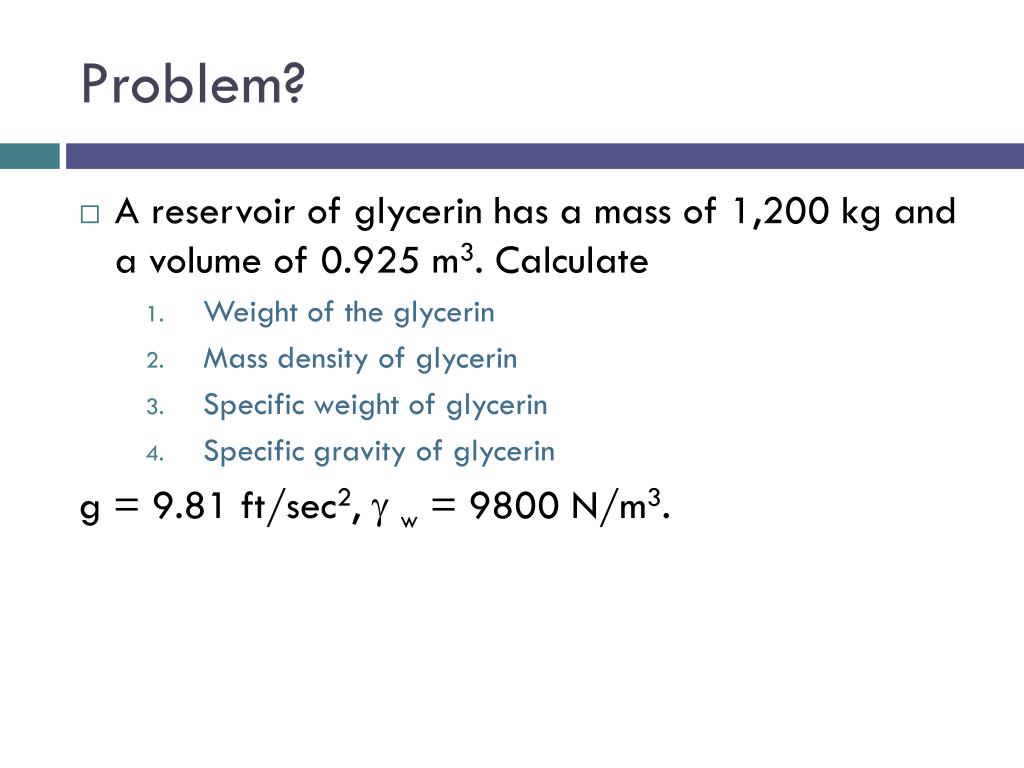

  • A reservoir of glycerin has a mass of 1,200 kg and a volume of 0.925 m3. Calculate

    • Weight of the glycerin

    • Mass density of glycerin

    • Specific weight of glycerin

    • Specific gravity of glycerin

      g = 9.81 ft/sec2, gw = 9800 N/m3.

Open channel flow

Open channel flow



  • Open channel flow – any flow path with a free surface (open to atmosphere)

  • Can be classified as

    • Prismatic channel

      • With constant x-section and a constant bed slope

    • Non-prismatic

      • Varies in both the x-sectional shape and bed slope between any two selected points along the channel length

  • Atmospheric pressure acts continuously, constantly and at every location on water surface therefore is neglected

X section natural channel floodplain

X-section: natural channel & floodplain

Prismatic non prismatic channels

Prismatic & Non-prismatic Channels

X section for open channel flow

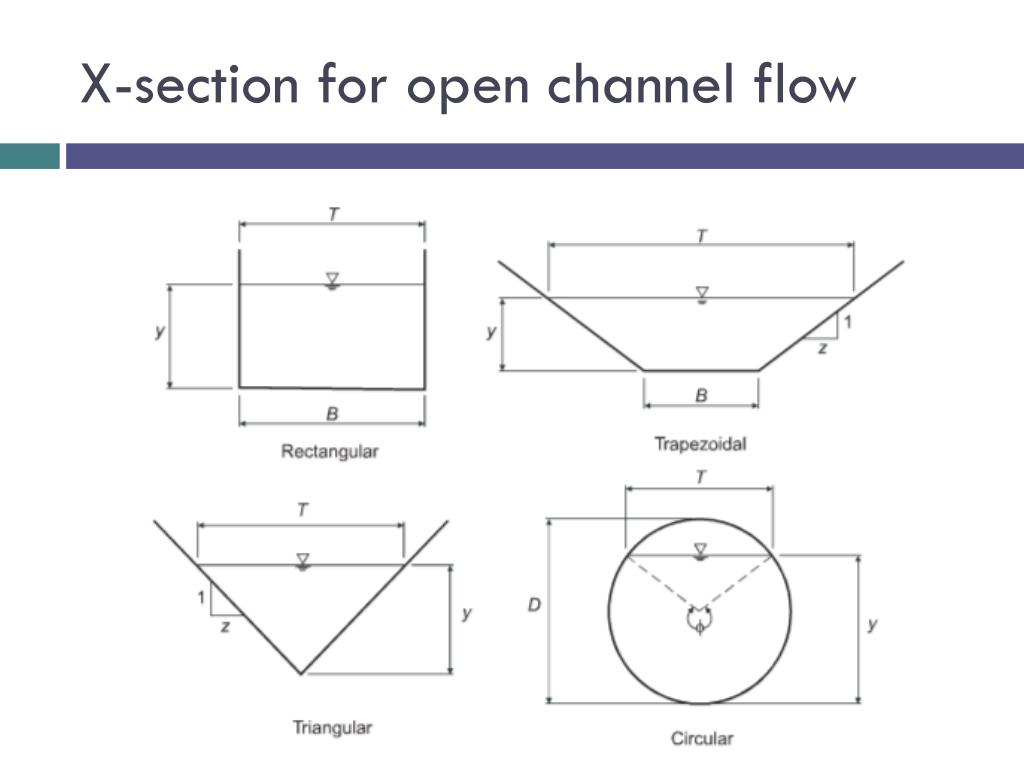

X-section for open channel flow

Open channel hydraulics

Open Channel Hydraulics

  • Variables of open channel flow analysis

  • Open channel flow classification based on various criteria

    • Time

    • Depth

    • Space

    • Regime (subcritical or supercritical)

Depth of flow

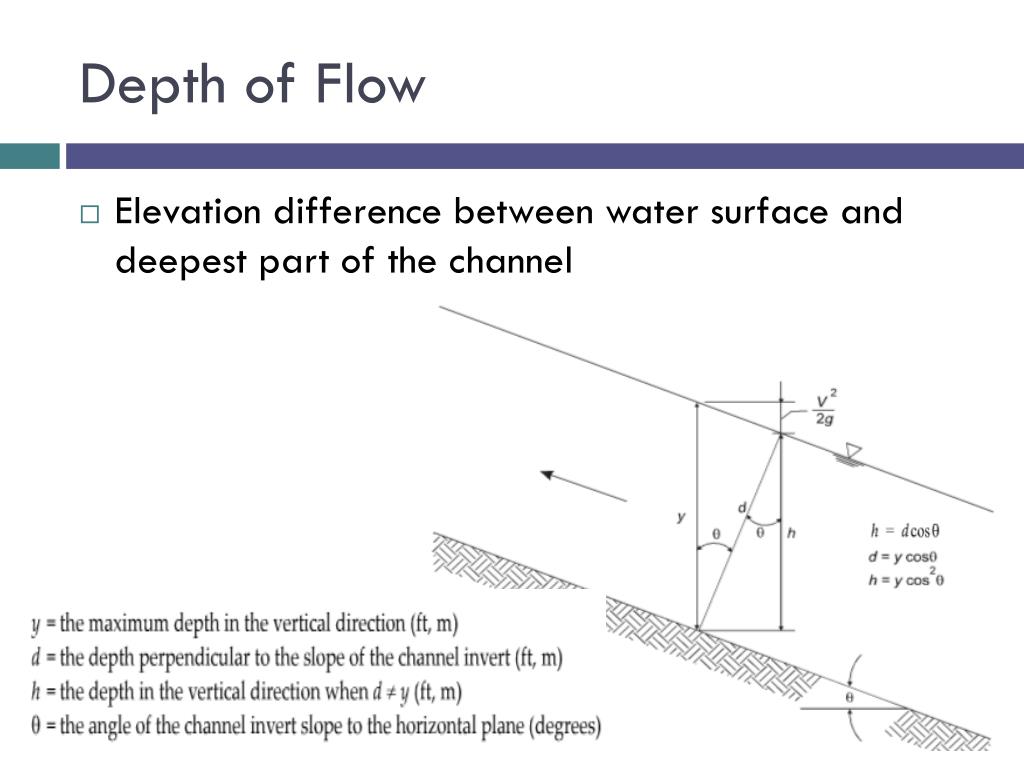

Depth of Flow

  • Elevation difference between water surface and deepest part of the channel

Channel top width wetted perimeter

Channel top width & wetted perimeter

Channel slope

Channel Slope

  • Difference in the channel invert elevation between two locations divided by the distance between them

  • In prismatic channel the slope is often constant over a significant channel distance

Hydraulic depth hydraulic radius

Hydraulic depth & hydraulic radius

  • Hydraulic depth: average depth across the channel

Discharge velocity

Discharge & Velocity

  • Discharge or flow rate: amount of water moving in a channel or stream system

  • Velocity: speed at which water moves in an open channel

    V = Q/A

    V= average channel velocity, Q= discharge, A = x-sec area

  • Water movement adds kinetic energy to the system

  • Channel velocity is not constant at any location

  • Varies both horizontally and vertically for any given channel cross-section

  • Velocity near the channel banks is less than the velocity in the center of the channel

Velocity profile in channel x sections

Velocity Profile in channel x-sections

Flow classification

Flow Classification

  • Uniform vs. non-uniform

  • Steady vs. unsteady flow

  • One-dimensional vs. multidimensional flows

  • Gradually varied vs. rapidly varied

  • Subcritical vs. supercritical

Types of flow

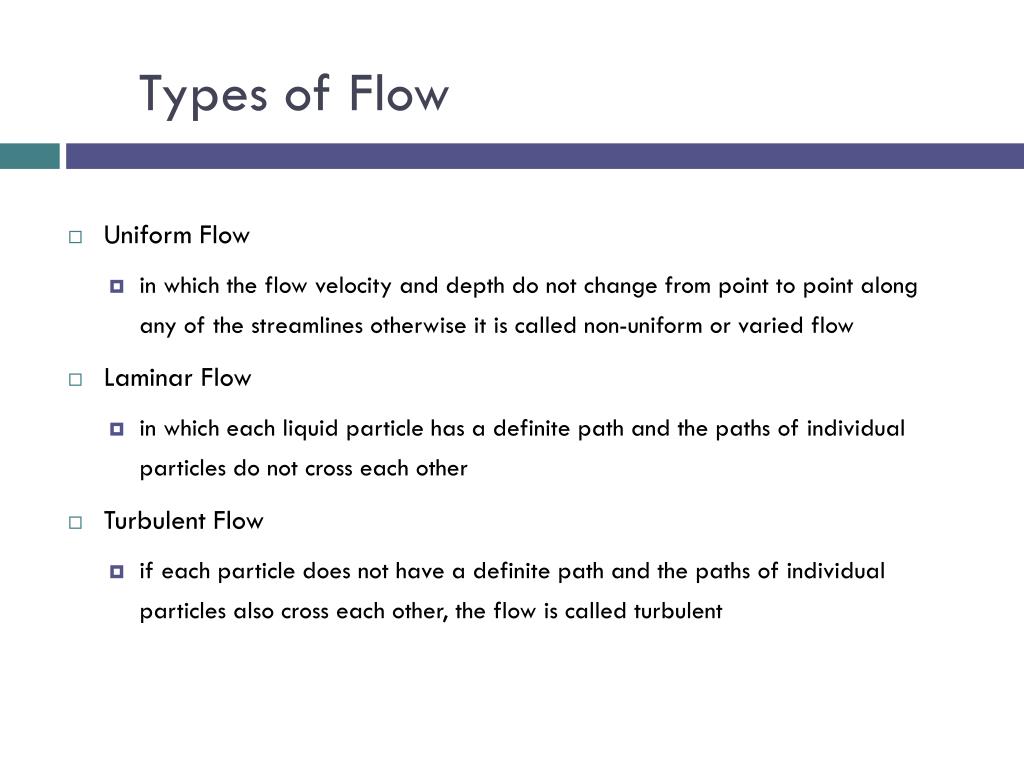

Types of Flow

  • Uniform Flow

    • in which the flow velocity and depth do not change from point to point along any of the streamlines otherwise it is called non-uniform or varied flow

  • Laminar Flow

    • in which each liquid particle has a definite path and the paths of individual particles do not cross each other

  • Turbulent Flow

    • if each particle does not have a definite path and the paths of individual particles also cross each other, the flow is called turbulent

Types of flow1

Types of Flow

  • Steady Flow

    • in which the depth and velocity at a point are constant with respect to time

  • Unsteady Flow

    • if Q is not constant

  • One-dimensional Flow

    • flow, whose streamlines may be represented by straight lines as opposed to curved lines

Subcritical supercritical flow

Subcritical & Supercritical Flow

  • Classification is based on ratio of inertial to gravitational forces at a stream location – Froude number

  • If Fr > 1 – flow is ‘supercritical’ and inertial forces dominate, associated with steeper slopes (high velocity and shallow depth)

  • If Fr < 1 – flow is ‘subcritical’ – gravitational forces dominate usually calm and tranquil –small slope usually in natural channels - (low velocity and high depth)

  • For Fr = 1 both depth and flow are call ‘critical’





  • What is energy?

    • Ability to do work?

  • Moving fluids possess energy by virtue of its

    • Velocity

    • Position

    • Pressure

Energy and head

Energy and Head

  • 3 kinds of energies that can be stored in a waterbody

    • Potential: due to elevation/position ‘Z’ (elevation above a fixed datum)

      PE = WZ= mgZ

    • Kinetic: due to velocity/motion

      KE = mv2 = (W/g) v2

    • Pressure: amount of work done in moving the fluid element a distance equals to the segment’s length ‘d’

      Force F = PA

      Work done (Pressure energy) = Fxd = PAd = P(Ad) = P(Volume) = PW/ g

Total energy

Total Energy

  • Total Energy = Potential + Kinetic + Pressure

    TE =WZ + (W/g)v2 + PW/ g

  • Energy may be expressed as ‘Head’

    • divide by ‘W’ throughout

    • Represents total energy per unit weight of the fluid

Energy head

Energy Head

  • Total Head

    H = Z + v2/g+ P/ g

  • Z = Elevation Head (units of length)

  • v2/g = Velocity Head (units of length)

  • P/ g = Pressure Head (units of length)

Velocity head at a cross section

Velocity head at a cross-section



  • Given:

    • Water in a 6 in diameter pipe with a velocity of 8 ft/s

    • Fluid pressure is 4 lb/in2

    • Elevation of the center of the pipe above datum is 10 ft

  • Required?

    • What is total energy head?

Bernoulli s equation

Bernoulli’s Equation

Bernoulli s equation conservation of energy

Bernoulli’s Equation – conservation of energy

  • During a steady flow of a frictionless incompressible fluid, the total energy (total head) remains constant along the flow path

    Z + v2/g+ P/ g = constant

    Z1 + v12/g+ P1/ g = Z2 + v22/g+ P2/ g

Continuity equation

Continuity equation

  • Based on the conservation of mass

  • Assumption: flowing fluids have constant mass density (incompressible liquid)

  • States that the quantity of liquid passing per time unit is the same at all sections

    Q1 = Q2 = Q3= ….

  • OR A1V1 = A2V2= A3V3= ….

  • Q = flow discharge [m3/s];

  • V = average velocity of the liquid [m/s];

  • A = area of the cross-section [m2];

  • and 1, 2, 3 = the number of sections 1-3

This is all about rg744 fall semester 2013

This is all about RG744 Fall semester 2013
