Chapter 6

Chapter 6

Introduction to Logic


Objectives

Objectives

  • Explain AND logic.

  • Describe OR logic.

  • Explain NOT logic.

  • Explore a truth table for specified logic.

  • Determine if a PLC ladder rung is true or false under specified conditions.


Hardwired electrical circuit has electrical continuity

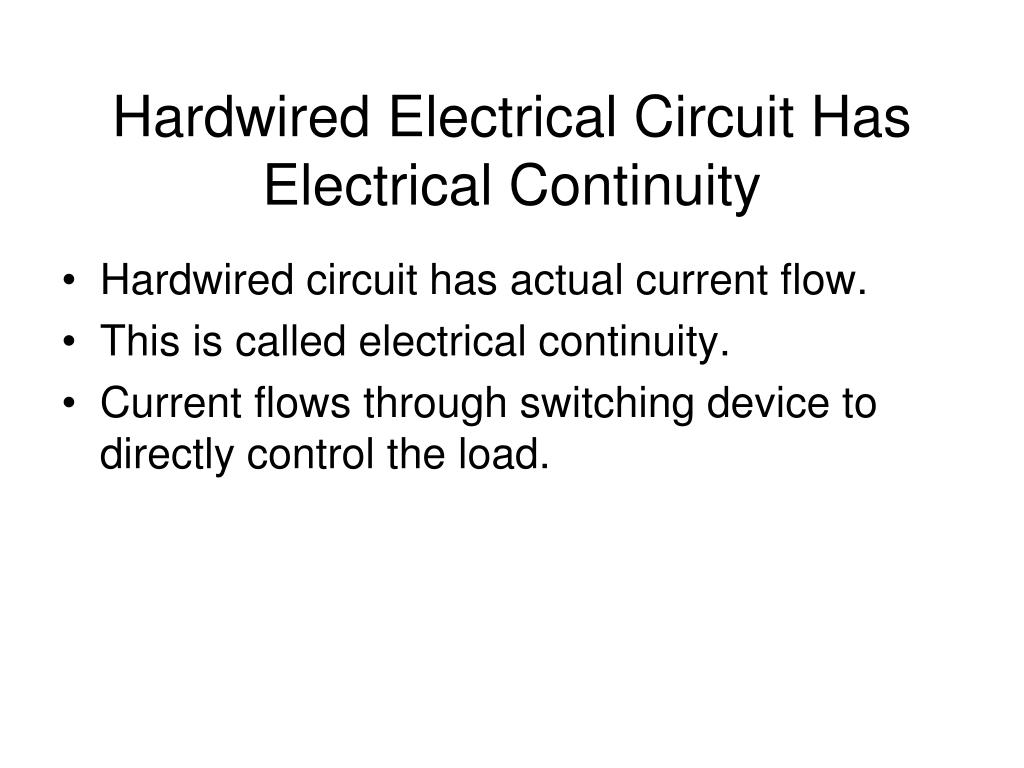

Hardwired Electrical Circuit Has Electrical Continuity

  • Hardwired circuit has actual current flow.

  • This is called electrical continuity.

  • Current flows through switching device to directly control the load.


Hardwired relay circuit

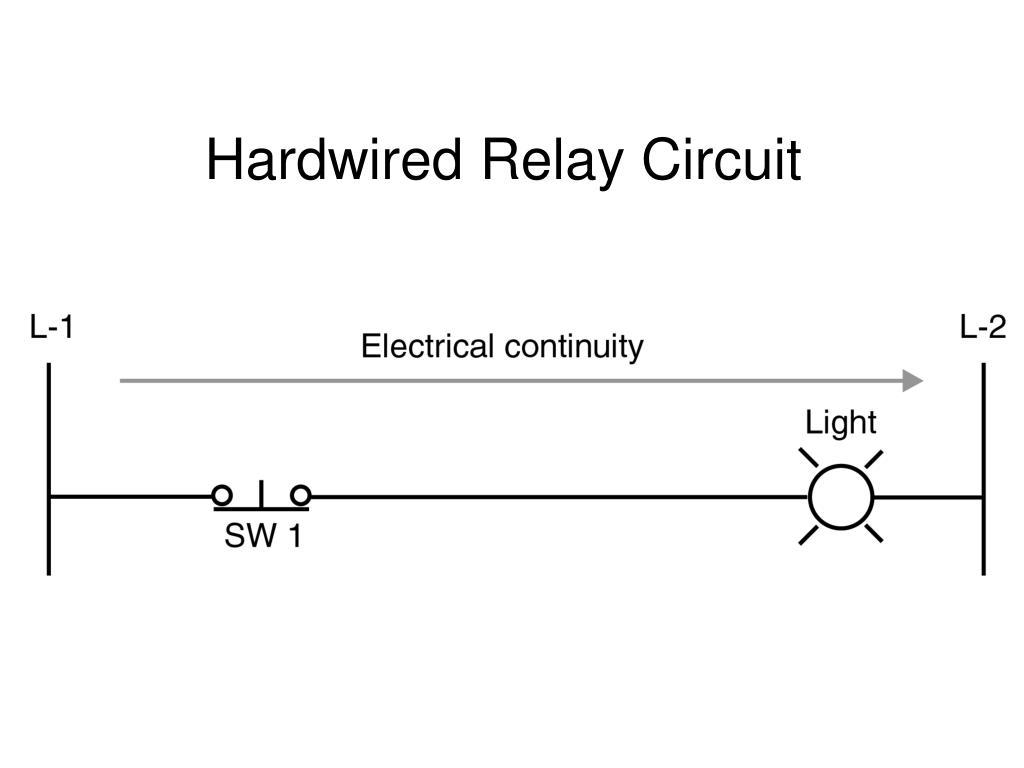

Hardwired Relay Circuit


Logical continuity 1 of 3

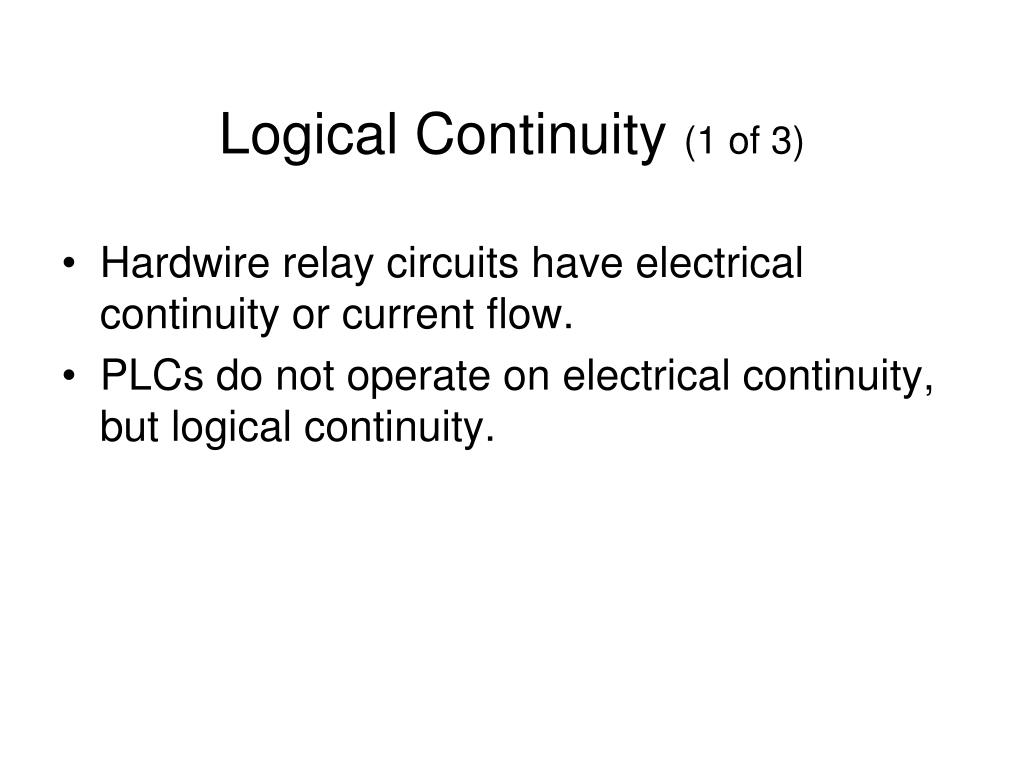

Logical Continuity (1 of 3)

  • Hardwire relay circuits have electrical continuity or current flow.

  • PLCs do not operate on electrical continuity, but logical continuity.


Logical continuity 2 of 3

Logical Continuity (2 of 3)

  • A PLC ladder program resembles an electric schematic.

  • A PLC program is a set of instructions stored in memory.

  • PLC ladder symbols represent ladder program instructions.


Logical continuity 3 of 3

Logical Continuity (3 of 3)

  • PLC instructions examine the status of a bit at the associated address.

  • Bits are either a 1 or 0.

  • Instructions are either true or false.

  • PLCs have logical continuity.


Signal flow into and out of a plc

Signal Flow into and out of a PLC


Input signal seen by input module

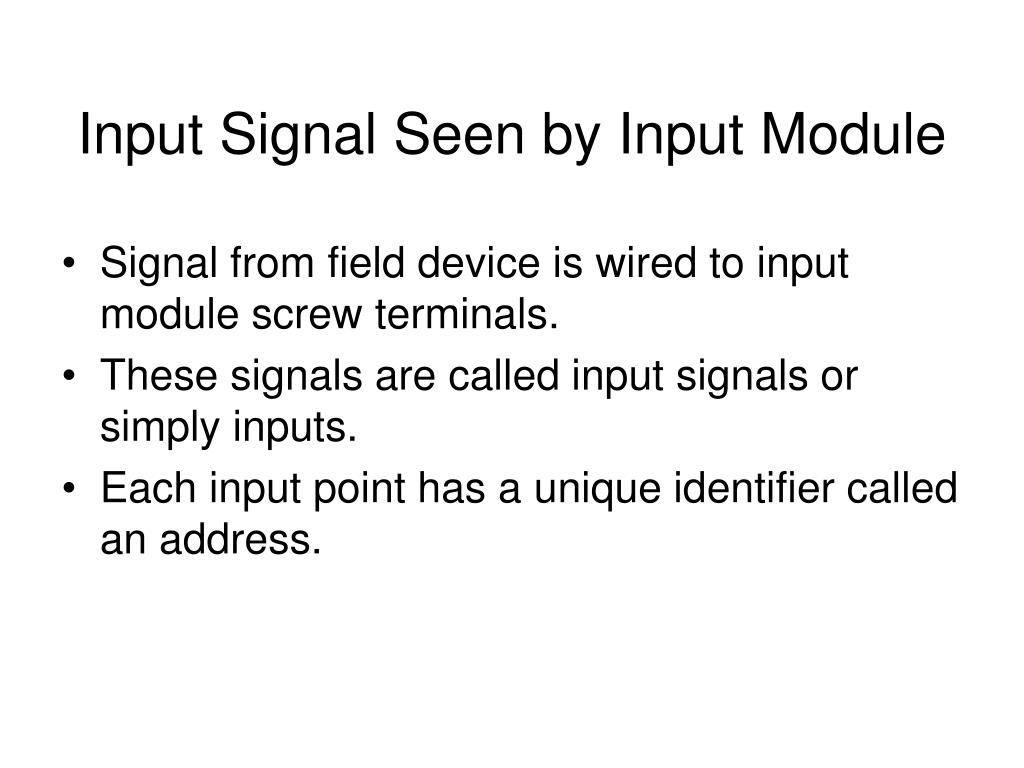

Input Signal Seen by Input Module

  • Signal from field device is wired to input module screw terminals.

  • These signals are called input signals or simply inputs.

  • Each input point has a unique identifier called an address.


Input module isolates and converts

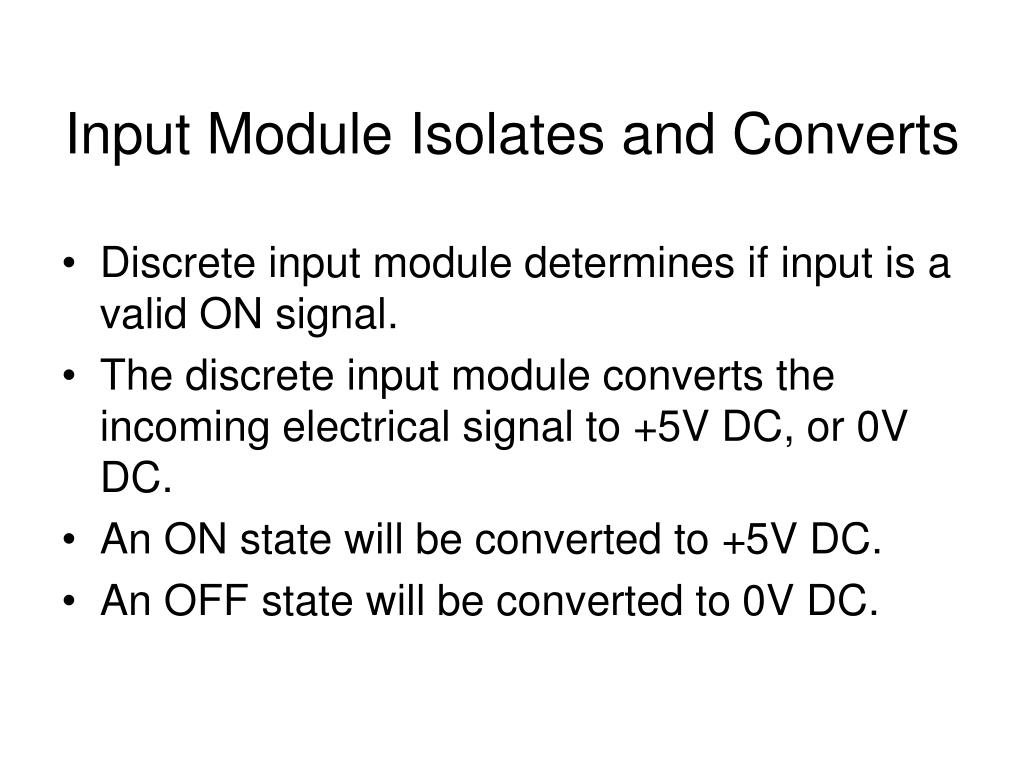

Input Module Isolates and Converts

  • Discrete input module determines if input is a valid ON signal.

  • The discrete input module converts the incoming electrical signal to +5V DC, or 0V DC.

  • An ON state will be converted to +5V DC.

  • An OFF state will be converted to 0V DC.


Input section to back plane

Input Section to Back Plane

  • The high voltage input signal is isolated from the lower voltage microprocessor and supporting circuitry in the processor.

  • Signal is then transferred to the chassis back plane and sent to processor memory for storage.


Processor and input status file

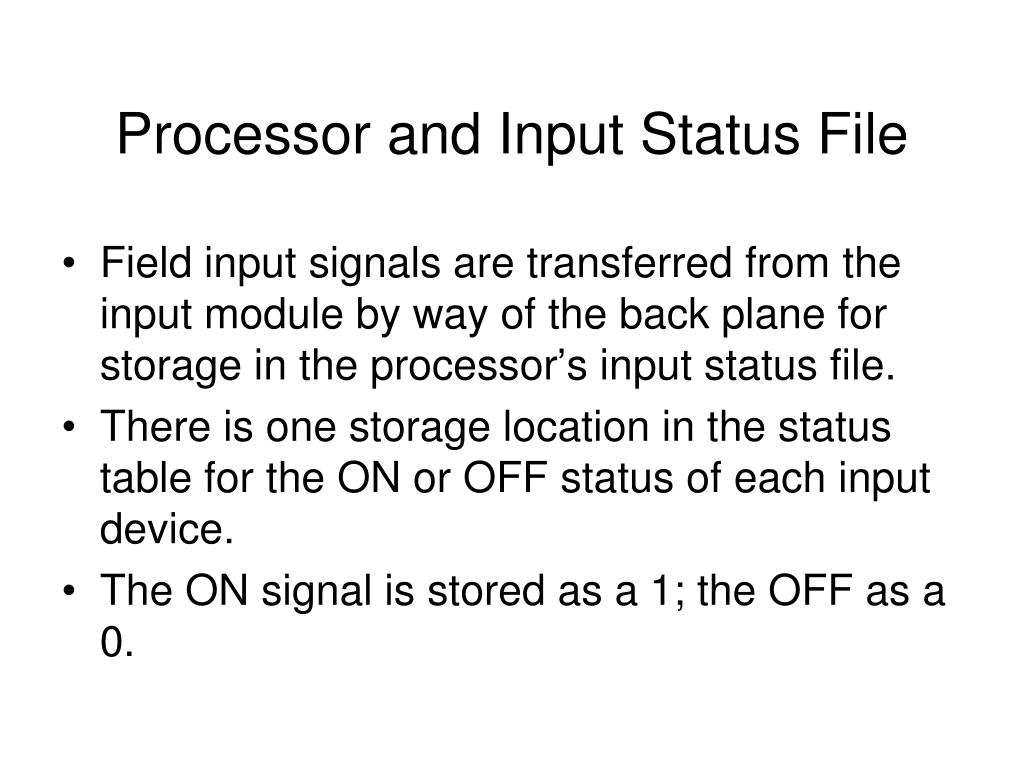

Processor and Input Status File

  • Field input signals are transferred from the input module by way of the back plane for storage in the processor’s input status file.

  • There is one storage location in the status table for the ON or OFF status of each input device.

  • The ON signal is stored as a 1; the OFF as a 0.


Processor examines status table bit

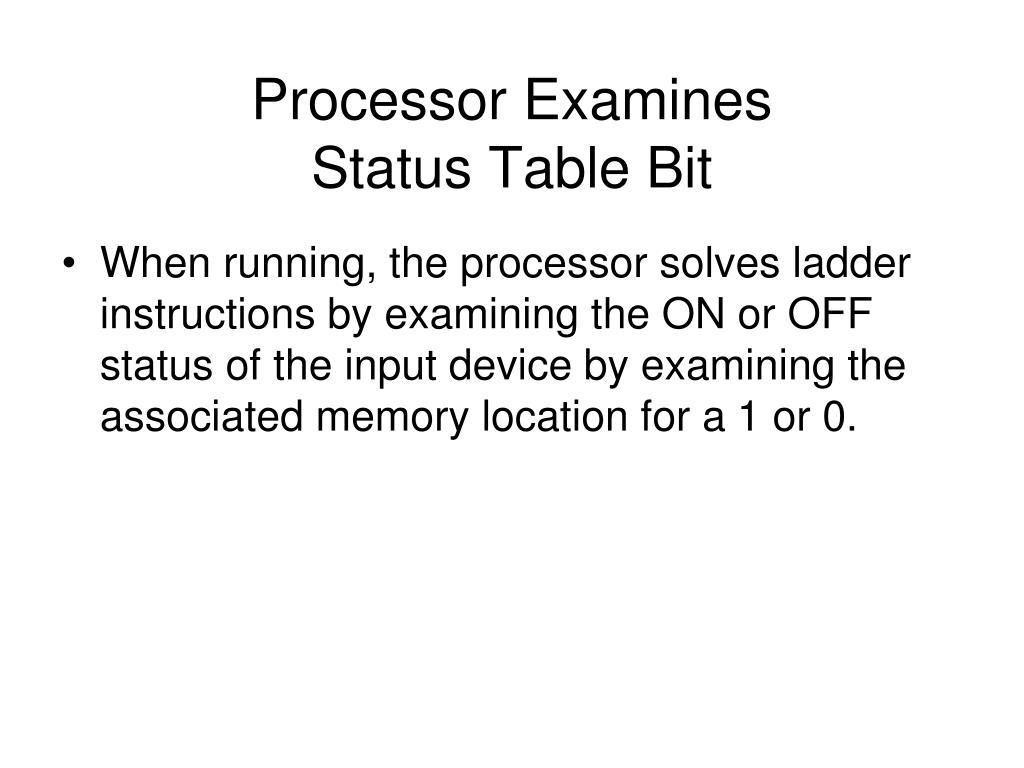

Processor Examines Status Table Bit

  • When running, the processor solves ladder instructions by examining the ON or OFF status of the input device by examining the associated memory location for a 1 or 0.


Ladder program solved

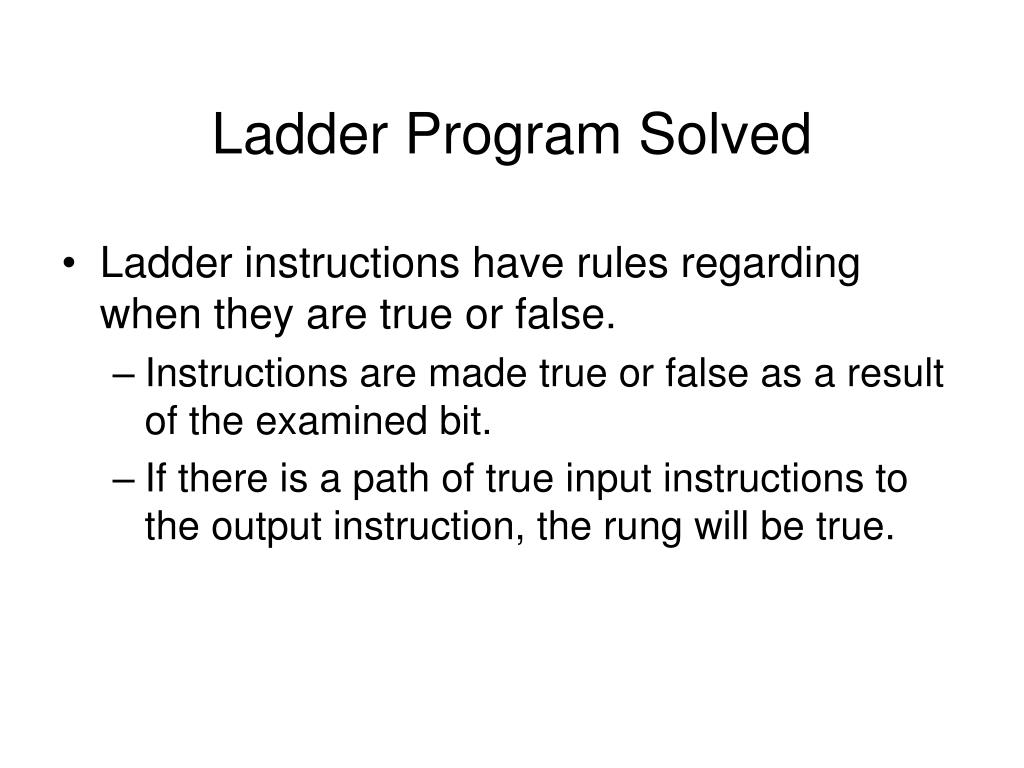

Ladder Program Solved

  • Ladder instructions have rules regarding when they are true or false.

    • Instructions are made true or false as a result of the examined bit.

    • If there is a path of true input instructions to the output instruction, the rung will be true.


Output update

Output Update

  • When all ladder rungs have been solved, the output status table data is sent to the respective output modules one word at a time.

  • When a rung is solved, the output status table is updated.


Combining and solving ladder instructions

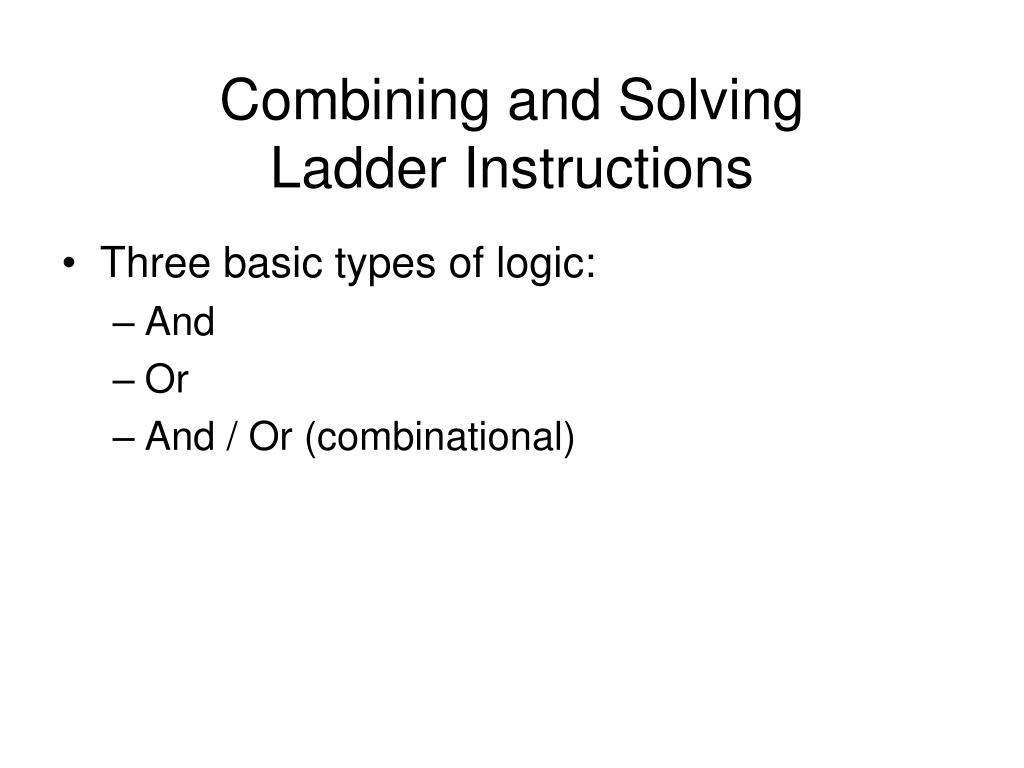

Combining and Solving Ladder Instructions

  • Three basic types of logic:

    • And

    • Or

    • And / Or (combinational)


Series logic

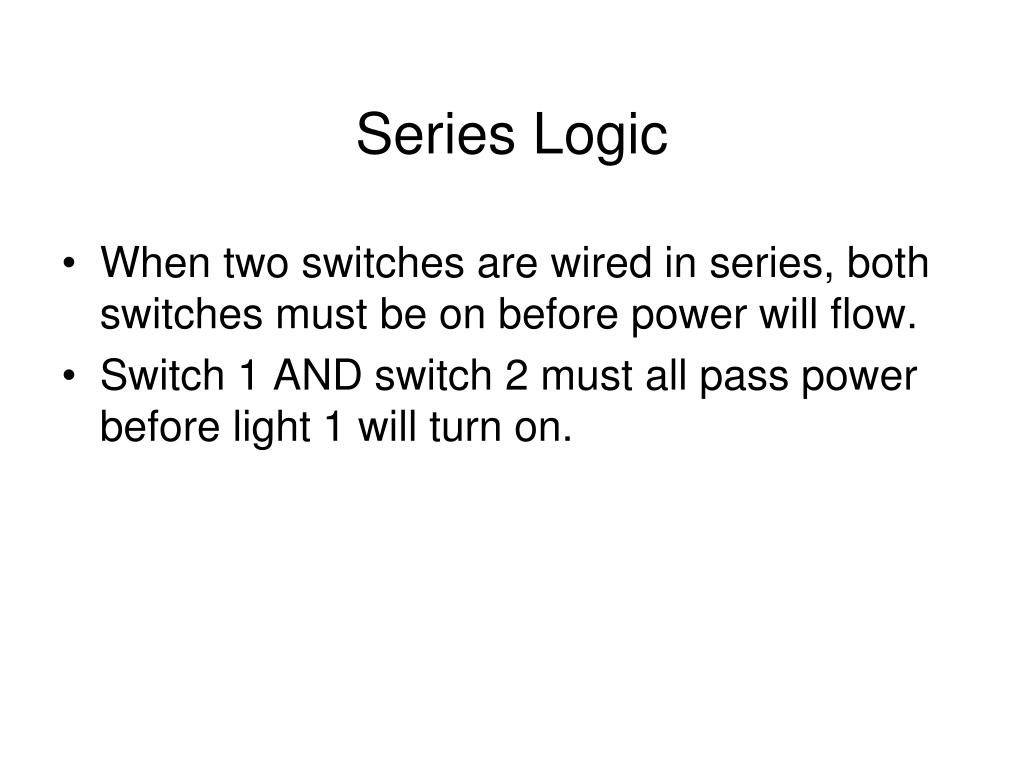

Series Logic

  • When two switches are wired in series, both switches must be on before power will flow.

  • Switch 1 AND switch 2 must all pass power before light 1 will turn on.

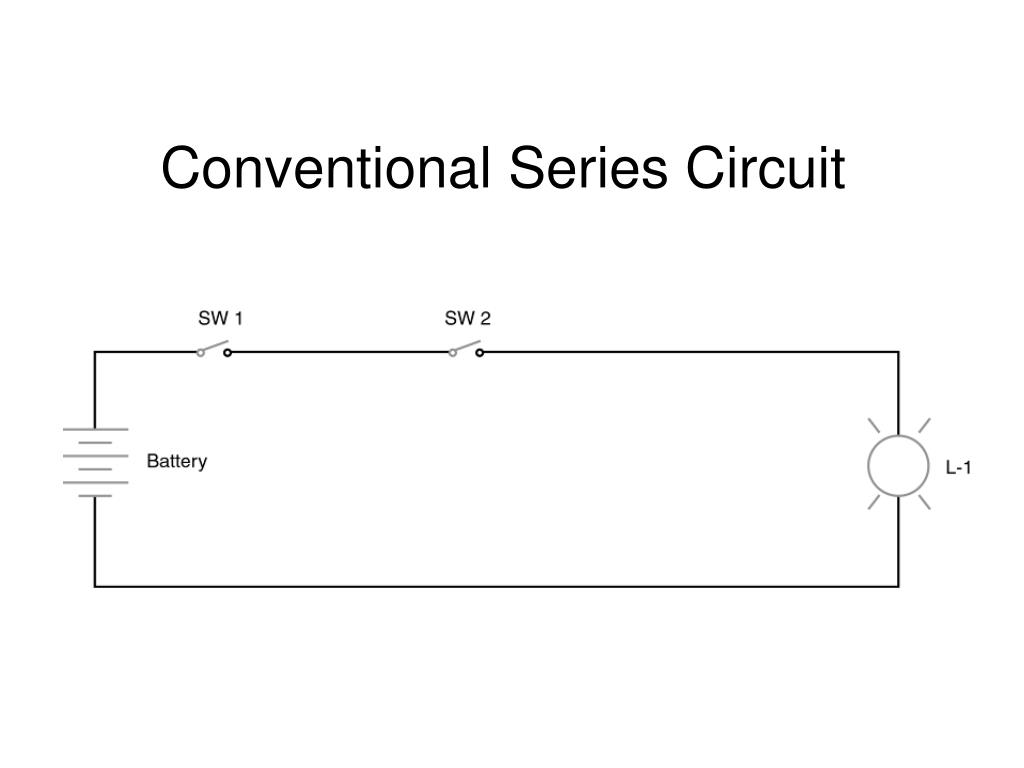

Conventional series circuit

Conventional Series Circuit

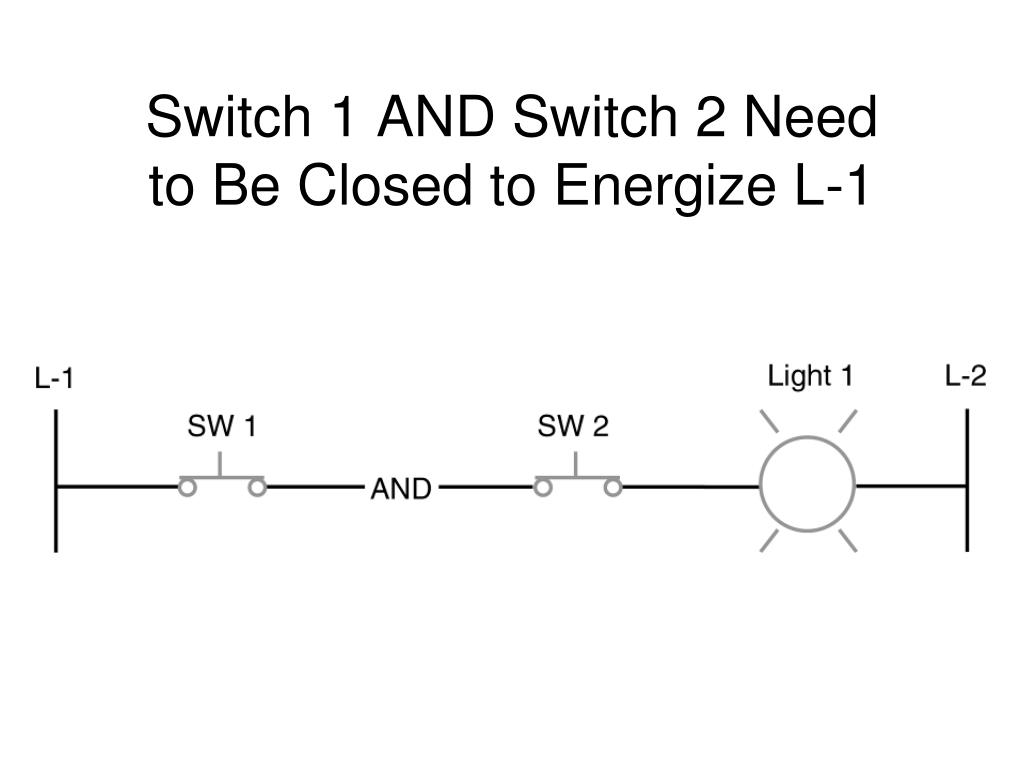

Switch 1 and switch 2 need to be closed to energize l 1

Switch 1 AND Switch 2 Need to Be Closed to Energize L-1


Truth table

Truth Table

  • A truth table shows all possible input conditions and the expected output conditions.

  • The following slide shows a truth table for AND logic.


Truth table for and logic

Truth Table for AND Logic


Plc instructions in series

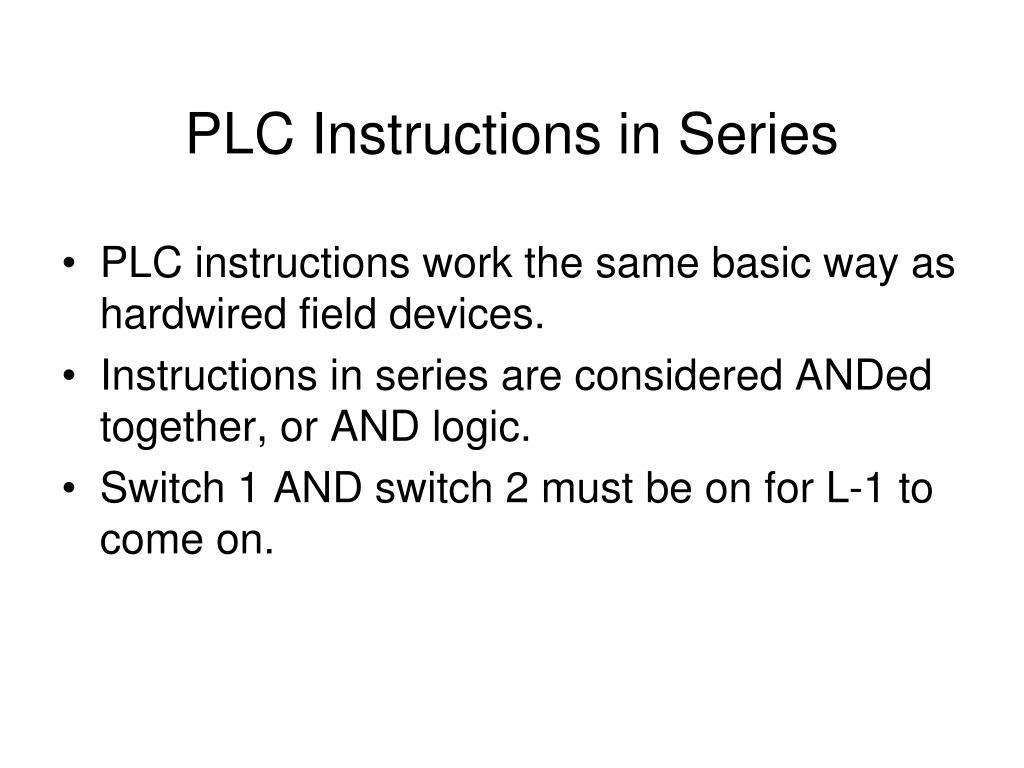

PLC Instructions in Series

  • PLC instructions work the same basic way as hardwired field devices.

  • Instructions in series are considered ANDed together, or AND logic.

  • Switch 1 AND switch 2 must be on for L-1 to come on.

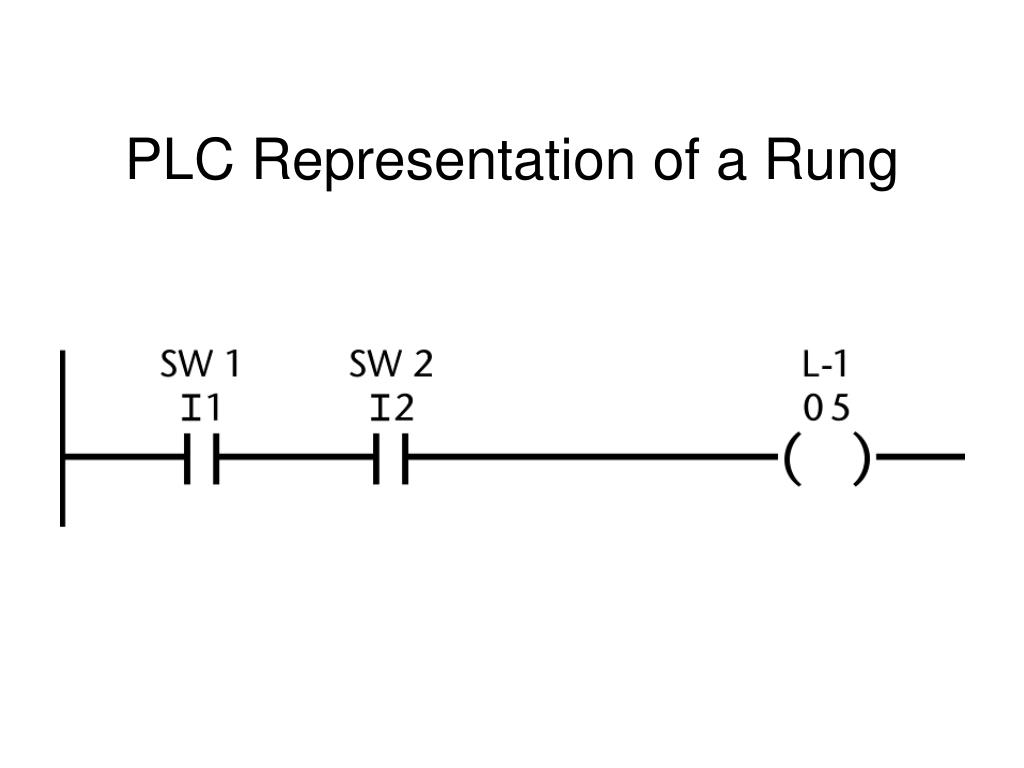

Plc representation of a rung

PLC Representation of a Rung


Truth table for two input and logic

Truth Table for Two-Input AND Logic

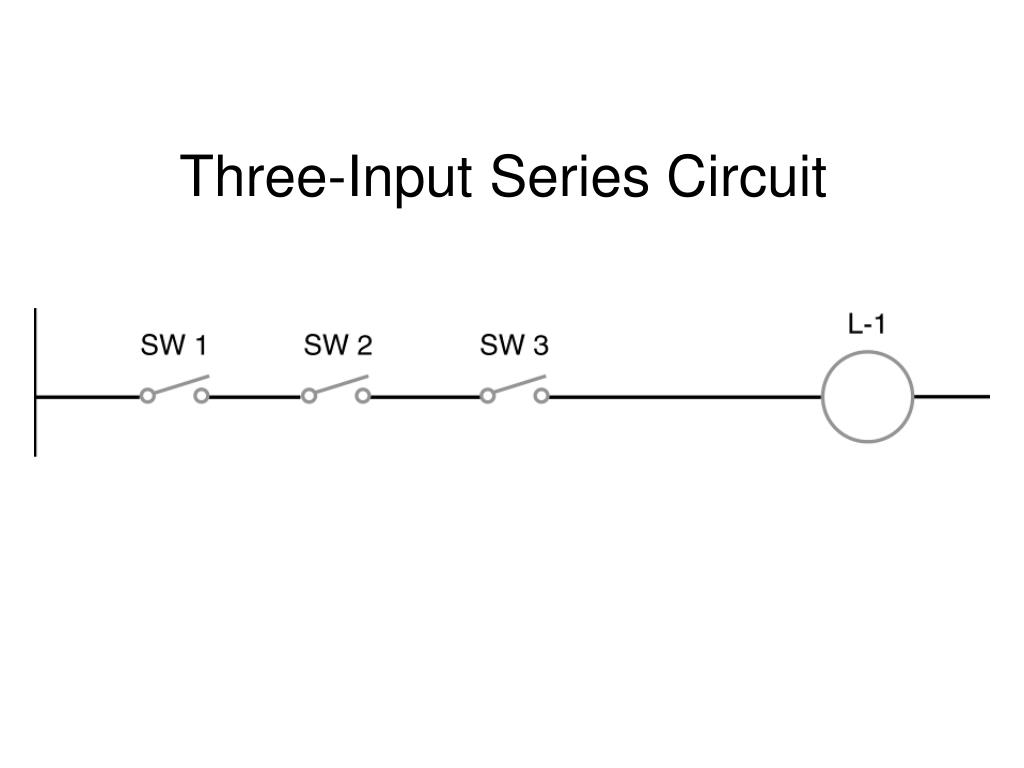

Three input series circuit

Three-Input Series Circuit


Three input plc ladder rung

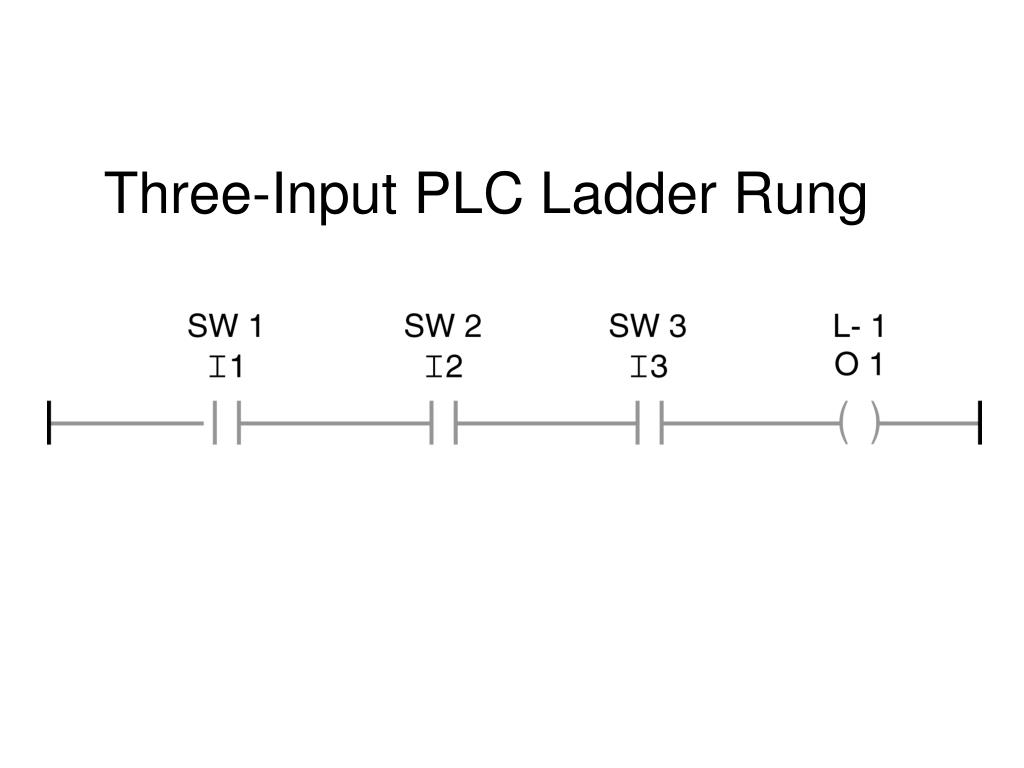

Three-Input PLC Ladder Rung


Three input and logic truth table

Three-Input AND Logic Truth Table


Parallel is also or logic

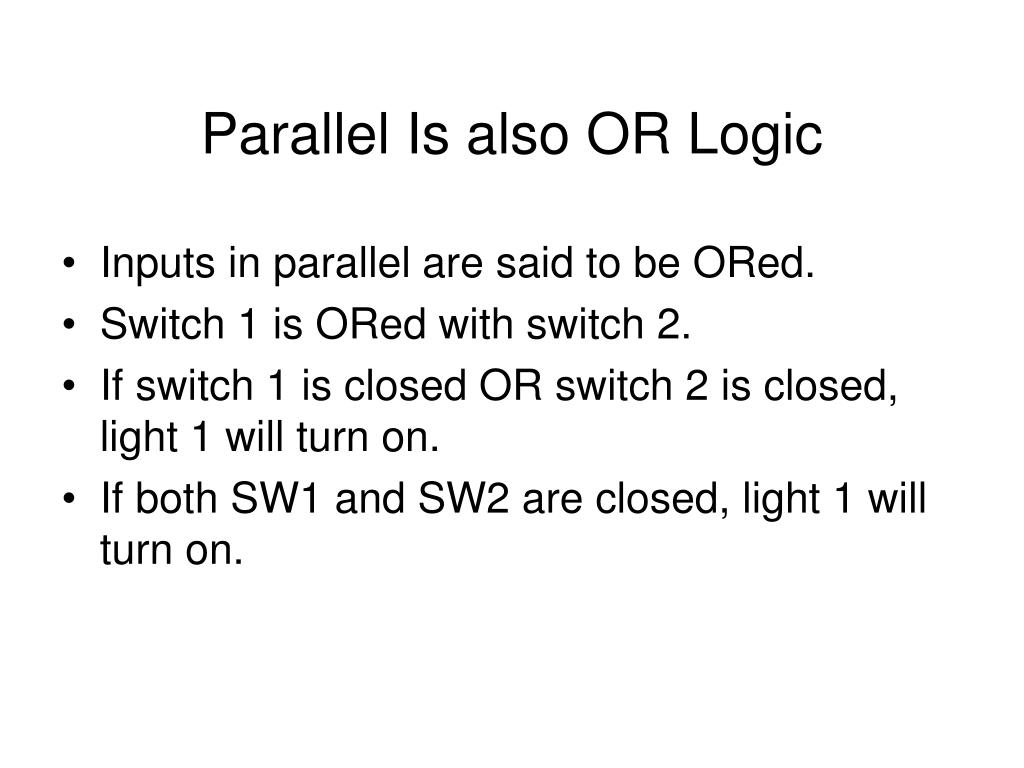

Parallel Is also OR Logic

  • Inputs in parallel are said to be ORed.

  • Switch 1 is ORed with switch 2.

  • If switch 1 is closed OR switch 2 is closed, light 1 will turn on.

  • If both SW1 and SW2 are closed, light 1 will turn on.


Conventional parallel circuit

Conventional Parallel Circuit


Programmable controller ladder diagram

Programmable Controller Ladder Diagram


Two input or truth table

Two-input OR Truth Table


Truth table for not logic

Truth Table for NOT Logic


Conventional ladder diagram

Conventional Ladder Diagram

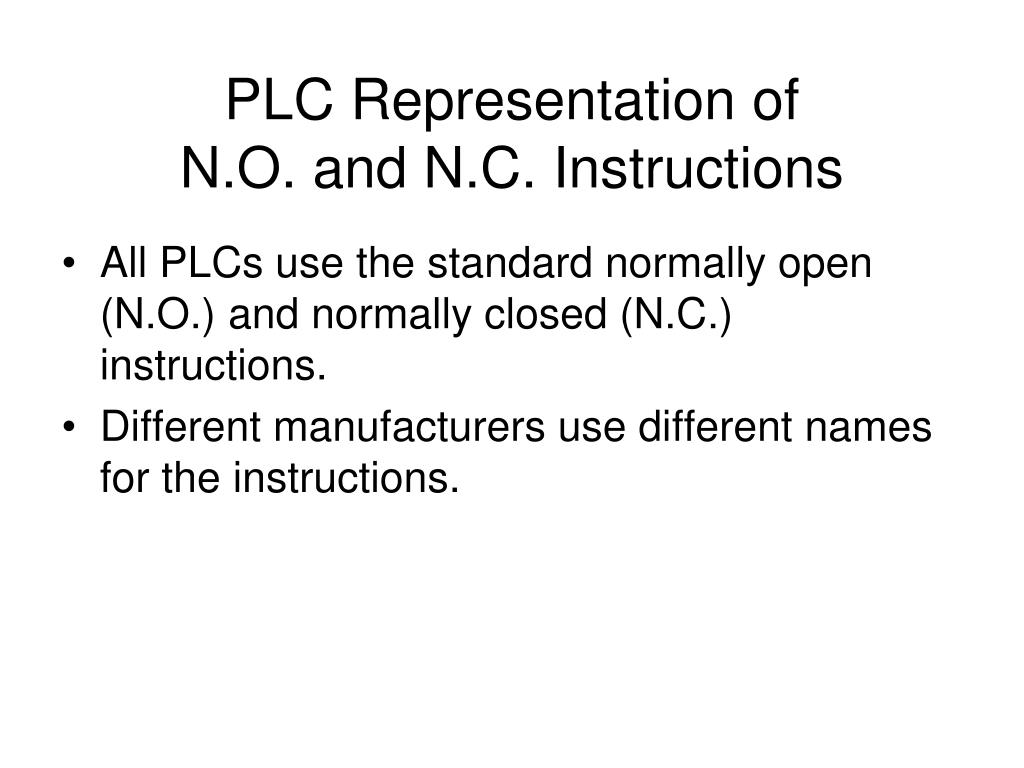

Plc representation of n o and n c instructions

PLC Representation of N.O. and N.C. Instructions

  • All PLCs use the standard normally open (N.O.) and normally closed (N.C.) instructions.

  • Different manufacturers use different names for the instructions.

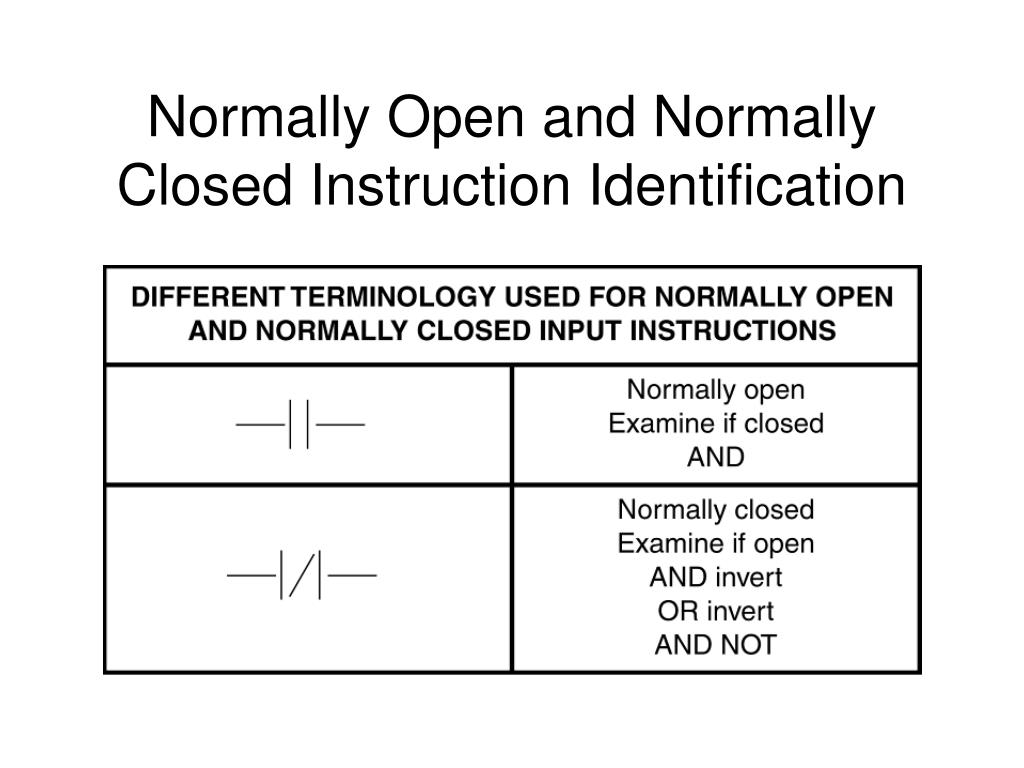

Normally open and normally closed instruction identification

Normally Open and Normally Closed Instruction Identification

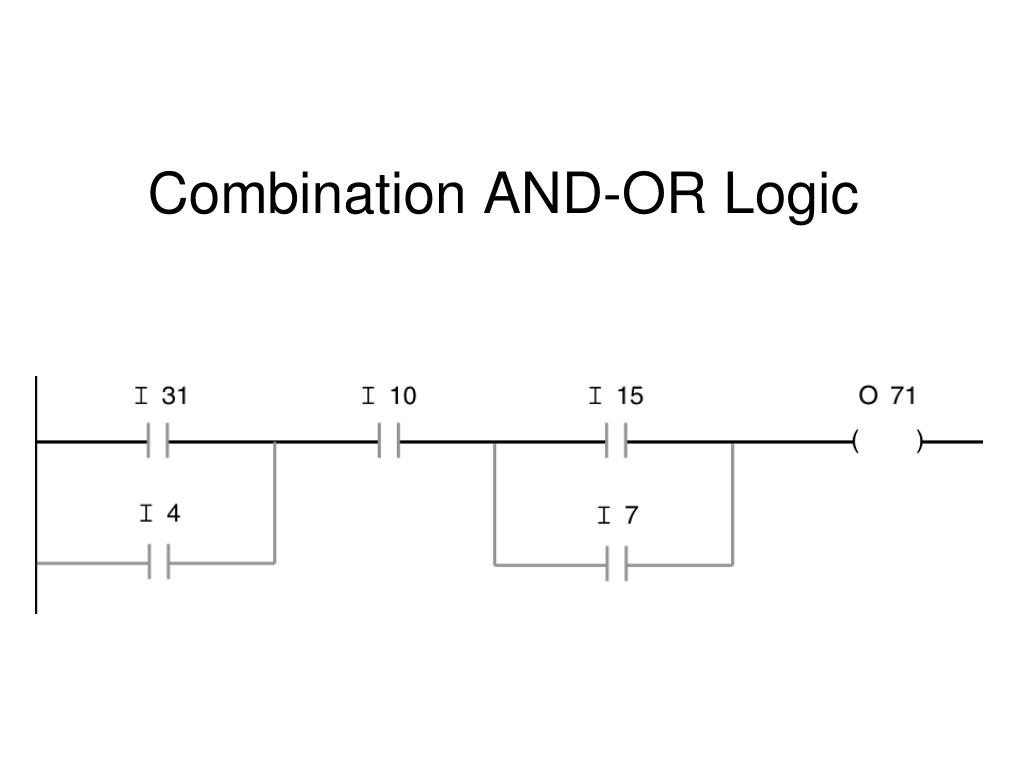

Combination and or logic

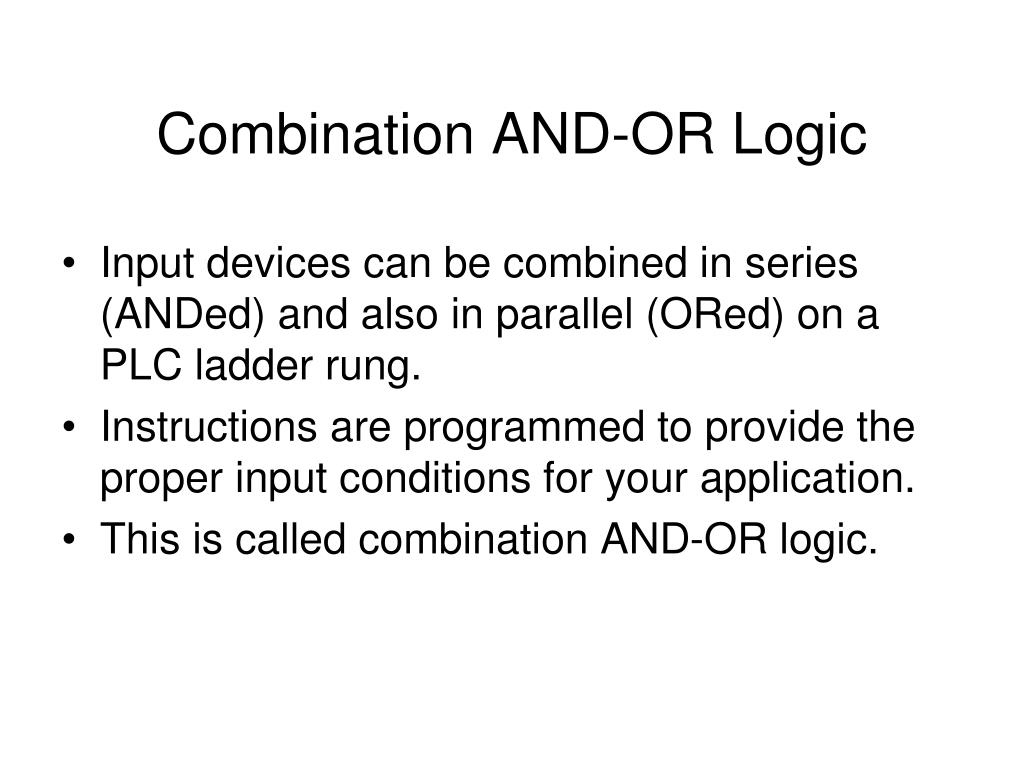

Combination AND-OR Logic

  • Input devices can be combined in series (ANDed) and also in parallel (ORed) on a PLC ladder rung.

  • Instructions are programmed to provide the proper input conditions for your application.

  • This is called combination AND-OR logic.


Combination and or logic1

Combination AND-OR Logic
