Non Destructive Testing

Non Destructive Testing is the process of testing, inspecting, or accessing materials, components or congregations for breaks, or modifications in characteristics without damaging the serviceability of the part or system.

sigmatesting20
Download Presentation

Non Destructive Testing

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

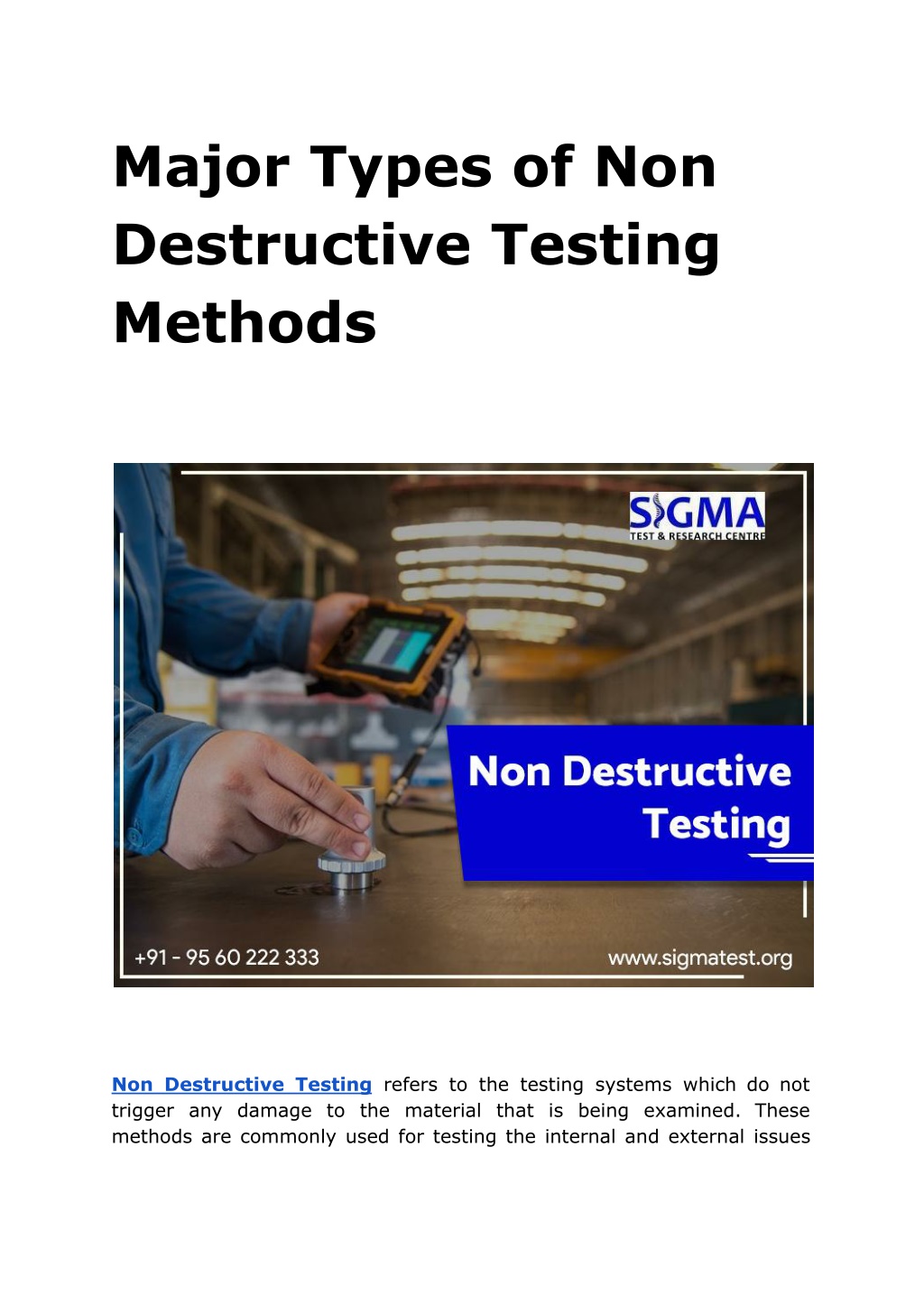

  1. Major Types of Non Destructive Testing Methods Non Destructive Testing refers to the testing systems which do not trigger any damage to the material that is being examined. These methods are commonly used for testing the internal and external issues

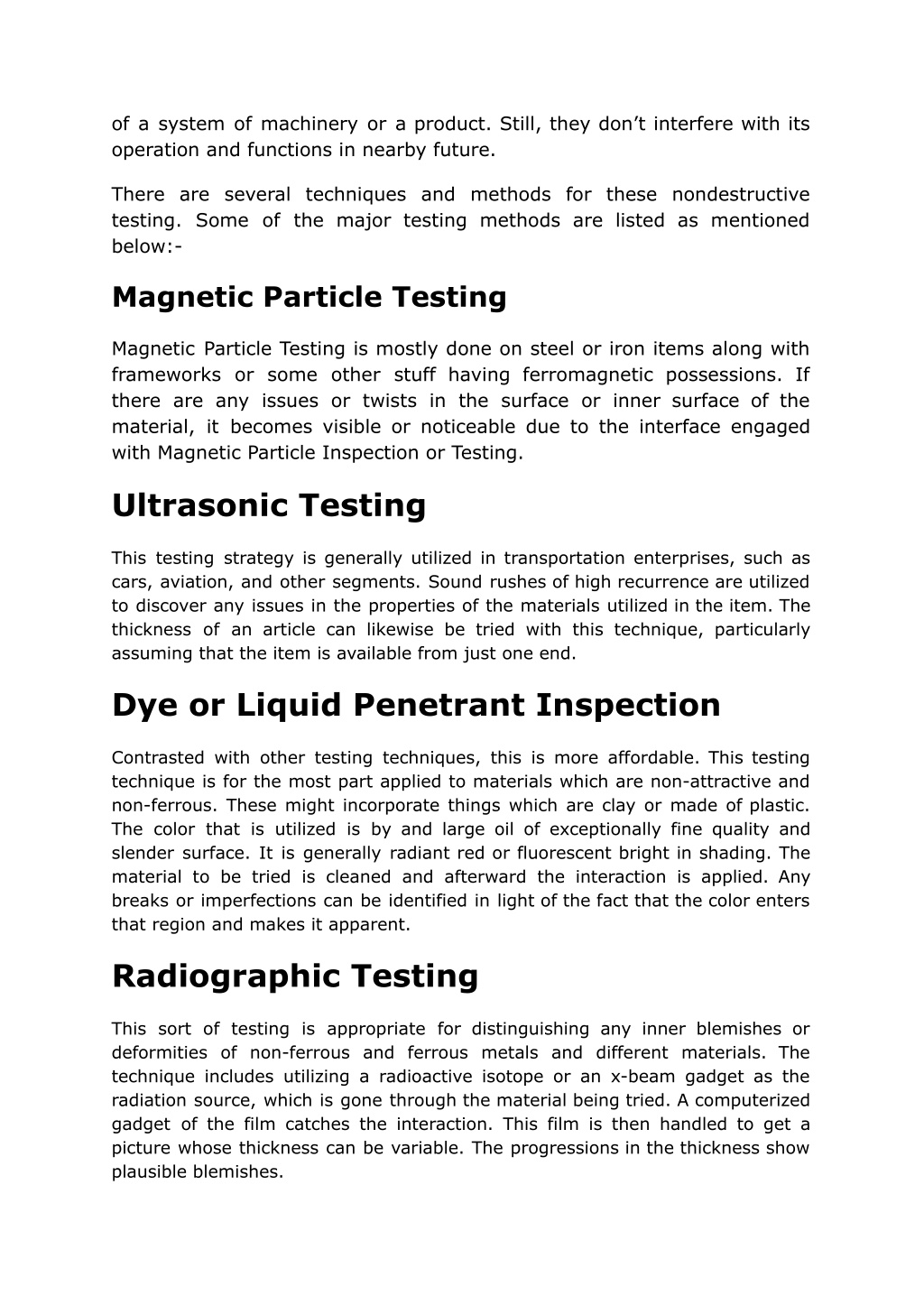

  2. of a system of machinery or a product. Still, they don’t interfere with its operation and functions in nearby future. There are several techniques and methods for these nondestructive testing. Some of the major testing methods are listed as mentioned below:- Magnetic Particle Testing Magnetic Particle Testing is mostly done on steel or iron items along with frameworks or some other stuff having ferromagnetic possessions. If there are any issues or twists in the surface or inner surface of the material, it becomes visible or noticeable due to the interface engaged with Magnetic Particle Inspection or Testing. Ultrasonic Testing This testing strategy is generally utilized in transportation enterprises, such as cars, aviation, and other segments. Sound rushes of high recurrence are utilized to discover any issues in the properties of the materials utilized in the item. The thickness of an article can likewise be tried with this technique, particularly assuming that the item is available from just one end. Dye or Liquid Penetrant Inspection Contrasted with other testing techniques, this is more affordable. This testing technique is for the most part applied to materials which are non-attractive and non-ferrous. These might incorporate things which are clay or made of plastic. The color that is utilized is by and large oil of exceptionally fine quality and slender surface. It is generally radiant red or fluorescent bright in shading. The material to be tried is cleaned and afterward the interaction is applied. Any breaks or imperfections can be identified in light of the fact that the color enters that region and makes it apparent. Radiographic Testing This sort of testing is appropriate for distinguishing any inner blemishes or deformities of non-ferrous and ferrous metals and different materials. The technique includes utilizing a radioactive isotope or an x-beam gadget as the radiation source, which is gone through the material being tried. A computerized gadget of the film catches the interaction. This film is then handled to get a picture whose thickness can be variable. The progressions in the thickness show plausible blemishes.

  3. Visual Inspection The visual testing strategy is probably the most seasoned sort of non-destructive testing administrations. The material that should be tried is checked completely to discover any deformities or defects that may be available on its outside surface. In some cases, cameras and video types of gear are also utilized for the interaction. The nondestructive testing methods are also renowned in several locations, like the NDT services at Sigma Test & Research Centre. The productivity of the NDT technique is attracting a wider client base, and their efficiency is assisting the rapid growth of several industrial measures.
