Presentation Transcript


Webaccess hmi scada software product overview l.jpg

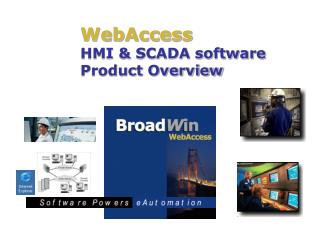

WebAccessHMI & SCADA softwareProduct Overview


What is webaccess software l.jpg

What Is WebAccess Software?

  • Web Browser-based

  • HMI and SCADA software

  • For industrial control systems

  • And facilities automation.

HMI Human Machine Interface

SCADA Supervisory Control and Data Acquisition


Industry applications l.jpg

Industry Applications

  • Facilities Automation

  • Energy & Power

  • Petroleum & Chemicals

  • Semiconductor

  • Transportation

  • Water & Wastewater

HMI Human Machine Interface

SCADA Supervisory Control and Data Acquisition


Web browser hmi scada l.jpg

Web Browser HMI & SCADA

  • View and control

    • Automation equipment.

    • via PLCs, Controllers, IO

    • In real-time

    • Using an ordinary web browser

      • Internet explorer 5.5 or 6.0

      • Unofficially, Netscape navigator 6.1

    • Animated graphics

      • Rotate, color change, motion across screen

  • Trends & data logging

  • Alarms, recipes, scheduler & more…


What makes webaccess unique l.jpg

What makes WebAccess unique?

  • Web browser based Engineering!

    • Build Graphics (DRAW).

    • Configure Tags, Alarms, Recipes, Schedules and databases.

    • Download, Start and Stop Nodes.

    • Using Internet Explorer 5.5 or 6.0

    • Unofficially – Netscape Navigator 6.1

  • Remotely support customers

    • Reduce trips to field.

    • Faster customer response.

    • Reduce startup and down time.

  • Engineering Tool is independent of software version installed at customers’ site.

    • Engineers & technicians always have the right version of software needed.


  • What makes webaccess unique6 l.jpg

    What makes WebAccess unique?

    • Ordinary Web Server

      • Microsoft IIS

        • standard option in Windows NT, 2000, and XP.

    • Redundant SCADA node

      • standard feature.

    • Redundant Communication Ports

      • Standard feature, If device driver protocol support this.

    • A “true” Thin Client

      • Any web browser including Windows CE pocket PCs, PDA and handhelds.

    • Designed for the Web

      • No legacy software.

      • 2002 technology.


    Traditional hmi and scada l.jpg

    Traditional HMI and SCADA

    • Traditional not designed for the Web

      • Limited or no remote database configuration

      • Limited or no graphics building via web browser.

      • limited function Web Client.

      • 1980’s technology.

      • locked into legacy software.

      • Web is a “patch” onto system.

      • Proprietary.

      • Software versions requires cataloging, tracking and “repurchase” of engineering tool(s).

    • Example:

      • Intellution/Emerson, Wonderware/Foxboro, Johnson, Indusoft, Citec, Iconics….


    What makes webaccess unique8 l.jpg

    Review

    What makes WebAccess unique?

    • Ordinary Web Browser to View and Control with full animation.

    • Ordinary Web Server.

    • A “true” Thin Client.

    • Redundant SCADA node.

    • Redundant Communication Ports.

    • Designed for the Web.

    • Web browser based Engineering!

    • Remotely support customers.

    • Engineering Tool is independent of software version installed at customers’ site.

      • Engineers & technicians always have the right version of software needed.


    Productivity tools in webaccess l.jpg

    Productivity tools in WebAccess

    • Import AutoCAD DXF files

      • Fully Edit (fill, color, group) and fully animate.

      • Floor plans, equipment drawings, P&Ids.

    • Import Gif, Bitmap, JPEG, icons.

      • Animate for size, position, frames.

    • One set of graphics for both web & local displays

      • No conversion of graphics required.

    • EXCEL import/export

      • Create and edit tags, alarms, recipes, etc.

    • Import SCADA nodes

      • Move easily from development laptop to customers’ PC.

      • Scale-up, down, merge projects easily.


    Productivity tools in webaccess10 l.jpg

    Productivity tools in WebAccess

    • Vector based Graphics

      • Build at any resolution

      • View at any resolution

      • Scalable graphic within browser

      • Auto fit within browser client

      • Rendering of graphic and animation on client side to optimize system load

      • Smaller file sizes than bitmaps

    • Libraries of Symbols, and Widgets

      • Symbols and pre-animated Widgets supplied with system

      • Create Symbols and Widgets for later use.

      • Move Libraries to other projects


    Productivity tools in webaccess11 l.jpg

    Productivity tools in WebAccess

    TAG

    • Object oriented “tag” database

      • Parameters

        • Guide novice users with pre-defined addressing for all device drivers.

      • Blocks

        • PID, VAV and other controllers.

          • Setpoint, Measurement, Output, AM, tuning parameters, grouped into one tag.

        • Reduces time to build database

        • Block Detail Display reduces display building. Allows one display to view hundreds of the same Block Type.

      • Alarms standard feature of all tags

        • No separate alarm tags needed.

        • Check box to enable.

        • High-High, High, Low, Low-Low, Rate-of-Change, Hi Deviation, low deviation and State alarms.

    Tag Name

    Parameters

    Address

    Bit Length

    Conversion

    Scaling

    Eng. Units

    Description

    More…..


    Complete scada solution l.jpg

    Complete SCADA solution

    • Alarm Handling Package

      • Complete, “Out-of-the-box”

      • Alarm Summary Display

        • Sort and filter by Priority, Time, Location

      • Global Alarms

        • See and Acknowledge alarms from all SCADA nodes

      • Email and Pager notification of Alarms

      • PDA and Pocket PC view and acknowledge alarms

      • Alarm Log

        • Printer, hard drive and central database.

      • Disable alarms by Groups

      • Fast response Alarm Graphic, and more…


    Complete scada solution13 l.jpg

    Complete SCADA Solution

    • Trending & data logging

      • 12 tags on one graph

      • Add /change tags without loosing data

      • Scroll by second, hour, day, month

      • Change scale (zoom)

      • X-Y plot and time based

      • HTML report (copy and paste data to EXCEL, etc.)

      • Local recording to hard drive

      • Centralized recording to single DB for all SCADA nodes


    Complete scada solution14 l.jpg

    Complete SCADA Solution

    • Scheduled Reports

      • Shift, Daily and Monthly reports generated automatically

      • View current and previous reports in Web Browser

      • HTML report (copy and paste data to EXCEL, etc.)

      • Emails report in HTML format

      • Prints to printer or file

      • Centralized recording to single DB for all SCADA nodes


    Complete scada solution15 l.jpg

    Complete SCADA Solution

    • Scheduler

      • Calendar, time of day, day of week and holiday schedules

      • Analog, discrete and text values

      • Temperature setbacks, lighting control, equipment applications


    Complete scada solution16 l.jpg

    Complete SCADA Solution

    • Recipes

      • Download hundreds of setpoints and change equipment status with a single button

      • Redirect multiple recipes to multiple units

      • Batch, blending, startup and shutdown applications


    Complete scada solution17 l.jpg

    Complete SCADA Solution

    • Integrated Video and Audio

      • Video in graphic Display with pushbuttons, trends etc.

      • Scripts to animate or rotate between cameras

      • IP enabled cameras

      • Security

      • Traffic and transportation

      • View and hear equipment startup

      • Windows media supported


    Complete scada solution18 l.jpg

    Complete SCADA Solution

    • Security

      • “Area of responsibility”

        • Tags assigned to single area

        • Users assigned to one or more areas. Can not change tags outside assigned area.

      • Level

        • 127 access levels within an area.

      • Users

        • Restricted users – view display and data assigned to them.

        • General – all displays except ‘system displays”.

        • Power user all displays.

        • Project user – DRAW, configuration tool.


    Complete scada solution19 l.jpg

    Complete SCADA Solution

    • Data base and Tag browser

    View the entire database of every SCADA Node.

    • Current Value.

    • Description.

    • Span, Eng. Units.

    • Drill down to Point Detail info on Configuration: address, location.

    • Find Displays, trends, alarm groups using the tag.


    Complete facilities automation scada more than an hmi l.jpg

    Complete Facilities Automation SCADAmore than an HMI

    Integral Facilities Automation functions

    • Scheduler

    • Alarm Notification by phone, pager, email, etc.

    • Security Video and Audio

    • Replaces 3rd Party software : cost, reliability, ease of use

    • Adds functionality to traditional automation IO

      Leading Edge Internet technology

    • Access with web browsers

    • Remote Engineering & Technical Support.

    • Direct access by accounting for more accurate energy usage / time of day invoicing

    • Web browser access is current trend in the Telecom automation industry

      Turn Facilities Automation into Energy Management

    • Aggregate multiple facilities into a single system

    • Improved electrical rates: load shedding, peak shaving, etc.


    System architecture l.jpg

    System Architecture


    True internet connectivity l.jpg

    True Internet Connectivity

    • Clients are ordinaryWeb Browsers

      • MicrosoftInternet Explorer 5.5 and 6.0

      • Netscape 6.1

    • Desktops

    • Laptops

    • Handhelds

    • Pocket PCS (iPAQ), PDAs

    • Windows CE, 95, 98, ME, NT, 2000, XP


    True internet connectivity23 l.jpg

    True Internet Connectivity

    • Full Control

      • Setpoints

      • Equipment Start / Stop

      • Acknowledge Alarms

      • Thin Client has full control too!

    • Full Animation in Clients

    • Clients are Engineering Station too!


    True internet connectivity24 l.jpg

    True Internet Connectivity

    • Unlimited concurrent clients

      • No Client License Fees!

      • Automatic Download of Plug-in if needed

      • No Plug-in required for Thin Client


    True internet connectivity25 l.jpg

    True Internet Connectivity

    • Access with IP address, computer name or URL.

    • Pass through Dynamic IP

    • Private IP

      • with ICS or NAT

      • Port Mapping

    • Firewalls


    True internet connectivity26 l.jpg

    True Internet Connectivity

    • T1, DSL, ADSL, ISDN, 56K, 33.6K

    • Wireless Ethernet


    Multi layer internet security l.jpg

    Multi-Layer Internet Security

    • Microsoft IIS security

    • Windows Integrated Security

    • VPN (Virtual Private Networks)

    • Secure Sockets Layer (SSL) Certificates

    • Beyond ordinary Web Server security

    • Web Access adds additional security to connect

    • User name and Log-in

      • To view a display.

      • To Change a value.

      • 32 “Areas of Responsibility” .

      • User must be assigned to same Area the tag is assigned.

      • 127 Password Levels, User must also have a password “Level” that matches or exceeds that assigned to the tag.


    Fully scale able web application l.jpg

    Fully Scale-able Web Application

    • Networks.

      • Multiple clients and SCADA nodes.

      • WebAccess can aggregate multiple facilities into one system using TCP/IP.

    • Single Machine Interface


    Fully scale able web application29 l.jpg

    Fully Scale-able Web Application

    • Unrestricted number of SCADA nodes

      • SCADA node connects to Programmable Controllers,I/O Devices,Loop Controllers, DCS Systems, DDC Systems, RTUs, Instruments

      • Up to 3000+ devices on a SCADA node

        • extendable to 16k

      • 60,000+ tags per node

      • No limitation on the location of SCADA nodes or devices.


    Partial drivers list automation equipment l.jpg

    Partial Drivers List: Automation Equipment


    Fully scale able web application31 l.jpg

    Fully Scale-able Web Application

    • Multiple seat database configuration

      • Any client can configure

      • No configuration seat License Fee!

    • Unlimited number of Client connections.


    Fully scale able web application32 l.jpg

    Fully Scale-able Web Application

    • Standalone single HMI

      • Remote support

        • Via dial-up, intranet or Internet

      • Remote monitoring

        • by managers, engineering, accounting.

        • After-hours, Emergency or Swing Shift

      • Hazardous locations


    Webaccess application l.jpg

    WebAccess application

    • Easy to install

      • without prior web knowledge or experience of web site building

      • No HTML required by user

      • No graphics conversion

    • Automatic download of plug-in if needed by clients

    • Download files with a single pushbutton


    Webaccess application34 l.jpg

    WebAccess application

    • Enables the average user to implement and maintain a small or large scale control system using built in networking tools.


    Customers local international l.jpg

    Customers – Local & International

    Federal Reserve

    Waste Water Controls

    China

    Embarcadero Center

    6 SCADA nodes to control five 30-floor office buildings in San Francisco

    University of California Berkeley Campus

    Ten WebAccess nodes monitor & control 50 campus buildings

    INTEL

    5 facilities including 2 FAB locations

    Sandia Labs


    Customer local l.jpg

    Customer – Local


    Customer international l.jpg

    Customer - International

    • Application : Home Automation.

    • Phase I Scale : Monitor 30,000 apartments.

    • Phase II Scale : Monitor 3 Million apartments.


    Typical customer l.jpg

    Typical Customer

    • Single PC

      • With occasional remote access


    International customers l.jpg

    International Customers

    • Multiple language versions

      • English

      • Japanese

      • Simplified Chinese

      • Traditional Chinese

      • Localization design

        • Just fill in a column in Excel for translation

        • easily add a new language to Broadwin WebAccess


    Completely browser based hmi l.jpg

    Completely Browser-based HMI

    • All operations performed over the Internet (or intranet) using a web browser.

    • Real-time data for operators and managers.

      • Monitor, control, acknowledge alarms, download recipes, change setpoints, start and stop equipment…

    • Remote support by engineers and technicians.

      • All engineering, configuration, programming, and technical support using an ordinary web browser.

  • Real-time data + remote support = the first “completely” web browser-based HMI.

    • The competition offers only half a solution.


  • High performance design for the web l.jpg

    High Performance Design for the Web

    • Optimized for internet traffic

      • Speed sensitive data communication adjusts for each client

    • Vector based graphics

      • Smaller file size and faster downloads than bitmaps

    • High performance vector graphic engine

      • Very low CPU utilization

      • Runs on Client side to reduce network load

    • Win32, multi-threaded data kernel

      • all Microsoft Win32 platforms including Windows XP

    • Best driver performance

      • at least 7x faster than Intouch, 3x faster than iFix


    Conclusion l.jpg

    Conclusion:

    The first fully Web browser-based HMI / SCADA software

    • Ordinary Web browser.

    • Ordinary Web Server.

    • Full Animation Client.

    • A “true” Thin Client for PDA and Pocket PC.

    • Email and text messaging of Alarms.

    • Web browser is the Engineering Tool .

      • Configure Database, Tags, Alarms, ….

      • Build Graphics, Download Software, start nodes remotely.

    • 2002 technology.

    • Designed for the Web.


    Contact l.jpg

    Contact

    BroadWin Technology Inc.

    111 Deerwood Road, # 250San Ramon, CA 94583 USAEmail: [email protected]: (925) 362-4592Fax: (925) 362-9904www.broadwin.comTom Carter – Product ManagerFrank Lin - President


  • Login
