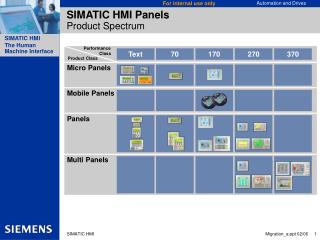

  1. SIMATIC HMI PanelsProduct Spectrum Performance Class Text 70 170 270 370 Product Class Micro Panels Mobile Panels Panels Multi Panels

  2. TD 200 OP 73micro TP 070 TP 170micro TD 200C OP3 OP 73 TP 170A TP 177micro TP 177A OP7 OP 77A OP 77B TP 170B OP17 OP 170B TD17 TD17Recommended Successors 70 Text 170 Micro Panels • Customers that up to now have operated the TD17 exclusively with the S7-200 • Not mounting-compatible Panels TP 177B • Touch Panel can be configured as pure text display with alarm system • Not mounting-compatible OP 177B Touch Panel as successor (pure text display) Not mounting-compatible

  3. TD 200 OP 73micro TP 070 TP 170micro TD 200C OP3 OP 73 TP 170A TP 177micro TP 177A-6“ TP 177A-10“ OP7 OP 77B OP 77A TP 170B OP17 OP 170B TD17 Migration OP3Recommended Successors 70 Text 170 • Customers who have used OP3 exclusively for S7-200 until now • Customers who require a replacement system with the same dimensions • Changes: Missing numeric keypad, 4 instead of 5 function keys Micro Panels Panels • Customers who require a replacement system with the same dimensions • Changes: Missing numeric keypad, 4 instead of 5 function keys Keyboard and cable outlet at the bottom Communication only possible to one PLC in the PPI network Emphasize device features for replacement system

  4. TD 200 OP 73micro TP 070 TP 170micro TD 200C OP3 OP 73 TP 170A TP 177micro TP 177A-6“ OP7 OP 77A OP 77B TP 170B OP17 OP 170B TD17 OP7Recommended Successors 70 Text 170 Micro Panels Panels • For customers whose main criterion is the price • For customers whose main criterion is functionality • 2 available device models

  5. TD 200 OP 73micro TP 070 TP 170micro TD 200C OP3 OP 73 TP 170A TP 177micro TP 177A OP7 OP 77A OP 77B TP 170B OP17 OP 170B TD17 OP17Recommended Successors 70 Text 170 Micro Panels • Customers that require a mounting-compatible replacement • Combination of touchscreen and keys • Changes: System keys configurable onto F keys Panels TP 177B OP 177B Mounting-compatible successor System keys via touchscreen or configurable onto F keys

  6. SIMATIC TP 177 Price Positioning 610.- € TD17 • Text • PPI, MPI 1.5 Mbit/s • S7 • Status Messages 550.- € 460.- € TP 177A • 5.7” Graphics Display • MPI, DP 1.5 Mbit/s • S7 • Complete Alarm System • Asian Symbol Languages TP 177micro • 5.7” Graphics Display • PPI 187.5 Mbit/s • S7-200 • Complete Alarm System • Asian Symbol Languages

  7. SIMATIC OP 73 / OP 73micro Price Positioning 285.- € OP3 • Text • PPI, MPI 1.5 Mbit/s • S7 • Status Messages • Numeric Keys 240.- € 280.- € OP 73micro • Graphics, Display over 30% larger • PPI • S7-200 • Complete Alarm System • Asian Symbol Languages • Numeric and alphanumeric Input via Cursor OP 73 • Graphics, Display over 30% larger • MPI, DP up to 1.5 Mbit/s • S7 • Complete Alarm System • Asian Symbol Languages • Numeric and alphanumeric Input via Cursor

  8. SIMATIC OP 77 Price Positioning 465.- € 465.- € 580.- € OP7/PP • Text • S5, 505, 3rd-Party PLCs • Recipes • Printer OP7/DP • Text • PPI, MPI, DP 1.5 Mbit/s • S5, S7, 505, DP,3rd-Party PLCs • Recipes • Printer OP7/DP-12 • Text • PPI, MPI, DP 12 Mbit/s • S5, S7, 505, DP,3rd-Party PLCs • Recipes • Printer 395.- € 495.- € OP 77A • Graphics, Display over 30% larger • PPI, MPI, DP up to 1.5 Mbit/s • S7 • Asian Symbol Languages OP 77B • Graphics, Display over 30% larger • PPI, MPI, DP up to 12 Mbit/s • S5, S7, 505,3rd-Party PLCs • Asian Symbol Languages • Recipes • Multimedia Card • USB Printer

  9. SIMATIC OP 177B Price Positioning 1040.- € 1040.- € 1200.- € OP17/PP • Text • S5, 505, 3rd-Party PLCs • Recipes • Printer OP17/DP • Text • PPI, MPI, DP 1.5 Mbit/s • S5, S7, 505, DP,3rd-Party PLCs • Recipes • Printer OP17/DP-12 • Text • PPI, MPI, DP 12 Mbit/s • S5, S7, 505, DP,3rd-Party PLCs • Recipes • Printer 1040.- € OP 177B • 5.7” Graphics Display • PPI, MPI, DP up to 12 Mbit/s • S7, 3rd-Party PLCs • Asian Symbol Languages • Recipes • Multimedia Card • USB Printer

  10. SIMATIC Panels – 70 SeriesPositioning within the Operator Devices 70 Text 170 270 370 Micro Panels Micro Panels OP 73micro Mobile Panels Panels Panels OP 73 Multi Panels OP 77A/OP 77B

  11. SIMATIC Panels – 170 SeriesPositioning within the Operator Devices 70 Text 170 270 370 Micro Panels Mobile Panels Panels Panels Multi Panels OP 177B

  12. SIMATIC OP 73, OP 77A, OP 77B, OP 177BConfiguration starting with WinCC flexible Compact Stage 2: SCADA WinCC flexible Advanced ES WinCC flexible Standard WinCC flexible Compact Engineering Software WinCC flexible Micro Micro PanelOP 73micro TP 170microTP 177micro Panels70/170 Series Panels/Multi Panels270/370 Series PC-basedWinCC flexibleRuntime PC-basedWinCC flexibleRuntime RT Runtime OP 73micro starting with WinCC flexible Micro

  13. SIMATIC panels of the 70 SeriesHighlights OP 73 OP 77A OP 77B • 4.5” pixel-graphics display • USB interface • MMC card slot • Recipes • 3rd party drivers • MPI/DP up to 12MB • 3” pixel-graphics display • OP 73micro especially for S7-200List price: 240 EUR • 4.5” pixel-graphics display List price: 280 EUR List price: 395 EUR List price: 495 EUR • Pixel-graphics display(bitmaps, bars, different font sizes) • Message system with freely definable message classes and history • 5 online languages incl. Asian and Cyrillic fonts • S7 communication - Profibus DP up to 1.5MB (OP 73micro only for S7-200) • Configurable with SIMATIC WinCC flexible

  14. SIMATIC OP3 / OP 73Major Differences

  15. SIMATIC 70 Series / 170 Series PanelsMajor Differences No image update via MPI with OP 73 No automatic transfer detection via PC/PPI cable

  16. SIMATIC Panels OP 177BHighlights • One-of-a-kind OP177B mono/color • with touchscreen & keys combination • with programmablesystem keys • with non-volatilealarm buffer without battery • High performance: 200 MHz • Large user memory > 2 MB • 256 colors for color display • 32 function keys, usable as direct keys • Smooth front (NEMA4, EX 2/22), shipbuilding certifications • MultiMediaCard slot for standard cards • Onboard USB for keyboard, printer, ... • Color Panels • Standard: 10/100Ethernet interface 10/100 • Options: Sm@rt Service/Sm@rt Client

  17. ! F1 HELP POWER F1 F1 Benefits / Differences: OP17 and OP 177B • Color display instead of two-colored LEDs • Color graphics display for more innovative feedback • LEDs still present, now with two flashing rates • Language-dependent system alarms instead of system LEDs • Alarm text “Faulty Connection” in the configured language instead of LED “BUS Fault” • Simple, low-cost key labeling • Print templates are supplied free-of-charge with WinCC flexible • Flexible service concept with MultiMediaCard or ProSave • Backup/restore function can save a possible service call • Exchange of recipes with MultiMediaCard or ProSave • Copying instead of typing prevents errors and is faster • Editing also possible at the PC

  18. OP3 ProTool Conversion possible *) Configuration not possible OP 73 WinCCflexible SIMATIC OP 73 – Compatibility with OP3 Projects • A detailed description can be found in the migration manual(part of the WinCC flexible documentation) Migration to OP 73micro • Step 1: Migration from OP3 to OP 73 • Step 2: Change device from OP 73 operator panel to OP 73micro Project Platform *) Adaptations necessary

  19. OP7 ProTool Conversion possible *) OP 77A/B WinCCflexible SIMATIC OP 77 – Compatibility with OP7 Projects • A detailed description can be found in the migration manual(part of the WinCC flexible documentation) Migration to OP 77A • Step 1: Migration from OP7 to OP 77B • Step 2: Change device OP 77B operator panel to OP 77A Project Platform Configuration not possible *) Adaptations necessary

  20. OP17 ProTool Conversion possible *) Configuration not possible OP 177B WinCCflexible SIMATIC OP 177B – Compatibility with OP17 Projects • A detailed description can be found in the migration manual(part of the WinCC flexible documentation) • Easy switching of the configuration • Tags, alarm texts, recipes and screen contents are taken over • One-time effort required for adapting the graphics display Project Platform *) Adaptations necessary

  21. Download Download to Panels OP 73, OP 77A and TP 177A • Configuration download and image update (not OP 73) • MPI/Profibus DP • Serially via RS 485 with PC/PPI cable • Initial image loading / image update for OP 73 • Serially via RS 485 with PC/PPI cable Download to Micro Panels OP 73micro and TP 177micro • Configuration download, initial image loading and image update • Serially via RS 485 with PC/PPI cable Null-Modem CableRS232- RS232 PC/PPI CableRS 232 – RS 485 119 Euro PC/PPI CableUSB – RS 485 V2 149 Euro
