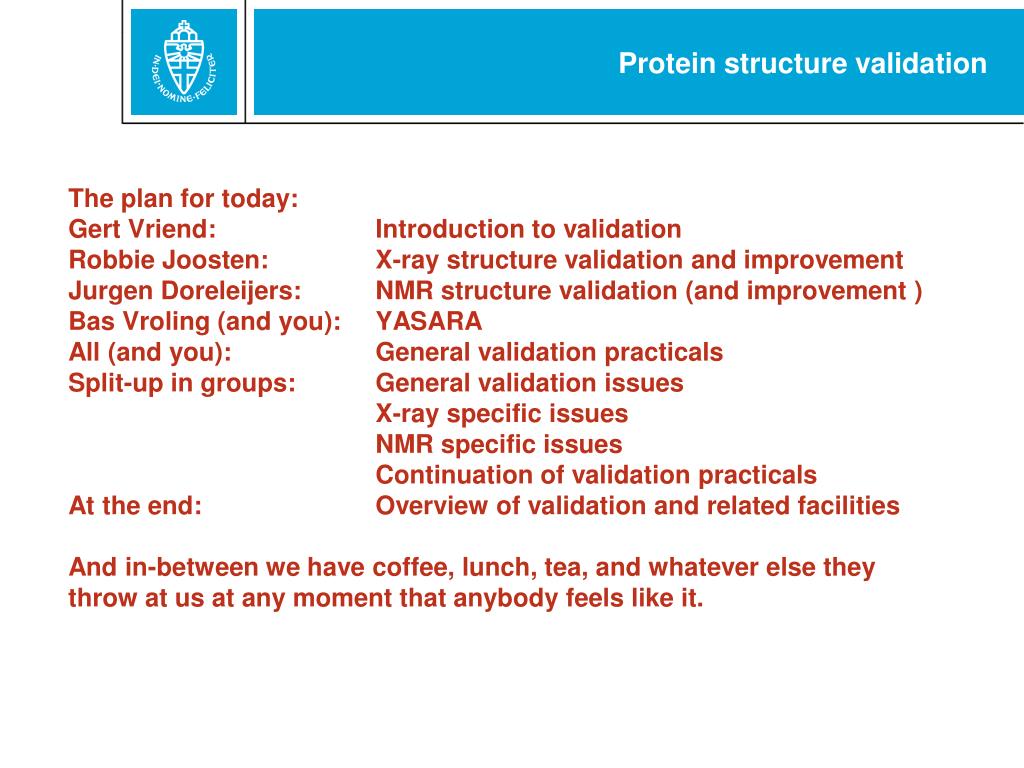

The plan for today:Gert Vriend: Introduction to validationRobbie Joosten: X-ray structure validation and improvementJurgen Doreleijers:NMR structure validation (and improvement )Bas Vroling (and you):YASARAAll (and you):General validation practicalsSplit-up in groups:General validation issuesX-ray specific issuesNMR specific issuesContinuation of validation practicalsAt the end:Overview of validation and related facilitiesAnd in-between we have coffee, lunch, tea, and whatever else they throw at us at any moment that anybody feels like it.

Structure validation

Structure validation

Everything that can go wrong, will go wrong, especially with things as complicated as protein structures.

What is real

What is real?

What is real1

What is real?

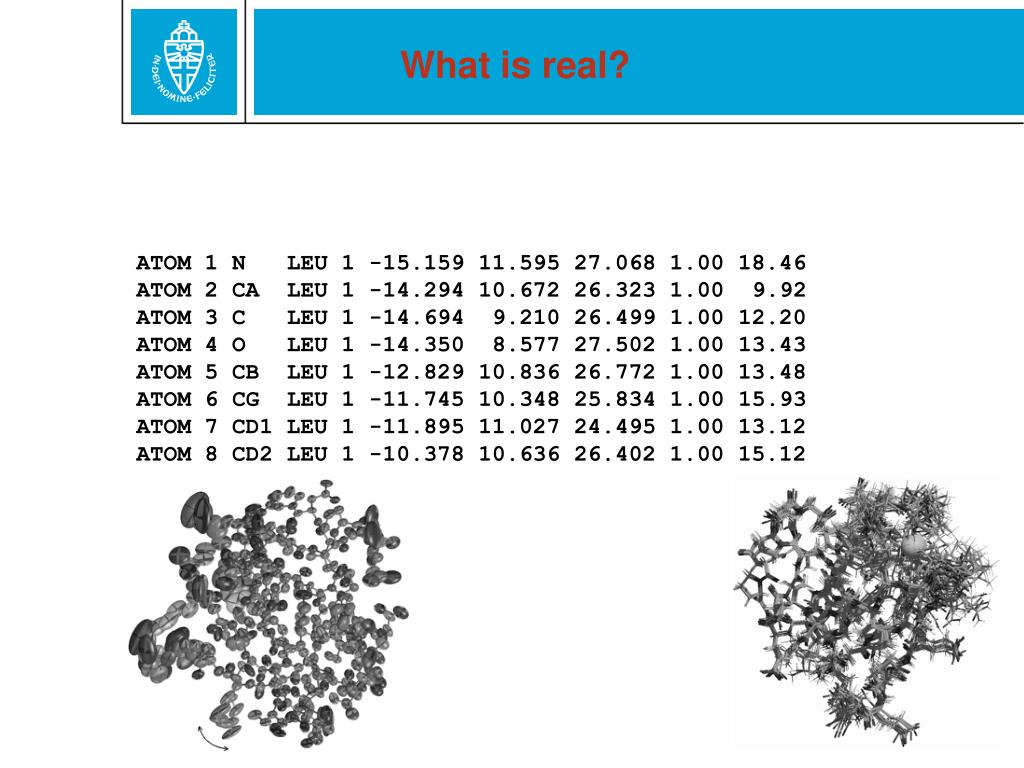

ATOM 1 N LEU 1 -15.159 11.595 27.068 1.00 18.46

ATOM 2 CA LEU 1 -14.294 10.672 26.323 1.00 9.92

ATOM 3 C LEU 1 -14.694 9.210 26.499 1.00 12.20

ATOM 4 O LEU 1 -14.350 8.577 27.502 1.00 13.43

ATOM 5 CB LEU 1 -12.829 10.836 26.772 1.00 13.48

ATOM 6 CG LEU 1 -11.745 10.348 25.834 1.00 15.93

ATOM 7 CD1 LEU 1 -11.895 11.027 24.495 1.00 13.12

ATOM 8 CD2 LEU 1 -10.378 10.636 26.402 1.00 15.12

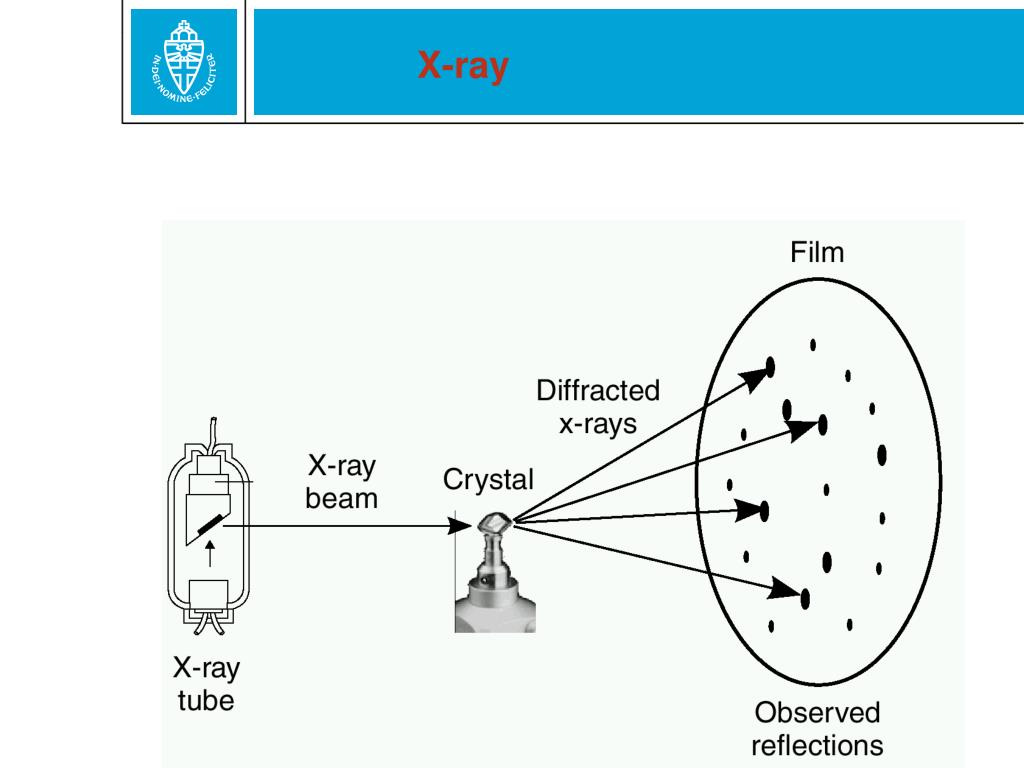

X ray

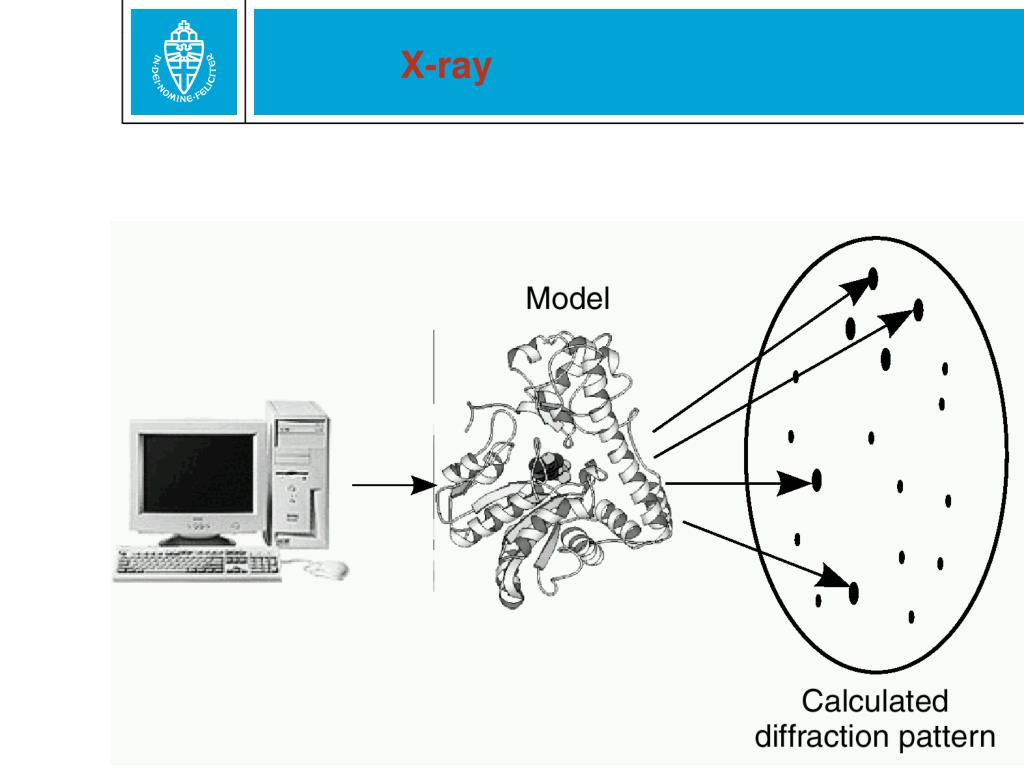

X ray1


X ray2

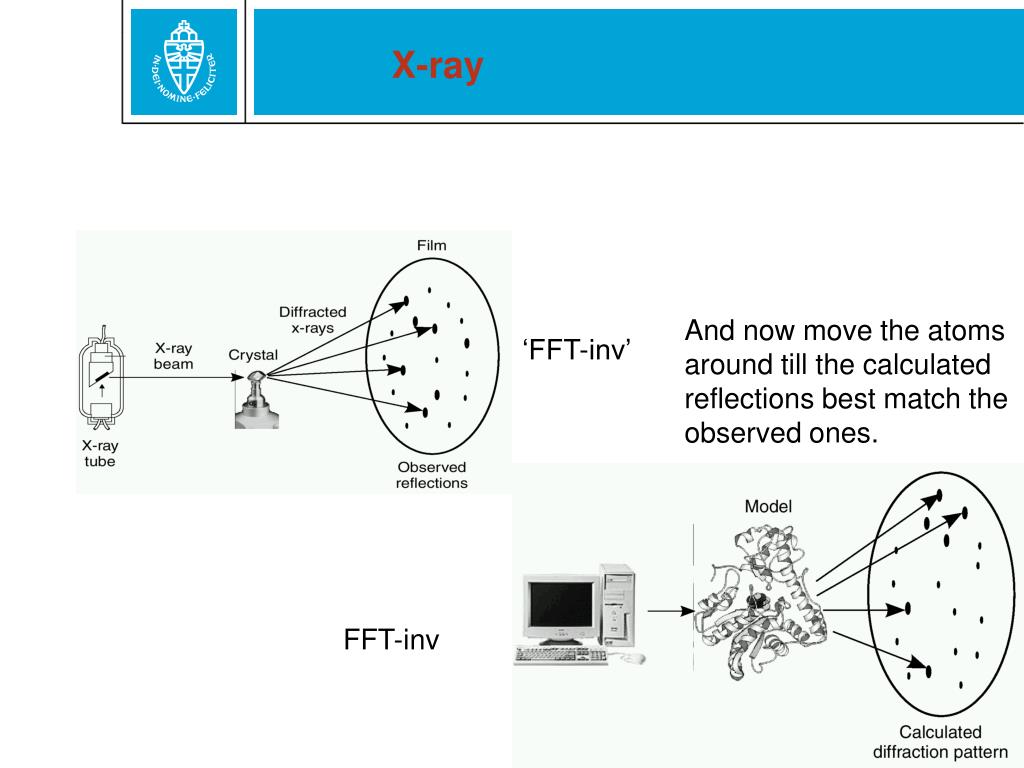

And now move the atoms around till the calculated reflections best match the observed ones.



X ray refinement multiple minima

X-ray refinement / multiple minima



X ray r factor

X-ray R-factor


Error = Σ w.(obs-calc)

R-factor = Σ w.|obs-calc|

X ray resolution

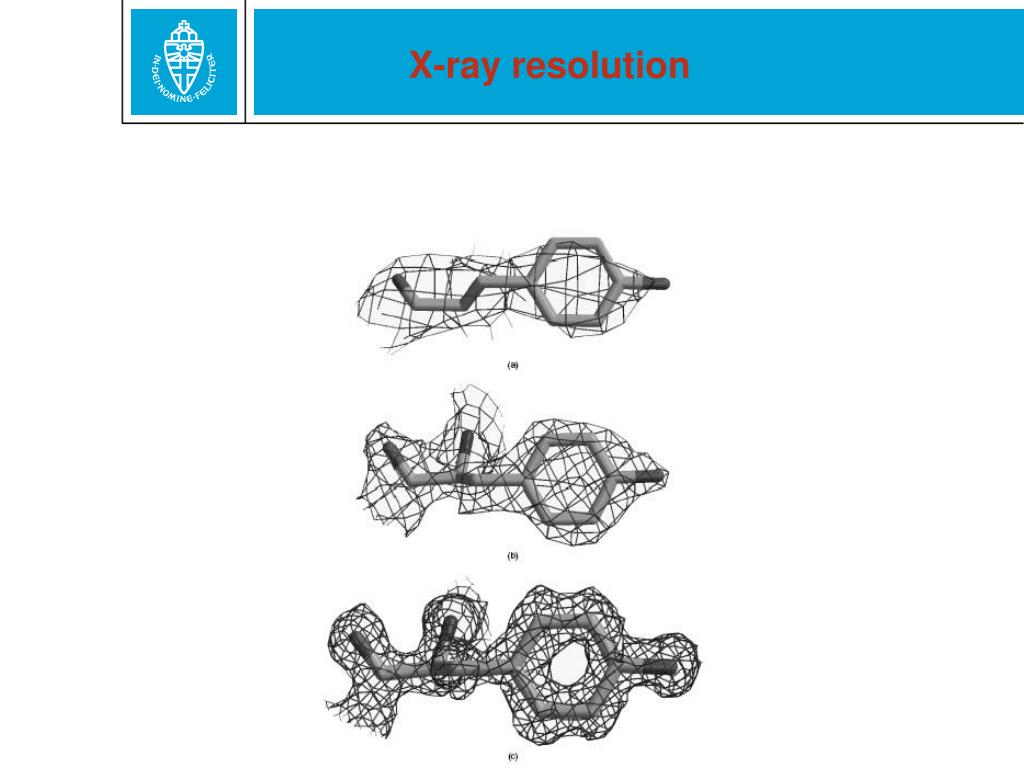

X-ray resolution

Nmr data collection

NMR data collection

Nmr data

NMR data

NMR data consists of short inter-atomic distances between atoms. We call these NOEs.

Most NOEs are between close neighbours in the sequence. Those hold little information.

The ‘good’ NOEs are between atoms far away in the sequence. There are few of those, normally.

NOEs are known with low precision. E.g. NOEs are binned 2.5-4.0, 4.0-5.5, and 5.5-7.0.

NMR can also measure some angles, and relative orientations. The latter, called RDCs are powerful.

Nmr q factor

NMR Q-factor

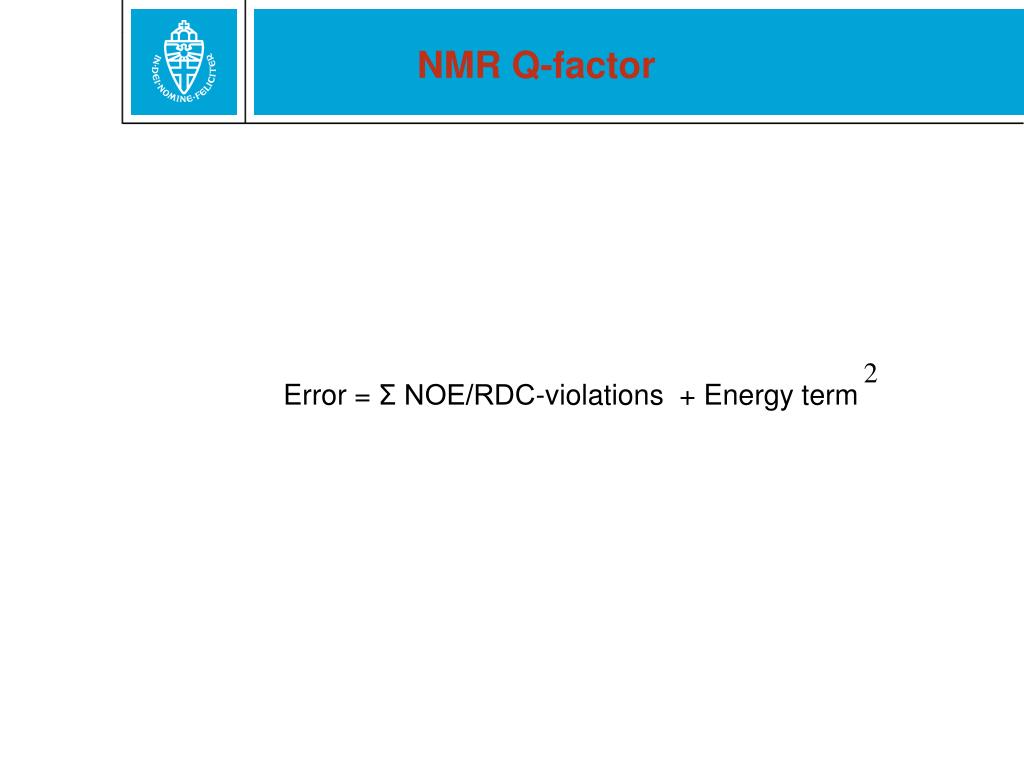

Error = Σ NOE/RDC-violations + Energy term

Nmr versus x ray

NMR versus X-ray

With X-ray you measure reflections. Each reflection holds information about each atom.

With NMR you measure pair-wise distances, angles, and orientations. These all hold local information.

X-ray requires crystals, and crystals cause/are artefacts.

NMR is in solution, but provides much less precision.

Nmr versus x ray1

NMR versus X-ray


‘Error’ 1-2 Å0.1-0.5 Å

Mobilityyesnot really

Crystal artefactsnoyes

Material needed20 mg1 mg

Cost of hardware4 M Euronear infinite (share)

Drug designnoalmost

Better combine and use the best of both worlds.

Why validation

Why validation ?

Why does a sane (?) human being spend twenty years to search for millions of errors in the PDB?

Validation because

Validation because:

Everything we know about proteins comes from PDB files.

Errors become less dangerous when you know about them.

And, going back to the red thread through this series, if a template is wrong the model will be wrong.

What kind of errors can the software find

What kind of errors can the software find?

Administrative errors.

Crystal-specific errors.

NMR-specific errors.

Really wrong things.

Improbable things.

Things worth looking at.

Ad hoc things.

Smile or cry

Smile or cry?

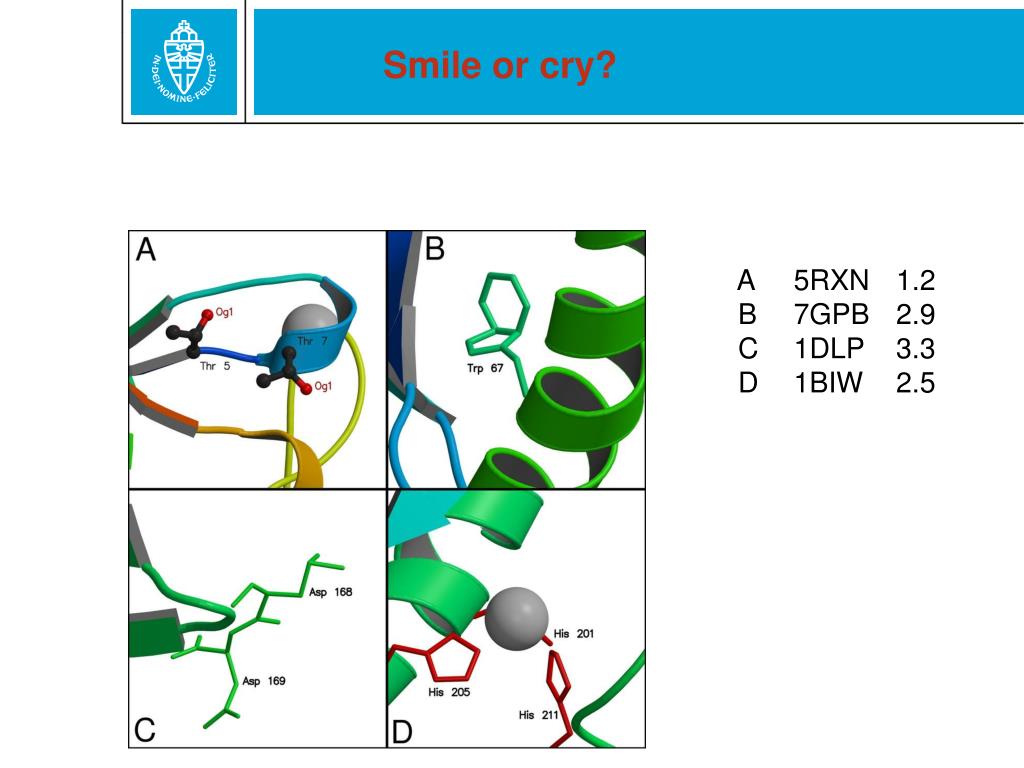

A 5RXN 1.2

B 7GPB 2.9

C 1DLP 3.3

D 1BIW 2.5

Why simple proteins are very complex

Why? Simple, proteins are very complex.

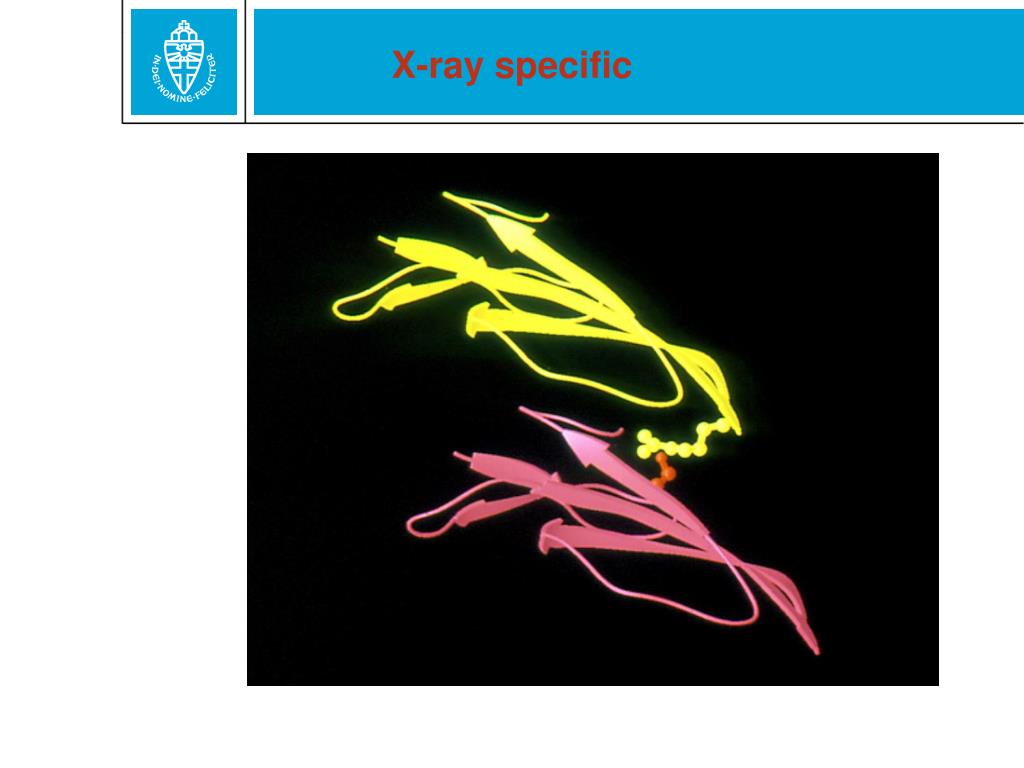

X ray specific

X-ray specific

Little things hurt big

Little things hurt big

How bad is bad


How bad is bad?

Check with force fields

A force field is a set of parameters together with a set of rules to use those parameters to see how normal something is. Most force fields are designed to score events, or to predict the future.

In structure validation we often look at structures and count ‘things’ For example, we count that the number of buried hydrogen bond donors that do not make a hydrogen bond is 4.6+/-1.2 per 100 amino acids in well-solved proteins. So we call that normal, and now, using ΔG=-RTln(K), we can calculate the energy penalty for proteins with more than 4.6 unsatisfied buried unsatisfied hydrogen bonds.

Check with force fields

Contact probability

Contact Probability

Contact probability1

Contact Probability

Contact probability box

Contact probability box

One slide about homology modelling

One slide about homology modelling

His asn gln flips

His, Asn, Gln ‘flips’

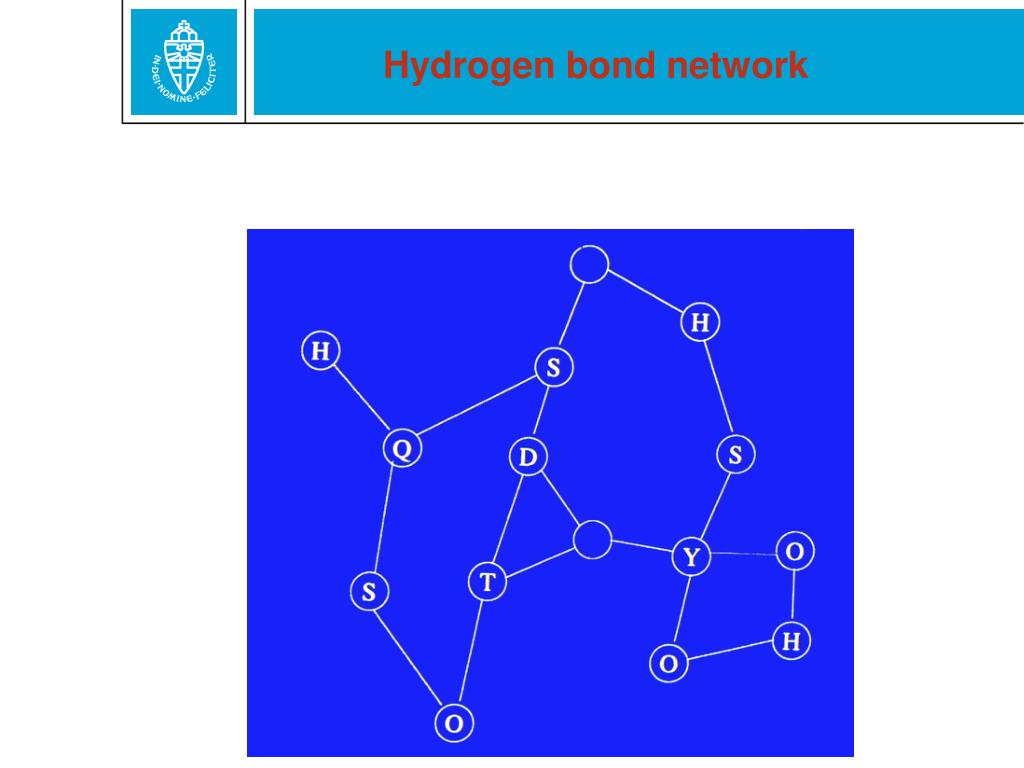

Hydrogen bond network

Hydrogen bond network

Your best check

Your best check:

How difficult can it be

How difficult can it be?


2.2 A

How difficult can it be1

How difficult can it be?

Errors or discoveries

Errors or discoveries?

Buried histidine.

Warning for buried histidine triggered biochemical follow -up and new mechanism for KH-module of Vigilin.

(A. Pastore, 1VIG).



Rob Hooft

Elmar Krieger

Sander Nabuurs

Chris Spronk

Maarten Hekkelman

Robbie Joosten
