  1. Lync Like You’ve Never Seen It Before

  2. Aruba Networks can improve your mobile Lync experience Name hereAruba Networks

  3. Rich colors Wi-Fi Challenges in the Mobile Workplace Life happens in color. Color captures passions,inspires emotions, and connects people. Bright and energetic,pure and beautiful, the Microsoft colors add vibrancy to communications and are among the most recognizableand unifying elements in our visual identity. • 3+ mobile devices per user- BYOD • Unpredictable Voice, Video and UC traffic over mobile devices • Sticky clients don’t roam well

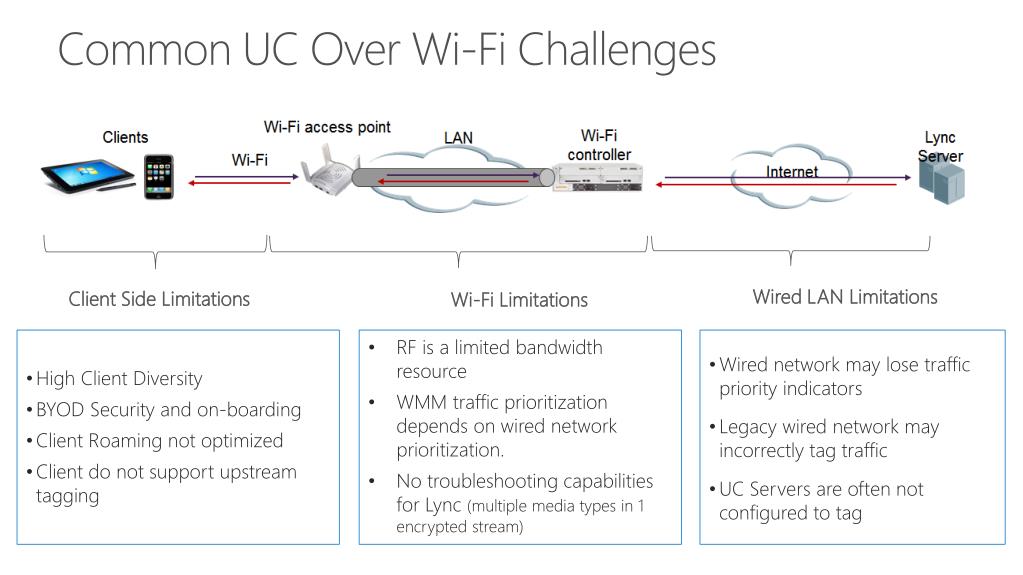

  4. Common UC Over Wi-Fi Challenges Wired LAN Limitations Client Side Limitations Wi-Fi Limitations • High Client Diversity • BYOD Security and on-boarding • Client Roaming not optimized • Client do not support upstream tagging • RF is a limited bandwidth resource • WMM traffic prioritization depends on wired network prioritization. • No troubleshooting capabilities for Lync (multiple media types in 1 encrypted stream) • Wired network may lose traffic priority indicators • Legacy wired network may incorrectly tag traffic • UC Servers are often not configured to tag

  5. You Can’t Fix What You Can’t See

  6. Aruba with Lync: Heuristics or SDN API Heuristics based detection – Lync traffic is identified based on known characteristics of Lync Voice and Video. As the Lync traffic traverses the controller it is inspected and classified as either Voice or Video and the appropriate QoS settings are applied to them. (UCOIP: http://technet.microsoft.com/en-us/lync/gg131938 under Networking) SDN API based detection – Lync traffic is identified through the integration between the Lync Front End server and the WLAN controllers via Microsoft’s SDN API. The Lync front End server sends messages to the Aruba Controller identifying Lync traffic by type and endpoint. (UCOIP: http://technet.microsoft.com/en-us/lync/hh972602 under SDN)

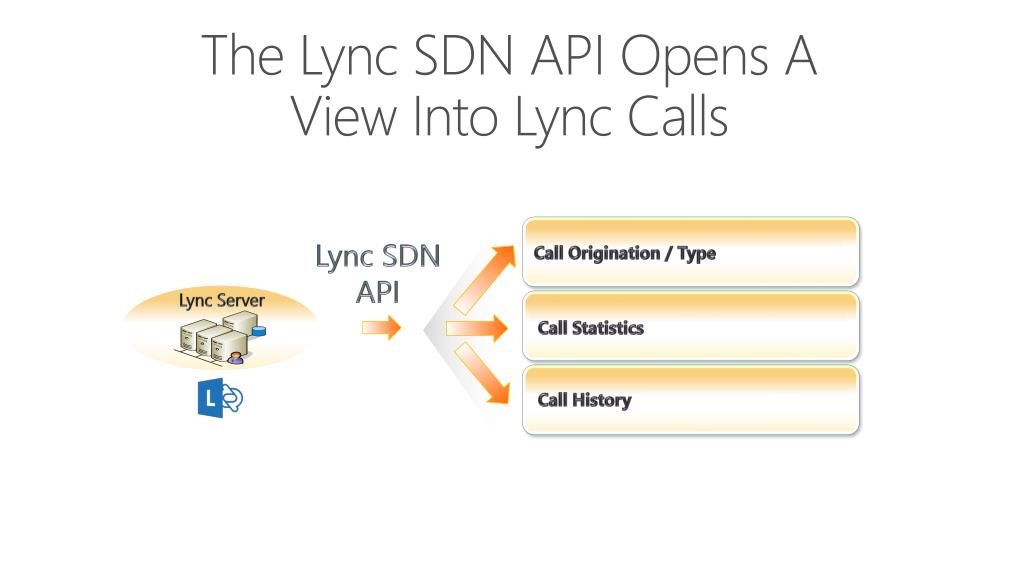

  7. The Lync SDN API Opens A View Into Lync Calls Call History Call Statistics Call Origination / Type Lync SDN API Lync Server

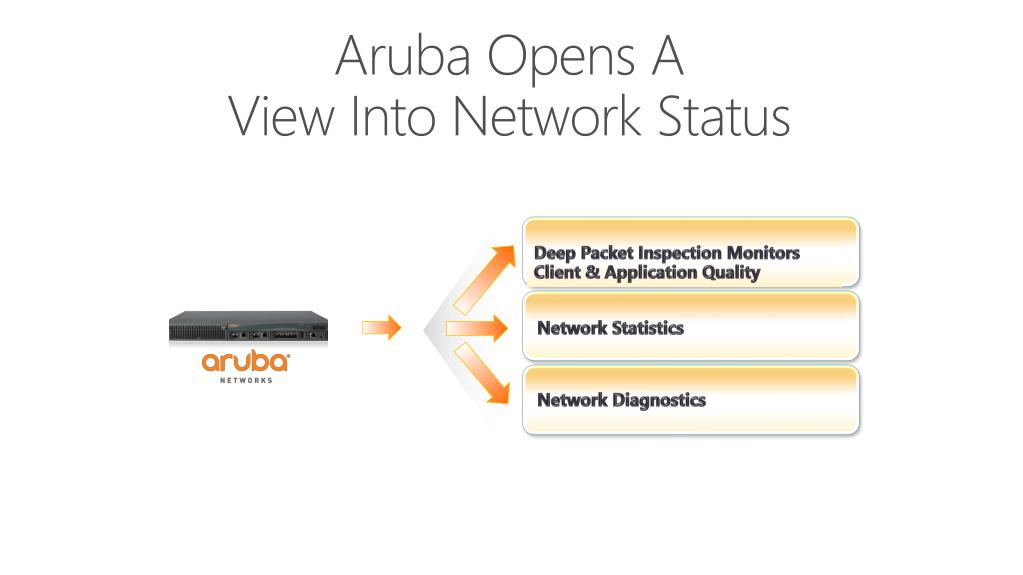

  8. Aruba Opens A View Into Network Status Network Diagnostics Network Statistics Deep Packet Inspection Monitors Client & Application Quality

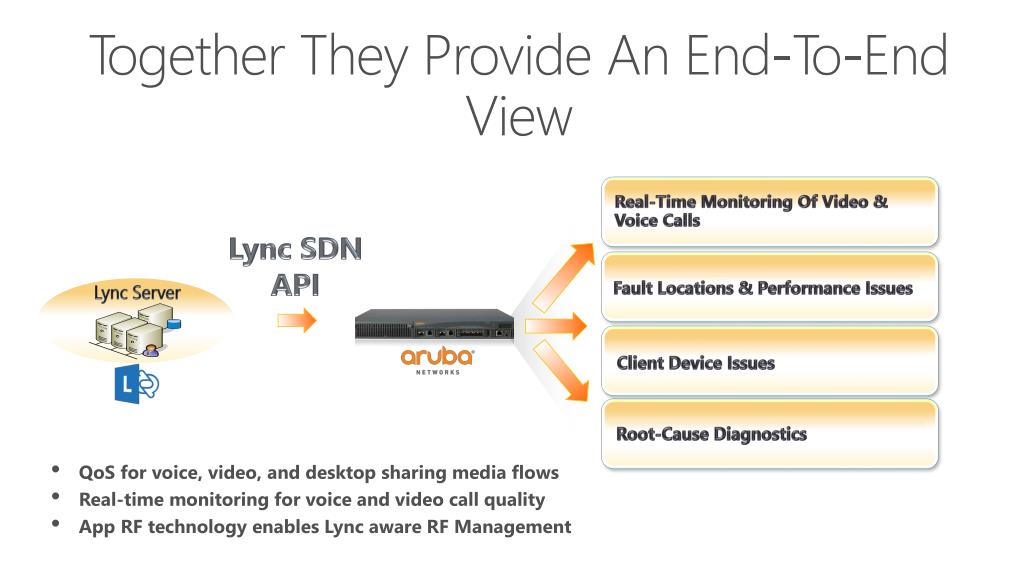

  9. Together They Provide An End-To-End View Real-Time Monitoring Of Video & Voice Calls Root-Cause Diagnostics Client Device Issues Fault Locations & Performance Issues Lync SDN API Lync Server • QoS for voice, video, and desktop sharing media flows • Real-time monitoring for voice and video call quality • App RF technology enables Lync aware RF Management

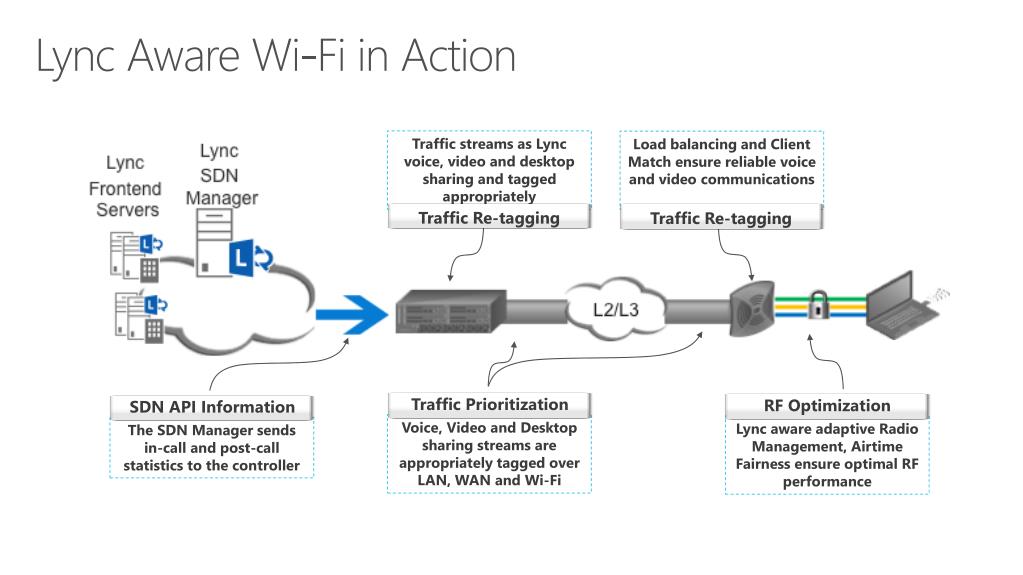

  10. Lync Aware Wi-Fi in Action Traffic streams as Lync voice, video and desktop sharing and tagged appropriately Voice, Video and Desktop sharing streams are appropriately tagged over LAN, WAN and Wi-Fi The SDN Manager sends in-call and post-call statistics to the controller Load balancing and Client Match ensure reliable voice and video communications Lync aware adaptive Radio Management, Airtime Fairness ensure optimal RF performance Traffic Prioritization SDN API Information RF Optimization Traffic Re-tagging Traffic Re-tagging

  11. Lync InsightsThatYou’veNeverSeen Before

  12. All Good! Wi-Fi Problem Something Else

  13. Applications In-Flight

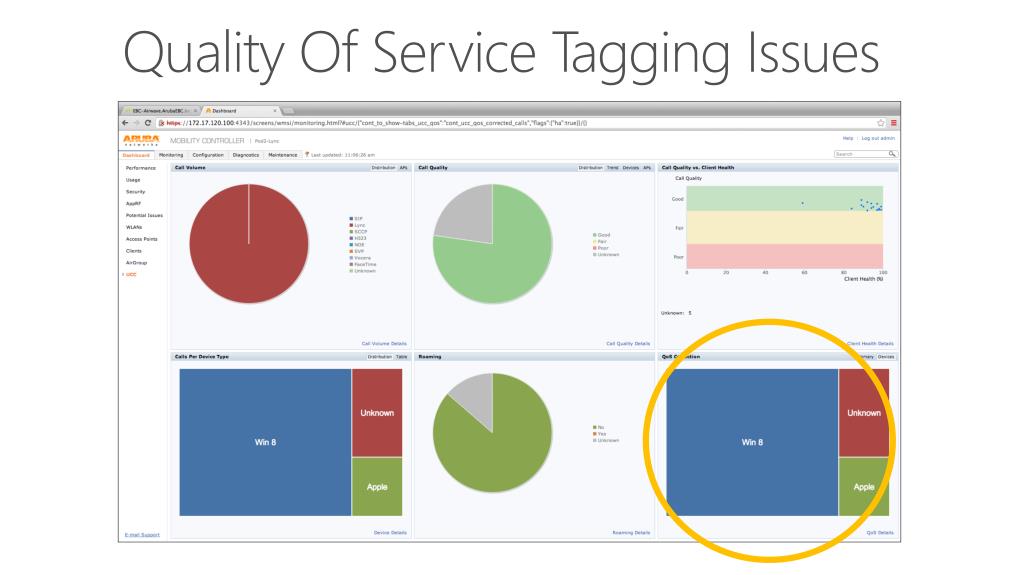

  14. Identify Client Configuration Errors Quality Of Service Tagging Issues

  15. Usage Trends Troubleshooting

  16. User – “Jenny” – Calls Help Desk Individual Call Records & Trends User-Specific Trends Individual Call Records

  17. Trouble Spots By Location

  18. Keep Lync Healthy, Fix It Faster, Use It More End-To-End Visibility Higher Up-Time Untethered Mobility Workplace Collaboration Happy End Users

  19. You’re Now Ready To Cut The Cord & Enter A World Of Untethered Mobility With Unhindered Visibility

  20. Now Possible – Next Gen Workplace • For more information on the Lync SDN API, visit • http://www.microsoft.com/en-us/download/details.aspx?id=39714 • http://blogs.technet.com/b/lync/archive/2013/12/17/lync-and-software-defined-networking.aspx • For more information on the Aruba Lync Offering, visit • http://www.arubanetworks.com/solutions/lync/ • Email: lyncready@arubanetworks.com • Thank you
