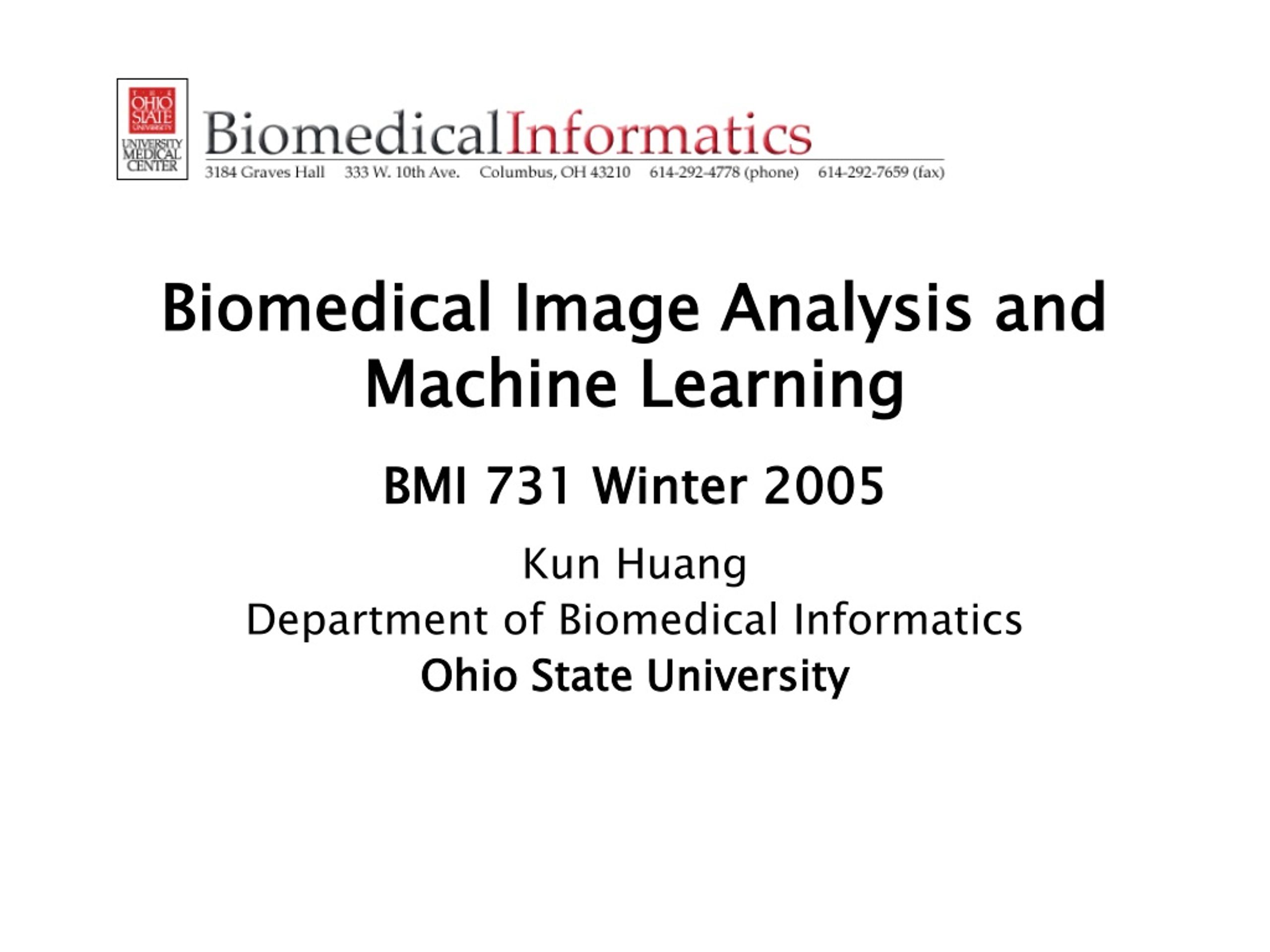

  1. Biomedical Image Analysis and Machine LearningBMI 731 Winter 2005 Kun Huang Department of Biomedical Informatics Ohio State University

  2. Introduction to biomedical imaging • Imaging modalities • Components of an imaging system • Areas of image analysis • Machine learning and image analysis

  3. Why imaging? • Diagnosis X-ray, MRI, Ultrasound, microscopic imaging (pathology and histology) … • Visualization (invasive and noninvasive) 3-D, 4-D • Functional analysis Functional MRI • Phenotyping Microscopic imaging for different genotypes, molecular imaging • Quantification Cell count, volume rendering, Ca2+ concentration …

  4. Ultrasound • Imaging modalities • Wavelength • Electron microscope • X-ray • UV • Light • Ultrasound • MRI • Fluorescence • Multi-spectral • Tomography • Video

  5. Components of Imaging System • Instrumentation : • Electrical engineering, physics, histochemistry … • Image generation • Sensor technology (e.g., scanner), coloring agents … • Image processing and enhancement • Both software, hardware, or experimental (dynamic contrast) • Image analysis at all levels • Image processing, computer vision, machine learning • Manual/interactive • Image storage and retrieval • Database/data warehouse

  6. Areas of Image Processing and Analysis • Image enhancement • Color correction, noise removal, contrast enhancement … • Feature extraction • color, point, edge (line, curves), area • cell, tissue type, organ, region • Segmentation • Registration • 3-D reconstruction • Visualization • Quantization

  7. Curtersy of Raghu Machiraju • Image Analysis and Machine Learning • Why machine learning • Classification at all levels • Pixel, texture, object … • Pattern recognition, statistical learning, multivariate analysis … • Statistical properties

  8. PCA stack • Common machine learning techniques • Dimensionality reduction • Principal component analysis (PCA, SVD, KLT) • Linear discriminant analysis (LDA, Fisher’s discriminant)

  9. Common machine learning techniques • Supervised learning Learning algorithm ? Classifier • Neural network, Support vector machine (SVM), MCMC, Bayesian network …

  10. Common machine learning techniques • Unsupervised learning • K-means, K-subspaces, GPCA, hierarchical clustering, vector quantization, …

  11. Dimensionality Reduction • Principal component analysis (PCA) • Singular value decomposition (SVD) • Karhunen-Loevetransform (KLT) Basis for P SVD

  12. Dimensionality Reduction • Principal component analysis (PCA) = =

  13. Dimensionality Reduction • Principal component analysis (PCA) = Knee point ≈ Optimal in the sense of least square error.

  14. Principal Component Analysis (PCA) • Geometric meaning • Fitting a low-dimensional linear model to data Find m and E such that J is minimized.

  15. Principal Component Analysis (PCA) • Statistical meaning • Direction with the largest variance

  16. Principal Component Analysis (PCA) • Algebraic meaning • Energy

  17. Principal Component Analysis (PCA) • Application : face recognition (Jon Krueger et. al.) Average face Eigenfaces – Principal Components

  18. B 2.0 1.5 1.0 0.5 . . . . . . . . . . . . . . . w A 0.5 1.0 1.5 2.0 Linear Discriminant Analysis (From S. Wu’s website)

  19. B 2.0 1.5 1.0 0.5 . . . . . . . . . A . . . . 0.5 1.0 1.5 2.0 . . w Linear Discriminant Analysis (From S. Wu’s website)

  20. Linear Discriminant Analysis (PCA) • Which direction is a good one to pick? • Maximize the inter-cluster distance • Minimize the intra-cluster distance • Compromise : maximize the ratio between the above two distances

  21. Next time • Supervised learning - SVM • Unsupervised learning – K-means • Spectral clustering OR • CT, Radon transform backprojection • MRI • Other image processing techniques (filtering, convolution, color and contrast correction …)
