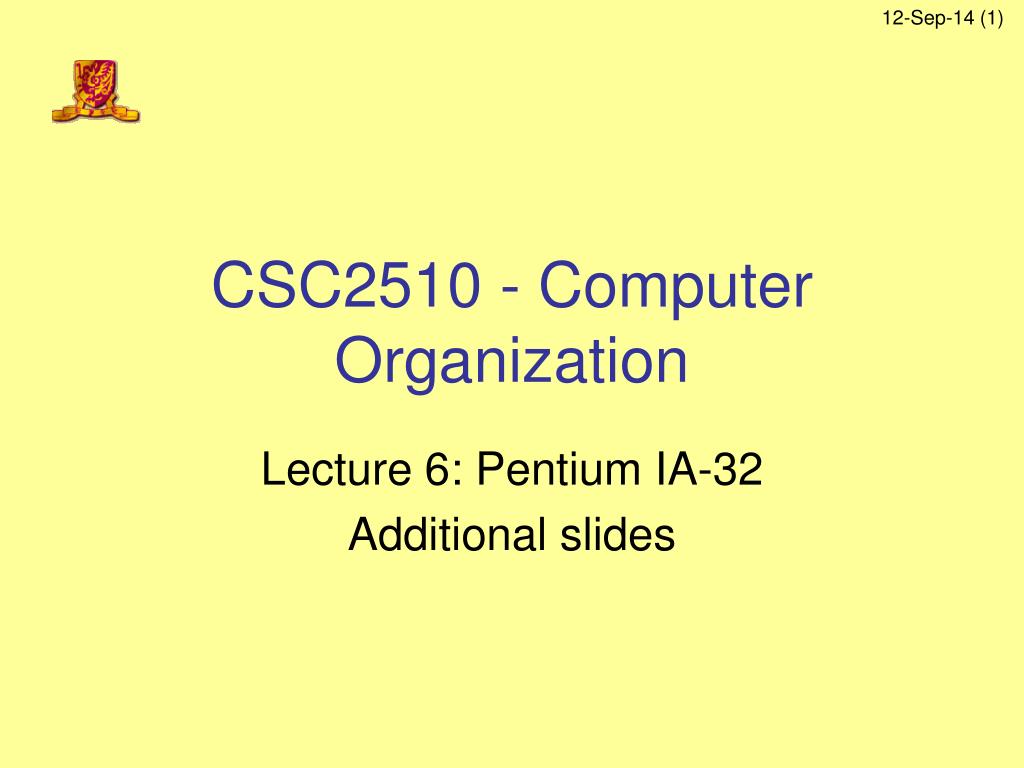

  1. CSC2510 - Computer Organization Lecture 6: Pentium IA-32 Additional slides

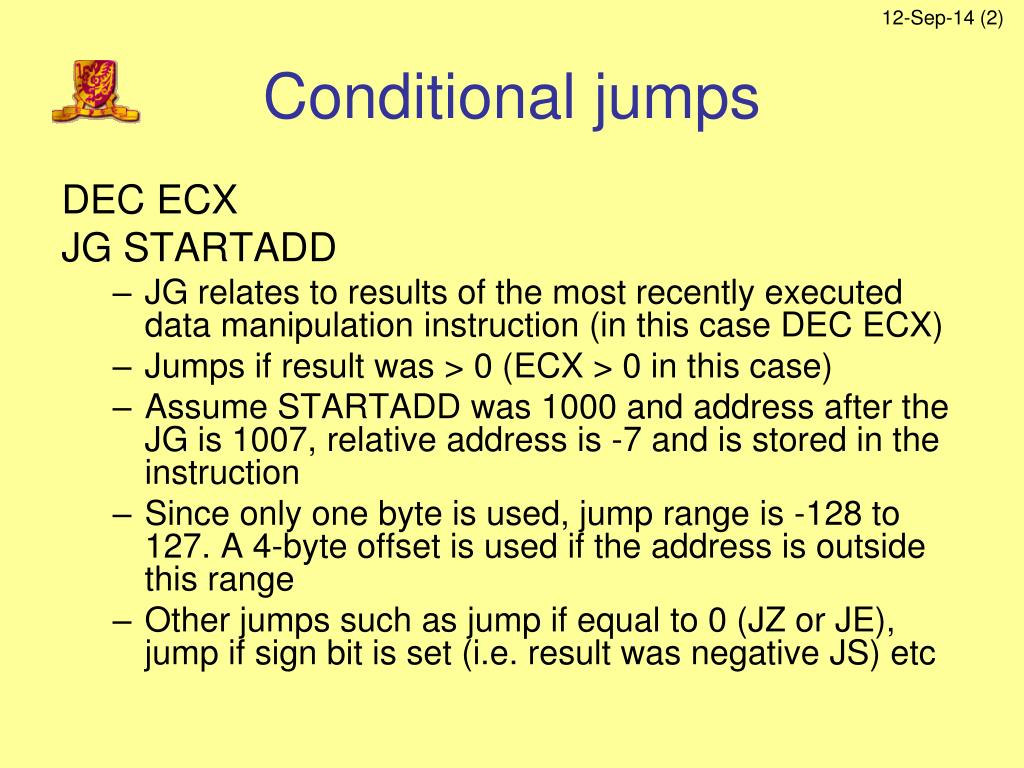

  2. Conditional jumps DEC ECX JG STARTADD • JG relates to results of the most recently executed data manipulation instruction (in this case DEC ECX) • Jumps if result was > 0 (ECX > 0 in this case) • Assume STARTADD was 1000 and address after the JG is 1007, relative address is -7 and is stored in the instruction • Since only one byte is used, jump range is -128 to 127. A 4-byte offset is used if the address is outside this range • Other jumps such as jump if equal to 0 (JZ or JE), jump if sign bit is set (i.e. result was negative JS) etc

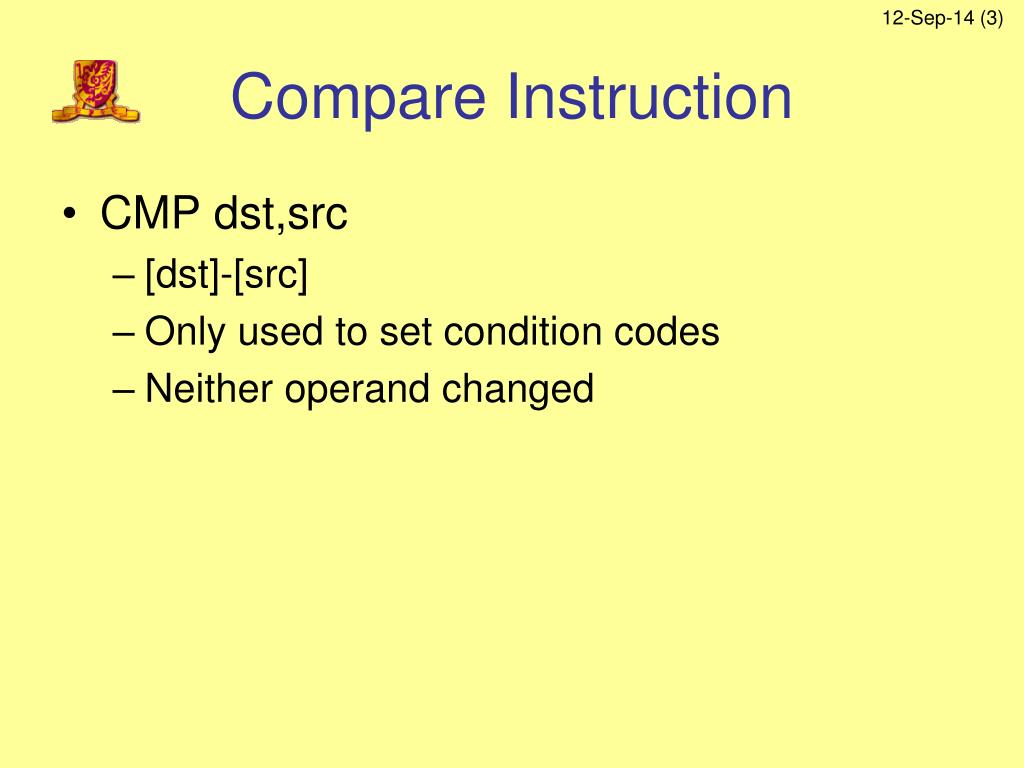

  3. Compare Instruction • CMP dst,src • [dst]-[src] • Only used to set condition codes • Neither operand changed

  4. Unconditional jump • JMP ADDR • One byte or four byte offset forms just list JG • More powerful addressing modes also allowed e.g. JMP [JUMPTABLE+ESI*4] (index with displacement)

  5. Logical/Shift/Rotate • AND EBX,EAX • E.g. if EAX=0000FFFFH and EBX=02FA62CAH what is the result? • NOT EBX • SHL dst,count • Also SHR, SAL (same as SHL), SAR • ROL, ROR, RCL, RCR

  6. LEA EBP ,LOC EBP p oin ts to first b yte. MO V AL,[EBP] Load first b yte in to AL. SHL AL,4 Shift left b y 4 bit p ositions. MO V BL,[EBP+1] Load second b yte in to BL. AND BL,0FH Clear high-order 4 bits to zero. OR AL,BL Concatenate the BCD digits. MO V P A CKED,AL Store the result. Digit Packing

  7. I/O Operations • READWAIT BT INSTATUS,3 JNC READWAIT MOV AL,DATAIN ; BT transfers INSTATUS bit 3 to the carry flag • WRITEWAIT BT OUTSTATUS,3 JNC WRITEWAIT MOV DATAOUT,AL

  8. LEA EBP ,LOC EBP p oin ts to memory area. READ: BT INST A TUS,3 W ait for c haracter to b e JNC READ en tered in to D A T AIN. MO V AL,DATAIN T ransfer c haracter in to AL. MO V [EBP],AL Store the c haracter in memory INC EBP and incremen t pointer. ECHO: BT OUTST A TUS,3 W ait for displa y to JNC ECHO b e ready . MO V D A T A OUT,AL Send c haracter to displa y . CMP AL,CR If not carriage return, JNE READ read more c haracters. Figure 3.44. An IA-32 program that reads a line of characters and displays it. MEMORY MAPPED I/O

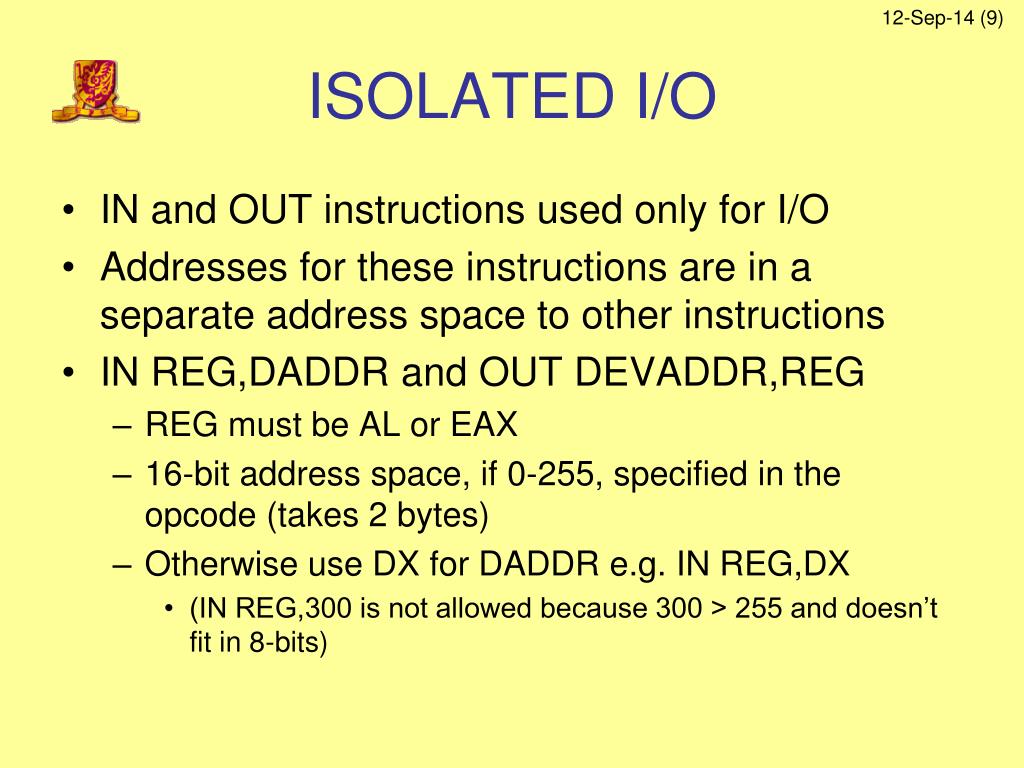

  9. ISOLATED I/O • IN and OUT instructions used only for I/O • Addresses for these instructions are in a separate address space to other instructions • IN REG,DADDR and OUT DEVADDR,REG • REG must be AL or EAX • 16-bit address space, if 0-255, specified in the opcode (takes 2 bytes) • Otherwise use DX for DADDR e.g. IN REG,DX • (IN REG,300 is not allowed because 300 > 255 and doesn’t fit in 8-bits)
