Lesson 5

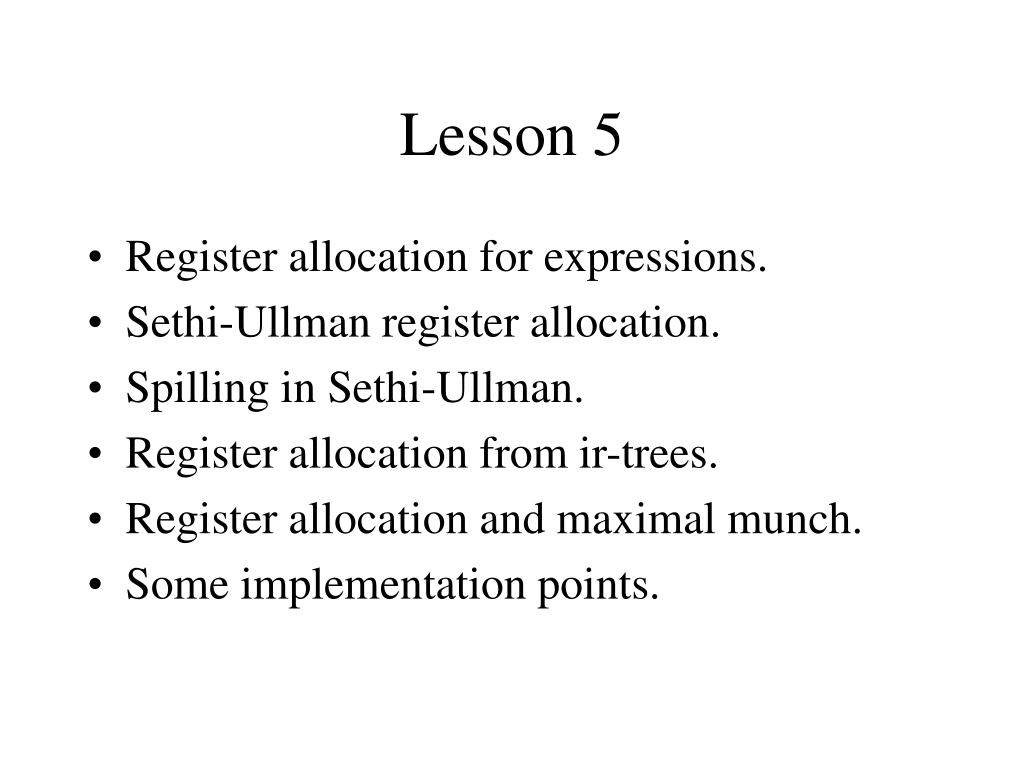

Lesson 5

  • Register allocation for expressions.

  • Sethi-Ullman register allocation.

  • Spilling in Sethi-Ullman.

  • Register allocation from ir-trees.

  • Register allocation and maximal munch.

  • Some implementation points.


Register allocation for expressions

Register allocation for expressions

  • Goal: Determine the evaluation order for subexpressions of an expression in order to use as few registers as possible.

  • This is the lowest (most local) level of register allocation. For better performance register allocation can be done over basic blocks, functions, or whole programs.


Sethi ullman register allocation

Sethi-Ullman register allocation.

  • Algorithm: Given an expression represented as a syntax tree:

    • Pass 1: For each node in the tree calculate the number of registers needed for each sub–tree.

    • Pass 2: Generate code by a bottom up traversal. Traverse the sub-tree with the greater need first.


Sethi ullman ra 2

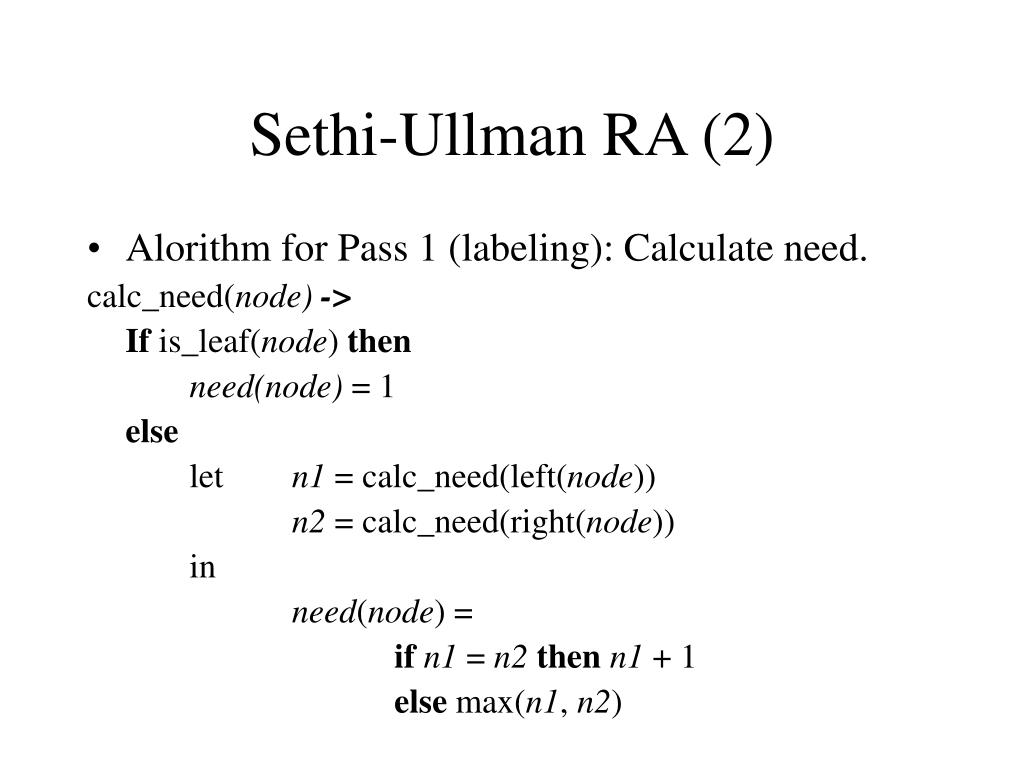

Sethi-Ullman RA (2)

  • Alorithm for Pass 1 (labeling): Calculate need.

    calc_need(node) ->

    If is_leaf(node) then

    need(node) = 1

    else

    letn1 = calc_need(left(node))

    n2 = calc_need(right(node))

    in

    need(node) =

    ifn1 = n2thenn1 + 1

    else max(n1, n2)


Sethi ullman ra 3

Sethi-Ullman RA (3)

  • Alorithm for Pass 2: Generate code.

    gen_code(node, env) ->

    if is_leaf(node) then

    locate free reg r;

    gen code to load into r

    else

    (e1, n1) = left_n(node)

    (e2, n2) = right_n(node)

if n1 <> n2 then

gen code for larger subexpr

free all but one reg

gen code for the other subexpr

gen code for node.

else

gen code for e1 using n1 regs

free n1 – 1 regs

gen code for e2 using n2 regs

gen code for node

(needs n1 + 1 regs)


Example

+

+

x

1

y

a

2

+

+

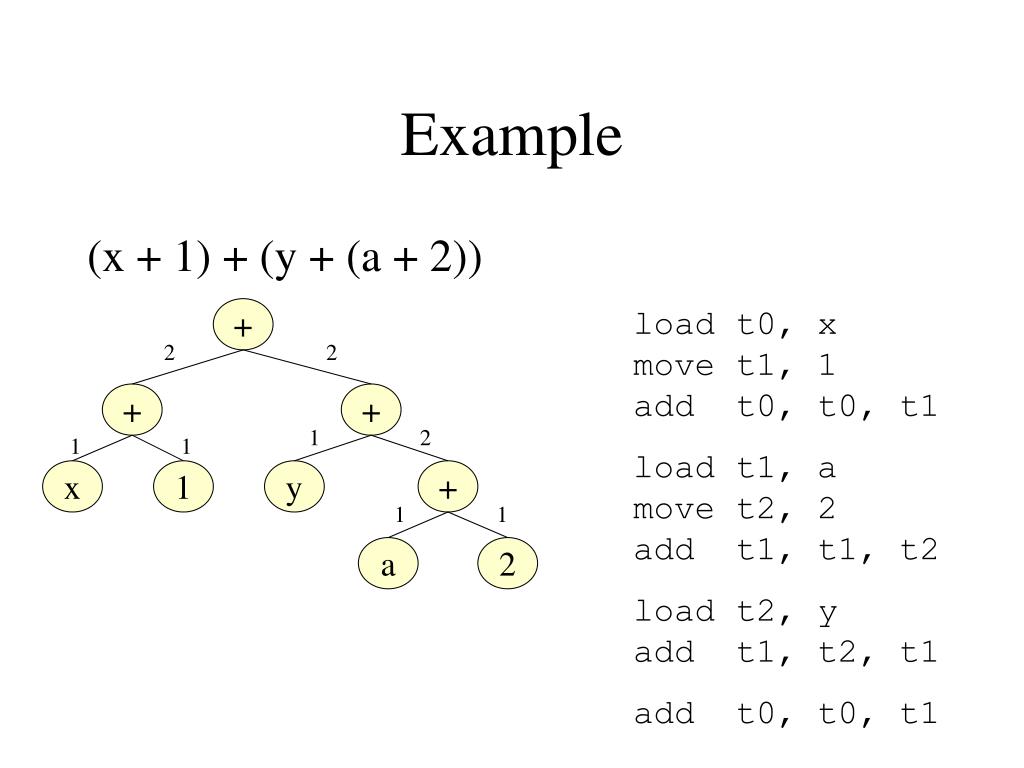

Example

(x + 1) + (y + (a + 2))

load t0, xmove t1, 1add t0, t0, t1

load t1, amove t2, 2add t1, t1, t2

load t2, yadd t1, t2, t1

add t0, t0, t1

2

2

1

2

1

1

1

1


Spilling in sethi ullman

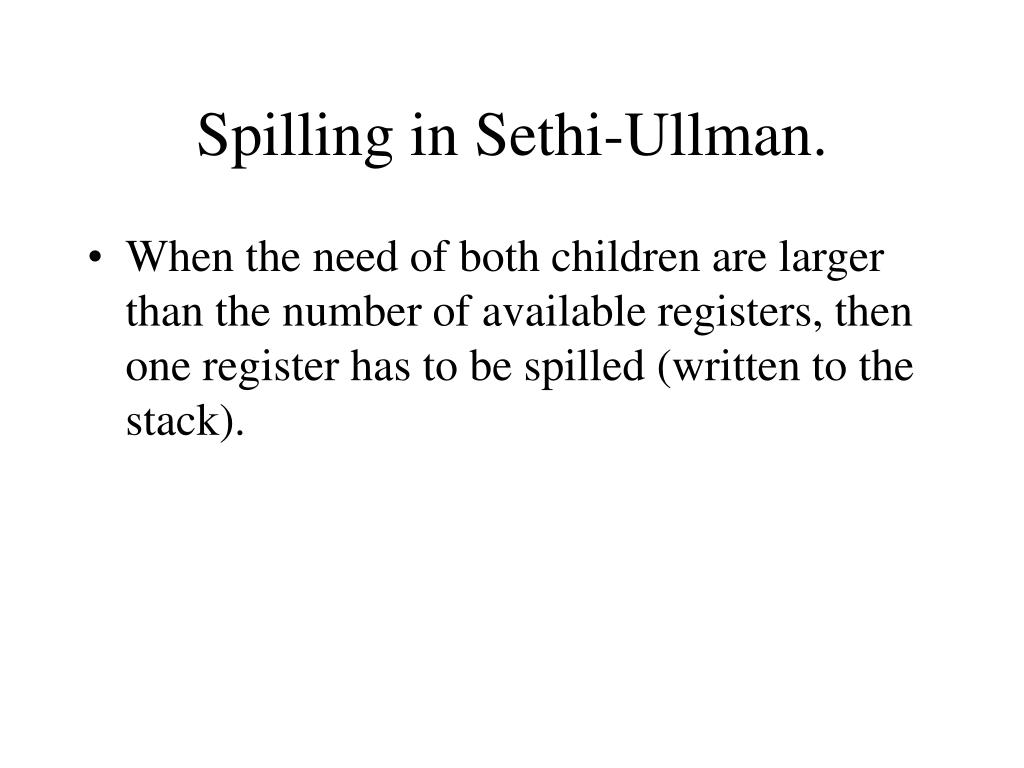

Spilling in Sethi-Ullman.

  • When the need of both children are larger than the number of available registers, then one register has to be spilled (written to the stack).


Register allocation for bar from ir trees

Register allocation for Bar from ir-trees

  • This algorithm is well suited for Bar since the evaluation order of expressions is free in Bar.

  • This algorithm is well suited for ir-trees.

    • No values are live in registers between instructions.

    • One expression can be considered at a time.

  • The only small complication is function calls, which are nodes with more than two children, but the algorithm can easily be extended to this case.


Register allocation and maximal munch

Register allocation and maximal munch.

  • These two algorithms fit well together:

    • Maximal munch decides “what a node is”.

    • Sethi-Ullman decides where to put results of expressions.

    • Both work by recursion over the expression tree.


Example revisited

+

+

+

a

2

1

y

x

x

+2

a

y

+1

+

+

+

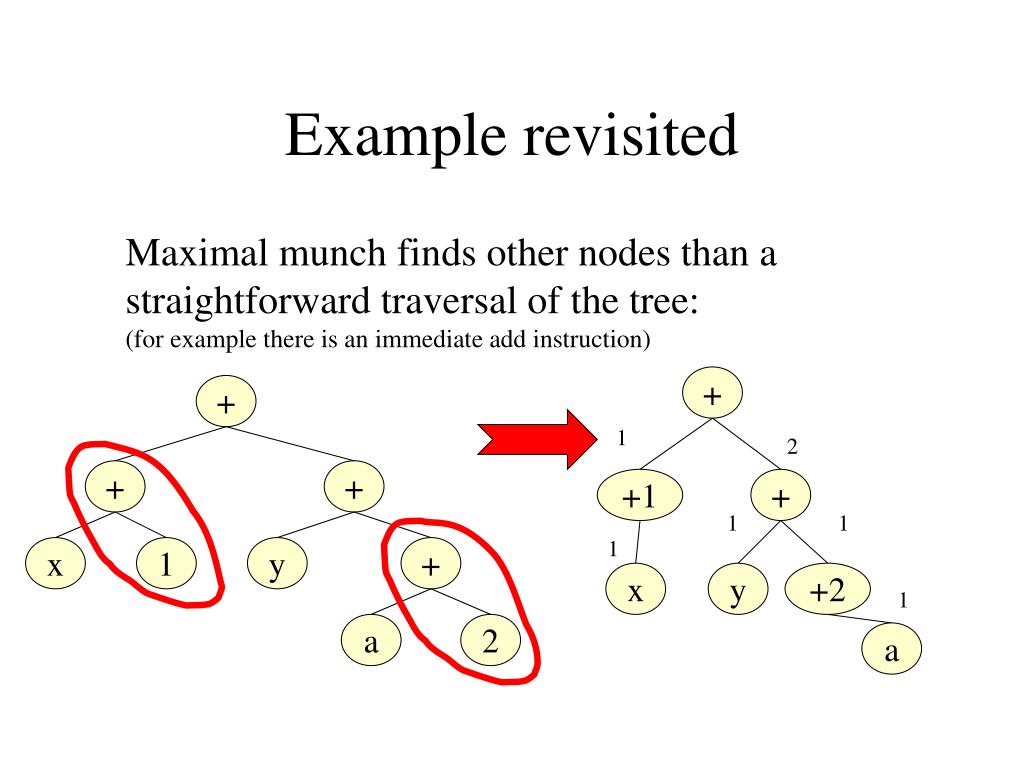

Example revisited

Maximal munch finds other nodes than a straightforward traversal of the tree: (for example there is an immediate add instruction)

1

2

1

1

1

1


Example revisited 2

y

+1

+

+

+2

x

a

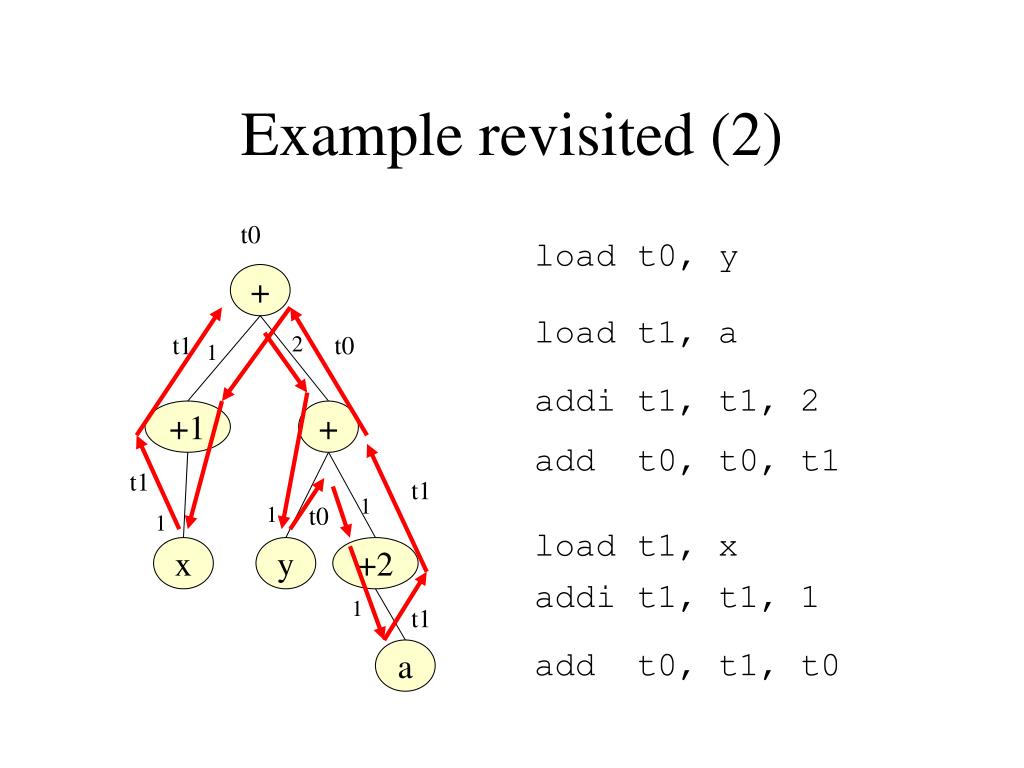

Example revisited (2)

t0

load t0, y

load t1, a

t1

2

t0

1

addi t1, t1, 2

add t0, t0, t1

t1

t1

1

1

t0

1

load t1, x

addi t1, t1, 1

1

t1

add t0, t1, t0


A few yet open questions

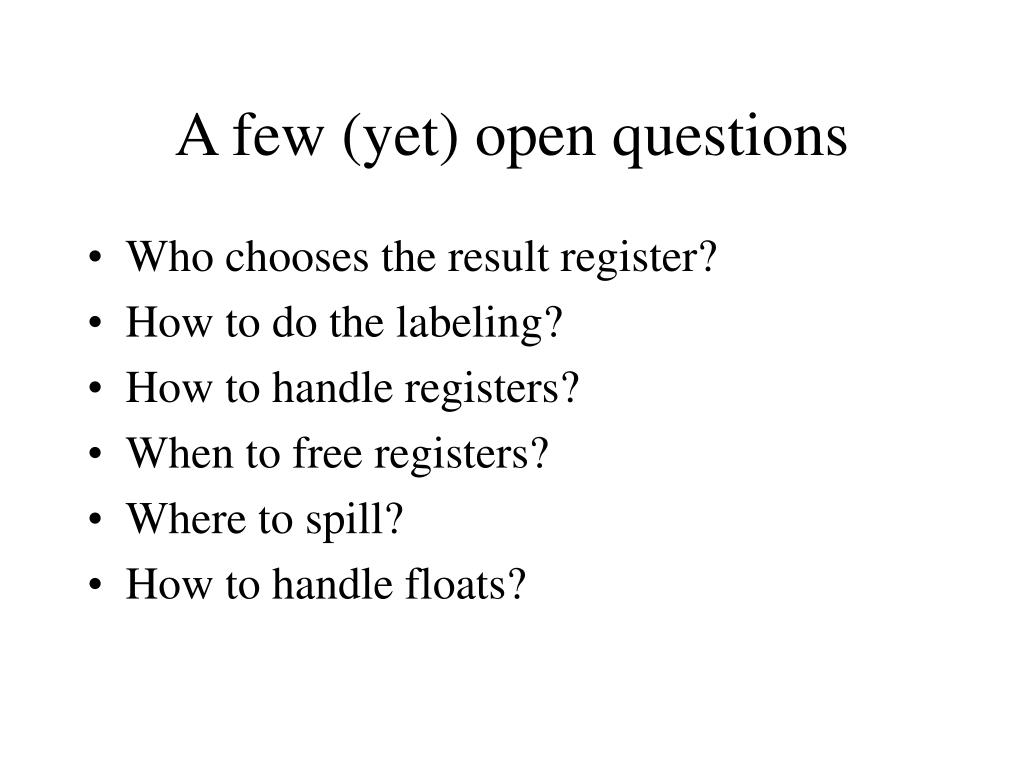

A few (yet) open questions

  • Who chooses the result register?

  • How to do the labeling?

  • How to handle registers?

  • When to free registers?

  • Where to spill?

  • How to handle floats?


Who chooses the result register

Who chooses the result register?

  • Either the code for handling a node allocates a register for each sub-tree or the code for handling each sub-tree allocates and returns a register.

  • munch(+(e1,e2), res_reg)) ->

    • munch(e1, res_reg),

    • r2 = alloc_reg

    • munch(e2, r2)

    • emit (res_reg = rres_reg + r2)

  • munch(+(e1,e2)) ->

    • r1 = munch(e1),

    • r2 = munch(e2)

    • emit (r1 = r1 + r2)

    • r1


How to do the labeling

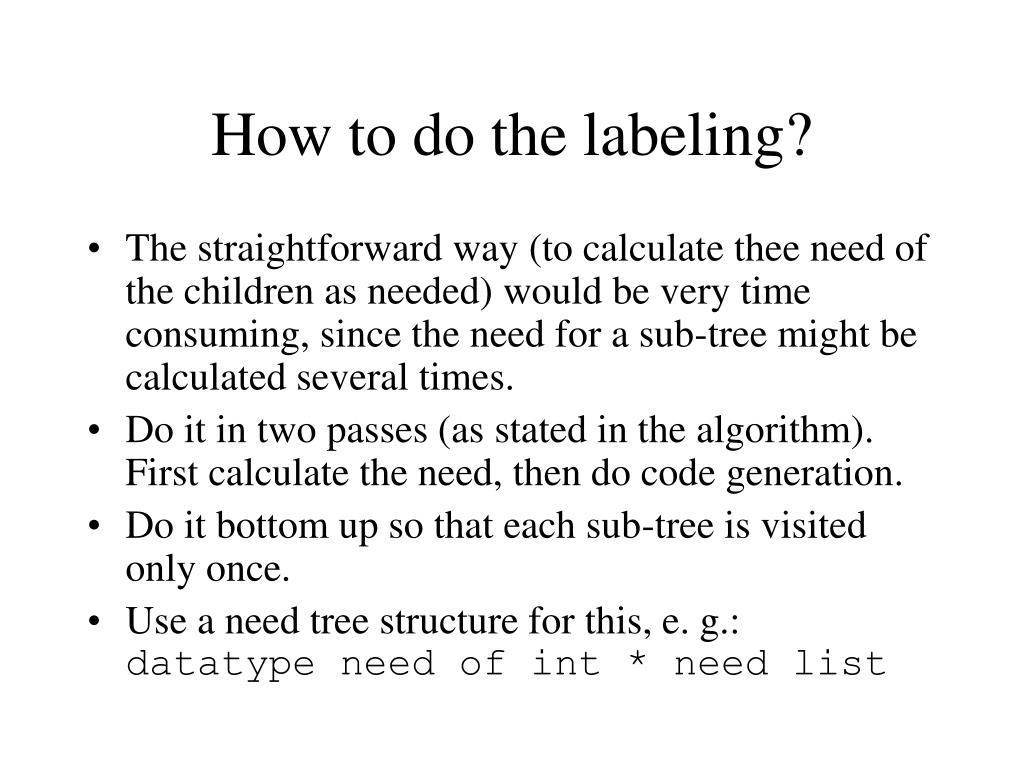

How to do the labeling?

  • The straightforward way (to calculate thee need of the children as needed) would be very time consuming, since the need for a sub-tree might be calculated several times.

  • Do it in two passes (as stated in the algorithm). First calculate the need, then do code generation.

  • Do it bottom up so that each sub-tree is visited only once.

  • Use a need tree structure for this, e. g.: datatype need of int * need list


How to handle registers

How to handle registers?

  • Create an abstract data type (registers) with interface functions as:

    allocate : registers -> register * registers

    free: register * registers -> registers

    num_free : registers -> int

  • Try to implement this so that all operations are O(1).


When to free registers

When to free registers?

  • A register should be freed when the register used for a subexpression is not needed any more.

munch(+(e1,e2),regs) ->

(r1, regs1) = munch(e1, regs),

(r2, regs2) = munch(e2, regs1)

emit (r1 = r1 + r2)

regs3 = free(r2, regs2)

(r1, regs3)


Where to spill

Stack growth

Where to spill?

  • If a frame pointer is used is is easy to used push spilled values on the stack.

Argument n

Argument 1

  • r1 = munch(…

  • emit push(r1)

  • free(r1)

  • r2 = munch(…

  • r3 = alloc..

  • emit R3 = pop

  • emit r3 = r2 op r3

FP

Ret.address

Old FP

Variable 1

Variable n

Spill 1

SP


How to handle floats

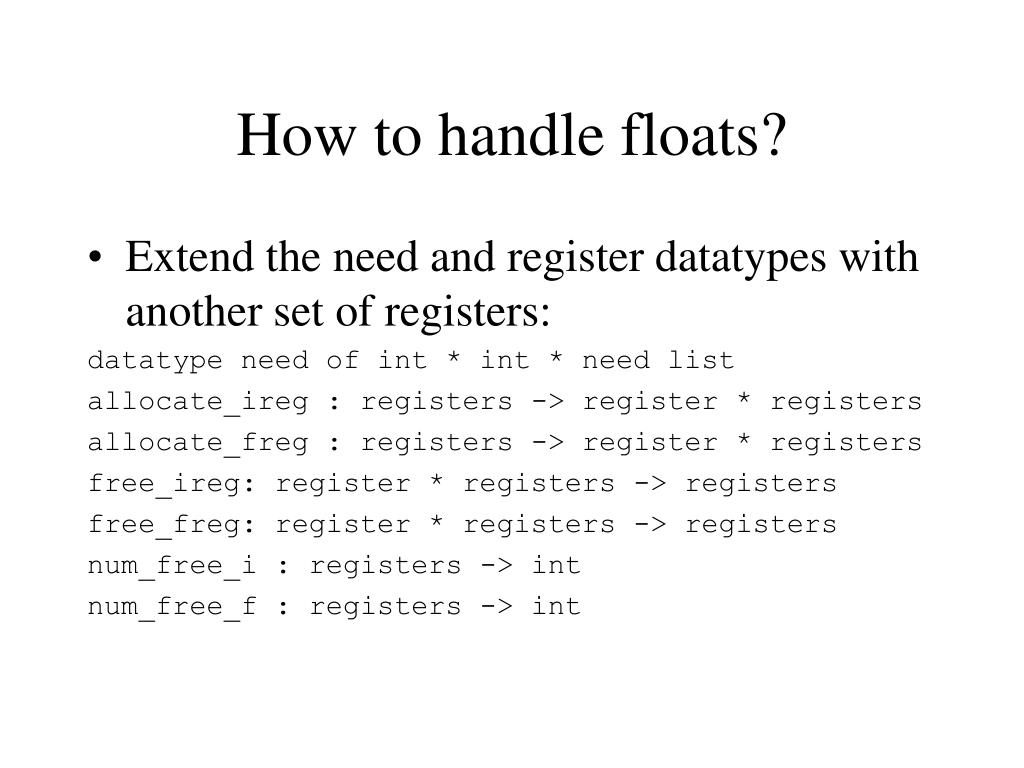

How to handle floats?

  • Extend the need and register datatypes with another set of registers:

    datatype need of int * int * need list

    allocate_ireg : registers -> register * registers

    allocate_freg : registers -> register * registers

    free_ireg: register * registers -> registers

    free_freg: register * registers -> registers

    num_free_i : registers -> int

    num_free_f : registers -> int
