STRUCTURE OF HEART AND GREAT VESSELS IN CT

STRUCTURE OF HEART AND GREAT VESSELS IN CT. CT SERIES KINDLY DONATED BY DR. MICHAEL HENSLEY (Brian's Dad). LABELING BY MATT HARPER (JCESOM CLASS 2010). R Brachiocephalic vein. Brachiocephalic trunk. L Common carotid artery. L Subclavian artery. Trachea. Esophagus. Lamina of T4.

salaam
Download Presentation

STRUCTURE OF HEART AND GREAT VESSELS IN CT

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. STRUCTURE OF HEART AND GREAT VESSELS IN CT CT SERIES KINDLY DONATED BY DR. MICHAEL HENSLEY (Brian's Dad) LABELING BY MATT HARPER (JCESOM CLASS 2010)

  2. R Brachiocephalic vein Brachiocephalic trunk L Common carotid artery L Subclavian artery Trachea Esophagus Lamina of T4

  3. R Brachiocephalic vein Brachiocephalic trunk L Common carotid artery L Subclavian artery Trachea Esophagus

  4. R Brachiocephalic vein Brachiocephalic trunk L Common carotid artery L Subclavian artery Trachea Esophagus

  5. Brachiocephalic trunk L Common carotid artery L Subclavian artery Superior vena cava Trachea Esophagus

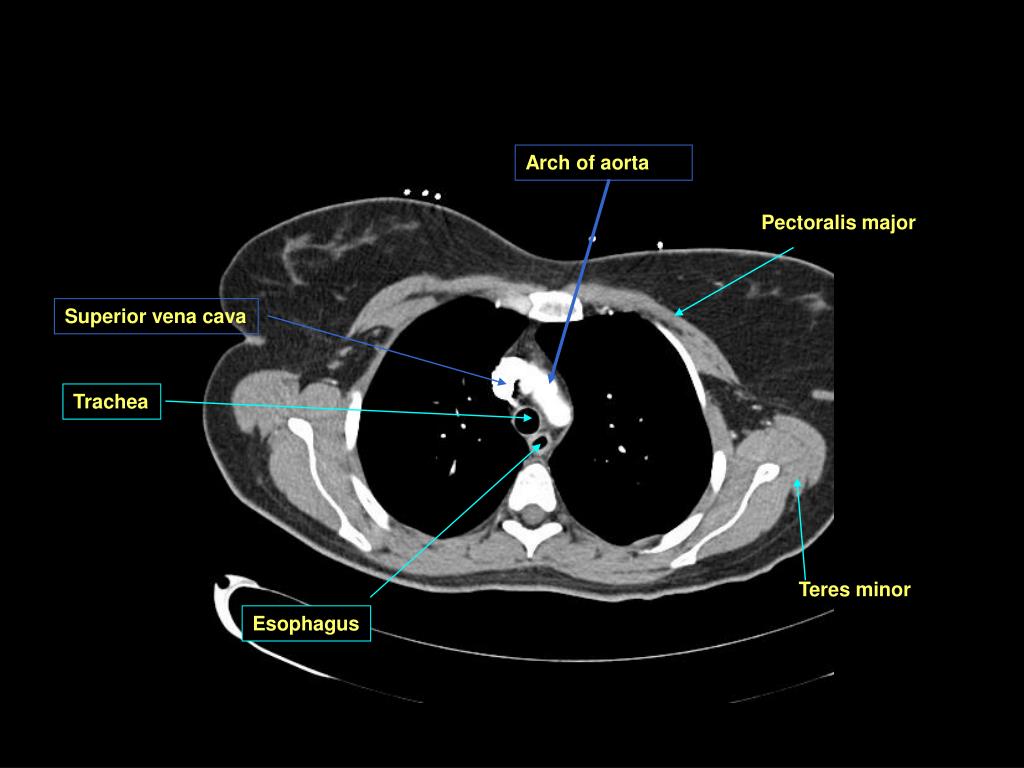

  6. Arch of aorta Pectoralis major Superior vena cava Trachea Teres minor Esophagus

  7. Arch of aorta Superior vena cava Trachea Esophagus

  8. Second Rib Arch of aorta Superior vena cava Trachea Scapula Esophagus

  9. Arch of aorta Superior vena cava Trachea Esophagus

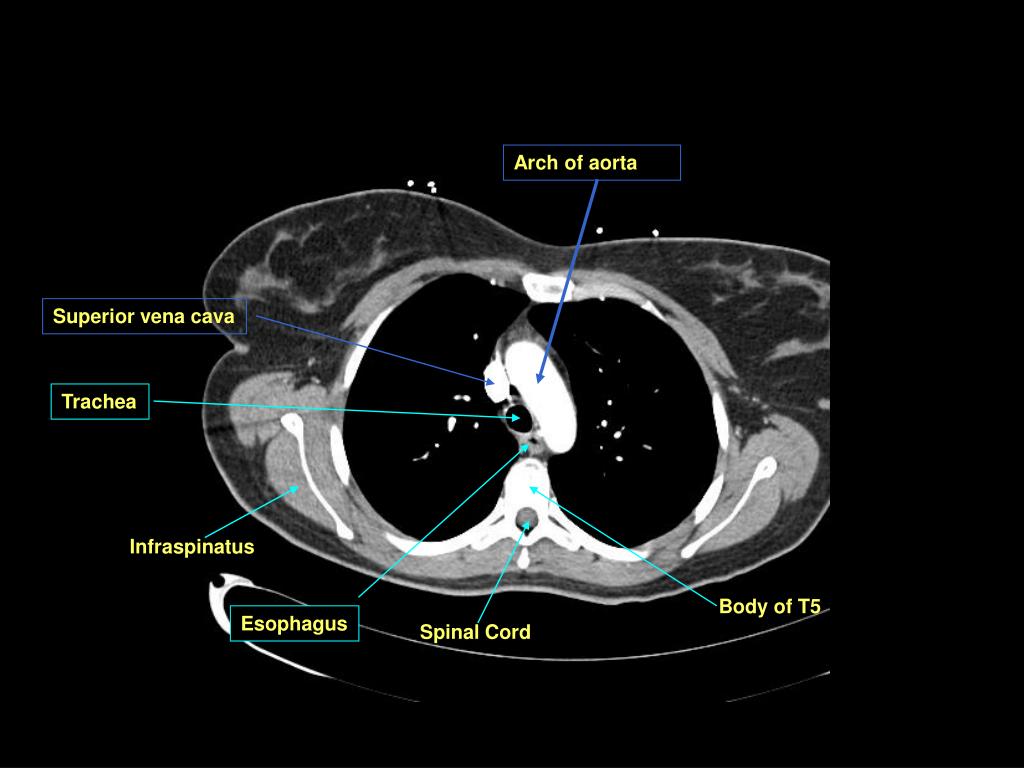

  10. Arch of aorta Superior vena cava Trachea Infraspinatus Body of T5 Esophagus Spinal Cord

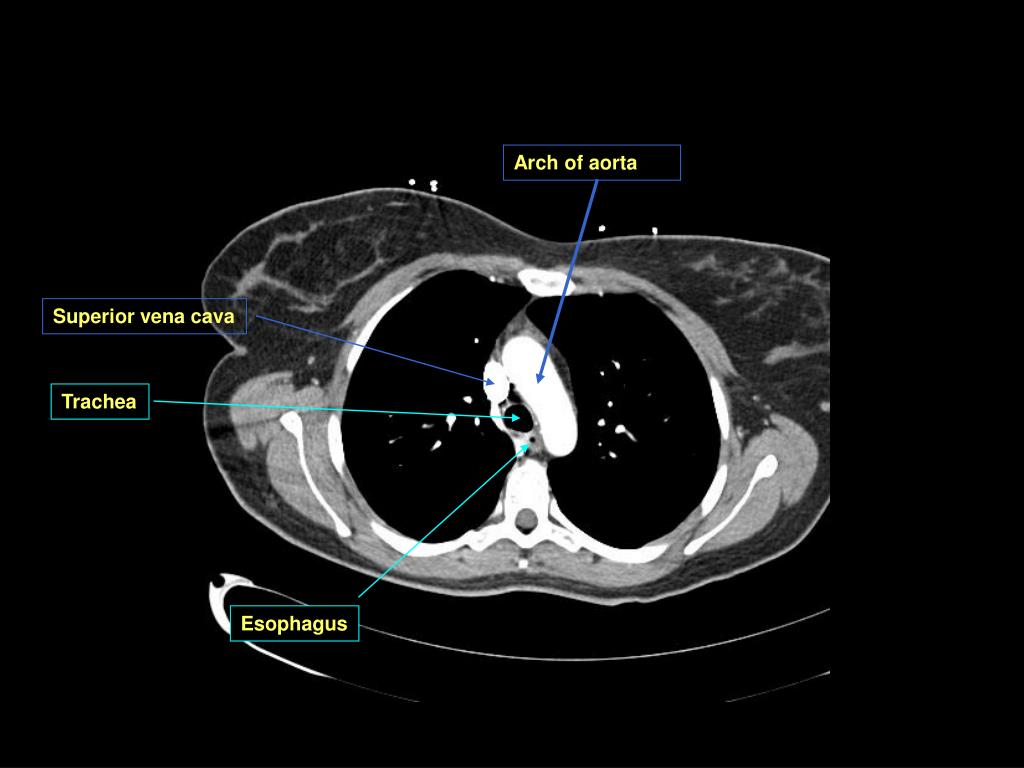

  11. Arch of aorta Superior vena cava Trachea Esophagus

  12. Internal thoracic artery Arch of aorta Serratus anterior Superior vena cava Trachea Arch of azygous vein Fourth Rib

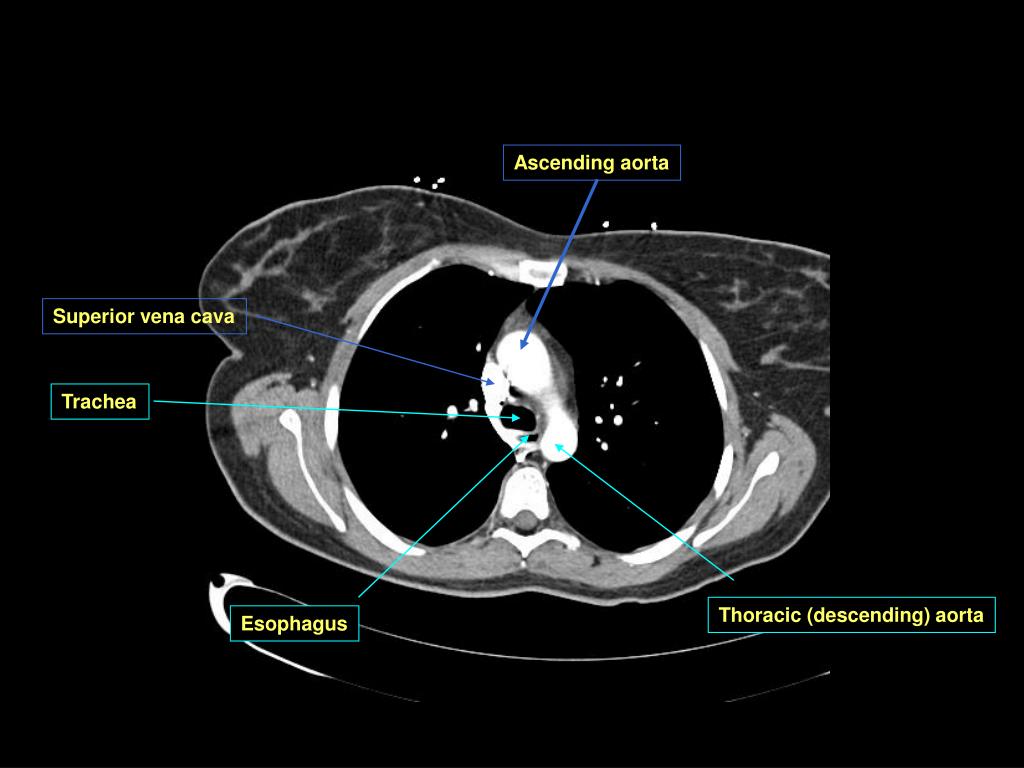

  13. Ascending aorta Superior vena cava Trachea Thoracic (descending) aorta Esophagus

  14. Ascending aorta Third Rib Superior vena cava Bifurcation of trachea Azygous vein Thoracic (descending) aorta

  15. Ascending aorta Superior vena cava Thoracic (descending) aorta Esophagus

  16. Ascending aorta Pulmonary trunk Superior vena cava L pulmonary artery R main bronchus Sixth Rib L main bronchus

  17. Ascending aorta Pulmonary trunk Superior vena cava Thoracic (descending) aorta Esophagus

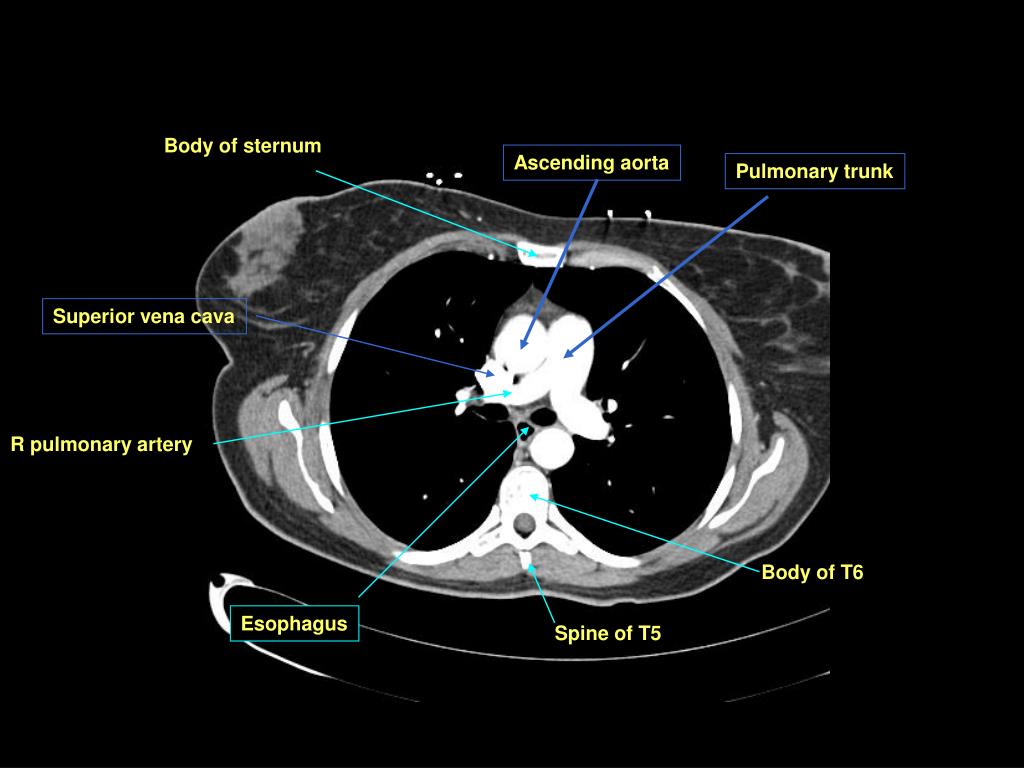

  18. Body of sternum Ascending aorta Pulmonary trunk Superior vena cava R pulmonary artery Body of T6 Esophagus Spine of T5

  19. Ascending aorta Pulmonary trunk Superior vena cava Thoracic (descending) aorta Esophagus

  20. Nipple Ascending aorta Pulmonary trunk Glandular tissue of breast Superior vena cava L upper lobar bronchus T6-T7 Intervertebral disc Azygous vein

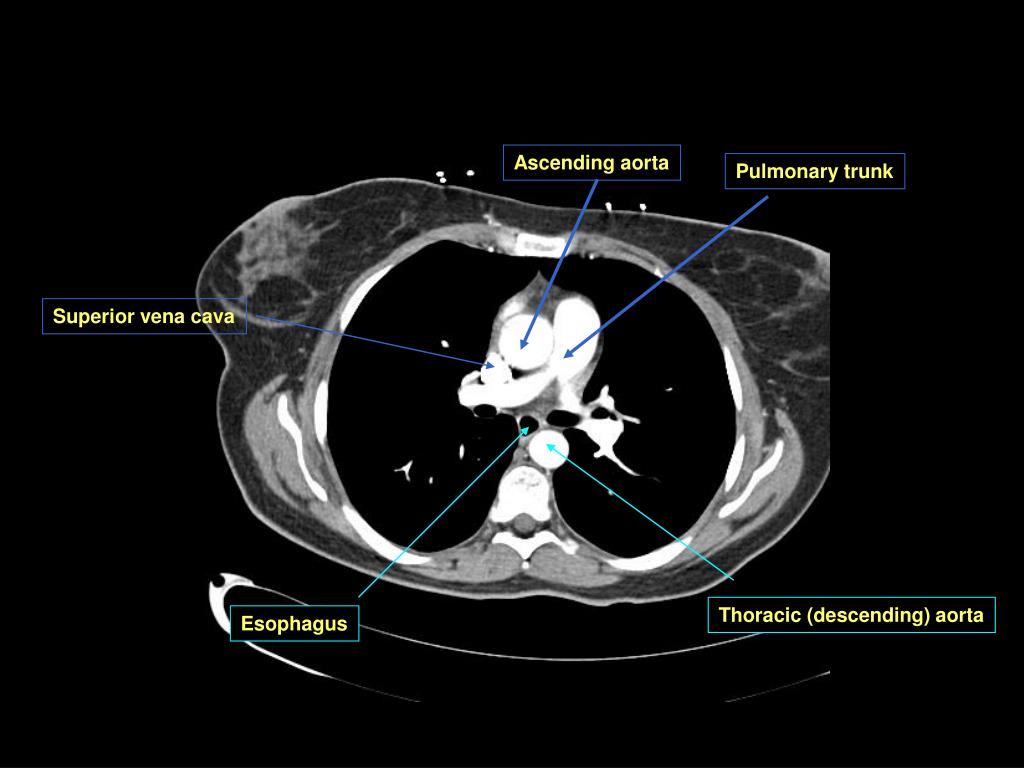

  21. Ascending aorta Pulmonary trunk Superior vena cava Thoracic (descending) aorta Esophagus

  22. Fourth Rib Ascending aorta Pulmonary trunk Superior vena cava L Superior pulmonary vein Thoracic (descending) aorta Esophagus

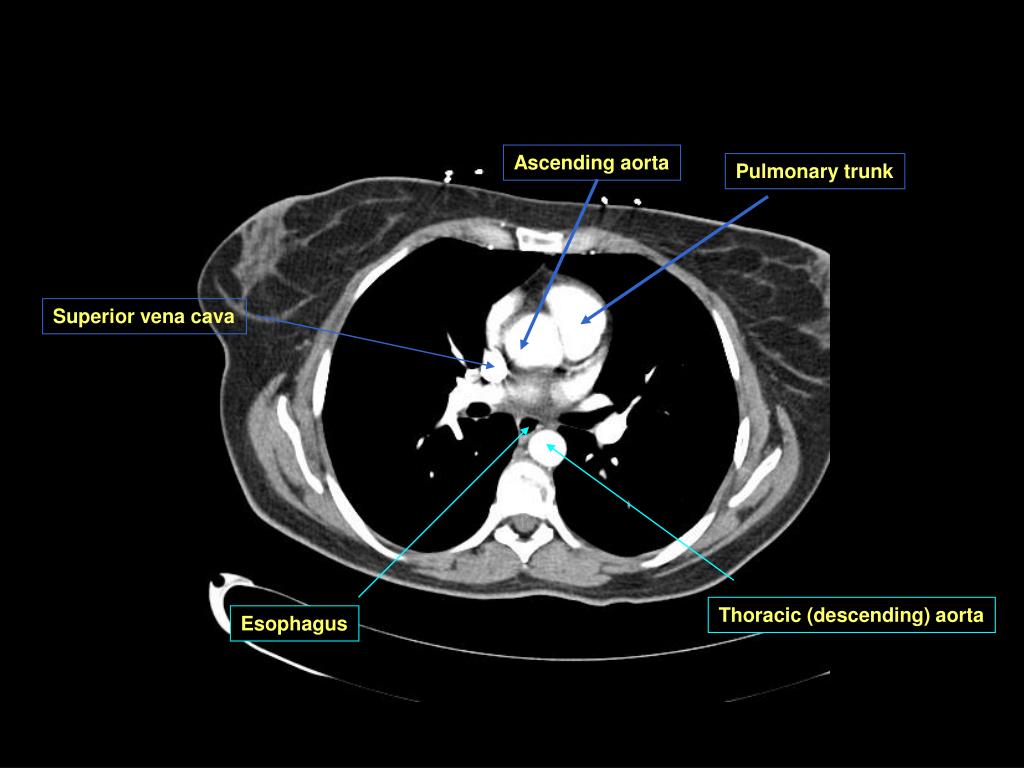

  23. Ascending aorta Pulmonary trunk Superior vena cava Thoracic (descending) aorta Esophagus

  24. Right coronary artery Ascending aorta Pulmonary trunk Superior vena cava Intercostal muscles Thoracic (descending) aorta Seventh Rib Azygous vein

  25. Superior vena cava Thoracic (descending) aorta Esophagus

  26. Right atrium Superior vena cava Left atrium Left coronary artery Thoracic (descending) aorta Esophagus

  27. Right atrium Left atrium Thoracic (descending) aorta Esophagus

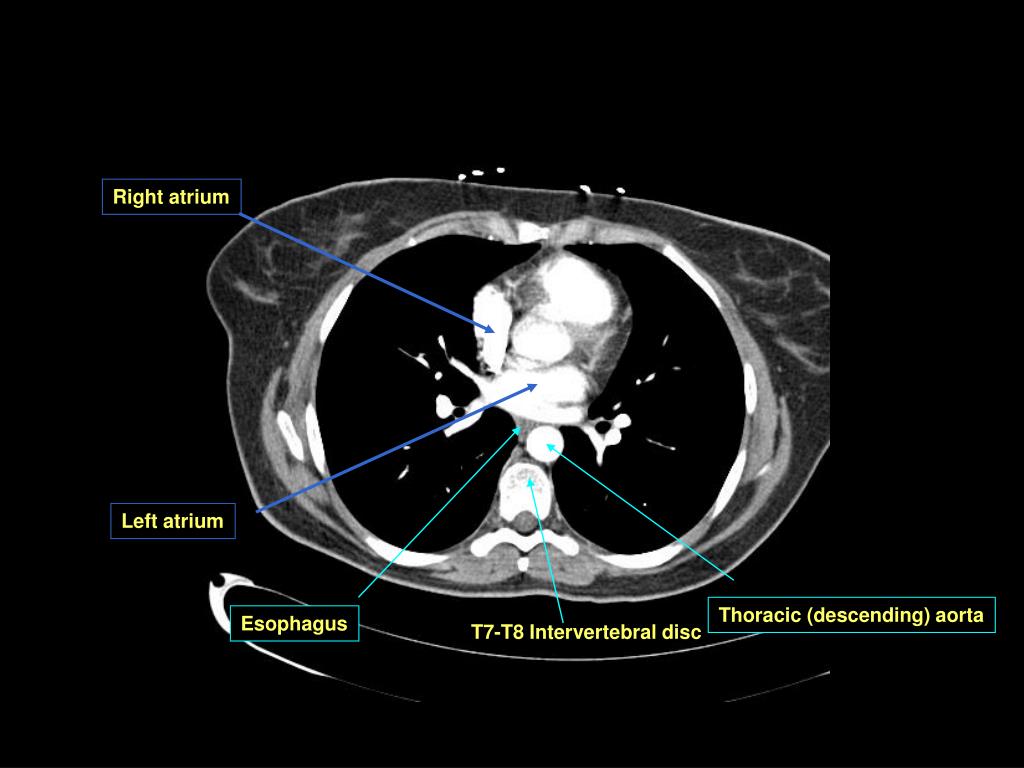

  28. Right atrium Left atrium Thoracic (descending) aorta Esophagus T7-T8 Intervertebral disc

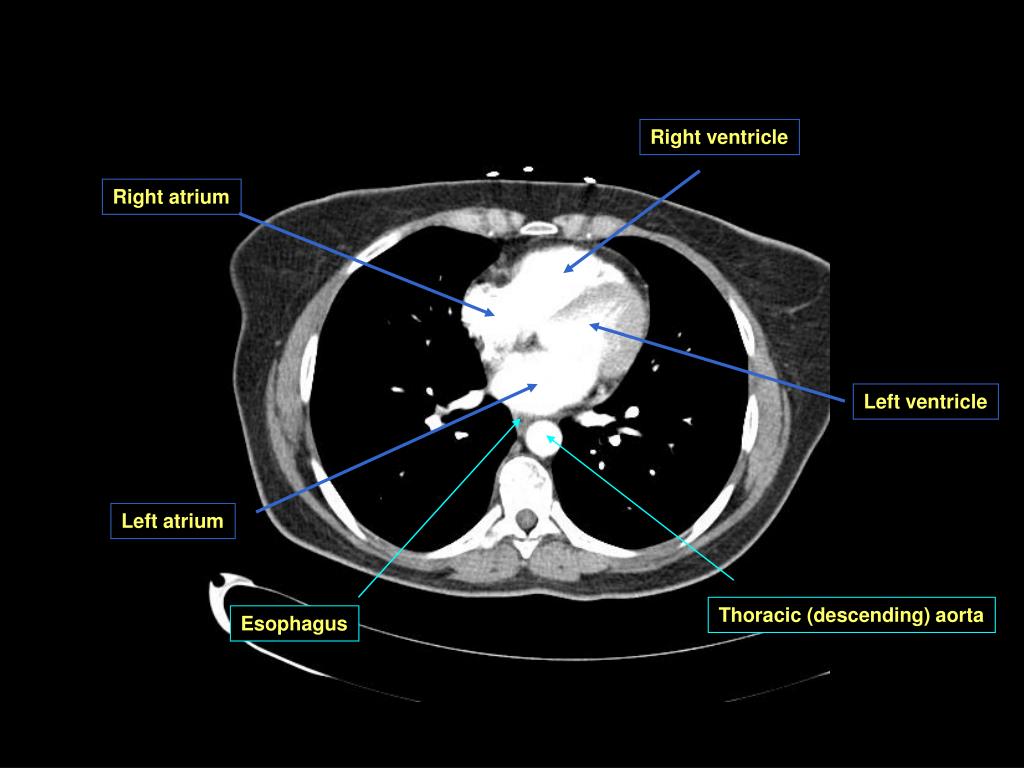

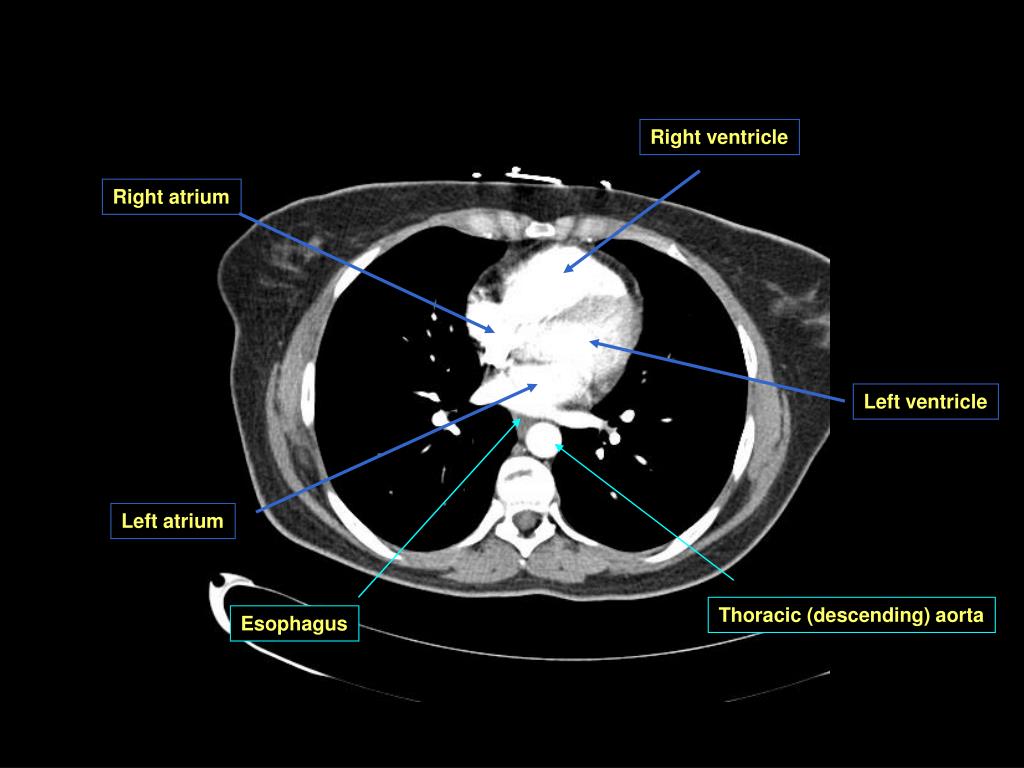

  29. Right ventricle Right atrium Left ventricle Left atrium Thoracic (descending) aorta Esophagus

  30. Right ventricle Right atrium Left ventricle L Inferior pulmonary vein Left atrium Thoracic (descending) aorta Esophagus

  31. Right ventricle Right atrium Left ventricle Left atrium Thoracic (descending) aorta Esophagus

  32. Right ventricle Right atrium R Inferior pulmonary vein Left ventricle Left atrium Latissimus dorsi Thoracic (descending) aorta Esophagus Body of T8

  33. Right ventricle Right atrium Left ventricle Left atrium Thoracic (descending) aorta Esophagus

  34. Body of sternum Right ventricle Right atrium Muscular wall of left ventricle Left ventricle Left atrium Thoracic (descending) aorta Esophagus Eighth Rib

  35. Right ventricle Right atrium Left ventricle Left atrium Thoracic (descending) aorta Esophagus

  36. Right ventricle Right atrium Interventricular septum Left ventricle Left atrium Thoracic (descending) aorta Esophagus

  37. Right ventricle Left ventricle Thoracic (descending) aorta Esophagus

  38. Xyphoid process Right coronary artery Right ventricle Seventh Rib Left ventricle Thoracic (descending) aorta Esophagus

  39. Right ventricle Left ventricle Thoracic (descending) aorta Esophagus

  40. Right ventricle Left ventricle Inferior vena cava Coronary sinus Esophagus Spinal cord

  41. Right ventricle Left ventricle Inferior vena cava Esophagus Thoracic (descending) aorta

  42. Right ventricle Interventricular septum Left ventricle Inferior vena cava Esophagus Spine of T8 Body of T9

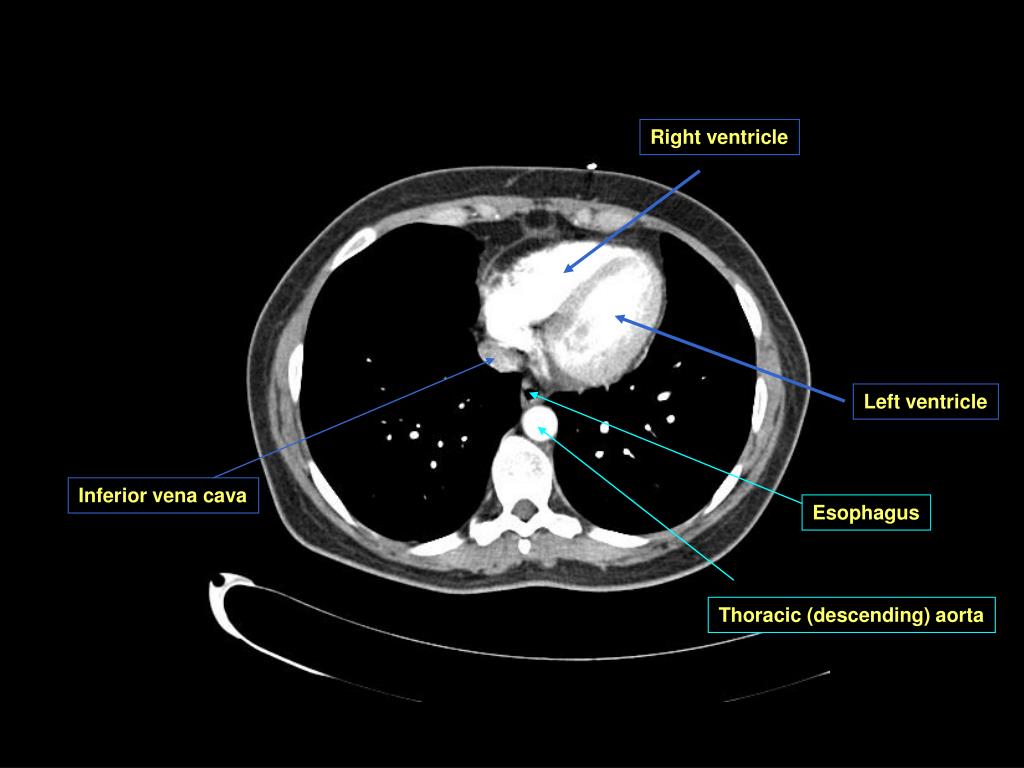

  43. Right ventricle Left ventricle Inferior vena cava Esophagus Thoracic (descending) aorta

  44. Right ventricle Left ventricle Inferior vena cava Hemiazygous vein

  45. Right ventricle Left ventricle Inferior vena cava Esophagus Thoracic (descending) aorta

  46. Right ventricle Diaphragm Apex of heart Left ventricle Inferior vena cava Esophagus Azygous vein Thoracic (descending) aorta Posterior intercostal artery

  47. Inferior vena cava Esophagus Thoracic (descending) aorta

  48. Lingula of left lung Inferior vena cava Esophagus Thoracic (descending) aorta Body of T10

  49. Inferior vena cava Esophagus Thoracic (descending) aorta

  50. Linea alba Right lobe of liver Inferior vena cava Esophagus Spine of T9 Thoracic (descending) aorta
