  1. MVD analog readout options R.Kluit + A.H.Kruijer.

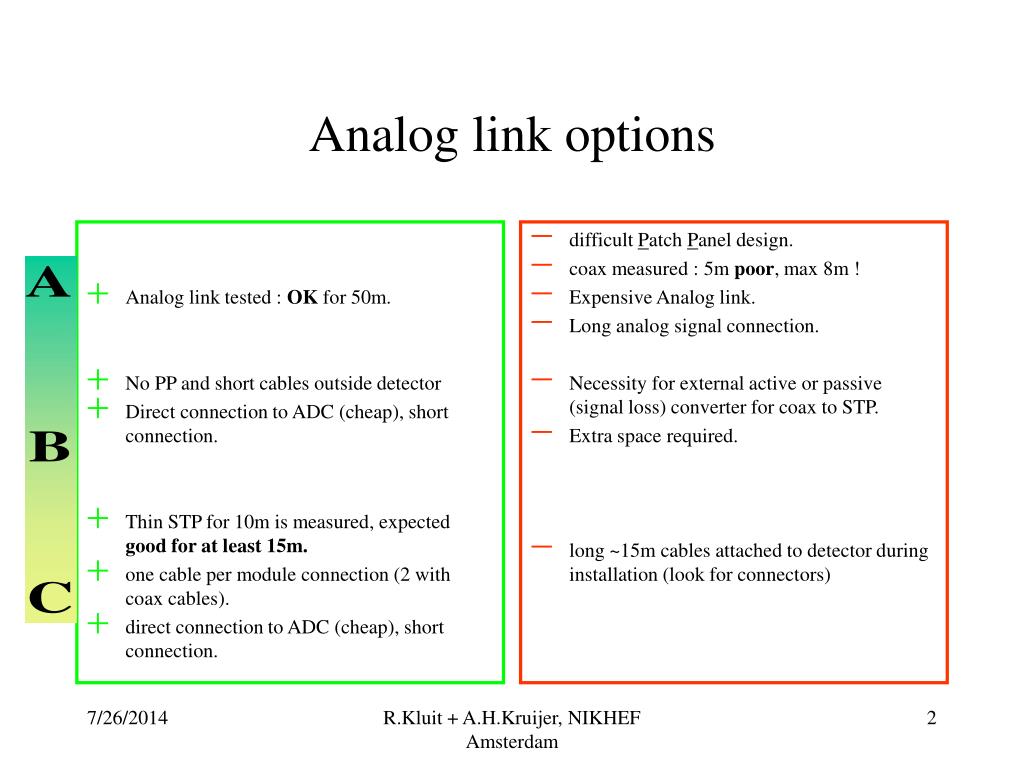

  2. Analog link tested : OK for 50m. No PP and short cables outside detector Direct connection to ADC (cheap), short connection. Thin STP for 10m is measured, expected good for at least 15m. one cable per module connection (2 with coax cables). direct connection to ADC (cheap), short connection. difficult Patch Panel design. coax measured : 5m poor, max 8m ! Expensive Analog link. Long analog signal connection. Necessity for external active or passive (signal loss) converter for coax to STP. Extra space required. long ~15m cables attached to detector during installation (look for connectors) Analog link options R.Kluit + A.H.Kruijer, NIKHEF Amsterdam
