  1. Chapter 12.2 and 12.3 Surface area of prisms, cylinders, cones, and pyramids

  2. Lateral Area • Faces that are not bases are called lateral faces. • Lateral faces intersect at lateral edges. • The lateral area (L) of a prism is the sum of the area of the lateral faces.

  3. Lateral Area of a Prism Example 1 Find the lateral area of the regular hexagonal prism.

  4. Example 1 Find the lateral area of the regular octagonal prism. A. 162 cm2 B. 216 cm2 C. 324 cm2 D. 432 cm2

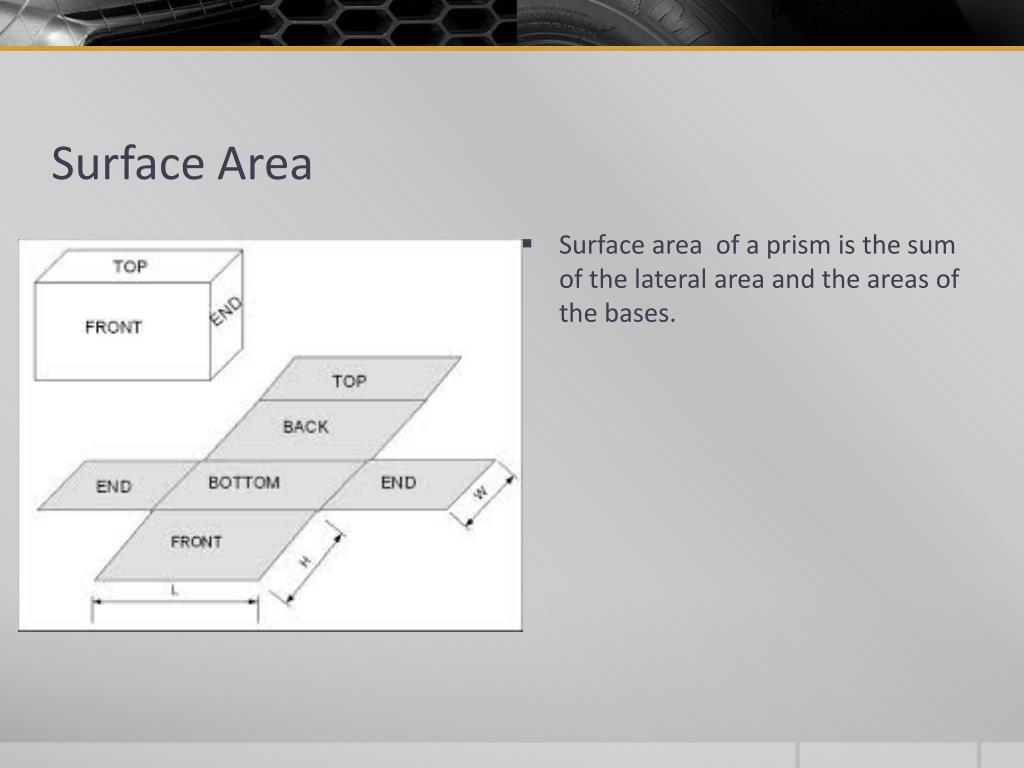

  5. Surface Area • Surface area of a prism is the sum of the lateral area and the areas of the bases.

  6. Surface Area of a Prism Example 2 Find the surface area of the rectangular prism.

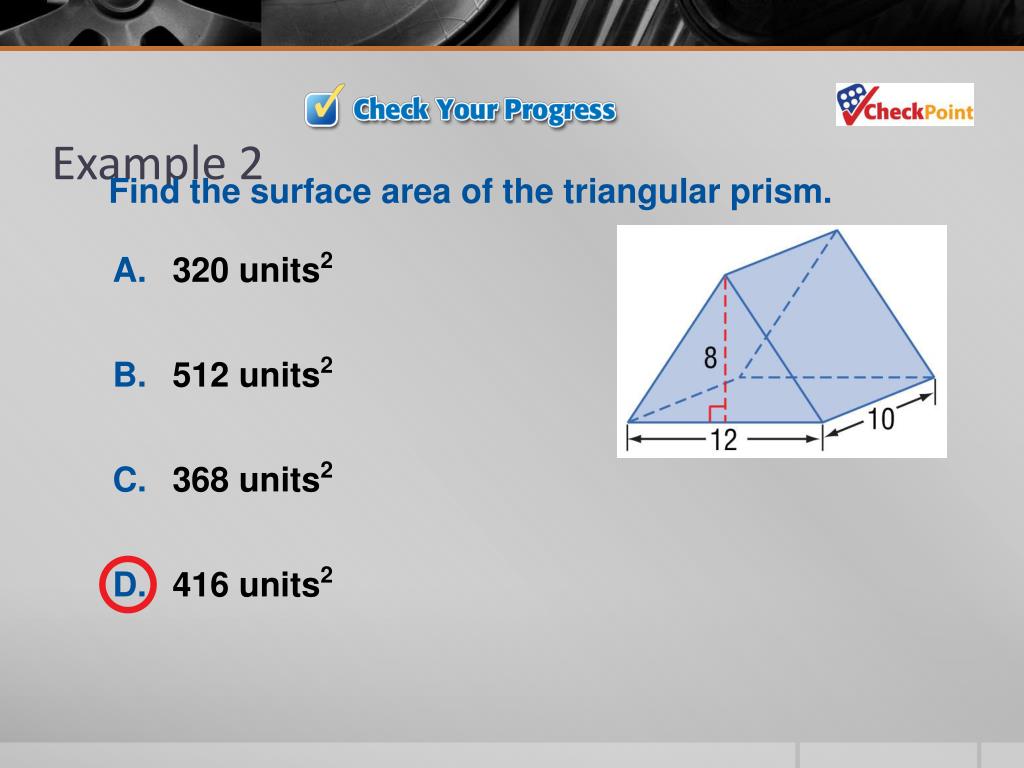

  7. Example 2 Find the surface area of the triangular prism. A. 320 units2 B. 512 units2 C. 368 units2 D. 416 units2

  8. Lateral Area and Surface Area of a Cylinder Example 3 Find the lateral area and the surface area of the cylinder. Round to the nearest tenth.

  9. Example 3 Find the lateral area and the surface area of the cylinder. Round to the nearest tenth. A. lateral area ≈ 1508 ft2 andsurface area ≈ 2412.7 ft2 B. lateral area ≈ 1508 ft2 andsurface area ≈ 1206.4 ft2 C. lateral area ≈ 754 ft2 andsurface area ≈ 2412.7 ft2 D. lateral area ≈ 754 ft2 andsurface area ≈ 1206.4.7 ft2

  10. Find Missing Dimensions Example 4 MANUFACTURINGA soup can is covered with the label shown. What is the radius of the soup can?

  11. Example 4 Find the diameter of a base of a cylinder if the surface area is 480 square inches and the height is 8 inches. A. 12 inches B. 16 inches C. 18 inches D. 24 inches

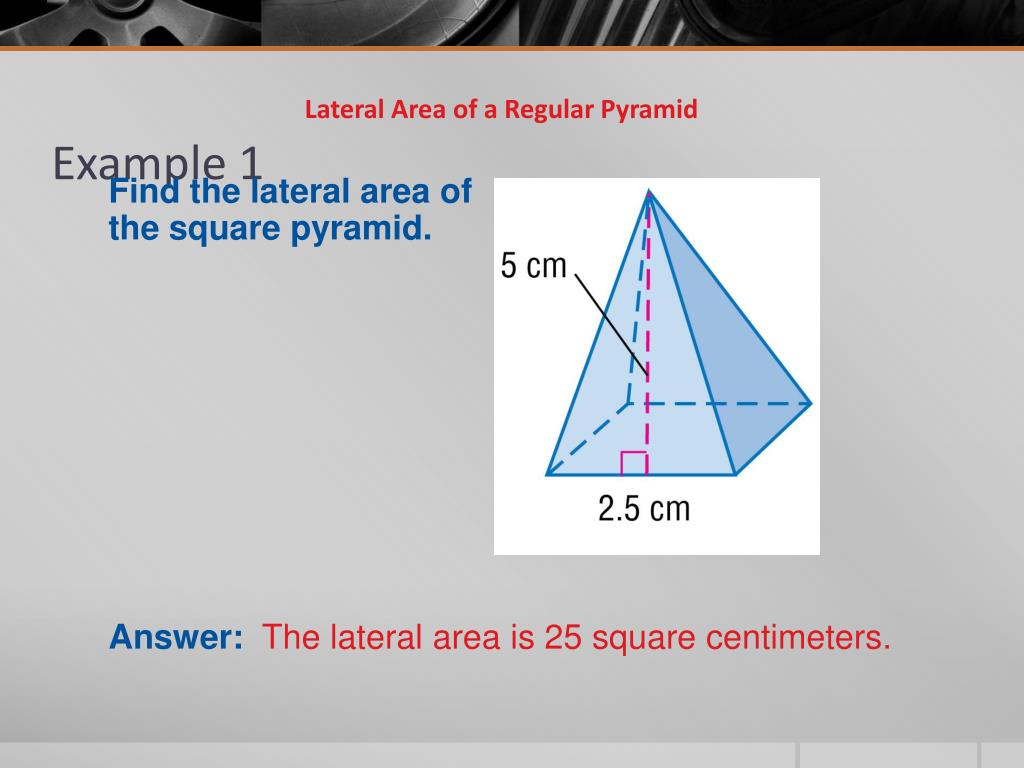

  12. Lateral Area of a Regular Pyramid Example 1 Find the lateral area of the square pyramid. Answer: The lateral area is 25 square centimeters.

  13. Example 1 Find the lateral area of the square pyramid. A. 54 in2 B. 64 in2 C. 108 in2 D. 132 in2

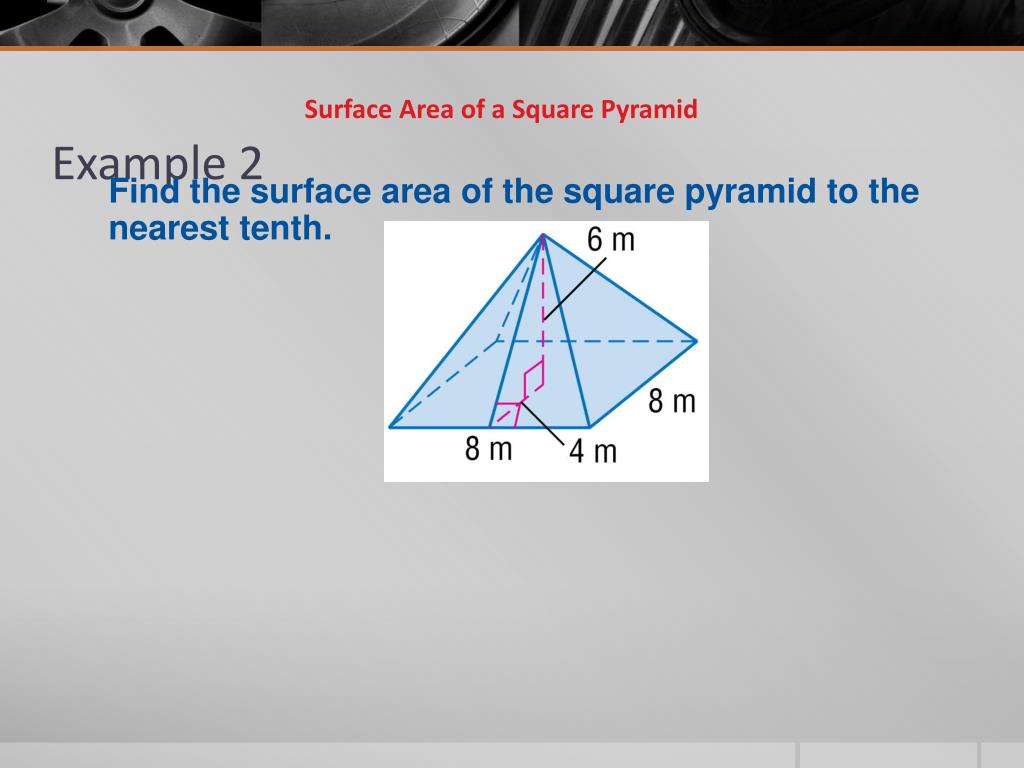

  14. Surface Area of a Square Pyramid Example 2 Find the surface area of the square pyramid to the nearest tenth.

  15. Example 2 Find the surface area of the square pyramid to the nearest tenth. A. 96 in2 B. 124.3 in2 C. 138.5 in2 D. 156 in2

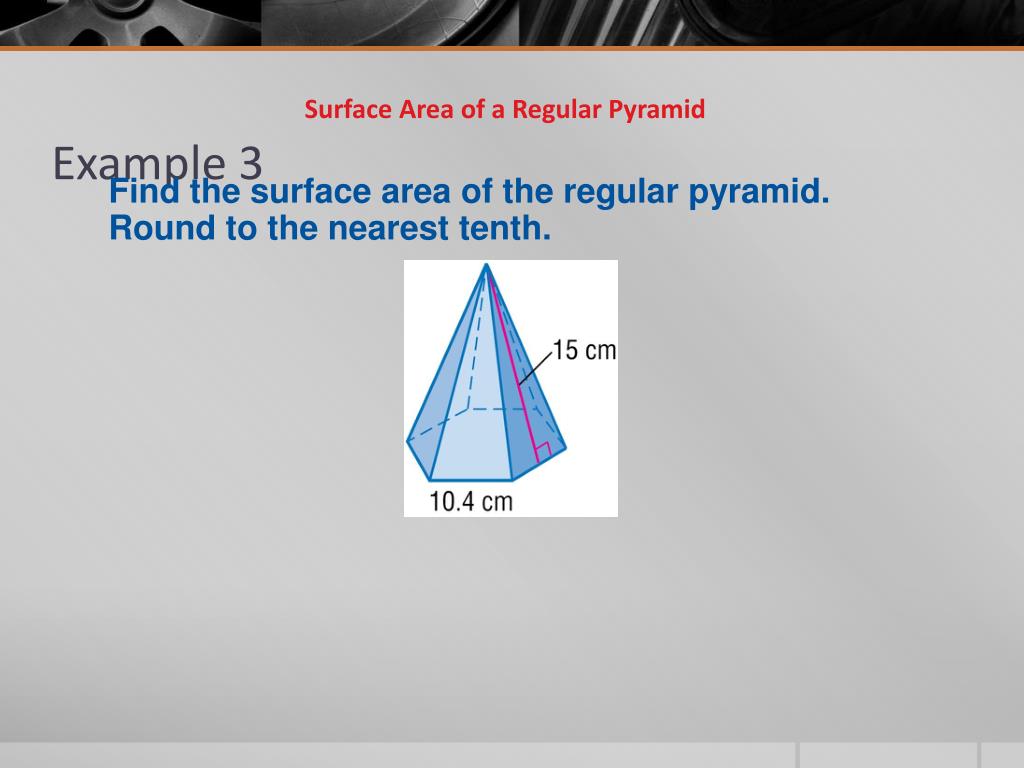

  16. Surface Area of a Regular Pyramid Example 3 Find the surface area of the regular pyramid. Round to the nearest tenth.

  17. Example 3 Find the surface area of the regular pyramid. Round to the nearest tenth. A. 198 in2 B. 228.5 in2 C. 255.5 in2 D. 316.3 in2

  18. Concept

  19. ICE CREAM A sugar cone has an altitude of 8 inches and a diameter of inches. Find the lateral area of the sugar cone. Lateral Area of a Cone Example 4

  20. Example 4 HATS A conical birthday hat has an altitude of 6 inches and a diameter of 4 inches. Find the lateral area of the birthday hat. A. 39.7 in.2 B. 43.6 in.2 C. 48.2 in.2 D. 53.1 in.2

  21. Example 5 Find the surface area of the cone. Round to the nearest tenth. A. 58.2 cm2 B. 61.3 cm2 C. 63.6 cm2 D. 70.7 cm2
