4G 通信 LTE-Adv/WiMAX 2.0 SDR (s/w defined radio) 平台

DSP Farm. 4G 通信 LTE-Adv/WiMAX 2.0 SDR (s/w defined radio) 平台. 2.5/3.5GHz MIMO Antenna design. Esperanza DSP Farm (DBB/PHY/MAC). 4x4 MIMO 3.5GHz RF. ADC/DAC Front End Board (ABB/Filter/sRIO i/f). 4G Femto-BS / MS. Infiniteband. AMCC. Ethernet. DSP. DSP. DSP. sRIO SW. EMIF. DSP.

ranger
Download Presentation

4G 通信 LTE-Adv/WiMAX 2.0 SDR (s/w defined radio) 平台

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

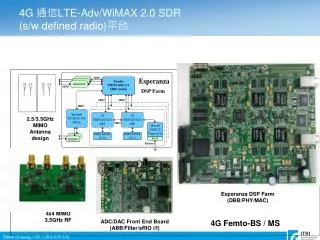

  1. DSP Farm 4G 通信LTE-Adv/WiMAX 2.0 SDR(s/w defined radio)平台 2.5/3.5GHz MIMO Antenna design Esperanza DSP Farm (DBB/PHY/MAC) 4x4 MIMO 3.5GHz RF ADC/DAC Front End Board (ABB/Filter/sRIO i/f) 4G Femto-BS / MS

  2. Infiniteband AMCC Ethernet DSP DSP DSP sRIO SW EMIF DSP DSP DSP Ethernet FPGA Power IN sRIO x1 Esperanza DSP Farm • 平台包含以下主要原件: • 六顆TMS320C6474數位訊號處理器 • 每顆晶片上整合了三個1GHz TMS320C64x+核心 • 每顆晶片搭配了667MHz 256 MB的DDR2記憶體陣列 • 兩顆 Marvell 的乙太網路收發器 • 連接DSP與RJ-45介面 • 一顆 Tsi576 Serial RapidIO Switch • 可支持25 Gbps的平台內部和12.5 Gbps的平台外部數據交換能力 • 一顆 Xilinx XC6SLX150T FPGA • 可支援高達150K的邏輯以及4.8Mb的記憶體

  3. RF front-end board (up to 4x4 antennae) DSP Farm (two solutions) • 2*TMS320C6474DSPs • 6*TMS320C6474DSPs Ti-DSP 6455 Spartan-6 FPGA

  4. API API UMAC Upper MAC (Software) RRCM CS Host/ CPU RTOS RLC Kernel MAC Lower MAC (Hardware) LMAC DSP/ FPGA Physical Layer Physical Layer 16m 4G wireless MAC S/W and Driver on Android/Linux API MAC (Software) Radio Resource Control Management Convergence Sub-layer Radio Link Control Kernel Medium Access Control Physical Layer 16e (old version) 16e (new version) • Modularized and layered structure for WiMAX-Adv and LTE/LTE-Adv

  5. WiMAX 晶片系統實試及前瞻 MIMO OFDMA技術平台開發 • 完成時速300公里高鐵實測之WiMAX (802.16e)晶片與系統，下載可達3~5Mbps之傳輸率 • 提供IEEE 802.16m/LTE等4G無線通信互通測試與架構驗證之系統平台。 • WiMAX晶片與系統之論文“A MIMO WiMAX SoC in 90nm CMOS for 300Km/h mobility”於ISSCC 2011發表，實測系統並獲選為ISSCC 2011 Industrial Demo 項目之一。 自由日報: 多天線WiMAX單晶片研發成功　高鐵上網有望【11/25】 由工研院研發的多天線WiMAX單晶片，功能相等於3.9G無線網卡，突破目前在高鐵無法上網的困境，可在高鐵行駛300公里時速上網，至少達5Mb的傳輸速率，也就是說，在高鐵全速奔馳的速度，仍可維持平均6秒至7秒下載一首MP3歌曲。這項研發已入選明年國際固態電路研討會（ISSCC）的發表論文。 中國時報:「時速三百公里多天線WiMAX單晶片」【11/25】由工研院資通所和台大教授闕志達共同合作，多天線WiMAX單晶片在高鐵列車三百公里時速下，至少達5Mb的傳輸速率。也就是說，在高鐵全速行駛下，六秒鐘內可下載完成一首MP3歌曲 5
