Presentation Transcript


Wimax 802 16 l.jpg

Wimax (802.16)

A Road to Mobile Life


Content l.jpg

Content

  • History Of Wireless

  • Wimax

  • Advantages Over Wifi

  • MAC Structure

  • Usage Areas

  • Competitors

  • Conclusion


Content3 l.jpg

Content

  • History Of Wireless

  • Wimax

  • Advantages Over Wifi

  • MAC Structure

  • Usage Areas

  • Competitors

  • Conclusion


Modern era l.jpg

Modern Era

History of Wireless

  • Radio- Jagdish Chandra Bose and Guglielmo Marconi.

  • Wireless- First patent by Nikola Tesla.

  • Wireless- Term used for everything for long time

  • Wireless- is a method of communication that uses low-powered radio waves to transmit data between devices.

  • Low Powered – Free

  • High Powered – Government Regulated


Some wireless standards l.jpg

Some Wireless Standards

  • Bluetooth

  • DECT (Digital Enhanced Cordless Telecommunications)

  • DSRC (Dedicated Short Range Communications)

  • HIPERLAN

  • HIPERMAN

  • IEEE 802.11

  • IrDA

  • RFID (Radio Frequency Identification)

  • WiFi

  • WiMAX

  • xMax

  • ZigBee


Content6 l.jpg

Content

  • History Of Wireless

  • Wimax

  • Advantages Over Wifi

  • MAC Structure

  • Usage Areas

  • Competitors

  • Conclusion


Wimax l.jpg

Wimax

  • Worldwide Interoperability for Microwave Access

  • A certification mark for products that pass conformity and interoperability tests for the IEEE 802.16 standards

  • Run by Wimax Forum


Content8 l.jpg

Content

  • History Of Wireless

  • Wimax

  • Advantages Over Wifi

  • MAC Structure

  • Usage Areas

  • Competitors

  • Conclusion


Advantages over wifi l.jpg

Advantages Over Wifi

  • Improved Performance

  • Much Greater Distances

  • Much Better MAC

  • LNOS Ability


Content10 l.jpg

Content

  • History Of Wireless

  • Wimax

  • Advantages Over Wifi

  • MAC Structure

  • Usage Areas

  • Competitors

  • Conclusion


New mac structure l.jpg

New MAC Structure

  • A Regular Wifi Uses Contention access

    Which means competing for AP.

  • Wimax uses scheduling MAC

    Much Better for QOS required services EX: VOIP , IPTV

  • Mesh Networking

    Subscriber station and Base station at same time

  • OFDMA


New mac structure cont l.jpg

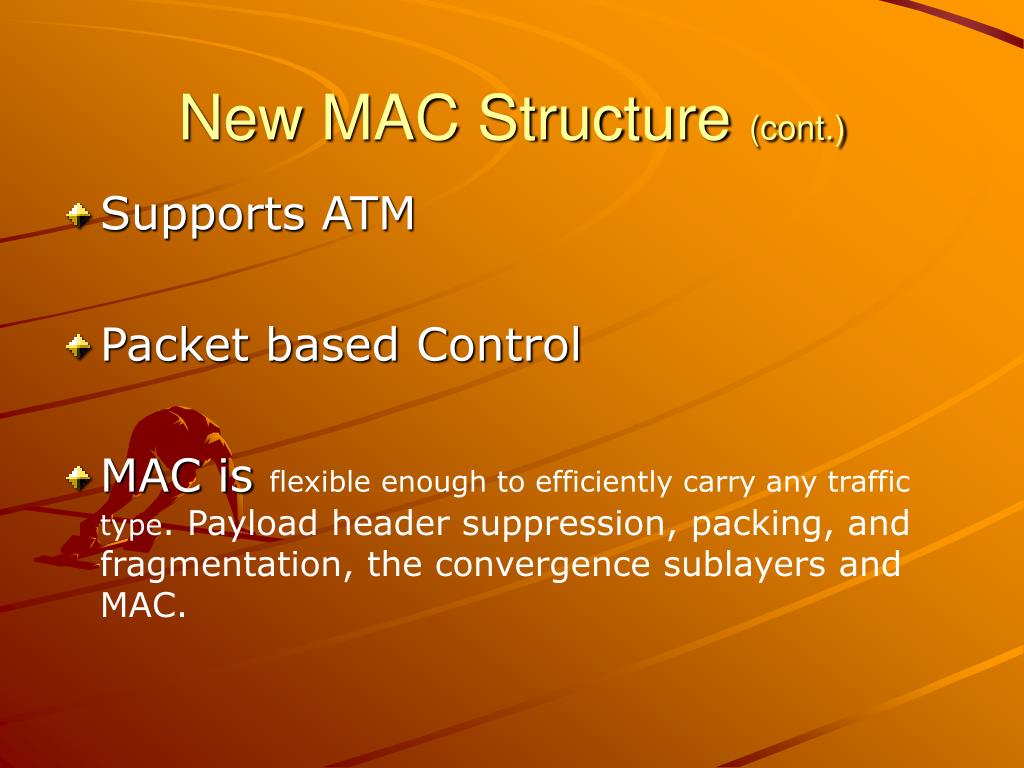

New MAC Structure (cont.)

  • Supports ATM

  • Packet based Control

  • MAC is flexible enough to efficiently carry any traffic type. Payload header suppression, packing, and fragmentation, the convergence sublayers and MAC.


Frequency l.jpg

Frequency

  • Originally Working 10 to 66ghz

    FDD or TDD.

  • Now supporting 2 to 11ghz with 802.11a. OFDMA with TDMA access.


Slide14 l.jpg

NLOS

  • Wifi only work on Line of Sight Areas

  • NON Line Of Sight capability in 2-11ghz. OFDMA.


Usage areas l.jpg

Usage Areas

  • Broadband Internet Access

  • Voip , IPTV services

  • Cellular Phones


Content16 l.jpg

Content

  • History Of Wireless

  • Wimax

  • Advantages Over Wifi

  • MAC Structure

  • Usage Areas

  • Competitors

  • Conclusion


Competitors l.jpg

Competitors

  • UMTS

  • HIPERMAN


Content18 l.jpg

Content

  • History Of Wireless

  • Wimax

  • Advantages Over Wifi

  • MAC Structure

  • Usage Areas

  • Competitors

  • Conclusion


Conclusion l.jpg

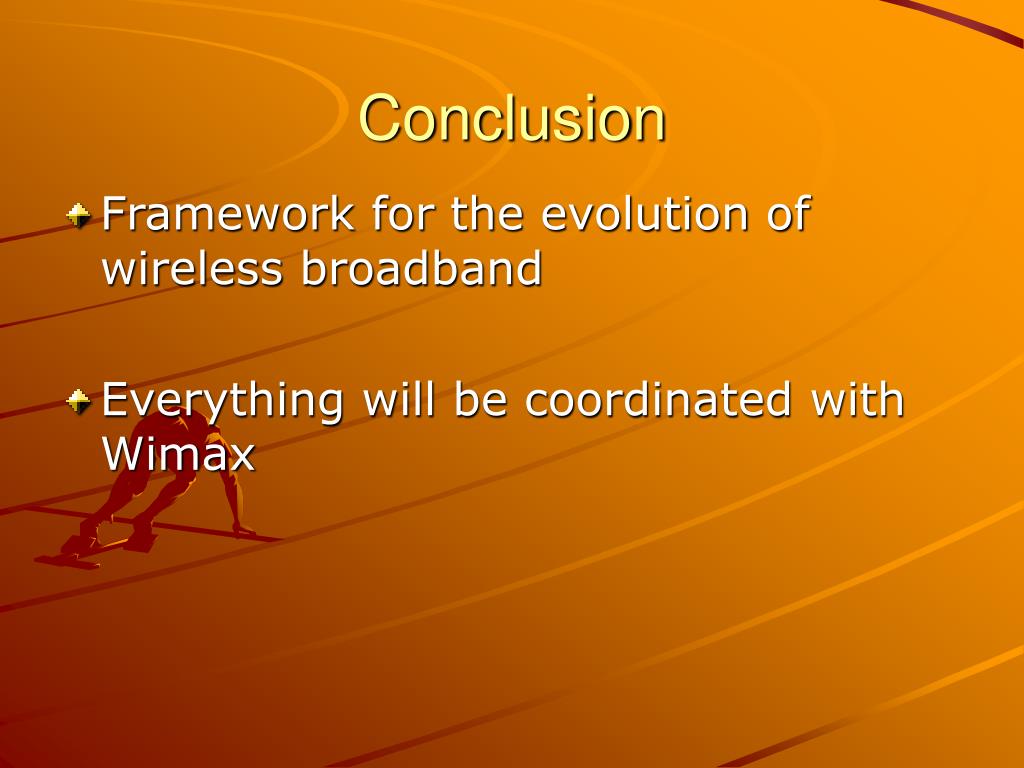

Conclusion

  • Framework for the evolution of wireless broadband

  • Everything will be coordinated with Wimax
