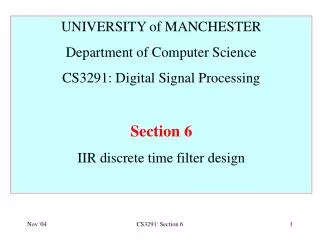

  1. UNIVERSITY of MANCHESTER Department of Computer Science CS3291: Digital Signal Processing Section 6 IIR discrete time filter design CS3291: Section 6

  2. 6.1. Introduction: • Many design techniques for IIR discrete time filters have adopted ideas of analogue filters • Transform Ha(s) for analogue ‘prototype’ filter into H(z) for discrete time filter. • Begin with a reminder about analogue filters. 6.2. Analogue filters CS3291: Section 6

  3. Analogue filters have transfer functions: • a0 + a1s + a2s2+ ... + aNsN • H a (s) =  • b0 + b1s + b2s2 + ... + bMsM • Replace s by jw for frequency-response. • For RE(s)  0, Ha(s ) is Laplace Transform of h a (t). • In terms of poles and zeros: • (s - z 1 ) ( z - z 2 ) ... ( s - z N) • Ha(s) = K  • (s - p 1 ) ( z - p 2 ) ... ( s - p M) • Many known techniques for deriving Ha(s); • e.g. Butterworth low-pass approximation • Analogue filters have infinite impulse-responses. CS3291: Section 6

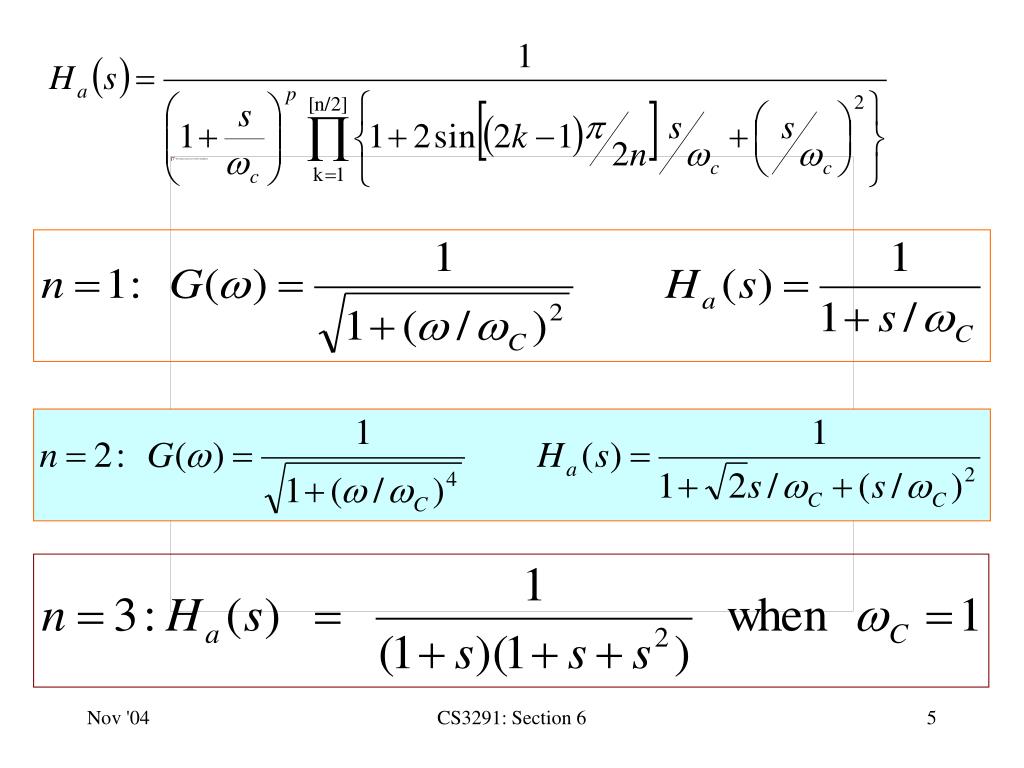

  4. Analogue Butterworth low-pass filter of order n [n/2] is integer part of n/2 & P = 0 /1 if n is even / odd CS3291: Section 6

  5. CS3291: Section 6

  6. CS3291: Section 6

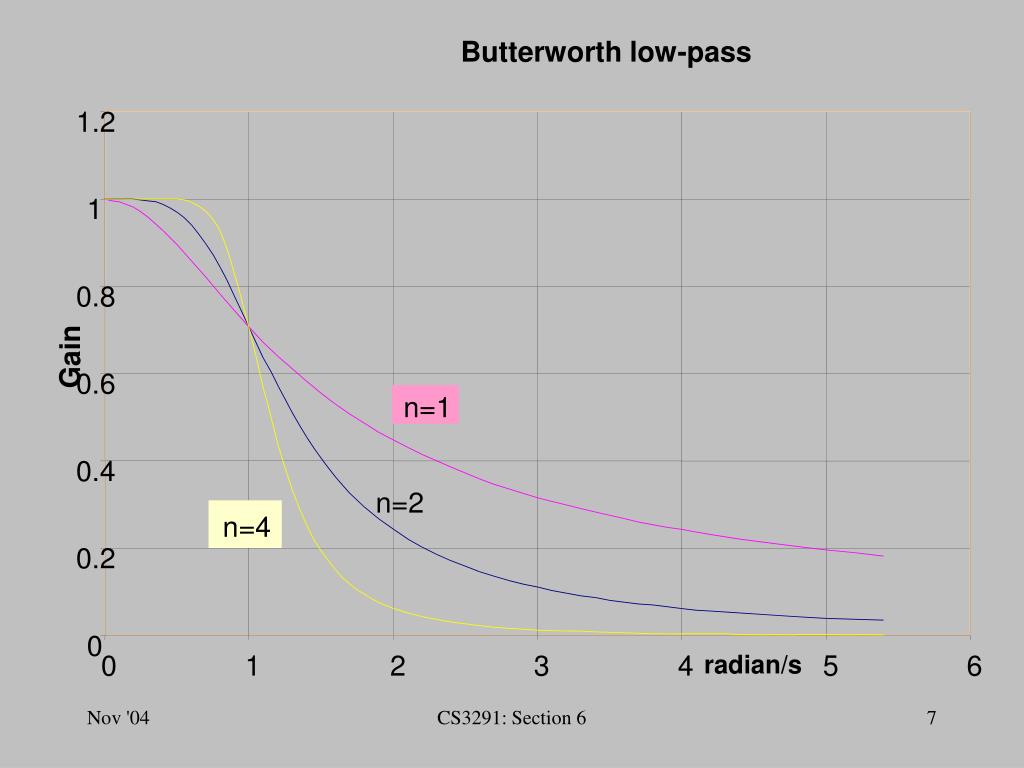

  7. Butterworth low-pass 1.2 1 0.8 Gain 0.6 n=1 0.4 n=2 n=4 0.2 0 0 1 2 3 4 5 6 radian/s CS3291: Section 6

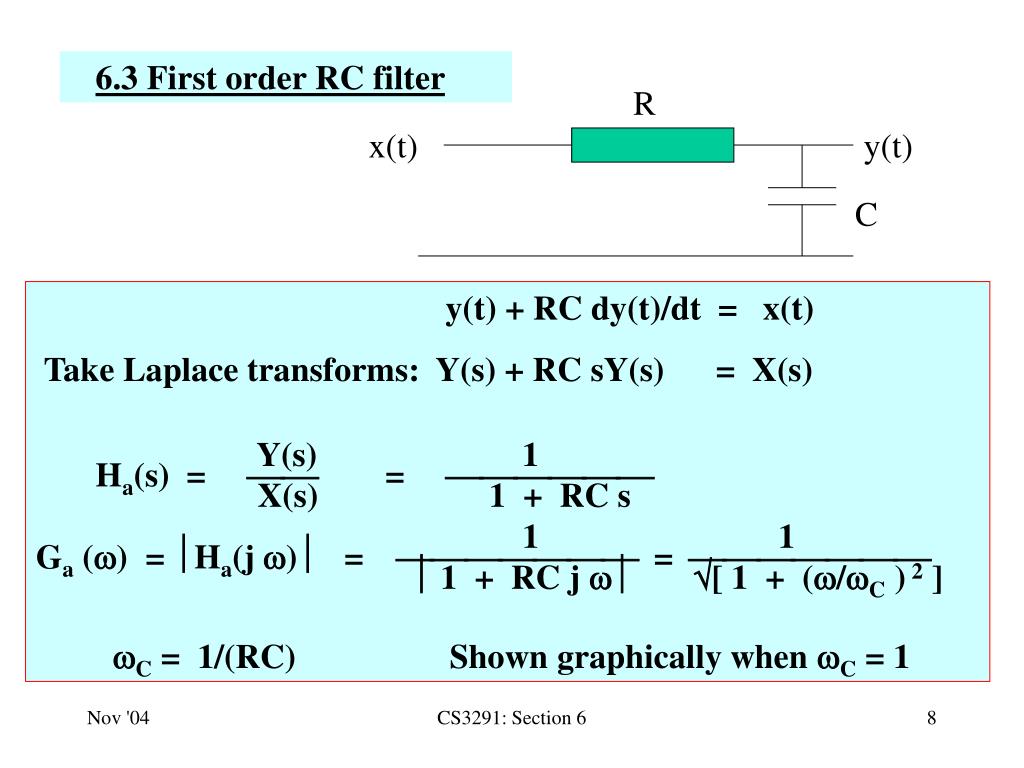

  8. x(t) 6.3 First order RC filter R y(t) C y(t) + RC dy(t)/dt = x(t) Take Laplace transforms: Y(s) + RC sY(s) = X(s) Y(s) 1 Ha(s) =  =  X(s) 1 + RC s 1 1 Ga (w) = Ha(j w) =  =   1 + RC j w [ 1 + (w/wC ) 2 ] wC = 1/(RC) Shown graphically when wC = 1 CS3291: Section 6

  9. Gain-response of RC filter CS3291: Section 6

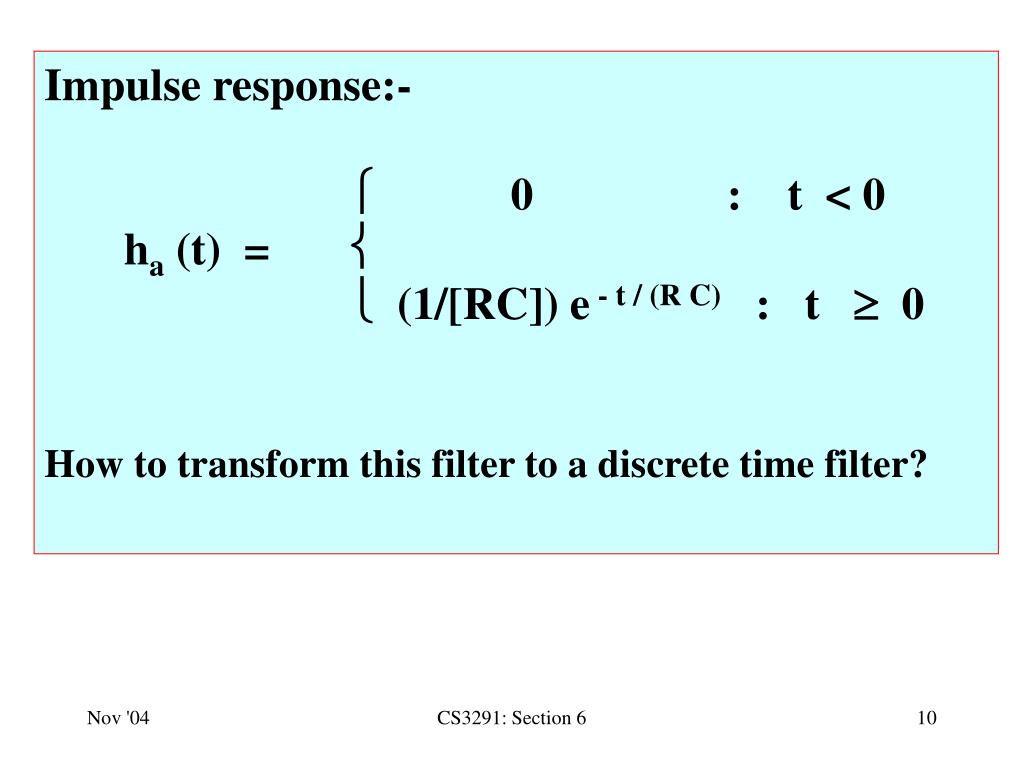

  10. Impulse response:-  0 : t < 0 ha (t) =   (1/[RC]) e - t / (R C) : t  0 How to transform this filter to a discrete time filter? CS3291: Section 6

  11. Example: A filter has system function H(s) = (1+s) / (1 + 2 s + 3 s2) . What is its differential equation. Solution: y(t) + 2dy(t)/dt + 3 d2y(t)/dt2 = x(t) + dx(t)/dt It’s easy! CS3291: Section 6

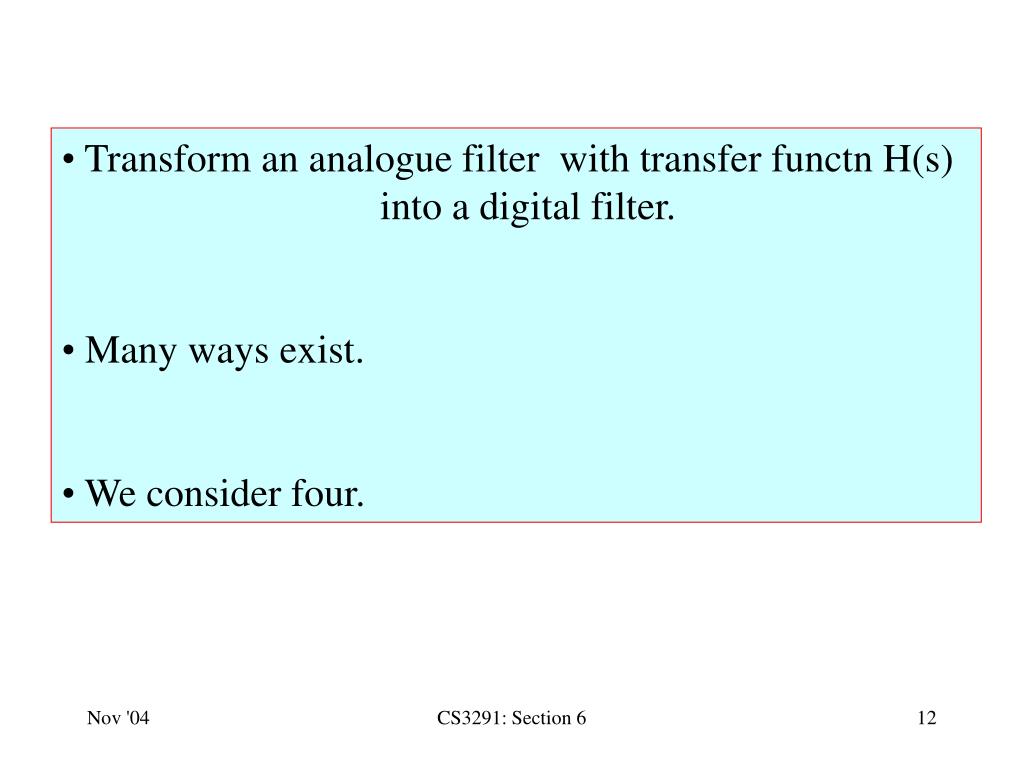

  12. Transform an analogue filter with transfer functn H(s) into a digital filter. • Many ways exist. • We consider four. CS3291: Section 6

  13. 6.4. Firstly, dispose of a method that will not work. • Replacing s by z (or z -1 ) in Ha (s) to obtain H(z). • Taking previous example with RC = 1: • 1 1 • Ha (s) =  H(z) =  • 1 + s 1 + z • H(z) has pole at z = -1. • Even if we moved it to z=0.99, still no good:- CS3291: Section 6

  14. With pole at z=-0.99, what does gain-response look like? G()   High-pass instead of low pass. Forget this one. CS3291: Section 6

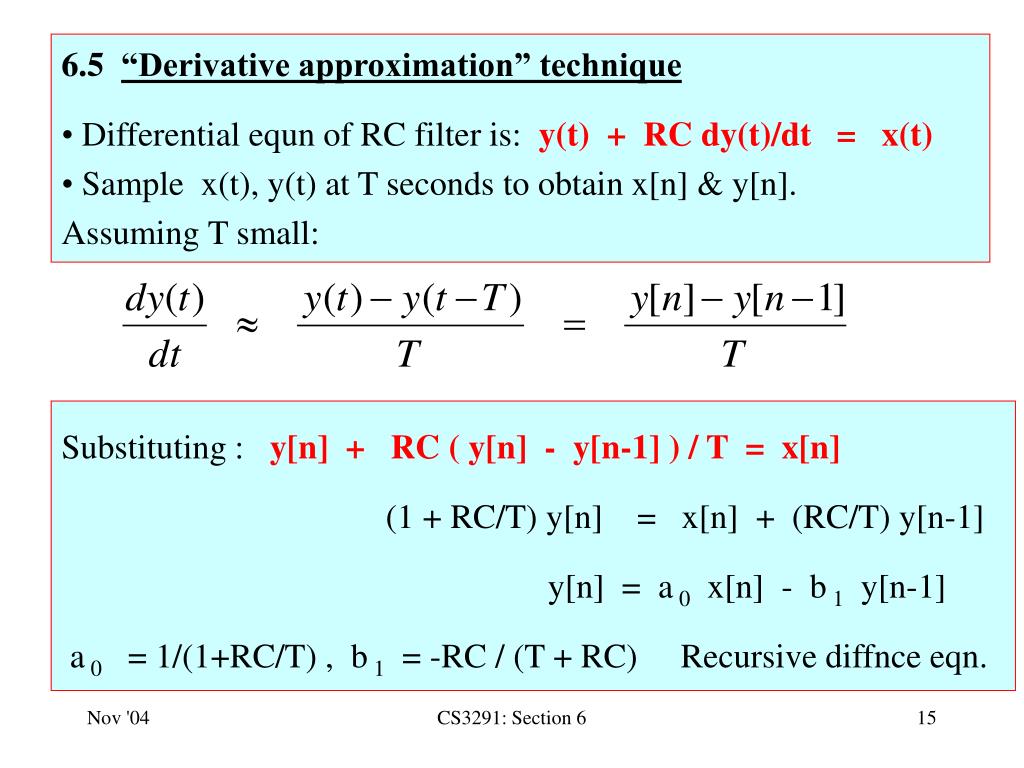

  15. 6.5 “Derivative approximation” technique • Differential equn of RC filter is: y(t) + RC dy(t)/dt = x(t) • Sample x(t), y(t) at T seconds to obtain x[n] & y[n]. • Assuming T small: Substituting : y[n] + RC ( y[n] - y[n-1] ) / T = x[n] (1 + RC/T) y[n] = x[n] + (RC/T) y[n-1] y[n] = a 0 x[n] - b 1 y[n-1] a 0 = 1/(1+RC/T) , b 1 = -RC / (T + RC) Recursive diffnce eqn. CS3291: Section 6

  16. Signal flow graph for y[n] = a 0 x[n] - b1 y[n-1] CS3291: Section 6

  17. For analogue filter : wC = 1/(RC) rad/s. • To make cut-off 500 Hz: RC = 1 / (2 x 500) = 0.0003183. • Let T = 0.0001 s , (fS =10 kHz.) • a 0 = 1/(1 + RC/T) = 0.239057 • b 1 = - RC/(T + RC) = - 0.760943 • Difference equation is: y[n] = 0.24 x[n] + 0.76 y[n-1] • 0.24 1 • H(z) =  Ha(s) =  • (1 - 0.76 z - 1 ) 1 + s/(5002) • 0.0576 1 • H(ejW)2 =  H(jw)2 =  • 1.58 - 1.52cos(W) 1 + (w / 3142)2 CS3291: Section 6

  18. Compare gain-responses:- Shapes similar, but not exactly the same. Replaces s by (1 - z - 1 )/T Not commonly used CS3291: Section 6

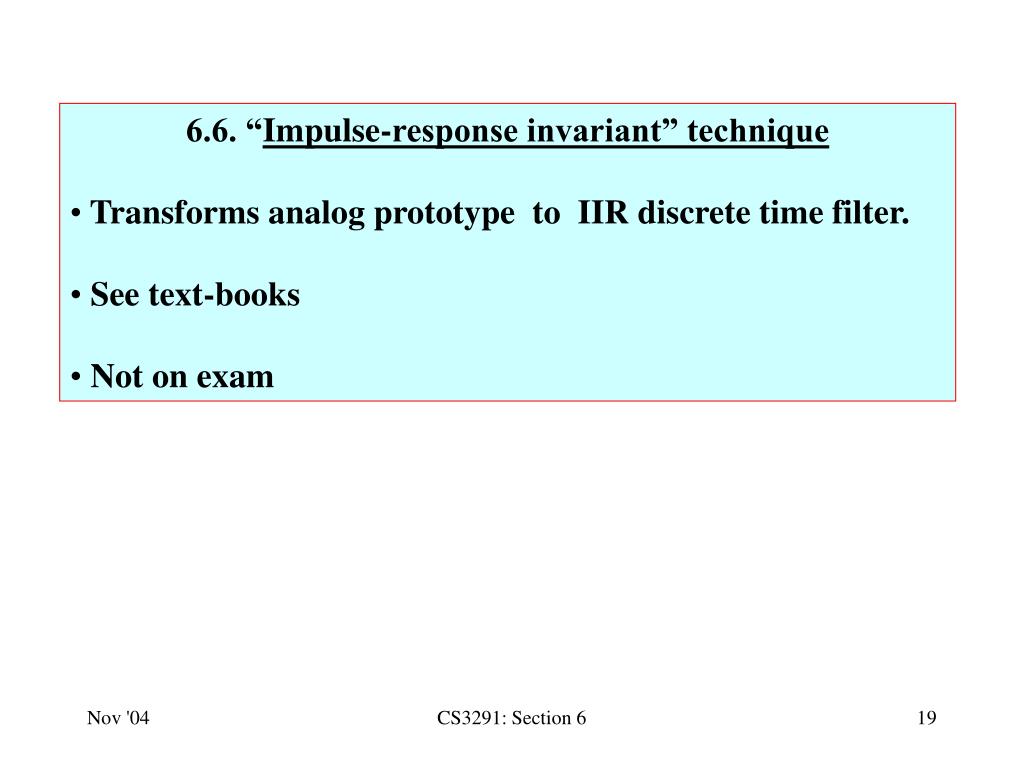

  19. 6.6. “Impulse-response invariant” technique • Transforms analog prototype to IIR discrete time filter. • See text-books • Not on exam CS3291: Section 6

  20. Intro to Bilinear Transformation method • Most common method for transforming Ha (s) to H(z) for IIR discrete time filter. • Consider derivative approximation technique: • D[n] = dy(t) /dt at t=nT  ( y[n] - y[n-1]) / T. • dx(t) /dt at t=nT  (x[n] - x[n-1]) / T. • d2y(t)/dt2 at t=nT  (y[n] - 2y[n-1]+y[n-2])/T2 • d3y(t)/dt3 at t=nT  (y[n]-3y[n-1]+3y[n-2]-y[n-3])/T3 • “Backward difference” approximation introduces delay which becomes greater for higher orders. • Try "forward differences" : D[n]  [y[n+1] - y[n]] / T, etc. • But this does not make matters any better. CS3291: Section 6

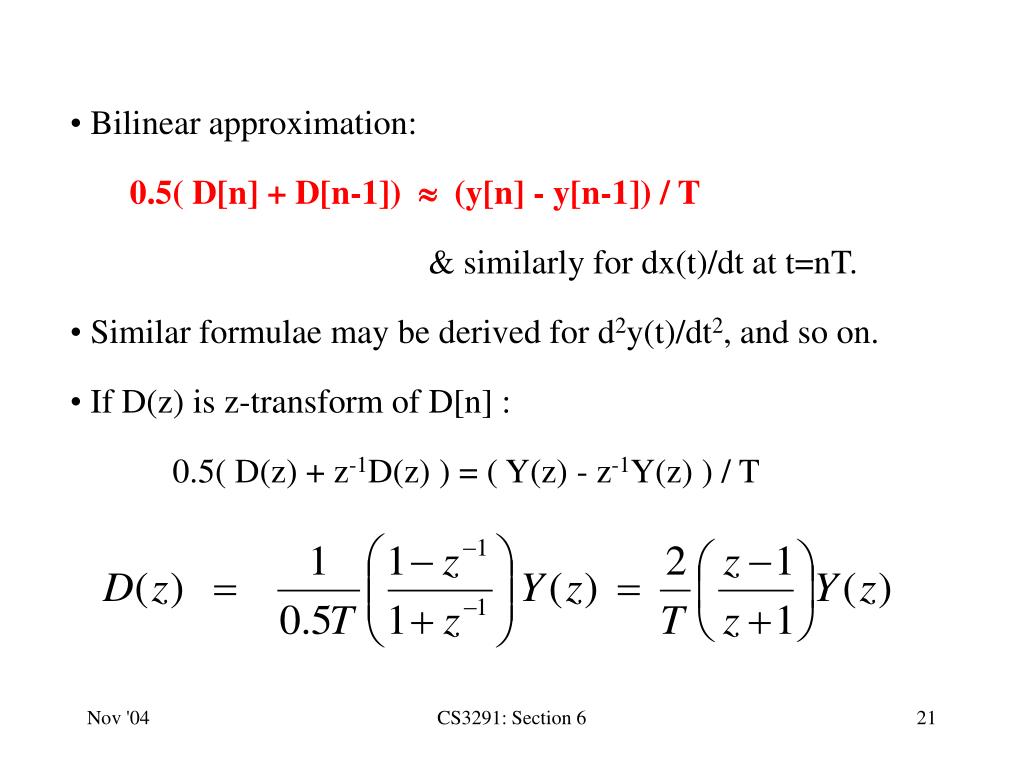

  21. Bilinear approximation: • 0.5( D[n] + D[n-1])  (y[n] - y[n-1]) / T • & similarly for dx(t)/dt at t=nT. • Similar formulae may be derived for d2y(t)/dt2, and so on. • If D(z) is z-transform of D[n] : • 0.5( D(z) + z-1D(z) ) = ( Y(z) - z-1Y(z) ) / T CS3291: Section 6

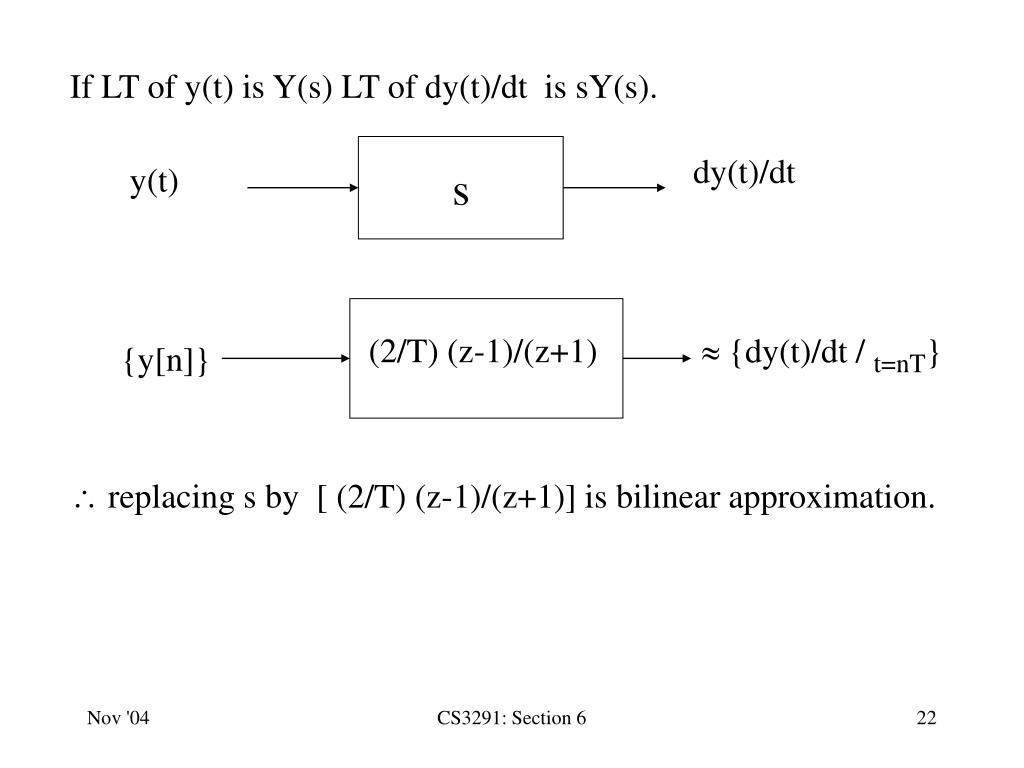

  22. dy(t)/dt y(t) s If LT of y(t) is Y(s) LT of dy(t)/dt is sY(s). (2/T) (z-1)/(z+1)  {dy(t)/dt / t=nT} {y[n]}  replacing s by [ (2/T) (z-1)/(z+1)] is bilinear approximation. CS3291: Section 6

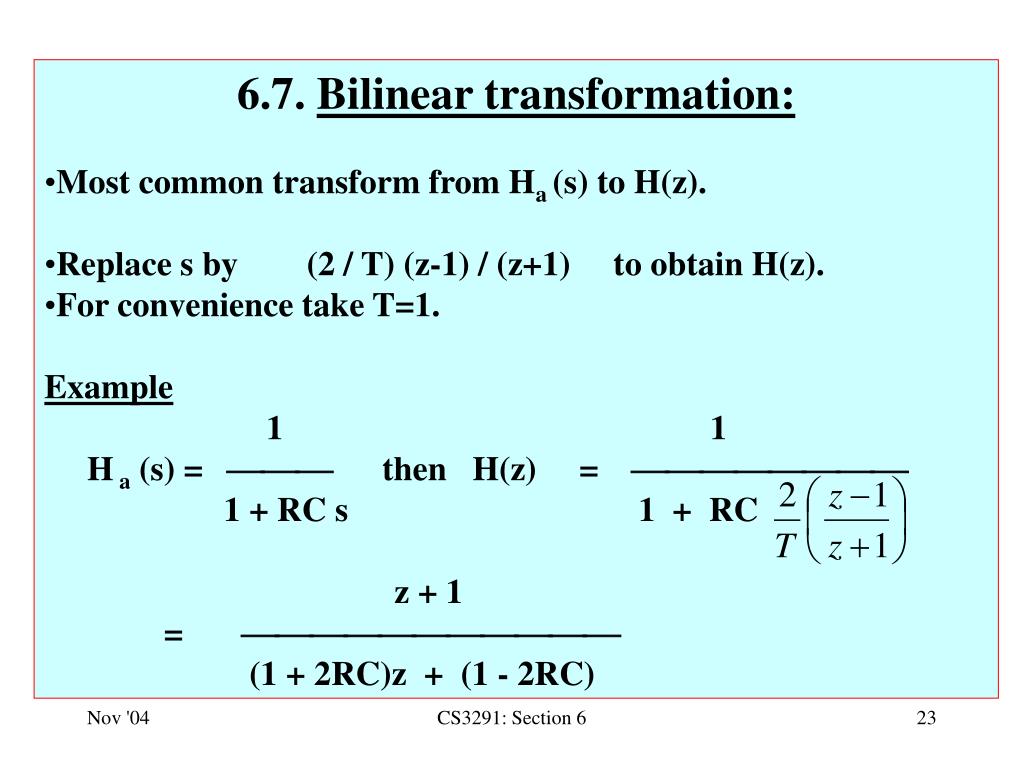

  23. 6.7. Bilinear transformation: • Most common transform from Ha (s) to H(z). • Replace s by (2 / T) (z-1) / (z+1) to obtain H(z). • For convenience take T=1. • Example • 1 1 • H a (s) =  then H(z) =  • 1 + RC s 1 + RC • z + 1 • =  • (1 + 2RC)z + (1 - 2RC) CS3291: Section 6

  24. Re-express as: 1 + z - 1 H(z) = K  1 + b 1 z - 1 where K = 1 / (1 + 2RC) & b 1 = (1 - 2RC) / (1 + 2RC) Properties: (z - 1) (i) H(z) = Ha(s) where s = 2  (z + 1) (ii) Order of H(z) = order of Ha(s) (iii) If Ha(s) is causal & stable, so is H(z). (iv) H(ejW) = Ha(j ) where  = 2 tan(W/2) CS3291: Section 6

  25. Proof of (iii): Let zp be a pole of H(z). • Then sp must be a pole of H a (s) where s p = 2 (z p - 1) / (z p + 1). • If s p = a + jb then (z p + 1)(a + jb) = 2 (z p - 1) , • a + 2 + jb (a + 2)2 + b2 • z p =  and z p 2 =  • -a + 2 - jb (2 - a)2 + b2 • Now a < 0 as H a (s) is causal & stable, z p must be < 1. • if all poles of H a (s) have real parts < 0, all poles of H(z) must lie inside unit circle. CS3291: Section 6

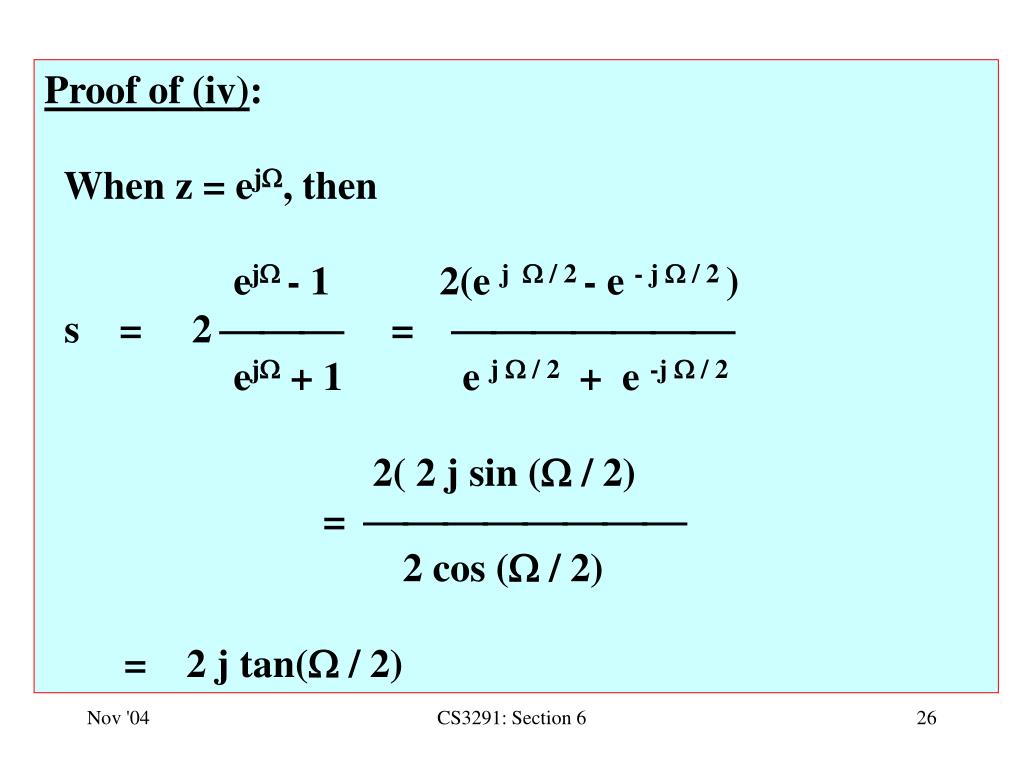

  26. Proof of (iv): When z = ej, then ej- 1 2(e j  / 2 - e - j  / 2 ) s = 2  =  ej + 1 e j  / 2 + e -j  / 2 2( 2 j sin ( / 2) =  2 cos ( / 2) = 2 j tan( / 2) CS3291: Section 6

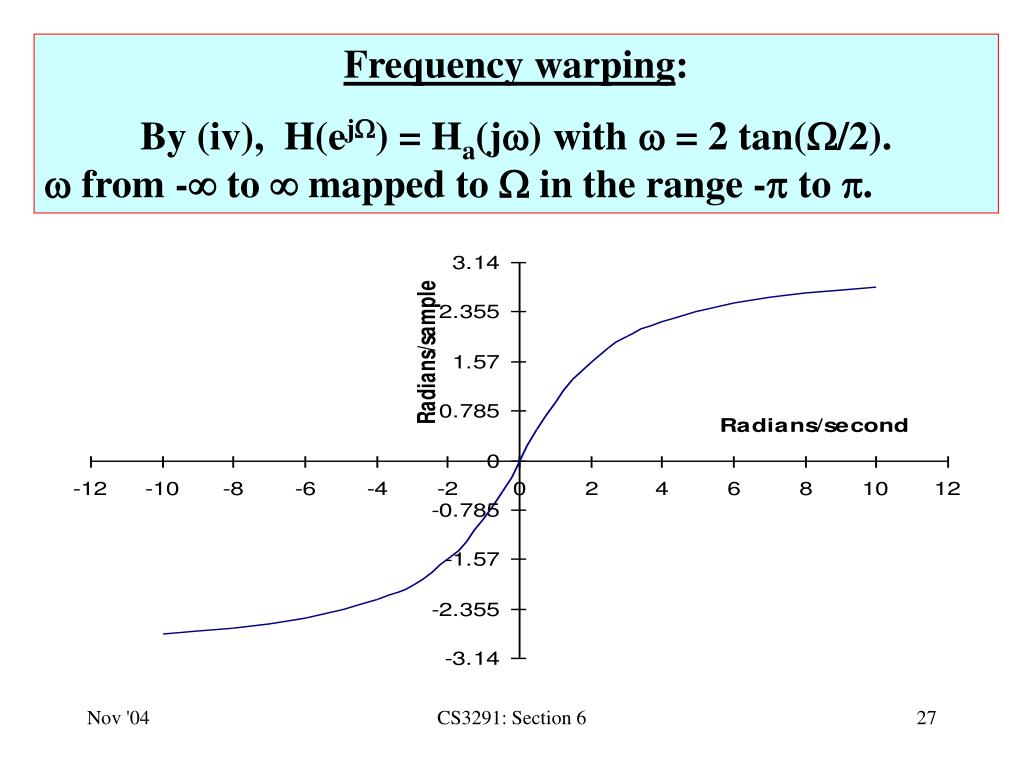

  27. Frequency warping: By (iv), H(ej) = Ha(j) with  = 2 tan(/2).  from - to  mapped to  in the range - to . CS3291: Section 6

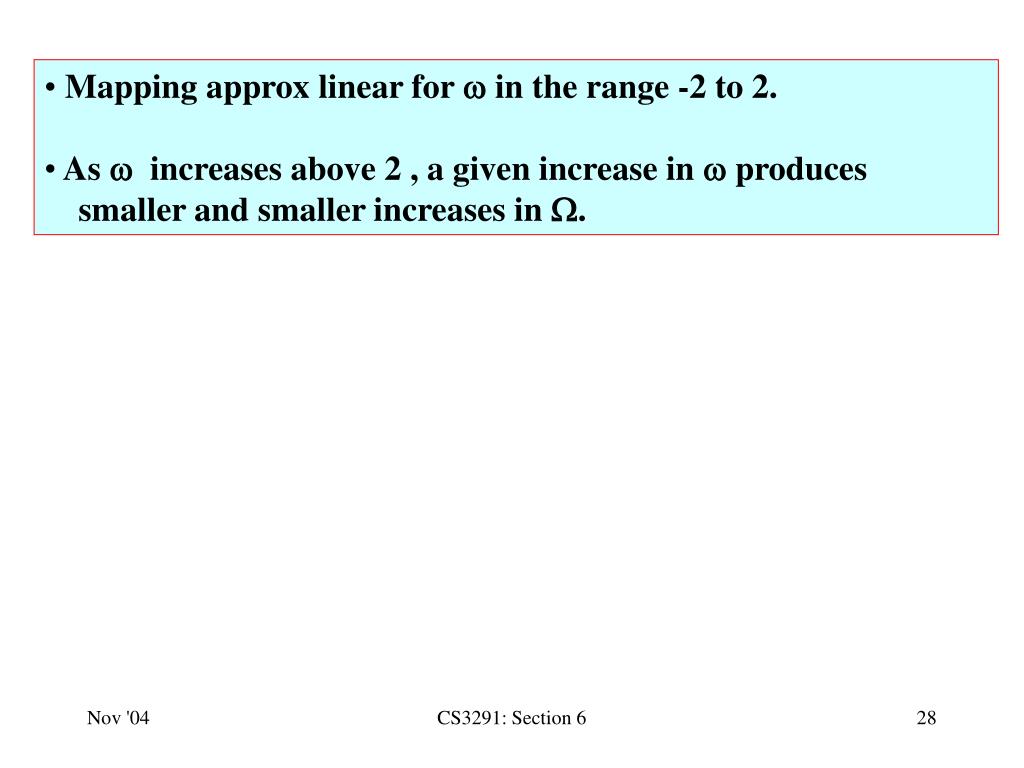

  28. Mapping approx linear for  in the range -2 to 2. • As  increases above 2 , a given increase in  produces smaller and smaller increases in . CS3291: Section 6

  29. Comparing (a) with (b) below, (b) becomes more and more compressed as . Frequency warping must be taken into account with this method CS3291: Section 6

  30. 6.8. Design of IIR low-pass filter by bilinear transfm Given cut-off frequency W C in radians/sample:- (i) Calculate w C = 2 tan(W C /2) radians/sec. (w C is "pre-warped" cut-off frequency) (ii) Find H a (s) for analogue low-pass filter with 1 radian/s cut-off. (iii) Scale cut-off frequency of Ha(s) to wC (iv) Replace s by 2(z - 1) / (z+1) to obtain H(z). (v) Rearrange the expression for H(z) (vi) Realise by biquadratic sections. CS3291: Section 6

  31. ExampleDesign 2nd order Butterworth-type • IIR low-pass filter with W C =  / 4. • Solution: Prewarped frequency w C = 2 tan( / 8) = 0.828 • Analogue Butterworth low-pass filter with c/o 1 radian/second: • 1 • H a (s) =  • 1 + 2 s + s 2 • Scale c/o to 0.828, • 1 • H a (s) =  • 1 + 2 s/0.828 + (s/0.828) 2 • then replace s by 2 (z+1) / (z-1) to obtain: • z 2 + 2z + 1 • H(z) =  • z 2 - 9.7 z + 3.4 CS3291: Section 6

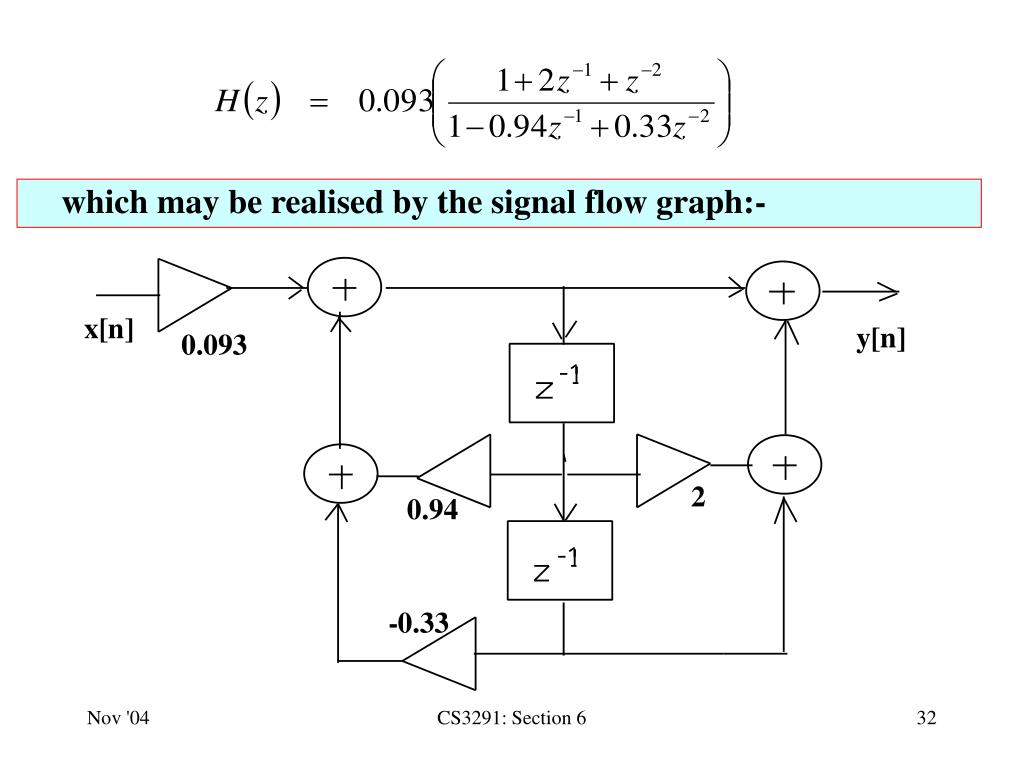

  32. which may be realised by the signal flow graph:- CS3291: Section 6

  33. 6.9 Higher order IIR digital filters: • Normally cascaded biquad sections. • Example 6.3: Design 4th order Butterwth-type IIR low-pass digital filter with 3 dB c/o at fS / 16. . • Solution: (a) Relative cut-off frequency is /8. • Prewarped cut-off :  C = 2 tan((/8)/2)  0.4 radians/s. • Formula for 1 radian/s cut-off is: Replace s by s/0.4 then replace s by 2 (z-1) / (z+1) to obtain: CS3291: Section 6

  34. H(z) may be realised as: CS3291: Section 6

  35. CS3291: Section 6

  36. Compare gain-response of 4th order Butt low-pass transfer function used as a prototype, with that of derived digital filter. • Both are 1 at zero frequency. • Both are 0.707 at the cut-off frequency. • Analogue gain approaches 0 as w whereas digital filter gain becomes exactly zero at W = . • Shape of Butt gain response is "warped" by bilinear transfn. • For digital filter, cut-off rate becomes sharper as W because of the compression as w. CS3291: Section 6

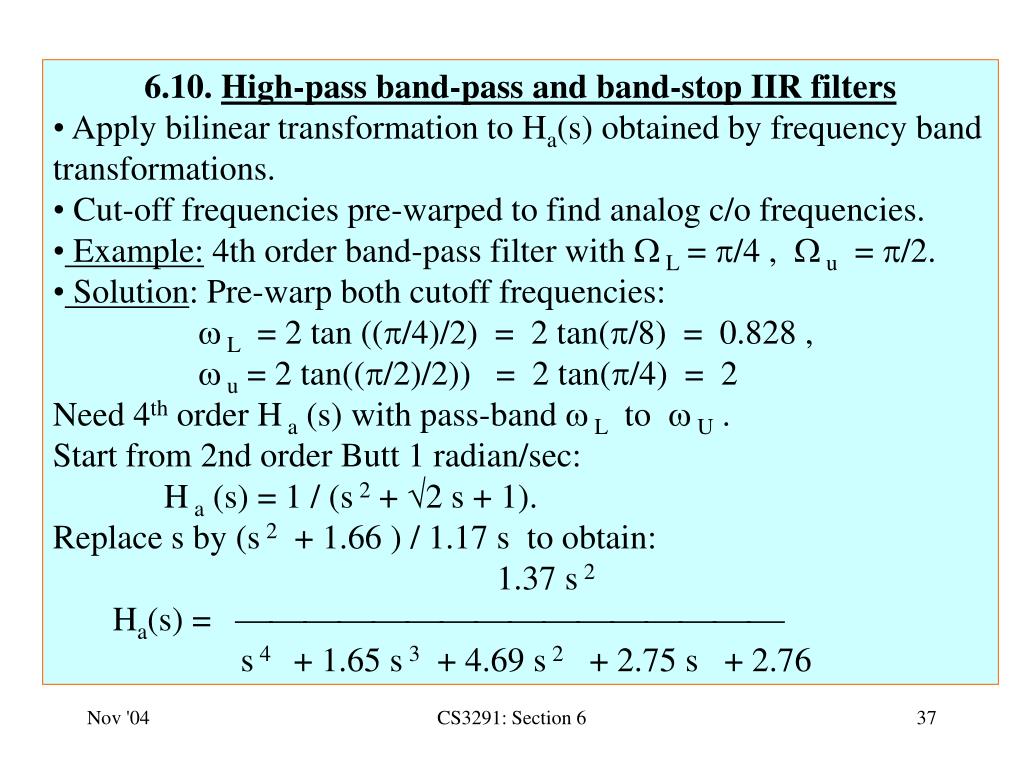

  37. 6.10. High-pass band-pass and band-stop IIR filters • Apply bilinear transformation to Ha(s) obtained by frequency band transformations. • Cut-off frequencies pre-warped to find analog c/o frequencies. • Example: 4th order band-pass filter with W L = /4 , W u = /2. • Solution: Pre-warp both cutoff frequencies: • w L = 2 tan ((/4)/2) = 2 tan(/8) = 0.828 , •  u = 2 tan((/2)/2)) = 2 tan(/4) = 2 • Need 4th order H a (s) with pass-band  L to  U . • Start from 2nd order Butt 1 radian/sec: • H a (s) = 1 / (s 2 + 2 s + 1). • Replace s by (s 2 + 1.66 ) / 1.17 s to obtain: • 1.37 s 2 • Ha(s) =  • s 4 + 1.65 s 3 + 4.69 s 2 + 2.75 s + 2.76 CS3291: Section 6

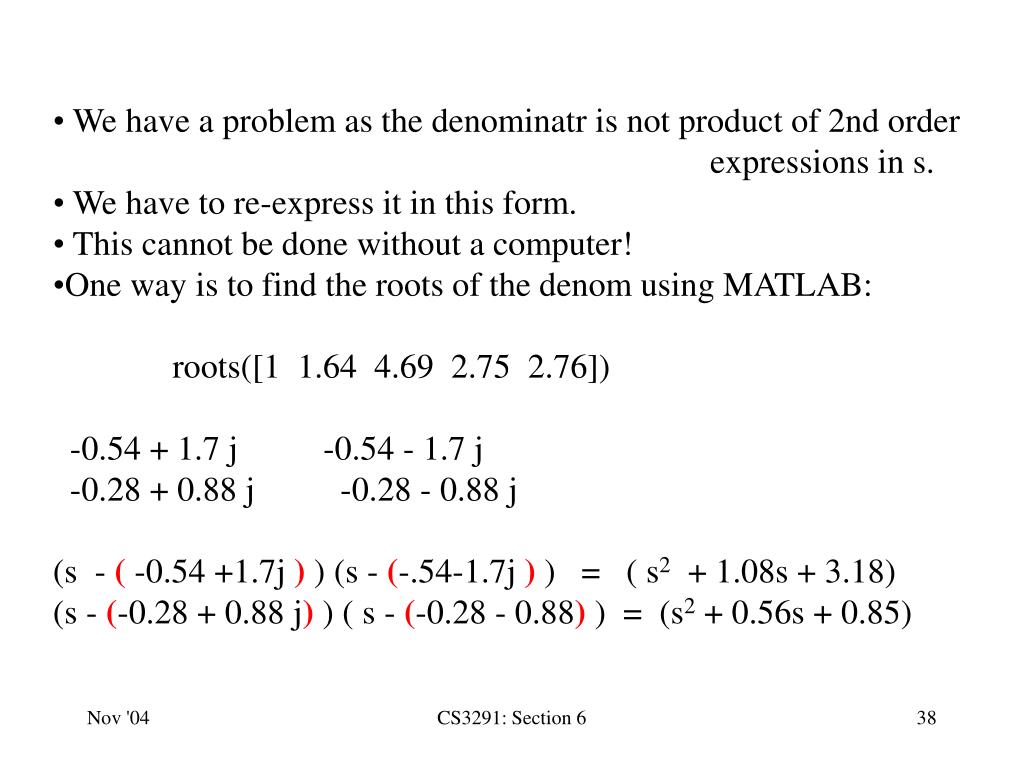

  38. We have a problem as the denominatr is not product of 2nd order expressions in s. • We have to re-express it in this form. • This cannot be done without a computer! • One way is to find the roots of the denom using MATLAB: • roots([1 1.64 4.69 2.75 2.76]) • -0.54 + 1.7 j -0.54 - 1.7 j • -0.28 + 0.88 j -0.28 - 0.88 j • (s - ( -0.54 +1.7j ) ) (s - (-.54-1.7j ) ) = ( s2 + 1.08s + 3.18) • (s - (-0.28 + 0.88 j) ) ( s - (-0.28 - 0.88) ) = (s2 + 0.56s + 0.85) CS3291: Section 6

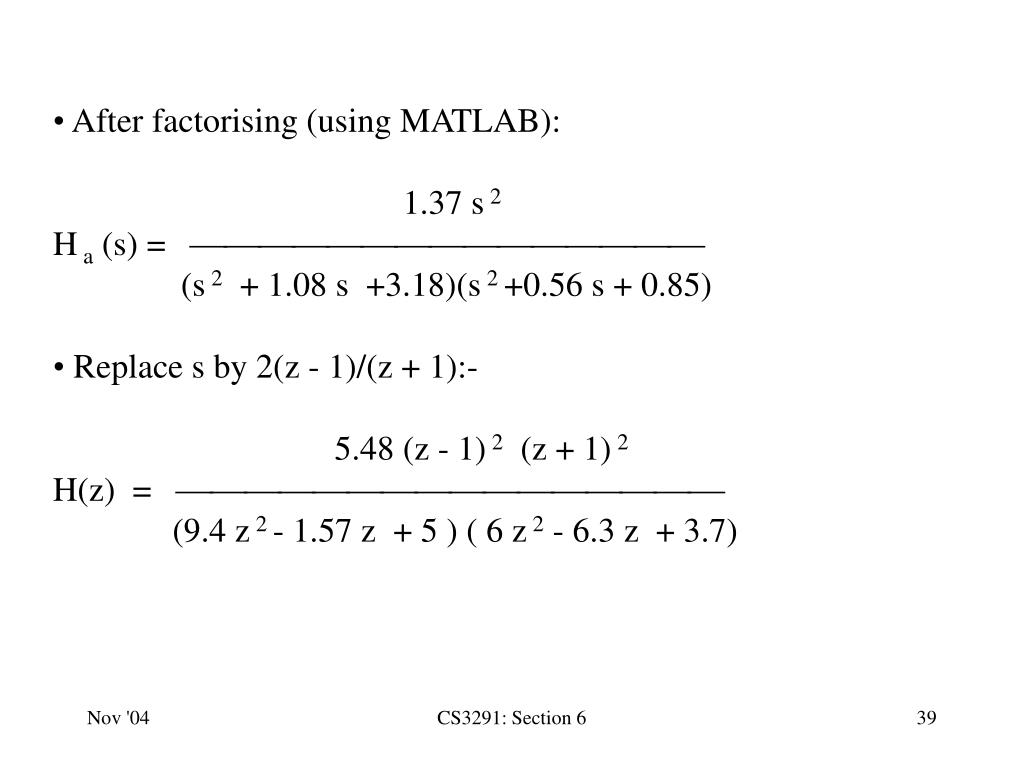

  39. After factorising (using MATLAB): • 1.37 s 2 • H a (s) =  • (s 2 + 1.08 s +3.18)(s 2 +0.56 s + 0.85) • Replace s by 2(z - 1)/(z + 1):- • 5.48 (z - 1) 2 (z + 1) 2 • H(z) =  • (9.4 z 2 - 1.57 z + 5 ) ( 6 z 2 - 6.3 z + 3.7) CS3291: Section 6

  40. Rearrange into 2 biquad sections:  1 - 2 z -1 + z - 2 1 + 2 z - 1 + z - 2 H(z) = 0.1  1 - 0.17 z -1 + 0.54 z -2 1 - 1.05 z -1 + 0.62 z-2 whose gain response is: CS3291: Section 6

  41. There are alternative ways of converting Ha(s) into second order sections (SOS) in the MATLAB SP tool-box. • Can replace s by 2(z - 1)/(z + 1) in the ‘4th order sectn’ expression for Ha(s) then use • [sos G] = tf2sos ([a4 a3 a2 a1 a0], [b4 … b0 ]) • tf2sos does not like functions of s. • So we have to convert to a digital filter before using it. • ‘help tf2sos’ to find out abt this function • I will try to find a more elegant way of doing this one day! CS3291: Section 6

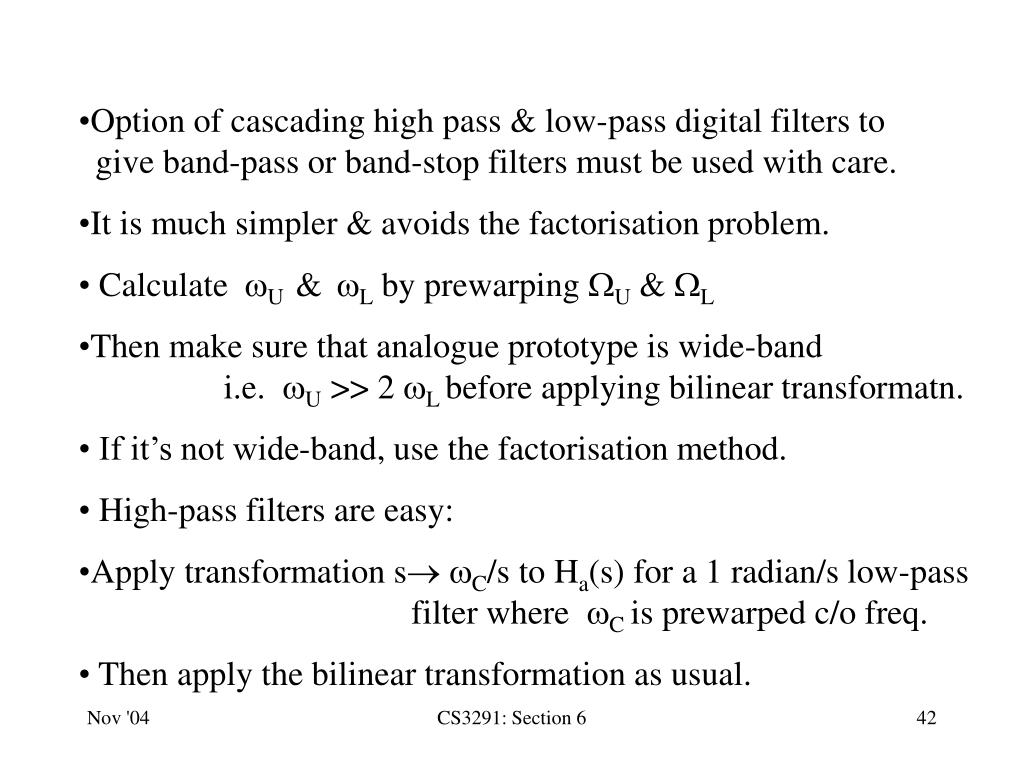

  42. Option of cascading high pass & low-pass digital filters to give band-pass or band-stop filters must be used with care. • It is much simpler & avoids the factorisation problem. • Calculate U & L by prewarping U & L • Then make sure that analogue prototype is wide-band i.e. U >> 2 L before applying bilinear transformatn. • If it’s not wide-band, use the factorisation method. • High-pass filters are easy: • Apply transformation s C/s to Ha(s) for a 1 radian/s low-pass filter where C is prewarped c/o freq. • Then apply the bilinear transformation as usual. CS3291: Section 6

  43. Final note: All these design techniques, and many more, are available in the MATLAB SP toolbox. End of ‘bilinear transformation’ method CS3291: Section 6

  44. 6.11. Comparison of IIR and FIR digital filters: Advantage of IIR type digital filters: Economical in use of delays, multipliers and adders. Disadvantages: (1)Sensitive to coefficient round-off inaccuracies & effects of overflow in fixed point arith. These effects can lead to instability or serious distortion. (2) An IIR filter cannot be exactly linear phase. CS3291: Section 6

  45. Advantages of FIR filters: (1) may be realised by non-recursive structures which are simpler and more convenient for programming especially on devices specifically designed for DSP. (2) FIR structures are always stable. (3) Because there is no recursion, round-off and overflow errors are easily controlled. (4) An FIR filter can be exactly linear phase. Disadvantage of FIR filters: Large orders can be required to perform fairly simple filtering tasks. CS3291: Section 6

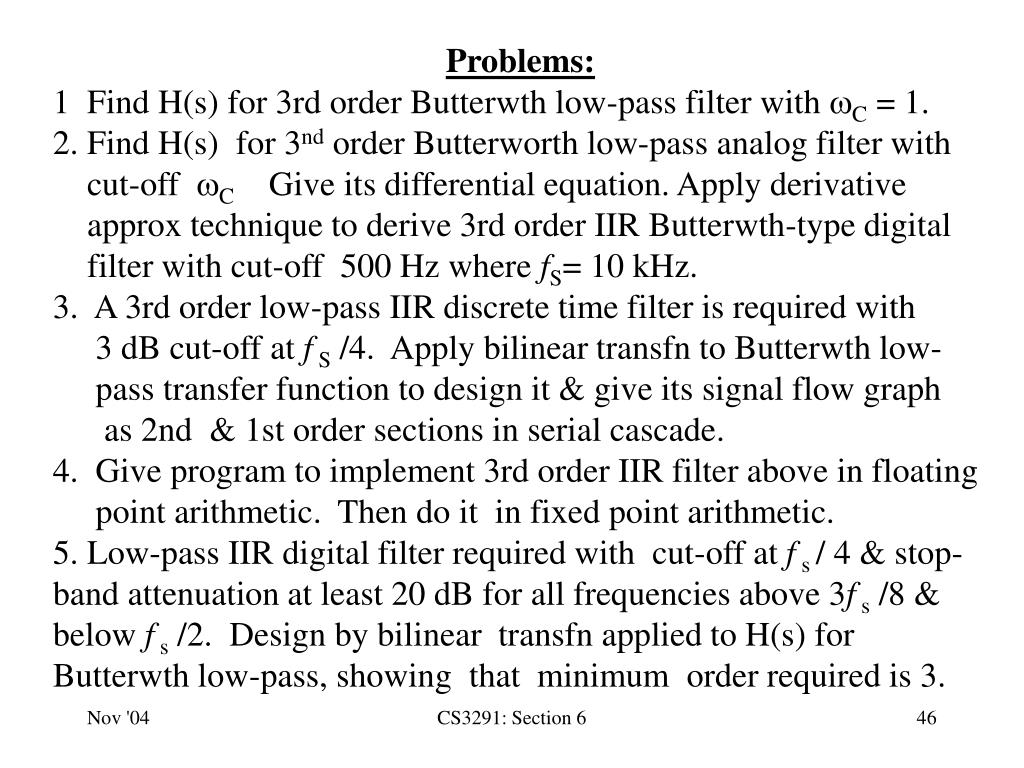

  46. Problems: 1 Find H(s) for 3rd order Butterwth low-pass filter with C = 1. 2. Find H(s) for 3nd order Butterworth low-pass analog filter with cut-off C Give its differential equation. Apply derivative approx technique to derive 3rd order IIR Butterwth-type digital filter with cut-off 500 Hz where fS= 10 kHz. 3. A 3rd order low-pass IIR discrete time filter is required with 3 dB cut-off at f S /4. Apply bilinear transfn to Butterwth low- pass transfer function to design it & give its signal flow graph as 2nd & 1st order sections in serial cascade. 4. Give program to implement 3rd order IIR filter above in floating point arithmetic. Then do it in fixed point arithmetic. 5. Low-pass IIR digital filter required with cut-off at f s / 4 & stop-band attenuation at least 20 dB for all frequencies above 3f s /8 & below f s /2. Design by bilinear transfn applied to H(s) for Butterwth low-pass, showing that minimum order required is 3. CS3291: Section 6

  47. 6 Butterworth-type IIR low-pass digital filter needed with 3 dB c/o at fS / 16. Attenuation must be at least 24 dB above fS / 8. What order is needed? Solution: (a) Relative cut-off frequency is /8. Prewarped cut-off :  C = 2 tan((/8)/2)  0.40 radians/s. For n t h order Butt low-pass filter with cutoff  C , gain is: 1 H a (j) =  [1 + (/0.4) 2 n ] Gain of IIR filter must be < -24dB at  = /4. H a (j) must be < -24 dB at  = 2 tan((/4)/2)  0.83  20 log 1 0(1/[1+(.83/.4) 2 n ]) < -24 i.e. [1 + (2.1) 2 n ] >10 1.2 Hence 1 + (2.1) 2 n > 10 2 . 4 = 252 . 2.1 2n > 251 n = 4 is smallest possible CS3291: Section 6

  48. 7. Design a 4th order band-pass IIR digital filter with lower & upper cut-off frequencies at 300 Hz & 3400 Hz when fS = 8 kHz. 8. Design a 4th order band-pass IIR digital filter with lower & upper cut-off frequencies at 2000 Hz & 3000 Hz when fS = 8 kHz 9. (This is really for Sectn 5) . What limits how good a notch filter we can implement on a fixed point DSP processor? In theory we can make notch sharper & sharper by moving poles closer & closer to zeros. What limits us in practice. I wonder how sharp a notch we could get in 16-bit fixed pt arithmetic? CS3291: Section 6
