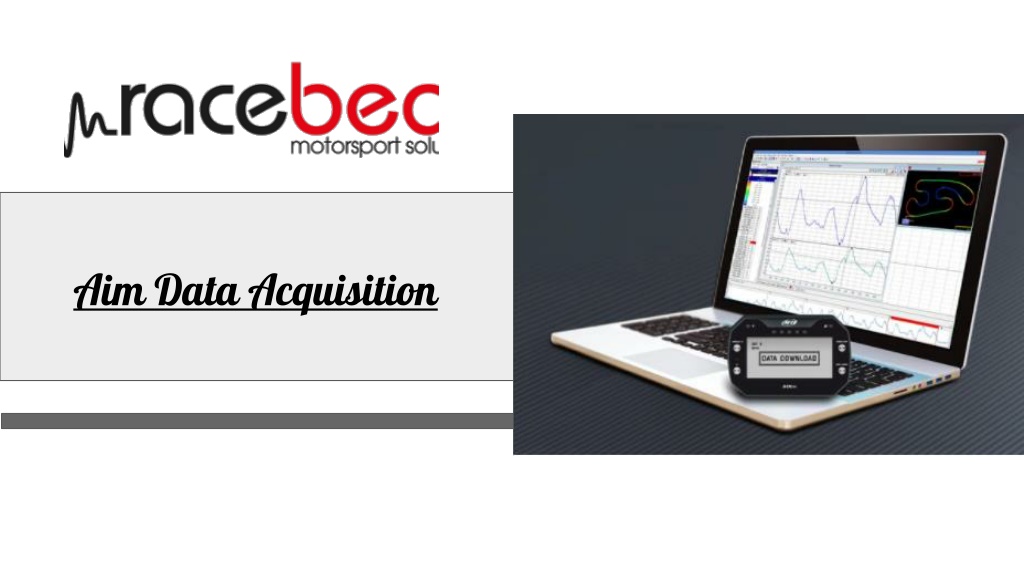

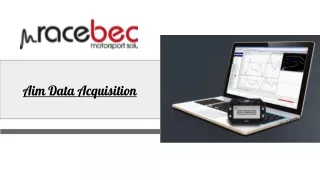

  1. Aim Data Acquisition

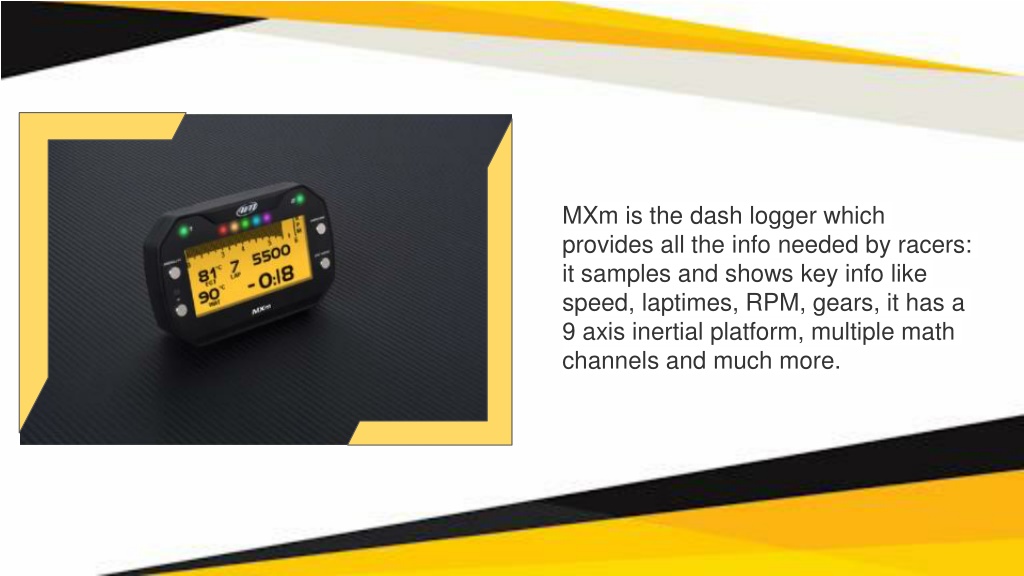

  2. MXm is the dash logger which provides all the info needed by racers: it samples and shows key info like speed, laptimes, RPM, gears, it has a 9 axis inertial platform, multiple math channels and much more.

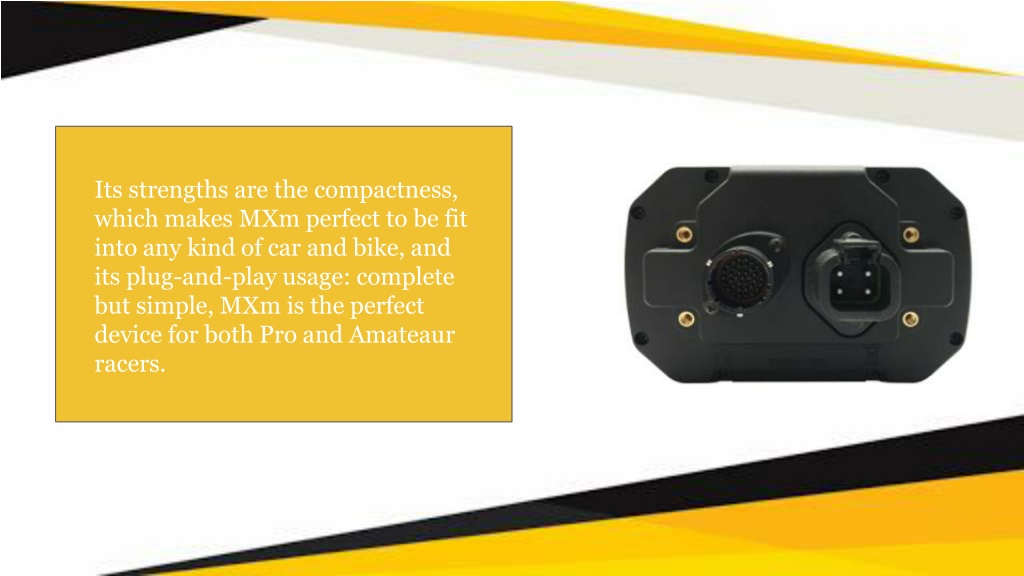

  3. Its strengths are the compactness, which makes MXm perfect to be fit into any kind of car and bike, and its plug-and-play usage: complete but simple, MXm is the perfect device for both Pro and Amateaur racers.

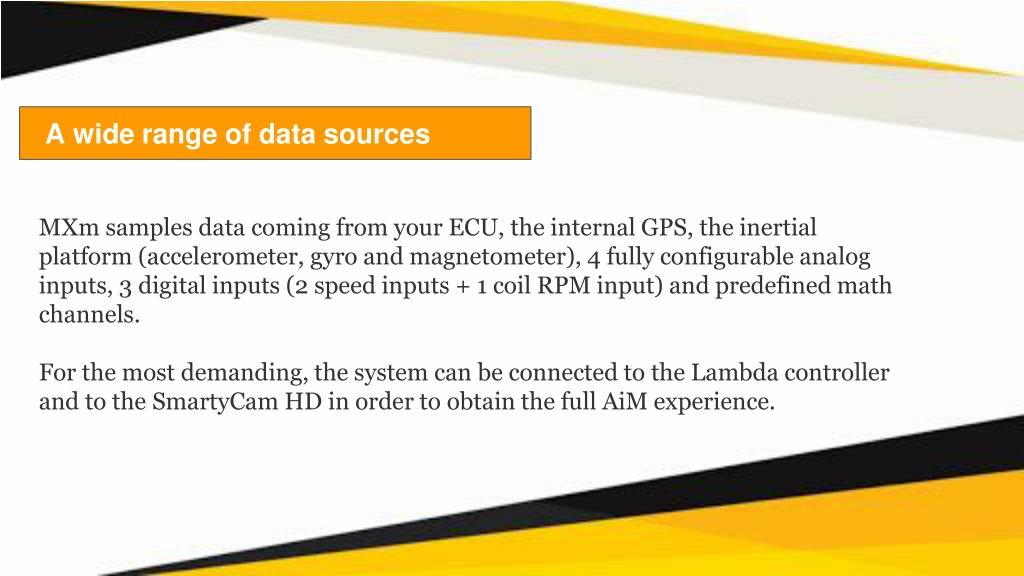

  4. A wide range of data sources MXm samples data coming from your ECU, the internal GPS, the inertial platform (accelerometer, gyro and magnetometer), 4 fully configurable analog inputs, 3 digital inputs (2 speed inputs + 1 coil RPM input) and predefined math channels. For the most demanding, the system can be connected to the Lambda controller and to the SmartyCam HD in order to obtain the full AiM experience.

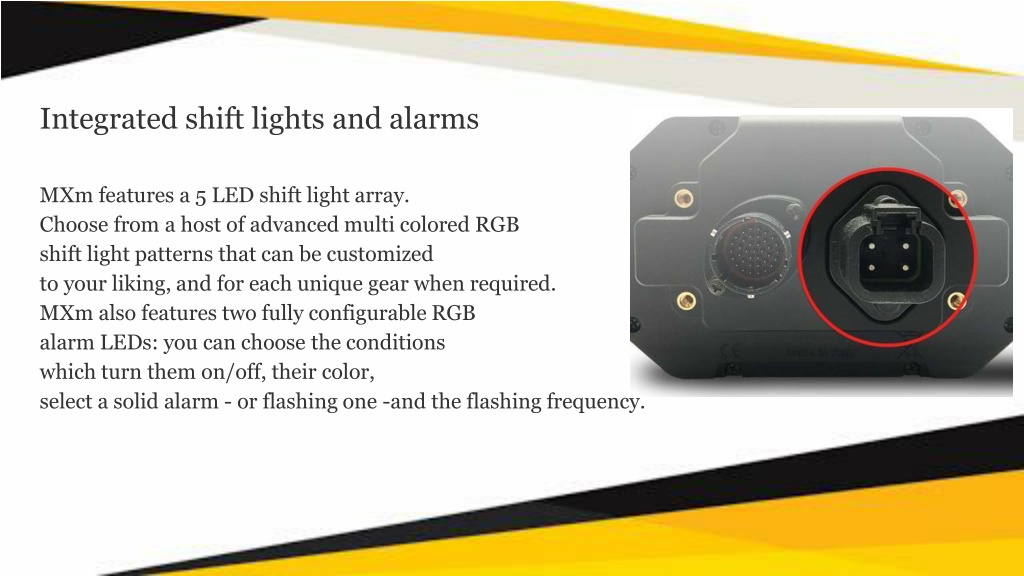

  5. Integrated shift lights and alarms MXm features a 5 LED shift light array. Choose from a host of advanced multi colored RGB shift light patterns that can be customized to your liking, and for each unique gear when required. MXm also features two fully configurable RGB alarm LEDs: you can choose the conditions which turn them on/off, their color, select a solid alarm - or flashing one -and the flashing frequency.

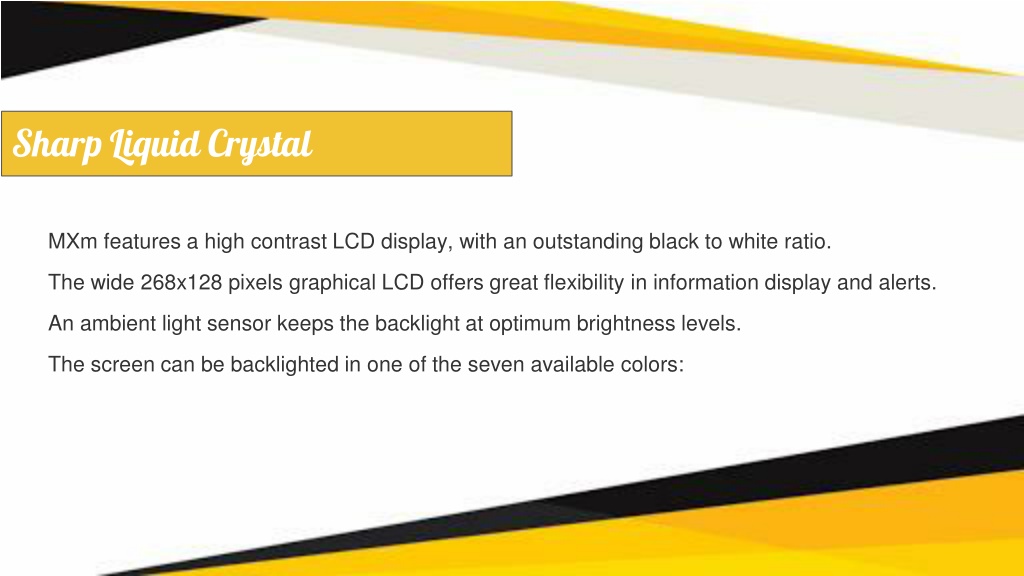

  6. Sharp Liquid Crystal MXm features a high contrast LCD display, with an outstanding black to white ratio. The wide 268x128 pixels graphical LCD offers great flexibility in information display and alerts. An ambient light sensor keeps the backlight at optimum brightness levels. The screen can be backlighted in one of the seven available colors:

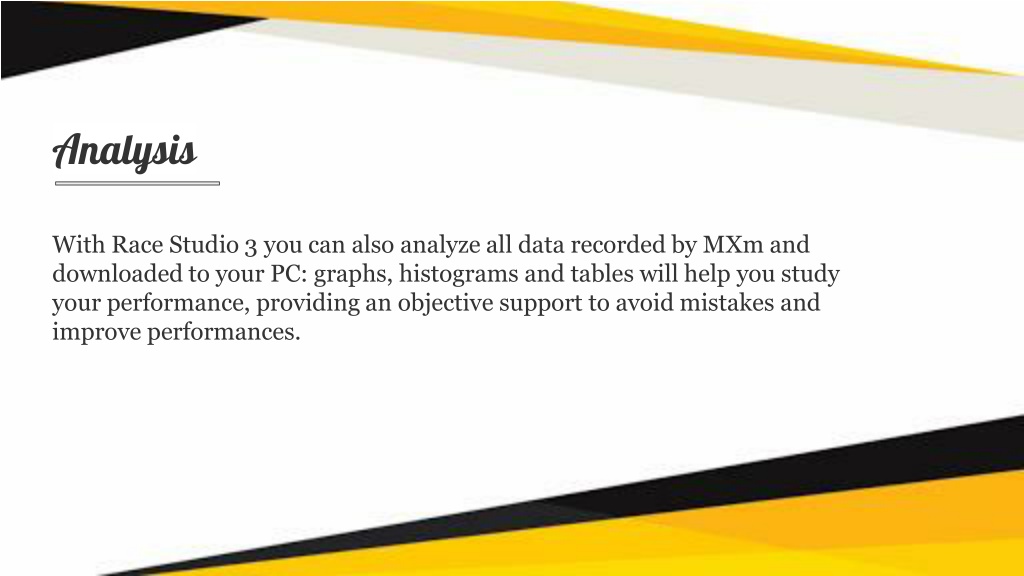

  7. Analysis With Race Studio 3 you can also analyze all data recorded by MXm and downloaded to your PC: graphs, histograms and tables will help you study your performance, providing an objective support to avoid mistakes and improve performances.

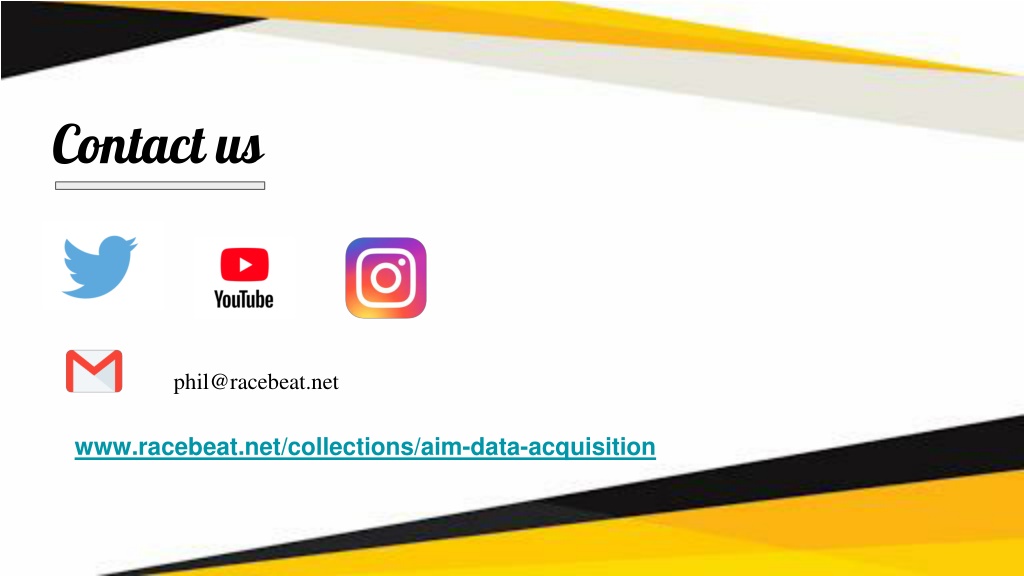

  8. Contact us phil@racebeat.net www.racebeat.net/collections/aim-data-acquisition
