Texture mapping real scenes from photographs

SIGGRAPH 2000 Course on

Image-Based Surface Details

Texture-Mapping Real Scenes from Photographs

Yizhou Yu

Computer Science Division

University of California at Berkeley


Basic steps

Basic Steps

  • Acquire Photographs

  • Recover Geometry

  • Align Photographs with Geometry

  • Map Photographs onto Geometry


Camera pose estimation

Camera Pose Estimation

  • Input

    • Known geometry recovered from photographs or laser range scanners

    • A set of photographs taken with a camera

  • Output

    • For each photograph, 3 rotation and 3 translation parameters of the camera with respect to the geometry

  • Requirement

    • 4 correspondences between each photograph and the geometry


Recover camera pose with known correspondences

Recover Camera Pose with Known Correspondences

  • Least-squares solution

    • Needs good initial estimation from human interaction


Camera


Recover rotation parameters only from known correspondences

Recover Rotation Parameters only from Known Correspondences

  • Constraints

  • Least-squares solution


Camera


Obtaining correspondences

Obtaining Correspondences

  • Feature Detection in 3D geometry and 2D images

  • Human interaction

    • Interactively pick corresponding points in photographs and 3D geometry

  • Automatic Search

    • Combinatorial search


Automatic search for correspondences

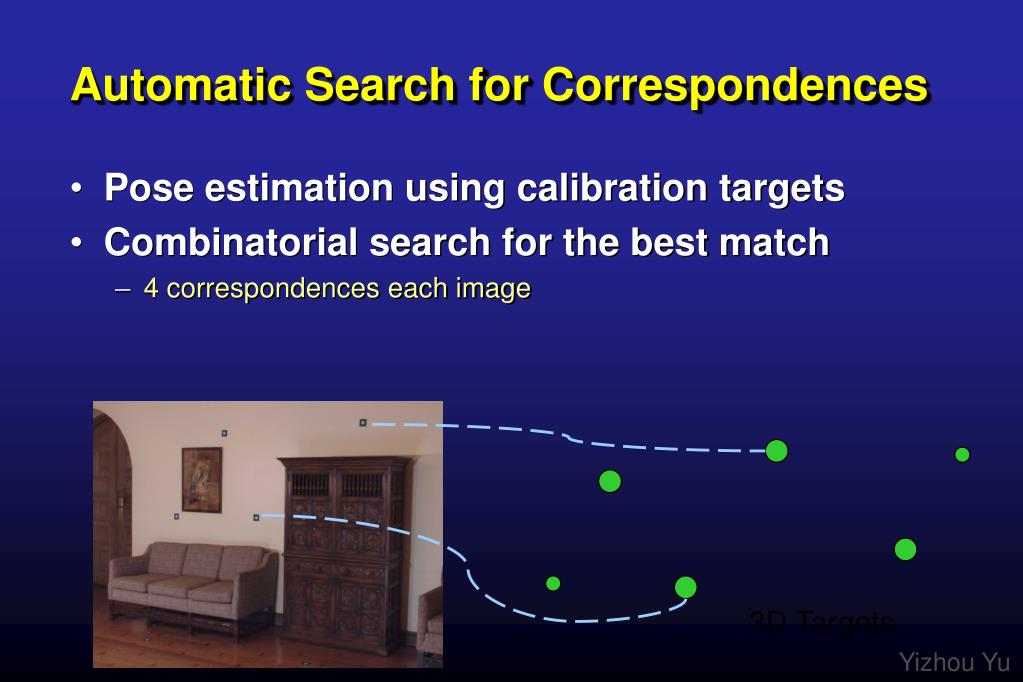

Automatic Search for Correspondences

  • Pose estimation using calibration targets

  • Combinatorial search for the best match

    • 4 correspondences each image

3D Targets


Camera pose results

Camera Pose Results

  • Accuracy: consistently within 2 pixels

Texture-mapping a single image


Texture mapping

Texture Mapping

  • Conventional texture-mapping with texture coordinates

  • Projective texture-mapping


Texture map synthesis i

Texture Map Synthesis I

  • Conventional Texture-Mapping with Texture Coordinates

    • Create a triangular texture patch for each triangle

    • The texture patch is a weighted average of the image patches from multiple photographs

    • Pixels that are close to image boundaries or viewed from a grazing angle obtain smaller weights

Photograph

3D Triangle

Texture Map


Texture map synthesis ii

Texture Map Synthesis II

  • Allocate space for texture patches from texture maps

    • Generalization of memory allocation to 2D

    • Quantize edge length to a power of 2

    • Sort texture patches into decreasing order and use First-Fit strategy to allocate space

First-Fit


A texture map packed with triangular texture patches

A Texture Map Packed with Triangular Texture Patches


Texture mapping and object manipulation

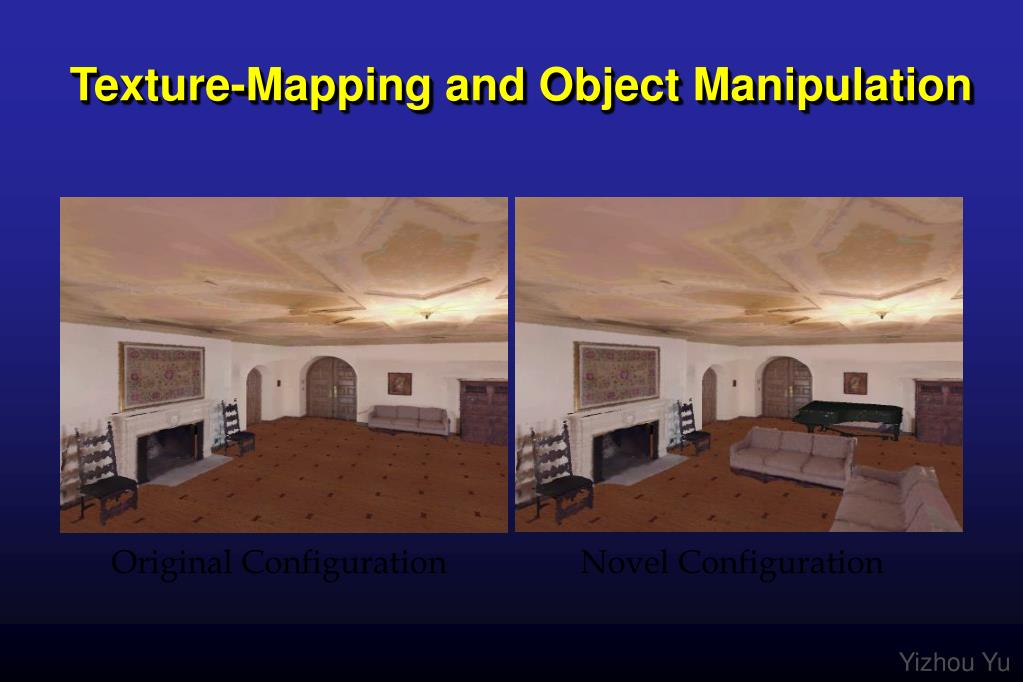

Texture-Mapping and Object Manipulation

Original Configuration

Novel Configuration


Texture map compression i

Texture Map Compression I

  • The size of each texture patch is determined by the amount of color variations on its corresponding triangles in photographs.

  • An edge detector (the derivative of the Gaussian) is used as a metric for variations.


Texture map compression ii

Texture Map Compression II

  • Reuse texture patches

    • Map the same patch to multiple 3D triangles with similar color variations

  • K-means clustering to generate texture patch representatives

  • Larger penalty along triange edges to reduce Mach Band effect

3D Triangles

Texture Map


Synthetic images with compressed and uncompressed texture maps

Synthetic Images with Compressed and Uncompressed Texture Maps

Compressed

5 texture maps

Uncompressed

20 texture maps

20 texture maps

5 texture maps


Projective texture mapping

Projective Texture-Mapping

  • Can directly use the original photographs in texture-mapping

  • Visibility processing is more complicated

  • Projective texture-mapping has been implemented in hardware, therefore, real-time rendering becomes possible

  • View-dependent effects can be added by effectively using hardware accumulation buffer


Motivation for visibility processing artifacts caused by hardware

Motivation for Visibility Processing: Artifacts Caused by Hardware

Camera


Geometry

Texture gets projected onto occluded and

backfacing polygons


Visibility algorithms

Visibility Algorithms

  • Image-space algorithms

    • Shadow buffer

    • Ray casting

  • Object-space algorithms

    • Weiler-Atherton


A hybrid visibility algorithm

A Hybrid Visibility Algorithm

  • Occlusion testing in image-space using Z-buffer hardware

    • Render polygons with their identifiers as colors

    • Retrieve occluding polygons’ ids from color buffer

  • Object-space shallow clipping to generate fewer polygons


Input photographs and recovered geometry from facade

Input Photographs and Recovered Geometry from Facade


Visibility processing results

Visibility Processing Results

The tower

The rest of the campus


Synthetic renderings

Synthetic Renderings
