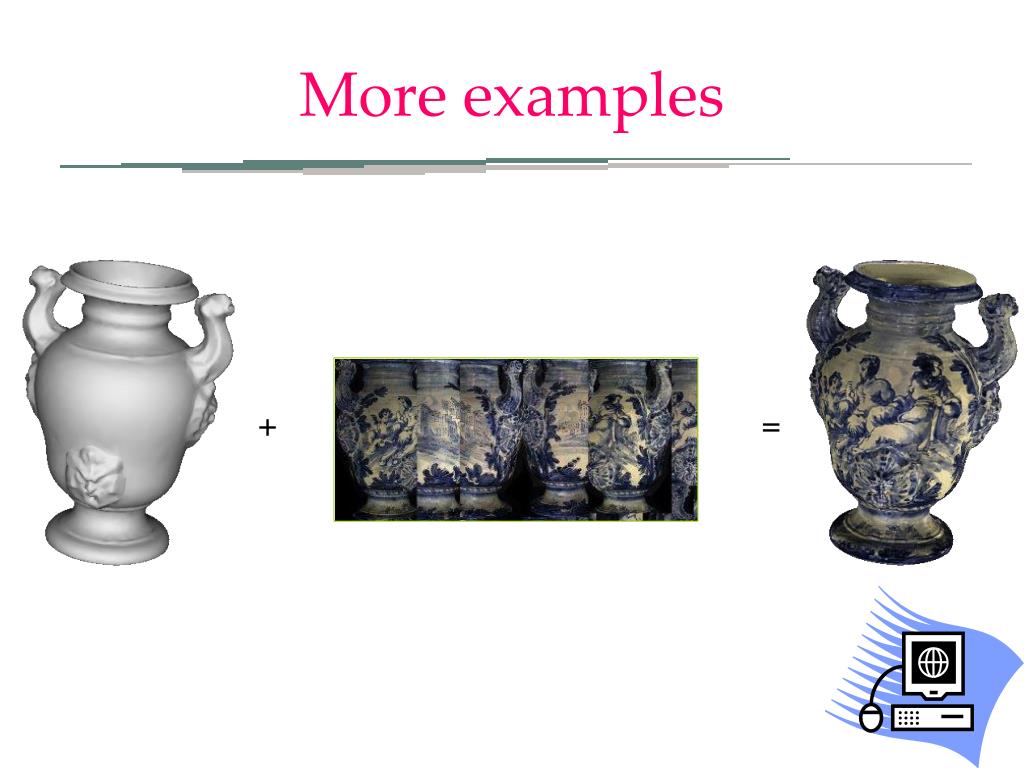

Texture Mapping. Typical application: mapping images on geometry. =. +. RGB texture 2D (color-map). 3D geometry (quads mesh). More examples. Texture Mapping. The fragment operations can access a specialized RAM The Texture RAM Organized in a set of Textures
Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.

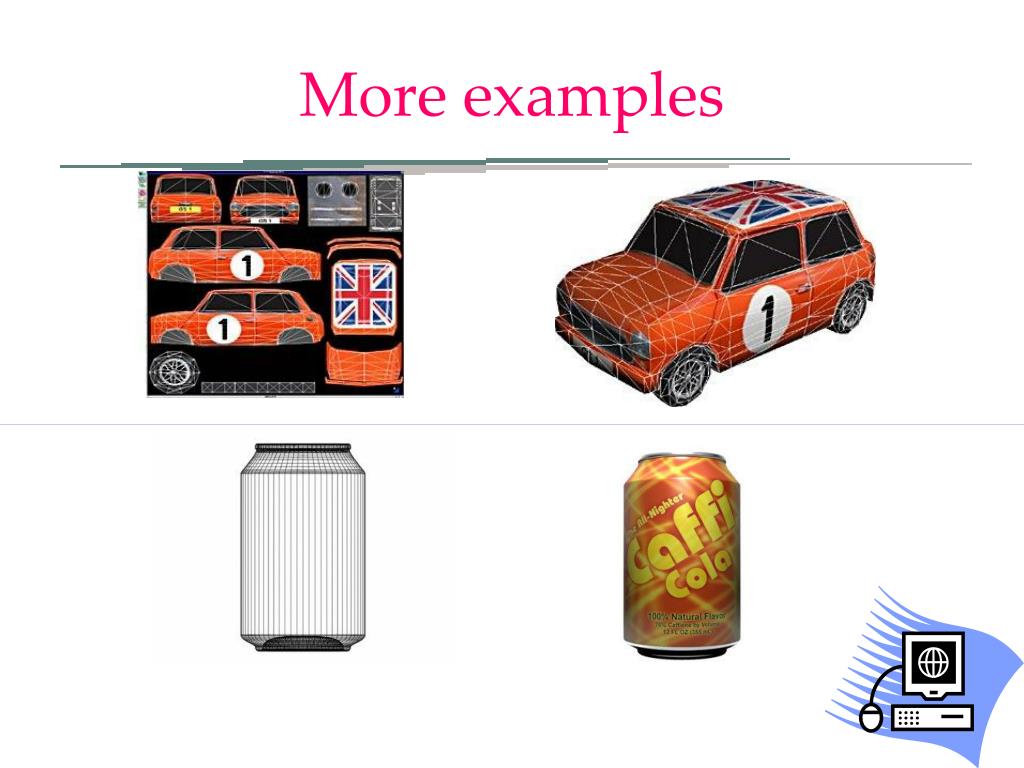

Texture Mapping
=
+
RGB texture 2D
(color-map)
3D geometry
(quads mesh)
1D, 2D o 3D

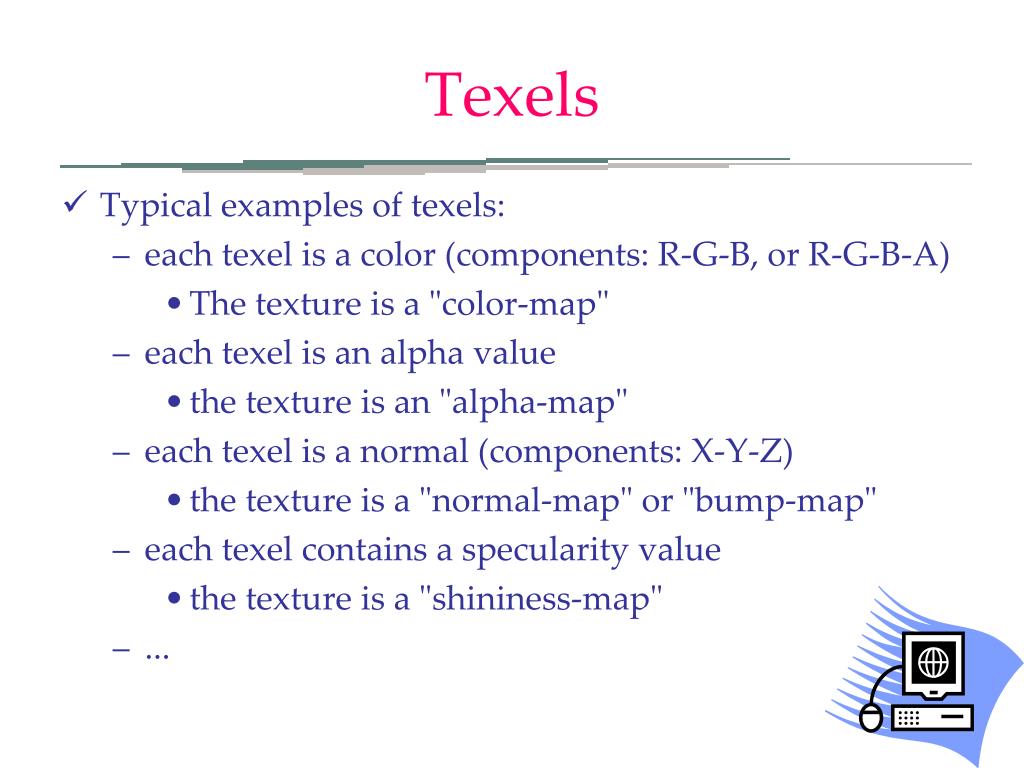

of Texels (texture elements) of the same type
+
=
Ed Catmull
(MEGA-MEGA-GURU)
v
1.0
512 texels
u
1.0
1024 texels
texel
Texture Space
(or "parametric space" or "u-v space")
Texture 2D
A Texture is defined
In the region [0,1] x [0,1]
of the "parametric space"
v
u1,v1
u0,v0
u1,v1
Position of the
1st vertex
Attributes of the
1st vertex
u0,v0
u2,v2
u2,v2
u
Texture Space
x1,y1
x0,y0
x2,y2
Screen Space
Screen Space
Texture Space
texture look-up
Screen Space
Texture Space
texturelook-up
including:
texture
coordinates
(per vertex!)
interpolation
texture
coordinates
texture coordinatesinterpolated
set-up
points rasterizer
Projected Vertices
& computed attributes
Fragments
& interpolated attributes
Vertices
& their attributes
Screen
buffer
set-up
Triangles rasterizer
vertexcomputation
Fragment
computations
set-up
Segments rasterizer
Texture RAM
f( v3 )
V3
f( v2 )
projection f
f(p)
p
V2
f( v1 )
V1

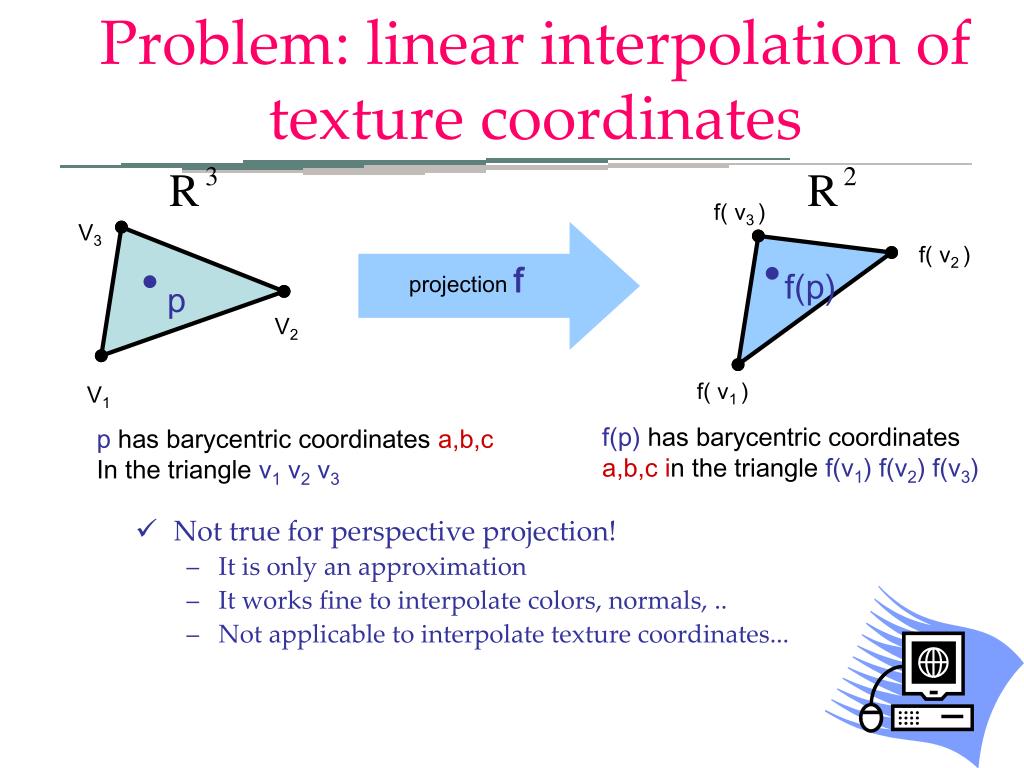

f(p) has barycentric coordinates a,b,c in the triangle f(v1)f(v2) f(v3)
p has barycentric coordinates a,b,c
In the triangle v1v2v3
v
1
u
1
u,v= (1,0)
u1,v1= (1,1)
u1,v1= (0,0)
u1,v1= (0,1)
A1,B1...
A0,B0...
p
A2,B2...
p =c0 v0 +c1v1+c2v2
V1
V0
= ( x0, y0, z0, w0)
Attributes of p:

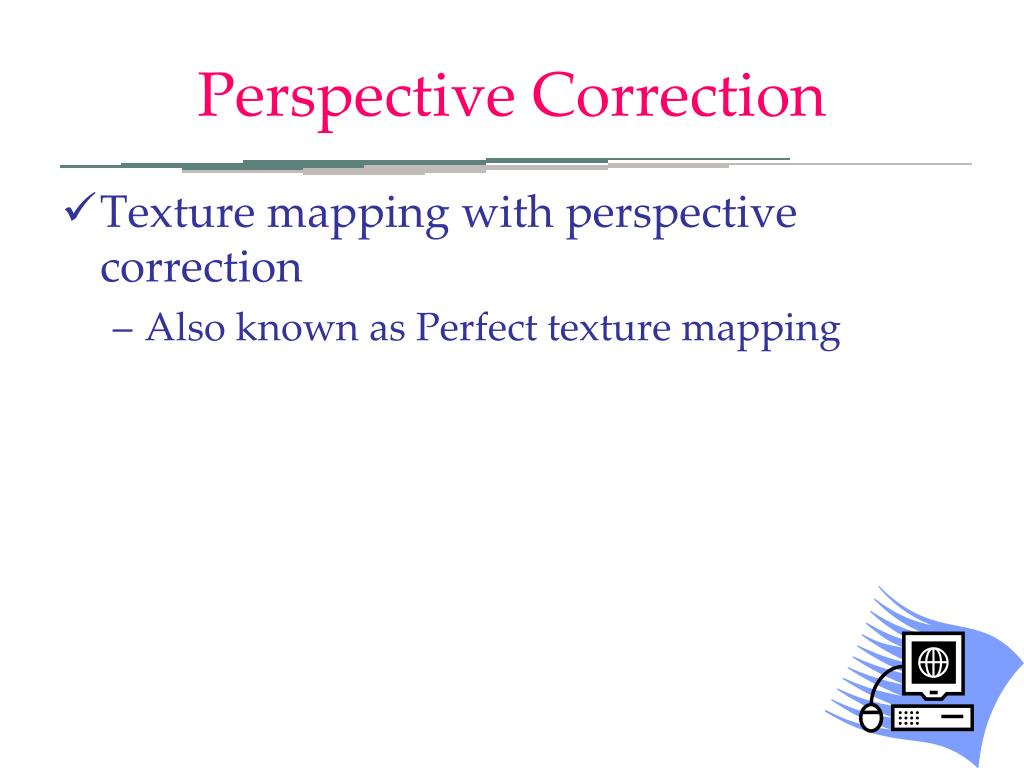

(not considering the “perspective correction")
