Ideal Op Amps

Ideal Op Amps. Z in =  Implies zero input current Z out = 0 (without feedback) Implies a perfect voltage source Differential voltage gain G diff =  (without feedback) Common-mode voltage gain G CM = 0 Above two features imply a perfect differential amplifier

prema
Download Presentation

Ideal Op Amps

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Ideal Op Amps • Zin =  • Implies zero input current • Zout = 0 (without feedback) • Implies a perfect voltage source • Differential voltage gain Gdiff = (without feedback) • Common-mode voltage gain GCM = 0 • Above two features imply a perfect differential amplifier • Vout = 0 when both inputs are at the same voltage (zero “offset voltage”) • Implies perfect transistor matching at the inputs • Output can change instantaneously (infinite “slew rate”)

  2. Op Amp “Golden Rules” • The output attempts to do whatever is necessary to make the voltage difference between the two inputs zero (consequence of very high voltage gain).  But asymmetries between the input terminals cause output error signals! • The inputs draw “no” current (consequence of very high input impedance).  In reality, the inputs draw some current!

  3. Departure from Ideal: Input Bias Current IB (Introductory Electronics, Simpson, 2nd Ed.)

  4. Compensating for IB (Introductory Electronics, Simpson, 2nd Ed.)

  5. Compensating for IB (Student Manual for The Art of Electronics, Hayes and Horowitz, 2nd Ed.)

  6. Departure from Ideal: Offset Current Ios (Iio = Ios) (Introductory Electronics, Simpson, 2nd Ed.)

  7. Departure from Ideal: Offset Voltage Vos (Student Manual for The Art of Electronics, Hayes and Horowitz, 2nd Ed.)

  8. Departure from Ideal: Offset Voltage Vos (Vio = Vos) (Introductory Electronics, Simpson, 2nd Ed.)

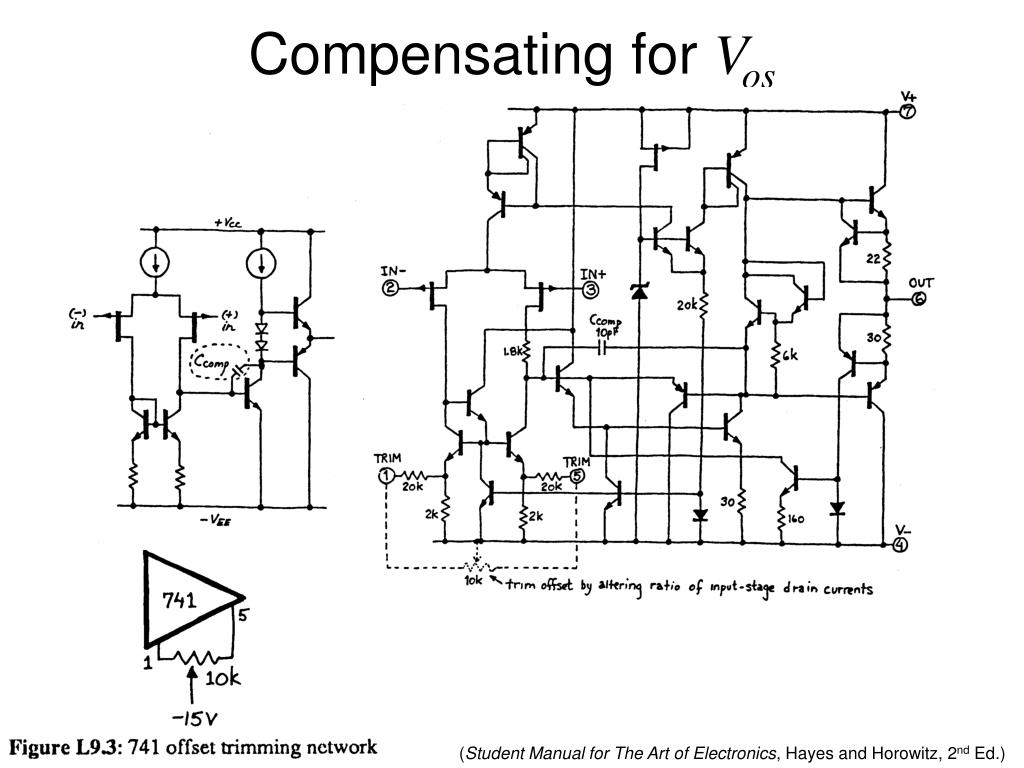

  9. Compensating for Vos (Student Manual for The Art of Electronics, Hayes and Horowitz, 2nd Ed.)

  10. Measuring IB, Ios, Vos (Lab 9–1) (Student Manual for The Art of Electronics, Hayes and Horowitz, 2nd Ed.)

  11. Effects of Op Amp Imperfections • The circuits below will always give a saturated output after a short time. Why? (Student Manual for The Art of Electronics, Hayes and Horowitz, 2nd Ed.)

  12. Departure from Ideal: Finite Slew Rate (Lab 9–1) (Introductory Electronics, Simpson, 2nd Ed.)

  13. Op-Amp Integrator (Student Manual for The Art of Electronics, Hayes and Horowitz, 2nd Ed.)

  14. Op-Amp Integrator with DC Error Compensation (Lab 9–2) (Student Manual for The Art of Electronics, Hayes and Horowitz, 2nd Ed.)

  15. Op-Amp Differentiator (Student Manual for The Art of Electronics, Hayes and Horowitz, 2nd Ed.)

  16. Op-Amp Differentiator with Gain Rolloff (Lab 9–3) (Student Manual for The Art of Electronics, Hayes and Horowitz, 2nd Ed.)

  17. Active Rectifier (Lab 9–5) (Student Manual for The Art of Electronics, Hayes and Horowitz, 2nd Ed.)

  18. Effect of Finite Slew Rate on Active Rectifier (Lab 9–5) output glitch (Student Manual for The Art of Electronics, Hayes and Horowitz, 2nd Ed.)

  19. Improved Active Rectifier (Lab 9–6) R2 D1 R1 D2 (Student Manual for The Art of Electronics, Hayes and Horowitz, 2nd Ed.)

  20. Active Clamp (Lab 9–7) VC (Student Manual for The Art of Electronics, Hayes and Horowitz, 2nd Ed.)

  21. Slew-Rate Limitations on Active Clamp (Lab 9–7) VC =10 V (Student Manual for The Art of Electronics, Hayes and Horowitz, 2nd Ed.) (The Art of Electronics, Horowitz and Hill, 2nd Ed.)

  22. AC Amplifier (Additional Exercise 2) vin (capacitively coupled) Ri R2 R1 C (The Art of Electronics, Horowitz and Hill, 2nd Ed.)

  23. Single-Supply AC Amplifier (The Art of Electronics, Horowitz and Hill, 2nd Ed.)
