Numerical schemes for streamer discharges at atmospheric pressure

Numerical Schemes for Streamer Discharges at Atmospheric Pressure

Jean PAILLOL*, Delphine BESSIERES - University of Pau

Anne BOURDON – CNRS EM2C Centrale Paris

Pierre SEGUR – CNRS CPAT University of Toulouse

Armelle MICHAU, Kahlid HASSOUNI - CNRS LIMHP Paris XIII

Emmanuel MARODE – CNRS LPGP Paris XI

STREAMER GROUP

The Multiscale Nature of Spark Precursors and High Altitude Lightning

Workshop May 9-13 – Leiden University - Nederland

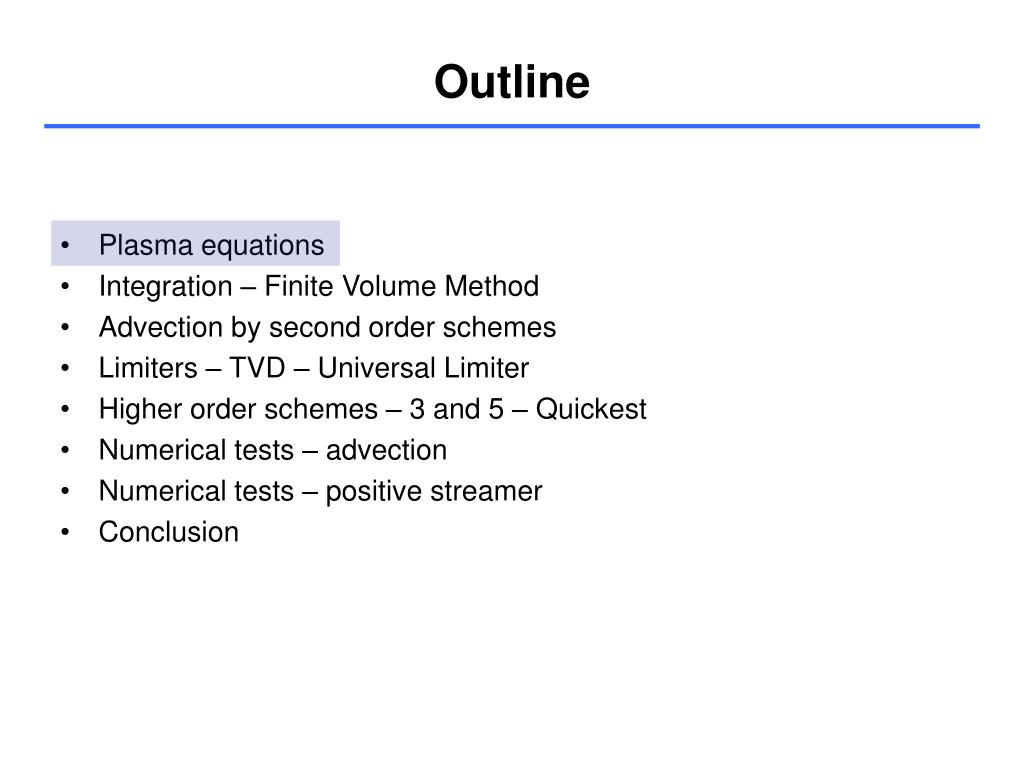

Outline
Outline Pressure

  • Plasma equations

  • Integration – Finite Volume Method

  • Advection by second order schemes

  • Limiters – TVD – Universal Limiter

  • Higher order schemes – 3 and 5 – Quickest

  • Numerical tests – advection

  • Numerical tests – positive streamer

  • Conclusion

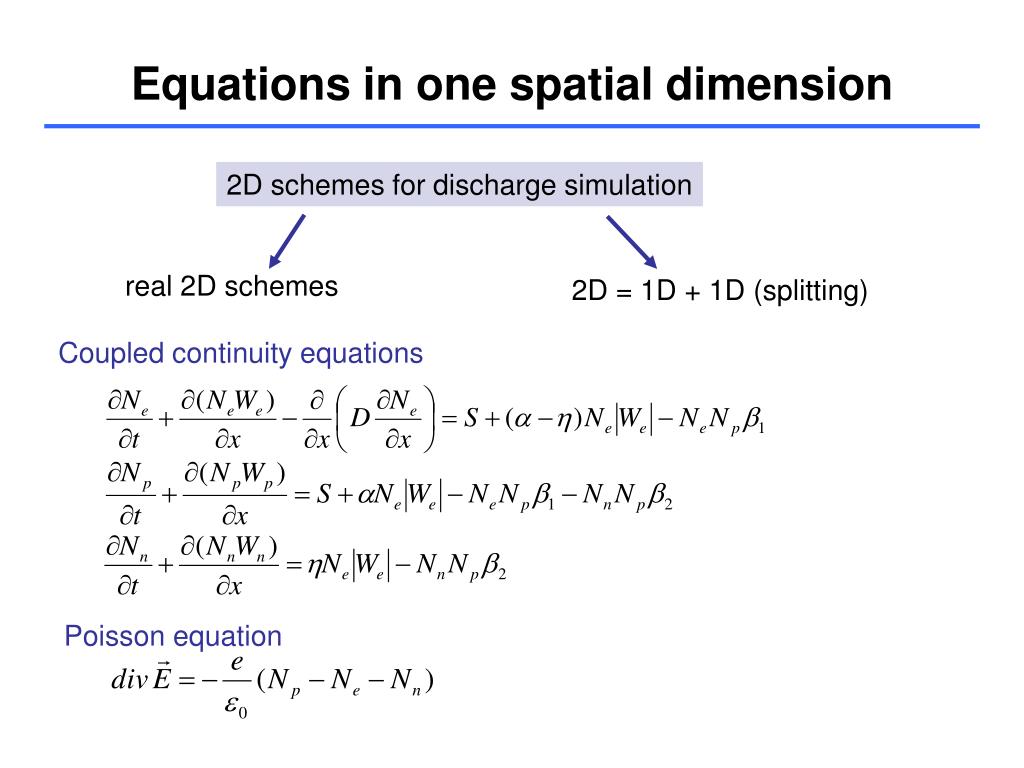

Equations in one spatial dimension
Equations in one spatial dimension Pressure

2D schemes for discharge simulation

real 2D schemes

2D = 1D + 1D (splitting)

Coupled continuity equations

Poisson equation


Advection equation 1d
Advection equation – 1D Pressure

S’ can be calculated apart (RK)

and


Outline1
Outline Pressure

  • Plasma equations

  • Integration – Finite Volume Method

  • Advection by second order schemes

  • Limiters – TVD – Universal Limiter

  • Higher order schemes – 3 and 5 – Quickest

  • Numerical tests – advection

  • Numerical tests – positive streamer

  • Conclusion

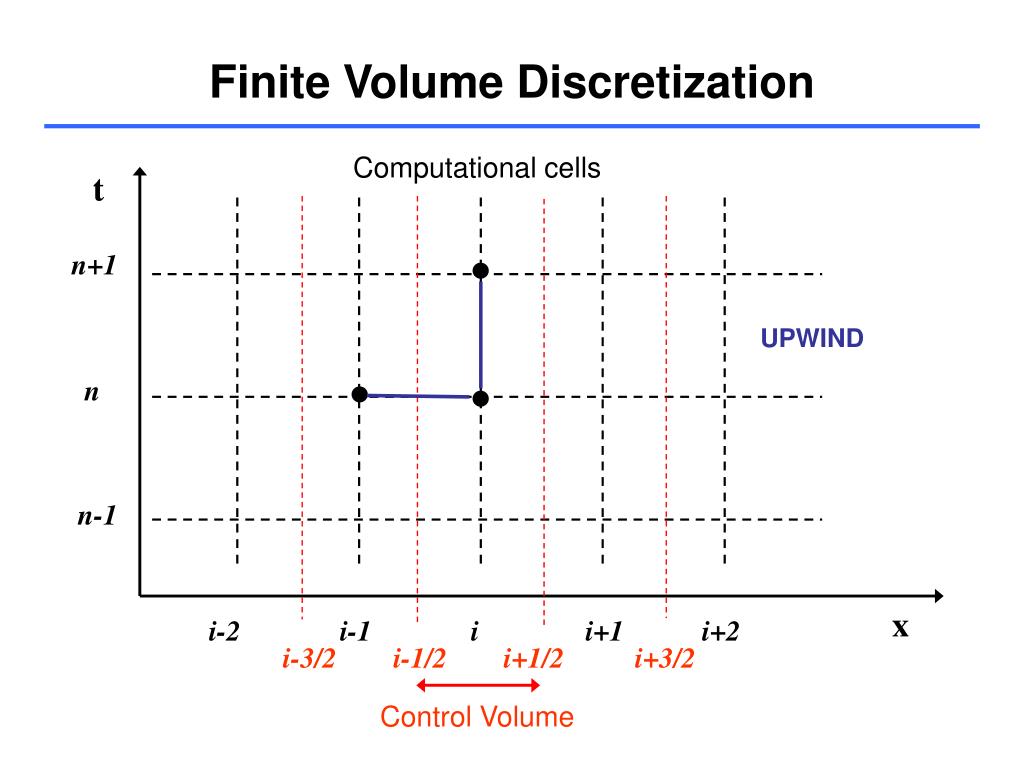

Finite volume discretization
Finite Volume Discretization Pressure

Computational cells

t

n+1

UPWIND

n

n-1

x

i-2 i-1 i i+1 i+2

i-3/2 i-1/2 i+1/2 i+3/2

Control Volume


Integration
Integration Pressure

and

Integration over the control volume :

Introducing a cell average of N(x,t):

then :

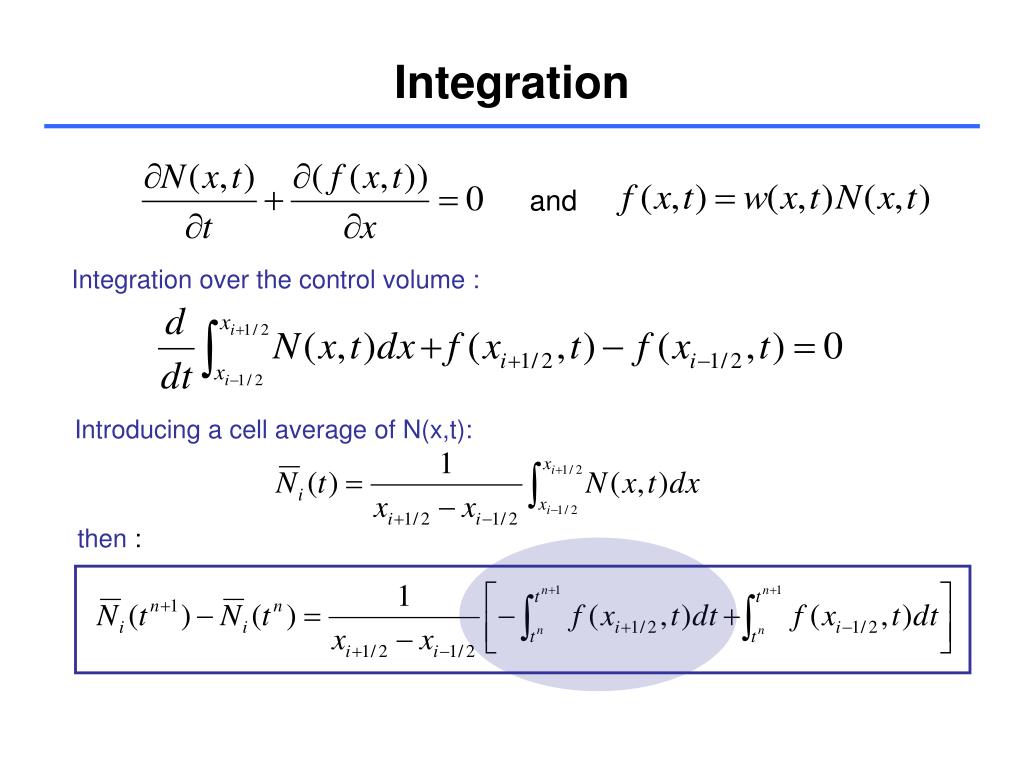

Integration1
Integration Pressure

and

Integration over the control volume :

Introducing a cell average of N(x,t):

then :


Integration2
Integration Pressure

and

Integration over the control volume :

Introducing a cell average of N(x,t):

then :

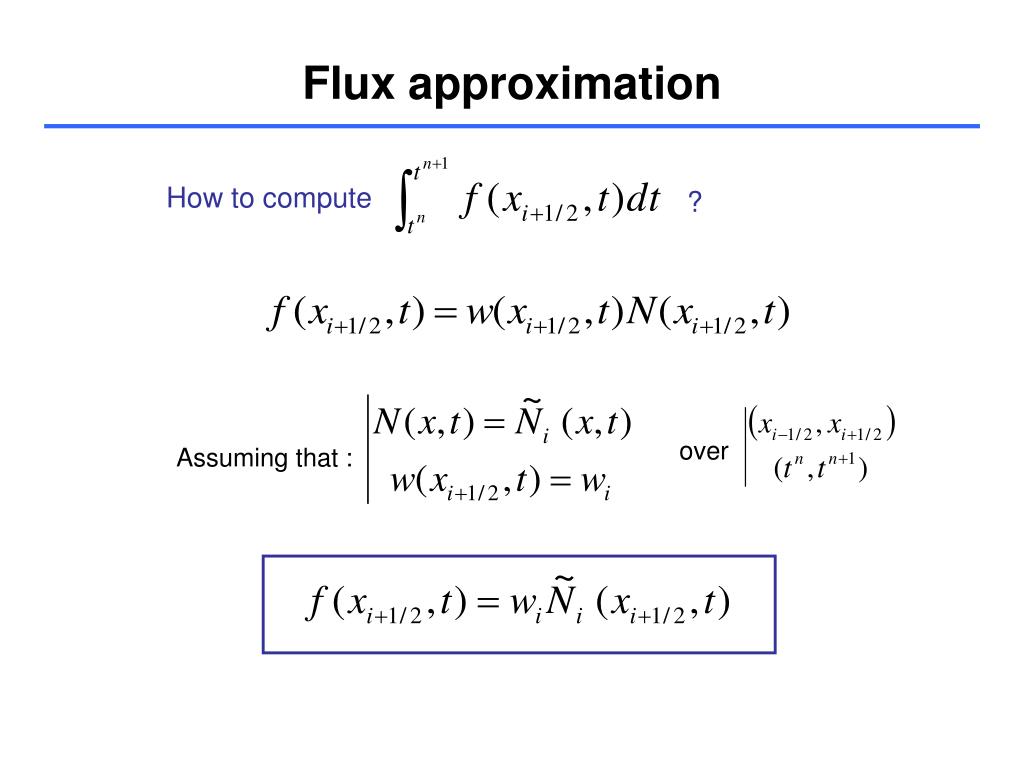

Flux approximation
Flux approximation Pressure

How to compute

?

over

Assuming that :

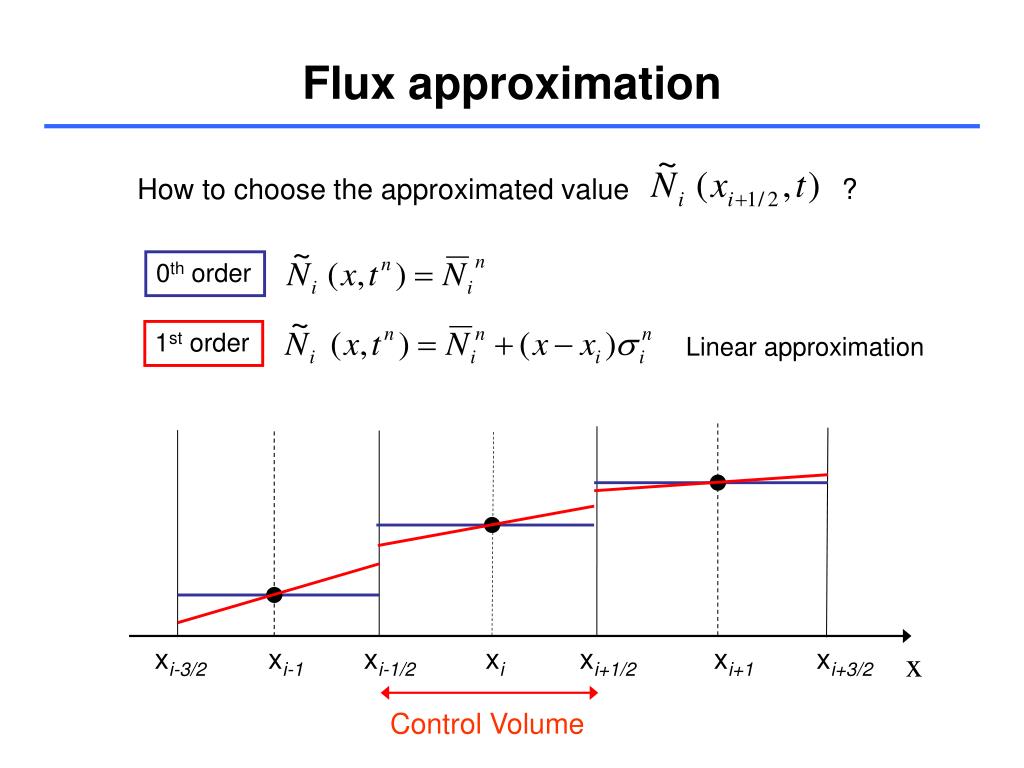

Flux approximation1
Flux approximation Pressure

How to choose the approximated value ?

0th order

1st order

Linear approximation

xi-3/2 xi-1 xi-1/2 xi xi+1/2 xi+1 xi+3/2

x

Control Volume


Advect exactly
Advect exactly Pressure

tn+1

tn

xi-3/2 xi-1 xi-1/2 xi xi+1/2 xi+1 xi+3/2

x

1st order


Update averages leveque
Update averages [LeVeque] Pressure

1st order

Note that : if

and

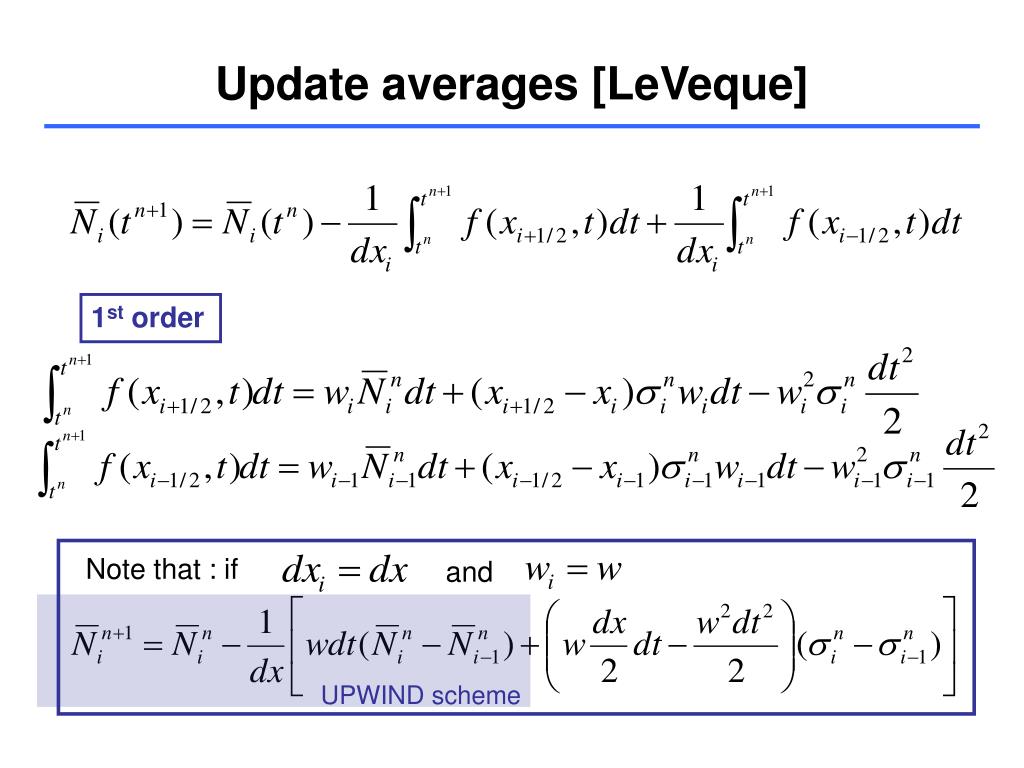

Update averages leveque1
Update averages [LeVeque] Pressure

1st order

Note that : if

and

UPWIND scheme


Update averages leveque2
Update averages [LeVeque] Pressure

1st order

Note that : if

and

UPWIND scheme

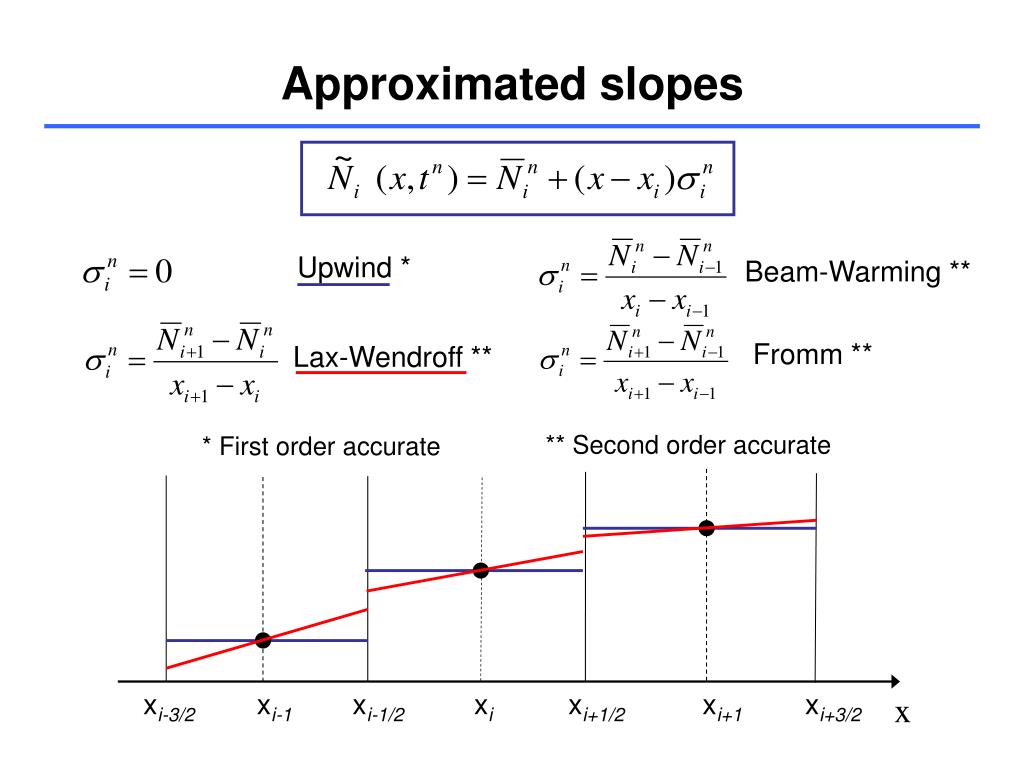

Approximated slopes
Approximated slopes Pressure

Upwind *

Beam-Warming **

Fromm **

Lax-Wendroff **

** Second order accurate

* First order accurate

xi-3/2 xi-1 xi-1/2 xi xi+1/2 xi+1 xi+3/2

x

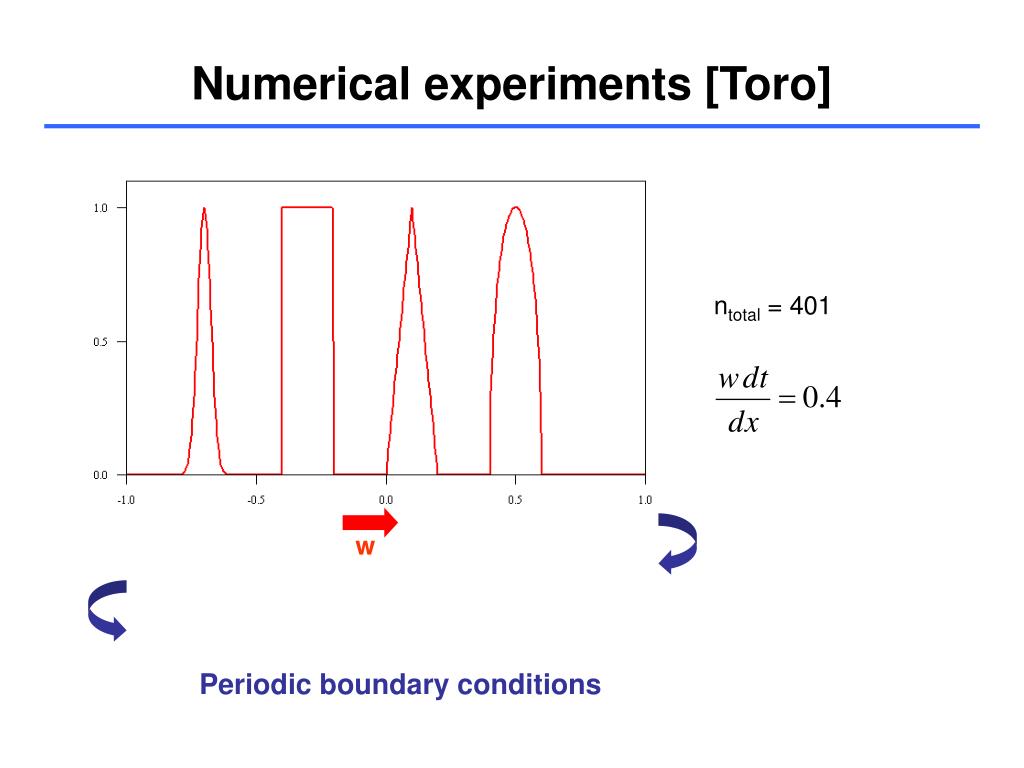

Numerical experiments toro
Numerical experiments [Toro] Pressure

ntotal = 401

w

Periodic boundary conditions

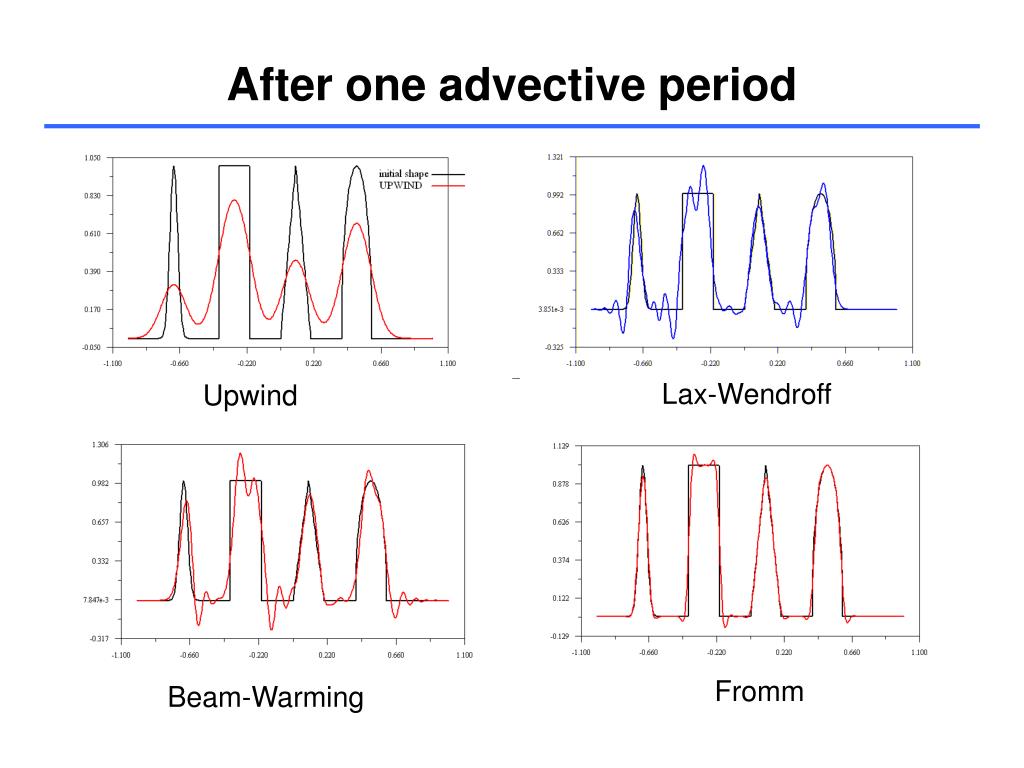

After one advective period
After one advective period Pressure

Lax-Wendroff

Upwind

Fromm

Beam-Warming


Outline2
Outline Pressure

  • Plasma equations

  • Integration – Finite Volume Method

  • Advection by second order schemes

  • Limiters – TVD – Universal Limiter

  • Higher order schemes – 3 and 5 – Quickest

  • Numerical tests – advection

  • Numerical tests – positive streamer

  • Conclusion

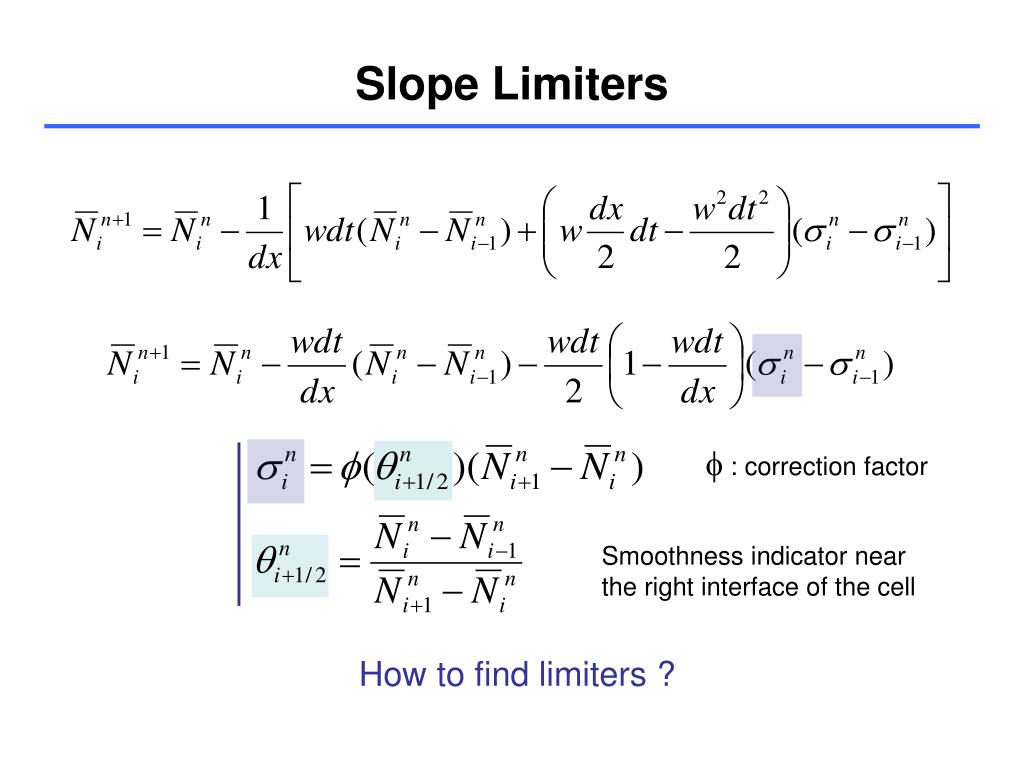

Slope limiters
Slope Limiters Pressure

f : correction factor

Smoothness indicator near

the right interface of the cell

How to find limiters ?


Tvd methods
TVD Methods Pressure

● Motivation

First order schemes  poor resolution,

entropy satisfying and non oscillatory solutions.

Higher order schemes  oscillatory solutions at discontinuities.

● Good criterion to design “high order” oscillation free schemes is based

on the Total Variation of the solution.

● Total Variation of the discrete solution :

● Total Variation of the exact solution is non-increasing  TVD schemes

Total Variation Diminishing Schemes


Tvd methods1
TVD Methods Pressure

● Godunov’s theorem : No second or higher order accurate constant

coefficient (linear) scheme can be TVD  higher order TVD schemes

must be nonlinear.

● Harten’s theorem :

TVD region


TVD Methods Pressure

● Sweby’s suggestion :

2nd order

Avoid excessive compression of solutions

2nd order


Second order tvd schemes
Second order TVD schemes Pressure

minmod

superbee

Woodward

Van Leer

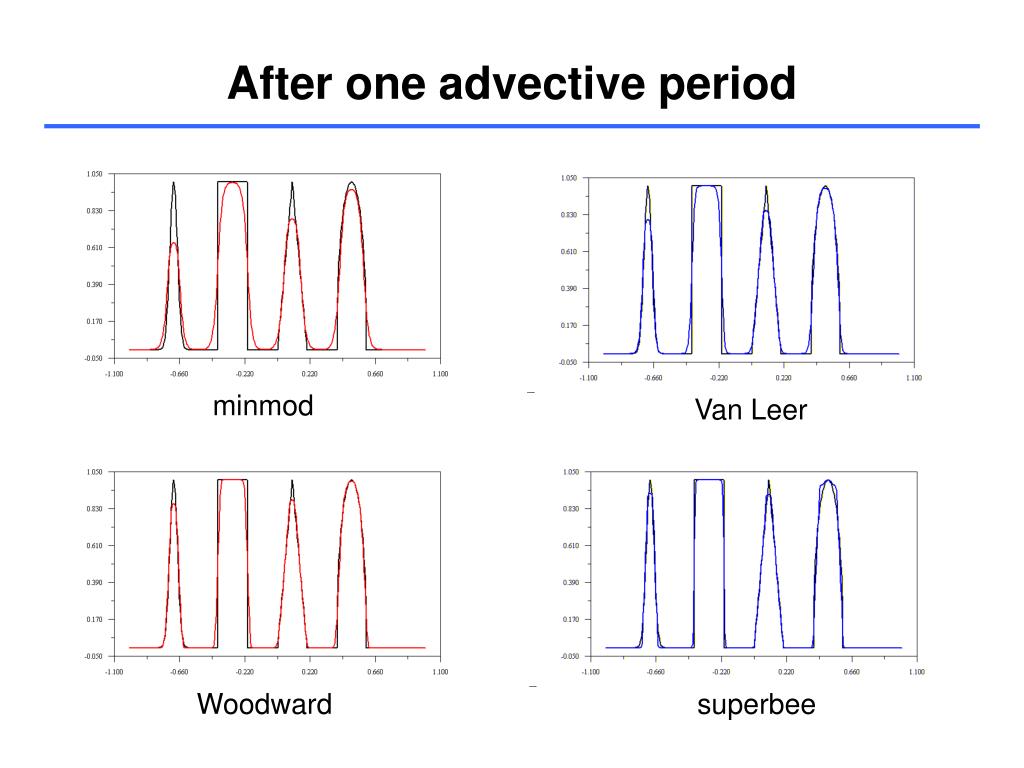

After one advective period1
After one advective period Pressure

minmod

Van Leer

Woodward

superbee


Universal limiter leonard
Universal Limiter [Leonard] Pressure

High order solution to be limited

tn

Ni+1

Ni+1/2

ND

Ni

NF

Ni-1

NC

NU

xi-3/2 xi-1 xi-1/2 xi xi+1/2 xi+1 xi+3/2

x

Control Volume

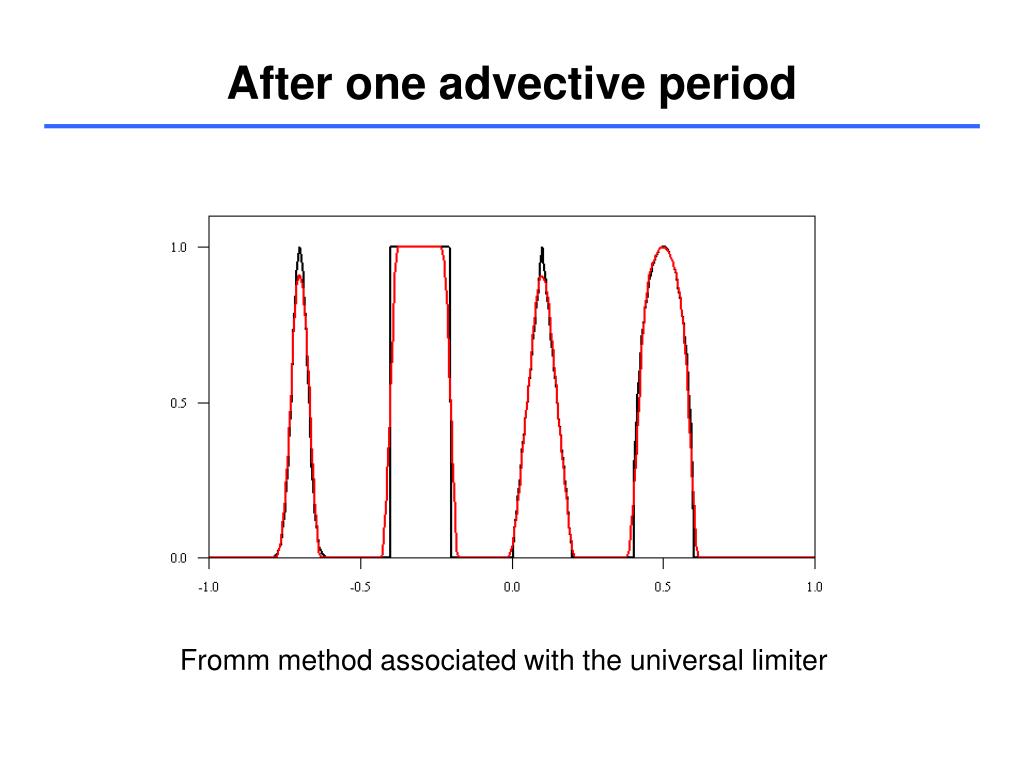

After one advective period2
After one advective period Pressure

Fromm method associated with the universal limiter


Outline3
Outline Pressure

  • Plasma equations

  • Integration – Finite Volume Method

  • Advection by second order schemes

  • Limiters – TVD – Universal Limiter

  • Higher order schemes – 3 and 5 – Quickest

  • Numerical tests – advection

  • Numerical tests – positive streamer

  • Conclusion


Advect exactly1

t Pressuren+1

tn

xi-3/2 xi-1 xi-1/2 xi xi+1/2 xi+1 xi+3/2

x

Advect exactly

Finite Volume Discretization


Integration leonard
Integration [Leonard] Pressure

Assuming that y is known :


High order approximation of y
High order approximation of Pressurey*

  • function is determined at the boundaries of the control cell

    by numerical integration

Yi+1

Yi

Yi-1

tn

Yi*

Yi-2

dt.wi

xi-2 xi-3/2 xi-1 xi-1/2 xi xi+1/2 xi+1 xi+3/2

x

Control Volume

Yi*

Polynomial interpolation of y(x)


High order approximation of y1
High order approximation of Pressurey*

y* is determined by polynomial interpolation

Polynomial order

Interpolation points

Numerical scheme

yi-1 yi

UPWIND

1

yi-1 yi yi+1

2

Lax-Wendroff

2nd order

3

yi-2yi-1 yi yi+1

QUICKEST 3 (Leonard)

3rd order

5

yi-3 yi-2yi-1 yi yi+1 yi+2

QUICKEST 5 (Leonard)

5th order

……

……

……


Universal limiter applied to y leonard
Universal Limiter applied to Pressurey* [Leonard]

y(x) is a continuously increasing function (monotone)

Yi+1

dt.wi

tn

Yi*

Yi

Yi-1

Yi-2

xi-2 xi-3/2 xi-1 xi-1/2 xi xi+1/2 xi+1 xi+3/2

x


Outline4
Outline Pressure

  • Plasma equations

  • Integration – Finite Volume Method

  • Advection by second order schemes

  • Limiters – TVD – Universal Limiter

  • Higher order schemes – 3 and 5 – Quickest

  • Numerical tests – advection

  • Numerical tests – positive streamer

  • Conclusion

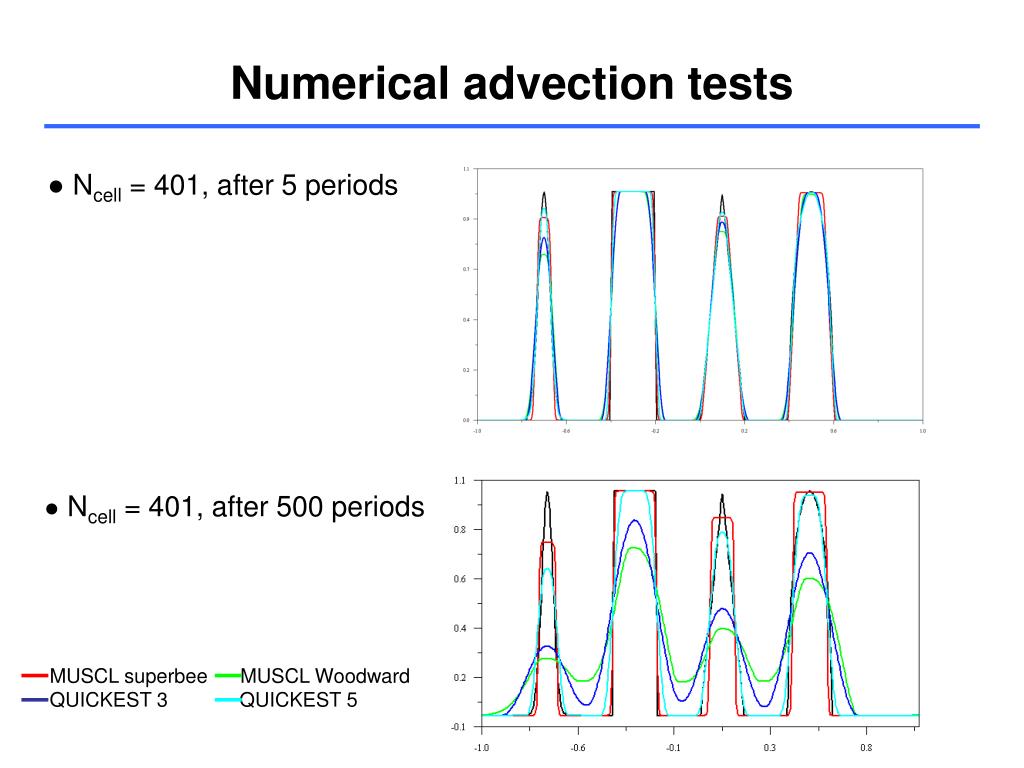

Numerical advection tests
Numerical advection tests Pressure

● Ncell = 401, after 5 periods

● Ncell = 401, after 500 periods

MUSCL superbee MUSCL Woodward

QUICKEST 3 QUICKEST 5


Ncell 1601 after 500 periods
Ncell = 1601, after 500 periods Pressure

MUSCL superbee MUSCL Woodward QUICKEST 3 QUICKEST 5

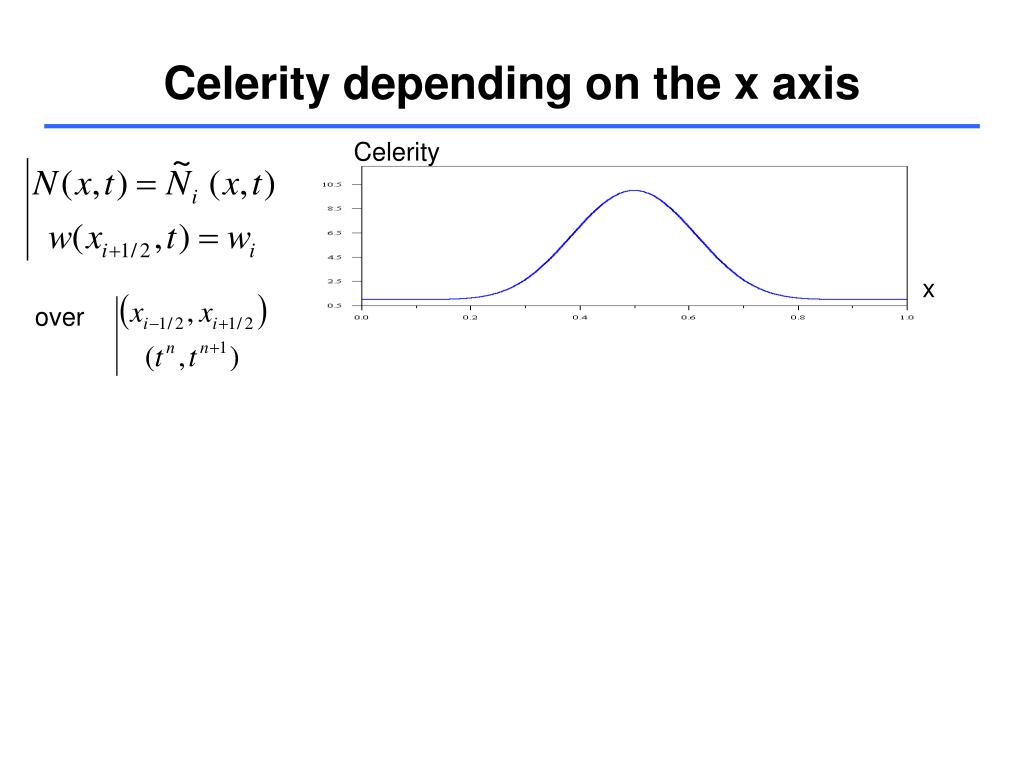

Celerity depending on the x axis
Celerity depending on the x axis Pressure

Celerity

x

over


Celerity depending on the x axis1
Celerity depending on the x axis Pressure

Celerity

x

over

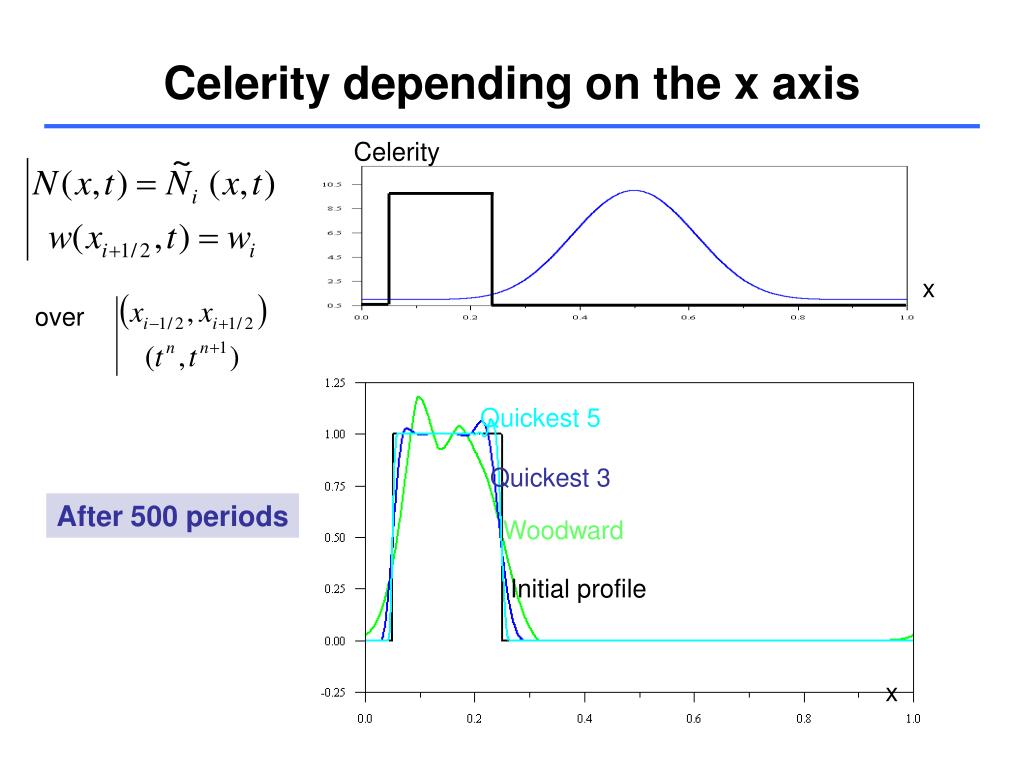

Celerity depending on the x axis2
Celerity depending on the x axis Pressure

Celerity

x

over

Quickest 5

Quickest 3

After 500 periods

Woodward

Initial profile

x


Outline5
Outline Pressure

  • Plasma equations

  • Integration – Finite Volume Method

  • Advection by second order schemes

  • Limiters – TVD – Universal Limiter

  • Higher order schemes – 3 and 5 – Quickest

  • Numerical tests – advection

  • Numerical tests – positive streamer

  • Conclusion

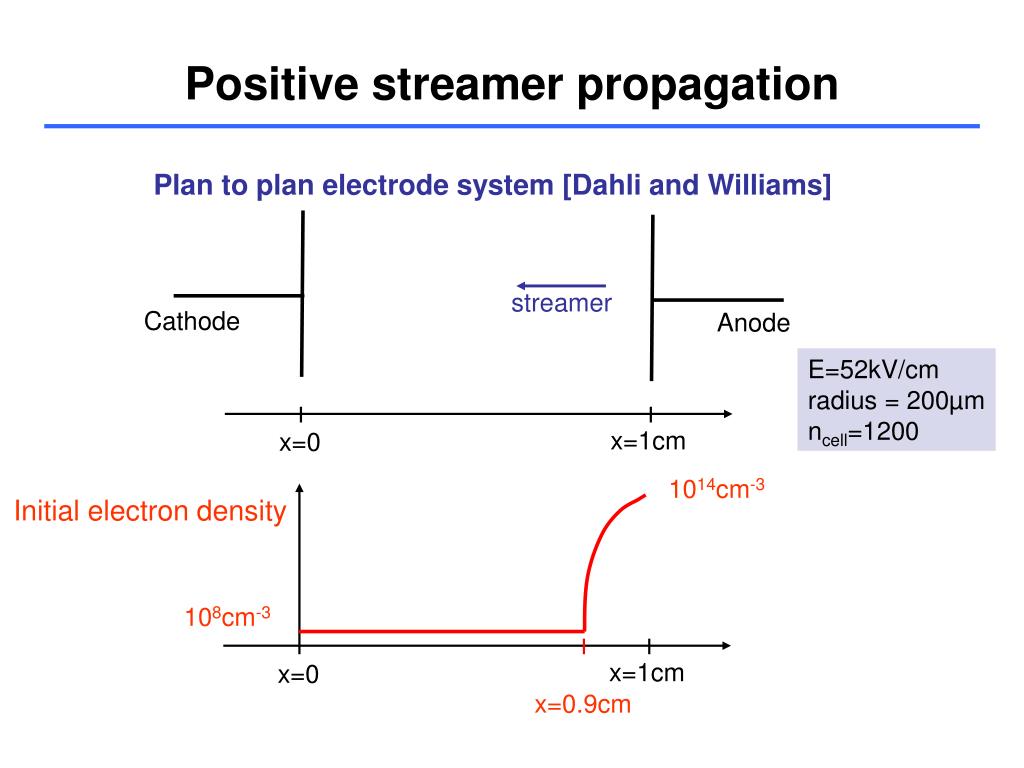

Positive streamer propagation
Positive streamer propagation Pressure

Plan to plan electrode system [Dahli and Williams]

streamer

Cathode

Anode

E=52kV/cm

radius = 200µm

ncell=1200

x=1cm

x=0

1014cm-3

Initial electron density

108cm-3

x=1cm

x=0

x=0.9cm

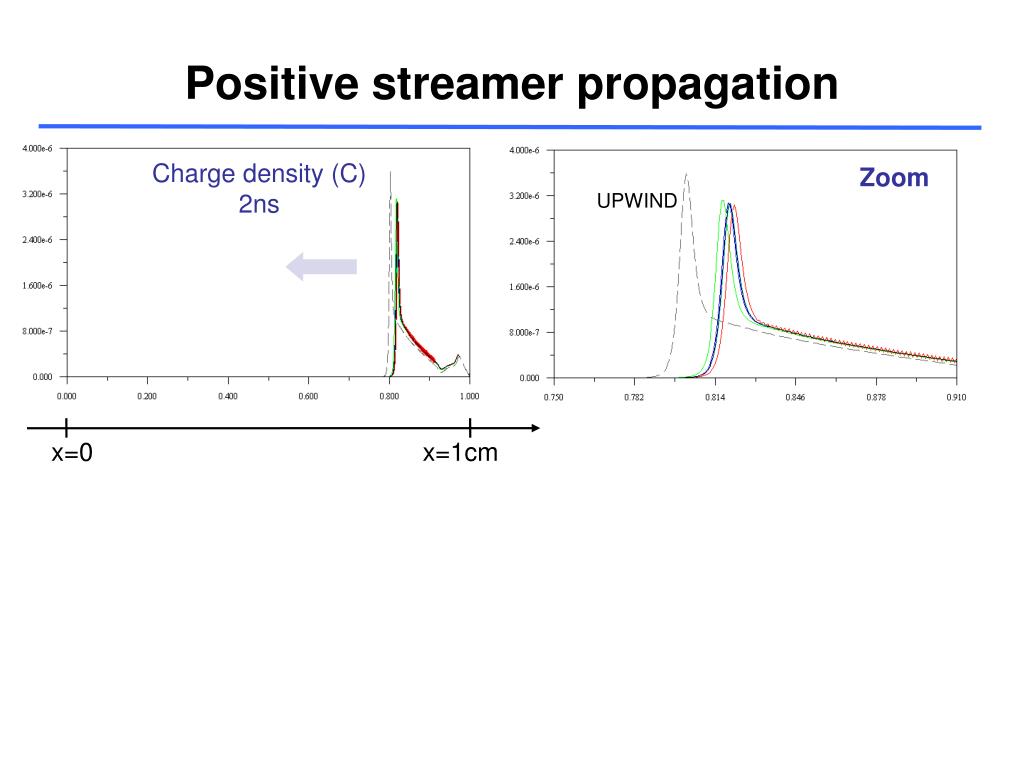

Positive streamer propagation1
Positive streamer propagation Pressure

Charge density (C)

2ns

Zoom

UPWIND

x=0

x=1cm

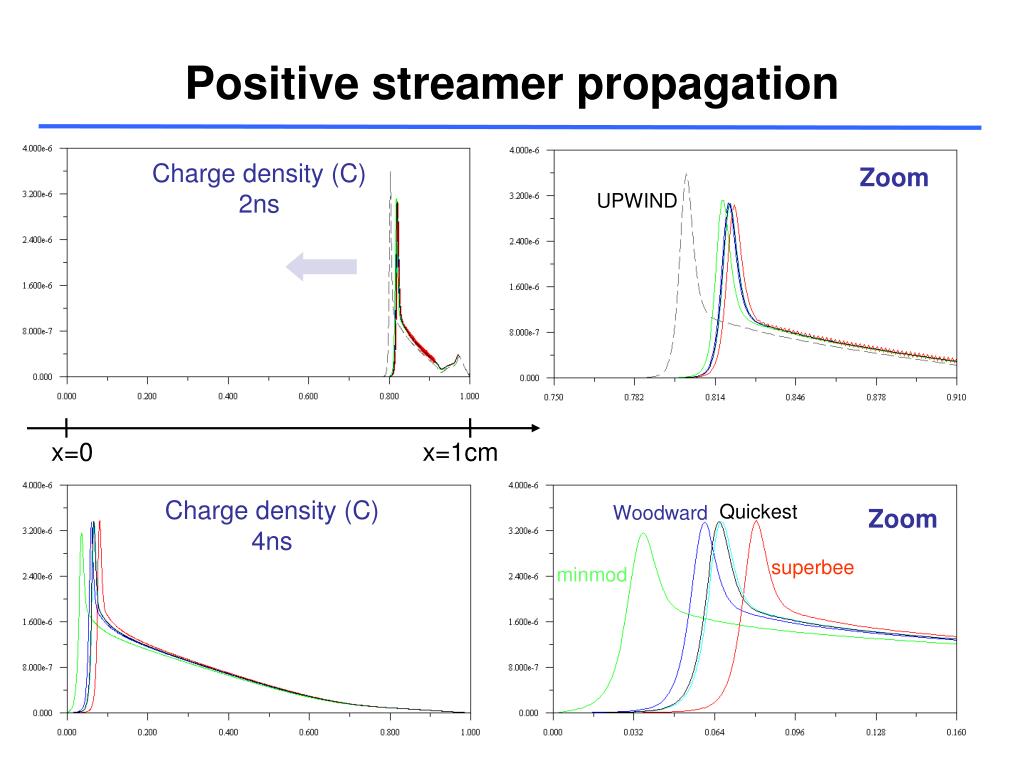

Positive streamer propagation2
Positive streamer propagation Pressure

Charge density (C)

2ns

Zoom

UPWIND

x=0

x=1cm

Charge density (C)

4ns

Quickest

Woodward

Zoom

superbee

minmod


Conclusion
Conclusion Pressure

Is it worth working on accurate scheme for streamer modelling ?

YES !

especially in 2D numerical simulations

Advection tests

Error (%)

0.78

3.8

3.41

26.5

22.77

Number of cells

1601

401

1601

201

1601

Quickest 5

Quickest 3

TVD minmod

High order schemes may be useful
