Computational aero acoustic 3 analysis of a passenger car 123 with a rear spoiler l.jpg

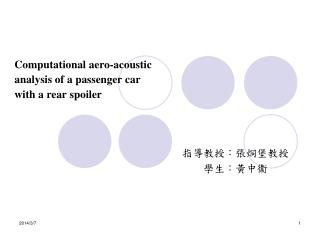

Computational aero-acoustic3analysis of apassenger car 123with a rear spoiler

指導教授:張烔堡教授

學生:黃中衞


Slide2 l.jpg

目錄

  • Introduction緒論

  • MethodologyResults and Discussion研究方法、結果與討論

  • Summary 總結


Introduction l.jpg

Introduction

  • In the process of car design, the aerodynamics and aero-acoustics must be seriously considered. A car design can only be acceptable if its form drag and aerodynamic noise are both reduced at the same time.

  • Acoustic holography was adopted to identify thenoise sources of a vehicle underbody [8]. Wind noise from a vehicle underbody due to the complex flow structure accountsfor a large portion of the overall noise level generated.

  • As Ogawa and Kamioka [9] pointed out, the flows outside of a vehiclethat generate noise can be either two-dimensional or three-dimensional.

  • For validation, a two-dimensional cylinder in the airflow was analyzed to obtain the key parameters. Through Fluent [10, 11], this work used RNG k- ε turbulence model to compute the flow properties around the car and its spoiler.


Introduction4 l.jpg

Introduction

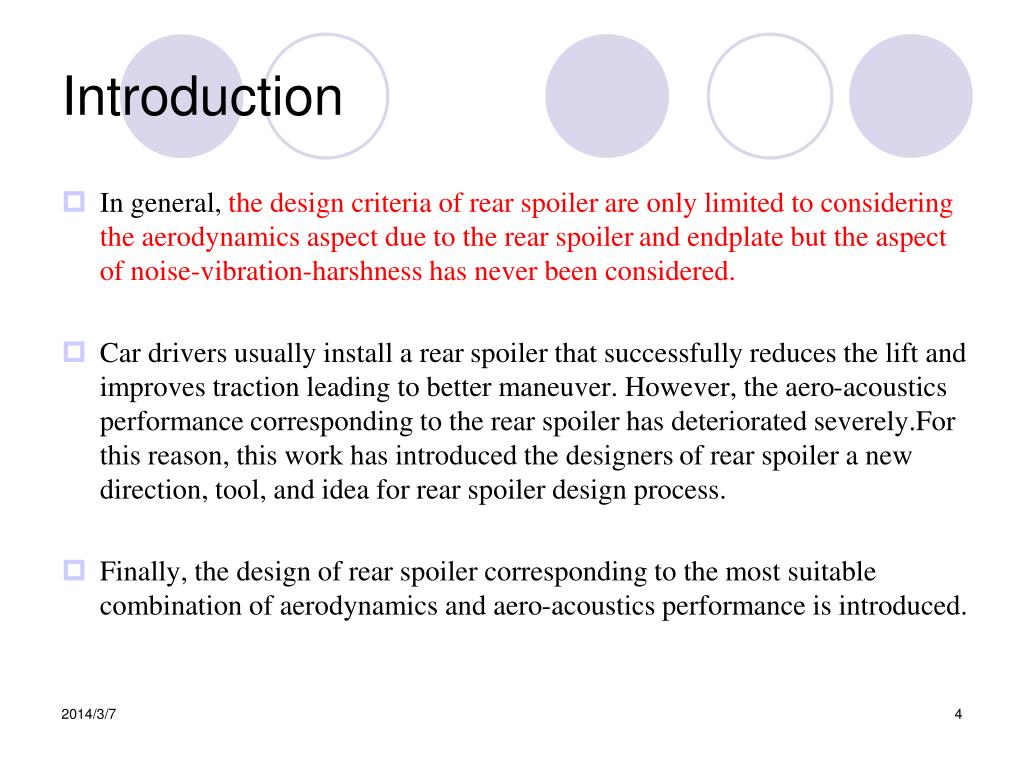

  • In general, the design criteria of rear spoiler are only limited to considering the aerodynamics aspect due to the rear spoilerand endplate but the aspect of noise-vibration-harshness has never been considered.

  • Car drivers usually install a rearspoiler that successfully reduces the lift and improves traction leading to better maneuver. However, the aero-acoustics performancecorresponding to the rear spoiler has deteriorated severely.For this reason, this work has introduced the designersof rear spoiler a new direction, tool, and idea for rear spoiler design process.

  • Finally, the design of rear spoiler corresponding to the most suitable combination of aerodynamics and aero-acoustics performanceis introduced.


M ethodology results and discussion l.jpg

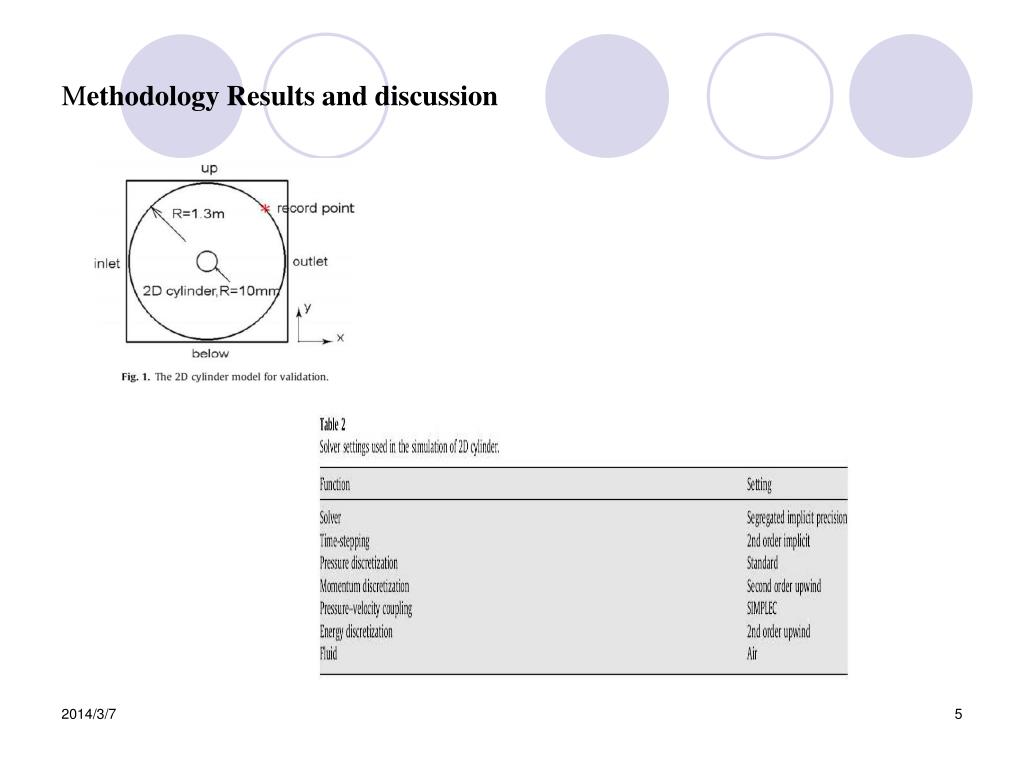

MethodologyResults and discussion


4 summary l.jpg

4. Summary

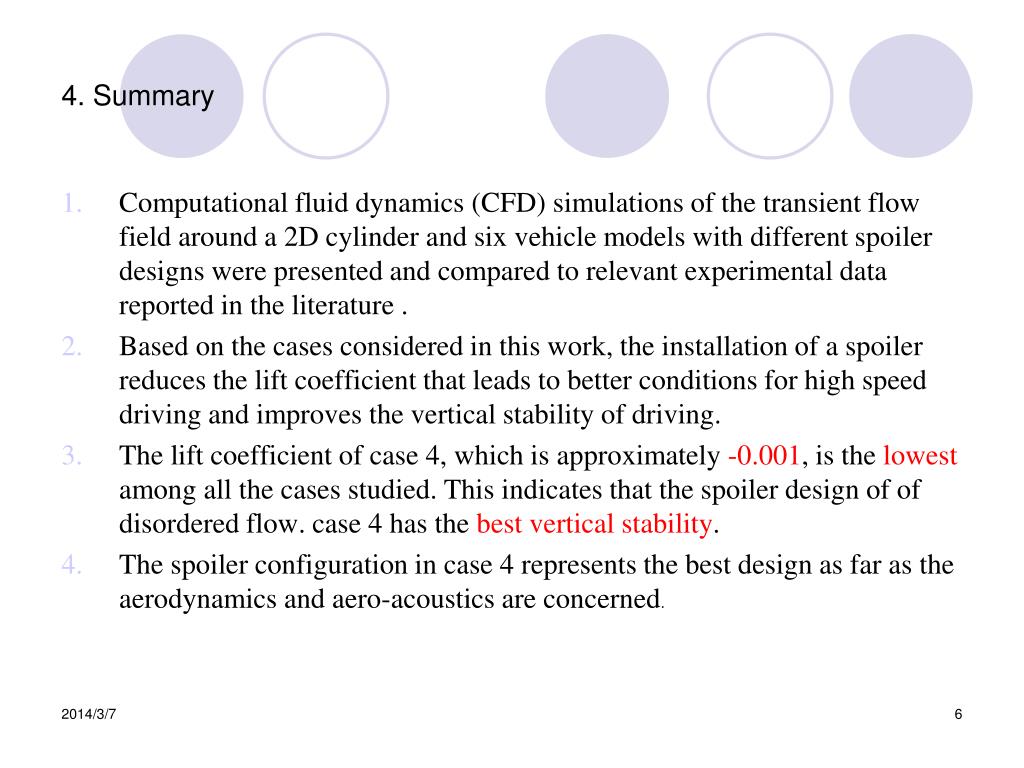

  • Computational fluid dynamics (CFD) simulations of the transient flow field around a 2D cylinder and six vehicle modelswith different spoiler designs were presented and compared to relevant experimental data reported in the literature.

  • Based on the cases considered in this work, the installation of a spoiler reduces the lift coefficient that leads to better conditionsfor high speed driving and improves the vertical stability of driving.

  • The lift coefficient of case 4, which is approximately-0.001, is the lowest among all the cases studied. This indicates that the spoiler design of of disordered flow. case 4 has the best verticalstability.

  • The spoiler configuration in case 4 represents the best design as far asthe aerodynamics and aero-acoustics are concerned.
