Presentation Transcript

Extraintestinal manifestations l.jpg

Extraintestinal Manifestations

Tim Orchard

St Mary’s Hospital and Imperial College


Slide2 l.jpg

Extra-intestinal manifestations previously reportedin inflammatory bowel disease


Peripheral arthritis

Granulomatous arthritis and synovitis

Rheumatoid arthritis


Ankylosing spondylitis


Osteoporosis & osteomalacia


Relapsing polychondritis

Skin and mucous membranes

Oral ulceration


Pyostomatitis vegetans

Erythema nodosum

Pyoderma gangrenosum

Sweet’s syndrome

Metastatic Crohn’s disease


Epidermolysis bullosa acquisita

Perianal skin tags

Polyarteritis nodosa

Cutaneous vasculitis


Peripheral neuropathy


Vestibular dysfunction

Pseudotumour cerebri


Anaemia – iron deficiency

Vitamin B12 deficiency

Anaemia of chronic diseases

Autoimmune haemolytic anaemia


Anticardiolipin antibody

Takayasu’s arteritis

Wegener’s arteritis

Renal and genitourinary


Retroperitoneal fibrosis

Fistula formation


Renal amyloidosis

Drug related nephrotoxicity


Primary sclerosing cholangitis (PSC)

Small duct PSC



Autoimmune hepatitis

Primary biliary cirrhosis


Ampullary Crohn’s disease

Granulomatous pancreatitis



Uveitis, iritis



Retrobulbar neuritis

Crohn’s keratopathy


Chronic bronchitis with brocnhiectasis

Fibrosing alveolitis

Pulmonary vasculitis

Interstitial lung disease


Tracheal obstruction






Endocrine and metabolic

Growth failure


Osteoporosis, osteomalacia

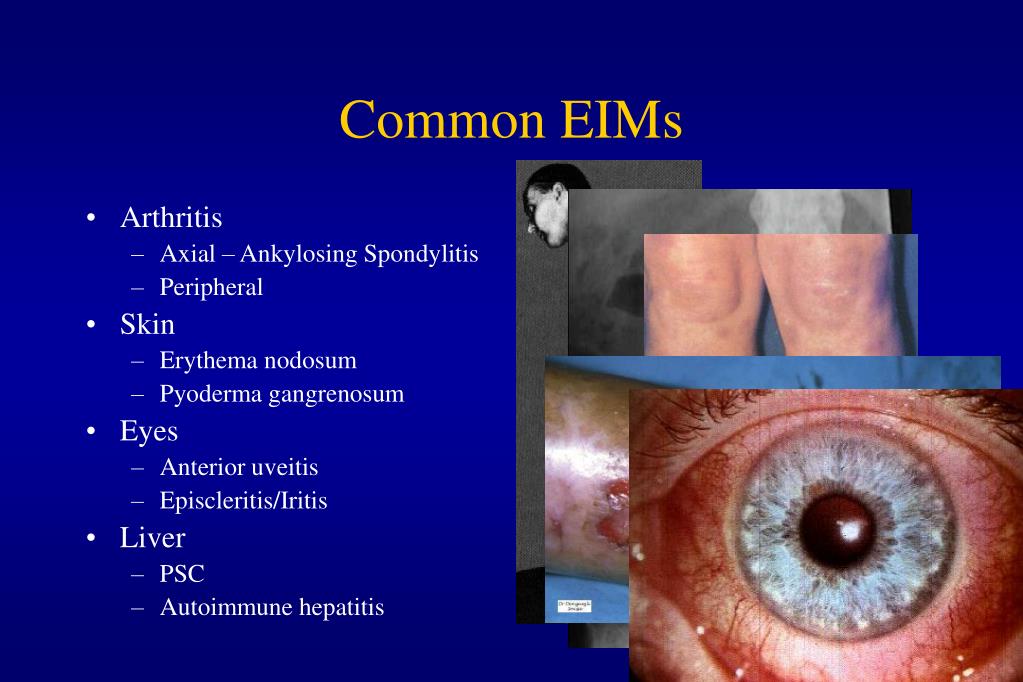

Common eims l.jpg

Common EIMs

  • Arthritis

    • Axial – Ankylosing Spondylitis

    • Peripheral

  • Skin

    • Erythema nodosum

    • Pyoderma gangrenosum

  • Eyes

    • Anterior uveitis

    • Episcleritis/Iritis

  • Liver

    • PSC

    • Autoimmune hepatitis

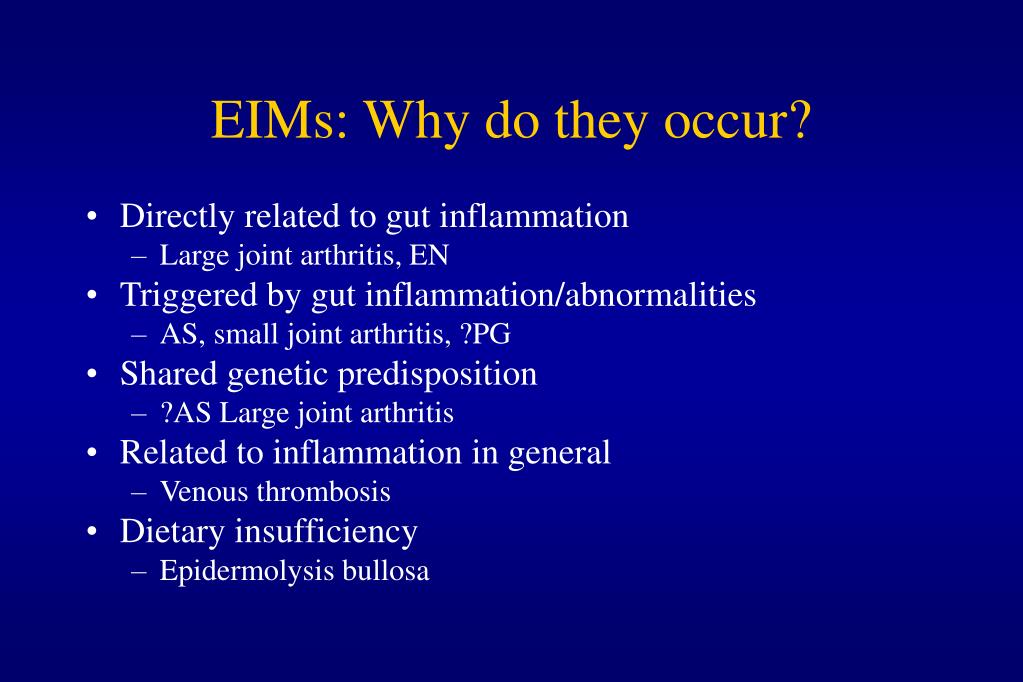

Eims why do they occur l.jpg

EIMs: Why do they occur?

  • Directly related to gut inflammation

    • Large joint arthritis, EN

  • Triggered by gut inflammation/abnormalities

    • AS, small joint arthritis, ?PG

  • Shared genetic predisposition

    • ?AS Large joint arthritis

  • Related to inflammation in general

    • Venous thrombosis

  • Dietary insufficiency

    • Epidermolysis bullosa

Slide5 l.jpg

IBD - Aetiologic Concepts

Susceptibility Genes

Environmental Factors




Disease Specificity


Genes Determining


Environmental factors

Environmental factors

Treatment considerations l.jpg

Treatment considerations

  • Is the EIM associated with active bowel disease

    • Treatment of the bowel may heal the EIM

    • Adaptation of gut therapy may help the EIM

  • Does the EIM need specific treatment and does that alter the natural history or treat the symptoms?

    • Topical

    • Systemic

Db 26 y o man l.jpg

DB 26 y.o. man

  • Presented with diarrhoea and abdominal pain

    • Weight loss of 5kgs

  • Colonoscopy normal

  • Small bowel enema – terminal ileal Crohn’s disease – No stricturing

  • Settled on Entocort

Slide8 l.jpg


  • Back pain at presentation

    • Didn’t settle with the bowel disease

    • Low back

    • Worse in the morning

    • Improved as the day went on

    • Normal SI X-ray and MRI scan

Slide9 l.jpg


  • Crohn’s largely quiescent – occ diarrhoea

  • Persistent back pain – exactly the same

    • But increasing duration

    • OE decreased lumbar flexion

  • Repeat MRI scan

    • Bilateral sacroiliitis

    • HLA-B27+

  • Diagnosed with Ankylosing spondylitis

Ankylosing spondylitis l.jpg

Ankylosing Spondylitis

  • Well defined clinical syndrome

    • Sacroiliitis

    • Progressive ankylosis of the vertebral facet joints

    • “Question mark posture” and respiratory embarrassment

    • 30% have associated peripheral arthritis

    • M:F ratio 3:1 in idiopathic, 1:1 in IBD

    • Present in 1-6% of IBD patients

    • Strong association with HLA-B27 (although weaker than in idiopathic AS (70% vs 94%)

Ankylosing spondylitis11 l.jpg

Ankylosing Spondylitis

Ankylosing spondylitis12 l.jpg

Ankylosing spondylitis

  • Physical therapies

  • Analgesia

    • NSAIDs if bowel disease quiescent

    • Sulfasalazine

    • Injection of SI joints

    • Methotrexate

    • Biologic therapies

  • All treatment in consultation with a rheumatologist

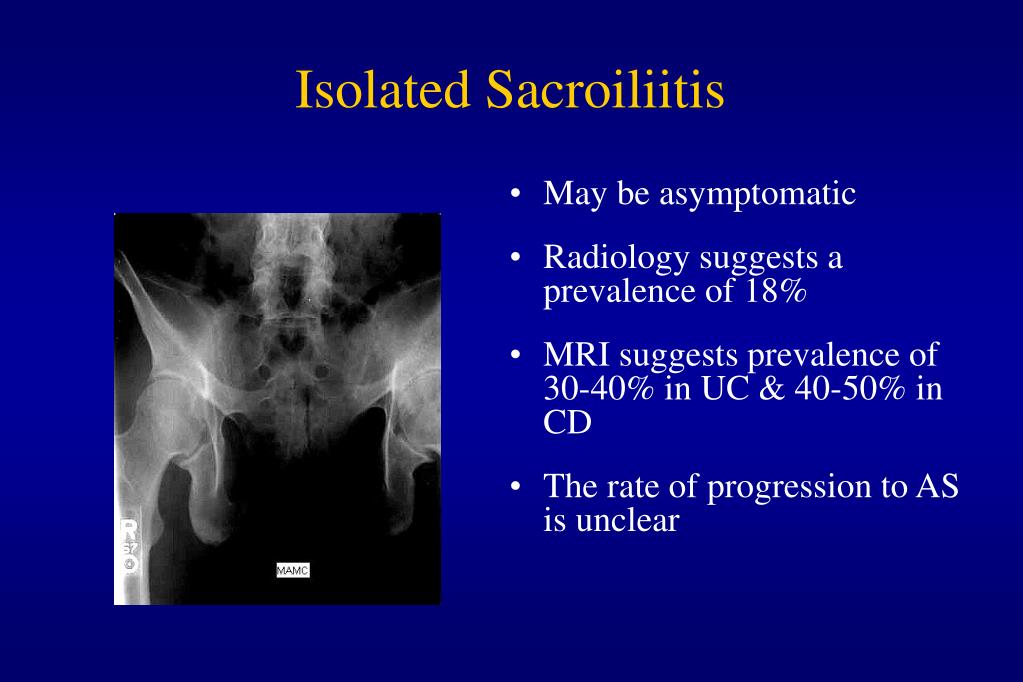

Isolated sacroiliitis l.jpg

May be asymptomatic

Radiology suggests a prevalence of 18%

MRI suggests prevalence of 30-40% in UC & 40-50% in CD

The rate of progression to AS is unclear

Isolated Sacroiliitis

Axial arthritis the role of hla b27 l.jpg

Axial Arthritis: the role of HLA-B27

  • AS is associated with HLA-B27 in IBD

  • The association is weaker than idiopathic AS

  • Isolated sacroiliitis is not associated with AS

  • BUT HLA-B27+ IBD patients are at greatly increased risk of axial arthritis compared to other HLA-B27+ subjects

  • HLA-B27 and intestinal inflammation may have an additive effect

Low back pain in ibd l.jpg

Low back pain in IBD

  • Back pain is common – How do AS/SI present?

    • Pain and stiffness in the morning

    • Improves with exercise

    • Radiates into the buttocks

    • Impairment of spinal flexion

  • In contrast mechanical back pain

    • Comes on later in the day

    • Is worsened by physical activity

Miss a k 15 y o female l.jpg

Miss A.K. 15 y.o. Female


Painful swollen knees

Abdominal pain, and loose motions

Generally unwell


Knee pain & swelling started 18/12 earlier. Referred to rheumatologist.

D Inflammatory arthritis


Slide17 l.jpg

Commenced on NSAID’s - Marginal improvement

Due to sit GCSE’s - Started on oral Prednisolone

Felt much better.

Steroids reduced after exams - felt worse generally.

Knees swollen and abdo pain

Poor appetite and weight

Referred for medical opinion.

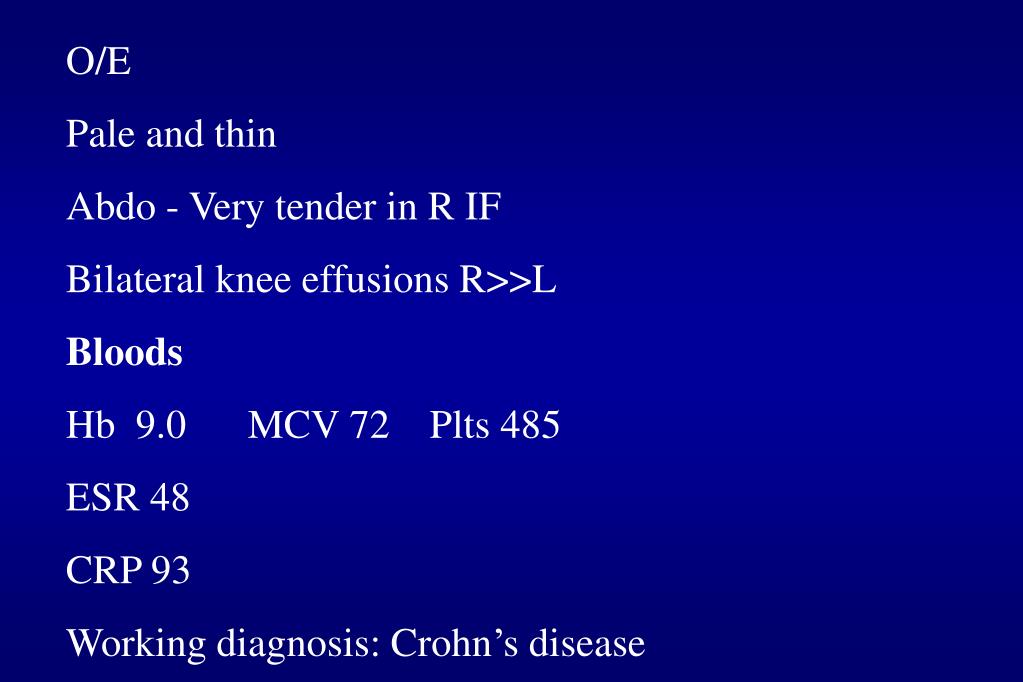

Slide18 l.jpg


Pale and thin

Abdo - Very tender in R IF

Bilateral knee effusions R>>L


Hb 9.0MCV 72Plts 485

ESR 48

CRP 93

Working diagnosis: Crohn’s disease

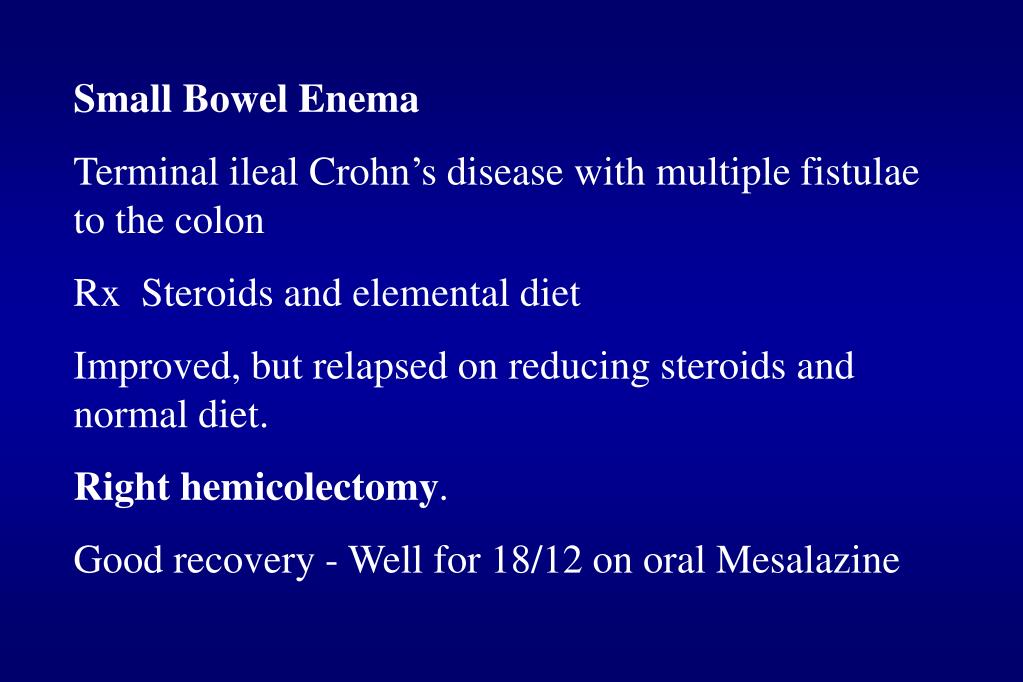

Slide19 l.jpg

Small Bowel Enema

Terminal ileal Crohn’s disease with multiple fistulae to the colon

Rx Steroids and elemental diet

Improved, but relapsed on reducing steroids and normal diet.

Right hemicolectomy.

Good recovery - Well for 18/12 on oral Mesalazine

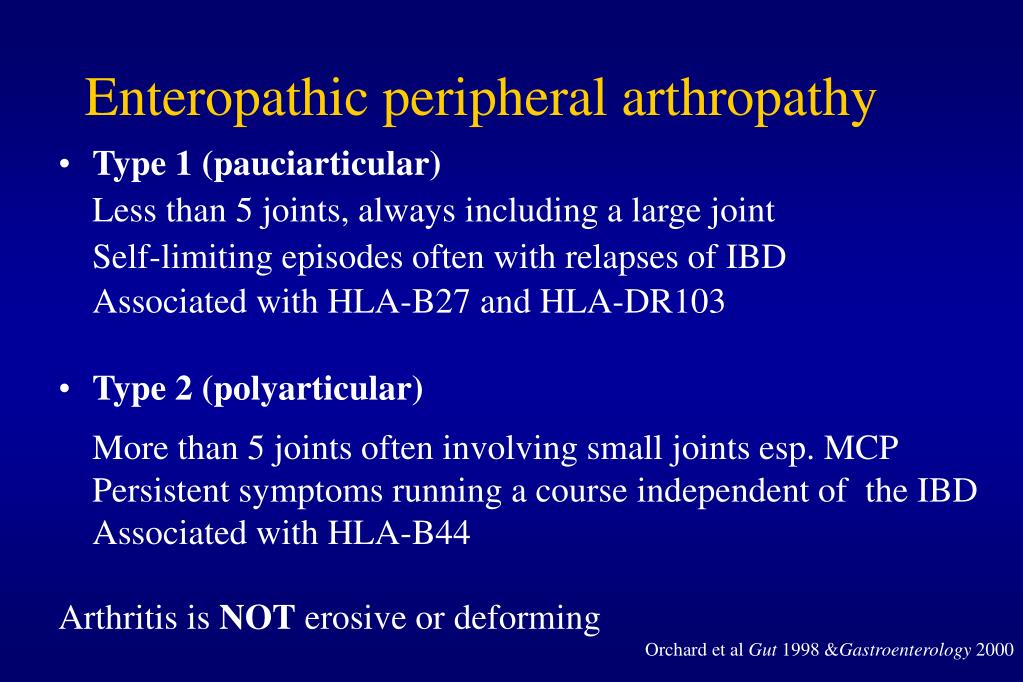

Enteropathic peripheral arthropathy l.jpg

Enteropathic peripheral arthropathy

  • Type 1 (pauciarticular)

    Less than 5 joints, always including a large joint

    Self-limiting episodes often with relapses of IBD

    Associated with HLA-B27 and HLA-DR103

  • Type 2 (polyarticular)

    More than 5 joints often involving small joints esp. MCP

    Persistent symptoms running a course independent of the IBD

    Associated with HLA-B44

    Arthritis is NOT erosive or deforming

    Orchard et al Gut 1998 &Gastroenterology 2000

Arthralgia in ibd l.jpg

Arthralgia in IBD

  • Stein et al 1993 (Bull Hosp Jt Dis)

    54 Crohn’s patients compared with age and sex matched controls

    % arthralgia% arthritis

    Crohn’s patients44 7.4

    Controls46 0

Treatment strategies for ibd arthritis l.jpg

Treatment strategies for IBD arthritis

  • Physical therapies

    • May be useful in Large joint arthritis to maintain muscle strength

  • Assistive devices

    • Walking stick for large joint arthritis

    • Splints

  • Local treatments

    • Intra-articular steroid injection

Treatment strategies 2 l.jpg

Treatment strategies (2)

  • Analgesia

    • Simple analgesia (Paracetamol, Codydramol)

    • NSAID’s – only if the bowel disease is quiet

    • COX 2 specific inhibitors may be better, but probably not

  • 5-ASA Medication

    • An empirical change to Sulfasalazine may help some patients

    • Recent trial evidence suggests Pentasa may be as effective

Treatment strategies 3 l.jpg

Treatment strategies (3)

  • Immune suppression

    • If already used for the IBD Methotrexate may be the best choice

    • Occasionally the arthritis alone may require immune suppression and low dose MTX is 1st choice

    • Low dose oral steroids may be required in some patients

  • Biological agents

    • Infliximab is effective in AS, and has worked in small case series of IBD arthritis

Lc 56 y o woman l.jpg

LC 56 y.o. woman

  • 1998 Bloody diarrhoea

  • 1999 Dx ulcerative colitis

    • Rx Prednisolone

    • Asacol

    • Azathioprine

  • 2000 Heavy pr bleeding requiring transfusion

  • 2001Colectomy and ileostomy. Rectal stump in situ

Slide26 l.jpg


  • Subsequently quite well with good ileostomy function

  • Occasional minor pr discharge

  • Jan 2005

    • Back ache, joint pains and swelling

    • Iritis

    • Single lesion on shin 3cm in diameter – healed with scarring

    • Subsequently multiple raised painful lesions on shins

    • Recurrent oral ulceration

    • Labial ulcers

Slide27 l.jpg


  • OE – Multiple raised lesions on shins with necrotic ulcerating tops

    • Broke down over time

    • Labial erythema and ulceration

    • Rigid S – Mucus and blood. Granular mucosa and ulcers

    • Bx – Mixture of active UC and diversion colitis

  • SBFT and ileoscopy - NORMAL

Eye complications l.jpg

Eye complications

  • Acute red eye associated with relapse of IBD

  • Usually iritis or anterior uveitis

  • Rarely posterior uveitis

  • May occur with arthritis

  • Occurs in 3-5% of IBD patients

  • F>M 3:1

  • Needs ophthalomological assessment

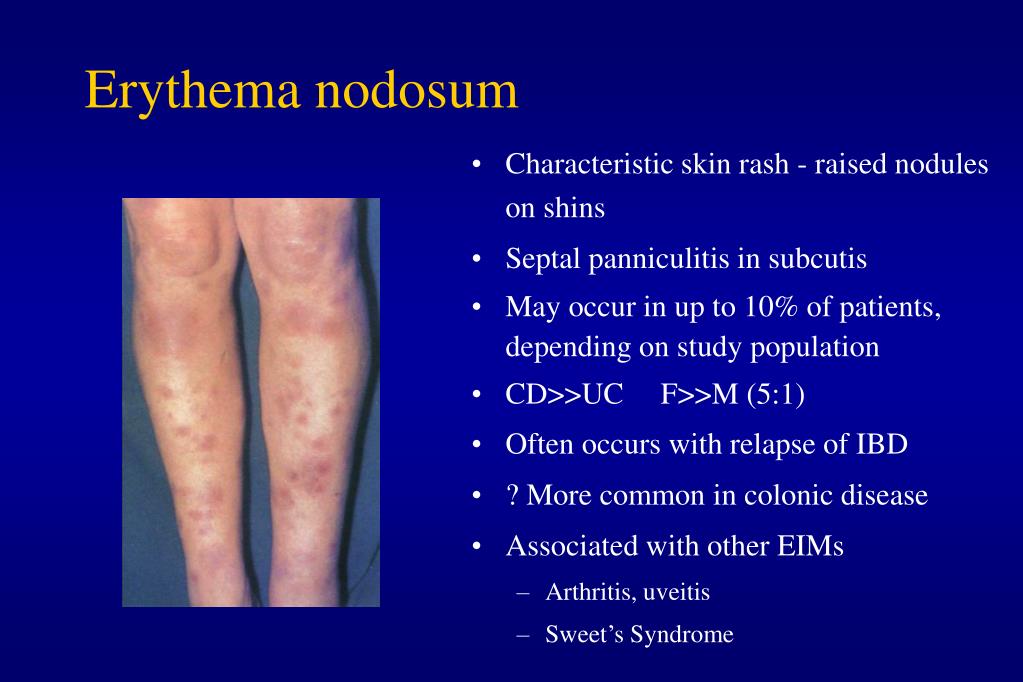

Erythema nodosum l.jpg

Erythema nodosum

  • Characteristic skin rash - raised nodules on shins

  • Septal panniculitis in subcutis

  • May occur in up to 10% of patients, depending on study population

  • CD>>UC F>>M (5:1)

  • Often occurs with relapse of IBD

  • ? More common in colonic disease

  • Associated with other EIMs

    • Arthritis, uveitis

    • Sweet’s Syndrome

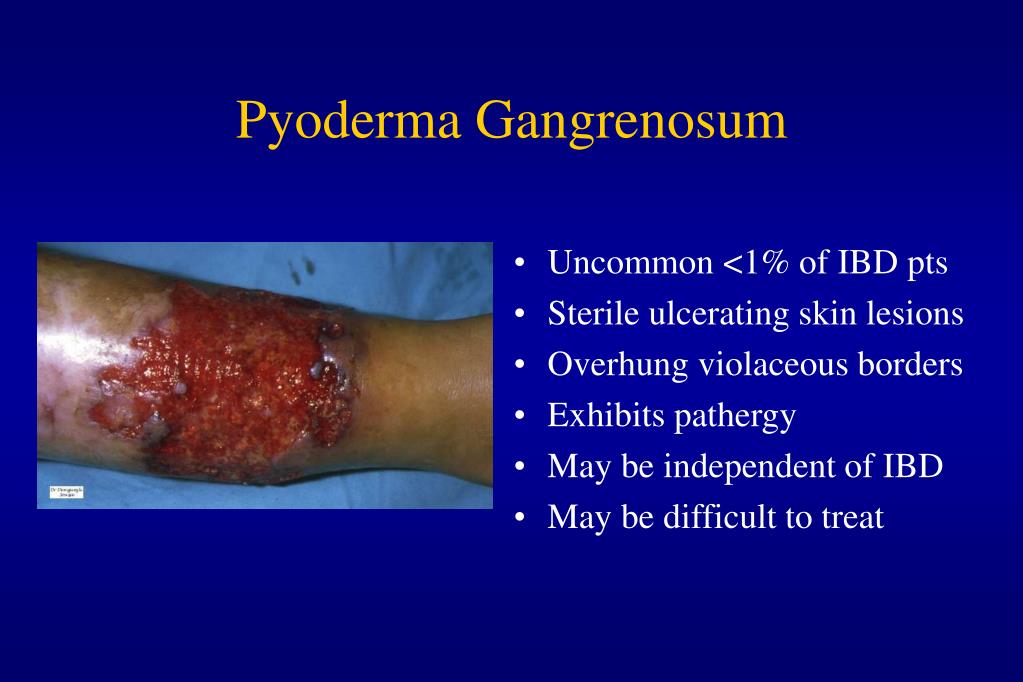

Pyoderma gangrenosum l.jpg

Pyoderma Gangrenosum

  • Uncommon <1% of IBD pts

  • Sterile ulcerating skin lesions

  • Overhung violaceous borders

  • Exhibits pathergy

  • May be independent of IBD

  • May be difficult to treat

Slide31 l.jpg


  • Possible differential would be Behcet’s disease with intestinal involvement

    • 20% of Behcet’s have intestinal involvement

    • Lesions tend to be deep punched out ulcers

    • Round rather than serpiginous

    • Skip lesions similar to Crohn’s

    • Recurs after surgery

    • Associated with HLA-B*51

Slide32 l.jpg


  • HLA status sent

    • HLA B*35, B*44 DRB1*0103

  • B35 and 44 associated with arthritis in UC and CD

  • B44 associated with recurrent oral ulceration in IBD

  • DRB1*0103 associated with large joint arthritis, iritis and extensive colitis

Pyoderma gangrenosum33 l.jpg

Pyoderma Gangrenosum

  • May be difficult to treat

  • Options include

    • Steroids

    • Ciclosporin/Tacrolimus

    • Azathioprine

    • Biologics

Infliximab for pyoderma gangrenosum l.jpg

Infliximab for Pyoderma Gangrenosum

  • 30 patients in randomised placebo controlled trial

  • 17 placebo 13 Infliximab

  • Non-responders were offered open label infliximab

  • Response at week 246% vs 6% (p=0.025)

  • Open label phase 29 patients received infliximab

    • Response at week 6 in 69% Remission in 21%

Brooklyn et al Gut 2006

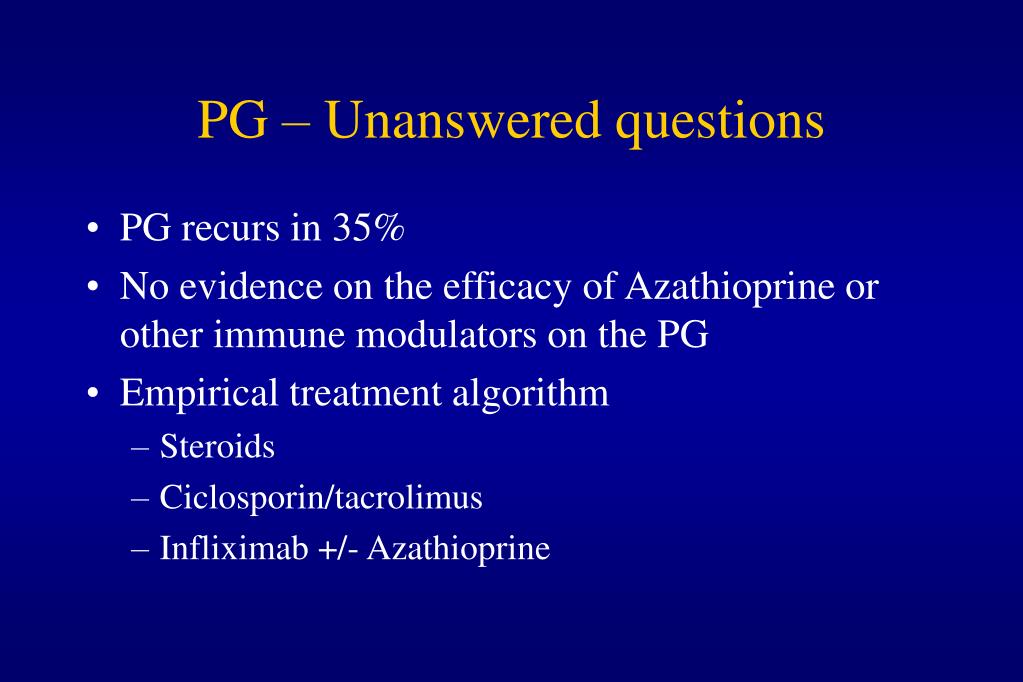

Pg unanswered questions l.jpg

PG – Unanswered questions

  • PG recurs in 35%

  • No evidence on the efficacy of Azathioprine or other immune modulators on the PG

  • Empirical treatment algorithm

    • Steroids

    • Ciclosporin/tacrolimus

    • Infliximab +/- Azathioprine

Slide36 l.jpg


  • Discussion with patient about options

    • Immediate medical therapies CiA, Aza, Infliximab

    • Excision of rectal stump

Slide37 l.jpg


  • Patient opted for Infliximab

    • Dramatic effect – improvement within 24 hours

    • Underwent 3 dose induction

    • Symptoms recurred less severely after 2 months

  • Underwent rectal stump excision in May 2006

    • Resolution of extraintestinal symptoms

Eim s overlapping clinical syndromes l.jpg

EIM’s: Overlapping clinical syndromes

Pg and other eims l.jpg

PG and other EIMs

  • Other EIMs are more common in PG pts than in IBD pts without EIMs

  • PG is also associated with polymorphisms in the HLA region

  • Type 1 arthritis, uveitis, EN and PG appear to be overlapping clinical and immunogenetic conditions

Patients (%)

Williams HRT et al UEGW 2007

Linkage disequilibrium l.jpg

Linkage disequilibrium

What is it and is it important?

Linkage disequilibrium42 l.jpg

Linkage disequilibrium

Genes far apart - Recombination likely- Genes NOT inherited together

Genes close together - Recombination unlikely - Genes ARE inherited together = Linkage disequilibrium

Slide43 l.jpg














Genes of the HLA











Polymorphism at 1031 in tnf a gene l.jpg

Polymorphism at –1031 in TNFa gene



Slide45 l.jpg

Genes of the HLA - Now

Nature Oct 1999

Summary l.jpg


  • EIMs may be determined by genetic predisposition and interaction with luminal bacteria

  • EIMs associated with active gut disease often respond to treatment of the gut

  • Specific therapies should be considered if

    • They alter the natural history of the EIM

    • They are not related to gut activity

    • They require specific symptomatic relief

  • Simple analgesia may be sufficient for symptom control

  • Immune modulators may be required to alter the natural history

  • Login
