  1. ECE 353Introduction to Microprocessor Systems Michael J. Schulte Week 10

  2. Topics • System Timing • Hardware/software trade-offs • Execution time • Bus Timing • Wait states • Memory device timing parameters • Timing compatibility • Time Measurement • Delay loops • Hardware timers

  3. System Timing • Hardware/software trade-offs • Task allocation • Real-time systems • Soft real-time versus hard real-time • Microprocessor clock frequency • Execution time • Affected by numerous variables • Difficult to predict • Sample Instructions • Delay loops

  4. WAIT States • WAIT states are used to lengthen the bus cycle for slower devices • Extra T3 states are run • WAIT state control • CSU WS setting • READY signal • Normally ready • Normally not-ready • External circuits • CSU RDY setting

  5. Memory Device Timing • Read Cycle • TAA / TOH • TACS / TCHZ • TOE / TOHZ • TRC • Effect of grounding device’s /CS • Write Cycle • /WE vs. /CS controlled • Timing Parameters • Write cycle

  6. 27C512EPROM

  7. HM624100HCSRAM

  8. 80C188EB Timing Compatibility • Need to determine if devices are compatible with the microprocessor at the selected clock speed. • Want to ensure that all system timing constraints are met at minimal cost. • Two basic timing issues to resolve: • Setup and Hold Times • Latching information (inputs) • Output Delay and Float Times • State changes (propagation delays) • Turning drivers on and off (outputs)

  9. Assessing Timing Compatibility • Need to know whether CPU will operate with the TAA for given device. (read cycle) • Address becomes valid at start of T1 • Data is latched by CPU at start of T4 • To get an accurate TAVDV, must include the delays for the address becoming valid, and include the setup time for data. • Address valid delay relative to CLKOUT edge • Setup time required relative to CLKOUT edge • A.C. Specifications 1 & 2

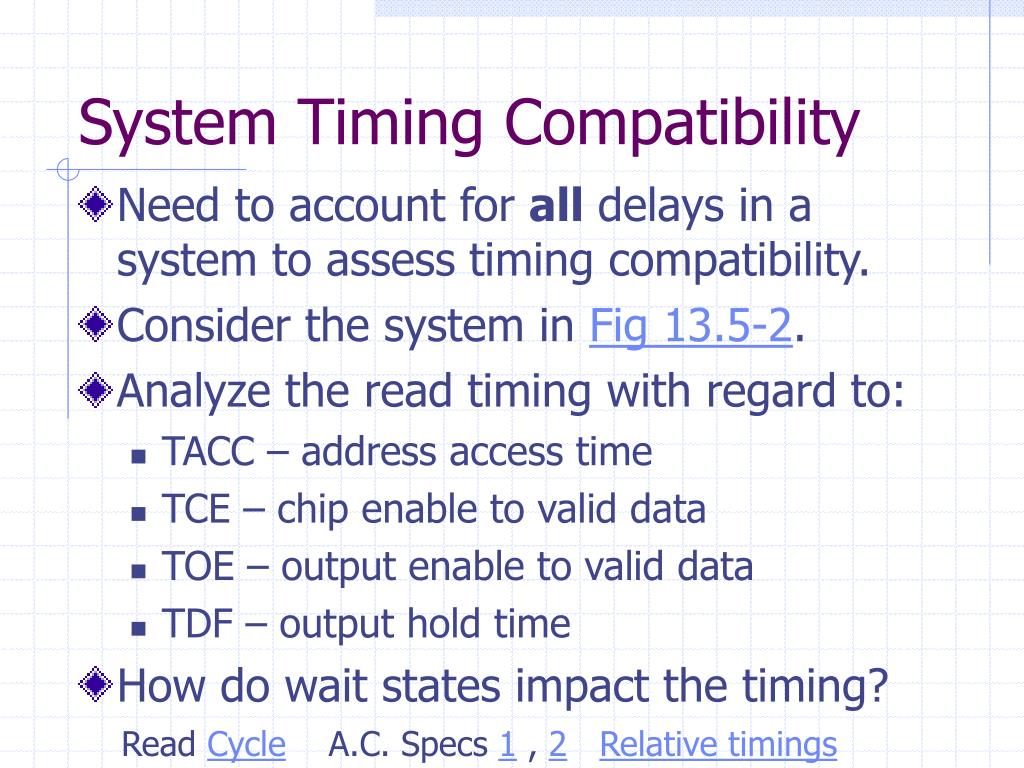

  10. System Timing Compatibility • Need to account for all delays in a system to assess timing compatibility. • Consider the system in Fig 13.5-2. • Analyze the read timing with regard to: • TACC – address access time • TCE – chip enable to valid data • TOE – output enable to valid data • TDF – output hold time • How do wait states impact the timing? Read Cycle A.C. Specs 1 , 2Relative timings

  11. System Timing Compatibility • Consider again the system in Fig 13.5-2. • Analyzing write cycle timing. • TW, TDW, TDH • TASW, TAW, TCW • TWR • Device characteristics are just a part of timing • Line/device capacitance and driver slew rates • Transmission line effects • Impedance mismatch and reflections • Skew and trace length mismatch • Signal integrity Read Cycle A.C. Specs 1 , 2Relative timings

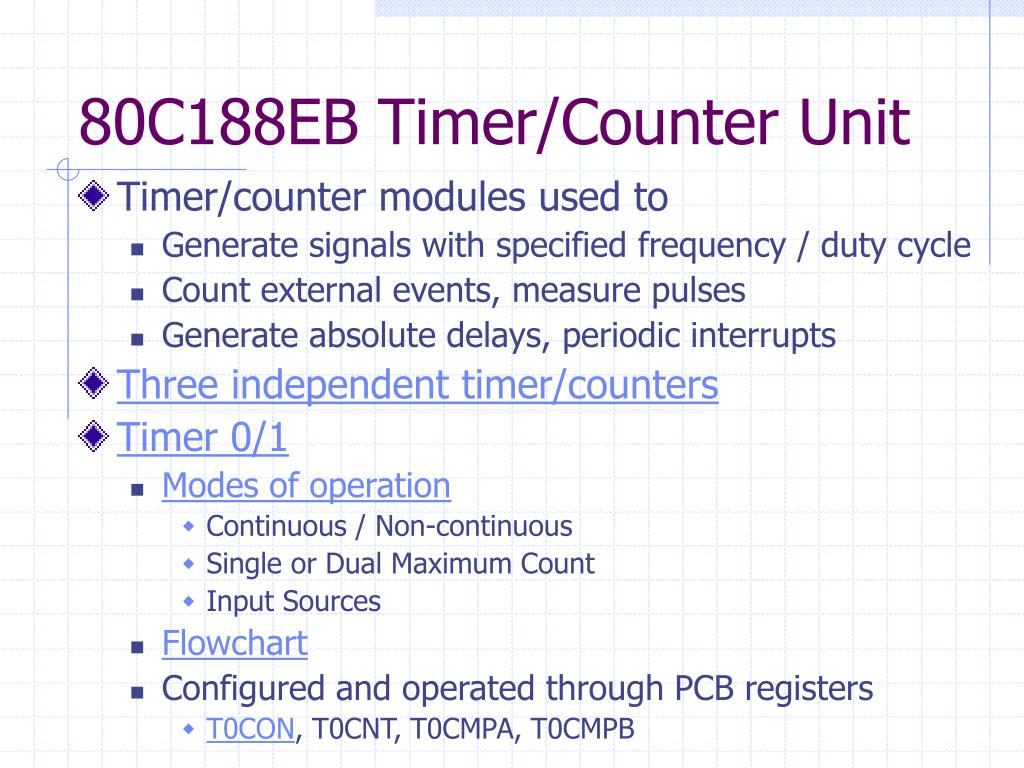

  12. 80C188EB Timer/Counter Unit • Timer/counter modules used to • Generate signals with specified frequency / duty cycle • Count external events, measure pulses • Generate absolute delays, periodic interrupts • Three independent timer/counters • Timer 0/1 • Modes of operation • Continuous / Non-continuous • Single or Dual Maximum Count • Input Sources • Flowchart • Configured and operated through PCB registers • T0CON, T0CNT, T0CMPA, T0CMPB

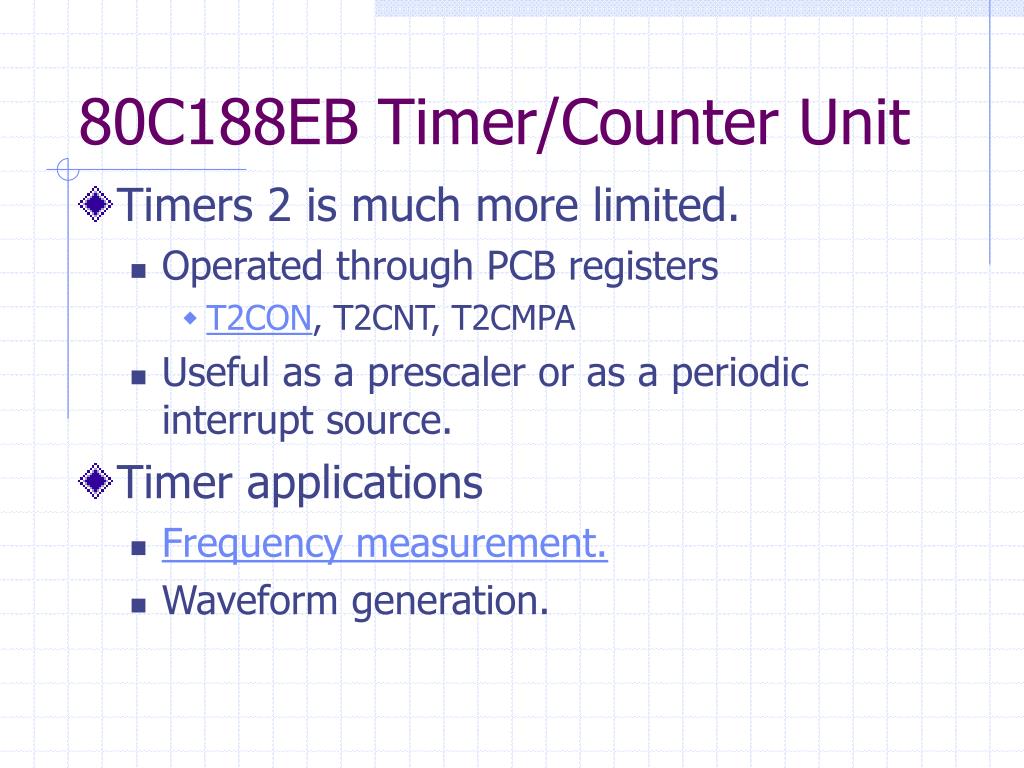

  13. 80C188EB Timer/Counter Unit • Timers 2 is much more limited. • Operated through PCB registers • T2CON, T2CNT, T2CMPA • Useful as a prescaler or as a periodic interrupt source. • Timer applications • Frequency measurement. • Waveform generation.

  14. 82C54 PIT/C • Provides additional timer/counter resources for microprocessor system. • Appears as 4 byte-wide registers • Control register (3) • Timer registers (0,1,2) • Program by writing 3 bytes in sequence • Control byte • Timer word • Three independent 16-bit counters • BCD or binary • DC-10MHz input range • Multiple modes of operation

  15. Real-Time Clocks (RTCs) • RTCs provide microprocessor systems with absolute time information • Absolute time does not necessarily mean calendar/clock time • Typically operate from 32.768KHz crystal with battery or capacitor back-up power supply • Generate periodic interrupts • Often contain small amount of RAM – historically this was where the PC stored its configuration (BIOS) settings since it is non-volatile. • Dallas Semiconductor DS1375

  16. Watchdog Timers • Watchdog timers are used to guard a system against lock-up due to software errors or soft failures in hardware. • Often included in CPU supervisor circuits. • Retriggering usually done in the main program loop. • Watchdog output can be used to reset the CPU or as a nonmaskable interrupt (NMI). • Maxim MAX6323/MAX6324

  17. WAIT States

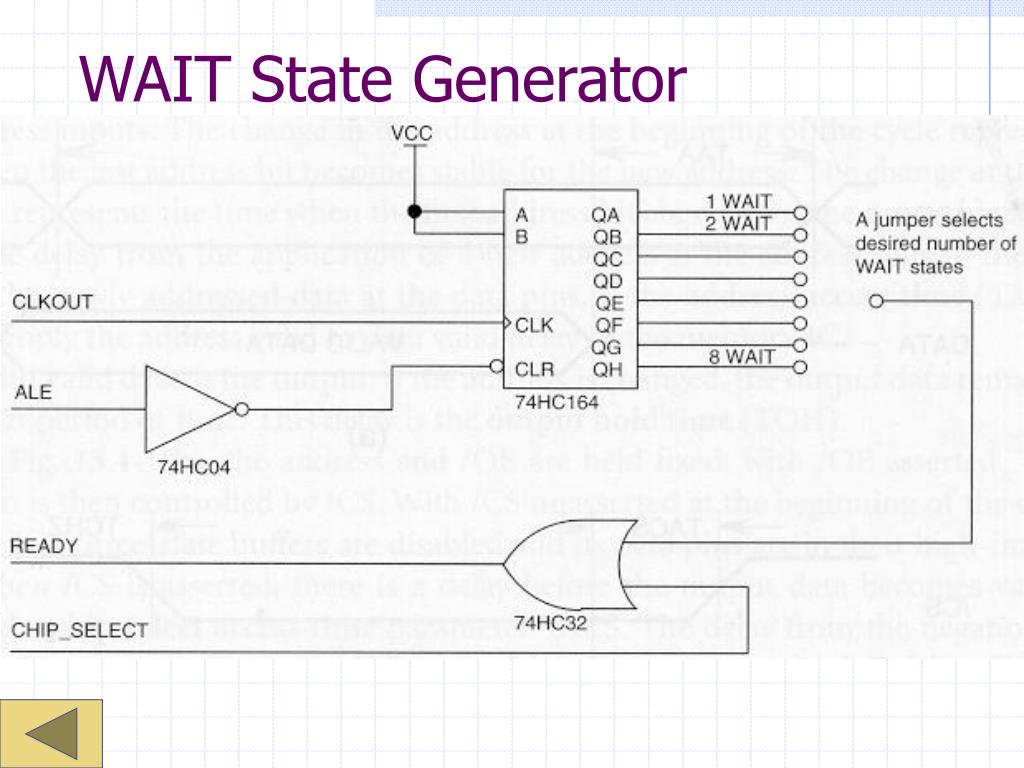

  18. WAIT State Generator

  19. Chip-Select Start Reg

  20. Chip-Select Stop Register -Part 2

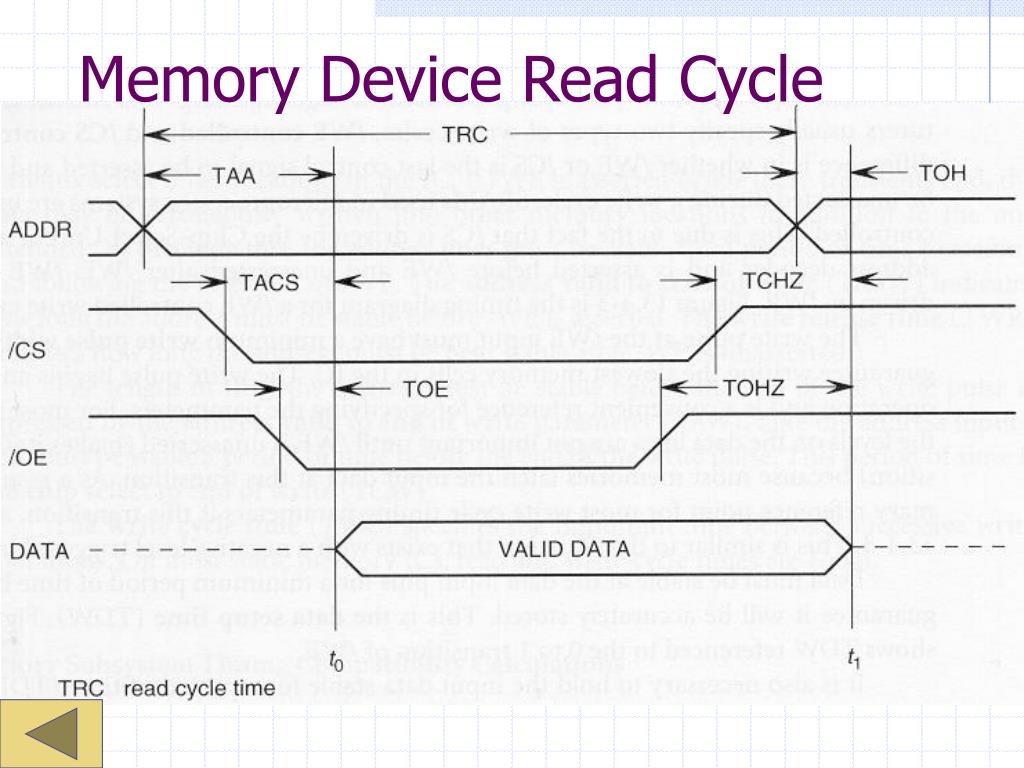

  21. Memory Device Read Cycle

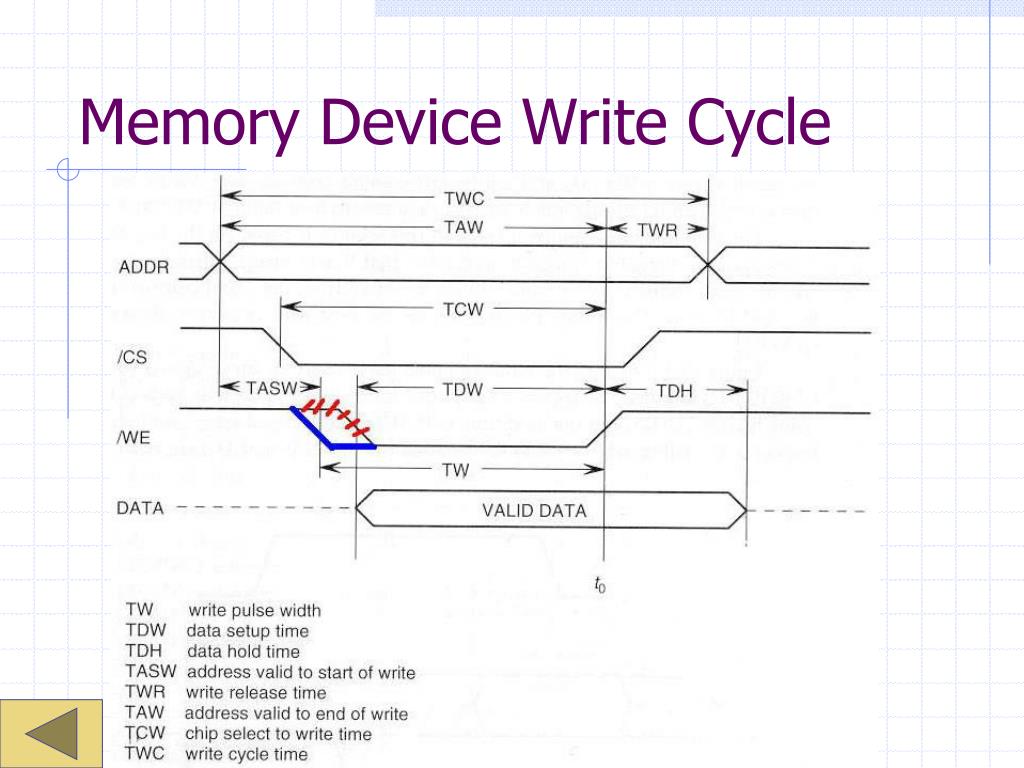

  22. Memory Device Write Cycle

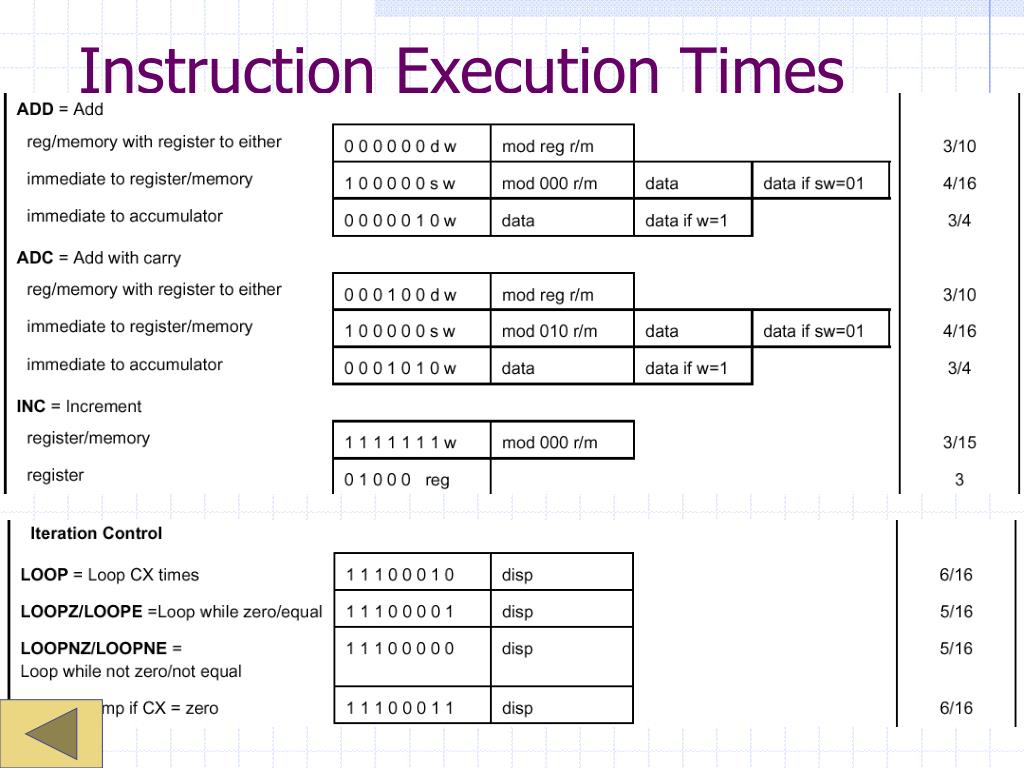

  23. Instruction Execution Times

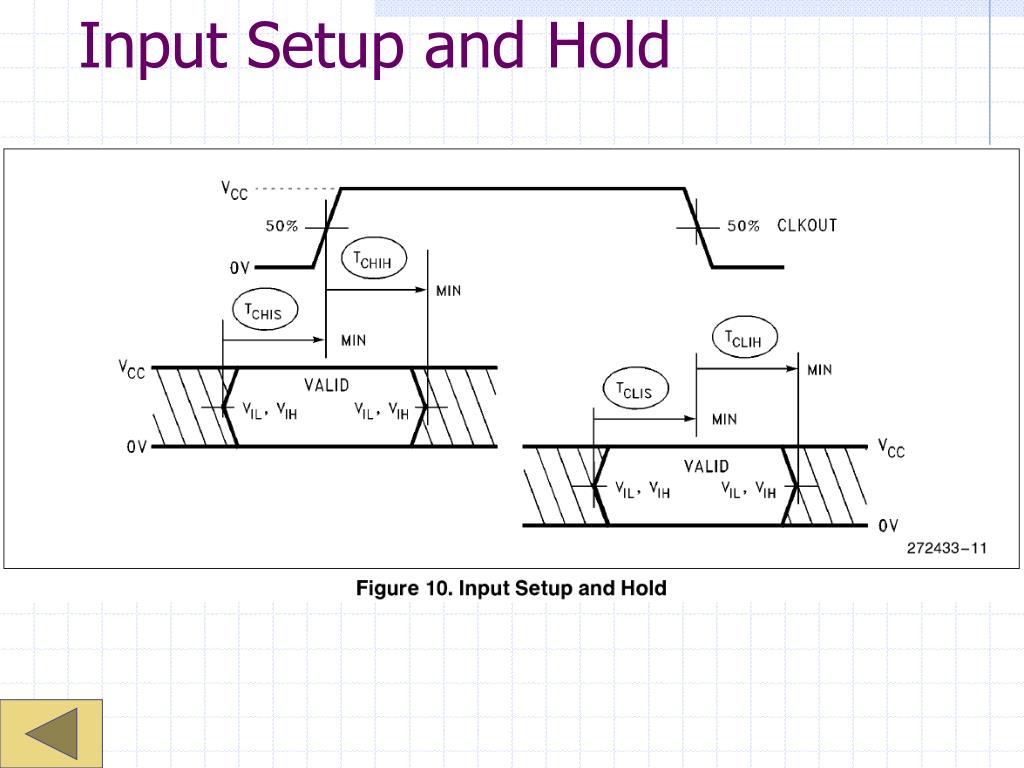

  24. Input Setup and Hold

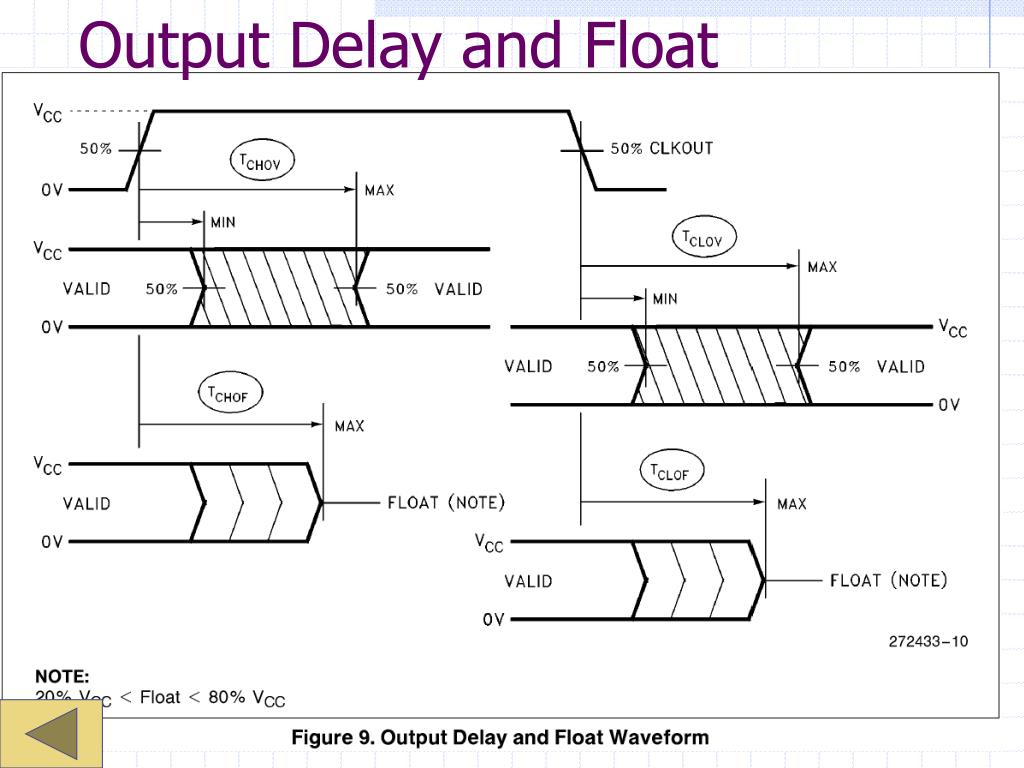

  25. Output Delay and Float

  26. Read Cycle

  27. A.C. Specs (1)

  28. A.C. Specs (2)

  29. Relative Timing

  30. Write Cycle

  31. Fig. 13.5-2

  32. TxCONPart 1

  33. TxCONPart 2

  34. T2CON

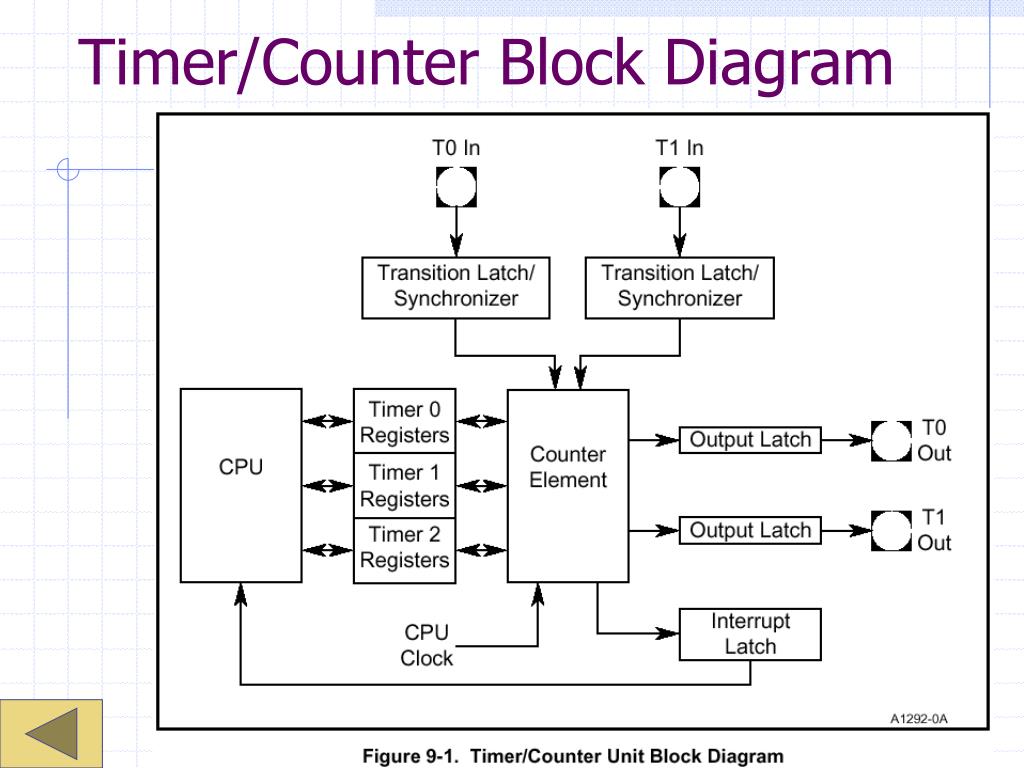

  35. Timer/Counter Block Diagram

  36. Timer 0/1

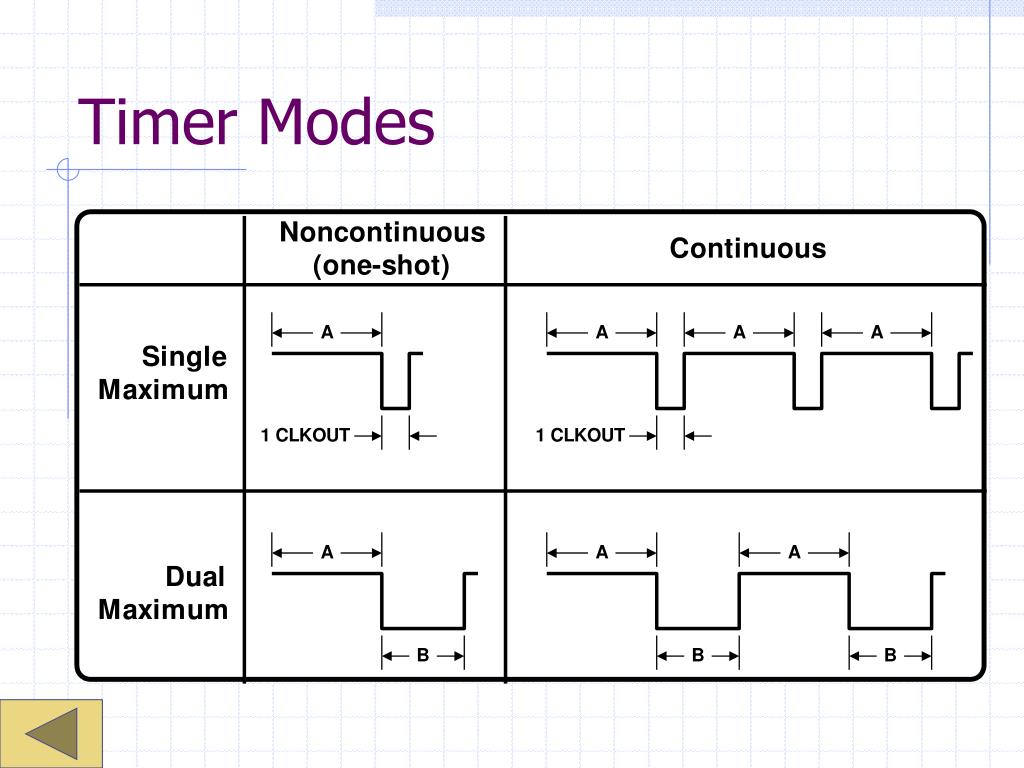

  37. Timer Modes

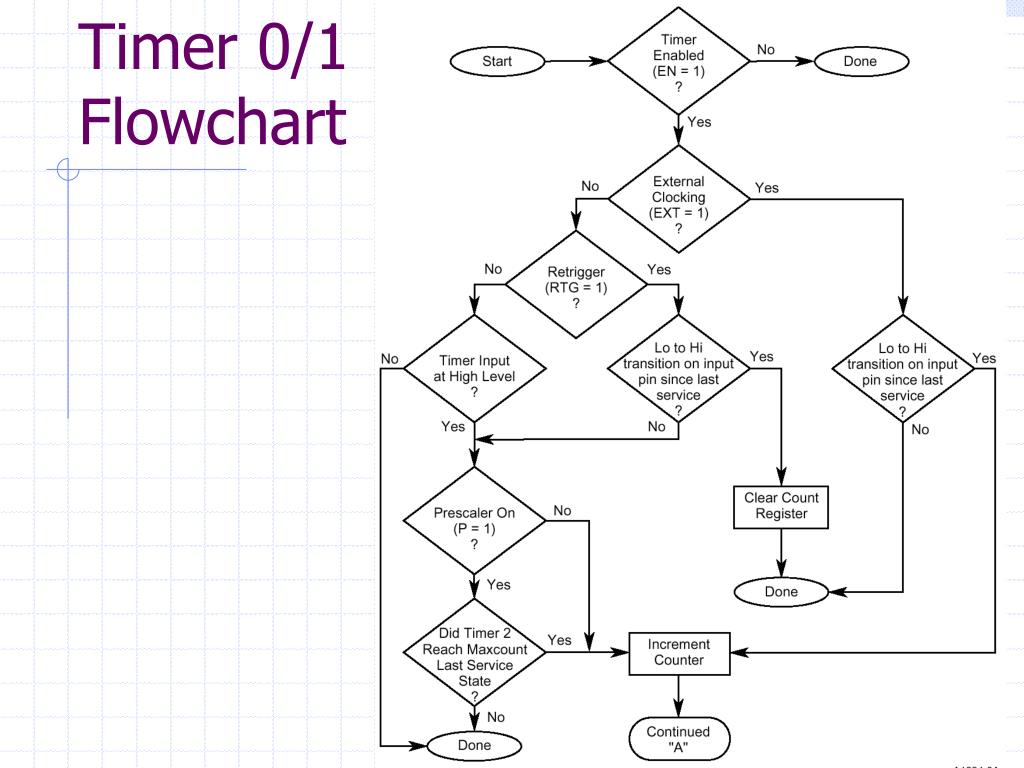

  38. Timer 0/1Flowchart

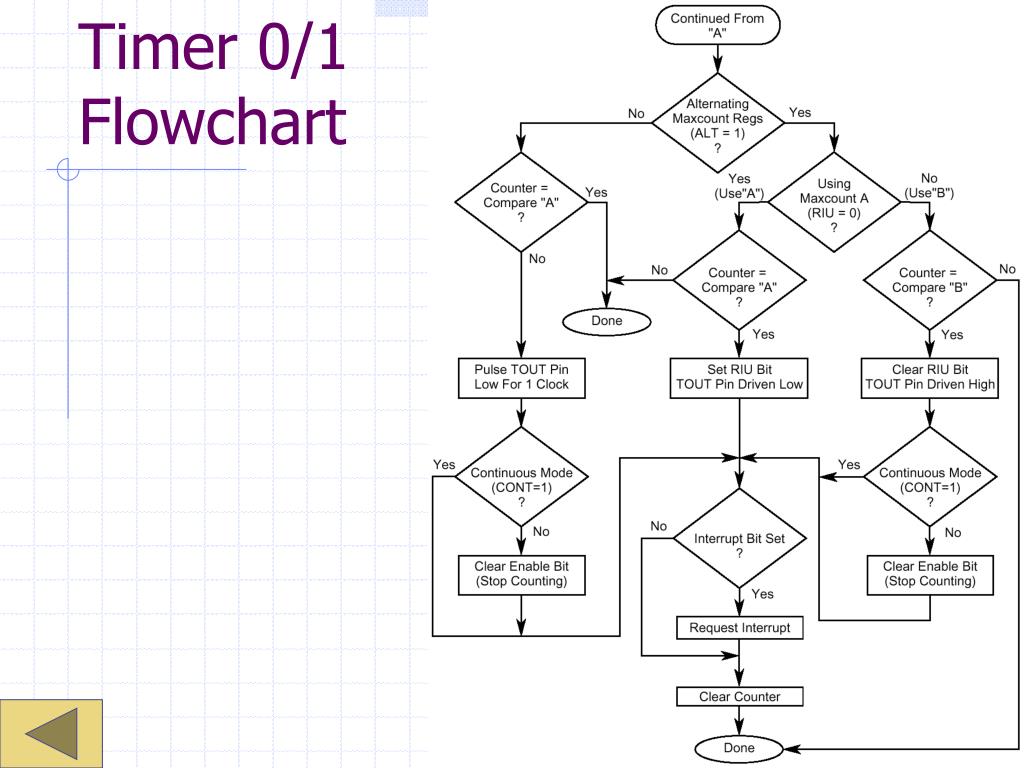

  39. Timer 0/1Flowchart

  40. Frequency Measurement

  41. DS1375RTC

  42. MAX6323

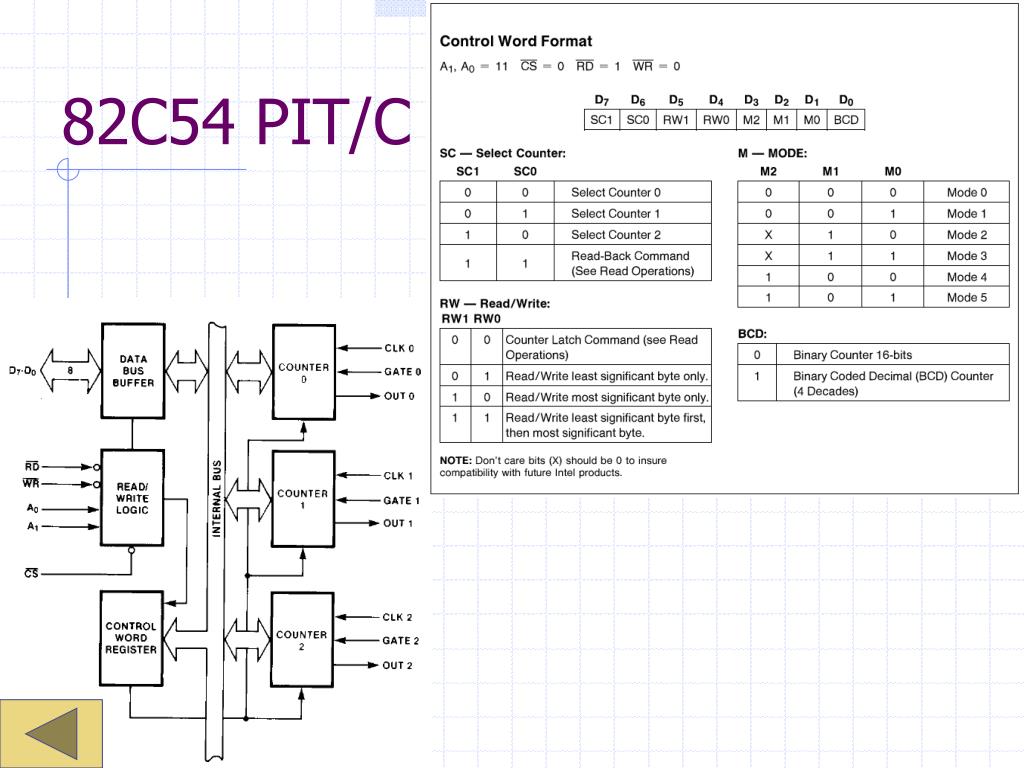

  43. 82C54 PIT/C
