Presentation Transcript

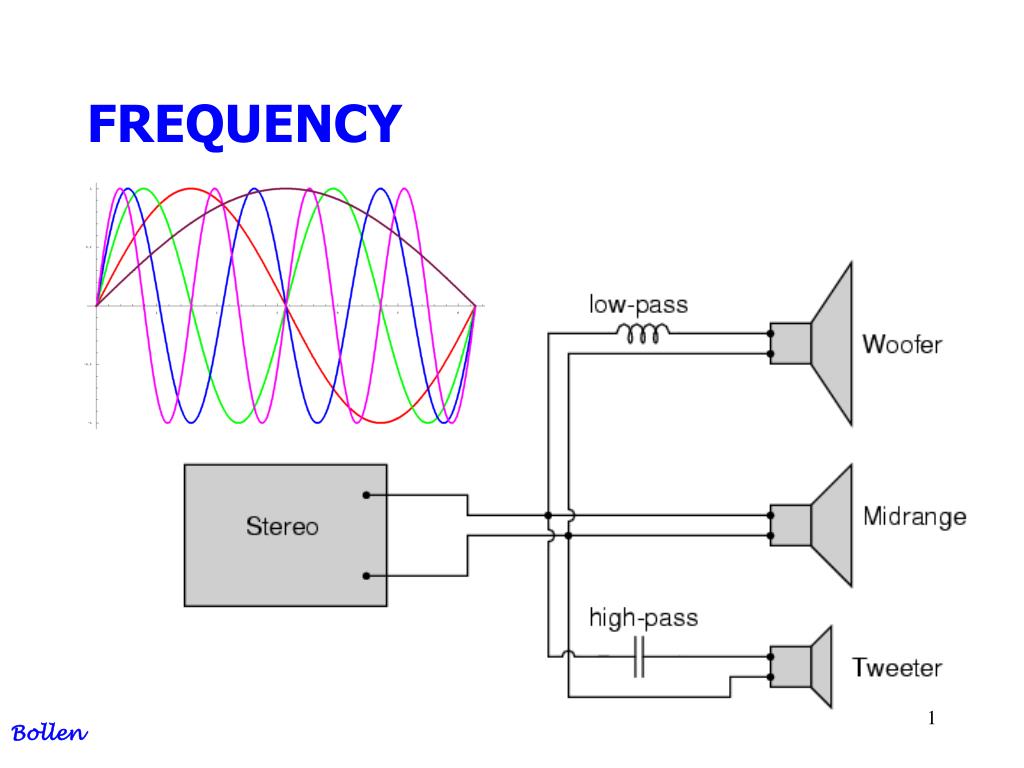

Frequency

FREQUENCY

Bollen


Agenda

FREQUENCY

BAND filter

Bandwith decibell power

And voldage gain

Boode Amplitude Diagram

(BAD)

Boode Phase Diagram

(BPD)

Frequency unitis

and terminilogy

20 db/decade 6 db/octaaf

High pass

High pass model

Roll off high pass

Low pass

Low pass model

Roll off low pass

BAND pass

How many corner frequencies?

Emitter capacitance

AGENDA

Bollen

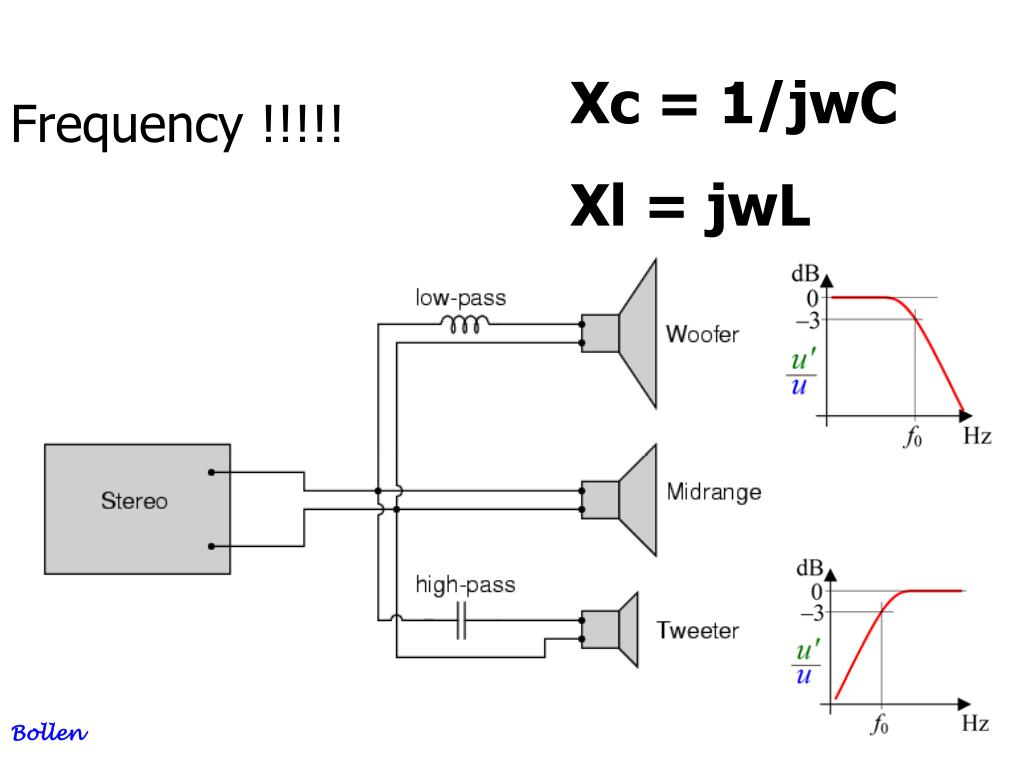

Frequency1

Xc = 1/jwC

Xl = jwL

Frequency !!!!!

Bollen

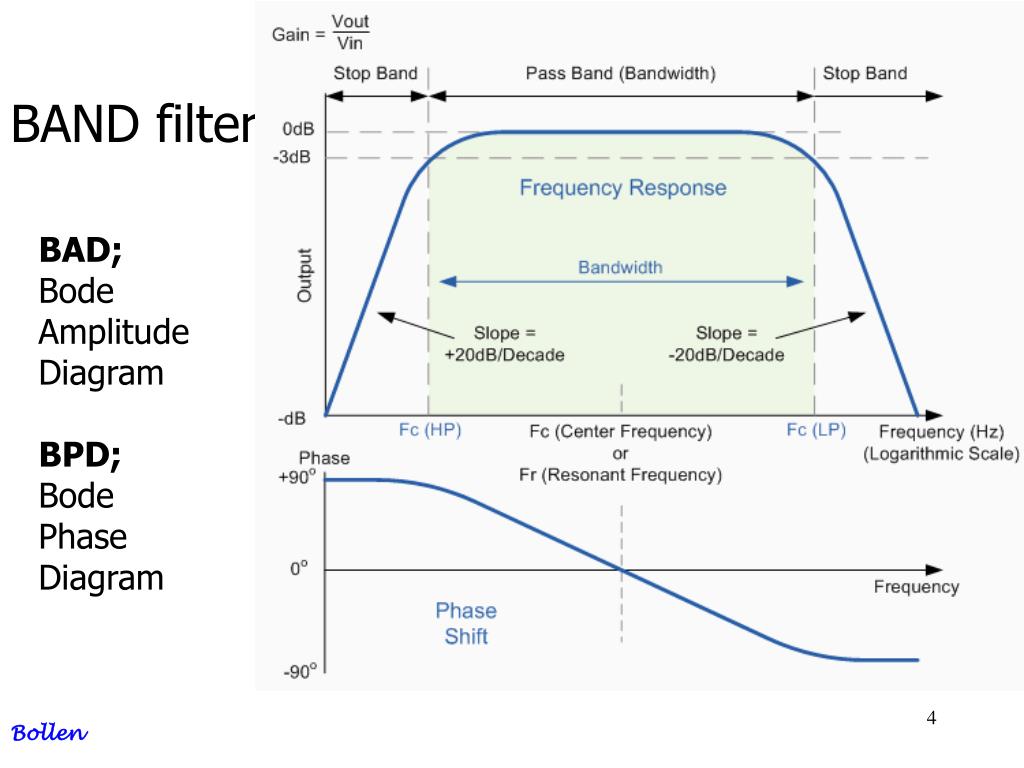

Band filter

BAD;BodeAmplitudeDiagramBPD;BodePhaseDiagram

BAND filter

Bollen


Bandwith decibell power and voltage gain

Bandwith, decibell power and voltage gain

Bollen

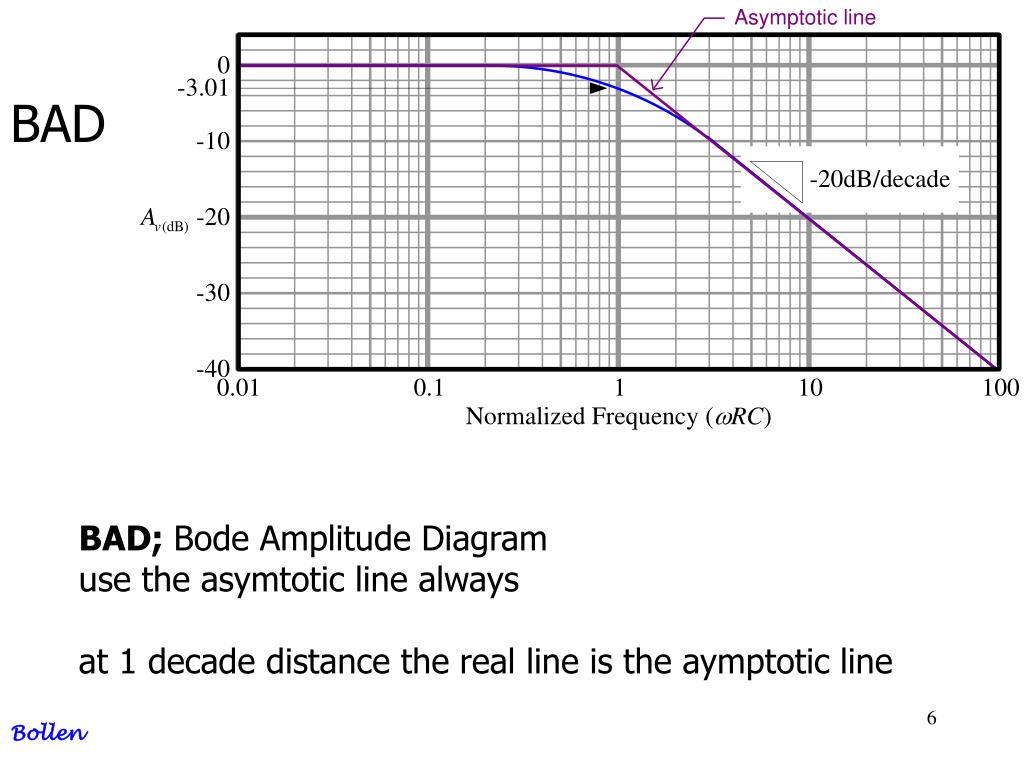

Frequency

BAD

BAD; Bode Amplitude Diagramuse the asymtotic line alwaysat 1 decade distance the real line is the aymptotic line

Bollen


Frequency

BPD

BPD; Bode Phase Diagramuse the asymtotic line alwaysat 1 decade distance the real line is the aymptotic line

Bollen


Frequency units and terminology

Frequency units and terminology

Bollen


20 db decade or 6 db octave

20 db/decade or 6 db/octave

Bollen


High pass

High pass filterLow corner frequency- 3dB point

High pass

Bollen


High pass1

High pass

Bollen


High pass2

High pass

Bollen


Frequency

Bollen


High pass model

High pass model

Bollen


High pass model1

High pass model

Bollen


High pass model2

High pass model

Bollen


High pass3

High pass

Bollen


Roll off high pass

Roll off high pass

Bollen


Low pass

Low pass filterHigh corner frequency- 3dB point

Low pass

Bollen

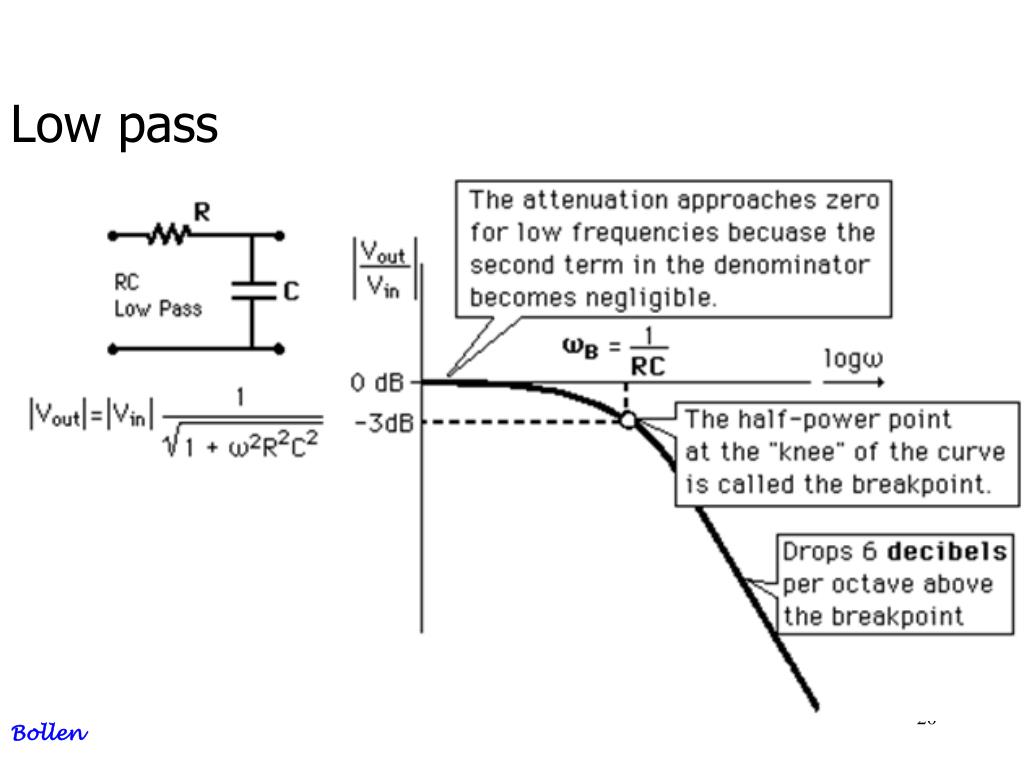

Low pass1

Low pass

Bollen


Low pass2

Low pass

Bollen


Frequency

Bollen


Frequency

Bollen

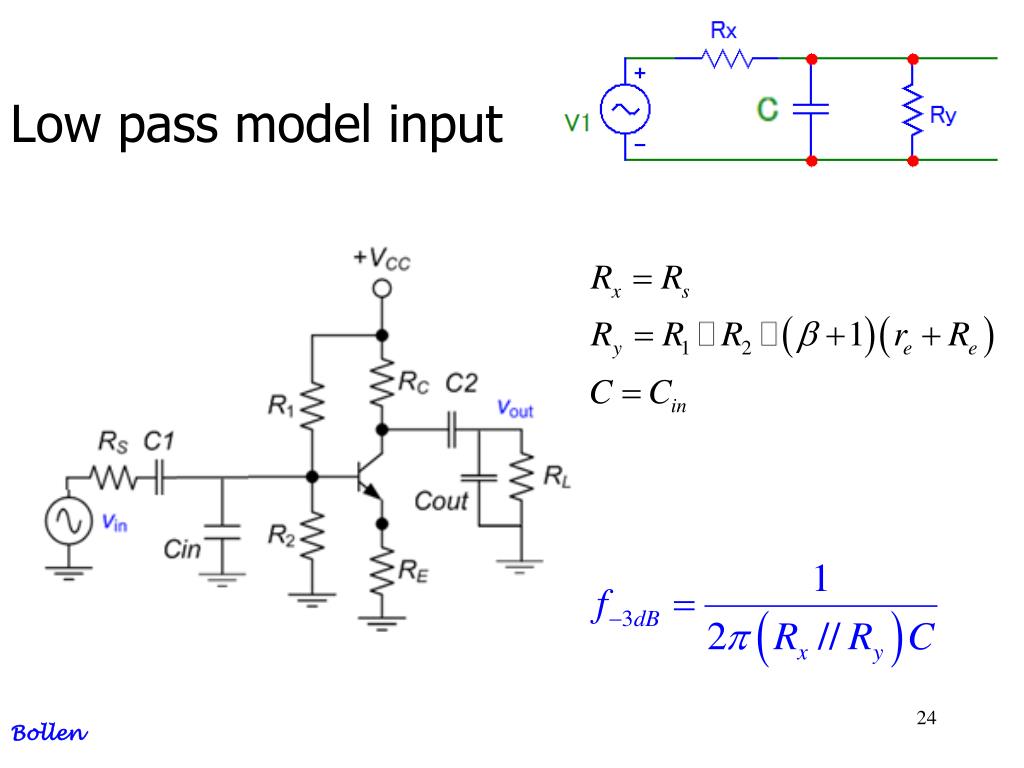

Low pass model input

Low pass model input

Bollen

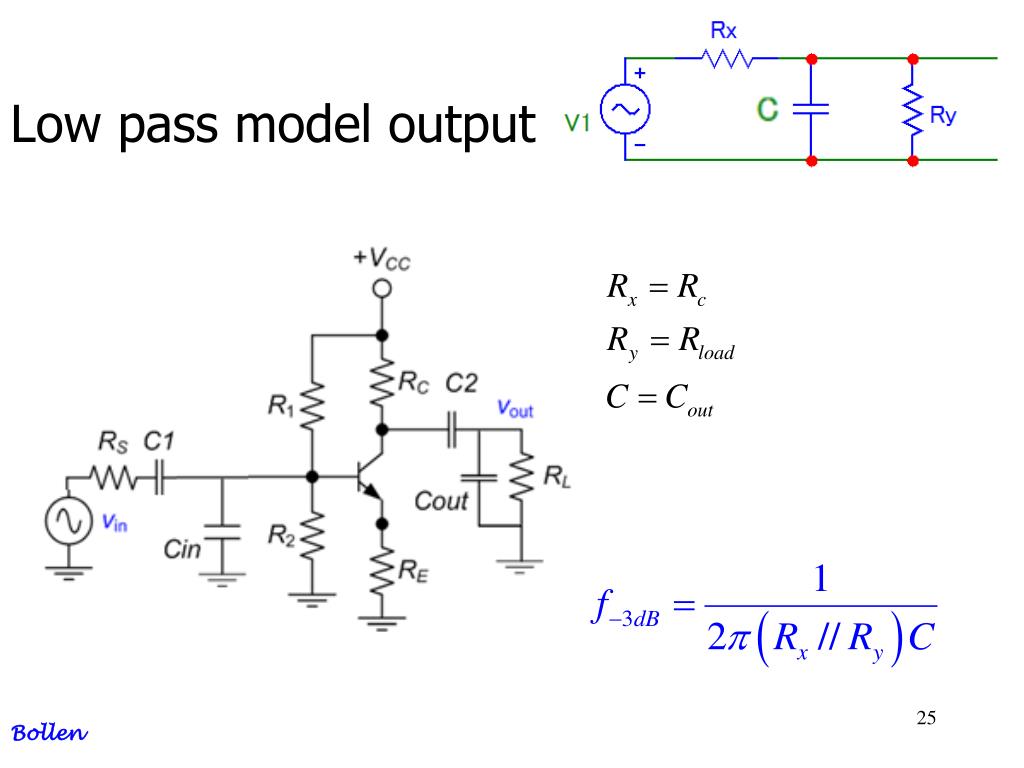

Low pass model output

Low pass model output

Bollen


Roll off low pass

Roll off low pass

Bollen


Band pass

BAND pass

Bollen


How many corner frequencies

How many corner frequencies ?

Bollen

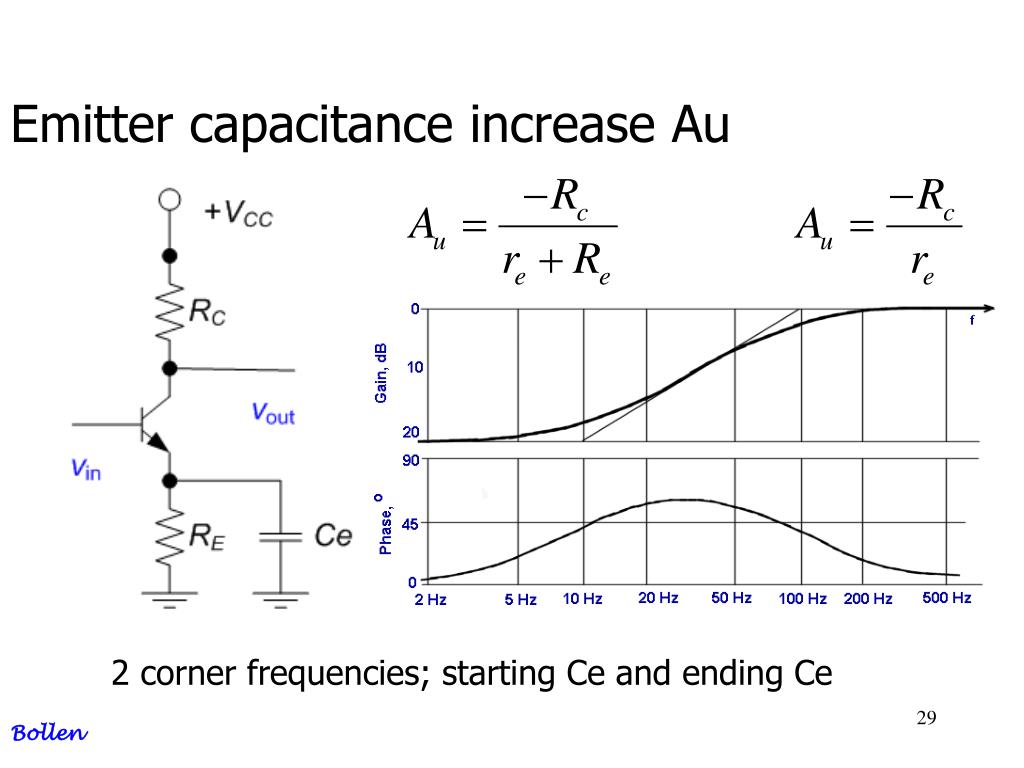

Emitter capacitance increase au

Emitter capacitance increase Au

2 corner frequencies; starting Ce and ending Ce

Bollen


Total au

Total Au

1 differentiating effect @ (re // Re) C1 integrating effect @ Re C

Bollen


Bad of ce

BAD of Ce

Bollen


Emitter capacitance

Emitter capacitance

Bollen


Emitter capacitance example

Calculate-3dB pointsHow many corner frequencies?Draw the BAD

Emitter capacitance example

Bollen


Emitter capacitance1

Emitter capacitance

Bollen

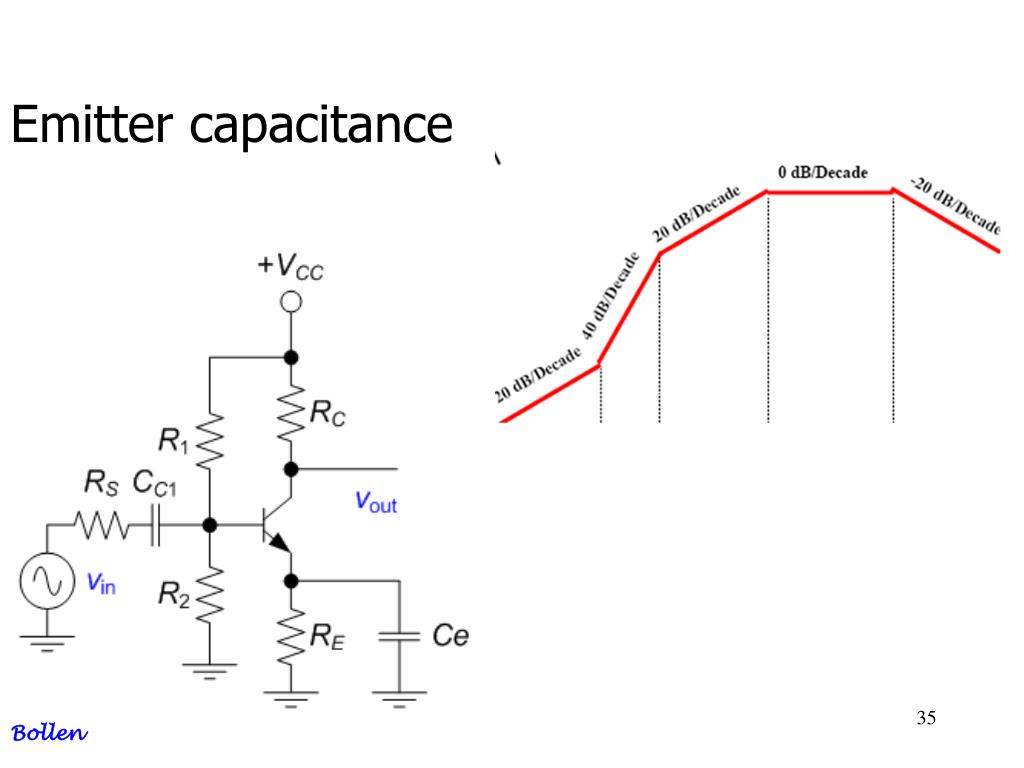

Emitter capacitance2

Emitter capacitance

Bollen

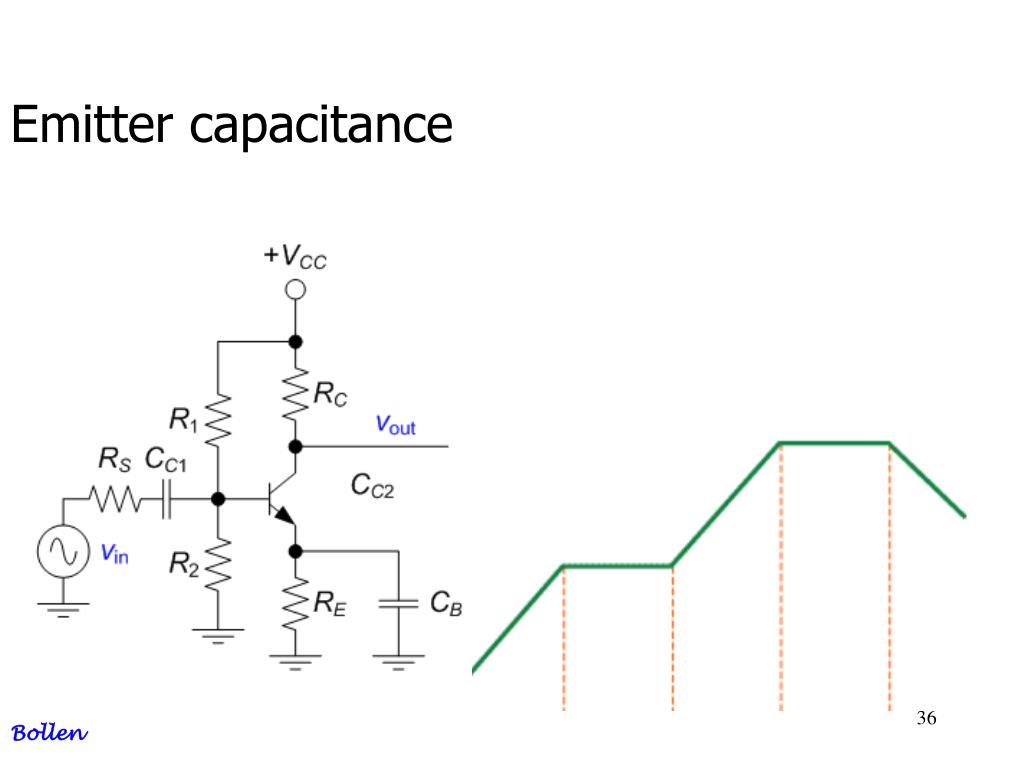

Emitter capacitance3

Emitter capacitance

Bollen
