Toward a radar based climatology of mesocyclones

Toward A Radar-Based Climatology Of Mesocyclones

2nd Conference on Severe Storms in Europe

Prague, CR

John T. Snow, Kevin M. McGrath, and Thomas A. Jones

University of Oklahoma

Norman, OK


Objectives
Objectives

Long-term: Produce a climatology of mesocyclones in the southern Great Plains

Immediate: Assess feasibility of constructing such a climatology using data from the national network of WSR-88D radars


Procedure
Procedure

  • Use high-resolution data from WSR-88D network

  • Process these data using a realization of the Mesocyclone Detection Algorithm (MDA) developed at NOAA National Severe Storms Laboratory  climatology of mesocyclone detectionsderived from this particular algorithm

  • Improve the quality of the detection data set by identifying and removing spurious detections climatology based on filtered data set

  • Associate mesocyclone detections with mesocyclones in nature  severe weather reports


Radar data
Radar Data

  • High-resolution (Level II) data have been acquired from multiple Southern Plains radars under the auspices of the Collaborative Radar Acquisition Field Test (CRAFT) project

  • Convective cases from 2000 and 2001 from the initial set of six radars (KAMA, KFWS, KINX, KLBB, KSRX, and KTLX) have been processed using the MDA; additional radars available for 2002

  • Approximately 2500 hours of data have been processed from each radar of the initial set of six radars, 80% from 2001


Algorithm output
Algorithm Output

  • Location of center of mesocyclone  analyze, display on Geographic Information System, associate with severe weather reports

  • Many other parameters indicating strength, size, intensity of shear, etc… of the mesocyclone  basis for filtering detections

  • Companion algorithms provide additional information about parent thunderstorm

    Point: Developed to support operational forecasting, not climatological study


Challenges
Challenges

  • Large amount of data requires an almost fully automated procedure

  • High number of “weak” detections (Mesocyclone Strength Rank = 0) tends to obscure the stronger and more significant detections

  • Obvious spurious detections caused radar characteristics and algorithm limitations

    • Ground clutter

    • Anomalous propagation

    • Incorrectly de-aliased velocity data


Filtering techniques
Filtering Techniques

  • Remove “false” MDA detections that meet any of the following criteria:

    • Located within 5 km of the radar

    • Located at the maximum unambiguous velocity range

    • Weak in intensity (Meso. Strength Rank = 0)

    • Detected in clear air mode (VCP 31 or 32)

    • Not associable with a SCIT-defined storm cell at time of detection

Initial Filtering

“SCIT” Filtering


Determining scit filter radius
Determining SCIT Filter Radius

Correlation of Mesocyclone Low-level Rot. Vel. And SCIT Derived Storm-cell VIL as a Function of Separation Distance Between Centroids

% of KTLX Mesocyclone Detections Retained as a Function of SCIT Filter Search Radii


Example of scit filtering

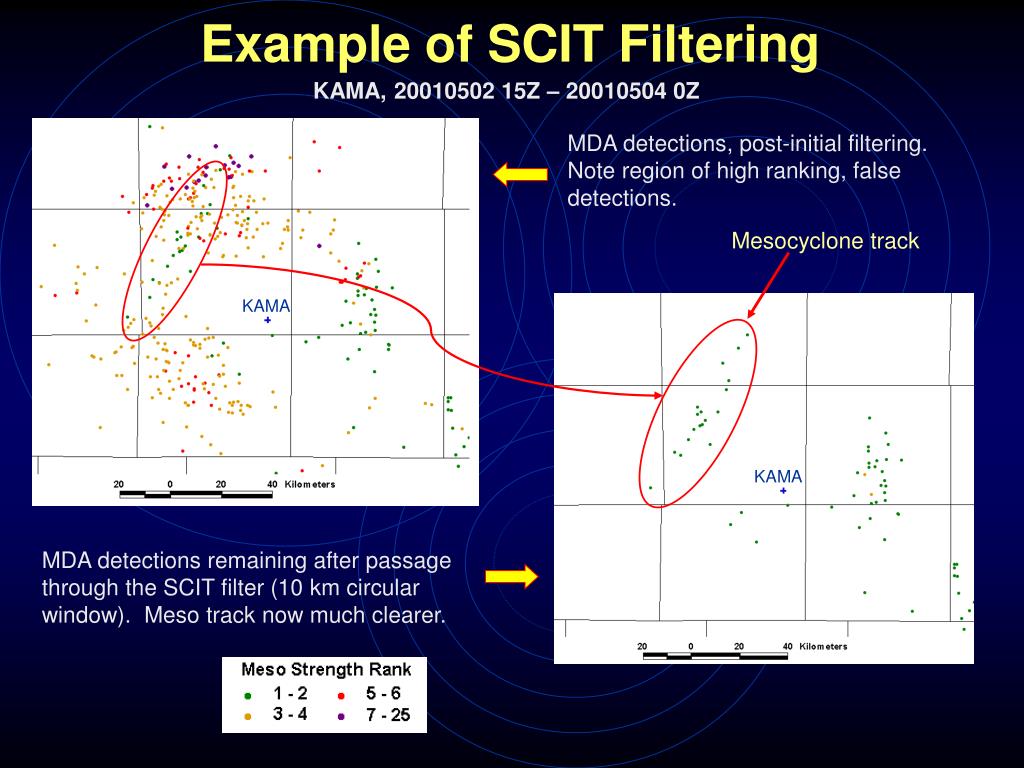

Example of SCIT Filtering

KAMA, 20010502 15Z – 20010504 0Z

MDA detections, post-initial filtering. Note region of high ranking, false detections.

Mesocyclone track

KAMA

KAMA

MDA detections remaining after passage through the SCIT filter (10 km circular window). Meso track now much clearer.


Unfiltered 2000 and 2001 ktlx detections
Unfiltered 2000 and 2001 KTLX Detections

N = 256,345

Mesocyclone Detections

Density of Mesocyclone Detections


True 2000 and 2001 ktlx detections
True” 2000 and 2001 KTLX Detections

N = 18,788

SCIT-Filtered Mesocyclones

Density of SCIT-Filtered Detections

 Using a circular window of 10 km.


True 2000 and 2001 ktlx detections1
True” 2000 and 2001 KTLX Detections

Equal Area Range Bins Histogram

Azimuth Histogram


Number of mda detections
Number of MDA Detections

 Removed detections with range  5 km, range equal to maximum unambiguous velocity range, MSr = 0, or those detected in VCP = 31 or 32.


True” Detections Using a 10 km search window

KAMA

KFWS

KAMA

KINX

KTLX

KLBB

KFWS

KINX


True” Detections Using a 10 km search window

KAMA

KTLX

KINX

KINX

KSRX

KFWS


Density of “True” Detections Using a 10 km search window

KAMA

KAMA

KTLX

KFWS

KLBB

KLBB

KFWS


Density of “True” Detections Using a 10 km search window

KAMA

KTLX

KINX

KFWS

KFWS

KFWS

KINX

KSRX


Mesocyclones cyclonic and anticyclonic

Mesocyclones:Cyclonic and Anticyclonic

Data are processed twice, once to detect cyclonic mesocyclones, a second time to detect anticyclonic mesocyclones; same filtering technique used each to remove “false” detections


Cyclonic

Detections after initial + SCIT filtering (10km window): 1215


Anticyclonic

Detections after initial + SCIT filtering (10km window): 851


May 5 6 2002 meso cyclones
May 5 – 6, 2002 Mesocyclones

Cyclonic

Detections after initial filtering: 4601 after SCIT filtering (10km window): 3139


May 5 6 2002 meso anticyclones
May 5 – 6, 2002 Mesoanticyclones

Anticyclonic

Detections after initial filtering: 4055 after SCIT filtering (10km window): 2617


Associating detections with tornadoes

Associating Detections With Tornadoes

Use GIS system to associate reported tornadoes temporally and spatially with “true” detections of mesocyclones: time  +30, -10 minutes, space  w/i 10 km

N.B.: Some tornado reports not associated with a pre-SCIT filtered mesocyclone detection; SCIT filtering of detections resulted in a few additional tornadoes not being associated with a “true” mesocyclone detection


2000 tornadic detections
2000 Tornadic Detections

KINX

KTLX

KSRX

KAMA

KLBB

KFWS


2001 tornadic detections
2001 Tornadic Detections

KINX

KSRX

KTLX

KAMA

KLBB

KFWS



  • A large percentage of MDA detections are spurious  probably real shear regions, but not mesocyclones; study provides different perspective on performance of the operational algorithm

  • The quality of a mesocyclone detection data set can be significantly improved using rather simple filtering techniques

  • Results for an area dependent on how radar is operated in that region  “national network”, but each radar is under local control

  • Surprising number of anticyclonic events  algorithm artifact?

  • Very small percentage of tornadic mesocyclones  long period – 10 years?, 20 years? – required to develop a climatology with high degree of certainty



  • Processing of 2002 data continues…

  • Expanding the study to include KDDC, KFDR, KICT, and KVNX

  • Developing filtering techniques that require less human interaction. Specifically, filtering of the concentration of detections at so-called “first trip rings”

  • Exploring use of existing data set for evaluating of skill in tornadic forecast parameters

  • Exploring how to group multiple individual detections into families which represent single mesocyclones

  • Reviewing nature of algorithms to identify possibility that some, perhaps many anticyclonic detections are artifacts of a cyclonic detection (works other way, too!)


Acknowledgements
Acknowledgements

  • Don Burgess, NSSL

  • Kelvin Droegemeier, CAPS

  • Jason Levit, CAPS

  • Greg Stumpf, NSSL

  • Andy White, School of Meteorology,OU

  • Oklahoma NASA Space Grant Consortium

  • NOAA Warning Decision Training Branch

    Point: True Oklahoma Weather Center project, would not have been possible without assistance, collaboration by many folks in different organizations


Contact information
Contact Information

John T. Snow

College of Geosciences

University of Oklahoma

100 E. Boyd, Suite 710

Norman, OK 73019 USA

Telephone: 405-325-3101

FAX: 405-325-3148

E-mail: [email protected]

Project URL: http://mesocyclone.ou.edu
